key battery TOYOTA GT86 2017 1.G Owners Manual

TABLE OF CONTENTSIndex
4
4-3. Do-it-yourself maintenance
Do-it-yourself service precautions ...................... 250
Hood................................... 253
Positioning a floor jack ....... 255
Engine compartment .......... 257
Tires ................................... 270
Tire inflation pressure......... 277
Wheels ............................... 281
Air conditioning filter ........... 284
Wireless remote control key battery ....................... 287
Checking and replacing fuses ................................ 290
Light bulbs .......................... 298
5-1. Essential information Emergency flashers ........... 306
If your vehicle needs to be towed ............................... 307
If you think something is wrong ............................... 315
Fuel pump shut off system .............................. 316 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds... .......................... 317
If you have a flat tire ........... 327
If the engine will not start .................................. 338
If the shift lever cannot be shifted from P ................... 339
If you lose your keys ........... 340
If the battery is discharged ........................ 341
If your vehicle overheats..... 345
If the vehicle becomes stuck ................................. 348
If your vehicle has to be stopped in an
emergency........................ 350
6-1. Specifications Maintenance data (fuel, oil level, etc.) ........... 354
Fuel information .................. 366
Tire information................... 370
6-2. Customization Customizable features ........ 383
5When trouble arises
6Vehicle specifications

25
1-2. Opening, closing and locking the doors and trunk
1
Before driving
■
Vehicle finder function
■ Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ Conditions affecting operation
The wireless remote control function may not operate normally in the follow-
ing situations:
●When the wireless key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
● When carrying a portable radio, cellular phone or other wireless commu-
nication devices
● When the wireless key is in contact with, or is covered by a metallic
object
● When other wireless key (that emit radio waves) is being used nearby
● If window tint with a metallic content or metallic objects are attached to
the rear window
When the function is set, a buzzer
(sounds once) and the emergency flash-
ers (flash 3 times) are used to inform the
driver of the vehicle’s location.
Press 3 times within 5 seconds
while within a circumference of approxi-
mately 30 ft. (10 m) from of the vehicle.
However, if the interval between the 3
presses is short, the system may not be
activated. This setting must be custom-
ized at your Toyota dealer.

26 1-2. Opening, closing and locking the doors and trunk
■Key battery depletion
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. ( →P. 287)
■ When the wireless remote control battery is fully depleted
→P. 287
■ Customization that can be conf igured at your Toyota dealer
Settings (e.g. wireless remote control system) can be changed.
(Customizable features →P. 383)
■ Certification for wireless remote control
For vehicles sold in the U.S.A.
FCC ID: HYQ23AAC FCC ID: HYQ12BEL
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
For vehicles sold in Canada
NOTE:
This device complies with Industry Canada’s licence-exempt RSSs. Opera-
tion is subject to the following two conditions: (1) This device may not cause
interference; and (2) This device must accept any interference, including
interference that may cause undesired operation of the device.
NOTE:
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accept er tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.

143
2-1. Driving procedures
2
When driving
■
Turning the key from “ACC” to “LOCK”
Shift the shift lever to N (manual transmission) or P (automatic
transmission). ( →P. 145, 152)
■ If the engine does not start
The engine immobilizer system may not have been deactivated. ( →P. 61)
Contact your Toyota dealer.
■ When the steering lock cannot be released
■ Key reminder function
A buzzer sounds if the driver’s door is opened while the engine switch is in
the “LOCK” or “ACC” position to remind you to remove the key\
.
■ Immediately after reconnecting the battery terminals due to replacing
the battery and so forth
The engine may not start. If this occurs, turn the engine switch to the “O\
N”
position, and start the engine after waiting at least 10 seconds. Idling may be
unstable immediately after the engine starts, however, this is not a malfunc-
tion.
STEP 1
Push in the key and turn to the “LOCK”
position.STEP 2
When starting the engine, the engine
switch may seem stuck in the “LOCK”
position. To free it, turn the key while turn-
ing the steering wheel slightly left and
right.

Maintenance and care4
235
4-1. Maintenance and careCleaning and protecting the vehicle exterior......... 236
Cleaning and protecting the vehicle interior.......... 240
4-2. Maintenance Maintenance requirements .................. 244
General maintenance....... 246
Emission inspection and maintenance (I/M)
programs........................ 249 4-3. Do-it-yourself
maintenance
Do-it-yourself service precautions .................... 250
Hood ................................ 253
Positioning a floor jack ................................ 255
Engine compartment ........ 257
Tires ................................. 270
Tire inflation pressure ...... 277
Wheels ............................. 281
Air conditioning filter......... 284
Wireless remote control key battery ..................... 287
Checking and replacing fuses .............................. 290
Light bulbs........................ 298

287
4-3. Do-it-yourself maintenance
4
Maintenance and care

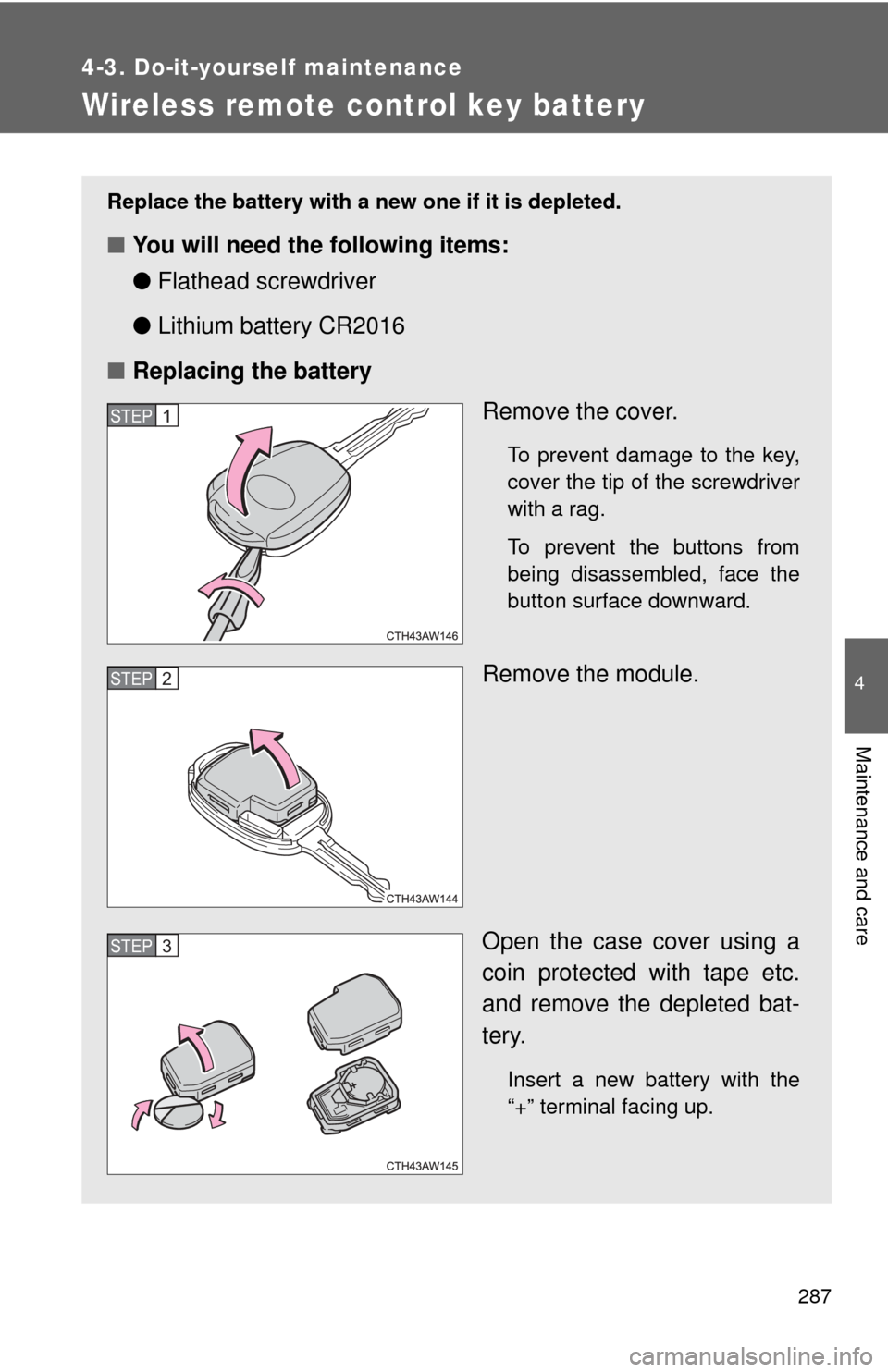

Wireless remote control key battery
Replace the battery with a new one if it is depleted.
■You will need the following items:
●Flathead screwdriver
● Lithium battery CR2016
■ Replacing the battery
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver
with a rag.
To prevent the buttons from
being disassembled, face the
button surface downward.
Remove the module.
Open the case cover using a
coin protected with tape etc.
and remove the depleted bat-
tery.
Insert a new battery with the
“+” terminal facing up.
STEP 1
STEP 2
STEP 3

288 4-3. Do-it-yourself maintenance
■Use a CR2016 lithium battery
●Batteries can be purchased at your Toyota dealer, local electrical appli-
ance shops or camera stores.
● Replace only with the same or equivalent type recommended by the
manufacturer.
● Dispose of used batteries according to local laws.
■ If the key battery is depleted
The following symptoms may occur:
●The wireless remote control will not function properly.
● The operational range will be reduced.
■ When putting the module back
WARNING
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
Insert the module from directly above.
Inserting it on an angle may prevent the
key buttons from operating properly.

When trouble arises5
305
5-1. Essential informationEmergency flashers ......... 306
If your vehicle needs to be towed .................... 307
If you think something is wrong ......................... 315
Fuel pump shut off system ........................... 316 5-2. Steps to take in an
emergency
If a warning light turns on or a warning
buzzer sounds... ............ 317
If you have a flat tire......... 327
If the engine will not start ................................ 338
If the shift lever cannot be shifted from P................. 339
If you lose your keys ........ 340
If the battery is discharged ..................... 341
If your vehicle overheats ....................... 345
If the vehicle becomes stuck .............................. 348
If your vehicle has to be stopped in an
emergency ..................... 350

417
Alphabetical index
Child safety
Airbag precautions ................. 97
Battery precautions ...... 267, 343
Child restraint system ........... 112
How your child should
wear the seat belt................. 44
Installing child restraints ....... 116
Power window lock switch ...... 54
Power window precautions .......................... 56
Removed key battery
precautions ........................ 288
Seat belt guide ....................... 43
Seat belt precautions.............. 46
Trunk precautions................... 32
Cleaning Aluminum wheels ................. 237
Exterior ................................. 236
Interior .................................. 240
Seat belts ............................. 241
Clock ........................................ 229
Condenser ............................... 263
Console tray ............................ 225
Coolant Capacity ............................... 360
Checking .............................. 261
Cooling system Engine overheating .............. 345
Cruise control .......................... 179 Cup holders ..............................225
Curtain shield airbags ...............66
Customizable features.............383
Daytime running light
system ....................................173
Defogger
Rear window .........................215
Side mirror.............................215
Dimension.................................354
Dinghy towing ..........................205
Display Multi-information display .......165
Trip information .....................166
Do-it-yourself main tenance.....250
Doors
Door lock ...........................24, 27
Door windows..........................54
Side mirrors .............................51
Driver's seat belt reminder light.........................320
Driving
Break-in tips ..........................131
Correct posture .......................64
Procedures ............................128
Winter drive tips ....................200
D

418 Alphabetical index
Electric power steering ........... 184
Emergency flashersSwitch.................................... 306
Emergency, in case of If the engine will not start ...... 338
If the shift lever cannot
be shifted from P................. 339
If the vehicle has a
discharged battery .............. 341
If the warning buzzer sounds ................................ 317
If the warning light turns on ............................... 317
If you have a flat tire ............. 327
If you lose your keys ............. 340
If you think something is wrong .................................. 315
If your vehicle becomes stuck ................................... 348
If your vehicle has to be
stopped in an
emergency .......................... 350
If your vehicle needs to
be towed ............................. 307
If your vehicle overheats ....... 345 Engine
Compartment ........................ 257
Engine switch ........................ 142
Hood ..................................... 253
How to start the engine ......... 142
Identification number............. 355
If the engine will not start ...... 338
Ignition switch ....................... 142
Overheating .......................... 345
Engine coolant Capacity ................................ 360
Checking ............................... 261
Engine coolan t temperature
gauge ...................................... 158
Engine immobilizer system ...... 61
Engine oil Capacity ................................ 358
Checking ............................... 258
Preparing and checking before winter ....................... 200
Engine switch........................... 142
Engine switch light .................. 220
EPS............................................ 184
Event data recorder ................... 18E
