audio TOYOTA GT86 2017 1.G Quick Reference Guide

22

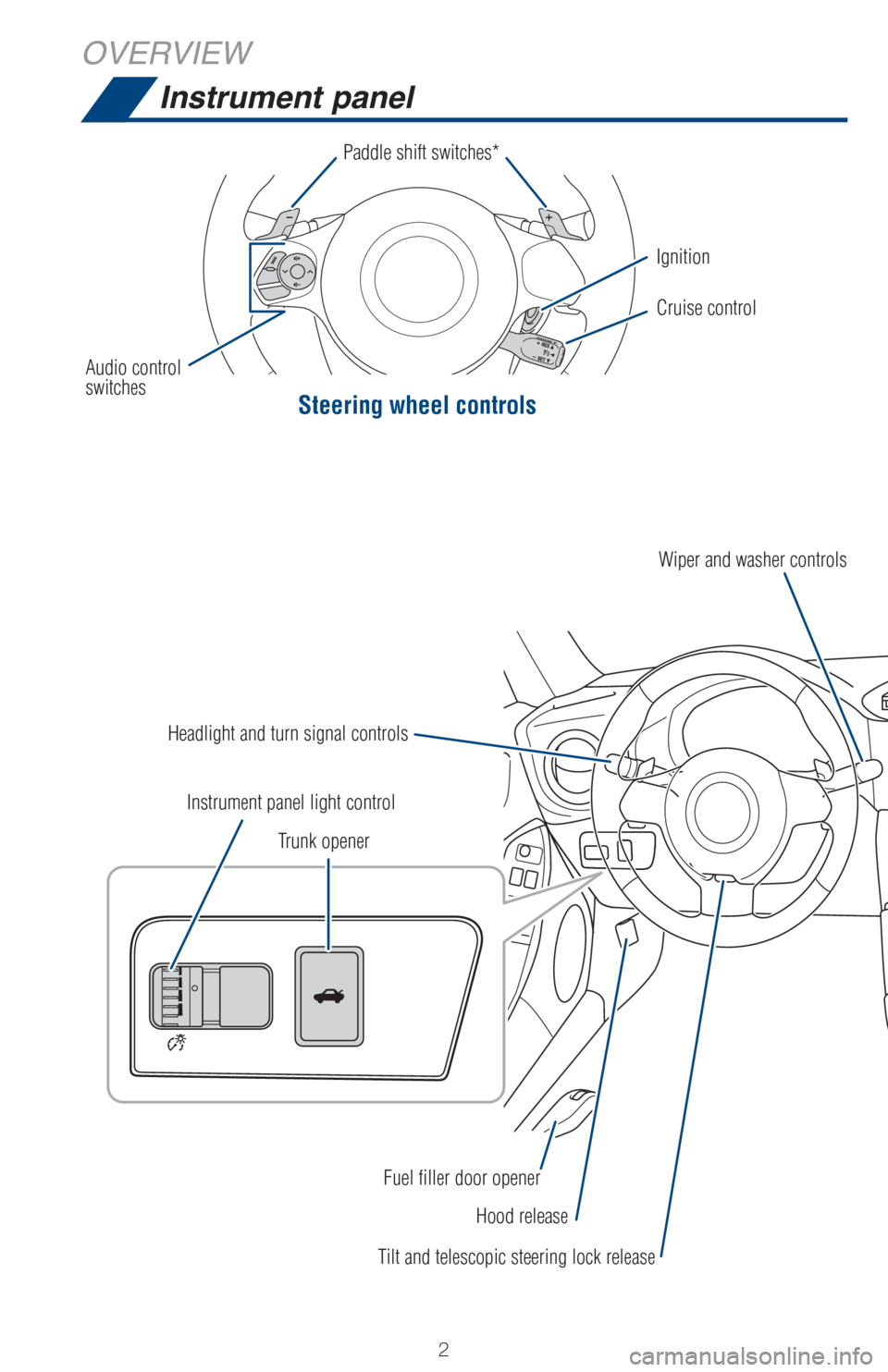

Instrument panel
Steering wheel controls
OVERVIEW
Paddle shift switches*
Audio control
switches Ignition
Headlight and turn signal controls Wiper and washer controls
Tilt and telescopic steering lock release Hood release
Fuel filler door opener
Trunk opener
Instrument panel light control Cruise control

1616
Power outlets
Cup/bottle holders

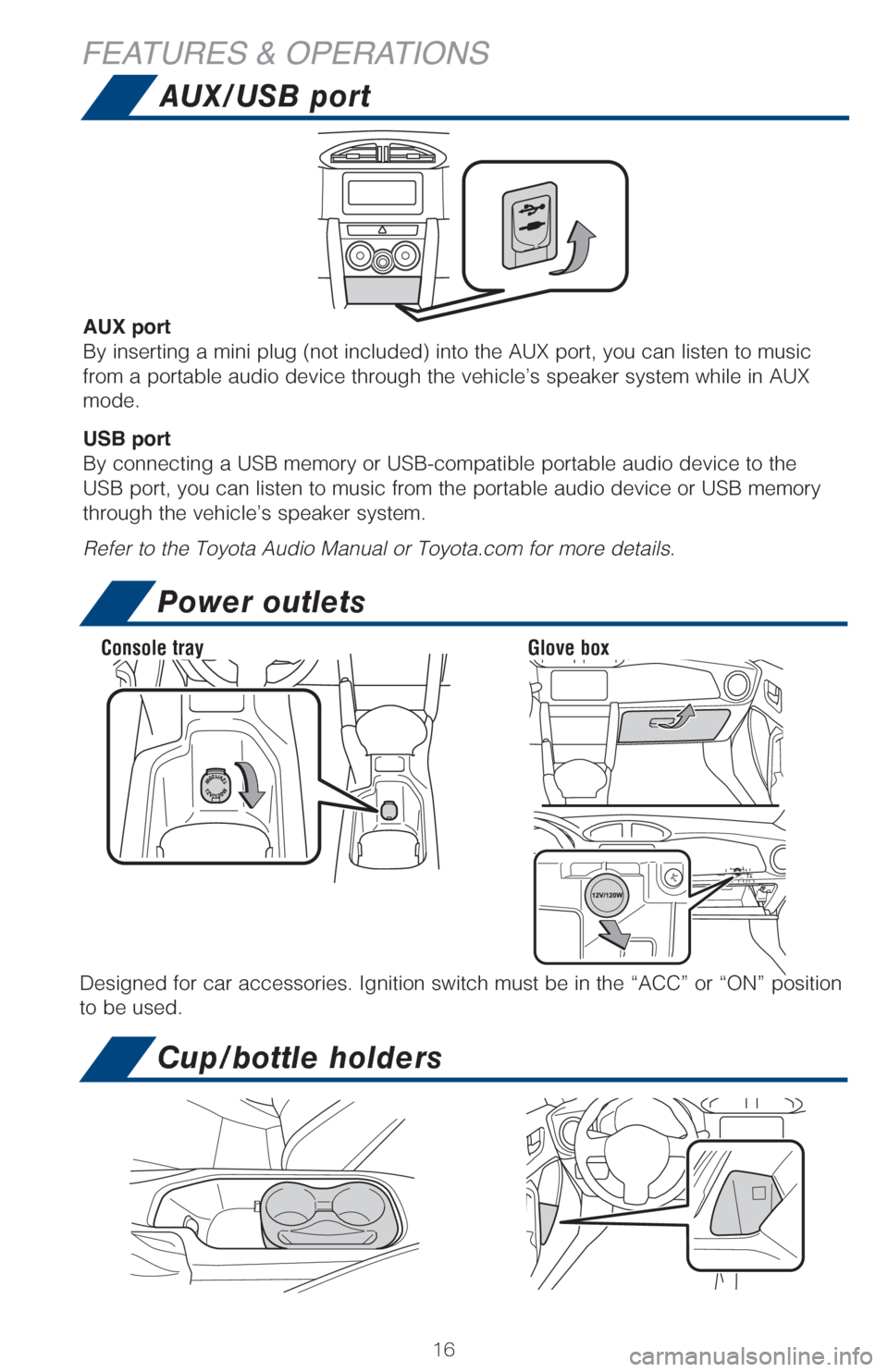

FEATURES & OPERATIONSAUX/USB port
AUX port
By inserting a mini plug (not included) into the AUX port, you can lis\
ten to music
from a portable audio device through the vehicle’s speaker system whi\
le in AUX
mode.
USB port
By connecting a USB memory or USB-compatible portable audio device to th\
e
USB port, you can listen to music from the portable audio device or USB \
memory
through the vehicle’s speaker system.
Refer to the Toyota Audio Manual or Toyota.com for more details.
Designed for car accessories. Ignition switch must be in the “ACC”\
or “ON” position
to be used.
Console trayGlove box

2222
PAIRING BLUETOOTH® PHONE FOR THE FIRST TIME
Touch Screen Display Audio and Display Audio with Navigation1
To use the hands-free system3, it is necessary to pair a Bluetooth®2
phone with the system. Once the phone has been paired, it is possible to
use the hands-free system
3. This operation cannot be performed while
driving. (NOTE: The Bluetooth®2 pairing process for Non-Navigation and
Navigation1 units differ, as noted below)
You can pair up to 4 devices.
1.Turn the Bluetooth
®2 connection
setting of your cellular phone ON.
[See Figures 1 & 2] a. Pairing is not available when
Bluetooth
®2 setting of your
phone is set to OFF.
2. Press the “Phone” button to
display the “Phone” screen. Touch
“Yes” to register a phone. (Non-
Navigation units – skip to step 4)
[See Figure 3]
3. Touch the “Make system
discoverable”* button. [See Figure 4]
* On Android™ devices, you will need
to make your phone visible to searching
devices.
Figure 3 Figure 1: iOS
Figure 2: Android
Figure 4: With Navigation
