cruise control TOYOTA GT86 2017 1.G Quick Reference Guide

OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
11
INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry 6
Light control-Instrument cluster 7
OVERVIEW
FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES
Air conditioning/heating 14
Automatic transmission 9
AUX/USB port
16
Clock 15
Cruise control 10
Cup/bottle holders 16
Door locks 15
Driving modes 10-11
Hill-start Assist Control (HAC) 11
Lights & turn signals 12
Manual transmission 9
Multi-Information Display (MID) 12
Parking brake 9
Power outlets 16
Rear view monitor system 17
Seat adjustments-Front 13
Seats-Fold down rear seats 13
Seats-Head restraints 13
Tilt steering wheel 14
Trunk release 15
Windows 14
Windshield wipers & washers 13 Floor mat installation
21
Seat belts 18
Spare tire & tools 19
Star Safety System
™ 20-21
Tire Pressure Monitoring
(warning) System (TPMS) 18
PAIRING BLUETOOTH® PHONE FOR
THE FIRST TIME 22-23

22
Instrument panel
Steering wheel controls
OVERVIEW
Paddle shift switches*
Audio control
switches Ignition
Headlight and turn signal controls Wiper and washer controls
Tilt and telescopic steering lock release Hood release
Fuel filler door opener
Trunk opener
Instrument panel light control Cruise control

44
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2017 Owner’s
Manual.
Anti-lock Brake System warning1
Brake system warning1
Airbag SRS warning1
Electric power steering system warning1
Fuel tank door position
Cruise control indicators2
Instrument cluster
Automatic Transmission fluid
temperature warning1
Hill-start assist control ON indicator Headlight low/high beam indicators
Headlight low/high beam indicators
Charging system warning1
AIR BAG ON and AIR BAG OFF indicator
1 If indicator does not turn off within a few seconds of starting engine, \
there may be a malfunction. Have vehicle inspected by your Toyota dealer.
Display switch
Indicator symbols
Analog speedometer
km/h MPH switch
Odometer/trip meter
display change switch Tachometer
Fuel gauge
Engine coolant temperature
Digital speedometer
Odometer/Trip meter
/Multi-Information Display
Service indicators and reminders
OVERVIEW

OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
55
Low fuel level warning1
Low Tire Pressure Warning1
2
If these lights come on in yellow, refer to “Cruise control” Sect\
ion 2-4, 2017 Owner’s Manual.3 If equipped.
Slip indicator1
Vehicle Stability Control OFF indicator1
Traction Control OFF indicator1
SNOW indicator3
REV (engine RPM) indicator
Upshift/downshift indicator
Shift position indicator
Shift-up indicator
Shift position and shift range indicator Security indicator
SPORT indicator3
Turn signal indicator
TRACK mode indicator
Open door warning
Seat belt reminder (alarm will
sound if speed is over 12 mph)
Malfunction/
Check Engine indicator1
Low engine oil pressure warning1

1010
Normal mode
Sport mode
Use for sporty driving or when driving in mountainous regions with lots \
of curves.
Press this switch and the “SPORT” indicator illuminates.
Snow mode
Use for accelerating and driving on slippery road surfaces such as snow.\
Press this
switch and the “SNOW” indicator illuminates.
To cancel SPORT mode or SNOW mode, press the same side of the switch aga\
in
and it returns to normal driving mode.Refer to the Owner’s Manual for more details.
Driving modes

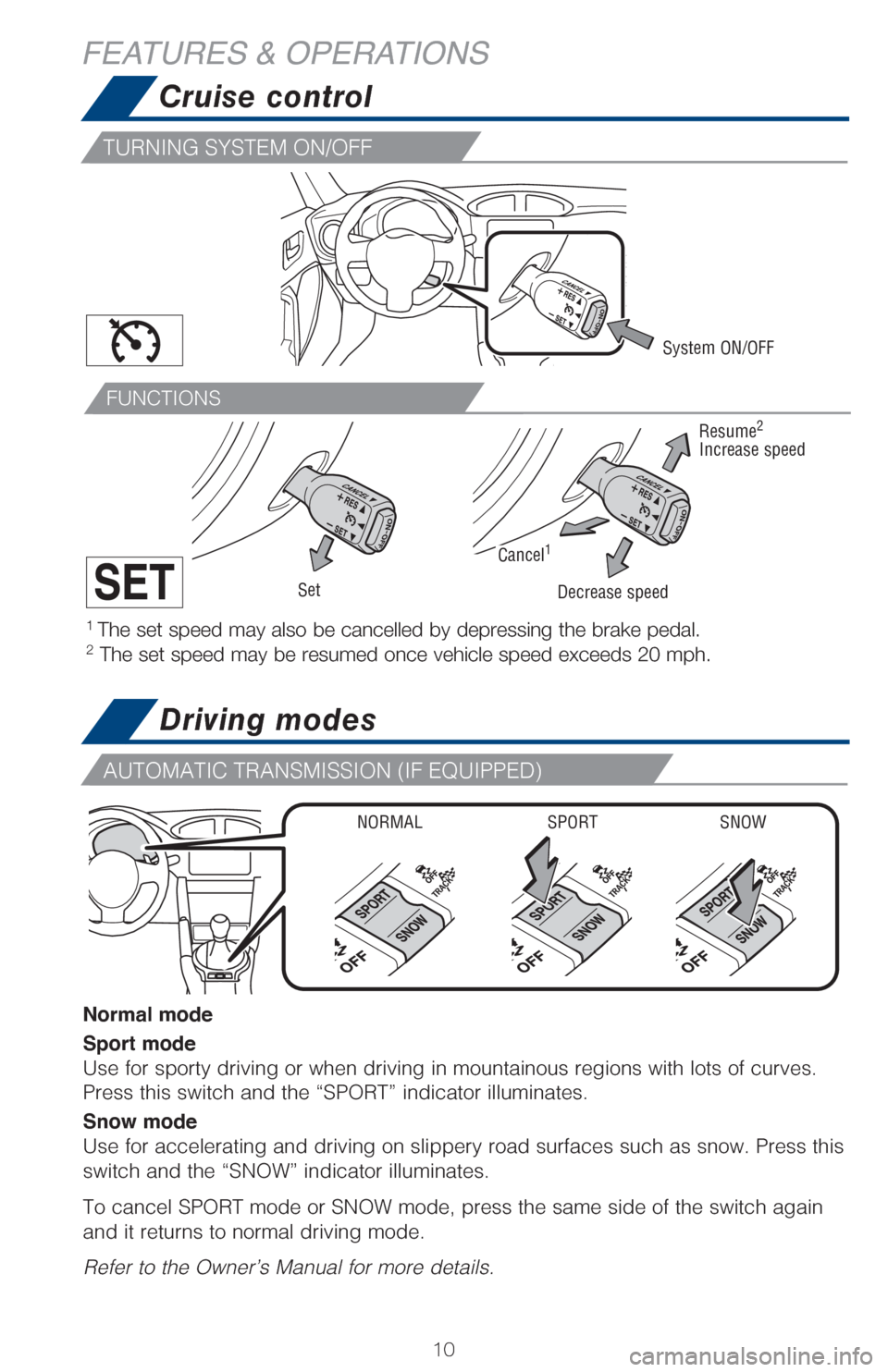

Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 20 mph.
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set
FEATURES & OPERATIONS
NORMAL SPORTSNOW
TURNING SYSTEM ON/OFF
AUTOMATIC TRANSMISSION (IF EQUIPPED)
FUNCTIONS
