ignition TOYOTA GT86 2017 1.G Quick Reference Guide

22
Instrument panel
Steering wheel controls
OVERVIEW
Paddle shift switches*
Audio control
switches Ignition
Headlight and turn signal controls Wiper and washer controls
Tilt and telescopic steering lock release Hood release
Fuel filler door opener
Trunk opener
Instrument panel light control Cruise control

OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
9
P
R
N
D
M
Park*
Reverse
Neutral
Drive
“M” mode
+ (“M” mode)
- (“M” mode)
+ (“M” mode)- (“M” mode)
Paddle shift switches Shift lever
* The ignition switch must be “ON” and the brake pedal depressed t\
o shift from
Park.
Shift the shift lever to “M” position from “D” position.
+: Upshifting

-: Downshifting
Refer to the Owner’s Manual for more details.
Pull(2) Push
(1) Pull slightly
(3) Lower
Set Release

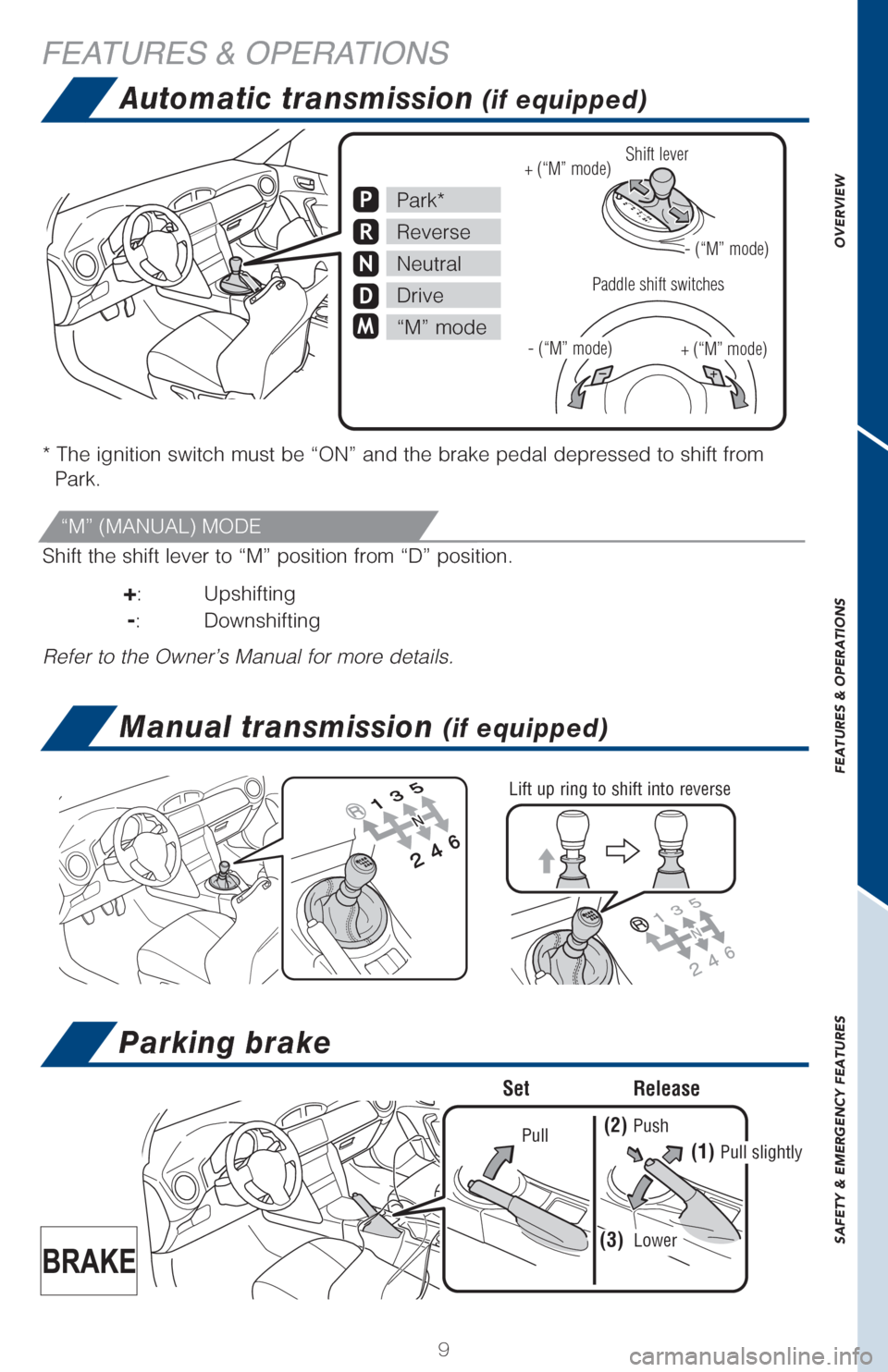

“M” (MANUAL) MODE
Automatic transmission (if equipped)
FEATURES & OPERATIONS
Lift up ring to shift into reverse
Manual transmission (if equipped)
Parking brake

OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
1515
Door locks
Trunk release
Push and hold
Trunk opener
Clock
00
* The ignition switch must be “ON.”
Minute setHour set
Round off minutes
Lock
Unlock

1616
Power outlets
Cup/bottle holders
FEATURES & OPERATIONSAUX/USB port
AUX port
By inserting a mini plug (not included) into the AUX port, you can lis\
ten to music
from a portable audio device through the vehicle’s speaker system whi\
le in AUX
mode.
USB port
By connecting a USB memory or USB-compatible portable audio device to th\
e
USB port, you can listen to music from the portable audio device or USB \
memory
through the vehicle’s speaker system.
Refer to the Toyota Audio Manual or Toyota.com for more details.
Designed for car accessories. Ignition switch must be in the “ACC”\
or “ON” position
to be used.
Console trayGlove box

OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
1717
Rear view monitor system
The rear view monitor system assists the driver by displaying an image o\
f the
camera’s view behind the vehicle when in reverse.
The backup camera does not provide a comprehensive view of the rear area\
of the
vehicle. You should also look around outside your vehicle and use your \
mirrors to
confirm rearward clearance. Environmental conditions may limit effectiv\
eness and
view may become obscured.
For more details, refer to the Owner’s Manual details.
To see the camera’s image of the view behind the vehicle on the monit\
or screen,
the vehicle ignition switch must be in the ON position and the gear sele\
ctor must be
in the REVERSE position.
If you shift the vehicle out of the “R” position, the screen retur\
ns to the previous
image.
