501
86_EE (OM18071E)

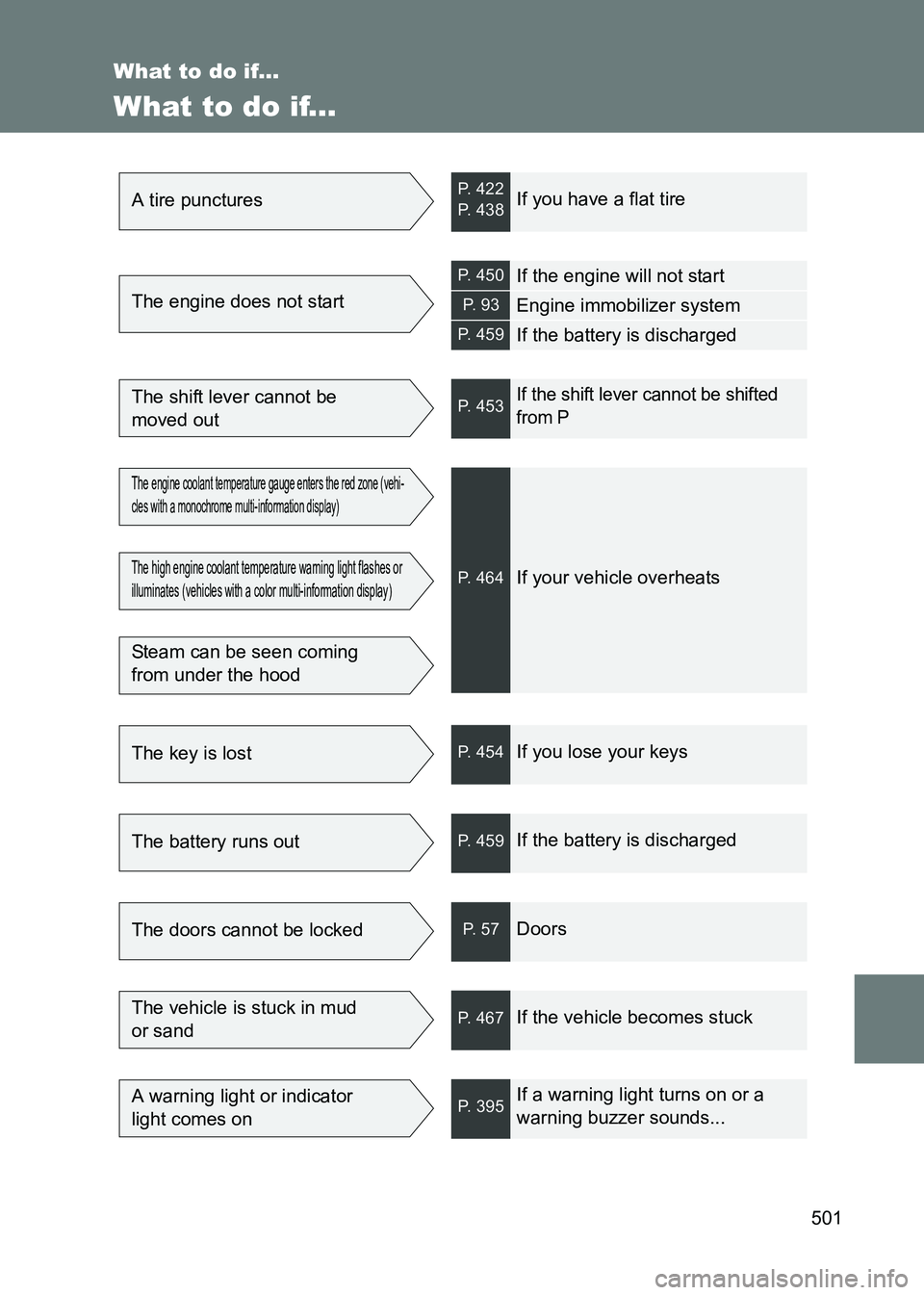

What to do if...
What to do if...
A tire puncturesP. 422
P. 438If you have a flat tire
The engine does not start
P. 450If the engine will not start
P. 9 3Engine immobilizer system
P. 459If the battery is discharged
The shift lever cannot be
moved outP. 453If the shift lever cannot be shifted
from P
The engine coolant temperature gauge enters the red zone (vehi-
cles with a monochrome multi-information display)
The high engine coolant temperature warning light flashes or
illuminates (vehicles with a color multi-information display)
Steam can be seen coming
from under the hood
P. 464If your vehicle overheats
The key is lostP. 454If you lose your keys
The battery runs outP. 459If the battery is discharged
The doors cannot be lockedP. 5 7Doors
The vehicle is stuck in mud
or sandP. 467If the vehicle becomes stuck
A warning light or indicator
light comes onP. 395If a warning light turns on or a
warning buzzer sounds...

502
What to do if...
86_EE (OM18071E)
■

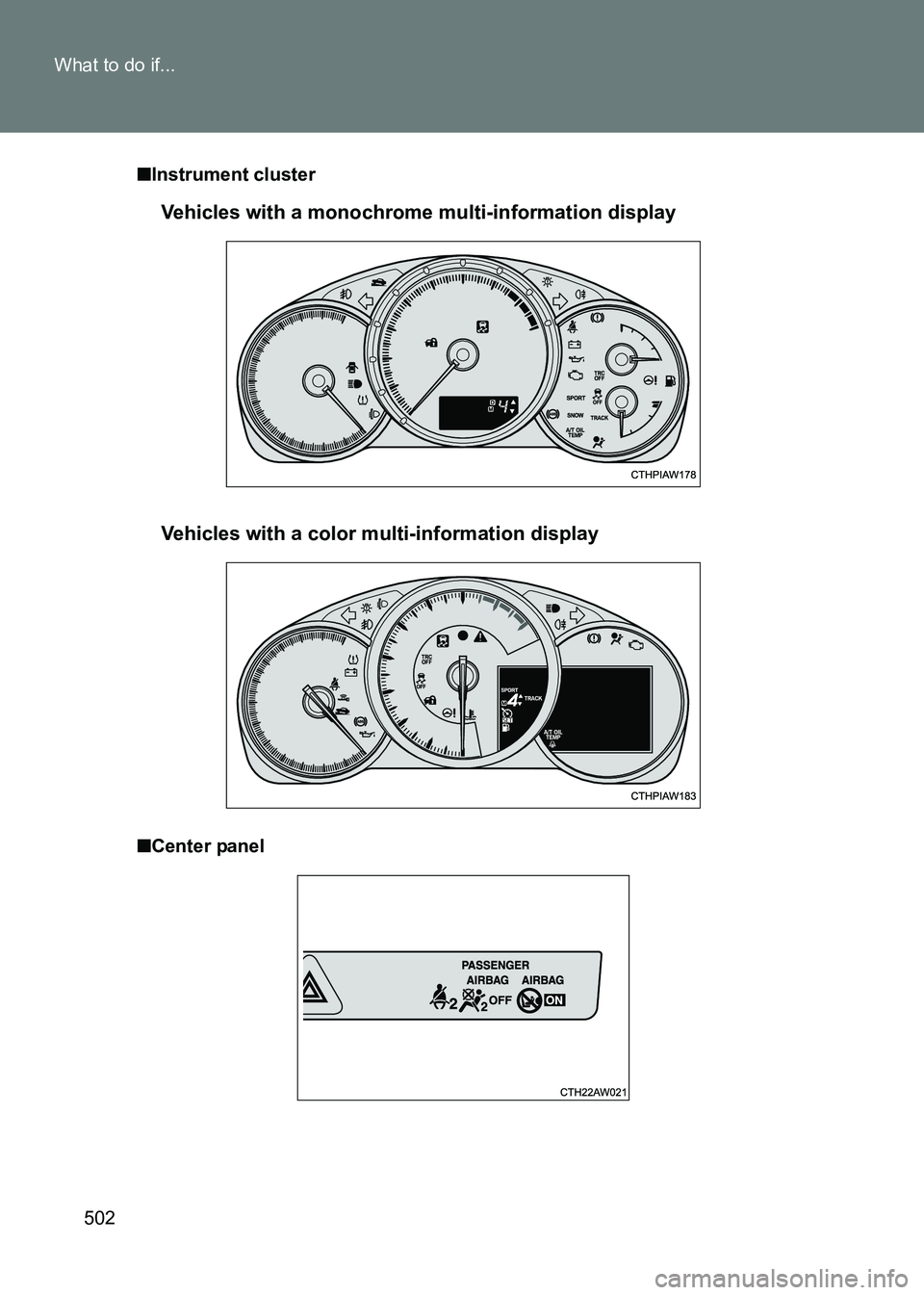

Instrument cluster
■ Center panel
Vehicles with a monochrome multi-information display
Vehicles with a color multi-information display

503
What to do if...
86_EE (OM18071E)
■

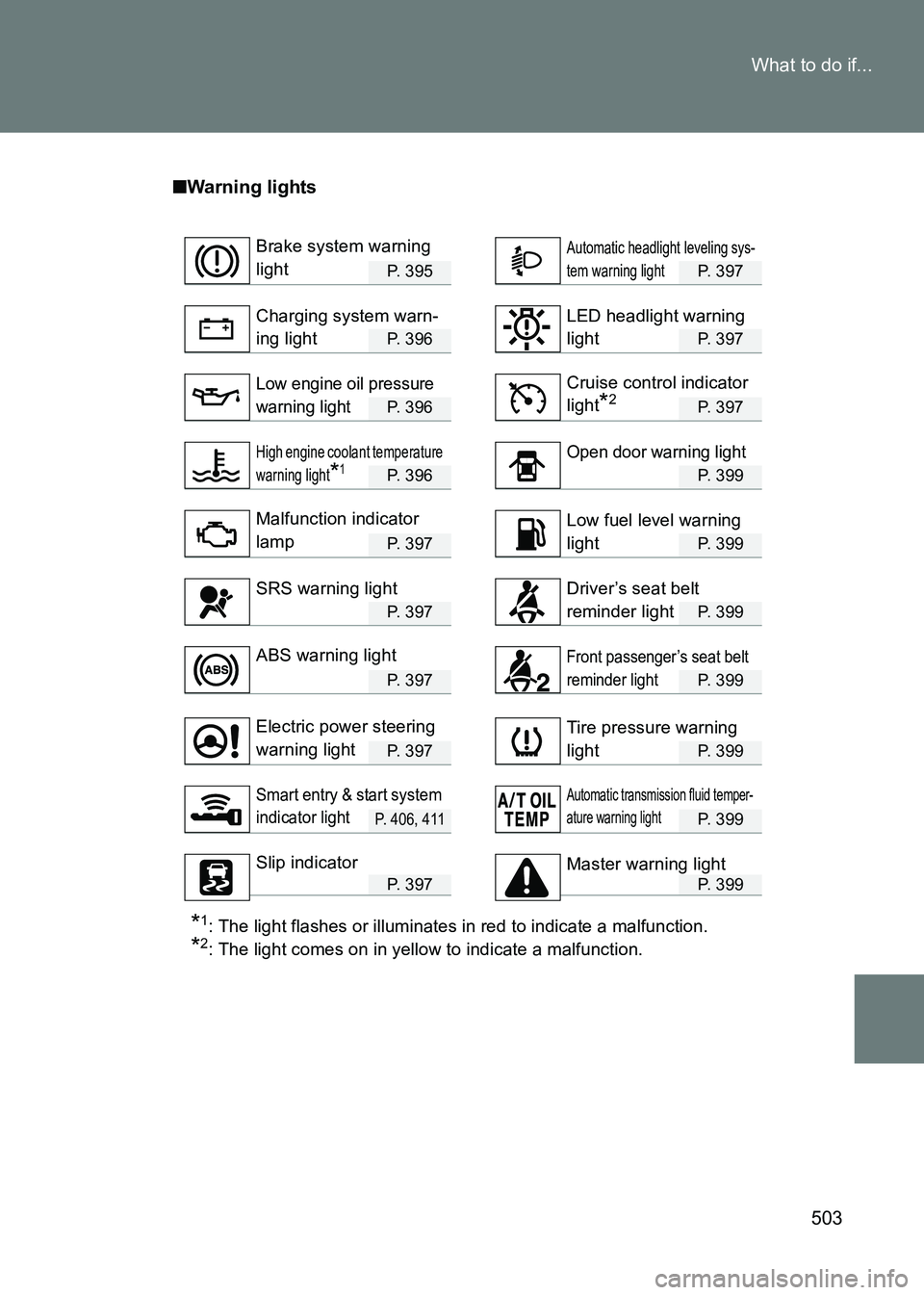

Warning lights
P. 395P. 397
P. 396P. 397
P. 396P. 397
P. 396P. 399
P. 397P. 399
P. 397P. 399
P. 397P. 399
P. 397P. 399
P. 406, 411P. 399
P. 397P. 399
*1: The light flashes or illuminates in red to indicate a malfunction.
*2: The light comes on in yellow to indicate a malfunction.
Brake system warning
lightAutomatic headlight leveling sys-
tem warning light
Charging system warn-
ing lightLED headlight warning
light
Low engine oil pressure
warning lightCruise control indicator
light
*2
High engine coolant temperature
warning light
*1Open door warning light
Malfunction indicator
lampLow fuel level warning
light
SRS warning lightDriver’s seat belt
reminder light
ABS warning lightFront passenger ’s seat belt
reminder light
Electric power steering
warning lightTire pressure warning
light
Smart entry & start system
indicator lightAutomatic transmission fluid temper-
ature warning light
Slip indicatorMaster warning light

504
86_EE (OM18071E)

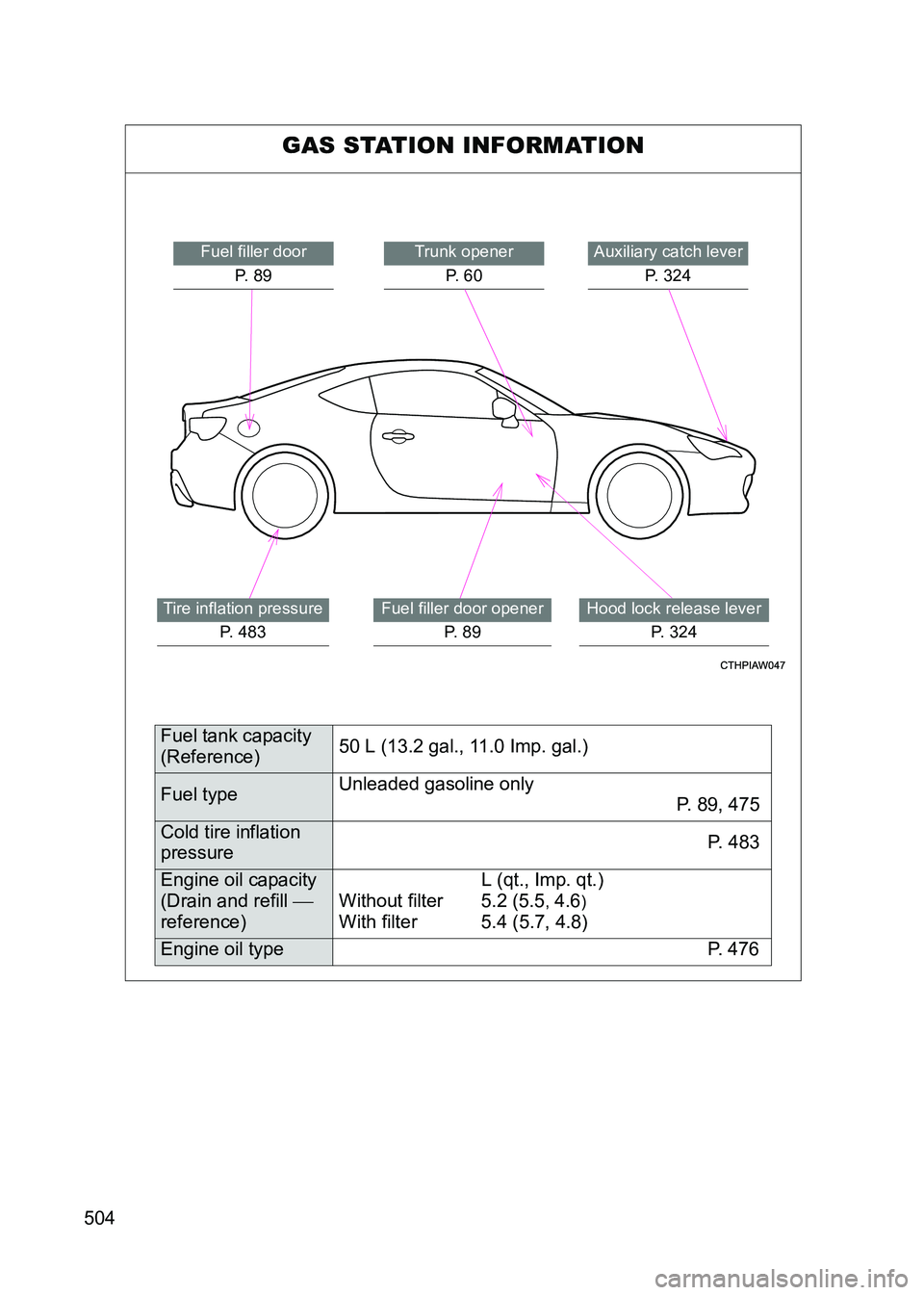

GAS STATION INFORMATION
Auxiliary catch leverP. 324Trunk openerP. 6 0
Hood lock release lever P. 324
Fuel filler door
P. 8 9
Tire inflation pressure P. 483Fuel filler door opener P. 8 9
Fuel tank capacity
(Reference) 50 L (13.2 gal., 11.0 Imp. gal.)
Fuel typeUnleaded gasoline only
P. 89, 475
Cold tire inflation
pressure P. 483
Engine oil capacity
(Drain and refill

reference) L (qt., Imp. qt.)
Without filter 5.2 (5.5
, 4.6)With filter 5.4 (5.7, 4.8)
Engine oil type P. 476

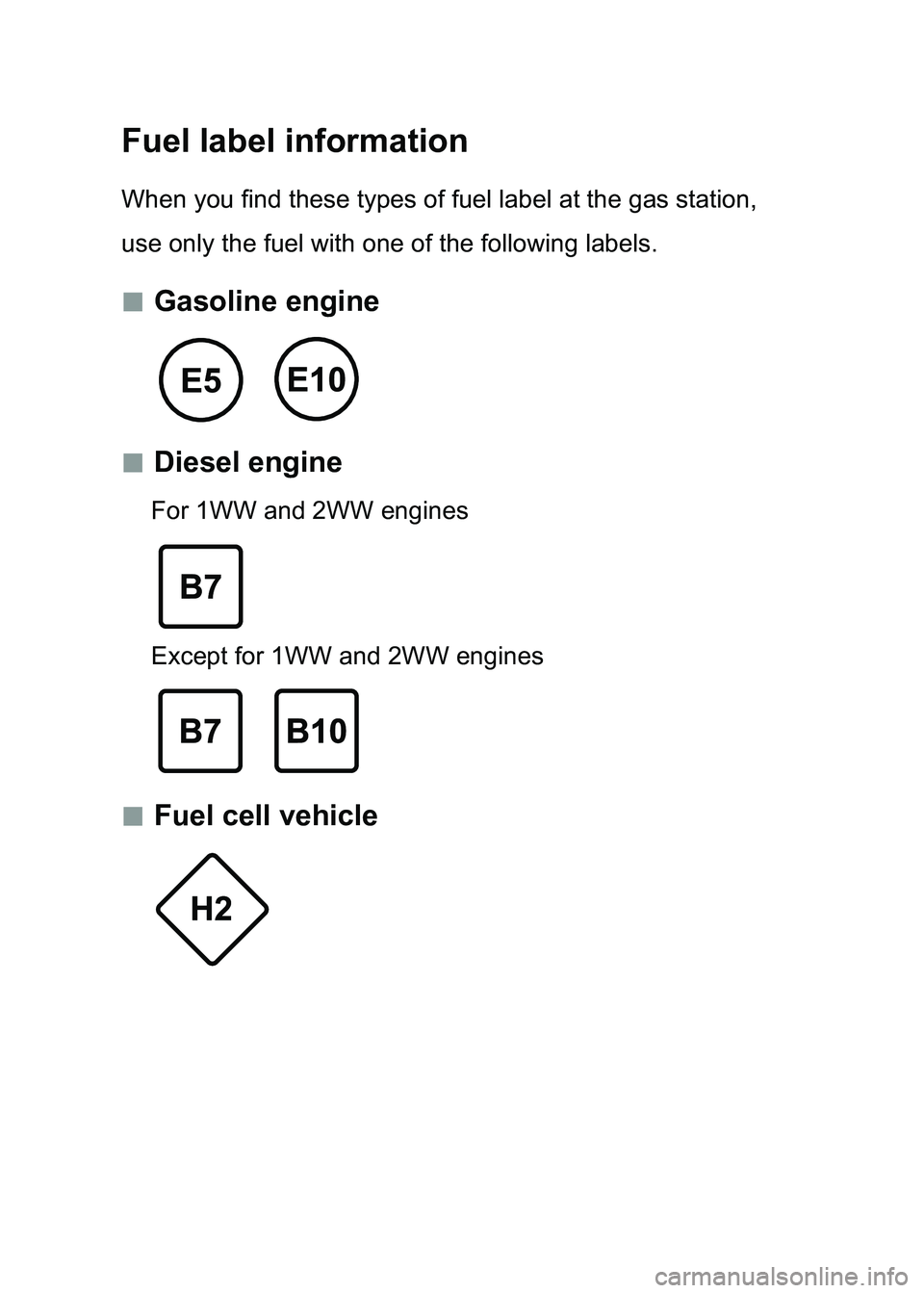

Fuel label information
When you find these types of fuel label at the gas station,
use only the fuel with one of the following labels.
„Gasoline engine
„Diesel engine
For 1WW and 2WW engines
Except for 1WW and 2WW engines
„Fuel cell vehicle
