fuses TOYOTA GT86 2017 Owners Manual (in English)

TABLE OF CONTENTSIndex
86_EE (OM18071E)
4
3-5. Other interior featuresSun visors ........................... 293
Vanity mirrors...................... 294
Clock ................................... 295
Ashtray................................ 296
Power outlets ...................... 297
Seat heaters ....................... 299
Floor mat............................. 301
Trunk features..................... 304
4-1. Maintenance and care Cleaning and protecting the vehicle exterior ........... 308
Cleaning and protecting the vehicle interior ............ 312
Cleaning and protecting the Alcantara
® area .......... 316
4-2. Maintenance Maintenance requirements..................... 318 4-3. Do-it-yourself maintenance
Do-it-yourself service precautions ...................... 321
Hood................................... 324
Positioning a floor jack ....... 326
Engine compartment .......... 328
Tires ................................... 341
Tire inflation pressure......... 352
Wheels ............................... 354
Air conditioning filter ........... 357
Wireless remote control/electronic
key battery ....................... 360
Checking and replacing fuses ................................ 364
Light bulbs .......................... 372
5-1. Essential information Emergency flashers ........... 384
If your vehicle needs to be towed ...................... 385
If you think something is wrong ............................... 393
Fuel pump shut off system.............................. 394
4Maintenance and care
5When trouble arises

4Maintenance and care
307
86_EE (OM18071E)

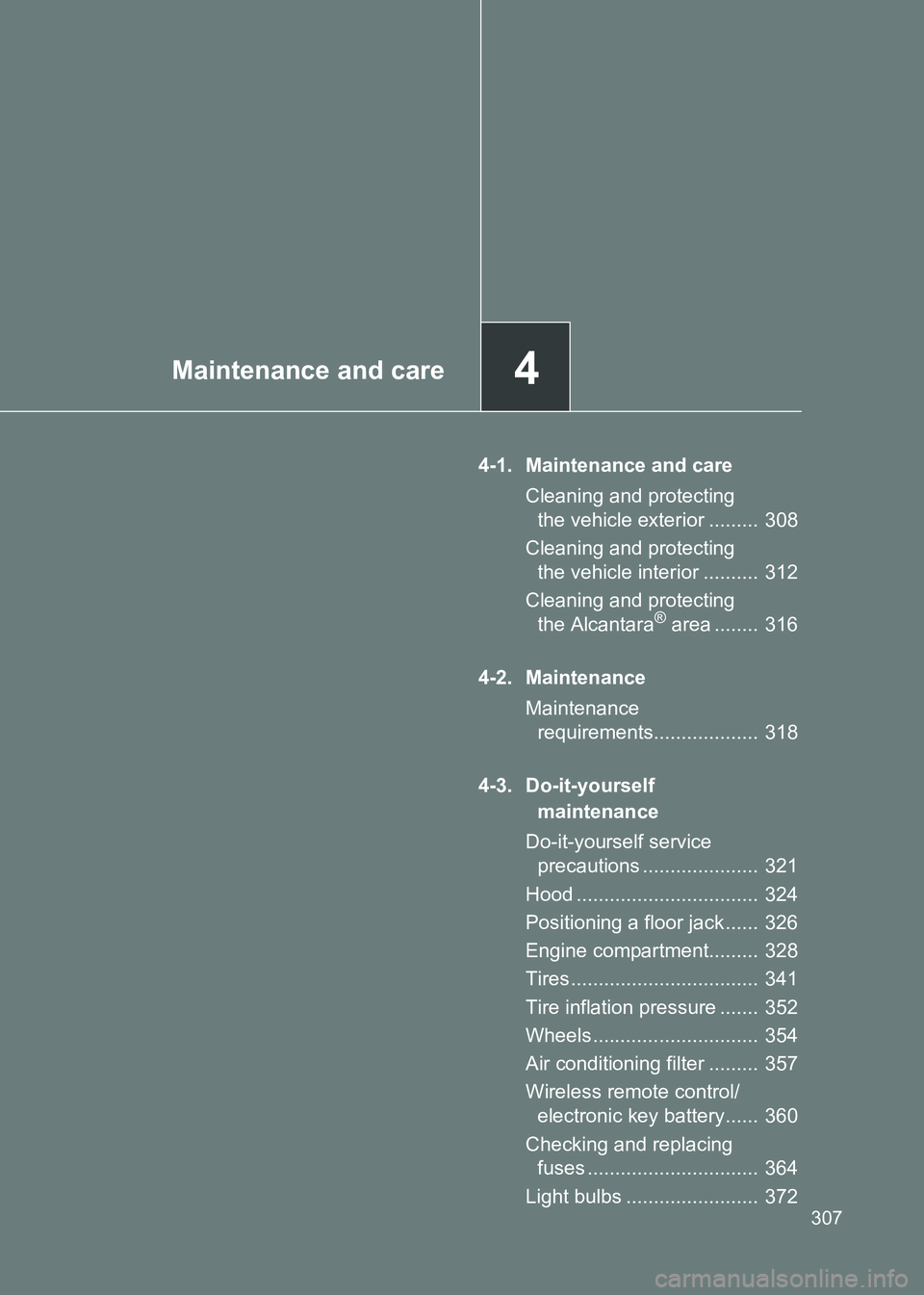

4-1. Maintenance and careCleaning and protecting the vehicle exterior ......... 308
Cleaning and protecting the vehicle interior .......... 312
Cleaning and protecting the Alcantara
® area ........ 316
4-2. Maintenance Maintenance requirements................... 318
4-3. Do-it-yourself maintenance
Do-it-yourself service precautions ..................... 321
Hood ................................. 324
Positioning a floor jack ...... 326
Engine compartment......... 328
Tires .................................. 341
Tire inflation pressure ....... 352
Wheels .............................. 354
Air conditioning filter ......... 357
Wireless remote control/ electronic key battery...... 360
Checking and replacing fuses ............................... 364
Light bulbs ........................ 372

321
4
Maintenance and care
86_EE (OM18071E)

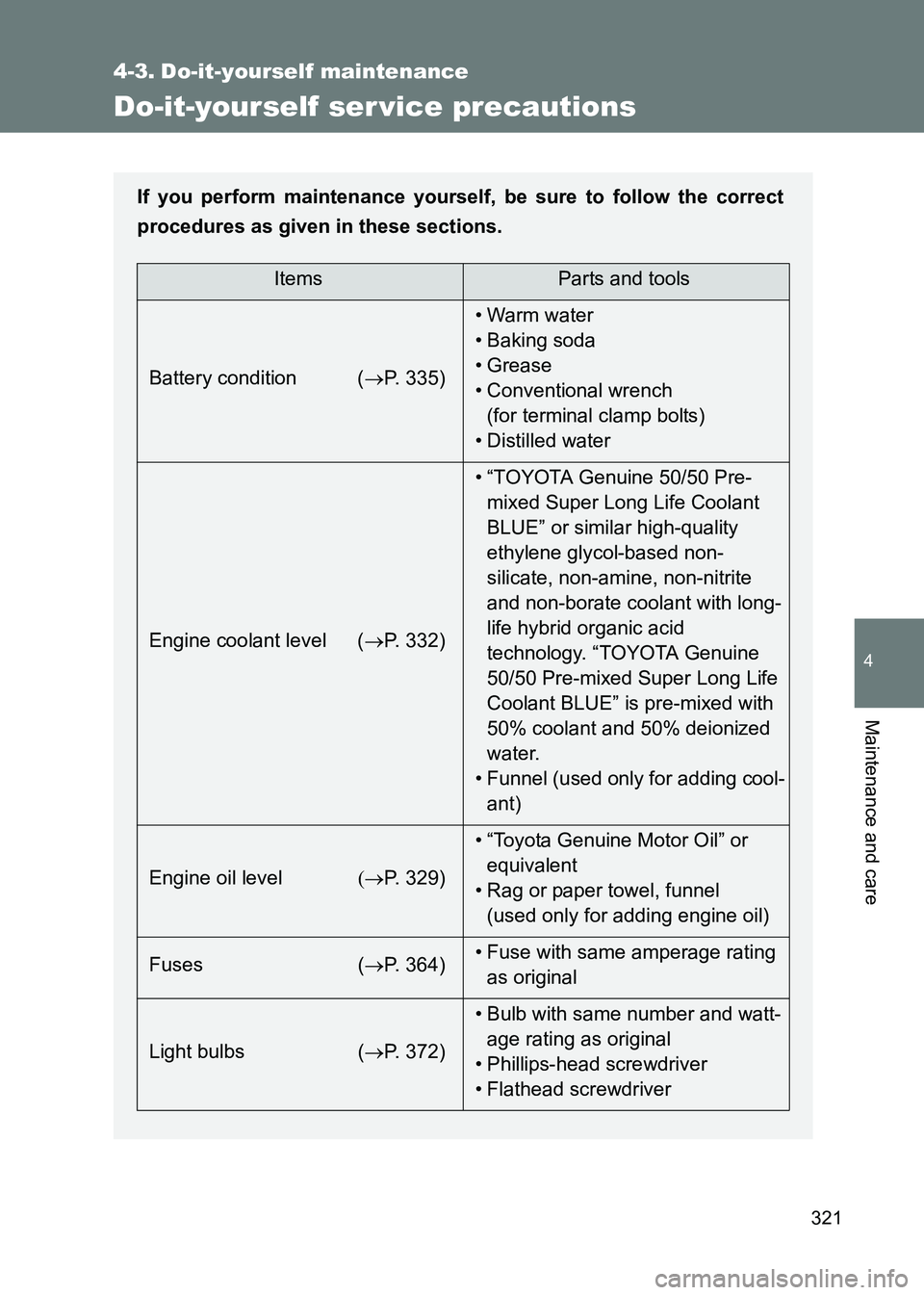

4-3. Do-it-yourself maintenance
Do-it-yourself ser vice precautions
If you perform maintenance yourself, be sure to follow the correct
procedures as given in these sections.
ItemsParts and tools
Battery condition ( →P. 335) •Warm water
• Baking soda
• Grease
• Conventional wrench
(for terminal clamp bolts)
• Distilled water
Engine coolant level ( →P. 332) • “TOYOTA Genuine 50/50 Pre-
mixed Super Long Life Coolant
BLUE” or similar high-quality
ethylene glycol-based non-
silicate, non-amine, non-nitrite
and non-borate coolant with long-
life hybrid organic acid
technology. “TOYOTA Genuine
50/50 Pre-mixed Super Long Life
Coolant BLUE” is pre-mixed with
50% coolant and 50% deionized
water.
• Funnel (used only for adding cool- ant)
Engine oil level (→P. 329) • “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel, funnel (used only for adding engine oil)
Fuses ( →P. 364) • Fuse with same amperage rating
as original
Light bulbs ( →P. 372) • Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
• Flathead screwdriver

364
4-3. Do-it-yourself maintenance
86_EE (OM18071E)

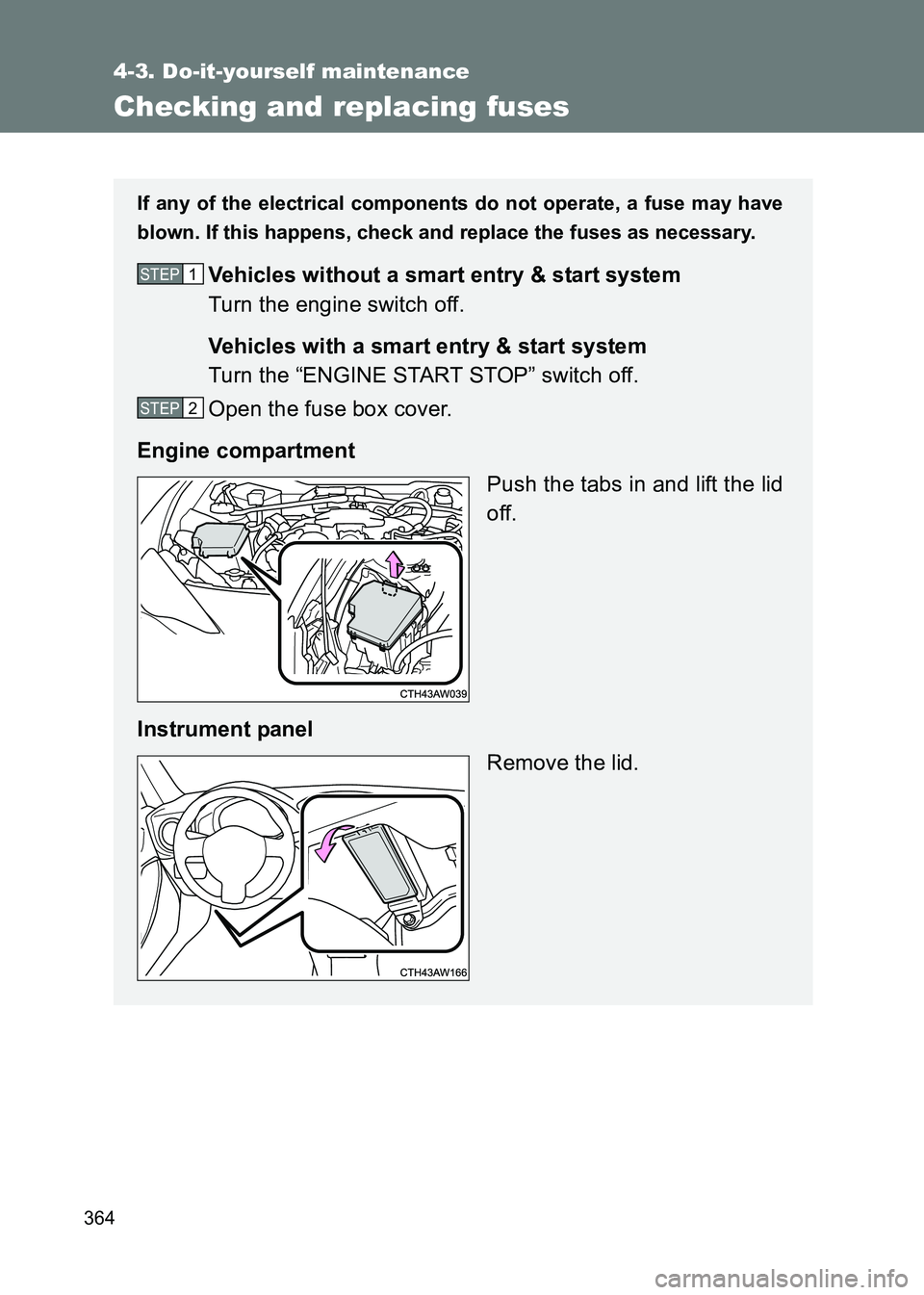

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without a smart entry & start system
Turn the engine switch off.
Vehicles with a smart entry & start system
Turn the “ENGINE START STOP” switch off.
Open the fuse box cover.
Engine compartment Push the tabs in and lift the lid
off.
Instrument panel Remove the lid.STEP 1
STEP 2

369
4-3. Do-it-yourself maintenance
4
Maintenance and care
86_EE (OM18071E)

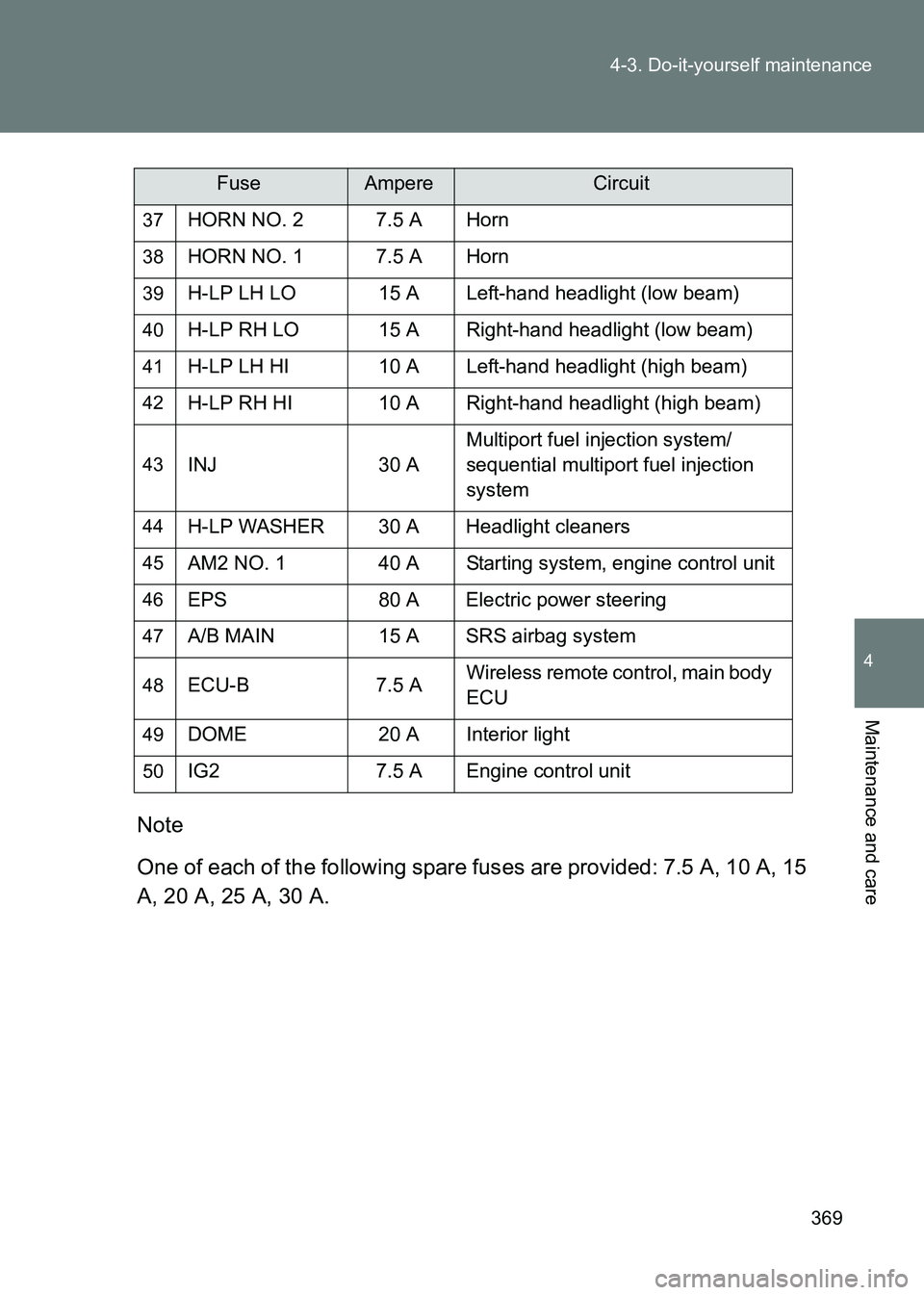

Note
One of each of the following spare fuses are provided: 7.5 A, 10 A, 15
A, 20 A, 25 A, 30 A.
37HORN NO. 2 7.5 A Horn
38HORN NO. 1 7.5 A Horn
39H-LP LH LO 15 A Left-hand headlight (low beam)
40H-LP RH LO 15 A Right-hand headlight (low beam)
41H-LP LH HI 10 A Left-hand headlight (high beam)
42H-LP RH HI 10 A Right-hand headlight (high beam)
43INJ 30 A
Multiport fuel injection system/
sequential multiport fuel injection
system
44H-LP WASHER 30 A Headlight cleaners
45AM2 NO. 1 40 A Starting system, engine control unit
46EPS 80 A Electric power steering
47A/B MAIN 15 A SRS airbag system
48ECU-B 7.5 A
Wireless remote control, main body
ECU
49DOME 20 A Interior light
50IG2 7.5 A Engine control unit
FuseAmpereCircuit

371
4-3. Do-it-yourself maintenance
4
Maintenance and care
86_EE (OM18071E)
■

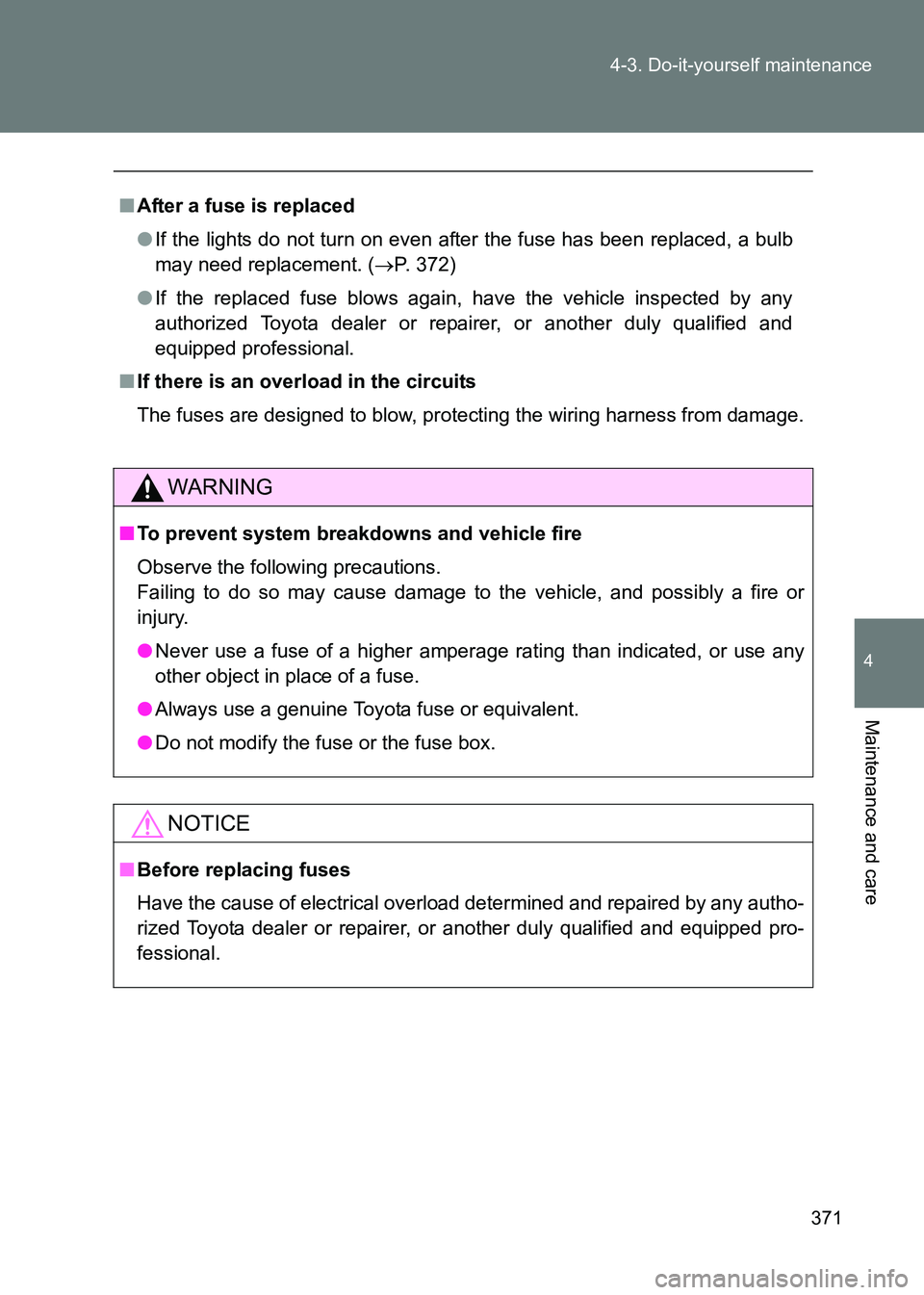

After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( →P. 372)
● If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.

495

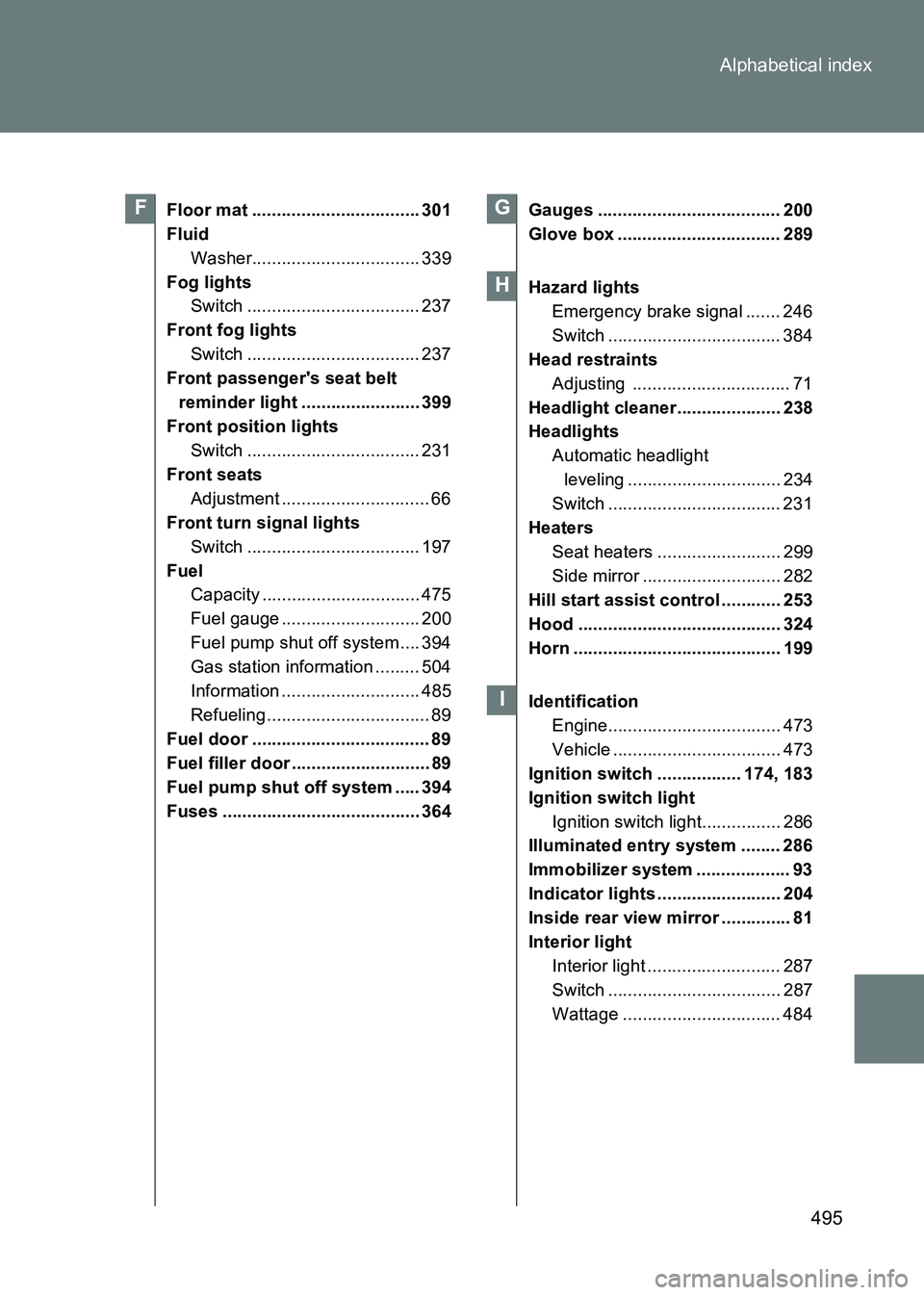

Alphabetical index
86_EE (OM18071E)
Floor mat .................................. 301
Fluid
Washer.................................. 339
Fog lights Switch ................................... 237
Front fog lights Switch ................................... 237
Front passenger's seat belt reminder light ........................ 399
Front position lights Switch ................................... 231
Front seats Adjustment .............................. 66
Front turn signal lights Switch ................................... 197
Fuel Capacity ................................ 475
Fuel gauge ............................ 200
Fuel pump shut off system .... 394
Gas station information ......... 504
Information ............................ 485
Refueling................................. 89
Fuel door .................................... 89
Fuel filler door ............................ 89
Fuel pump shut off system ..... 394
Fuses ........................................ 364 Gauges ..................................... 200
Glove box ................................. 289
Hazard lights
Emergency brake signal ....... 246
Switch ................................... 384
Head restraints Adjusting ................................ 71
Headlight cleaner..................... 238
Headlights Automatic headlight leveling ............................... 234
Switch ................................... 231
Heaters Seat heaters ......................... 299
Side mirror ............................ 282
Hill start assist control ............ 253
Hood ......................................... 324
Horn .......................................... 199
Identification Engine................................... 473
Vehicle .................................. 473
Ignition switch ................. 174, 183
Ignition switch light Ignition switch light................ 286
Illuminated entry system ........ 286
Immobilizer system ................... 93
Indicator lights ......................... 204
Inside rear view mirror .............. 81
Interior light
Interior light ........................... 287
Switch ................................... 287
Wattage ................................ 484FG
H
I

497

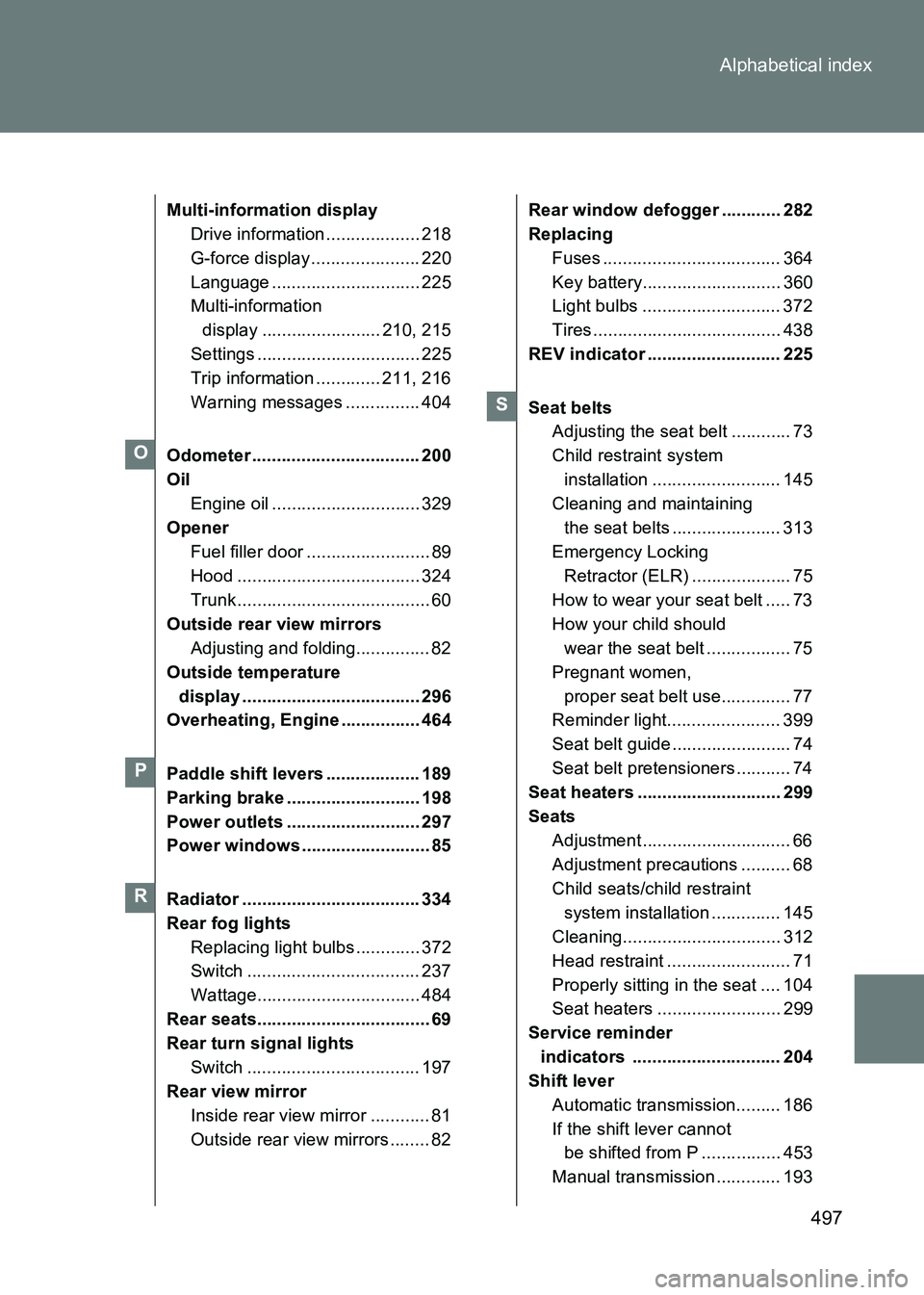

Alphabetical index
86_EE (OM18071E)
Multi-information display
Drive information ................... 218
G-force display...................... 220
Language .............................. 225
Multi-information display ........................ 210, 215
Settings ................................. 225
Trip information ............. 211, 216
Warning messages ............... 404
Odometer .................................. 200
Oil Engine oil .............................. 329
Opener Fuel filler door ......................... 89
Hood ..................................... 324
Trunk....................................... 60
Outside rear view mirrors Adjusting and folding............... 82
Outside temperature display .................................... 296
Overheating, Engine ................ 464
Paddle shift levers ................... 189
Parking brake ........................... 198
Power outlets ........................... 297
Power windows .......................... 85
Radiator .................................... 334
Rear fog lights
Replacing light bulbs ............. 372
Switch ................................... 237
Wattage................................. 484
Rear seats................................... 69
Rear turn signal lights Switch ................................... 197
Rear view mirror Inside rear view mirror ............ 81
Outside rear view mirrors ........ 82 Rear window defogger ............ 282
Replacing
Fuses .................................... 364
Key battery............................ 360
Light bulbs ............................ 372
Tires ...................................... 438
REV indicator ........................... 225
Seat belts Adjusting the seat belt ............ 73
Child restraint system
installation .......................... 145
Cleaning and maintaining the seat belts ...................... 313
Emergency Locking Retractor (ELR) .................... 75
How to wear your seat belt ..... 73
How your child should wear the seat belt ................. 75
Pregnant women, proper seat belt use.............. 77
Reminder light....................... 399
Seat belt guide ........................ 74
Seat belt pretensioners ........... 74
Seat heaters ............................. 299
Seats Adjustment .............................. 66
Adjustment precautions .......... 68
Child seats/child restraint system installation .............. 145
Cleaning................................ 312
Head restraint ......................... 71
Properly sitting in the seat .... 104
Seat heaters ......................... 299
Service reminder indicators .............................. 204
Shift lever Automatic transmission......... 186
If the shift lever cannot be shifted from P ................ 453
Manual transmission ............. 193
O
P
R
S
