63
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
●The following four components operate simultaneously when the v ehicle
is subjected to a severe frontal collision.
• Seat belt pretensioner for driver
• Seat belt pretensioner for front passenger
• SRS front airbag for driver
• SRS front airbag for front passenger*
*: This does not operate while the occupant classification syste m deter-
mines to deactivate the airbag operation. For details, refer to “Front pas-
senger’s SRS frontal airbag” ( P. 97)
● The following two components operate simultaneously when the ve hicle
is subjected to a severe collision on the driver’s seat side of the vehicle.
• Seat belt pretensioner for driver
• Side airbag for driver
● The following two components operate simultaneously when the ve hicle
is subjected to a severe collision on the front passenger’s seat side of the
vehicle.
• Seat belt pretensioner for front passenger
• Side airbag for front passenger
● Pretensioners are designed to function on a one-time-only basis . In the
event that a pretensioner is activated, both the driver’s and f ront passen-
ger’s seat belt retractor assemblies must be replaced only by T oyota
dealer. When replacing seat belt retractor assemblies for the f ront seat-
ing positions, use only genuine Toyota parts equipped with a fo rce limiter.
● If either front seat belt does not retract or cannot be pulled out due to a
malfunction or activation of the pretensioner, contact your Toyota dealer
as soon as possible.
● If the front seat belt retractor assembly or surrounding area h as been
damaged, contact your Toyota dealer as soon as possible.
● When you sell your vehicle, we urge you to explain to the buyer that it
has seat belt pretensioners by alerting the buyer to the conten ts of this
section.
■ Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensi oner will activate
for the first collision, but will not activate for the second or subsequent colli-
sions.

100 1-7. Safety information
■If the front passenger’s frontal a irbag ON indicator illuminates and the
OFF indicator turns off even when an infant or a small child is in a child
restraint system (incl uding booster seat)
Turn the engine switch to the “LOCK” position (vehicles without a smart key
system), or turn the “ENGINE START STOP” switch off (vehicles w ith a
smart key system) if the front passenger’s frontal airbag ON in dicator illumi-
nates and the OFF indicator turns off even when an infant or a small child is
in a child restraint system (including booster seat). Remove th e child
restraint system from the seat. By referring to the child restraint manufac-
turer’s recommendations as well as the child restraint system installation
procedures in “Child restraint systems” ( P. 137), correctly install the child
restraint system. Turn the engine switch to the “ON” position ( vehicles with-
out a smart key system), or turn the “ENGINE START STOP” switch to IGNI-
TION ON mode (vehicles with a smart key system) and make sure that the
front passenger’s frontal airbag ON indicator turns off and the OFF indicator
illuminates.
If still the ON indicator remains illuminated while the OFF ind icator turns off,
take the following actions.
● Ensure that no article is placed on the seat other than the chi ld restraint
system and the child occupant.
● Ensure that the backward-forward position and seatback of front passen-
ger’s seat are locked into place securely by moving the seat back and
forth.
If the ON indicator still remains illuminated while the OFF indicator turns off
after taking relevant corrective actions described above, reloc ate the child
restraint system to the rear seat and immediately contact your Toyota dealer
for an inspection.
NOTE
When a child who has outgrown a child restraint system or a sma ll adult is
seated in the front passenger’s seat, the Toyota advanced front al airbag sys-
tem may or may not activate the front passenger’s SRS frontal a irbag
depending on the occupant’s seating posture. The child should a lways wear
the seat belt when sitting in the seat irrespective of whether the airbag is
deactivated or activated. If the front passenger’s SRS frontal airbag is acti-
vated (the ON indicator remains illuminated while the OFF indic ator turns
off), take the following actions.

101
1-7. Safety information
1
Before driving
●
Ensure that no article is placed on the seat other than the occupant.
If the ON indicator still remains illuminated while the OFF indicator turns off
despite the fact that the actions noted above have been taken, seat the
child/small adult in the rear seat and immediately contact your Toyota dealer
for an inspection. Even if the system has passed the dealer ins pection, it is
recommended that on subsequent trips the child/small adult alwa ys take the
rear seat.
Children who have outgrown a child restraint system should alwa ys wear the
seat belt irrespective of whether the airbag is deactivated or activated.
■ Conditions in which fr ont passenger’s SRS frontal airbag is act ivated
The front passenger’s SRS frontal airbag will be activated for deployment
upon impact when any of the following conditions are met regard ing the front
passenger’s seat.
● When the seat is occupied by an adult.
● When a certain item(s) (e.g. jug of water) is placed on the seat.

109
1-7. Safety information
1
Before driving
WARNING
■
If the SRS airbags deploy
Do not touch the SRS airbag system components around the steeri ng wheel
and dashboard with bare hands right after deployment. Doing so can cause
burns because the components can be very hot as a result of dep loyment.
■ Child restraint precautions
NEVER INSTALL A REARWARD FACING CHILD SEAT IN THE FRONT
PASSENGER’S SEAT EVEN IF THE FRONT PASSENGER’S SRS FRON-
TAL AIRBAG IS DEACTIVATED. Be sure to install it in the REAR se at in a
correct manner. Also, it is strongly recommended that any forwa rd facing
child seat or booster seat be installed in the REAR seat, and t hat even chil-
dren who have outgrown a child restraint system be also seated in the
REAR seat. This is because children sitting in the front passen ger’s seat
may be killed or severely injured should the front passenger’s SRS frontal
airbag deploy. REAR seats are the safest place for children.

128
1-7. Safety information

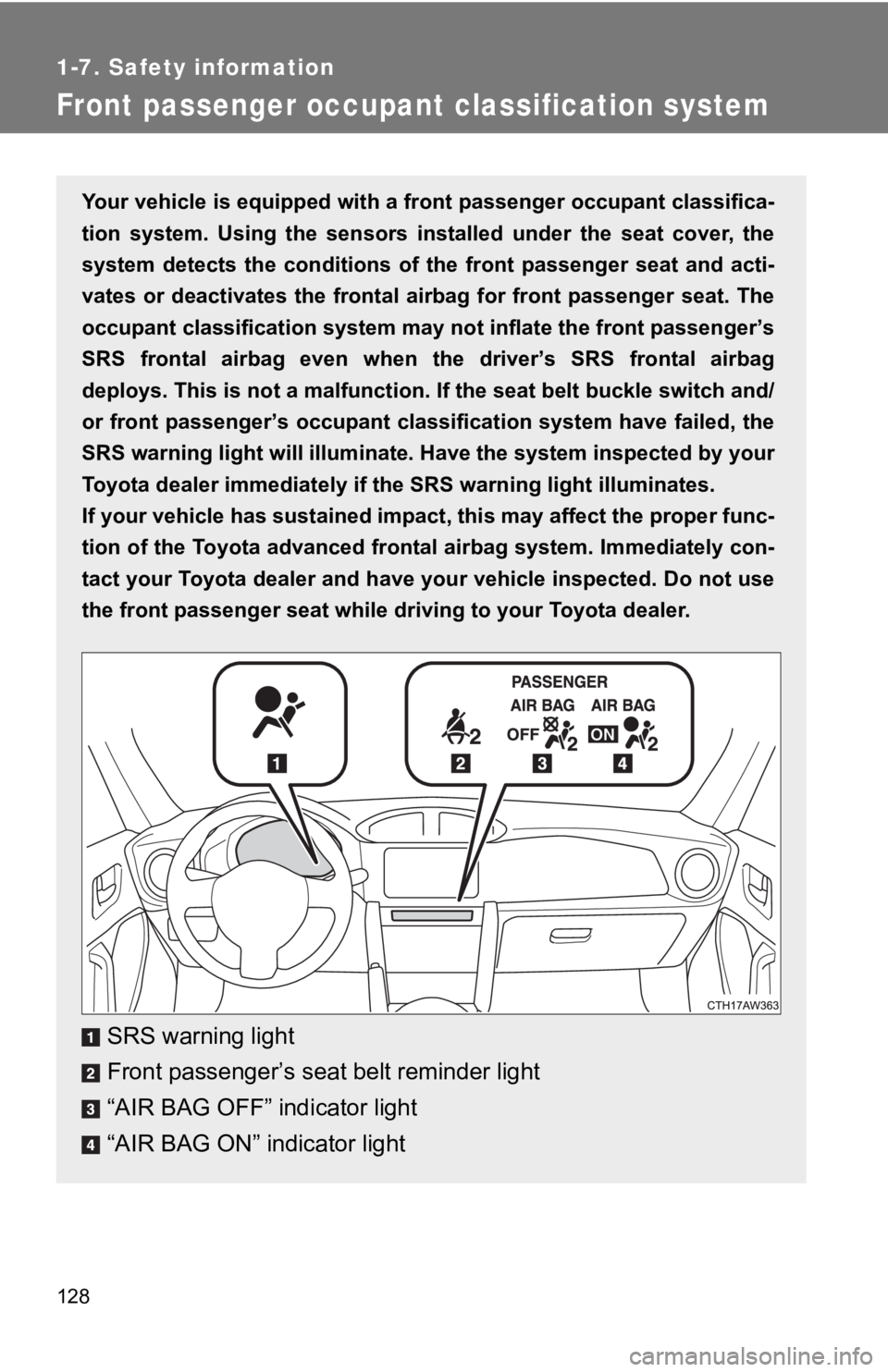

Front passenger occupant classification system
Your vehicle is equipped with a front passenger occupant classifica-
tion system. Using the sensors installed under the seat cover, the
system detects the conditions of the front passenger seat and acti-
vates or deactivates the frontal airbag for front passenger seat. The
occupant classification system m ay not inflate the front passenger’s
SRS frontal airbag even when the driver’s SRS frontal airbag
deploys. This is not a malfuncti on. If the seat belt buckle switch and/
or front passenger’s occupant classification system have failed , the
SRS warning light will illuminate. Have the system inspected by your
Toyota dealer immediately if the SRS warning light illuminates.
If your vehicle has sustained im pact, this may affect the proper func-
tion of the Toyota advanced frontal airbag system. Immediately con-
tact your Toyota dealer and have your vehicle inspected. Do not use
the front passenger seat while drivi ng to your Toyota dealer.
SRS warning light
Front passenger’s seat belt reminder light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light

131
1-7. Safety information
1
Before driving
*1: The occupant classification system does not operate during sel
f-
checking.
*
2: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may not
recognize him/her as an adult depending on his/her physique and
posture.
*
3: In the event the front pass enger does not wear a seat belt.
*
4: The front passenger’s SRS side airbag, SRS curtain shield airb ag
and seat belt pretensioner are not controlled by the occupant
classification system.
*
5: For some children, child in seat, child in booster seat or chi ld in
convertible seat, the system may not recognize him/her as a
child. Factors which may affect this can be the physique or pos -
ture.
Children who have outgrown a child restraint system should
always wear the seat belt when sitting in the seat irrespective of
whether the airbag is deactivated or activated.
*
6: When a child restraint system is installed on the front passenger
seat, do not place any article on the seat other than the child
occupant and a child restraint system.
Failure to do so may prevent the front passenger occupant class i-
fication system from functioning correctly or cause the system to
fail.
*
7: Do not place more than one child on the front passenger seat.
Failure to do so may prevent the front passenger occupant class i-
fication system from functioning correctly.
*
8: Never install a rear-facing child restraint system on the fron t pas-
senger seat. See the caution that follows regarding installation of
a child restraint system. ( P. 1 4 1 )
*
9: In case the indicator is not illuminated, consult this manual on
how to installing the child res traint system properly. (P. 141)

136 1-7. Safety information
WARNING
■Front passenger occupant classification system precautions
●Never install a rearward facing child seat in the front passeng er’s seat
even if the front passenger’s SRS frontal airbag is deactivated . Be sure to
install it in the rear seat in a correct manner. Also, it is strongly recom-
mended that any forward facing child seat or booster seat be in stalled in
the rear seat, and that even children who have outgrown a child restraint
system be also seated in the rear seat. This is because childre n sitting in
the front passenger’s seat may be killed or severely injured should the
front passenger’s SRS frontal airbag deploy. Toyota believes th at the rear
seats are the safest place for children
● If luggage or electronic devices are placed on the front passen ger seat,
the OFF indicator may turn off and the ON indicator may illumin ate. If this
occurs, the front passenger’s airbag may deploy during a collision. If this is
not desirable, remove the luggage or electronic devices from th e front pas-
senger seat.
● Modifications for persons with disabilities that may affect the front passen-
ger occupant classification system. (U.S. only) Removing, repla cing or
modifying any parts of the front seats, seat belts, front bumpe r, front side
frame, instrument panel, combination meter, steering wheel, ste ering col-
umn, tires, suspension or floor panel can affect the operation of the Toyota
front passenger occupant classification system.
