Maintenance Item
Maintenance Interval (Miles or Number of months, whichever occurs first)
After the described period, continue to follow the described maintenance at the recommendedintervals.I = Inspect; R = Replace, Change, Tire Rotate or lubricate; T= Tighten to specified torque
Miles (000) 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Months 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Exhaust pipes and mountings
IIIIII
Driver’s floor mat proper installation IIIIIIIIIIII
Fuel lines and connec-
tions, fuel tank vapor
vent system hoses andfuel tank band Normal
III
Severe
When operating in areas where road salts or other corrosive materials are used; if living in coastal
areas, inspect every 7,500 miles or 7.5 months, whichever occurs first
Fuel filter Normal R
Note: When operating the vehicle in extremely cold or hot weather conditions, contamination of the filter may occur and
filter replacement should be performed more often
Fuel tank cap gasket
I II
Manual transmission oil
I II
Parking brake liningsand drumsNormal
III
Severe
When operating in areas where road salts or other corrosive materials are used; if living in coastal
areas, inspect every 7,500 miles or 7.5 months, whichever occurs first
Rear differential oil IIIIII
Spark plugs R
Scheduled Maintenance
MAINTENANCE
39Maintenance Log
JOBNAME: 2878013-en-2018_Toyo PAGE: 38 SESS: 4 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1
Maintenance ItemMaintenance Interval (Miles or Number of months, whichever occurs first)
After the described period, continue to follow the described maintenance at the recommended
intervals.
I = Inspect; R = Replace, Change, Tire Rotate or lubricate; T= Tighten to specified torque
Miles (000) 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Months 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90Clutch fluid and system operations
IIIIII
Drive belt III
Drive shaft boots Normal IIIIII
Driving on dirt
or dusty roads IIIIIIIIIIII
Severe Repeated short driving distance; driving on rough and/or muddy roads; when operating on rough and/or muddy roads; driving in extremely cold weather; in areas where road salts or other corrosive materialsare used; if living in coastal areas, inspect every 7,500 miles or 7.5 months, whichever occurs first
Engine oil and oil filter Normal RRRRRRRRRRRR
Severe Repeated short distance driving; driving in extremely cold weather, replace every 3,750 miles or 3 and
3/4 months, whichever occurs firstEngine coolant
Inspect II
I
Replace First replace at 135,000 miles or 132 months, then replace at every 75,000 miles or 72 months,
whichever occurs first
Note: See the “Explanation of Maintenance Items” section in the back of this guide for more information.
Engine air filter Normal RRR
Driving on dirt
or dusty roads IIIRIIIRIIIR
Note: When the vehicle is used in extremely dusty conditions, the air filter cleaner element should be replaced more often
Scheduled Maintenance
MAINTENANCE
38Maintenance Log
46768b2_2878013 2018 Toyota 86 EML EN 1st PTG text.indd 3911/21/17 5:14 PM

JOBNAME: 2878013-en-2018_Toyo PAGE: 41 SESS: 4 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1
T
he following descriptions are
provided to give you a better
understanding of the maintenance
items that should be performed on your
vehicle. The scheduled maintenance log
indicates at which mileage/time intervals
each item should be performed. Please
note that many maintenance items should
be performed only by a qualified
technician.
For further information on maintenance
items you can perform yourself, see the
Vehicle Maintenance and Care and
Do-It-Yourself Maintenance sections of
the
Owner’s Manual.
Ball Joints and Dust Covers
Check the suspension and steering linkage
ball joints for looseness and damage.
Check all dust covers for deterioration and
damage. Replace any deteriorated or
damaged parts. A qualified technician
should perform these operations.
Brake Lines and Hoses
Visually inspect for proper installation.
Check for chafing, cracks, deterioration
and signs of leakage. Replace any
deteriorated or damaged parts. A qualified
technician should perform these
operations.
Brake Linings/Drums and Brake
Pads/Discs
Check the brake linings (shoes) and
drums for scoring, burning, fluid leakage,
broken parts and excessive wear. Check
the pads for excessive wear and the discs
for runout, excessive wear and fluid
leakage. Replace any deteriorated or
damaged parts. A qualified technician
should perform these operations.
Cabin Air Filter
Replace at specified intervals. Driving in
heavy traffic, on dirt roads or in urban,
desert or dusty areas may shorten filter’s
life. More frequent replacement may be
necessary.
Differential Oil
Inspect at specified intervals. When
performing inspections, check each
component for signs of leakage. If you
discover any leakage, have it repaired by a
qualified technician immediately.
Drive Belts
Inspect for cracks, excessive wear and
oiliness. Check the belt tension and adjust
if necessary. Replace the belts if they are
damaged.
Explanation of Maintenance Items
Maintenance Log41
MAINTENANCE
JOBNAME: 2878013-en-2018_Toyo PAGE: 40 SESS: 4 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1
Maintenance Item
Maintenance Interval (Miles or Number of months, whichever occurs first)
After the described period, continue to follow the described maintenance at the recommendedintervals.
I = Inspect
; R = Replace, Change, Tire Rotate or lubricate; T= Tighten to specified torque
Miles (000) 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Months 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Steering gear Normal
I IIIII
Driving on dirt
or dusty roads
IIIIIIIIIIII
Severe
When operating on rough and/or muddy roads; driving in extremely cold weather; in areas where road salts or other corrosive materials are used; if living in coastal areas, inspect every 7,500 miles
or 7.5 months, whichever occurs first
Suspension ball jointsand dust covers Normal
IIIIII
Driving on dirt
or dusty roads
IIIIIIIIIIII
Severe
When operating on rough and/or muddy roads; driving in extremely cold weather; in areas where road salts or other corrosive materials are used; if living in coastal areas, inspect every 7,500 miles
or 7.5 months, whichever occurs first
Tire rotation
RRRRRRRRRRRR
Wiper blades
IIIIIIIIIIII
Scheduled Maintenance
MAINTENANCE
40Maintenance Log
46768b2_2878013 2018 Toyota 86 EML EN 1st PTG text.indd 4011/21/17 5:14 PM

JOBNAME: 2878013-en-2018_Toyo PAGE: 41 SESS: 4 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1
T
he following descriptions are
provided to give you a better
understanding of the maintenance
items that should be performed on your
vehicle. The scheduled maintenance log
indicates at which mileage/time intervals
each item should be performed. Please
note that many maintenance items should
be performed only by a qualified
technician.
For further information on maintenance
items you can perform yourself, see the
Vehicle Maintenance and Care and
Do-It-Yourself Maintenance sections of
the
Owner’s Manual.
Ball Joints and Dust Covers
Check the suspension and steering linkage
ball joints for looseness and damage.
Check all dust covers for deterioration and
damage. Replace any deteriorated or
damaged parts. A qualified technician
should perform these operations.
Brake Lines and Hoses
Visually inspect for proper installation.
Check for chafing, cracks, deterioration
and signs of leakage. Replace any
deteriorated or damaged parts. A qualified
technician should perform these
operations.
Brake Linings/Drums and Brake
Pads/Discs
Check the brake linings (shoes) and
drums for scoring, burning, fluid leakage,
broken parts and excessive wear. Check
the pads for excessive wear and the discs
for runout, excessive wear and fluid
leakage. Replace any deteriorated or
damaged parts. A qualified technician
should perform these operations.
Cabin Air Filter
Replace at specified intervals. Driving in
heavy traffic, on dirt roads or in urban,
desert or dusty areas may shorten filter’s
life. More frequent replacement may be
necessary.
Differential Oil
Inspect at specified intervals. When
performing inspections, check each
component for signs of leakage. If you
discover any leakage, have it repaired by a
qualified technician immediately.
Drive Belts
Inspect for cracks, excessive wear and
oiliness. Check the belt tension and adjust
if necessary. Replace the belts if they are
damaged.
Explanation of Maintenance Items
Maintenance Log41
MAINTENANCE
JOBNAME: 2878013-en-2018_Toyo PAGE: 40 SESS: 4 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1
Maintenance Item
Maintenance Interval (Miles or Number of months, whichever occurs first)
After the described period, continue to follow the described maintenance at the recommended
intervals.
I = Inspect; R = Replace, Change, Tire Rotate or lubricate; T= Tighten to specified torque
Miles (000) 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Months 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
Steering gear Normal IIIIII
Driving on dirt
or dusty roads IIIIIIIIIIII
Severe When operating on rough and/or muddy roads; driving in extremely cold weather; in areas where road
salts or other corrosive materials are used; if living in coastal areas, inspect every 7,500 miles or 7.5 months, whichever occurs first
Suspension ball joints
and dust covers Normal
IIIIII
Driving on dirt
or dusty roads IIIIIIIIIIII
Severe When operating on rough and/or muddy roads; driving in extremely cold weather; in areas where road
salts or other corrosive materials are used; if living in coastal areas, inspect every 7,500 miles or 7.5 months, whichever occurs first
Tire rotation RRRRRRRRRRRR
Wiper blades IIIIIIIIIIII
Scheduled Maintenance
MAINTENANCE
40Maintenance Log
46768b2_2878013 2018 Toyota 86 EML EN 1st PTG text.indd 4111/21/17 5:14 PM

JOBNAME: 2878013-en-2018_Toyo PAGE: 43 SESS: 4 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1
Engine Oil and Oil Filter
Replace the oil filter and drain and refill
the engine oil at specified intervals. For
recommended oil grade and viscosity,
refer to the
Owner’s Manual.
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler
and hangers for cracks, deterioration and
damage. Start the engine and listen
carefully for any exhaust gas leakage.
Tighten connections or replace parts as
necessary.
Fuel Lines and Connections,
Fuel Tank Vapor Vent System
Hoses and Fuel Tank Band
Visually inspect for corrosion, damage,
cracks, and loose or leaking connections.
Tighten connections or replace parts as
necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration
and damage and replace if necessary.
Nuts and Bolts on Chassis and
Body
Re-tighten the seat-mounting bolts and
front/rear suspension member retaining
bolts to specified torque.
Spark Plugs
Replace at specified intervals. Install new
plugs of the same type as originally
equipped. A qualified technician should
perform this operation.
Steering Gear
Inspect for signs of leakage. If you
discover any leakage, have it repaired
immediately by a qualified technician.
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering wheel.
Inspect the linkage for bending and
damage and the dust boots for
deterioration, cracks and damage. Replace
any damaged parts. A qualified technician
should perform these operations.
Tire Rotation
Tires should be rotated according to the
instructions in the Owner’s Manual. When
rotating tires, check for damage and
uneven wear. Replace if necessary.
Automatic Transmission Fluid or
Manual Transmission Oil
Inspect or replace at specified intervals.
When performing inspections, check each
component for signs of leakage. If you
discover any leakage, have it repaired by a
qualified technician immediately.
Explanation of Maintenance Items
Maintenance Log43
MAINTENANCE
JOBNAME: 2878013-en-2018_Toyo PAGE: 42 SESS: 4 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1
Drive Shaft Boots
Check the drive shaft boots and clamps
for cracks, deterioration and damage.
Replace any deteriorated or damaged parts
and, if necessary, repack the grease. A
qualified technician should perform these
operations.
Driver’s Floor Mat
Only use the driver’s floor mat
designed specifically for the model and
model year of your vehicle.
Always properly secure the driver’s
floor mat using the retaining hooks.
Never install another floor mat on top
of the existing driver’s floor mat.
Never install the driver’s floor mat
upside down.
Engine Air Filter
Replace at specified intervals. When
performing inspections, check for damage,
excessive wear and oiliness, and replace if
necessary.
Engine Coolant, Radiator and
Condenser
Drain the cooling system and refill with an
ethylene-glycol type coolant. Inspect the
radiator, condenser and/or intercooler for
leaves, dirt and insects, and clean if
necessary. Inspect hoses and connections
for corrosion and leaks. Tighten
connections and replace parts when
necessary. A qualified technician should
perform these operations. (For further
details, refer toRadiator, Condenser and
Hoses in theVehicle Maintenance and
Care section of the
Owner’s Manual).
Your Toyota is equipped with Genuine
Toyota Super Long-Life Coolant (SLLC)
BLUE. The replacement intervals for
engine coolant recommended in this
booklet are based on replacement with
Genuine Toyota Super Long-Life Coolant
(SLLC) BLUE or similar high-quality
non-silicate, non-amine, non-borate
ethylene-glycol coolant with long-life
hybrid organic acid technology (i.e., a
combination of low phosphates and
organic acids). If another type of
ethylene-glycol coolant is used,
replacement intervals may be different.
Do not use plain water.
Explanation of Maintenance Items
Maintenance Log42
MAINTENANCE
46768b2_2878013 2018 Toyota 86 EML EN 1st PTG text.indd 4211/21/17 5:14 PM

JOBNAME: 2878013-en-2018_Toyo PAGE: 43 SESS: 4 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1
Engine Oil and Oil Filter
Replace the oil filter and drain and refill
the engine oil at specified intervals. For
recommended oil grade and viscosity,
refer to the
Owner’s Manual.
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler
and hangers for cracks, deterioration and
damage. Start the engine and listen
carefully for any exhaust gas leakage.
Tighten connections or replace parts as
necessary.
Fuel Lines and Connections,
Fuel Tank Vapor Vent System
Hoses and Fuel Tank Band
Visually inspect for corrosion, damage,
cracks, and loose or leaking connections.
Tighten connections or replace parts as
necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration
and damage and replace if necessary.
Nuts and Bolts on Chassis and
Body
Re-tighten the seat-mounting bolts and
front/rear suspension member retaining
bolts to specified torque.
Spark Plugs
Replace at specified intervals. Install new
plugs of the same type as originally
equipped. A qualified technician should
perform this operation.
Steering Gear
Inspect for signs of leakage. If you
discover any leakage, have it repaired
immediately by a qualified technician.
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering wheel.
Inspect the linkage for bending and
damage and the dust boots for
deterioration, cracks and damage. Replace
any damaged parts. A qualified technician
should perform these operations.
Tire Rotation
Tires should be rotated according to the
instructions in the Owner’s Manual. When
rotating tires, check for damage and
uneven wear. Replace if necessary.
Automatic Transmission Fluid or
Manual Transmission Oil
Inspect or replace at specified intervals.
When performing inspections, check each
component for signs of leakage. If you
discover any leakage, have it repaired by a
qualified technician immediately.
Explanation of Maintenance Items
Maintenance Log43
MAINTENANCE
JOBNAME: 2878013-en-2018_Toyo PAGE: 42 SESS: 4 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1
Drive Shaft Boots
Check the drive shaft boots and clamps
for cracks, deterioration and damage.
Replace any deteriorated or damaged parts
and, if necessary, repack the grease. A
qualified technician should perform these
operations.
Driver’s Floor Mat
Only use the driver’s floor mat
designed specifically for the model and
model year of your vehicle.
Always properly secure the driver’s
floor mat using the retaining hooks.
Never install another floor mat on top
of the existing driver’s floor mat.
Never install the driver’s floor mat
upside down.
Engine Air Filter
Replace at specified intervals. When
performing inspections, check for damage,
excessive wear and oiliness, and replace if
necessary.
Engine Coolant, Radiator and
Condenser
Drain the cooling system and refill with an
ethylene-glycol type coolant. Inspect the
radiator, condenser and/or intercooler for
leaves, dirt and insects, and clean if
necessary. Inspect hoses and connections
for corrosion and leaks. Tighten
connections and replace parts when
necessary. A qualified technician should
perform these operations. (For further
details, refer toRadiator, Condenser and
Hoses in theVehicle Maintenance and
Care section of the
Owner’s Manual).
Your Toyota is equipped with Genuine
Toyota Super Long-Life Coolant (SLLC)
BLUE. The replacement intervals for
engine coolant recommended in this
booklet are based on replacement with
Genuine Toyota Super Long-Life Coolant
(SLLC) BLUE or similar high-quality
non-silicate, non-amine, non-borate
ethylene-glycol coolant with long-life
hybrid organic acid technology (i.e., a
combination of low phosphates and
organic acids). If another type of
ethylene-glycol coolant is used,
replacement intervals may be different.
Do not use plain water.
Explanation of Maintenance Items
Maintenance Log42
MAINTENANCE
46768b2_2878013 2018 Toyota 86 EML EN 1st PTG text.indd 4311/21/17 5:14 PM

JOBNAME: 2878013-en-2018_Toyo PAGE: 45 SESS: 4 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1Model
In-service date
Selling dealership
Key number
Body style
Mileage at delivery
Selling dealership phone number
Vehicle Identification Number
Vehicle Identification
MAINTENANCE
Maintenance Log45
JOBNAME: 2878013-en-2018_Toyo PAGE: 44 SESS: 4 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1

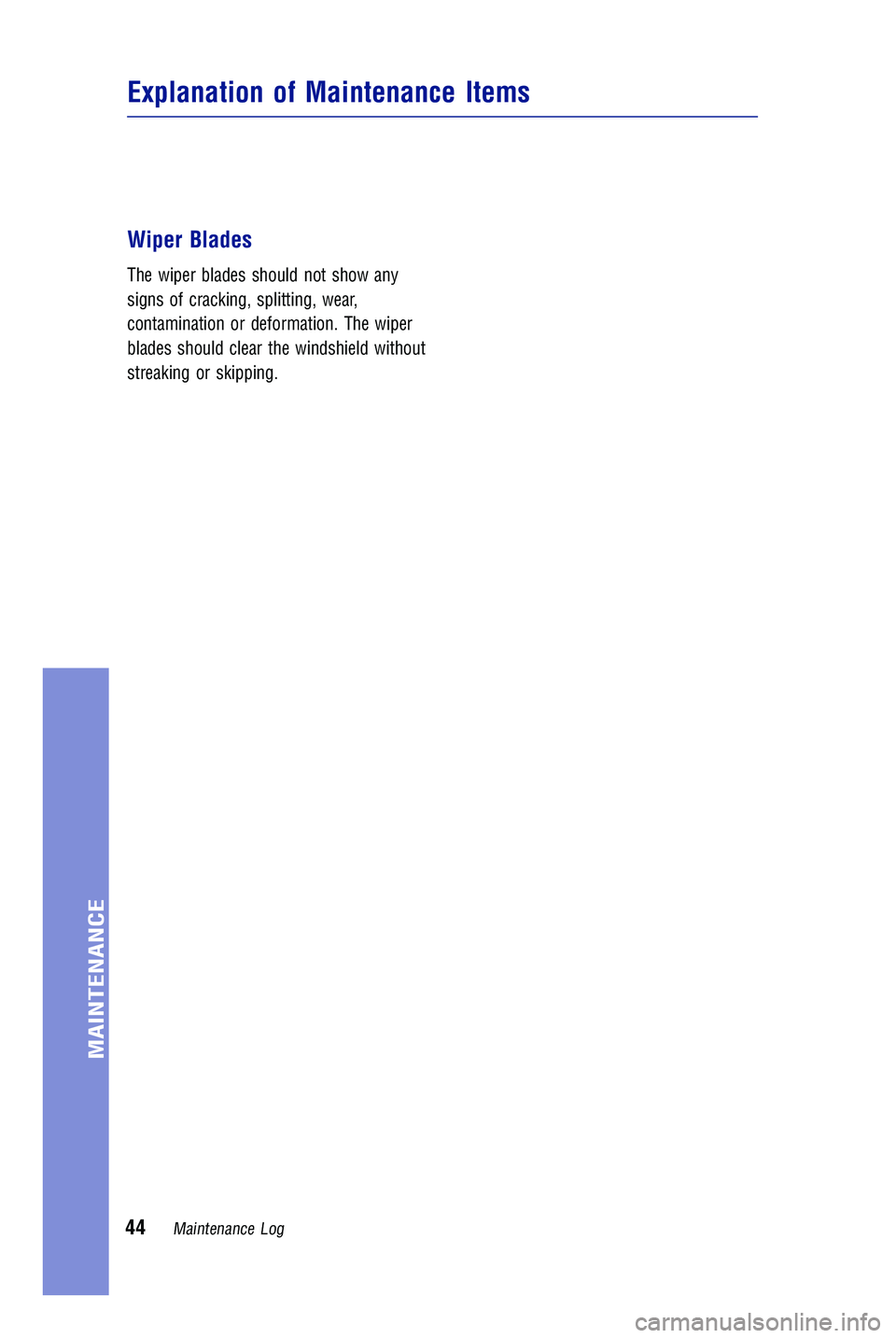

Wiper Blades
The wiper blades should not show any
signs of cracking, splitting, wear,
contamination or deformation. The wiper
blades should clear the windshield without
streaking or skipping.
Explanation of Maintenance Items
Maintenance Log44
MAINTENANCE
46768b2_2878013 2018 Toyota 86 EML EN 1st PTG text.indd 4411/21/17 5:14 PM

JOBNAME: 2878013-en-2018_Toyo PAGE: 45 SESS: 4 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1
Model
In-service date
Selling dealership
Key number
Body style
Mileage at delivery
Selling dealership phone number
Vehicle Identification Number
Vehicle Identification
MAINTENANCE
Maintenance Log45
JOBNAME: 2878013-en-2018_Toyo PAGE: 44 SESS: 4 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1
Wiper Blades
The wiper blades should not show any
signs of cracking, splitting, wear,
contamination or deformation. The wiper
blades should clear the windshield without
streaking or skipping.
Explanation of Maintenance Items
Maintenance Log44
MAINTENANCE
46768b2_2878013 2018 Toyota 86 EML EN 1st PTG text.indd 4511/21/17 5:14 PM

JOBNAME: 2878013-en-2018_Toyo PAGE: 47 SESS: 5 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1
Notes
MAINTENANCE
Maintenance Log47
JOBNAME: 2878013-en-2018_Toyo PAGE: 46 SESS: 5 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1
Notes
MAINTENANCE
Maintenance Log46
46768b2_2878013 2018 Toyota 86 EML EN 1st PTG text.indd 4611/21/17 5:14 PM

JOBNAME: 2878013-en-2018_Toyo PAGE: 47 SESS: 5 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1
Notes
MAINTENANCE
Maintenance Log47
JOBNAME: 2878013-en-2018_Toyo PAGE: 46 SESS: 5 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1
Notes
MAINTENANCE
Maintenance Log46
46768b2_2878013 2018 Toyota 86 EML EN 1st PTG text.indd 4711/21/17 5:14 PM

JOBNAME: 2878013-en-2018_Toyo PAGE: 48 SESS: 5 OUTPUT: Mon Nov 13 08:02:35 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2878013-en-2018_T\
oyota_86.00505-18WMG-86_vX/TS_Warr_Maint_v1
Notes
MAINTENANCE
Maintenance Log48
46768b2_2878013 2018 Toyota 86 EML EN 1st PTG text.indd 4811/21/17 5:14 PM
