QUICK REFERENCE GUIDE
Page 2 of 28
Toyota 86 2018
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new 86.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of 86 operations. E\
very 86
owner should review the Owner’s Manual that accompanies this vehicle.\
Pay special attention to the boxed
information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
Page 3 of 28
1
INDEX
Engine maintenance 8
Fuel tank door release
& cap 7
Hood release
8
Indicator symbols
5
Instrument cluster
4
Instrument panel
2-3
Instrument panel light control
8
Keyless (and remote) entry
6
Smart Key system
7
OVERVIEW
FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES
Air conditioning/heating 18
Automatic transmission
9
AUX/USB port
17
Clock
16
Cruise control
10
Cup/bottle holders
15
Door locks
16
Driving modes
10-11
Hill-start Assist Control (HAC)
11
Lights & turn signals
12
Manual transmission
9
Multi-Information Display (MID)
14
Parking brake
9
Power outlets
17
Rear view monitor system
19
Seat adjustments-Front
13
Seats-Fold down rear seats
13
Seats-Head restraints
12
Steering lock release
19
Steering wheel switches
15
Tilt & telescopic steering wheel
16
Trunk release
16
Windows
13
Windshield wipers & washers
12 Floor mat installation
23
Seat belts
20
Spare tire & tools
21
Star Safety System™ 22-23
Tire Pressure Monitoring
(warning) System (TPMS)
20
PAIRING BLUETOOTH® PHONE FOR
THE FIRST TIME 24-25
OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Page 4 of 28
2
Instrument panel
Steering wheel controls
OVERVIEW
Paddle shift switches*
Audio control
switches Ignition switch* Meter control switches*
Headlight, turn signal and
fog light* controls Wiper and washer controls
Meters/Multi-Information Display (MID)
Tilt and telescopic steering lock release lever Hood lock release lever
Fuel tank door release lever “ENGINE START
STOP” switch*
Trunk opener
Instrument panel light control Cruise control switch
Page 5 of 28
3
Rear window and outside rear
view mirror defogger*/rear
window deffoger* switch
SPORT or SNOW
mode switch*
Clock
Emergency flasher switch Air conditioning controls
Manual air conditioning controls
Automatic air conditioning cont
rols
Vehicle Stability Control (VSC)/TRAC OFF switch TRACK mode switch
Seat heaters*
Power outlet *
If equipped
AUX/USB port
OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Page 6 of 28
4
Instrument cluster
Display switch
Monochrome display
Color display
Analog speedometer
Analog speedometer
km/h MPH switch
km/h MPH switch
Odometer/trip meter
display change switch
Odometer/trip meter
display change switch Tachometer
Tachometer Fuel gauge
Fuel gauge
Engine coolant temperature
Digital speedometer Digital speedometer
Odometer/Trip meter
/Multi-Information Display
Odometer/Trip meter
/Multi-Information Display
Service indicators and reminders
Service indicators and reminders
OVERVIEW
Page 7 of 28
5
Brake system warning1
Charging system warning1
Automatic headlight leveling
system warning
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2018 Owner’s
Manual.
Anti-lock Brake System (ABS) warning1
Airbag SRS warning1
Low fuel level warning1
Cruise control indicators2
Low Tire Pressure Warning1
1
If indicator does not turn off within a few seconds of starting engine, \
there may be a malfunction. Have vehicle inspected by your Toyota dealer.
2 If these lights come on in yellow, refer to “Cruise control” Sect\
ion 2-4, 2018 Owner’s Manual.3 Vehicle with an automatic transmission.4 Vehicle with a manual transmission.5 If equipped.
Slip indicator1
Smart Key system indicator5
Automatic Transmission fluid
temperature warning5
Vehicle Stability Control OFF indicator1
TRAC OFF indicator1
SNOW indicator3,5
REV (engine RPM) indicator
Upshift/downshift indicator3,5
Shift position indicator4,5
Shift-up indicator4,5
Shift position and shift range
indicator3,5
Security indicator
SPORT indicator3,5
Turn signal indicator
TRACK mode indicator
Open door warning5
Master warning1,5
AIR BAG ON/OFF indicator
Seat belt reminder (alarm will
sound if speed is over 12 mph)
Malfunction/
Check Engine indicator1
Low engine oil pressure warning1
Low engine coolant temperature
indicator5
Electric power steering system warning1
Fuel tank door position
Front fog light indicator5
Hill-start assist control ON indicator Headlight high beam indicator
Low outside temperature indicator5

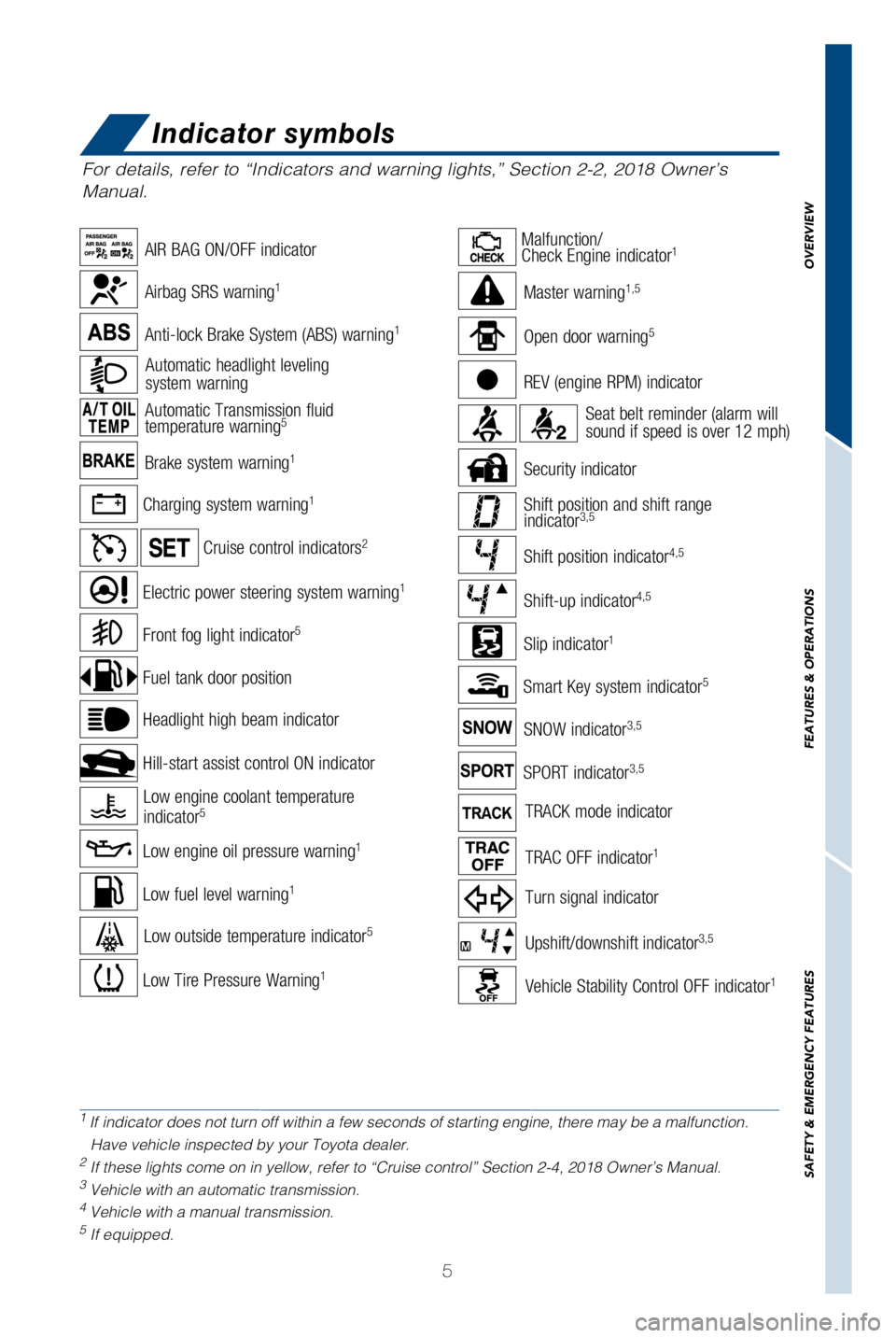

Indicator symbols
OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Page 8 of 28
6
Keyless (and remote) entry
LOCKING OPERATION
UNLOCKING OPERATION
TRUNK LID
PANIC BUTTON
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
Carry remote
Smart Key feature
All-door lock
Touch
Smart Key
Smart Key
Smart Key
Smart Key Carry remote
Smart Key feature
Grasp
Driver door unlock*
Push
ONCE: Driver door TWICE: All doors
Push
Push and hold
Push and hold
Push
* Driver door unlocking function can be programmed to unlock driver door\
only, or
all doors. Grasping passenger door handle will unlock all doors.
OVERVIEW
Page 9 of 28
7

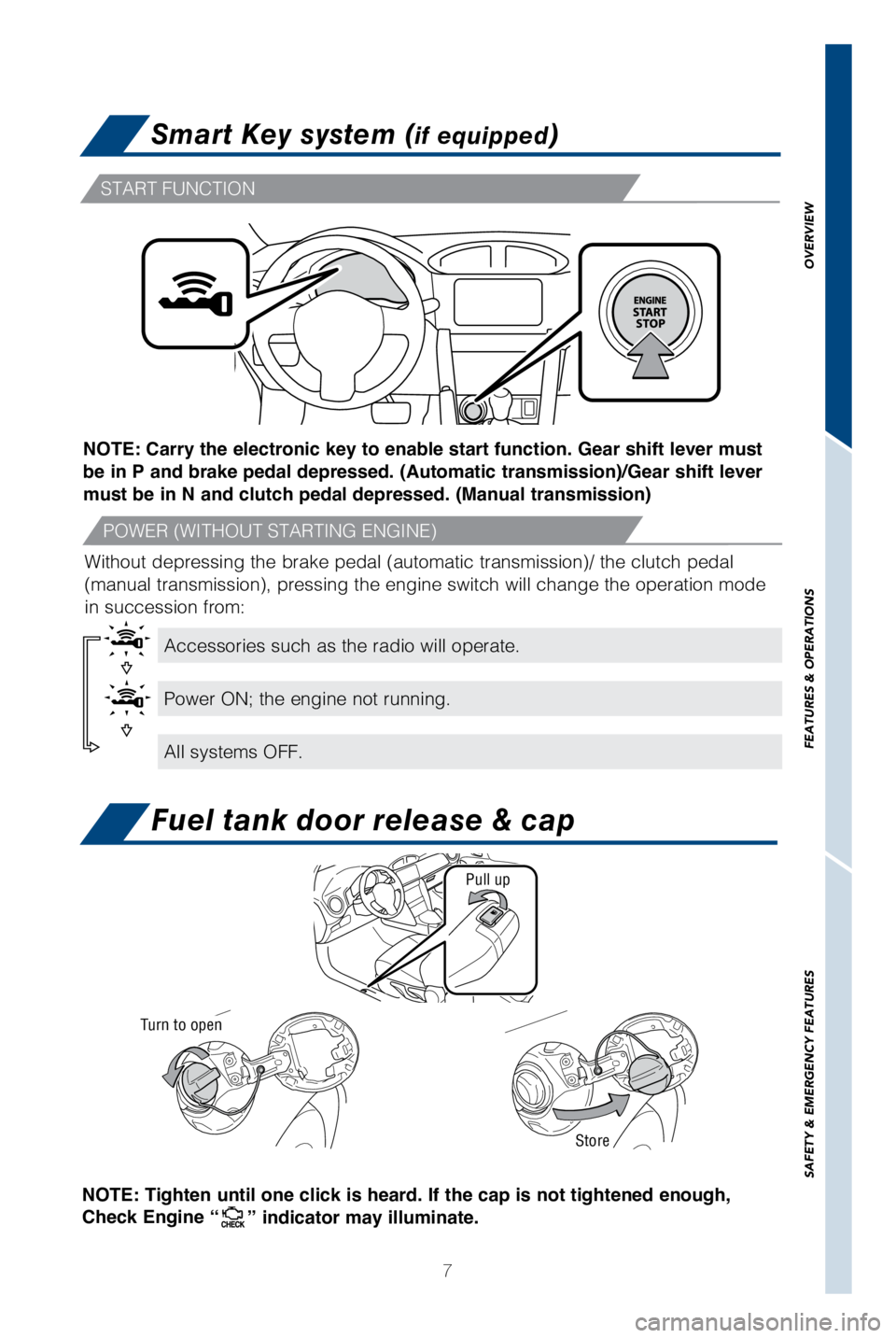

Smart Key system (if equipped)
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
NOTE: Carry the electronic key to enable start function. Gear shift lever must
be in P and brake pedal depressed. (Automatic transmission)/Gear shift lever
must be in N and clutch pedal depressed. (Manual transmission)
Without depressing the brake pedal (automatic transmission)/ the clutc\
h pedal
(manual transmission), pressing the engine switch will change the oper\
ation mode
in succession from:
Fuel tank door release & cap
NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “
” indicator may illuminate.
Pull up
Store
Turn to open
OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Page 10 of 28
8

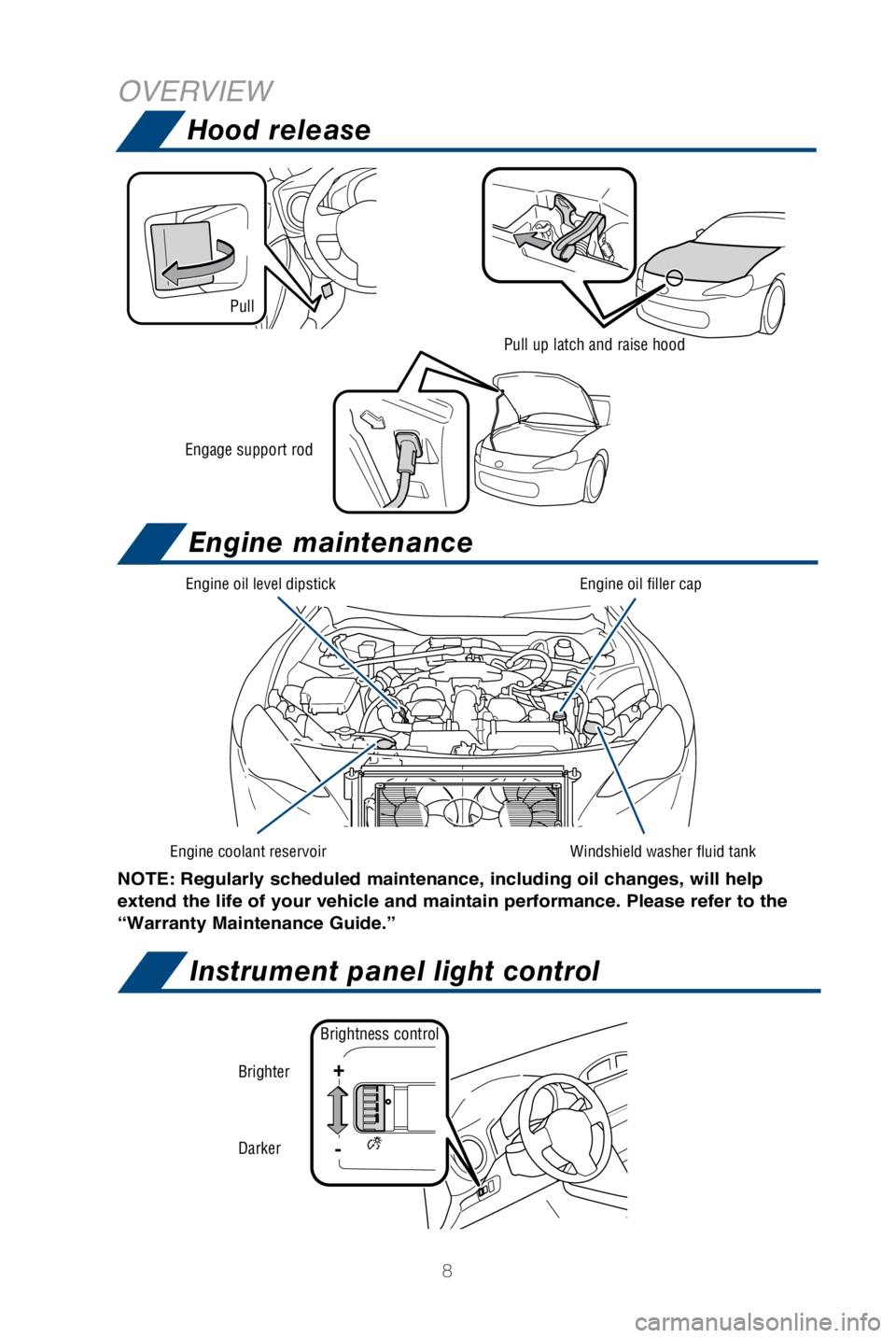

Hood release
Engage support rod
Instrument panel light control
Brightness control
Brighter
Darker
+
-
Windshield washer fluid tank
Engine oil level dipstick
Engine coolant reservoir Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty Maintenance Guide.”
Engine maintenance
Pull up latch and raise hood
Pull
