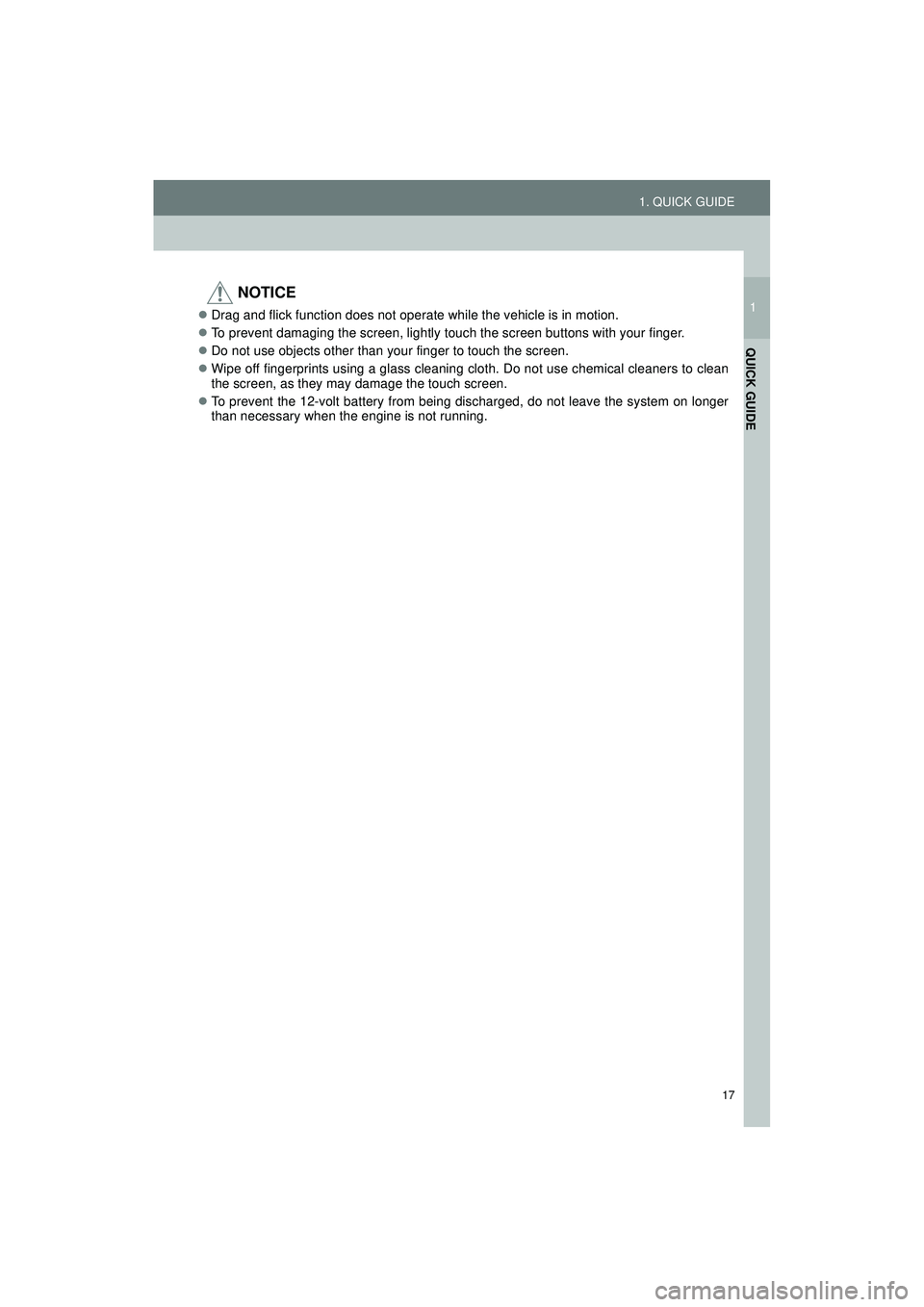

1. QUICK GUIDE
Highlander_Navi_MXS
1
QUICK GUIDE
NOTICE
Drag and flick function does not operate while the vehicle is in motion.
 To prevent damaging the screen, lightly touch the screen buttons with your finger.
 Do not use objects other than your finger to touch the screen.
 Wipe off fingerprints using a glass cleaning cloth. Do not use chemical cleaners to clean
the screen, as they may damage the touch screen.
 To prevent the 12-volt battery from being discharged, do not leave the system on longer
than necessary when the engine is not running.

23

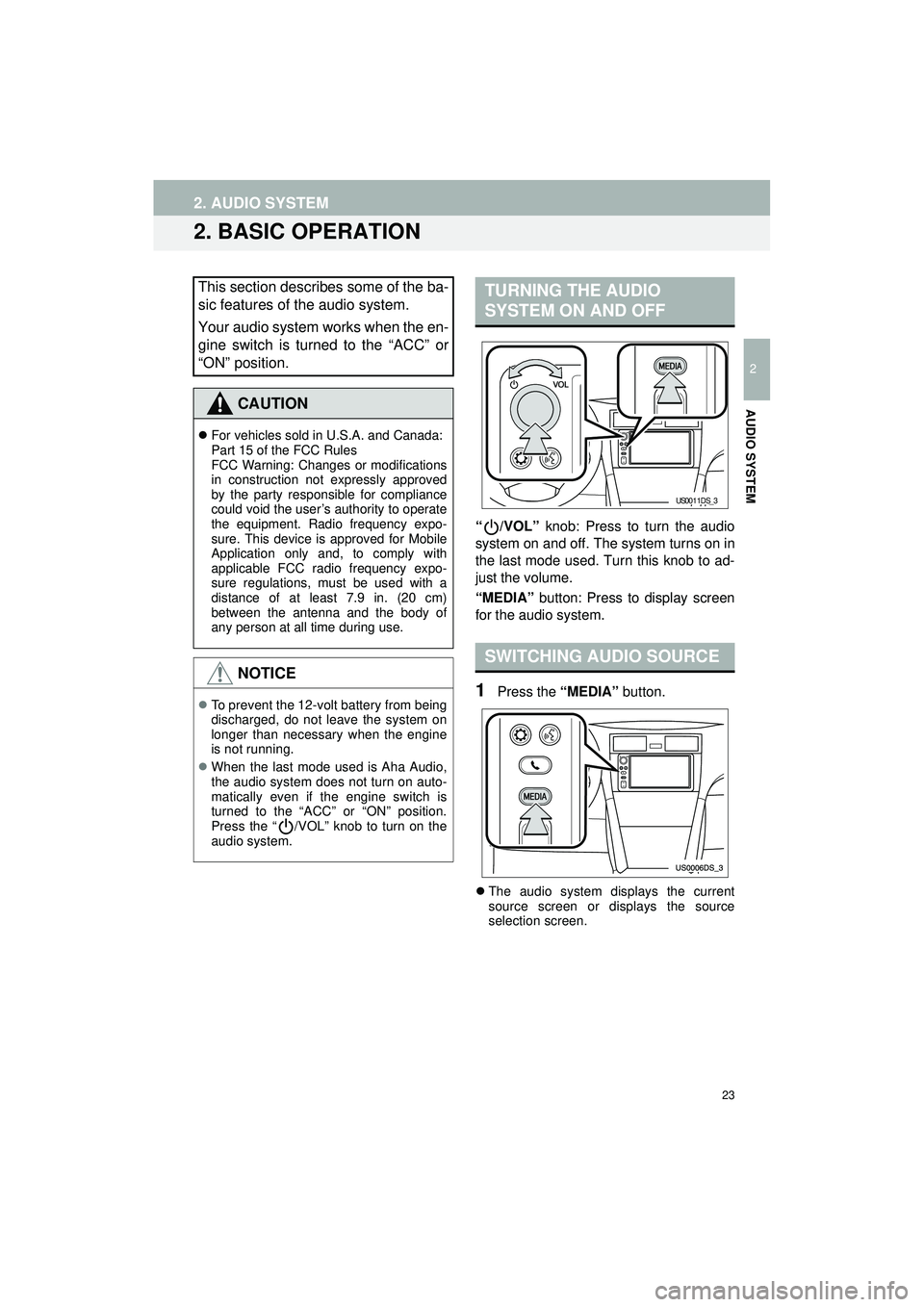

2. AUDIO SYSTEM
Highlander_Navi_MXS
2
AUDIO SYSTEM
2. BASIC OPERATION
“/VOL” knob: Press to turn the audio
system on and off. The system turns on in
the last mode used. Turn this knob to ad-
just the volume.
“MEDIA” button: Press to display screen
for the audio system.
1Press the “MEDIA” button.
The audio system displays the current
source screen or displays the source
selection screen.
This section describes some of the ba-
sic features of the audio system.
Your audio system works when the en-
gine switch is turned to the “ACC” or
“ON” position.
CAUTION
For vehicles sold in U.S.A. and Canada:
Part 15 of the FCC Rules
FCC Warning: Changes or modifications
in construction not expressly approved
by the party responsible for compliance
could void the user’s authority to operate
the equipment. Radio frequency expo-
sure. This device is approved for Mobile
Application only and, to comply with
applicable FCC radio frequency expo-
sure regulations, must be used with a
distance of at least 7.9 in. (20 cm)
between the antenna and the body of
any person at all time during use.
NOTICE
 To prevent the 12-volt battery from being
discharged, do not leave the system on
longer than necessary when the engine
is not running.
 When the last mode used is Aha Audio,
the audio system does not turn on auto-
matically even if the engine switch is
turned to the “ACC” or “ON” position.
Press the “ /VOL” knob to turn on the
audio system.
TURNING THE AUDIO
SYSTEM ON AND OFF
SWITCHING AUDIO SOURCE
US0011DS_3

118
5. SETUP
Highlander_Navi_MXS
1Touch “Bluetooth* Power” .
When “Bluetooth* Power” is on :
 Vehicles without a smart key system
The Bluetooth
® device is automatically
connected when the engine switch is
turned to the “ACC” or “ON” position.
 Vehicles with a sm art key system The
Bluetooth
® device is automatically con-
nected when the “POWER” <“ENGINE
START STOP”> switch is turned to AC-
CESSORY or ON
mode.
When “Bluetooth* Power” is off :
The Bluetooth
® device is disconnected,
and the system will not connect to it next
time.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
1Touch “ Bluetooth* Name” .
2Enter a name and touch “OK”.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
1Touch “ Bluetooth* PIN” .
2Enter a PIN-code and touch “OK”.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
No.InformationPage
Touch to set Bluetooth®
connection on/off.11 8
Displays system name.
Can be changed to a de-
sired name.11 8
PIN-code used when the
Bluetooth® device was
registered. Can be
changed to a desired
code.
11 8
Device address is
unique to the device and
cannot be changed.

Touch to set the phone
connection status dis-
play on/off.

Touch to set the connec-
tion status display of the
audio player on/off.
Compatibility profile of
the system device.
Touch to reset all setup
items.
CHANGING THE Bluetooth®
POWER
INFORMATION
 While driving, the auto connection state
can be changed from off to on, but can-
not be changed from on to off.
EDITING THE Bluetooth® NAME
EDITING THE PIN-CODE
