TOYOTA GT86 2019 Owners Manual (in English)
Manufacturer: TOYOTA, Model Year: 2019, Model line: GT86, Model: TOYOTA GT86 2019Pages: 32, PDF Size: 2.12 MB
Page 1 of 32
2019
QUICK REFERENCE GUIDE
86
Page 2 of 32
To y o t a 8 6 2019
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and sup-
plementary manuals so you will have a better understanding of
your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
<0022004e00460053004a00440042000d0003002a004f0044000f00030058004a005400490003005a005000560003004e0042004f005a0003005a00460042005300540003005000470003005400420055004a0054006d00460045000300450053004a005700
4a004f00480003004a004f0003005a0050005600530003>
new 86.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of 86 operations. Every 86
owner should review the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed
information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.
Page 3 of 32
OVERVIEW FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES
1

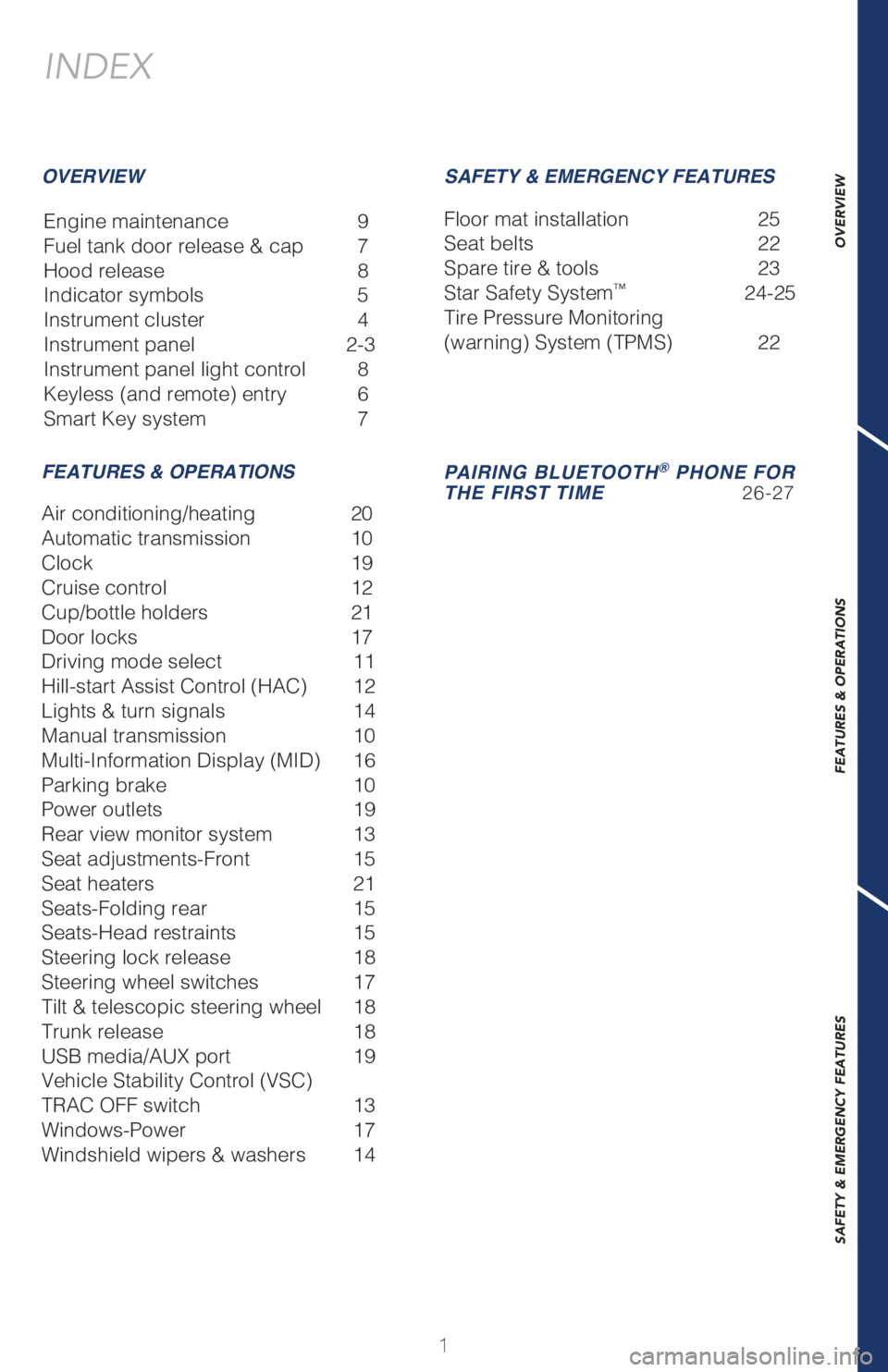

INDEX
Engine maintenance 9
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless (and remote) entry 6
Smart Key system 7
OVERVIEW
FEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
Air conditioning/heating 20
Automatic transmission 10
Clock 19
Cruise control 12
Cup/bottle holders 21
Door locks 17
Driving mode select 11
Hill-start Assist Control (HAC) 12
Lights & turn signals 14
Manual transmission 10
Multi-Information Display (MID) 16
Parking brake 10
Power outlets 19
Rear view monitor system 13
Seat adjustments-Front 15
Seat heaters 21
Seats-Folding rear 15
Seats-Head restraints 15
Steering lock release 18
Steering wheel switches 17
Tilt & telescopic steering wheel 18
Trunk release 18
USB media/AUX port 19
Vehicle Stability Control (VSC)
TRAC OFF switch 13
Windows-Power 17
Windshield wipers & washers 14Floor mat installation 25
Seat belts 22
Spare tire & tools 23
Star Safety System
™ 24-25
Tire Pressure Monitoring
(warning) System (TPMS) 22
PAIRING BLUETOOTH® PHONE FOR
THE FIRST TIME 26-27
Page 4 of 32
2

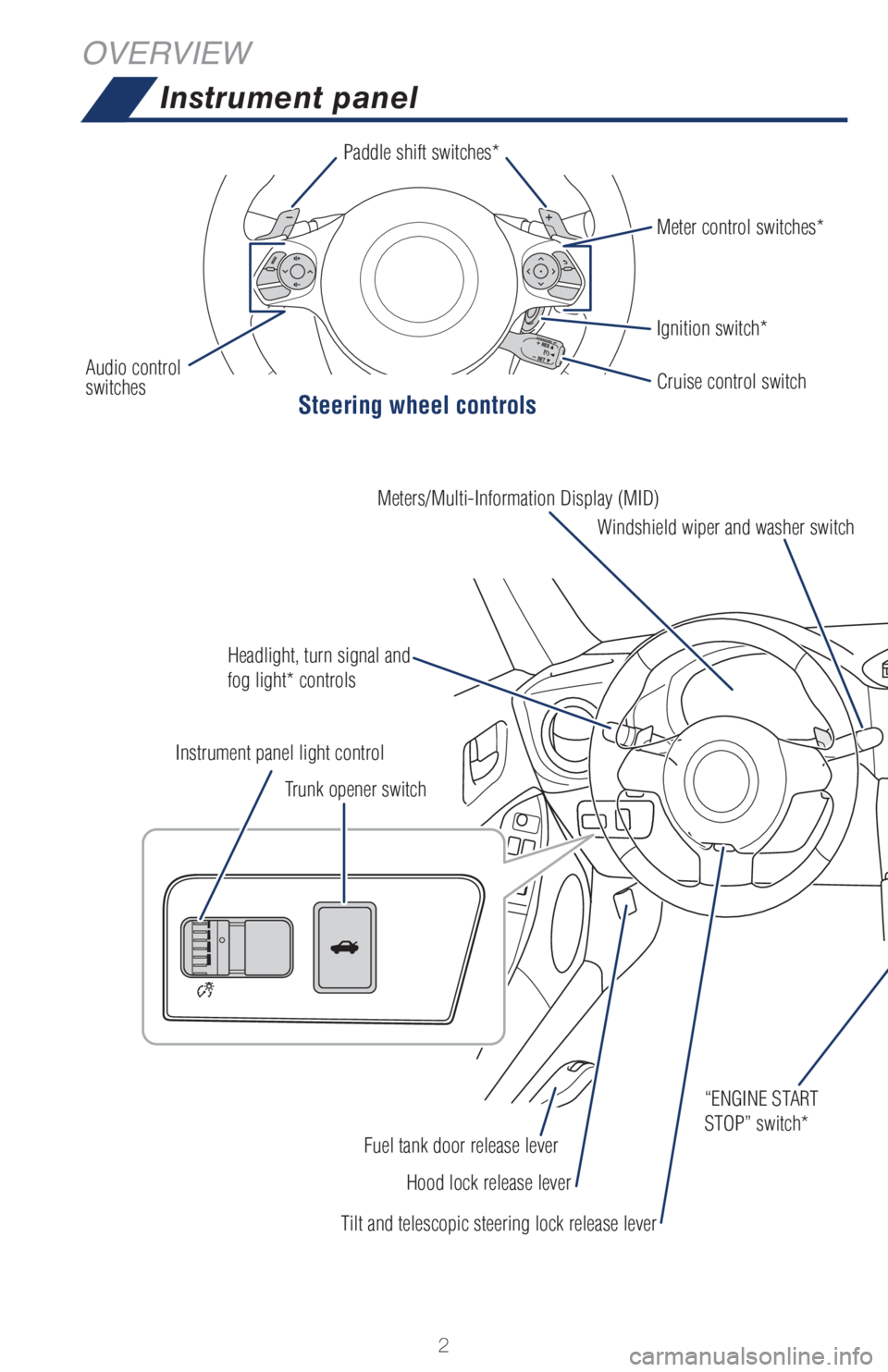

Instrument panel
Steering wheel controls
OVERVIEW
Paddle shift switches*
Audio control
switchesIgnition switch* Meter control switches*
Headlight, turn signal and
fog light* controlsWindshield wiper and washer switch Meters/Multi-Information Display (MID)
Tilt and telescopic steering lock release leverHood lock release lever Fuel tank door release lever“ENGINE START
STOP” switch* Trunk opener switch Instrument panel light controlCruise control switch
Page 5 of 32
OVERVIEW FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES
3
Rear window and outside rear
view mirror defogger*/rear
window defogger* switch
SPORT or SNOW
mode switch*
Clock Emergency flasher switchAir conditioning controls
Manual air conditioning controls
Automatic air conditioning cont
rols
Vehicle Stability Control (VSC)/TRAC OFF switchTRACK mode switch Seat heaters*
Power outlet*
If equipped
USB media/AUX port
Page 6 of 32
4

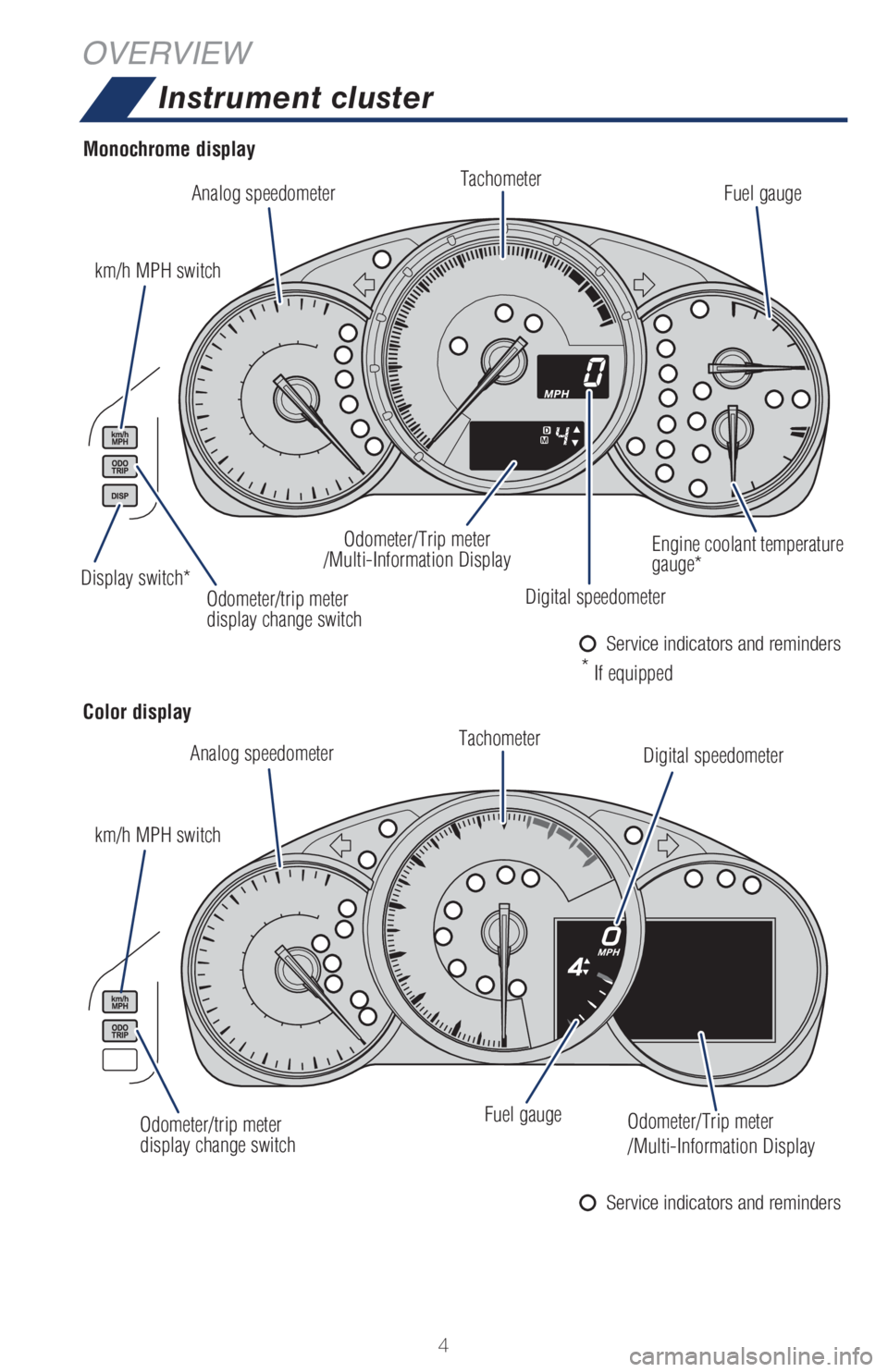

Instrument cluster
Display switch*
Monochrome display
Color display
Analog speedometer
Analog speedometer km/h MPH switch
km/h MPH switchOdometer/trip meter
display change switch
Odometer/trip meter
display change switchTachometer
TachometerFuel gauge
Fuel gaugeEngine coolant temperature
gauge*
Digital speedometer
Digital speedometer Odometer/Trip meter
/Multi-Information Display
Odometer/Trip meter
/Multi-Information Display
Service indicators and reminders
Service indicators and reminders
OVERVIEW
*
If equipped
Page 7 of 32
OVERVIEW FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES
5
Brake system warning1
Charging system warning1
Automatic headlight leveling
system warning
For details, refer to “Indicators and warning lights,” Section 2-2, 2019 Owner’s
Manual.
Anti-lock Brake System (ABS) warning1
Airbag SRS warning1
Low fuel level warning1
Cruise control indicator
Cruise control SET indicator
Low Tire Pressure Warning1
Slip indicator1,3
Smart Key system indicator6
Automatic Transmission fluid
temperature warning6
TRAC OFF indicator1
SNOW indicator4,6
REV (engine RPM) indicator
Upshift/downshift indicator4,6
Shift position indicator5,6
Shift-up indicator5,6
Shift position and shift range
indicator4,6
Security indicator
SPORT indicator4,6
Turn signal indicator
TRACK mode indicator
Open door warning6
Master warning1,2,6
AIR BAG ON/OFF indicator
Seat belt reminder (alarm will
sound if speed is over 12 mph)
Malfunction/
Check Engine indicator1
Low engine oil pressure warning1
Low engine coolant temperature
indicator2,6
Electric power steering system warning1
Fuel tank door position
Front fog light indicator6
Hill-start assist control ON indicator3
Headlight high beam indicator
Low outside temperature indicator6Vehicle Stability Control (VSC) OFF
indicator1
1
If the indicator does not turn off within a few seconds of starting the engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 Vehicle with an automatic transmission.5 Vehicle with a manual transmission.6 If equipped.

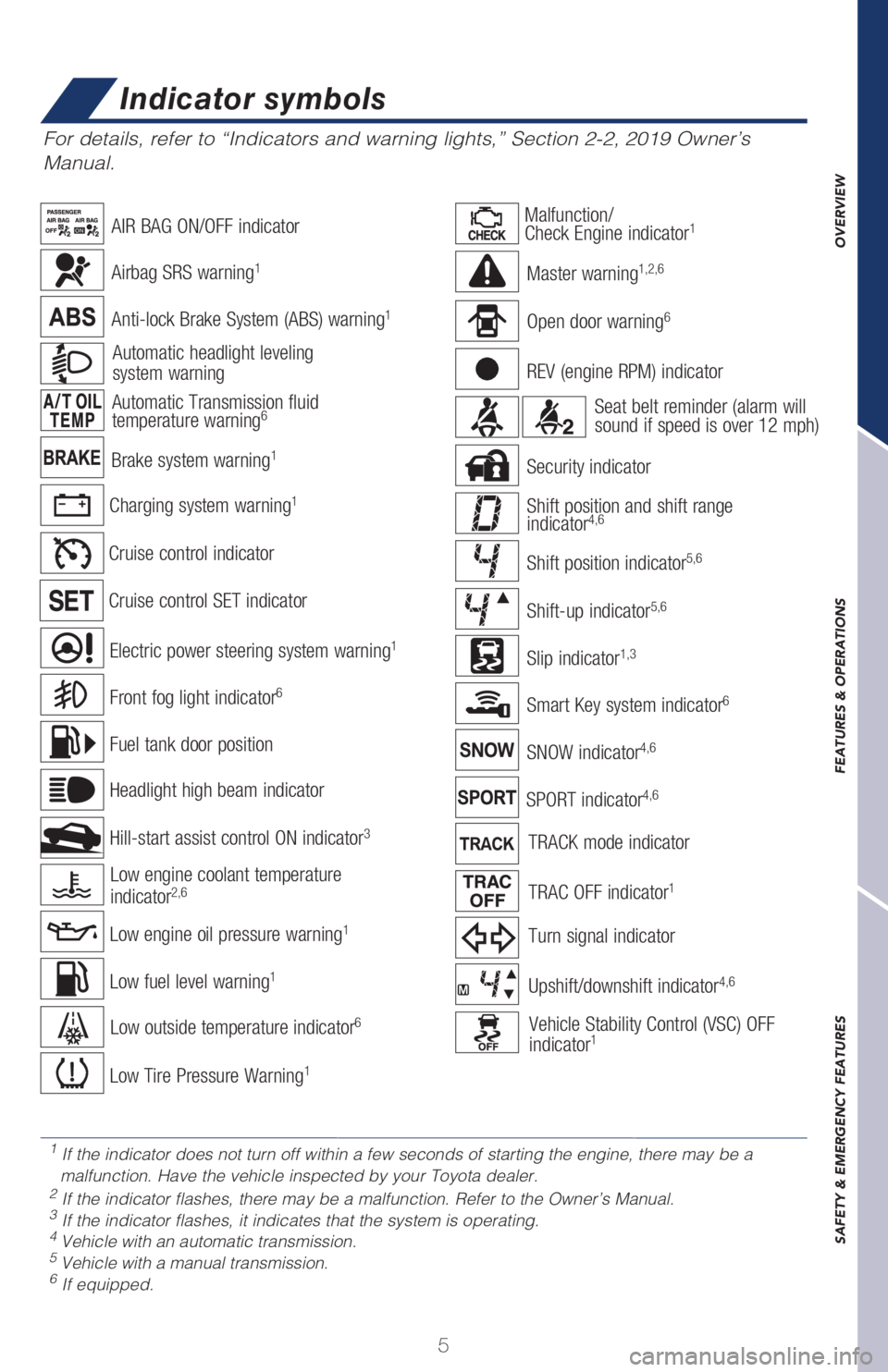

Indicator symbols
Page 8 of 32
6

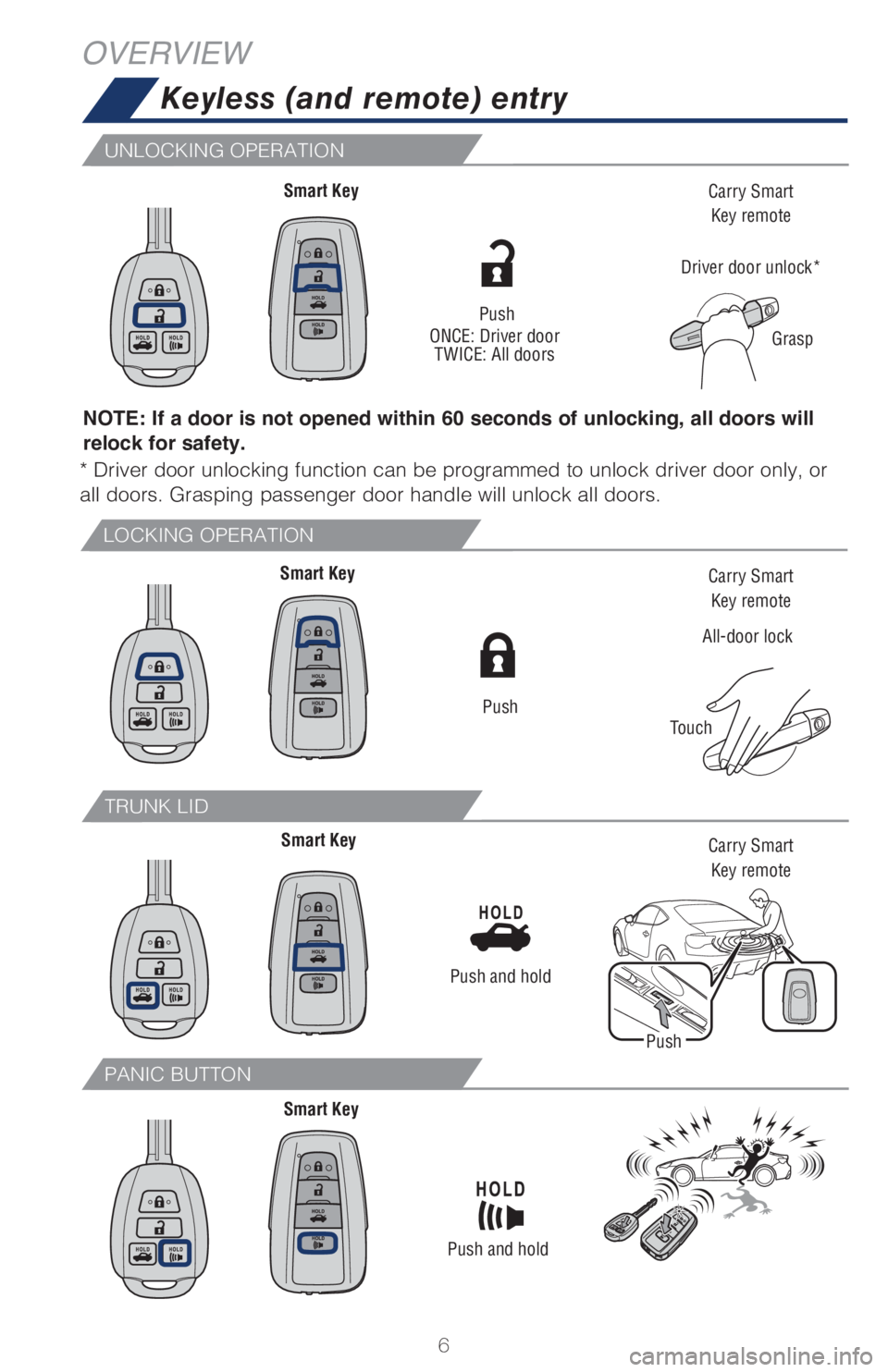

Keyless (and remote) entry
LOCKING OPERATION
UNLOCKING OPERATION
TRUNK LID
PANIC BUTTON
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
All-door lock
Touch
Smart Key
Smart Key
Smart Key
Smart KeyCarry Smart
Key remote
Carry Smart
Key remote
Carry Smart
Key remoteGrasp
Driver door unlock*
Push
ONCE: Driver door
TWICE: All doors
Push
Push and hold
Push and hold
Push
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle will unlock all doors.
OVERVIEW
Page 9 of 32
OVERVIEW FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES
7

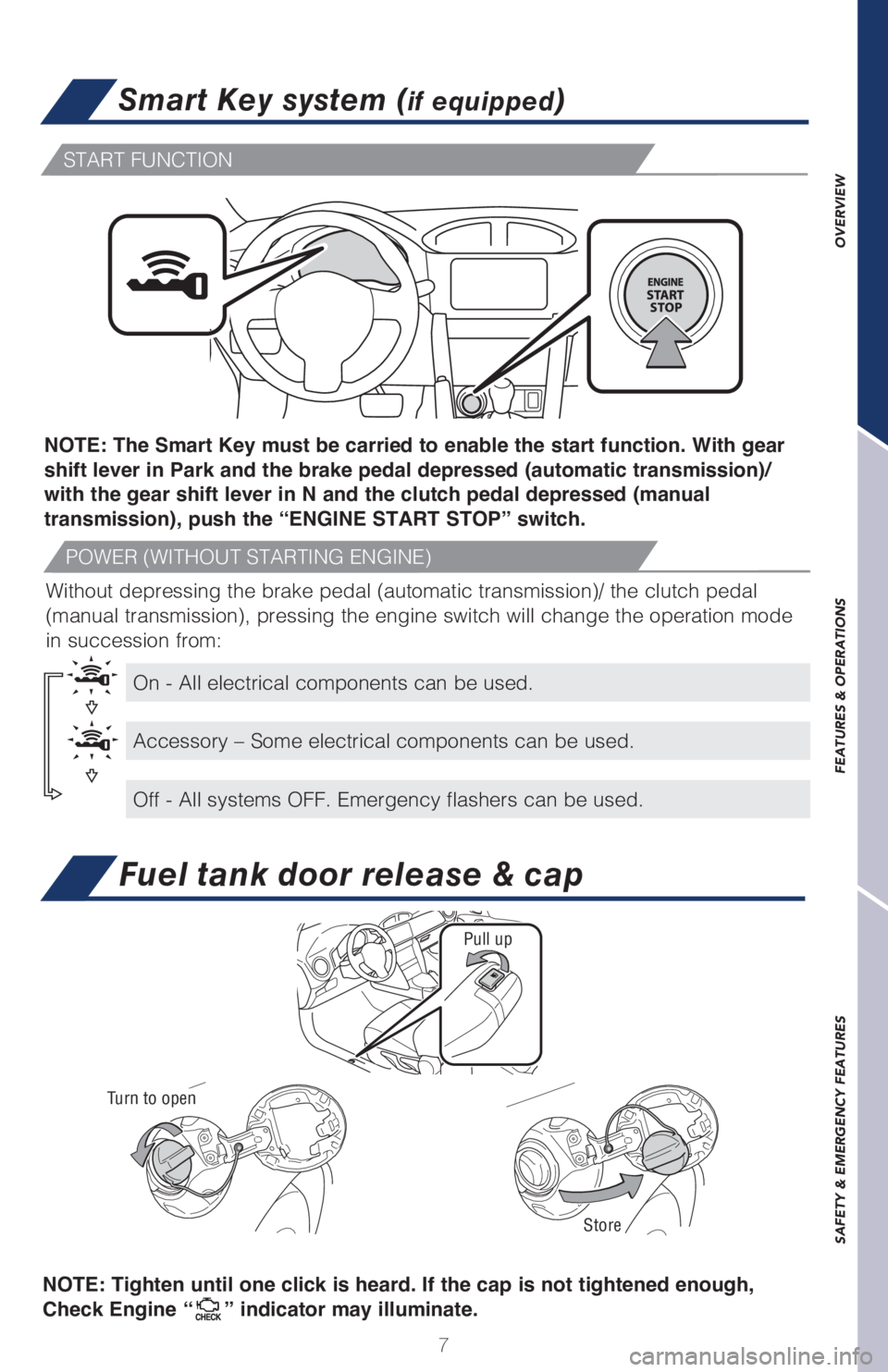

Smart Key system (if equipped)
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
On - All electrical components can be used.
Accessory – Some electrical components can be used.
Off - All systems OFF. Emergency flashers can be used. NOTE: The Smart Key must be carried to enable the start function. With gear
shift lever in Park and the brake pedal depressed (automatic transmission)/
with the gear shift lever in N and the clutch pedal depressed (manual
transmission), push the “ENGINE START STOP” switch.
Without depressing the brake pedal (automatic transmission)/ the clutch pedal
(manual transmission), pressing the engine switch will change the operation mode
in succession from:
Fuel tank door release & cap
NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “
” indicator may illuminate.
Pull up
Store
Turn to open
Page 10 of 32
8

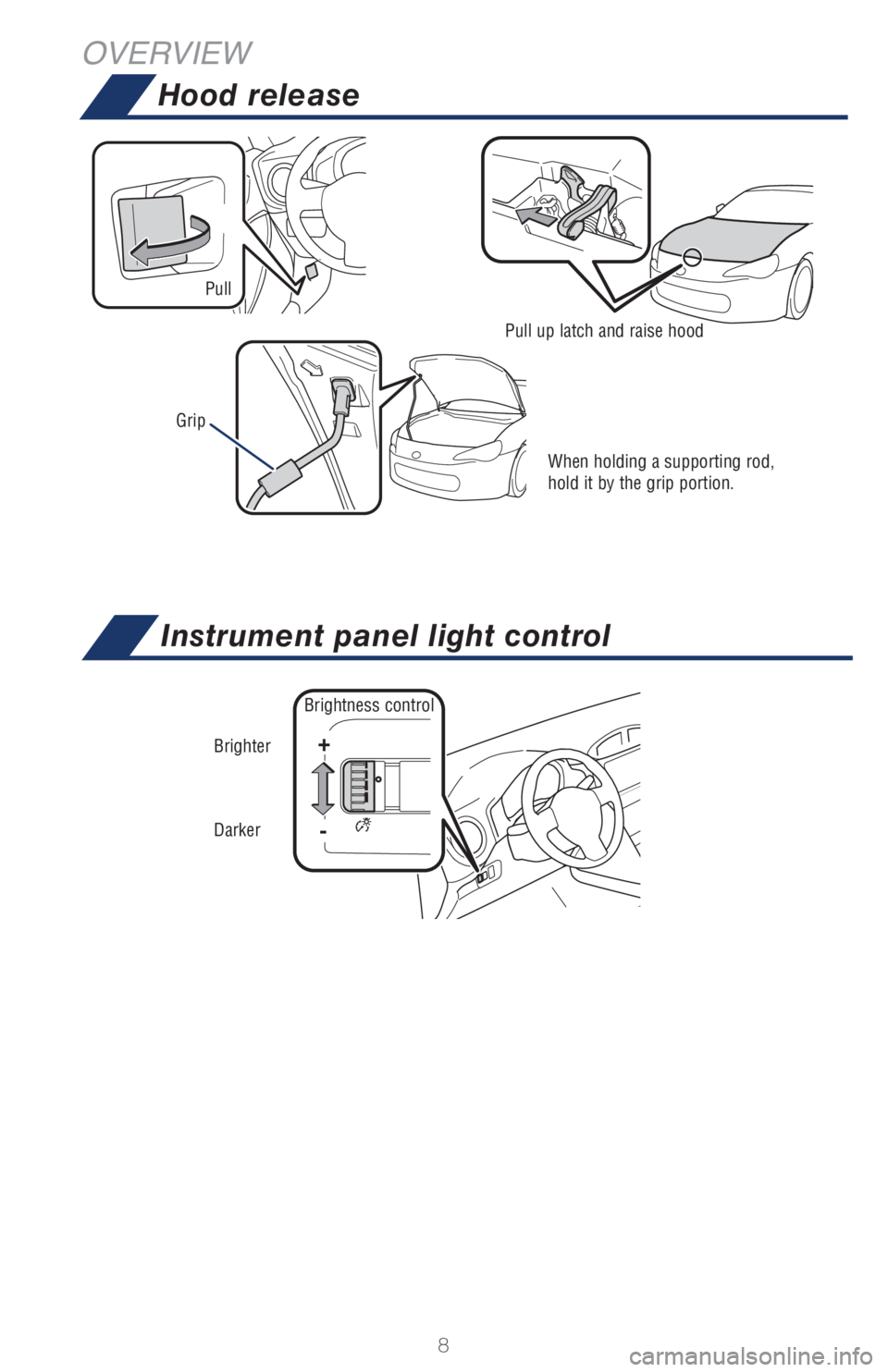

Hood release
Grip
Instrument panel light control
Brightness control
Brighter
Darker
+
-
When holding a supporting rod,
hold it by the grip portion.
Pull up latch and raise hood
Pull
OVERVIEW
