TOYOTA GT86 2019 (in English) Owner's Manual

OVERVIEW FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES

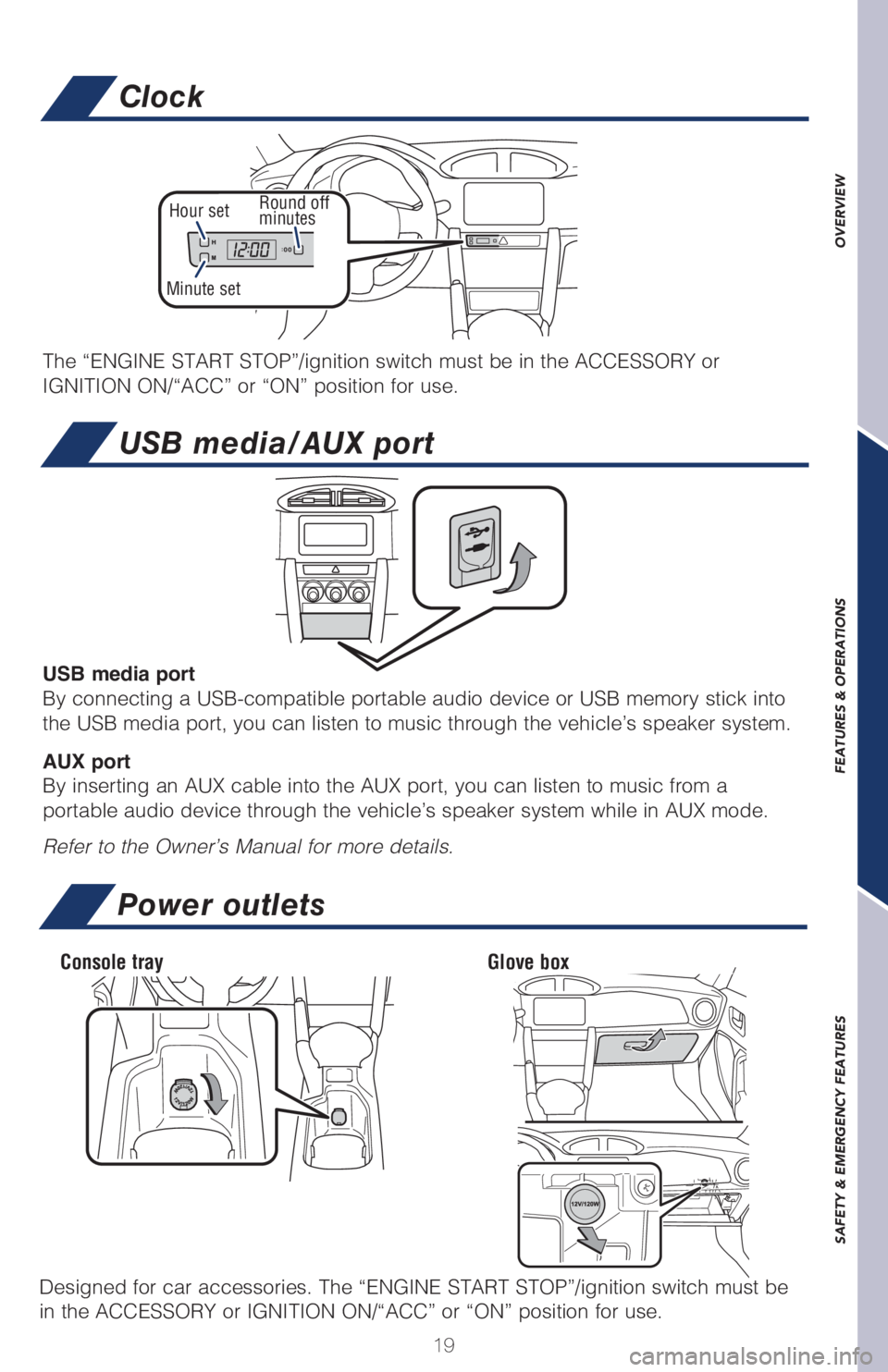

19
Power outlets
USB media/AUX port
USB media port
By connecting a USB-compatible portable audio device or USB memory stick into
the USB media port, you can listen to music through the vehicle’s speaker system.
AUX port
By inserting an AUX cable into the AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in AUX mode.
Refer to the Owner’s Manual for more details.
Designed for car accessories. The “ENGINE START STOP”/ignition switch must be
in the ACCESSORY or IGNITION ON/“ACC” or “ON” position for use.
Console trayGlove box
Clock
00
The “ENGINE START STOP”/ignition switch must be in the ACCESSORY or
IGNITION ON/“ACC” or “ON” position for use.
Minute set
Hour setRound off
minutes

20
FEATURES & OPERATIONS
Air conditioning/heating
For more details, refer to the Owner’s Manual.
Airflow vent
“
” and “” mode uses outside air onlyRear window and outside
rear view mirror defoggers
Recirculate cabin air
(outside air when OFF)
Climate control OFF
Recirculate cabin air
(outside air when OFF)Rear window and outside
rear view mirror defoggers
Air Conditioning ON/OFF Windshield airflow
Defogging
windshield
Airflow vent Temperature selector
(driver’s side)Temperature selector
(front passenger’s side) Automatic climate control ON
Adjust the temperature setting, and airflow
vents and fan will adjust automatically.
Fan speed/Airflow
vent display Temperature display
(driver’s side)Temperature display
(front passenger’s side)
“DUAL” button
Indicator ON: Separate temperature
settings for driver and passenger.
Indicator OFF: Synchronize temperature
settings for driver and passenger.Air Conditioning ON/OFF
Fan speedTemperature selector
Manual air conditioning (if equipped)
Automatic air conditioning (if equipped)

OVERVIEW FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES

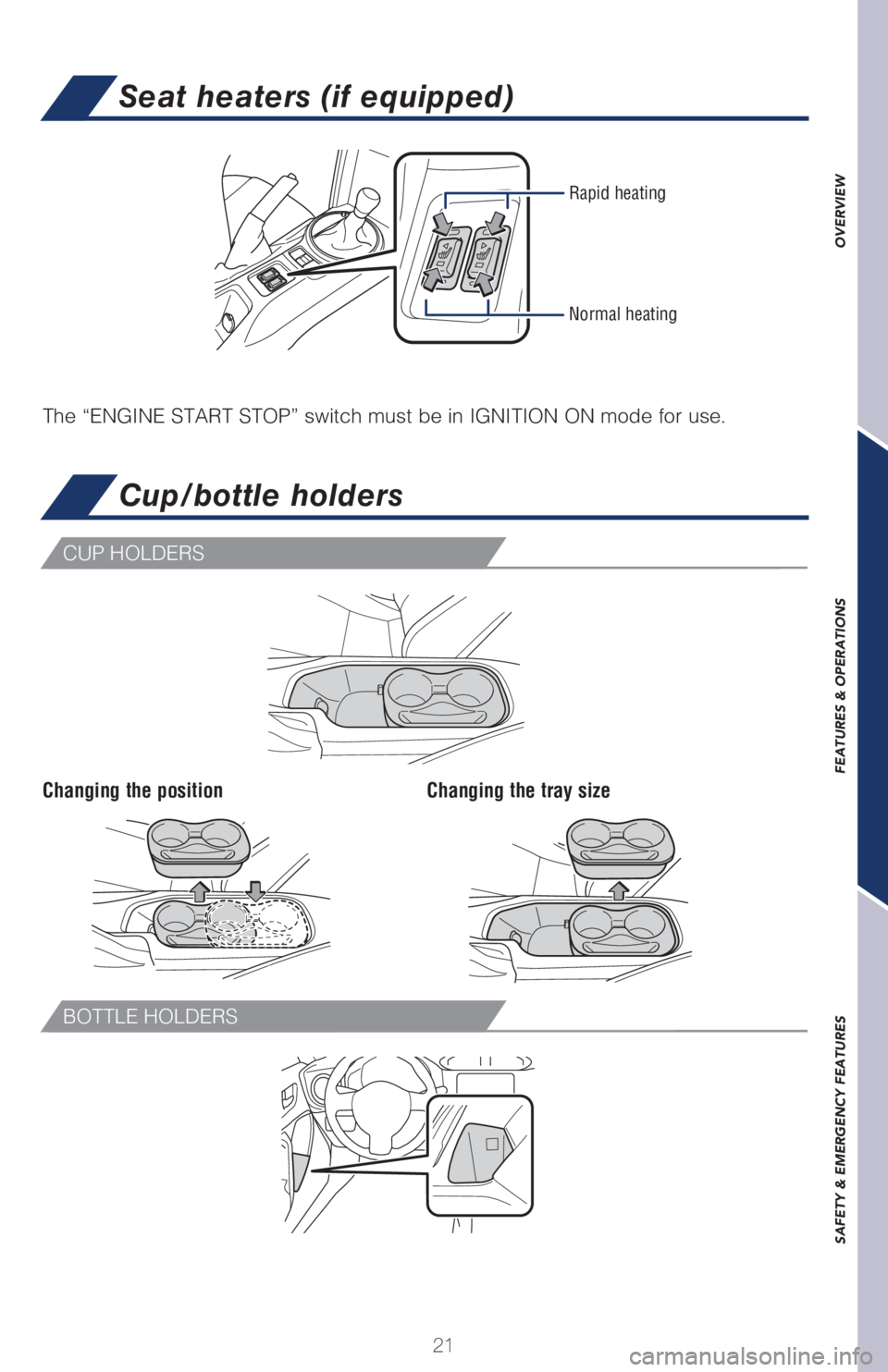

21
Seat heaters (if equipped)
The “ENGINE START STOP” switch must be in IGNITION ON mode for use.
Rapid heating
Normal heating
Cup/bottle holders
Changing the positionChanging the tray size
CUP HOLDERS
BOTTLE HOLDERS

22
Seat belts
Tire Pressure Monitoring (warning) System (TPMS)
127(,IDSDVVHQJHU

OVERVIEW FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES
23

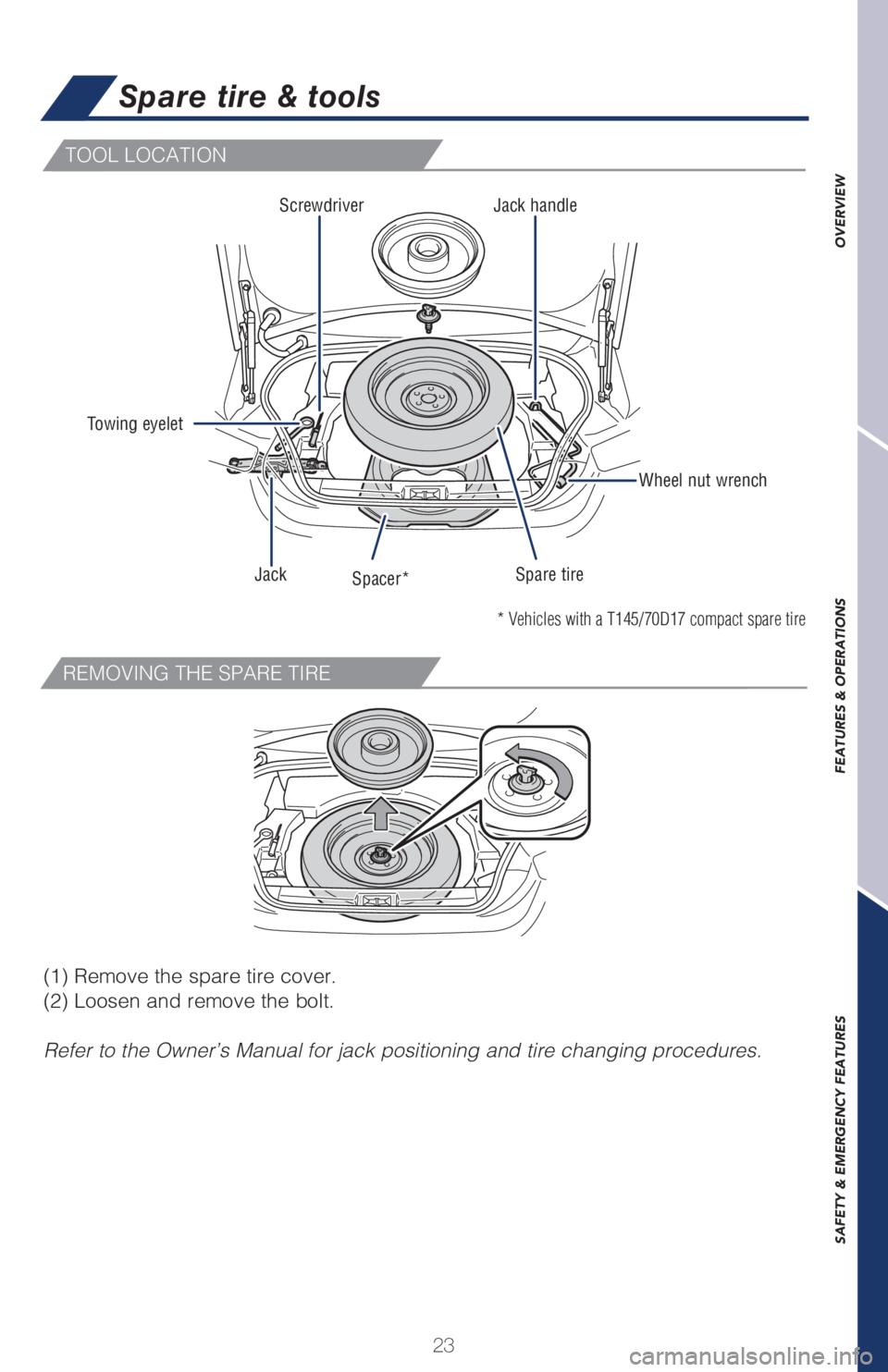

TOOL LOCATION
REMOVING THE SPARE TIRE
Spare tire & tools
Towing eyelet
Wheel nut wrench Jack handle
Jack
Spare tire
Spacer* Screwdriver
(1) Remove the spare tire cover.
(2) Loosen and remove the bolt.
Refer to the Owner’s Manual for jack positioning and tire changing procedures.
* Vehicles with a T145/70D17 compact spare tire

24
SAFETY & EMERGENCY FEATURES

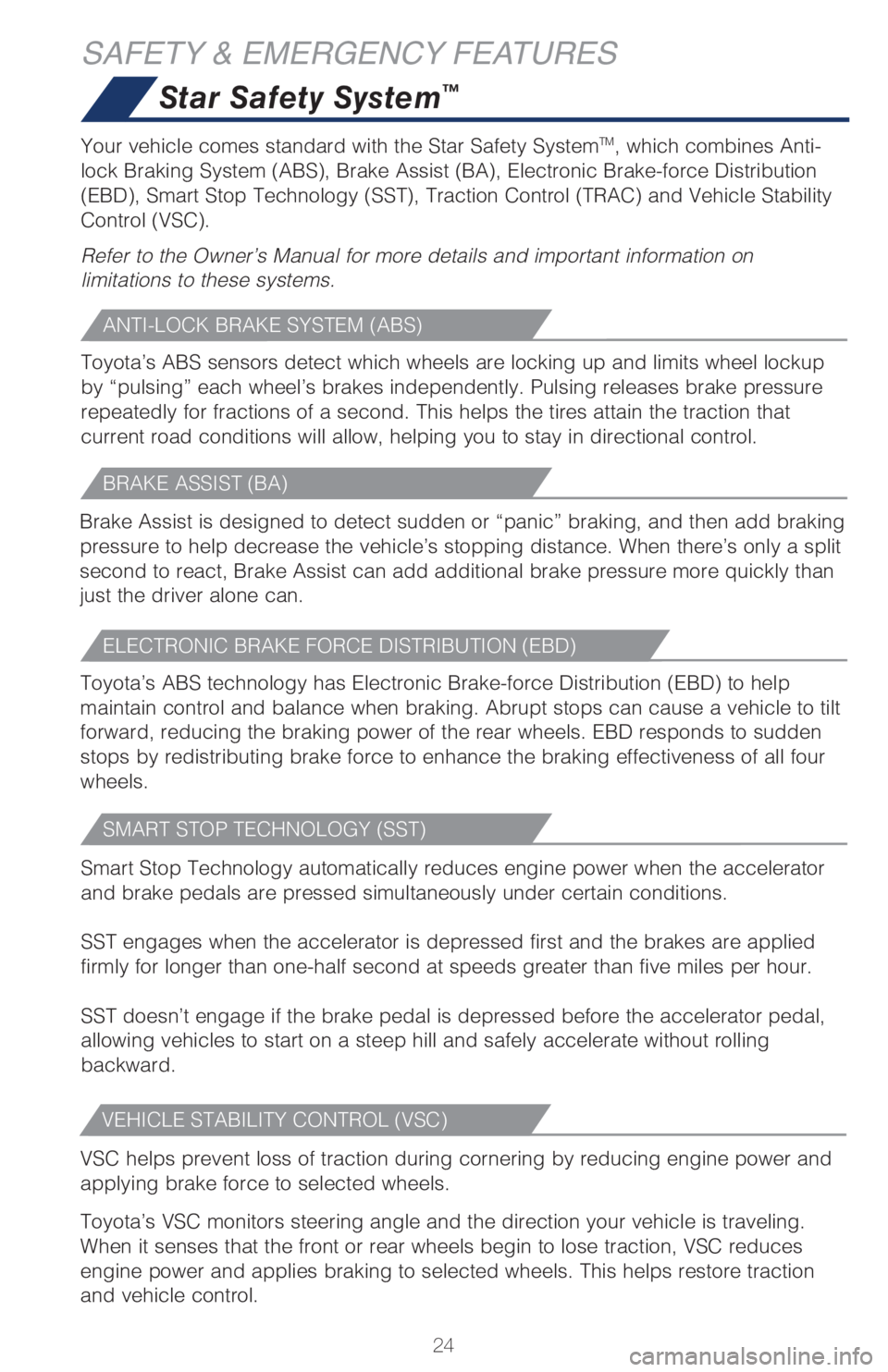

Star Safety System™
Your vehicle comes standard with the Star Safety SystemTM, which combines Anti-
lock Braking System (ABS), Brake Assist (BA), Electronic Brake-force Distribution
(EBD), Smart Stop Technology (SST), Traction Control (TRAC) and Vehicle Stability
Control (VSC).
Refer to the Owner’s Manual for more details and important information on
limitations to these systems.
Smart Stop Technology automatically reduces engine power when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling
backward.
SMART STOP TECHNOLOGY (SST)
VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
VEHICLE STABILITY CONTROL (VSC)
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
ANTI-LOCK BRAKE SYSTEM (ABS)
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a split
second to react, Brake Assist can add additional brake pressure more quickly than
just the driver alone can.
BRAKE ASSIST (BA)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. Abrupt stops can cause a vehicle to tilt
forward, reducing the braking power of the rear wheels. EBD responds to sudden
stops by redistributing brake force to enhance the braking effectiveness of all four
wheels.
ELECTRONIC BRAKE FORCE DISTRIBUTION (EBD)

OVERVIEW FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES
25
VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.

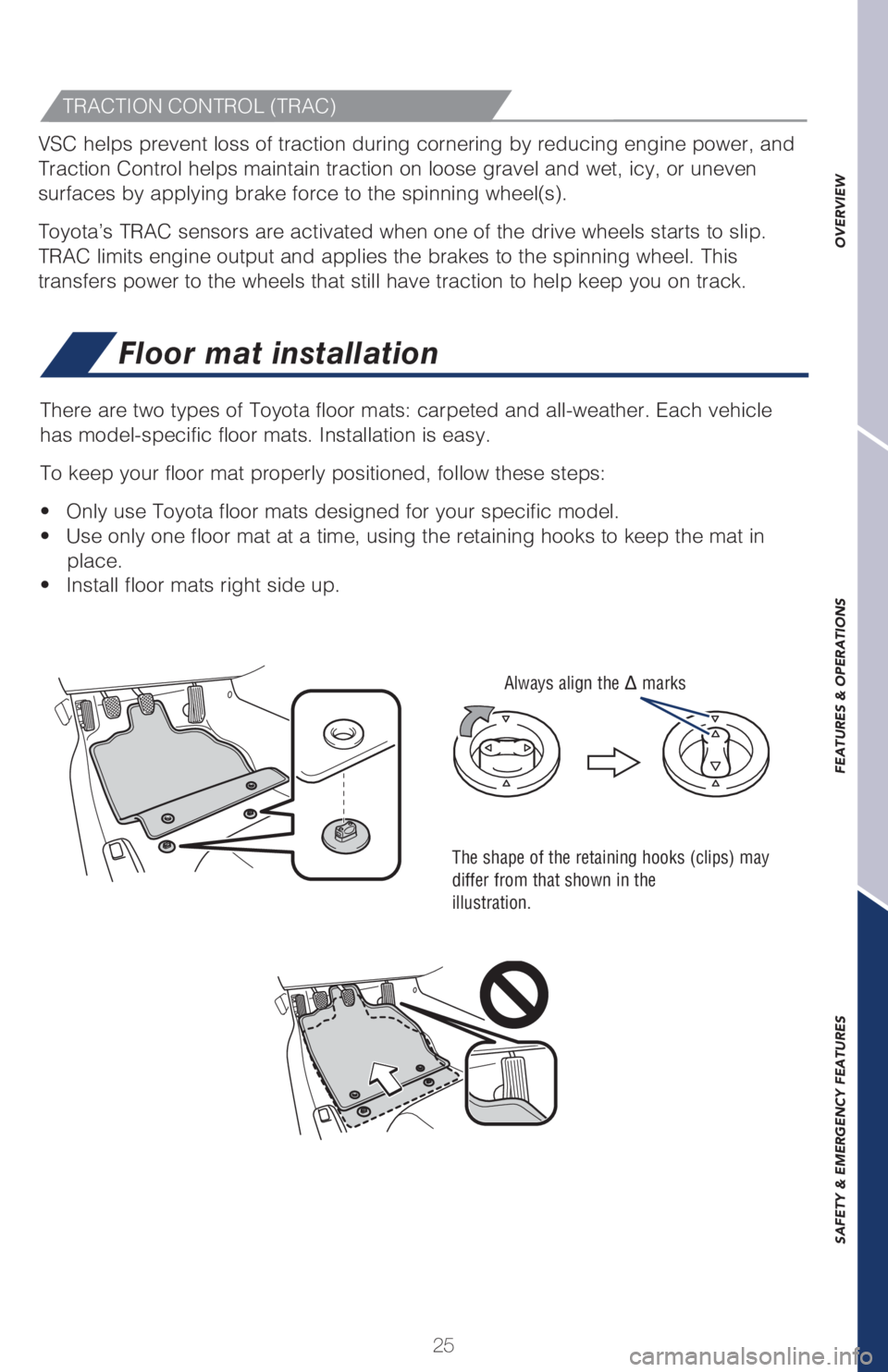

Floor mat installation
There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use Toyota floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat in
place.
• Install floor mats right side up.
The shape of the retaining hooks (clips) may
differ from that shown in the
illustration.
Always align the marks
TRACTION CONTROL (TRAC)

26

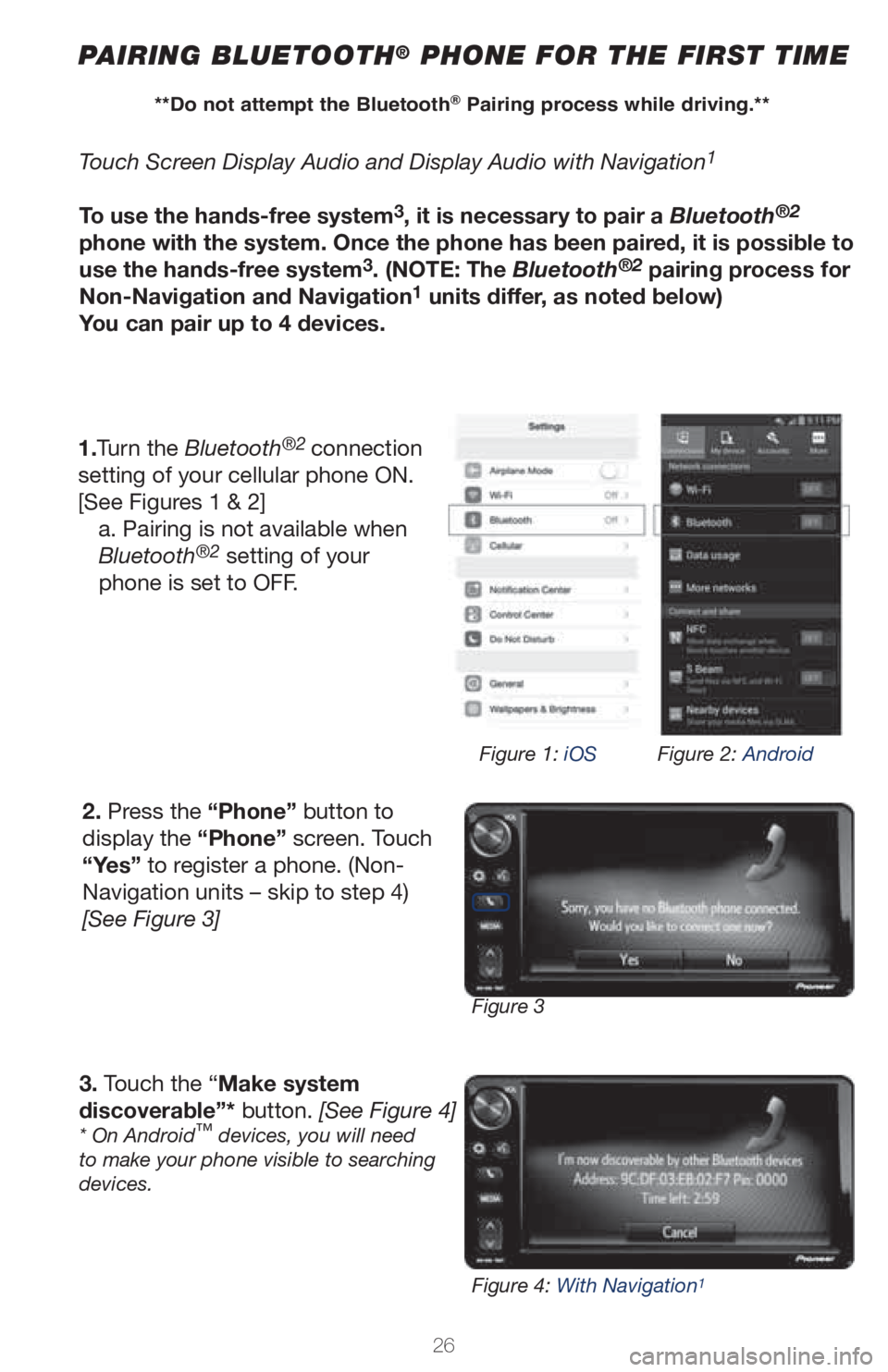

PAIRING BLUETOOTH® PHONE FOR THE FIRST TIME
Touch Screen Display Audio and Display Audio with Navigation1
To use the hands-free system3, it is necessary to pair a Bluetooth®2
phone with the system. Once the phone has been paired, it is possible to
use the hands-free system
3. (NOTE: The Bluetooth®2 pairing process for
Non-Navigation and Navigation1 units differ, as noted below)
You can pair up to 4 devices.
1.Turn the Bluetooth
®2
connection
setting of your cellular phone ON.
[See Figures 1 & 2]
a. Pairing is not available when
Bluetooth
®2 setting of your
phone is set to OFF.
2. Press the “Phone” button to
display the “Phone” screen. Touch
“Yes” to register a phone. (Non-
Navigation units – skip to step 4)
[See Figure 3]
3. Touch the “Make system
discoverable”* button. [See Figure 4]
* On Android™ devices, you will need
to make your phone visible to searching
devices.
Figure 3Figure 1:
iOSFigure 2: Android
Figure 4: With Navigation1
**Do not attempt the Bluetooth® Pairing process while driving.**

27

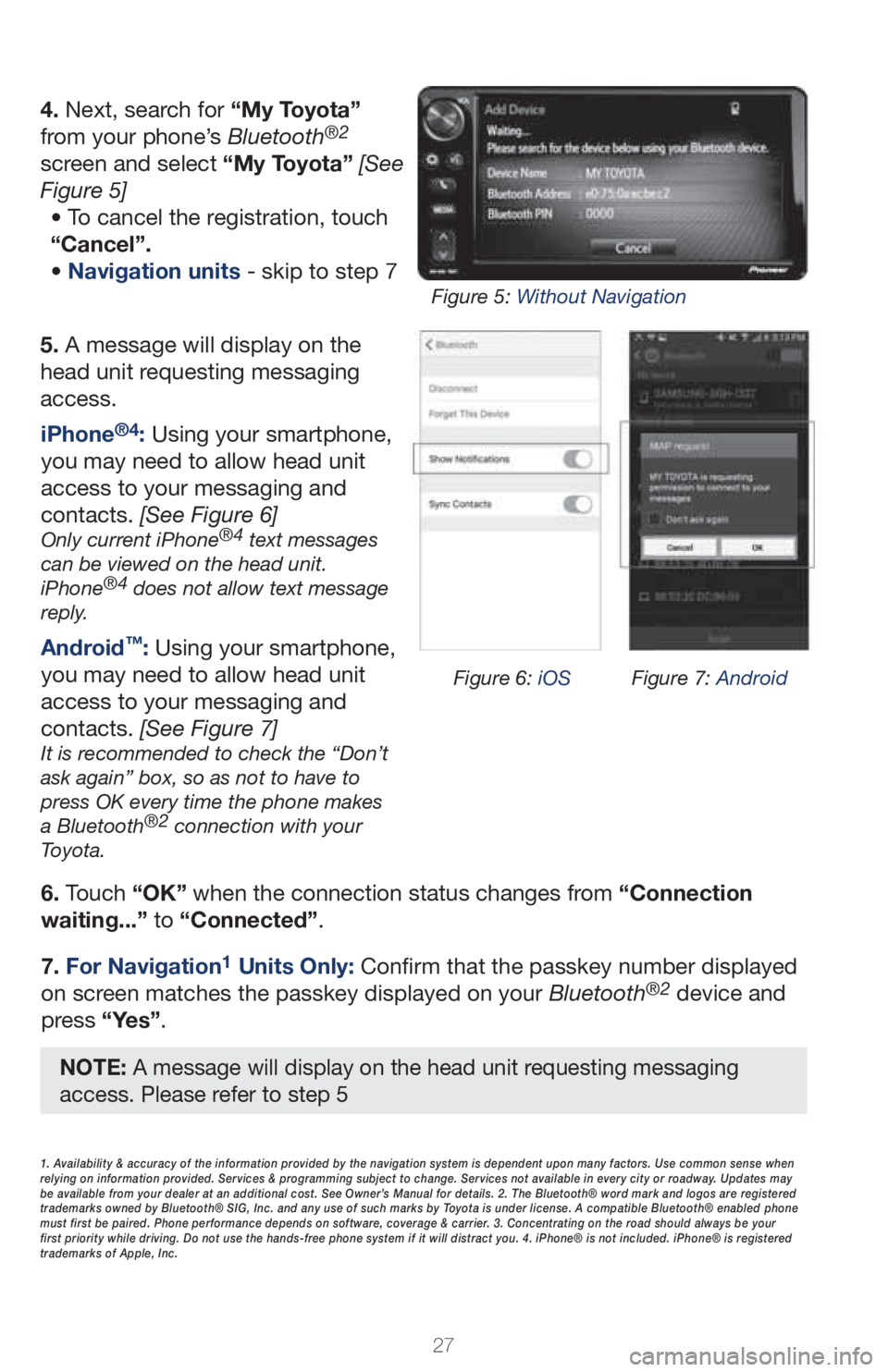

5. A message will display on the
head unit requesting messaging
access.
6. Touch “OK” when the connection status changes from “Connection
waiting...” to “Connected”.
7.
For Navigation1 Units Only: $POÙSN
UIBU
UIF
QBTTLFZ
OVNCFS
EJTQMBZFE

PO
TDSFFO
NBUDIFT
UIF
QBTTLFZ
EJTQMBZFE
PO
ZPVS
Bluetooth®2 device and
press “Yes”.
iPhone®4: Using your smartphone,
you may need to allow head unit
access to your messaging and
contacts. [See Figure 6]
Only current iPhone®4 text messages
can be viewed on the head unit.
iPhone
®4 does not allow text message
reply.
Android™: Using your smartphone,
you may need to allow head unit
access to your messaging and
contacts. [See Figure 7]
It is recommended to check the “Don’t
ask again” box, so as not to have to
press OK every time the phone makes
a Bluetooth
®2 connection with your
Toyota.
4. Next, search for “My Toyota”
from your phone’s Bluetooth®2

screen and select “My Toyota” [See
Figure 5]
• To cancel the registration, touch
“Cancel”.
•
Navigation units
TLJQ
UP
TUFQ

1. Availability & accuracy of the information provided by the navigation system is dependent upon many factors. Use common sense when
relying on information provided. Services & programming subject to change. Services not available in every city or roadway. Updates may
be available from your dealer at an additional cost. See Owner’s Manual for details. 2. The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth® SIG, Inc. and any use of such marks by Toyota is under license. A compatible Bluetooth® enabled phone
must first be paired. Phone performance depends on software, coverage & carrier. 3. Concentrating on the road should always be your
first priority while driving. Do not use the hands-free phone system if it will distract you. 4. iPhone® is not included. iPhone® is registered
trademarks of Apple, Inc.
Figure 6: iOSFigure 7: Android
Figure 5: Without Navigation
NOTE: A message will display on the head unit requesting messaging
access. Please refer to step 5
