'05 HIGHLANDER_U (L/O 0409)
407
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Fuel type:
2AZ- FE engine
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher
3MZ- FE engine
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher. For improved vehicle perfor-
mance, the use of premium unleaded
gasoline with an Octane Rating of 91
(Research Octane Number 96) or
higher is recommended.
Fuel tank capacity, L (gal., Imp. gal.):
72.5 (19.1, 16.0)ENGINE
Valve clearance (engine cold), mm (in.):
2AZ- FE engine
Intake 0.19Ð0.29 (0.007Ð0.011)
Exhaust 0.30Ð0.40 (0.012Ð0.016)
3MZ- FE engine
Intake 0.15Ð0.25 (0.006Ð0.010)
Exhaust 0.25Ð0.35 (0.010Ð0.014)
Spark plug type:
DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm(in.):
1.1 (0.043)
Drive belt tension measured with
Borroughs drive belt tension gauge
No.BT- 33- 73F (used belt), Ibf:
2AZ- FE engine
Automatic adjustment
3MZ- FE engine
12510ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
2AZ- FE engine
With filter 3.8 (4.0, 3.3)
Without filter 3.6 (3.8, 3.2)
3MZ- FE engine
With filter 4.7 (5.0, 4.1)
Without filter 4.5 (4.8, 4.0)
Toyota Genuine Motor Oilº is used in
your Toyota vehicle. Use Toyota approved
Toyota Genuine Motor Oilº or equivalent
to satisfy the following grade and
viscosity.
Oil grade:
API grade SL Energy- Conservingº or
ILSAC multigrade engine oil
Fuel Service specifications

1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2 Perform these service items only if you drive primarily under the conditions indicated.3 Required under the terms of the Emission Control Warranty.4 Inspec tthickness measurement and disc runout.5 Ex cept front differential of Corolla Matrix 4WD with manual transmission.6 See page 37 for details.7 Applies t o Coroll a M atrix 4WD and Sienna 4WD.8 Applies to Corolla Matrix 4WD, MR2 Spyder and Sienna 4WD.
Maintenance Log: Cars
30,000 Miles or 36 Months
qReplace engine oil and oil filter1
qRotate tires (except MR2 Spyder)
qReplace cabin air filter (Camry and Camry Solara)
qReplace engine air filter
qReplace spark plugs (ECHO)3
qTighten drive shaft bolt (Corolla and Corolla Matrix)
qInspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
4
__ Differential oil5
__ Drive shaft boots
__ Engine coolant6
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qTighten nuts and bolts on chassis
Driving while towing:
qR epl ac e f ront diff erential oil (all models with manual transmission
e x ce pt Cor oll a M atrix 4WD)
qReplace manual transmission oil
qRepl ac e r ear differential oil8
qRepl ac e t ran sfer case oil7
qTighten nuts and bolts on chassis
Dealer Service Verification:
Date:
M ileage:
7
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
7
__ Transmission fluid or oil

1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2 Perform these service items only if you drive primarily under the conditions indicated.3 R equ ir ed under the terms of the Emission Control Warranty.4 Inspect thickness measurement and disc runout.5 Except front differential of Corolla Matrix 4WD with manual transmission.6 Initial inspection at 60,000 miles/72 months. Inspect every 15,000 miles/18 months thereafter.7 See page 37 for details.8 Applies to Corolla Matrix 4WD and Sienna 4WD.9 Applies t o Corolla Matrix 4WD, MR2 Spyder and Sienna 4WD.
Maintenance Log: Cars
60,000 Miles or 72 Months
qReplace engine oil and oil filter1
qRotate tires (except MR2 Spyder)
qReplace cabin air filter (if equipped)
qReplace engine air filter
qReplace spark plugs (ECHO)3
qTighten drive shaft bolt (Corolla and Corolla Matrix)
qInspect the following:__ Ball joints and dust covers
__ B rake lines and hoses
__ Brake linings/drums and brake pads/discs
4
__ Differential oil5
__ Drive belts6
__ Drive shaft boots
__ Engine coolant7
__ Engine valve clearance
__ Exhaust pipes and mountings
Additional Maintenance Items for Special Operating Conditions2
Dr iv ing in desert or on dirt roads:
qTighten nuts and bolts on chassis
Driving while towing:
qReplace front differential oil
qReplace rear differential oil9
qReplace transfer case oil8
qReplace transmission fluid or oil
qTighten nuts and bolts on chassis
Dealer Service Verification:
Date:
M ileage:
11
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
8
__ Transmission fluid or oil

Dealer Service Verification:
Date:
Mileage:
1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2 Perform these service items only if you drive primarily under the conditions indicated.3 Required under the terms of the Emission Control Warranty.4 Inspec tthic kness measurement and disc runout.5 Ex ce pt front differential of Corolla Matrix 4WD with manual transmission.6 See page 37 for details.7 Applies to Corolla Matrix 4WD and Sienna 4WD.8 Applies to Corolla Matrix 4WD, MR2 Spyder and Sienna 4WD.
Maintenance Log: Cars
90,000 Miles or 108 Months
qReplace engine oil and oil filter1
qRotate tires (except MR2 Spyder)
qReplace cabin air filter (Camry and Camry Solara)
qReplace engine air filter
qReplace spark plugs (ECHO)3
qReplace timing belt (Camry with 1MZFE or 3MZFE, Camry Solara with
3MZFE, Sienna)
qTighten drive shaft bolt (Corolla and Corolla Matrix)
qInspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
4
__ Differential oil5
__ Drive belts
__ Drive shaft boots
__ Engine coolant
6
__ Exhaust pipes and mountings
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qTighten nuts and bolts on chassis
Driving while towing:
qReplace front differential oil (all models with manual transmission
except Corolla Matrix 4WD)
qReplace manual transmission oil
qReplace rear differential oil8
qReplace transfer case oil7
qTighten nuts and bolts on chassis
Dealer Service Verification:
Date:
M ileage:
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
7
__ Tran smis sion flu id oroil
15

1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2 Per form these service items only if you drive primarily under the conditions indicated.3 Required under the terms of the Emission Control Warranty. Does not apply to Camry PZEV with 2AZFE in California,
New York, Massachusetts, Maine and Vermont. For this model, replacement interval is 150,000 miles.
4 Inspect thickness measurement and disc runout.5 Except front differential of Corolla Matrix 4WD with manual transmission.6 See page 37 for details.7 Applies to Corolla Matrix 4WD and Sienna 4WD.8 Applies to Corolla Matrix 4WD, MR2 Spyder and Sienna 4WD.
Maintenance Log: Cars
120,000 Miles or 144 Months
qReplace engine oil and oil filter1
qRotate tires (except MR2 Spyder)
qReplace cabin air filter (if equipped)
qReplace engine air filter
qReplace spark plugs3
qTighten drive shaft bolt (Corolla and Corolla Matrix)
qInspect the following:__ B all joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
4
__ Diff erential oil5
__ Drive belts
__ Drive shaft boots
__ Engine coolant
6
__ Engine valve clearance
__ Exhaust pipes and mountings
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qTighten nuts and bolts on chassis
Driving while towing:
qReplace front differential oil
qReplace rear differential oil8
qReplace transfer case oil7
qReplace transmission fluid or oil
qTighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
19
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Steering gear box
__ St eering linkage and boots
__ Transfer case oil
7
__ Transmission fluid or oil

Maintenance Log: SUVs and Trucks
6Applies to Tacoma with 1GRFE, Tundra with 1GRFE and 4Runner with 1GRFE. Required under the terms of the Emission Control Warranty.
7Inspect thickness measurement and disc runout.8See p age 37 f or details.
30,000 Miles or 36 Months
qReplace engine oil and oil filter1qReplace engine air filter
qRotate tiresqReplace cabin air filter (if equipped)
qLubricate drive shaft bushing (Land Cruiser)
qLubricate propeller shaft4
qLubricate wheel bearings (Land Cruiser)
qReplace limitedslip differential oil, if equipped5
qReplace spark plugs6
qRetorque drive shaft bolt (4WD RAV4)
qRetorque propeller shaft bolt (all models except Highlander and RAV4)
qInspect the following:__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
7
__ Drive shaft boots3
__ Engine coolant8
__ Exhaust pipes and mountings
__ Front differential oil (4WD models, Highlander and RAV4)
__ Fuel lines and connections, fuel tank band and f uel tankvapor vent system hoses
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qTighten nuts and bolts on chassis
Dr iv in g while towing:
qReplace front differential oil (2WD RAV4 with manual transmission, all 4WD models
except RAV4 with automatic transmission and Highlander)
qReplace manual transmission oil (RAV4, Tundra)
qReplace rear differential oil, including limitedslip (all models except 2WD
Highlander and 2WD RAV4)
qReplace transfer case oil (4WD models)
qTighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
23
__ F uel tank cap gasket
__ Manual transmission oil (RAV4, Tundra)
__ Radiator core and condenser
__ Rear differential oil (all models except 2WD Highlander and 2WD RAV4)
__ St eering gear box
__ Steering linkage and boots
__ Transfer case oil (all 4WD models)

Maintenance Log: SUVs and Trucks
7 Inspect thickness measurement and disc runout.8 Applies to Land C ru iser, Sequoia, Tundra and 4Runner with 2UZFE. Required only for vehicles in California,
Massachusetts and New York.
9 Init ial i nspec tion at 60,000 miles/72 months. Inspect every 15,000 miles/18 months thereafter.10See p age 37 for details.
60,000 Miles or 72 Months
qReplace engine oil and oil filter1qReplace engine air filter
qRotate tiresqReplace cabin air filter (if equipped)
qLubricate drive shaft bushing (Land Cruiser)
qLubricate propeller shaft4
qLubricate wheel bearings (Land Cruiser)
qReplace limitedslip differential oil, if equipped5
qReplace spark plugs6
qRetorque drive shaft bolt (4WD RAV4)
qRetorque propeller shaft bolt (all models except Highlander and RAV4)
qInspect the following:__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
7
__ Charcoal canister8
__ Dr ive belts9
__ Drive shaft boots3
__ Engine coolant10
__ E ngine valv e clearance (except Tacoma
with 2TRFE)
__ Front differential oil (4WD models, Highlander, RAV4)
Add ition al Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qTighten nuts and bolts on chassis
Driving while towing:
qReplace automatic transmission fluid
qRepl ac e f ront diff erential oil (Highlander, RAV4 and all 4WD models)
qReplace manual transmission oil (RAV4, Tundra)
qRepl ac e rear differential oil, including limited slip (all models except 2WD
Hi gh land erand 2WD RA V4)
qReplace transfer case oil (4WD models)
qTigh ten nuts and bolts on chassis
Dea ler Service Verification:
D at e :
Mileage:
27
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel tank band and f uel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Manual transmission oil (RAV4, Tundra)
__ Radiator core and condenser
__ Rear differential oil (all models except
2WD Highlander and 2WD RAV4)
__ Steering gear box
__ Steer ing linkage and boots
__ Transfer case oil (all 4WD models)

5,000Mile Maintenance Intervals
7,500Mile Maintenance IntervalsTo determine the appropriate maintenance
interval for your vehicle, see page 16.
Dealer Service Verification:
Date:
Mileage:
Dea ler Service Verification:
Maintenance Log: SUVs and Trucks
6Applies to Tacoma with 1GRFE, Tundra with 1GRFE and 4Runner with 1GRFE. Required under the terms of the
Emission Control Warranty.
7 Applies to Highlander with 3MZFE, Land Cruiser, Sequoia, Tundra with 2UZFE and 4Runner with 2UZFE.8Inspect thickness measurement and disc runout.9See p age 37 f or details.
90,000 Miles or 108 Months
qReplace engine oil and oil filter1qReplace engine air filter
qRotate tiresqReplace cabin air filter (if equipped)
qLubricate drive shaft bushing (Land Cruiser)
qLubricate propeller shaft4
qLubricate wheel bearings (Land Cruiser)
qReplace limitedslip differential oil, if equipped5
qReplace spark plugs6
qReplace timing belt7
qRetorque drive shaft bolt (4WD RAV4)
qRetorque propeller shaft bolt (all models except Highlander and RAV4)
qInspect the following:__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
8
__ Drive belts
__ Drive shaft boots3
__ Engine coolant9
__ Ex haust pipes and mountings
__ Front differential oil (4WD models, Highlander and RAV4)
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
qTighten nuts and bolts on chassis
Driving while towing:
qRepl ace front differential oil (2WD RAV4 with manual transmission, all 4WD models
e x cept RAV4 with automatic transmission and Highlander)
qR eplace manual transmission oil (RAV4, Tundra)
qReplace rear differential oil, including limited slip (all models except 2WD
Hi ghlander and 2WD RAV4)
qR epl ac e t ran sfer ca se oil (4WD models)
qTighten nuts and bolts on chassis
Dea ler Service Verification:
D at e :
Mileage:
31
__ Fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Manual transmission oil (RAV4, Tundra)
__ Radiator core and condenser
__ Rear differential oil (all models except 2WD Highlander and 2WD RAV4)
__ Steering gear box
__ St eering linkage and boots
__ Transfer case oil (all 4WD models)

Maintenance Log: SUVs and Trucks
6Required under the terms of the Emission Control Warranty.7 Inspect thickness measurement and disc runout.8 Applies to Land Cruiser, Sequoia, Tundra and 4Runner with 2UZFE. Required only for vehicles in California,
Massachusetts and New York.
9See page 37 for details.
120,000 Miles or 144 Months
qReplace engine oil and oil filter1qReplace engine air filter
qRotate tiresqReplace cabin air filter (if equipped)
qLubricate drive shaft bushing (Land Cruiser)
qLubricate propeller shaft4
qLubricate wheel bearings (Land Cruiser)
qReplace limitedslip differential oil, if equipped5
qReplace spark plugs (all models)6
qRetorque drive shaft bolt (4WD RAV4)
qRetorque propeller shaft bolt (all models except Highlander and RAV4)
qInspect the following:__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
7
__ Charcoal canister8
__ Drive belts
__ Drive shaft boots3
__ Engine coolant9
__ E ngine valve clearance (except Tacoma
with 2TRFE)
__ Front differential oil (4WD models, Highlander, RAV4)
Additional Maintenance Items for Special Operating Conditions2
Driv ing in desert or on dirt roads:
qTi gh ten n uts and bolts on c hassis
Driving while towing:
qReplace automatic transmission fluid
qRepl ac e f ront differential oil (Highlander, RAV4 and all 4WD models)
qReplace manual transmission oil (RAV4, Tundra)
qR eplace rear differential oil, including limited slip (all models except 2WD
Hi gh land erand 2WD RAV4)
qReplace transfer case oil (4WD models)
qTighten nuts and bolts on chassis
Dealer Service Verification:
Dat e :
M ileage:
35
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Manual transmission oil (RAV4, Tundra)
__ R adiat or core and condenser
__ Rear differential oil (all models except
2WD Highlander and 2WD RAV4)
__ St eerin g gear box
__ Steering linkage and boots
__ Transfer case oil (all 4WD models)

'05 HIGHLANDER_U (L/O 0409)

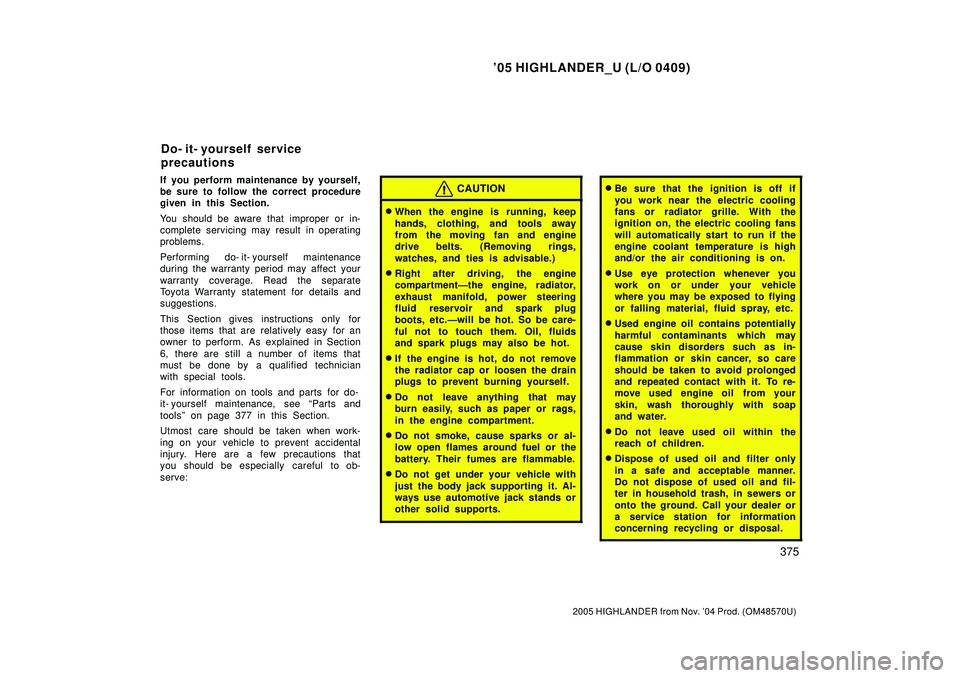

375
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
If you perform maintenance by yourself,
be sure to follow the correct procedure
given in this Section.
You should be aware that improper or in-
complete servicing may result in operating
problems.
Performing do- it- yourself maintenance
during the warranty period may affect your
warranty coverage. Read the separate
Toyota Warranty statement for details and
suggestions.
This Section gives instructions only for
those items that are relatively easy for an
owner to perform. As explained in Section
6, there are still a number of items that
must be done by a qualified technician
with special tools.
For information on tools and parts for do-
it- yourself maintenance, see Parts and
toolsº on page 377 in this Section.
Utmost care should be taken when work-
ing on your vehicle to prevent accidental
injury. Here are a few precautions that
you should be especially careful to ob-
serve:CAUTION
When the engine is running, keep
hands, clothing, and tools away
from the moving fan and engine
drive belts. (Removing rings,
watches, and ties is advisable.)
Right after driving, the engine
compartmentÐthe engine, radiator,
exhaust manifold, power steering
fluid reservoir and spark plug
boots, etc.Ðwill be hot. So be care-
ful not to touch them. Oil, fluids
and spark plugs may also be hot.
If the engine is hot, do not remove
the radiator cap or loosen the drain
plugs to prevent burning yourself.
Do not leave anything that may
burn easily, such as paper or rags,
in the engine compartment.
Do not smoke, cause sparks or al-
low open flames around fuel or the
battery. Their fumes are flammable.
Do not get under your vehicle with
just the body jack supporting it. Al-
ways use automotive jack stands or
other solid supports.
Be sure that the ignition is off if
you work near the electric cooling
fans or radiator grille. With the
ignition on, the electric cooling fans
will automatically start to run if the
engine coolant temperature is high
and/or the air conditioning is on.
Use eye protection whenever you
work on or under your vehicle
where you may be exposed to flying
or falling material, fluid spray, etc.
Used engine oil contains potentially
harmful contaminants which may
cause skin disorders such as in-
flammation or skin cancer, so care
should be taken to avoid prolonged
and repeated contact with it. To re-
move used engine oil from your
skin, wash thoroughly with soap
and water.
Do not leave used oil within the
reach of children.
Dispose of used oil and filter only
in a safe and acceptable manner.
Do not dispose of used oil and fil-
ter in household trash, in sewers or
onto the ground. Call your dealer or
a service station for information
concerning recycling or disposal.
Do- it- yourself service
precautions
