'05 HIGHLANDER_U (L/O 0409)
310
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

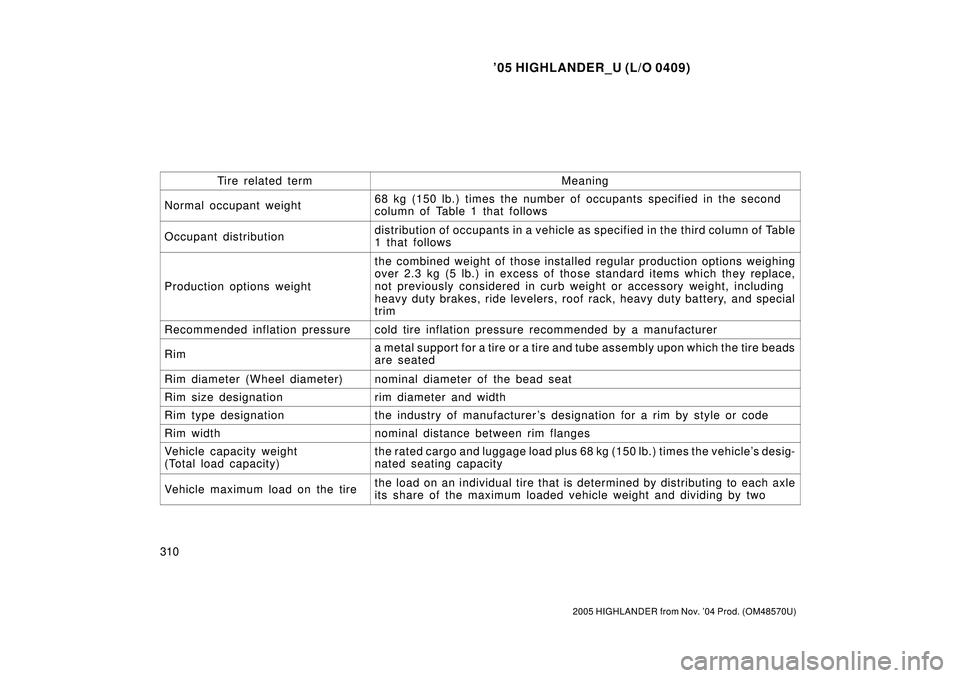

Ti r e relat ed ter mMeaning
Normal occupant weight68 kg (150 lb.) times the number of occupants specified in the second
column of Table 1 that follows
Occupant distributiondistribution of occupants in a vehicle as specified in the third column of Table
1 that follows
Production options weight
the combined weight of those installed regular production options weighing
over 2.3 kg (5 lb.) in excess of those standard items which they replace,
not previously considered in curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack, heavy duty battery, and special
trim
Recommended inflation pressurecold tire inflation pressure recommended by a manufacturer
Rima metal support for a tire or a tire and tube assembly upon which the tire beads
are seated
Rim diameter (Wheel diameter)nominal diameter of the bead seat
Rim size designationrim diameter and width
Rim type designationthe industry of manufacturer 's designation for a rim by style or code
Rim widthnominal distance between rim flanges
Vehicle capacity weight
(Total load capacity)the rated cargo and luggage load plus 68 kg (150 lb.) times the vehicle's desig-
nated seating capacity
Vehicle maximum load on the tirethe load on an individual tire that is determined by distributing to each axle
its share of the maximum loaded vehicle weight and dividing by two

'05 HIGHLANDER_U (L/O 0409)
86
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

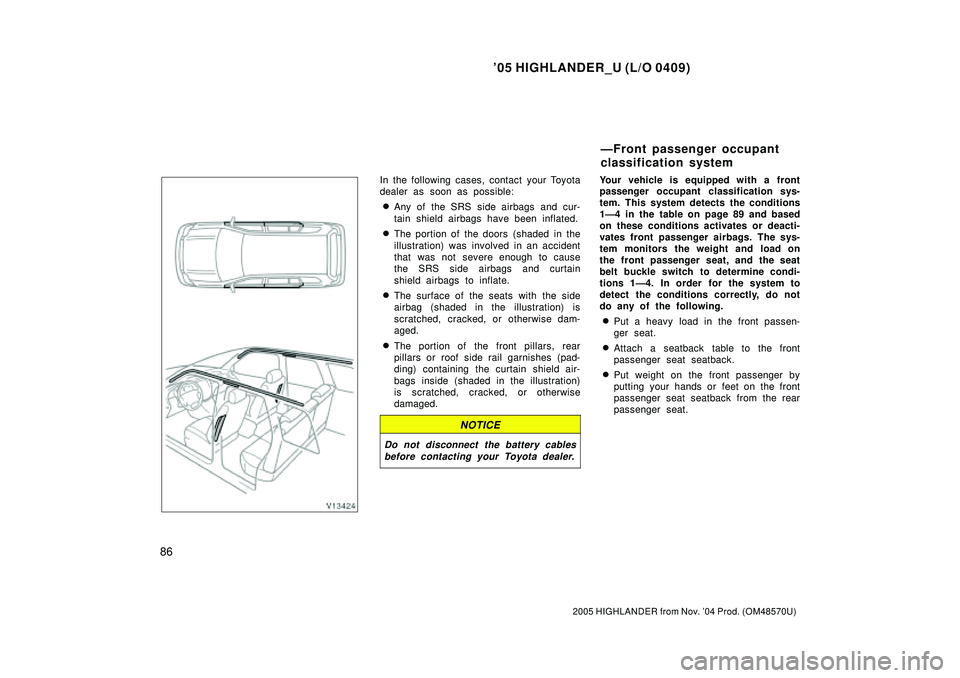

In the following cases, contact your Toyota
dealer as soon as possible:

Any of the SRS side airbags and cur-
tain shield airbags have been inflated.

The portion of the doors (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS side airbags and curtain
shield airbags to inflate.

The surface of the seats with the side
airbag (shaded in the illustration) is
scratched, cracked, or otherwise dam-
aged.

The portion of the front pillars, rear
pillars or roof side rail garnishes (pad-
ding) containing the curtain shield air-
bags inside (shaded in the illustration)
is scratched, cracked, or otherwise
damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
Your vehicle is equipped with a front
passenger occupant classification sys-
tem. This system detects the conditions
1Ð4 in the table on page 89 and based
on these conditions activates or deacti-
vates front passenger airbags. The sys-
tem monitors the weight and load on
the front passenger seat, and the seat
belt buckle switch to determine condi-
tions 1Ð4. In order for the system to
detect the conditions correctly, do not
do any of the following.

Put a heavy load in the front passen-
ger seat.

Attach a seatback table to the front
passenger seat seatback.

Put weight on the front passenger by
putting your hands or feet on the front
passenger seat seatback from the rear
passenger seat.
ÐFront passenger occupant
classification system
