BASIC FUNCTIONS
16
There are two types of areas available for
route guidance. In one type of area, pri-
marily around metropolitan centers, de-
tailed route guidance is available for the
entire area. In the other type of area, all
roads are displayed on the map but route
guidance is limited. The navigation route
might lack precision because the data (no
right turns, one-way traffic, etc.) is not
complete. It is still possible to reach the
destination by following the arrow direc-
tion and distance as shown on the bottom
left of the screen. The arrow points in the
direction of the destination. The distance
shown is as measured in a straight line
from the current vehicle position to the
destination area.
In order to provide you with as accurate map
information as possible, we are always gath-
ering information such as road repairs and
doing site investigation. However, the names
of roads, streets, facilities, and their locations
are often changed. In some places, construc-
tion on roads may be in progress. For that
reason, information on some areas in this
system might be different from the actual
location.
The map database is normally updated once
a year. Contact your dealer for information
about the availability and pricing of an
update.
To confirm the database version and
disc coverage area
1. Push the
MENUº button.
2. Touch the Map DVDº switch.
Make sure the version of the database on this
screen. (The database version on the screen
above may be different from the actual
screen.)
Page 19 of 2572
'05 HIGHLANDER_U (L/O 0409)
289
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
INFORMATION BEFORE DRIVING YOUR
TOYOTA
Information before driving your Toyota
Off- road vehicle precautions290 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Break- in period291 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel291 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel pump shut off system293 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries294 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Three- way catalytic converters294 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust cautions295 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Facts about engine oil consumption296 . . . . . . . . . . . . . . . . . . . . . . . . . .
Iridium- tipped spark plugs297 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system297 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake pad wear limit indicators301 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Your Toyota's identification301 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft prevention labels302 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suspension and chassis303 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire information304 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle load limits312 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cargo and luggage313 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Types of tires315 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 2
Page 35 of 2572
'05 HIGHLANDER_U (L/O 0409)
305
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
7. TUBELESSº or TUBE
TYPEºÐA tubeless tire does not
have a tube inside the tire and air
is directly filled in the tire. A tube
type tire has a tube inside the tire
and the tube maintains the air
pressure.
8. Load limit at maximum cold tire
inflation pressureÐFor details,
see Checking and replacing tiresº
on page 388.
9. Maximum cold tire inflation
pressureÐThis means the pres-
sure to which a tire may be in-
flated. For details about recom-
mended cold tire inflation
pressure, see Tiresº on page 410.
10.Summer tire or all season
tireÐAn all season tire has M+Sº
on the sidewall. The tire not
marked with M+Sº is a summer
tire. For details, see Types of
tiresº on page 315.
This illustration indicates typical DOT
and Tire Identification Number (TIN).
1. DOTº symbol
2. Tire Identification Number (TIN)
3. Tire manufacturer 's identification
mark
4. Tire size code
5. Manufacturer 's optional tire type
code
6. Manufacturing week
7. Manufacturing yearThe DOTº symbol certifies that the
tire conforms to applicable Federal
Motor Vehicle Safety Standards.
ÐDOT and Tire Identification
Number (TIN)
Page 40 of 2572
'05 HIGHLANDER_U (L/O 0409)
310
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Ti r e relat ed ter mMeaning
Normal occupant weight68 kg (150 lb.) times the number of occupants specified in the second
column of Table 1 that follows
Occupant distributiondistribution of occupants in a vehicle as specified in the third column of Table
1 that follows
Production options weight
the combined weight of those installed regular production options weighing
over 2.3 kg (5 lb.) in excess of those standard items which they replace,
not previously considered in curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack, heavy duty battery, and special
trim
Recommended inflation pressurecold tire inflation pressure recommended by a manufacturer
Rima metal support for a tire or a tire and tube assembly upon which the tire beads
are seated
Rim diameter (Wheel diameter)nominal diameter of the bead seat
Rim size designationrim diameter and width
Rim type designationthe industry of manufacturer 's designation for a rim by style or code
Rim widthnominal distance between rim flanges
Vehicle capacity weight
(Total load capacity)the rated cargo and luggage load plus 68 kg (150 lb.) times the vehicle's desig-
nated seating capacity
Vehicle maximum load on the tirethe load on an individual tire that is determined by distributing to each axle
its share of the maximum loaded vehicle weight and dividing by two
Page 45 of 2572
'05 HIGHLANDER_U (L/O 0409)
315
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
From this condition, if 3 more passen-
gers with the combined weight of 176
kg (388 lb.) get on, the available car-
go and luggage load will be reduced
as follows:
Without third seat
224 kg ± 176 kg = 48 kg.
( 494 lb. ± 388 lb. = 106 lb. )
With third seat
360 kg ± 176 kg = 184 kg.
( 793 lb. ± 388 lb. = 405 lb. )
As shown in the above example, if the
number of occupants increases, the
cargo and luggage load equaling the
combined weight of occupants who
got on later must be reduced. In other
words, if the increase in the number
of occupants causes the excess of
the total load capacity (combined
weight of occupants plus cargo and
luggage load), you have to reduce the
cargo and luggage on your vehicle.
For details about total load capacity,
see Vehicle load limitsº on page 312.CAUTION
Even if the total load of occu-
pant's weight and the cargo load
is less than the total load capac-
ity, do not apply the load uneven-
ly. That may cause not only dam-
age to the tire but also deteriora-
tion to the steering ability due to
unbalance of the vehicle, causing
an accident.
Determine what kind of tires your
vehicle is originally equipped with.
1. Summer tires
Summer tires are high- speed capabil-
ity tires best suited to highway driving
under dry conditions.
Since summer tires do not have the
same traction performance as snow
tires, summer tires are inadequate for
driving on snow- covered or icy roads.
For driving on snow- covered or icy
roads, we recommend using snow
tires. If installing snow tires, be sure
to replace all four tires.
2. All season tires
All season tires are designed to pro-
vide better traction in snow and to be
adequate for driving in most winter
conditions, as well as for use all year
round.
Types of tires
Page 312 of 2572
'05 HIGHLANDER_U (L/O 0409)
160
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
The vehicle stability control system
helps provide comprehensive control of
the systems such as anti- lock brake
system, traction control, engine control,
etc. This system automatically controls
the brakes and engine to help prevent
the vehicle from skidding when corner-
ing on a slippery road surface or oper-
ating steering wheel abruptly.
This system activates when the vehicle
speed is about more than 15 km/h (9
mph).
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the sys-
tem is in the self- check mode, but does
not indicate a malfunction.CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the system is operating, it cannot
completely eliminate the possibility
of an accident. Always keep safe
driving in mind, as reckless driving
increases the risk of an accident. If
the slip indicator light blinks, spe-
cial care should be taken while
driving.
Only use tires of specified size. The
size, manufacture, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, or different type or
size, the vehicle stability control
system may not function correctly.
When replacing the tires or wheels,
contact your Toyota dealer. (See
Checking and replacing tiresº on
page 388 in Section 7- 2.)
If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to ONº. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.
Vehicle stability control
system
Page 330 of 2572
'05 HIGHLANDER_U (L/O 0409)
170
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Type 1: AM´FM radio/cassette player/com-
pact disc player (with compact disc
changer controller)
Type 2: AM´FM radio/cassette player/com-
pact disc player with changer
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the ACCº or ONº position.
TURNING THE SYSTEM ON AND OFF
Push PWR´VOLº to turn the audio system
on and off.
Push AMº, FMº, TAPEº, DISCº or
LOADº to turn on that function without
pushing PWR´VOLº. To turn on the cas-
sette or compact disc player, a cassette
or compact disc must be loaded in the
player.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If the other function was pre-
viously playing, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push AMº, FMº, TAPEº, DISCº or
LOADº if the system is already on but
you want to switch from one function to
another.TONE AND BALANCE
For details about your system's tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange and bass levels. In
fact, different kinds of music and vocal
programs usually sound better with differ-
ent mixes of treble, midrange and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
ReferenceUsing your audio systemÐ
ÐSome basics
Page 691 of 2572
'05 HIGHLANDER_U (L/O 0409)
389
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

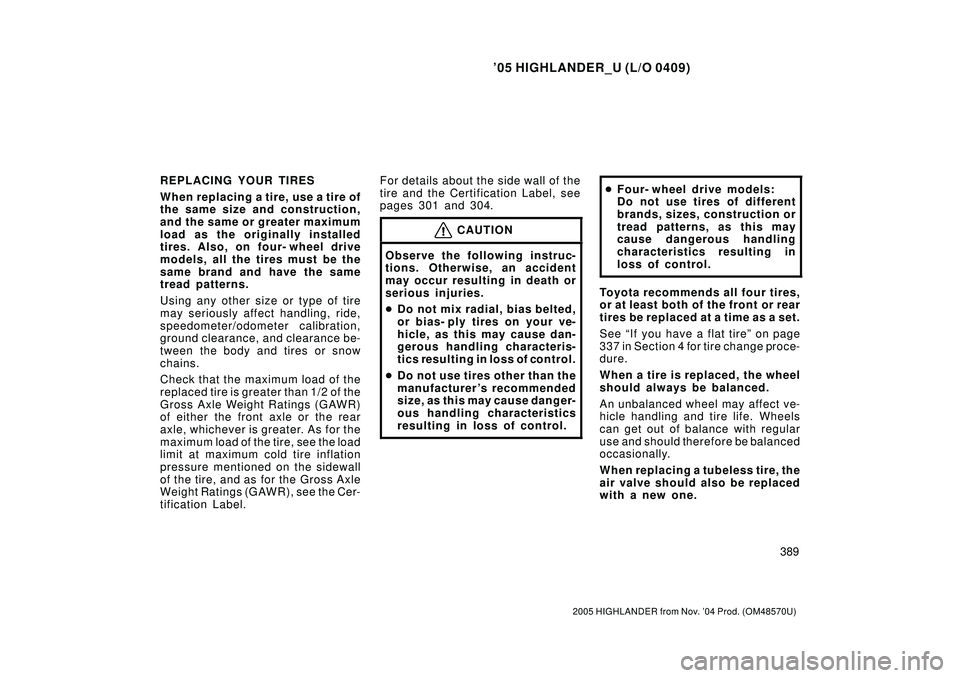

REPLACING YOUR TIRES
When replacing a tire, use a tire of
the same size and construction,
and the same or greater maximum
load as the originally installed
tires. Also, on four- wheel drive
models, all the tires must be the
same brand and have the same
tread patterns.
Using any other size or type of tire
may seriously affect handling, ride,
speedometer/odometer calibration,
ground clearance, and clearance be-
tween the body and tires or snow
chains.
Check that the maximum load of the
replaced tire is greater than 1/2 of the
Gross Axle Weight Ratings (GAWR)
of either the front axle or the rear
axle, whichever is greater. As for the
maximum load of the tire, see the load
limit at maximum cold tire inflation
pressure mentioned on the sidewall
of the tire, and as for the Gross Axle
Weight Ratings (GAWR), see the Cer-
tification Label.For details about the side wall of the
tire and the Certification Label, see
pages 301 and 304.
CAUTION
Observe the following instruc-
tions. Otherwise, an accident
may occur resulting in death or
serious injuries.
Do not mix radial, bias belted,
or bias- ply tires on your ve-
hicle, as this may cause dan-
gerous handling characteris-
tics resulting in loss of control.
Do not use tires other than the
manufacturer's recommended
size, as this may cause danger-
ous handling characteristics
resulting in loss of control.
Four- wheel drive models:
Do not use tires of different
brands, sizes, construction or
tread patterns, as this may
cause dangerous handling
characteristics resulting in
loss of control.
Toyota recommends all four tires,
or at least both of the front or rear
tires be replaced at a time as a set.
See If you have a flat tireº on page
337 in Section 4 for tire change proce-
dure.
When a tire is replaced, the wheel
should always be balanced.
An unbalanced wheel may affect ve-
hicle handling and tire life. Wheels
can get out of balance with regular
use and should therefore be balanced
occasionally.
When replacing a tubeless tire, the
air valve should also be replaced
with a new one.
Page 693 of 2572
'05 HIGHLANDER_U (L/O 0409)
391
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

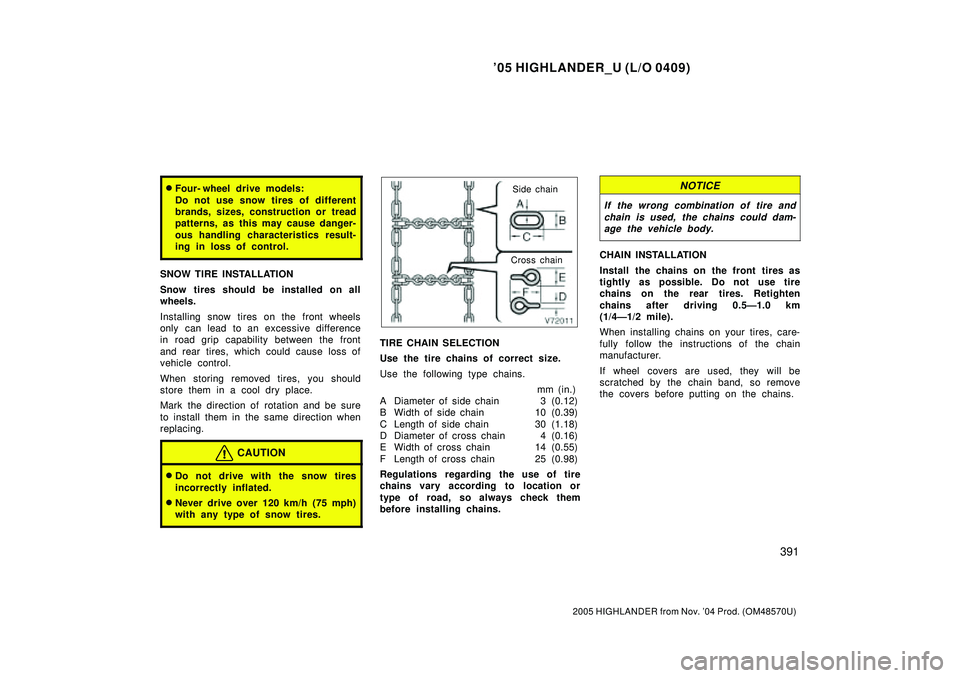

Four- wheel drive models:
Do not use snow tires of different
brands, sizes, construction or tread
patterns, as this may cause danger-
ous handling characteristics result-
ing in loss of control.
SNOW TIRE INSTALLATION
Snow tires should be installed on all
wheels.
Installing snow tires on the front wheels
only can lead to an excessive difference
in road grip capability between the front
and rear tires, which could cause loss of
vehicle control.
When storing removed tires, you should
store them in a cool dry place.
Mark the direction of rotation and be sure
to install them in the same direction when
replacing.
CAUTION
Do not drive with the snow tires
incorrectly inflated.
Never drive over 120 km/h (75 mph)
with any type of snow tires.
Side chain
Cross chain
TIRE CHAIN SELECTION
Use the tire chains of correct size.
Use the following type chains.
mm (in.)
A Diameter of side chain 3 (0.12)
B Width of side chain 10 (0.39)
C Length of side chain 30 (1.18)
D Diameter of cross chain 4 (0.16)
E Width of cross chain 14 (0.55)
F Length of cross chain 25 (0.98)
Regulations regarding the use of tire
chains vary according to location or
type of road, so always check them
before installing chains.
NOTICE
If the wrong combination of tire and
chain is used, the chains could dam-
age the vehicle body.
CHAIN INSTALLATION
Install the chains on the front tires as
tightly as possible. Do not use tire
chains on the rear tires. Retighten
chains after driving 0.5Ð1.0 km
(1/4Ð1/2 mile).
When installing chains on your tires, care-
fully follow the instructions of the chain
manufacturer.
If wheel covers are used, they will be
scratched by the chain band, so remove
the covers before putting on the chains.
Page 694 of 2572
'05 HIGHLANDER_U (L/O 0409)
392
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

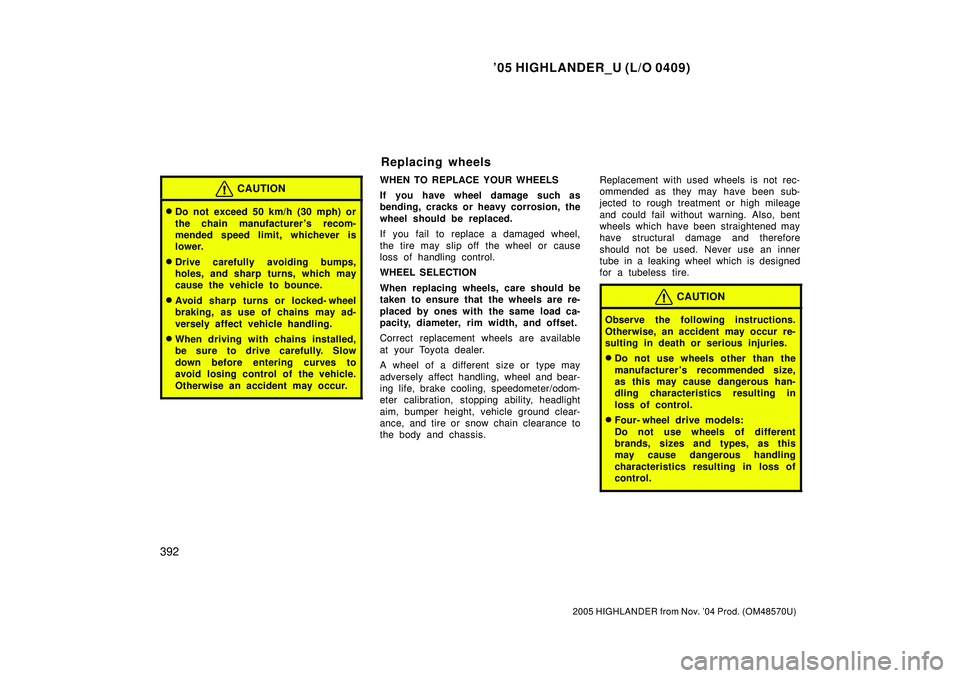

CAUTION
Do not exceed 50 km/h (30 mph) or
the chain manufacturer 's recom-
mended speed limit, whichever is
lower.
Drive carefully avoiding bumps,
holes, and sharp turns, which may
cause the vehicle to bounce.
Avoid sharp turns or locked- wheel
braking, as use of chains may ad-
versely affect vehicle handling.
When driving with chains installed,
be sure to drive carefully. Slow
down before entering curves to
avoid losing control of the vehicle.
Otherwise an accident may occur.
WHEN TO REPLACE YOUR WHEELS
If you have wheel damage such as
bending, cracks or heavy corrosion, the
wheel should be replaced.
If you fail to replace a damaged wheel,
the tire may slip off the wheel or cause
loss of handling control.
WHEEL SELECTION
When replacing wheels, care should be
taken to ensure that the wheels are re-
placed by ones with the same load ca-
pacity, diameter, rim width, and offset.
Correct replacement wheels are available
at your Toyota dealer.
A wheel of a different size or type may
adversely affect handling, wheel and bear-
ing life, brake cooling, speedometer/odom-
eter calibration, stopping ability, headlight
aim, bumper height, vehicle ground clear-
ance, and tire or snow chain clearance to
the body and chassis.Replacement with used wheels is not rec-
ommended as they may have been sub-
jected to rough treatment or high mileage
and could fail without warning. Also, bent
wheels which have been straightened may
have structural damage and therefore
should not be used. Never use an inner
tube in a leaking wheel which is designed
for a tubeless tire.
CAUTION
Observe the following instructions.
Otherwise, an accident may occur re-
sulting in death or serious injuries.
Do not use wheels other than the
manufacturer 's recommended size,
as this may cause dangerous han-
dling characteristics resulting in
loss of control.
Four- wheel drive models:
Do not use wheels of different
brands, sizes and types, as this
may cause dangerous handling
characteristics resulting in loss of
control.
Replacing wheels
