fuel type TOYOTA HIGHLANDER 2003 XU20 / 1.G Owners Manual

’03 HIGHLANDER_U (L/O 0208)
1832003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
INFORMATION BEFORE DRIVING YOUR
TOYOTA
Offroad vehicle precautions 184
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Breakin period 185
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Fuel 185
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 187
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries 188
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Threeway catalytic converter 188
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust cautions 189
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Facts about engine oil consumption 190
. . . . . . . . . . . . . . . . . . . . . . . . . .
Iridiumtipped spark plugs 191
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system 191
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Brake pad wear limit indicators 195
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage stowage precautions 195
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Limitedslip differential 196
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Your Toyota’s identification 196
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft prevention labels 198
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Suspension and chassis 198
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Types of tires 198
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 2

’03 HIGHLANDER_U (L/O 0208)
1852003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
Always slow down in gusty cross-
winds. Because of its profile and
higher center of gravity, your ve-
hicle is more sensitive to side
winds than an ordinary passenger
car. Slowing down will allow you to
have better control.
When driving offroad or in rugged
terrain, do not drive at excessive
speeds, jump, make sharp turns,
strike objects, etc. This may cause
loss of control or vehicle rollover
causing death or serious injury. You
are also risking expensive damage
to your vehicle’s suspension and
chassis.
Do not drive horizontally across
steep slopes. Driving straight up or
straight down is preferred. Your ve-
hicle (or any similar offroad ve-
hicle) can tip over sideways much
more easily than forward or back-
ward.
Drive gently and avoid high speeds.
Your vehicle does not need an elaborate
breakin. But following a few simple tips
for the first 1600 km (1000 miles) can add
to the future economy and long life of
your vehicle:
Avoid full throttle acceleration when
starting and driving.
Avoid racing the engine.
Try to avoid hard stops during the first
300 km (200 miles).
Do not drive for a long time at any
single speed, either fast or slow.
Do not tow a trailer during the first 800
km (500 miles). FUEL TYPE
Your new vehicle must use only un-
leaded gasoline.
To help prevent gas station mixups, your
Toyota has a smaller fuel tank opening.
The special nozzle on pumps with un-
leaded fuel will fit it, but the larger stan-
dard nozzle on pumps with leaded gas will
not.
At a minimum, the gasoline you use
should meet the specifications of ASTM
D4814 in the U.S.A. and CGSB 3.5M93
in Canada.NOTICE
Do not use leaded gasoline. Use of
leaded gasoline will cause the three
way catalytic converter to lose its ef-
fectiveness and the emission control
system to function improperly. Also,
this can increase maintenance costs.
Breakin period
Fuel

’03 HIGHLANDER_U (L/O 0208)
1862003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
OCTANE RATING
2AZFE engine: Select Octane Rating 87
(Research Octane Number 91) or higher.
1MZFE engine: Select Octane Rating
87 (Research Octane Number 91) or
higher. For improved vehicle perfor-
mance, the use of premium unleaded
gasoline with an Octane Rating 91 (Re-
search Octane Number of 96) or higher
is recommended.
Use of unleaded gasoline with an octane
rating or research octane number lower
than stated above will cause persistent
heavy knocking. If it is severe, this will
lead to engine damage.
If your engine knocks...
If you detect heavy knocking even when
using the recommended fuel, or if you
hear steady knocking while holding a
steady speed on level roads, consult your
Toyota dealer.
However, occasionally, you may notice
light knocking for a short time while accel-
erating or driving up hills. This is normal
and there is no need for concern. GASOLINE CONTAINING DETERGENT
ADDITIVES
Toyota recommends the use of gasoline
that contains detergent additives to
avoid buildup of engine deposits.
However, all gasoline sold in the U.S.
contains detergent additives to keep clean
and/or clean intake systems.
QUALITY GASOLINE
Automotive manufacturers in the U.S.,
Europe and Japan have developed a
specification for quality fuel named
WorldWide Fuel Charter (WWFC) that
is expected to be applied world wide.
The WWFC consists of three categories
that depend on required emission lev-
els. In the U.S., category 3 has been
adopted. The WWFC improves air quali-
ty by providing for better emissions in
vehicle fleets, and customer satisfaction
through better vehicle performance.
CLEANER BURNING GASOLINE
Cleaner burning gasoline, including re-
formulated gasoline that contains oxy-
genates such as ethanol or MTBE is
available in many areas.
Toyota recommends the use of cleaner
burning gasoline and appropriately blended
reformulated gasoline. These types of gas-
oline provide excellent vehicle perfor-
mance, reduce vehicle emissions, and im-
prove air quality.
OXYGENATES IN GASOLINE
Toyota allows the use of oxygenate
blended gasoline where the oxygenate
content is up to 10% ethanol or 15%
MTBE. If you use gasohol in your
Toyota, be sure that it has an octane
rating no lower than 87.
Toyota does not recommend the use of
gasoline containing methanol.

’03 HIGHLANDER_U (L/O 0208)
2872003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
Fuel type:
2AZFE engineUnleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher
1MZFE engine Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher. For improved vehicle perfor-
mance, the use of premium unleaded
gasoline with an Octane Rating of 91
(Research Octane Number 96) or
higher is recommended.
Fuel tank capacity, L (gal., Imp. gal.): 75 (19.8, 16.5) ENGINE
Valve clearance (engine cold), mm (in.):
2AZFE engine
Intake 0.19—0.29 (0.007—0.011)
Exhaust 0.30—0.40 (0.012—0.016)
1MZFE engine Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm(in.): 1.1 (0.043)
Drive belt tension measured with Bor-
roughs drive belt tension gauge
No.BT3373F (used belt), Ibf: 2AZFE engineAutomatic adjustment
1MZFE engine 11 5 20 ENGINE LUBRICATION
Oil capacity (drain and ref
ill), L (qt., Imp.
qt.):
2AZFE engineWith filter 3.8 (4.0, 3.3)
Without filter 3.6 (3.8, 3.2)
1MZFE engine With filter 4.7 (5.0, 4.1)
Without filter 4.5 (4.8, 4.0)
“Toyota Genuine Motor Oil” is f illed in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.
Oil grade: API grade SL “EnergyConserving” or
ILSAC multigrade engine oil
Fuel Service specifications

’03 HIGHLANDER_U (L/O 0208)
2902003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

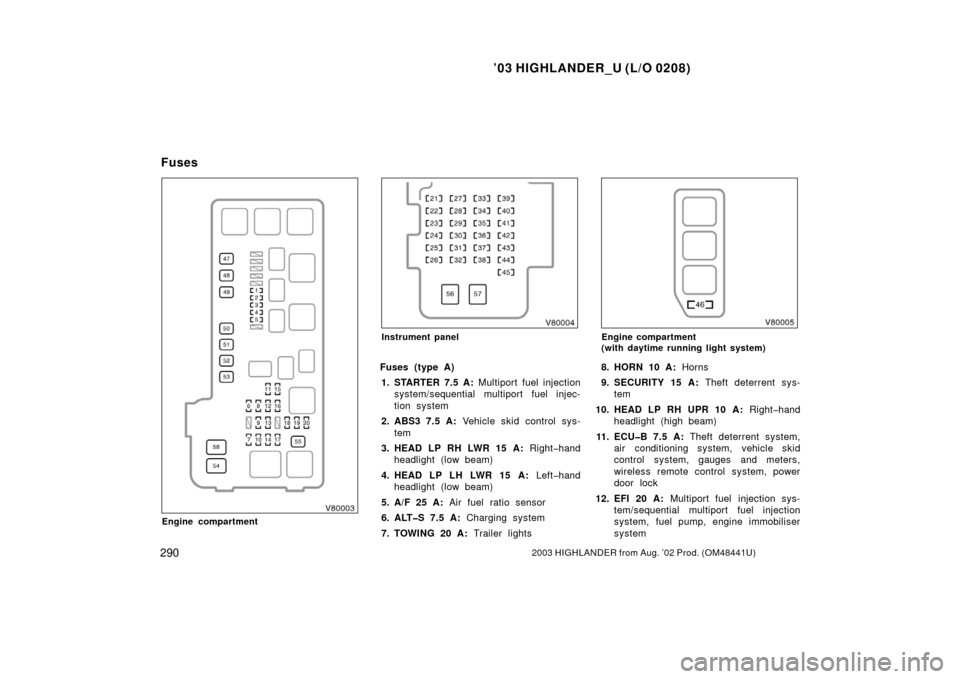

Engine compartment
Instrument panel
Fuses (type A)
1. STARTER 7.5 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
2. ABS3 7.5 A: Vehicle skid control sys-
tem
3. HEAD LP RH LWR 15 A: Righthand
headlight (low beam)
4. HEAD LP LH LWR 15 A: Lefthand
headlight (low beam)
5. A/F 25 A: Air fuel ratio sensor
6. ALTS 7.5 A: Charging system
7. TOWING 20 A: Trailer lights
Engine compartment
(with daytime running light system)
8. HORN 10 A: Horns
9. SECURITY 15 A: Theft deterrent sys-
tem
10. HEAD LP RH UPR 10 A: Righthand
headlight (high beam)
11. ECUB 7.5 A: Theft deterrent system,
air conditioning system, vehicle skid
control system, gauges and meters,
wireless remote control system, power
door lock
12. EFI 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, fuel pump, engine immobiliser
system
Fuses

’03 HIGHLANDER_U (L/O 0208)
2912003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
13. DOOR LOCK 25 A: Power door lock
system, theft deterrent system
14. HEAD LP LH UPR 10 A: Lefthand
headlight (high beam)
15. RADIO NO.1 25 A: Car audio system
16. DOME 10 A: Personal light, interior
lights, vanity mirror lights, ignition
switch light, wireless remote control
system, g auges and meters
17. HAZARD 15 A: Emergency flashers,
instrument panel light
18. SPARE 7.5 A: Spare fuse
19. SPARE 15 A: Spare fuse
20. SPARE 25 A: Spare fuse
21. IGN 7.5 A: Gauges and meters, SRS
airbag system
22. RADIO NO.2 7.5 A: Car audio system
23. CIG 15 A: Cigarette lighter
24. D RR DOOR 20 A: Power windows
25. PWR OUTLET 15 A: Power outlets
26. FR FOG 10 A: Front fog lights
27. SRSIG 15 A: SRS airbag system
28. ECUIG 15 A: Electric moon roof,
antilock brake system, vehicle skid
control system, shift lock system,
charging system, cruise control system,
emergency flashers, starting system 29. WIPER 25 A:
Windshield wipers and
washer
30. P RR DOOR 20 A: Power windows
31. P FR DOOR 25 A: Power windows,
door courtesy lights, power door lock
system
32. S/ROOF 20 A: Electric moon roof
33. HEATER 15 A: Air conditioning system,
electric cooling fan, rear defogger, out-
side rear view mirror defogger, gauges
and meters
34. IG1 7.5 A: Backup lights, vehicle skid
control system, multiport fuel injection
system/s equential multiport fuel injec-
tion system, outside rear view mirror
heaters, power door lock system, wire-
less remote control system
35. RR WIP 15 A: Rear window wiper
36. STOP 20 A: Stop lights, high mounted
stoplight, antilock brake system, ve-
hicle skid control system, shift lock
system, cruise control system, multiport
fuel injection system/sequential multi-
port fuel injection system
37. OBD 7.5 A: Onboard diagnosis sys-
tem
38. SEAT HTR 15 A: Seat heaters 39. IG2 15 A:
Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, charging system, starter sys-
tem
40. WASHER 20 A: Washer fluid level
warning light
41. RR FOG 7.5 A: No circuit
42. FR DEF 20 A: Air conditioning system,
outside rear view mirror defoggers
43. D FR DOOR 20 A: Power windows,
door courtesy lights
44. TAIL 10 A: Tail lights, license plate
lights, instrument panel lights, front fog
lights, front side marker lights, rear
side marker lights, parking lights
45. PANEL 7.5 A: Instrument panel lights
46. DRL 7.5 A: Daytime running light sys-
tem
Fuses
(type B)
47. AM2 30 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, starting system
48. ABS2 40 A: Antilock brake system,
vehicle skid control system
49. ABS1 40 A: Antilock brake system,
vehicle skid control system
50. HEATER 50 A: Air conditioning system

’03 HIGHLANDER_U (L/O 0208)
2922003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
51. RDI 30 A: Electric cooling fans
52. RR DEF 30 A: Rear window defoggers
53. CDS 30 A: Electric cooling fans
54. RDI 50 A: No circuit
55. MAIN 40 A: “HEAD LP RH LWR”,
“HEAD LP LH LWR”, “HEAD LP RH
UPR” and “HEAD LP LH UPR” fuses
56. AM1 40 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, starting system
57. POWER 30 A: Power seat
Fuse (type C)
58. ALT 140 A: “ABS1”, “ABS2”, “RDI”,
“CDS”, “RR DEF”, “HEATER”, “AM1”,
“AM2”, “TAIL”, “PANEL”, “STOP”,
“S/ROOF” and “SEAT HTR” fuses

’03 HIGHLANDER_U (L/O 0208)
2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
Publication No. OM48441U
Part No. 01999-48441
Printed in Japan 01-0208-00
(U)
Quick index
If a service reminder indicator or warning buzzer comes on 105 . . . . . . . .
 If your vehicle will not start 216 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
 If your engine stalls while driving 219 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 If your vehicle overheats 219 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
 If you have a flat tire 220 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
 If your vehicle needs to be towed 229 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Tips for driving during breakin period 185 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 How to start the engine 202 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
 General maintenance 247 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
 Complete index NO TAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Gas station information
Fuel type:
2AZFE engine: UNLEADED gasoline, Octane Rating 87
(Research Octane Number 91) or higher
1MZFE engine: UNLEADED gasoline, Octane Rating 87
(Research Octane Number 91) or higher
For improved vehicle performance, the use of premium unleaded
gasoline with an Octane Rating of 91 (Research Octane Number 96)
or higher is recommended.
See page 185 for detailed information.
Fuel tank capacity:
75 L (19.8 gal., 16.5 lmp.gal.)
Engine oil:
API grade SL “EnergyConserving” or ILSAC multigrade engine oil is
recommended.
See page 261 for detailed information.
Tire information: See pages 267 through 273.
Tire pressure: See page 289.
U4
C
