change time TOYOTA HIGHLANDER 2004 XU20 / 1.G Navigation Manual

11 2
Depending on the position of the headlight
switch, the screen changes to the day
mode or night mode.
To display the screen in the day mode even
with the headlight switch on, touch the
“DAY
MODE”
switch on the adjustment screen for
brightness and contrast control.
However, if the instrument panel light control
switch is turned fully to the right, mode switch-
ing cannot be done. It remains in the day
mode. In this case,
“DAY MODE” is not
shown on the screen.
If the screen is set in the day mode with the
headlight switch turned to on, this condition is
memorized in the system even with the en-
gine turned off.
Clock adjustment
The clock can be corrected manually or by
using signals from the GPS. Daylight Sav-
ing Time setting or your desired time set-
ting is available.
Push the “” button to display the “Ad-
just Clock” screen.

11 3
To adjust a clock automatically
Before you use the auto adjust function, se-
lect the time zone (see “Time Zone” described
below). Touch the
“ON” switch of “Auto Ad-
just”. The time is automatically adjusted by
the GPS clock.
“Time Zone”: You can select the time zone.
When you touch this switch, the display will be
change to the time zone selection screen.
The initial setting is “Eastern”.
Touch the switch of your desired area. The
time zone for the area is set and the previous
screen returns.
“Others”: You can adjust the time zone
manually with “”, “” switches.
To adjust a clock manually
Touch the “OFF” switch of “Auto Adjust”.
You can adjust the clock manually with
“H”,
“M” and “:00” switches.
“H”: To set the hour.
“M”: To set the minute.
“:00”: To adjust the time to the nearest hour,
touch this switch.

121
NOTICE
Do not stack up two discs for inser-
tion, or it will cause damage to the
compact disc player with changer. In-
sert only one compact disc into slot
at a time.
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything except a compact
disc into the slot.
(f) Your DVD player
You can enjoy the sound of the rear seat en-
tertainment system by pushing the “DISC”
button.
— Radio operation
(a) Listening to the radio
Push these buttons to choose either an
AM or FM station.
“AM”, “FM1” or “FM2” appears on the screen.
Turn the knob clockwise to step up the sta-
tion band or counterclockwise to step
down.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the screen. If the
signal becomes weak, the radio reduces the
amount of channel separation to prevent the
weak signal from creating noise. If the signal
becomes extremely weak, the radio switches
from stereo to mono reception. In this case,
“ST” disappears from the screen.

122
(b) Presetting a station
1. Tune in the desired station.
2. Touch one of the switches (1 — 6) you
want and hold it until a beep is heard. This
sets the station to the switch and the fre-
quency appears on the switch.
Each radio mode (AM, FM1 or FM2) can store
up to 6 stations. To change the preset station
to a different one, follow the same procedure.
The preset station memory is cancelled when
the power source is interrupted by battery dis-
connection or a blown fuse.(c) Selecting a station
Tune in the desired station using one of the
following methods.
Preset tuning: Touch the switch (1 — 6) for
the station you want. The switch is high-
lighted in green and the station frequency ap-
pears on the screen.
Seek tuning: Push the “SEEK·TRACK” but-
ton on either side. The radio will begin seek-
ing up or down for a station of the nearest fre-
quency and will stop on reception. Each time
you push the button, the stations will be
searched automatically one after another.
To scan all the frequencies: Touch the
“SCAN” switch on the screen or push the
“SCAN” button briefly. “SCAN” appears on
the screen. The radio will find the next station
and stay there for a few seconds, and then
scan again. To select a station, touch the
“SCAN” switch or push the “SCAN” button
again.
To scan the preset stations: Touch the
“SCAN” switch on the screen or push the
“SCAN” button for longer than approximately
a second. “P. SCAN” appears on the screen.
The radio will tune in the next preset station,
stay there for a few seconds, and then move
to the next preset station. To select a station,
touch the “SCAN” switch or push the “SCAN”
button again.(d) Radio Data System
Your audio system is equipped with Radio
Data Systems (RDS). RDS mode provides
you to receive text messages from radio sta-
tions that utilize RDS transmitters.
When RDS is on, the radio can
— only select stations of a particular program
type,
— display messages from radio stations,
— search for a stronger signal station.
RDS features are available for the use only on
FM stations which broadcast RDS informa-
tion.

123
“TYPE  ” switch
If the system receives no RDS stations, “NO
PTY” appears on the display.
Each time you touch the “TYPE ” or “TYPE
” switch, the program type changes as in
the following:
ROCK
MISC (Miscellaneous)
Inform (Information)
Easy Lis (Easy listening)
Cls/Jazz (Classical music and Jazz)
R & B (Rhythm and Blues)
Religion
Alert (Emergency message)
“TYPE SEEK” switch
When a program is set, “TYPE SEEK” switch
appears. Touch the switch and the system
starts to seek the station in the relevant pro-
gram type.
If any type program station is not found,
“NOTHING” appears on the display.“MSG” (MESSAGE) switch
If the system receives a radio text from RDS
station, “MSG” appears on the display. Touch
the “MSG” switch, and a text message is dis-
played on the screen.
In case a text message is not accepted in a
screen, you can touch the “MSG” switch and
hold it to display the rest of the message.
When the system can show the station name,
“RDS” appears on the display. Each time you
touch the “MSG” switch, indication on the dis-
play changes from the band to the station
name, a radio text in this order. After six sec-
onds passes, indication returns to the band.

127
NOTICE
Do not insert one disc stacked on top of
another one or feed them in continuous-
ly, to prevent discs from getting stuck in
the player.
Ejecting a single disc alone:
1. Touch the disc number you want to
eject on the screen.
The selected disc number is highlighted in
green.
2. Push the “
” button for the compact
disc briefly.
At this time, the red indicators of the slot start
blinking. After the disc is ejected, the red indi-
cators change to green.
Ejecting all the discs:
Push the “
” button for the compact
disc until you hear a beep.
The numbers of the trays where the compact
disc is not set are dimmed.

128
(b) Playing a compact disc
Push the “DISC” button if the discs are al-
ready loaded in the player.
“CD CHANGER” appears on the screen.
The discs set in the player are played continu-
ously, starting with the last disc you inserted.
The disc number of the disc currently being
played, the track number and the time from
the beginning of the program appear on the
screen.
When play of one disc ends, the first track of
the following disc starts. When play of the fi-
nal disc ends, play of the first disc starts
again.
The player will skip any empty disc trays.
(c) Selecting a desired disc
Touch the desired disc number on the
screen.
The selected disc number is highlighted in
green.
The player will start playing the selected disc
from the first track.(d) Searching for a desired disc
Touch the “DISC SCAN” switch.
With “DISC SCAN” highlighted in yellow, the
program at the beginning of each disc will be
played for 10 seconds. To continue listening
to the program of your choice, touch the
“DISC SCAN” switch a second time.
After all the tracks are scanned in one pass,
normal play resumes.

137

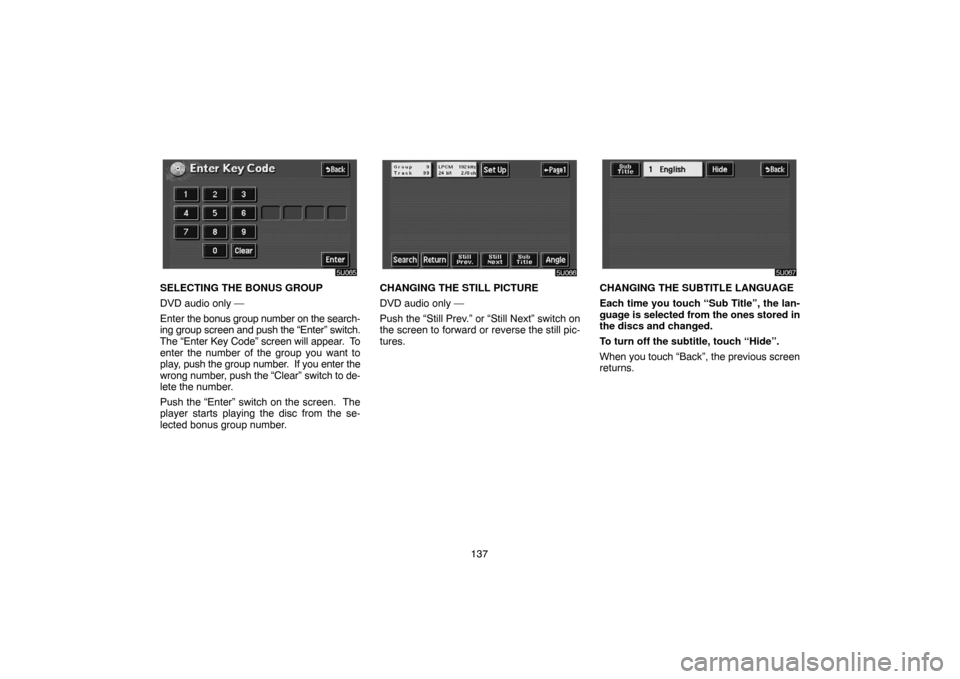

SELECTING THE BONUS GROUP
DVD audio only —
Enter the bonus group number on the search-
ing group screen and push the “Enter” switch.
The “Enter Key Code” screen will appear. To
enter the number of the group you want to
play, push the group number. If you enter the
wrong number, push the “Clear” switch to de-
lete the number.
Push the “Enter” switch on the screen. The
player starts playing the disc from the se-
lected bonus group number.CHANGING THE STILL PICTURE
DVD audio only —
Push the “Still Prev.” or “Still Next” switch on
the screen to forward or reverse the still pic-
tures.CHANGING THE SUBTITLE LANGUAGE
Each time you touch “Sub Title”, the lan-
guage is selected from the ones stored in
the discs and changed.
To turn off the subtitle, touch “Hide”.
When you touch “Back”, the previous screen
returns.

138
DVD video
DVD audio

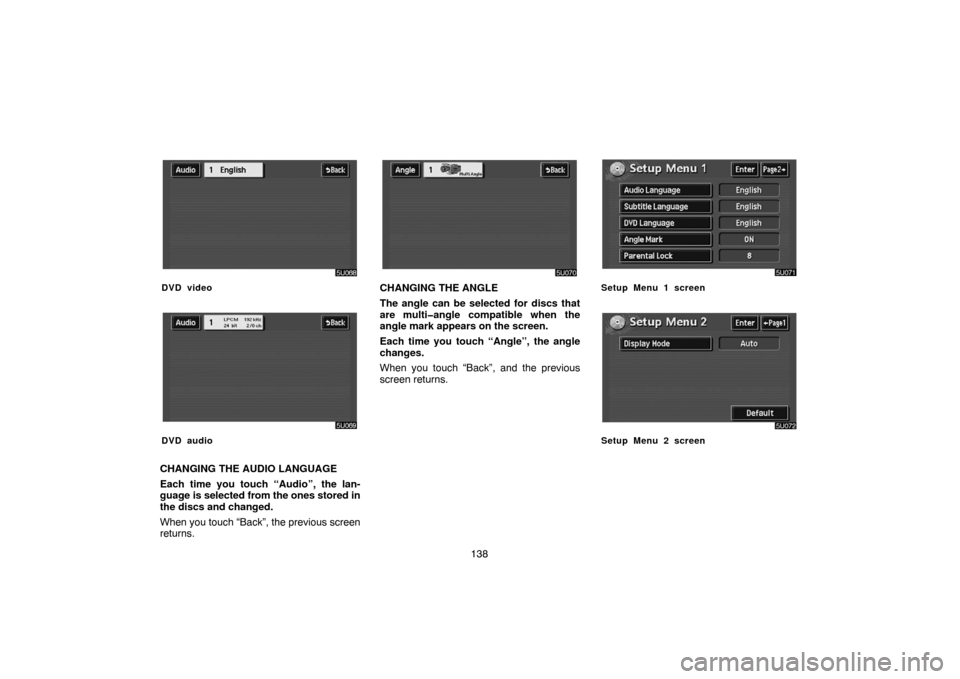

CHANGING THE AUDIO LANGUAGE
Each time you touch “Audio”, the lan-
guage is selected from the ones stored in
the discs and changed.
When you touch “Back”, the previous screen
returns.
CHANGING THE ANGLE
The angle can be selected for discs that
are multiangle compatible when the
angle mark appears on the screen.
Each time you touch “Angle”, the angle
changes.
When you touch “Back”, and the previous
screen returns.Setup Menu 1 screen
Setup Menu 2 screen

139 SETUP MENU
There are initial setting switches on the
“Setup Menu 1” screen and “Setup Menu
2” screen.
To change the screen, push the “Page1” or
“Page2” switch on the screen.
After you change the initial setting, push the
“Enter” switch. The initial setting switch will
be turned off and return to the picture pre-
viously.
When the “Default” switch on “Setup Menu 2”
is pushed, all menus are initialized.
The initial setting can be changed.
Audio language
You can change the audio language.
1. Touch “Audio Language”.
2. Touch the language you want to hear
on the “Select Audio Language” screen.
If you cannot find the language you want to
hear on this screen, touch “Others” and enter
a language code. For the entry of language
code, see the following “ENTER SUBTITLE
LANGUAGE CODE”.
Subtitle language
You can change the subtitle language.
1. Touch “Subtitle Language”.
2. Touch a language you want to read on
the “Select Subtitle Lang.” screen.If you cannot find the language you want to
read on this screen, touch “Others” and enter
a language code. For the entry of language
code, see the following “ENTER SUBTITLE
LANGUAGE CODE”.
To return to the “Setup Menu 1” screen, push
the “Back” switch.
DVD language
You can change the language on the
DVD video menu.
1. Touch “DVD Language”.
2. Touch the language you want to read
on the “Select DVD Language” screen.
If you cannot find the language you want to
read on this screen, touch “Others” and enter
a language code. For the entry of language
code, see the following “ENTER SUBTITLE
LANGUAGE CODE”.
To return to the “Setup Menu 1” screen, push
the “Back” switch.
Angle mark
The multiangle mark can be turned on or
off on the screen while the disc which is
multiangle compatible is being played.
Each time you touch “Angle Mark”, the
angle mark on the screen turns on or off al-
ternately.
Parental lock
The level of viewer restrictions can be
changed.1. Touch “Parental Lock”.
2. Enter the 4digit personal code on the
“Enter Personal Code” screen.
If you enter the wrong numbers, touch “Clear”
to delete the numbers.
10 touches of “Clear” will initialized the per-
sonal code.
To return to the “Setup Menu 1” screen, push
the “Back” switch.
3. Touch a parental level (1 — 8) on the
“Select Restriction Level”. Push the
“Back” switch to return to the “Setup
Menu 1” screen.
Each time you touch the “Display Mode”
on the “Setup Menu 2” screen, the display
mode is changed from wide mode to auto
mode.
