TOYOTA HIGHLANDER 2004 XU20 / 1.G Owners Manual

’04 HIGHLANDER_U (L/O 0308)
273
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)

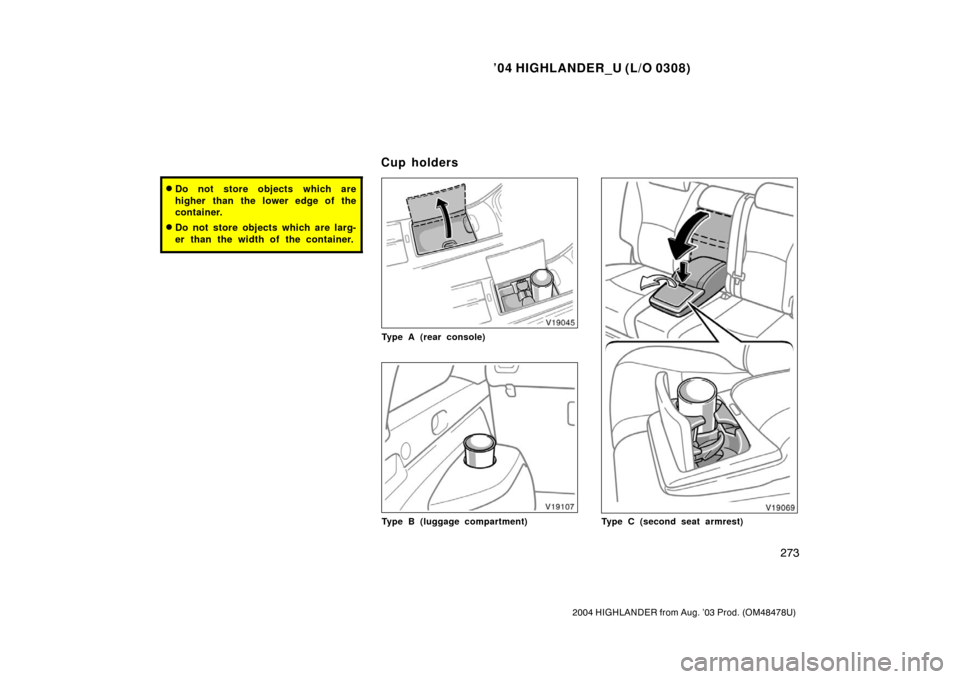

Do not store objects which are
higher than the lower edge of the
container.
Do not store objects which are larg-
er than the width of the container.
Type A (rear console)
Type B (luggage compartment)Type C (second seat armrest)
C u p ho ld ers

’04 HIGHLANDER_U (L/O 0308)
274
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
The cup holders are designed for hold-
ing cups or drinkcans securely.
Type A—To use the holder, open the lid.
Type C—To use the holder, pull down the
second seat armrest and push the button
on the armrest.
Type A only—
The cup holder can be adjustable to the
size of the cups or drinkcans by
changing the holder position.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
Type A and C—To reduce the
chance of injury in case of an acci-
dent or sudden stop while driving,
keep the cup holder closed when it
is not in use.

’04 HIGHLANDER_U (L/O 0308)
275
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
The bottle holders are designed to hold
bottles securely.
CAUTION
Do not attempt to use the holder for
any other purpose for which it was
intended. Inappropriately sized or
shaped objects may be thrown about
in the compartment and possibly in-
jure people in the vehicle during a
sudden braking or an accident.
NOTICE
Do not put a cup or open bottle in
the bottle holder because the con-
tents may spill when the door opens
or closes.
To secure your luggage, use the tiedown
hooks as shown above.
See “—Stowage precautions” on page 305
in Section 2 for precautions when loading
luggage.
CAUTION
To avoid personal injury, keep the tie
down hooks folded in place on the
floor when not in use.
Vehicles with the third seat—When using
the tie−down hooks, the third seat must
be folded down. (See “—Folding down
third seat” on page 47 in Section 1 −3.)
Bottle holders Tiedown hooks

’04 HIGHLANDER_U (L/O 0308)
276
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
NOTICE
Do not use the anchor brackets on
the second seat seatback instead of
the tiedown hooks.
USING LUGGAGE COVER
To use the luggage cover:
1. Pull out the forward luggage cover and hang the hooks to the hook
brackets on the second seat seat-
back.
2. Pull out the rear luggage cover and secure it to the hook brackets.
CAUTION
Do not place anything on the luggage
cover. Such items may be thrown
about and possibly injure people in
the vehicle during sudden braking or
an accident.
Vehicles with the third seat—When using
the luggage cover, the third seat must be
folded down. (See “—Folding down third
seat” on page 47 in Section 1 −3.)
Luggage cover

’04 HIGHLANDER_U (L/O 0308)
277
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
REMOVING LUGGAGE COVER
To remove the luggage cover, push in
the left end to release the right end,
and lift the luggage cover out.
After you remove the luggage cover, stow
it under deck board as described below.
This will prevent passengers from injury in
the event of a sudden stop or accident.STOWING LUGGAGE COVER
To stow the luggage cover, do the fol-
lowing.
1. Remove the side deck boards and open the center deck board.

’04 HIGHLANDER_U (L/O 0308)
278
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
2. Push in the left end of the luggage
cover and place the luggage cover in
the holder as shown.
CAUTION
Make sure the luggage cover is se-
curely stowed.
Cross rails
Roof rails
The roof luggage carrier consists of
roof rails and sliding cross rails.
Upper
knob Side knobs
ADJUSTING THE POSITION OF CROSS
RAILS:
1. Turn the upper and side knobs coun- terclockwise to loosen the cross
rails.
Roof luggage carrier

’04 HIGHLANDER_U (L/O 0308)
279
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
2. Slide the cross rails to the appropri-
ate position for loading the luggages
and turn the side knobs clockwise to
tighten the cross rails securely.
Vehicles with the electric moon
roof—There are cross rail stoppers on the
roof rails which help you prevent the
cross rails being touched with the tilted up
moon roof.
NOTICE
Vehicles with the electric moon roof
only—Do not remove the cross rail
stoppers, or the moon roof may be
damaged when it is tilted.
3. In order to fix the cross rails to the appropriate length, turn the upper
knobs clockwise after tightening all
of the side knobs.
CAUTION
Make sure the cross rails are fixed
securely by pushing forward and rear-
ward them. Failure to do so may
cause an unexpected accident or se-
vere injury in the event of emergency
braking or a collision.
Follow the manufacture’s instructions and
precautions when installing the attach-
ments or their equivalent.
CAUTION
When you load cargo on the roof lug-
gage carrier, observe the following:
Place the cargo so that its weight
is distributed evenly between the
front and rear axles.
If loading long or wide cargo, never
exceed the vehicle overall length or
width. (See “Dimensions and
weights” on page 398 in Section 8
for information on your vehicle
overall length and width.)
Before driving, make sure the cargo
is securely fastened on the roof
luggage carrier.
Loading cargo on the roof luggage
carrier will make the center of the
vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns,
sudden braking or abrupt maneu-
vers, otherwise it may result in loss
of control or vehicle rollover due to
failure to operate this vehicle cor-
rectly.

’04 HIGHLANDER_U (L/O 0308)
280
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
If driving for a long distance, on
rough roads, or at high speeds,
stop the vehicle now and then dur-
ing the trip to make sure the cargo
remains in its place.
Do not exceed 45 kg (100 lb.) cargo
weight on the roof luggage carrier.
NOTICE
When loading the luggages, be careful
not to scratch the surface of the
moon roof.
Use a floor mat of the correct size.
If the floor carpet and floor mat have 2
holes, then they are designed for use with
locking clips. Fix the floor mat with lock-
ing clips into the holes in the floor carpet.CAUTION
Make sure the floor mat is properly
placed on the floor carpet. If the floor
mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.
Floor mat

’04 HIGHLANDER_U (L/O 0308)
281
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
INFORMATION BEFORE DRIVING YOUR
TOYOTA
Information before driving your Toyota
Off−road vehicle precautions 282
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Break −in period 283
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Fuel 283
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 285
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries 286
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Three −way catalytic converters 286
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust cautions 287
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Facts about engine oil consumption 288
. . . . . . . . . . . . . . . . . . . . . . . . . .
Iridium −tipped spark plugs 289
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system 289
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Brake pad wear limit indicators 293
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Your Toyota’s identification 293
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft prevention labels 294
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Suspension and chassis 295
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Tire information 296
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Vehicle load limits 304
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Cargo and luggage 305
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Types of tires 307
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 2

’04 HIGHLANDER_U (L/O 0308)
282
2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)
This vehicle belongs to the ut ility ve-
hicle class, which has higher ground
clearance and narrower tread in relation
to the height of its center of gravity to
make it capable of performing in a wide
variety of offroad applications. Specific
design characteristics give it a higher
center of gravity than ordinary passen-
ger cars. This vehicle design feature
causes this type of vehicle to be more
likely to rollover. And, utility vehicles
have a significantly higher rollover rate
than other types of vehicles. An advan-
tage of the higher ground clearance is
a better view of the road allowing you
to anticipate problems. It is not de-
signed for cornering at the same
speeds as ordinary passenger cars any
more than lowslung sports cars de-
signed to perform satisfactorily under
offroad conditions. Therefore, sharp
turns at excessive speeds may cause
rollover.CAUTION
Always observe the following precau-
tions to minimize the risk of serious
personal injury or damage to your ve-
hicle:
In a rollover crash, an unbelted per-
son is significantly more likely to
die than a person wearing a seat
belt. Therefore, the driver and all
passengers should fasten their seat
belts whenever the vehicle is mov-
ing.
Avoid sharp turns or abrupt maneu-
vers, if at all possible. Failure to
operate this vehicle correctly may
result in loss of control or vehicle
rollover causing death or serious
injury.
Loading cargo on the roof luggage
carrier will make the center of the
vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns,
sudden braking or abrupt maneu-
vers, otherwise it may result in loss
of control or vehicle rollover due to
failure to operate this vehicle cor-
rectly.
Offroad vehicle precautions
