TOYOTA HIGHLANDER 2005 XU20 / 1.G Navigation Manual

61
ADVANCED FUNCTIONS
Descriptions of functions for more effective use
Suspending and resuming guidance62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Volume63 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User selection63 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
My places66 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Area to avoid73 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setup76 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current position calibration77 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Distance unit79 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Estimated travel time79 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto reroute81 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting time zone81 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto voice guidance82 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voice guidance in all modes83 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Notifying traffic restriction84 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Intersection guidance85 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Guidance screen on freeway86 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Street name on scroll map87 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Display of building shape88 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen layout function (
Function)89 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
POI category change (Show POI Icons)90 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Delete previous point91 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map color92 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen animation93 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION III

62

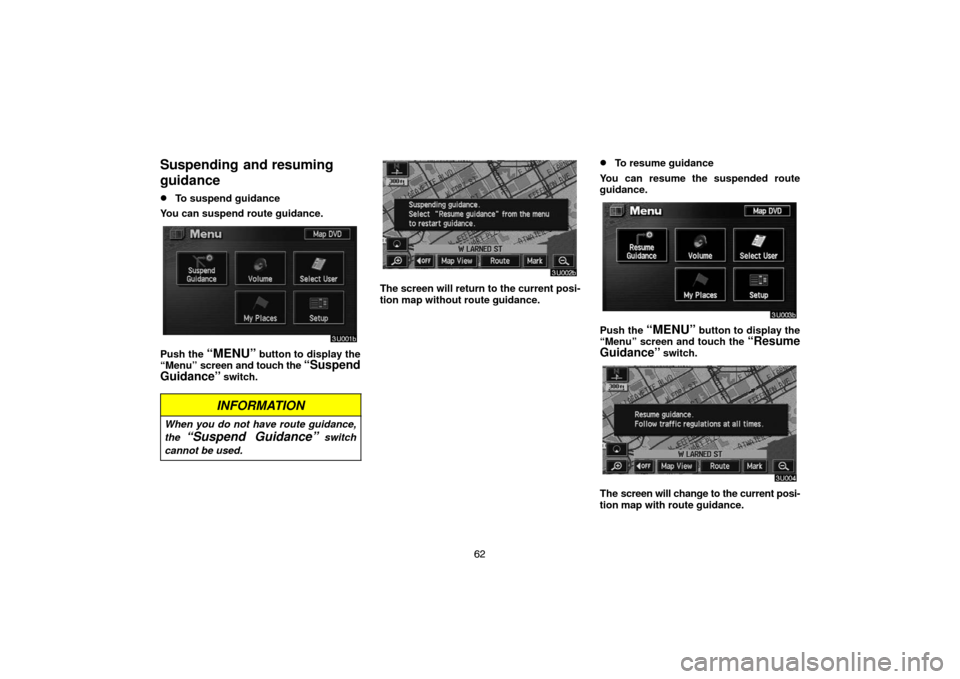

Suspending and resuming
guidance
To suspend guidance
You can suspend route guidance.
Push the “MENU” button to display the
“Menu” screen and touch the “Suspend
Guidance”
switch.
INFORMATION
When you do not have route guidance,
the
“Suspend Guidance” switch
cannot be used.
The screen will return to the current posi-
tion map without route guidance.
To resume guidance
You can resume the suspended route
guidance.
Push the “MENU” button to display the
“Menu” screen and touch the “Resume
Guidance”
switch.
The screen will change to the current posi-
tion map with route guidance.

63

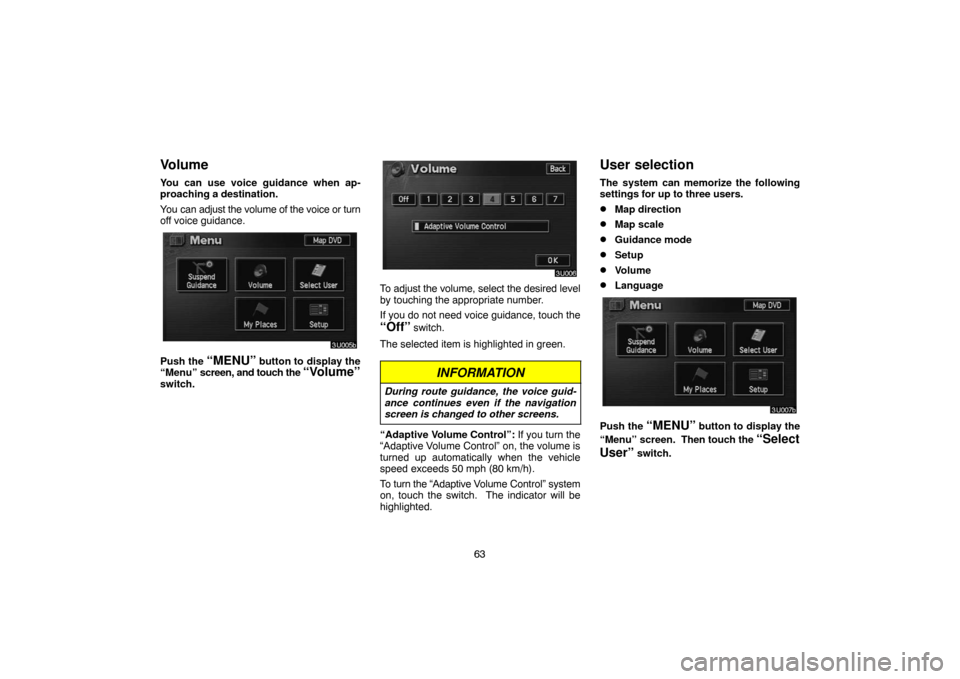

Volume
You can use voice guidance when ap-
proaching a destination.
You can adjust the volume of the voice or turn
off voice guidance.
Push the “MENU” button to display the
“Menu” screen, and touch the “Volume”
switch.
To adjust the volume, select the desired level
by touching the appropriate number.
If you do not need voice guidance, touch the
“Off” switch.
The selected item is highlighted in green.
INFORMATION
During route guidance, the voice guid-
ance continues even if the navigation
screen is changed to other screens.
“Adaptive Volume Control”: If you turn the
“Adaptive Volume Control” on, the volume is
turned up automatically when the vehicle
speed exceeds 50 mph (80 km/h).
To turn the “Adaptive Volume Control” system
on, touch the switch. The indicator will be
highlighted.
User selection
The system can memorize the following
settings for up to three users.
Map direction
Map scale
Guidance mode
Setup
Volume
Language
Push the “MENU” button to display the
“Menu” screen. Then touch the
“Select
User”
switch.

64

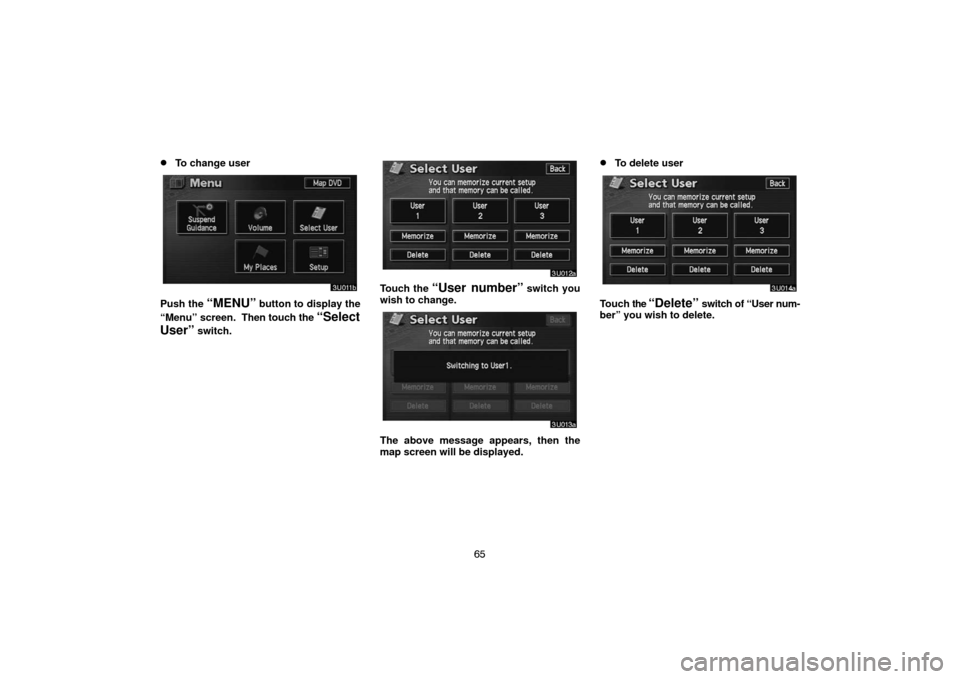

To register
Touch the “Memorize” switch of your
desired “User number”.
The confirmation screen will appear. To
register, touch the
“Yes” switch. To re-
turn to the previous screen, touch the
“No” or “Back” switch.
When you touch the switch already regis-
tered, this screen appears. To replace,
touch the
“Yes” switch. To cancel the re-
placement, touch the
“No” or “Back”switch.

65
To change user
Push the “MENU” button to display the
“Menu” screen. Then touch the
“Select
User”
switch.
Touch the “User number” switch you
wish to change.
The above message appears, then the
map screen will be displayed.
To delete user
Touch the “Delete” switch of “User num-
ber” you wish to delete.

66

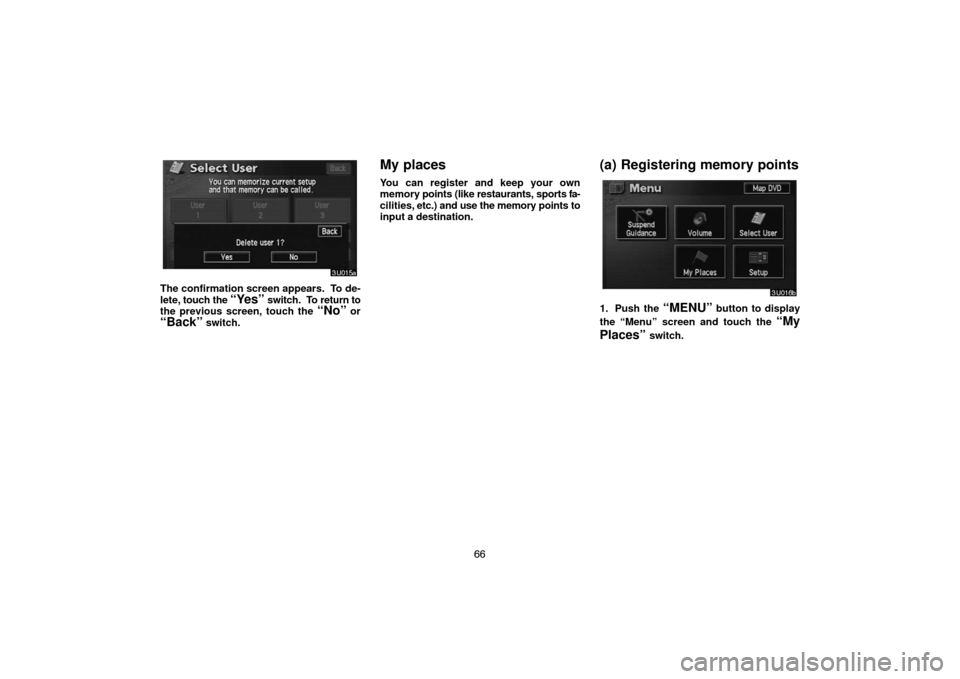

The confirmation screen appears. To de-
lete, touch the
“Yes” switch. To return to
the previous screen, touch the “No” or
“Back” switch.
My places
You can register and keep your own
memory points (like restaurants, sports fa-
cilities, etc.) and use the memory points to
input a destination.
(a) Registering memory points
1. Push the “MENU” button to display
the “Menu” screen and touch the
“My
Places”
switch.

67
2. Touch the “Register” switch of the
“Memory Points”.A screen similar to the destination input
screen appears. Input the desired point in the
same way as inputting a destination. (See
page 20.)
When you finish memory point registration,
the memory point data screen will appear.You can set the icon, attribute, name, location
and phone number.
Touch your desired switch you want to set.
(For details, see “(b) Editing memory points”.)
INFORMATION
Up to 106 memory points can be regis-
tered.

68
(b) Editing memory points
The icon, attribute, name, location and/or
telephone number of a registered memory
point can be edited.
1. Push the
“MENU” button to display
the “Menu” screen and touch the
“My
Places”
switch.
2. Touch the “Edit” switch of the
“Memory Points”.
The screen lists the memory points.
“Date”: Touch this switch to list the memory
points in order of the registered date.
“Icon”: Touch this switch to list the memory
points in order of the icon type.
“Name”: Touch this switch to list the memory
points in alphabetical order.
“Attribute”: Touch this switch to list the
memory points in order of the home and quick
access number.
Touch the desired memory point switch to dis-
play the memory point data screen.3. Touch the switch which you wish to
edit.

69

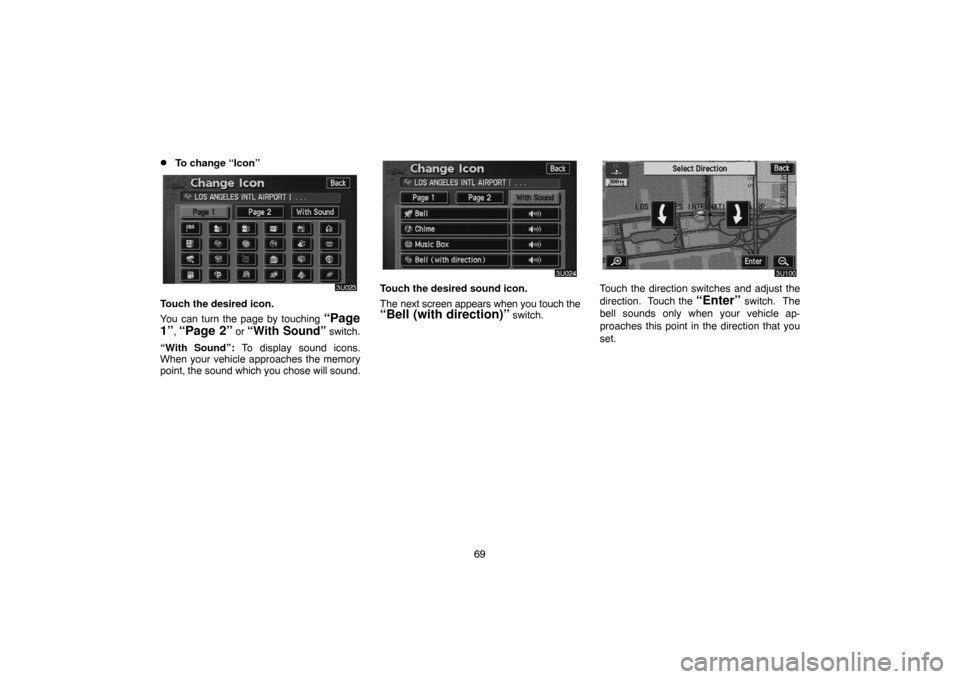

To change “Icon”
Touch the desired icon.
You can turn the page by touching
“Page
1”
, “Page 2” or “With Sound” switch.
“With Sound”: To display sound icons.
When your vehicle approaches the memory
point, the sound which you chose will sound.
Touch the desired sound icon.
The next screen appears when you touch the
“Bell (with direction)” switch.
Touch the direction switches and adjust the
direction. Touch the
“Enter” switch. The
bell sounds only when your vehicle ap-
proaches this point in the direction that you
set.

70

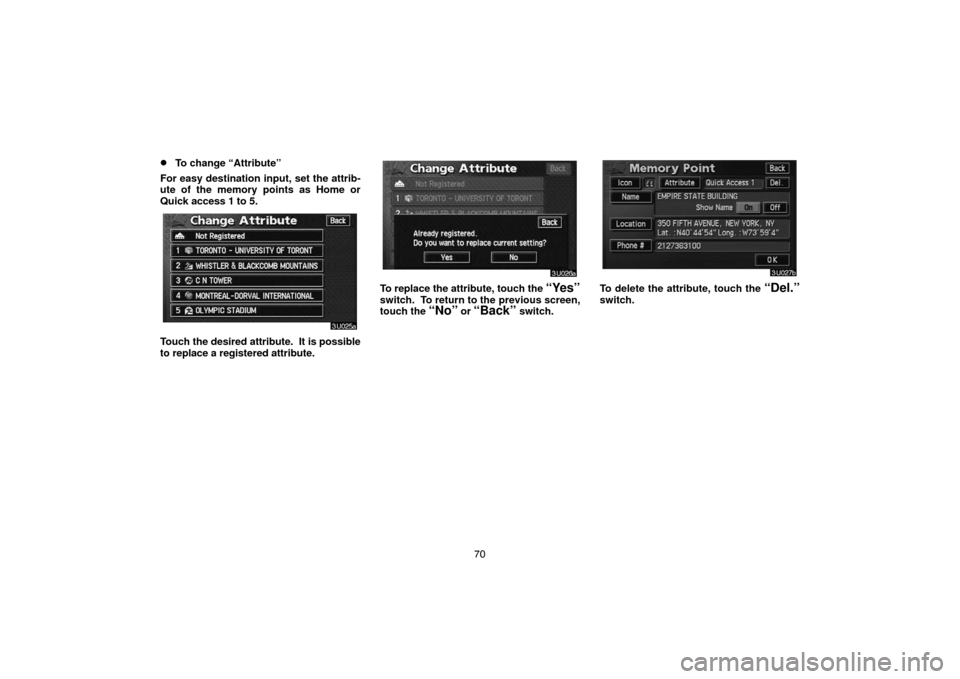

To change “Attribute”
For easy destination input, set the attrib-
ute of the memory points as Home or
Quick access 1 to 5.
Touch the desired attribute. It is possible
to replace a registered attribute.
To replace the attribute, touch the “Yes”
switch. To return to the previous screen,
touch the “No” or “Back” switch.
To delete the attribute, touch the “Del.”
switch.
