TOYOTA HIGHLANDER 2005 XU20 / 1.G Navigation Manual

101

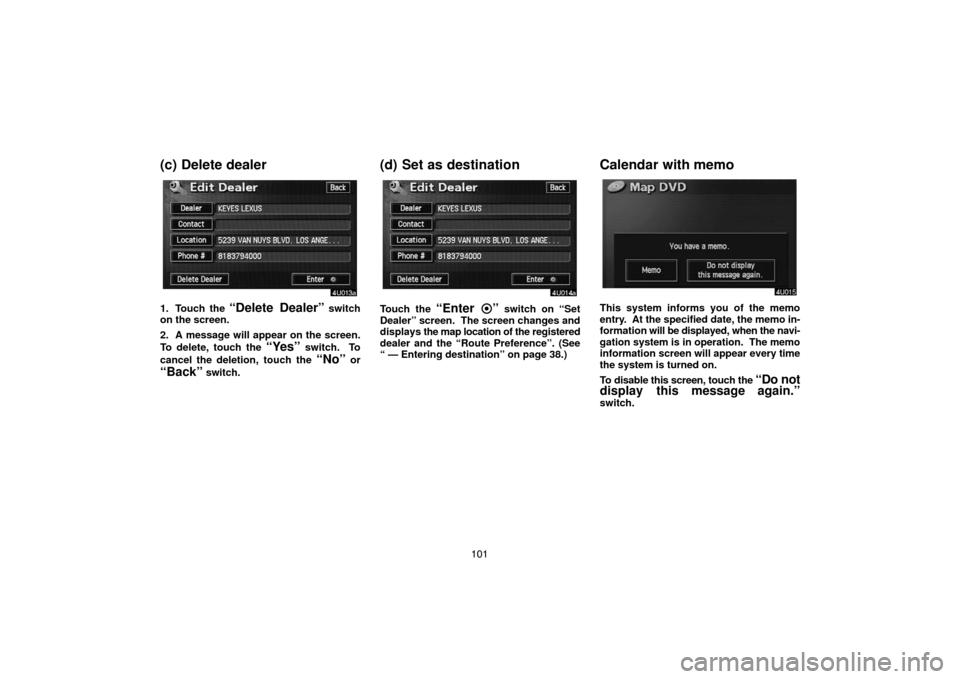

(c) Delete dealer
1. Touch the “Delete Dealer” switch
on the screen.
2. A message will appear on the screen.
To delete, touch the
“Yes” switch. To
cancel the deletion, touch the
“No” or
“Back” switch.
(d) Set as destination
Touch the “Enter ” switch on “Set
Dealer” screen. The screen changes and
displays the map location of the registered
dealer and the “Route Preference”. (See
“ — Entering destination” on page 38.)
Calendar with memo
This system informs you of the memo
entry. At the specified date, the memo in-
formation will be displayed, when the navi-
gation system is in operation. The memo
information screen will appear every time
the system is turned on.
To disable this screen, touch the
“Do not
display this message again.”
switch.

102

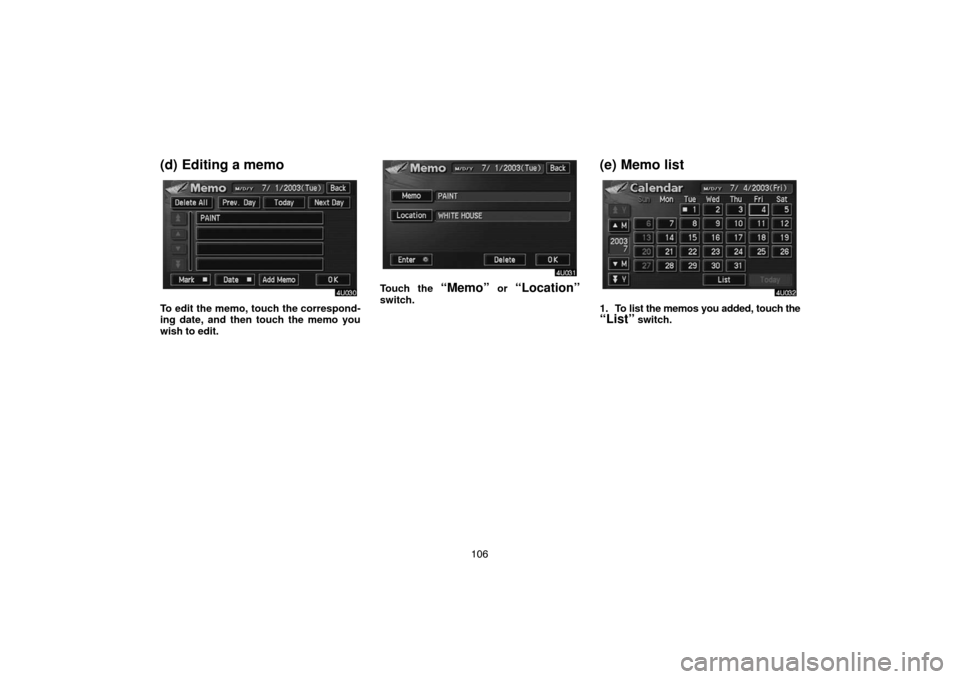

To display the “Information menu” screen,
push the
“INFO” button. Then touch the
“Calendar” switch.
To display the current month calendar, touch
the
“Today” switch. The current date is in-
dicated by a yellow mark.
(a) Inputting a memo
1. Touch the day you want to add a memo.
2. To display the “Memo” screen, touch
the
“Add Memo” switch.

103

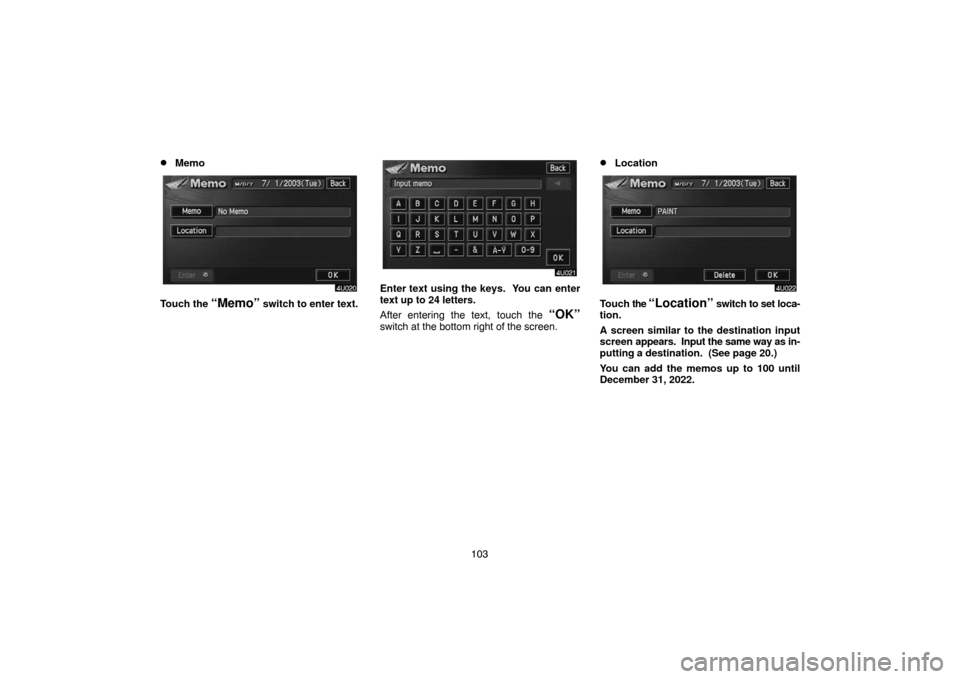

Memo
Touch the “Memo” switch to enter text.
Enter text using the keys. You can enter
text up to 24 letters.
After entering the text, touch the
“OK”
switch at the bottom right of the screen.
Location
Touch the “Location” switch to set loca-
tion.
A screen similar to the destination input
screen appears. Input the same way as in-
putting a destination. (See page 20.)
You can add the memos up to 100 until
December 31, 2022.

104

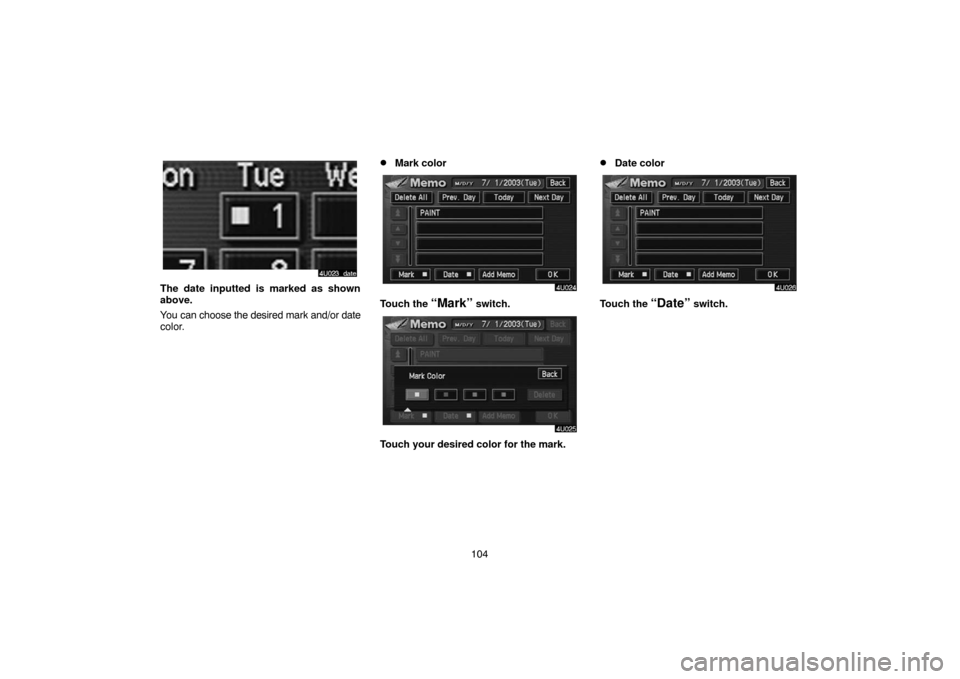

The date inputted is marked as shown
above.
You can choose the desired mark and/or date
color.
Mark color
Touch the “Mark” switch.
Touch your desired color for the mark.
Date color
Touch the “Date” switch.

105

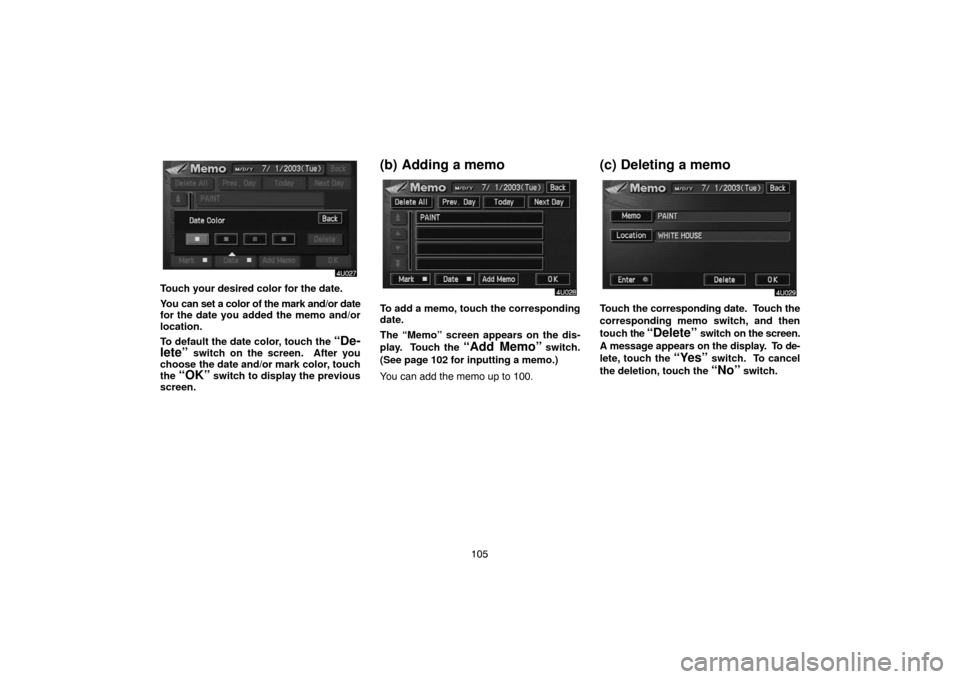

Touch your desired color for the date.
You can set a color of the mark and/or date
for the date you added the memo and/or
location.
To default the date color, touch the
“De-
lete”
switch on the screen. After you
choose the date and/or mark color, touch
the
“OK” switch to display the previous
screen.
(b) Adding a memo
To add a memo, touch the corresponding
date.
The “Memo” screen appears on the dis-
play. Touch the
“Add Memo” switch.
(See page 102 for inputting a memo.)
You can add the memo up to 100.
(c) Deleting a memo
Touch the corresponding date. Touch the
corresponding memo switch, and then
touch the
“Delete” switch on the screen.
A message appears on the display. To de-
lete, touch the
“Yes” switch. To cancel
the deletion, touch the
“No” switch.

106
(d) Editing a memo
To edit the memo, touch the correspond-
ing date, and then touch the memo you
wish to edit.
Touch the “Memo” or “Location”
switch.
(e) Memo list

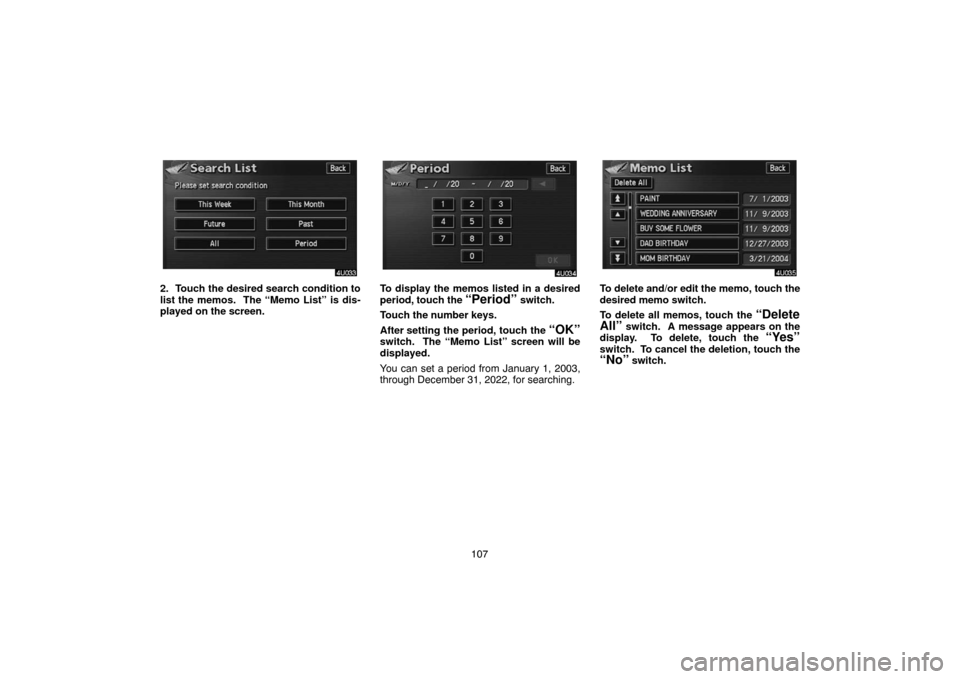

1. To list the memos you added, touch the“List” switch.

107
2. Touch the desired search condition to
list the memos. The “Memo List” is dis-
played on the screen.To display the memos listed in a desired
period, touch the
“Period” switch.
Touch the number keys.
After setting the period, touch the
“OK”switch. The “Memo List” screen will be
displayed.
You can set a period from January 1, 2003,
through December 31, 2022, for searching.
To delete and/or edit the memo, touch the
desired memo switch.
To delete all memos, touch the
“Delete
All”
switch. A message appears on the
display. To delete, touch the “Yes”
switch. To cancel the deletion, touch the“No” switch.

108
To edit: Touch the corresponding “Memo”
or “Location” switch. (See page 106 for
details.)
To delete: Touch the
“Delete” switch.
(See page 105 for details.)
Trip information
Trip information such as driving distance,
average vehicle speed, fuel consumption,
etc. can be displayed on the screen.
Push the “INFO” button to display the
“Information menu” and touch the
“Trip
Info”
switch.
“OUTSIDE TEMP”
The display indicates the outside air tempera-
tures.
“Consumption”
The instantaneous fuel consumption is calcu-
lated and displayed based on distance and
fuel consumption with the engine running.
The displayed value is updated every 1 sec-
ond.
Note that an accurate figure may not be
shown in the following cases.
When the vehicle is stopped with the en-
gine running, the display will indicate the
extremely high fuel consumption.
When the vehicle is driving down a long
slope, applying the engine brake, the dis-
play will indicate the extremely low fuel
consumption.
The calculation is reset when the ignition
switch is turned off.

109 “After refueling”
The average fuel consumption is calculated
and displayed based on total driving distance
and total fuel consumption with the engine
running.
The displayed value is updated every 10 sec-
onds.
Every time you refuel the vehicle, the calcula-
tion is reset. When refueling, be sure to stop
your vehicle and turn the ignition switch off.
“Cruising range”
The distance the vehicle can travel with the
remaining fuel is calculated and displayed
based on the quantity of remaining fuel and
past fuel consumption.
The driving range display indicates the
approximate distance that you can drive until
the fuel gauge reaches “E”. It is different from
the actual distance traveled.
The displayed value is updated every time the
fuel equivalent for 1 mile or 1 km is consumed.
Every time you refuel the vehicle, the calcula-
tion is reset. When refueling, be sure to stop
your vehicle and turn the ignition switch off.
The actual driving range varies with driving
habits and road conditions. If fuel consump-
tion is good, the driving range will be longer.
If fuel consumption is poor, the driving range
will be shorter.If the low fuel level warning light comes on, re-
fuel even if the display indicates that the ve-
hicle can be driven further.
“Average speed”
The average speed is calculated and dis-
played based on the total driving distance and
the total driving time with the engine running.
The displayed value is updated every 10 sec-
onds.
“Distance”
The distance after refueling is calculated and
displayed based on the total distance after re-
fuel.
Every time you refuel the vehicle, the calcula-
tion is reset. When refueling, be sure to stop
your vehicle and turn the ignition switch off.
“Reset”
To reset the calculations of “Average speed”
and “Distance”.
Screen setting
1. Push the “INFO” button to display the
“Information menu” screen.
2. Touch the “Screen setting” switch.

11 0
(a) Automatic transition
You can select a function that enables au-
tomatic return to the navigation screen
from the audio or air conditioner screen.
Select “ON” or “OFF” and then touch
the
“OK” switch.
“ON”:The navigation screen automatically
returns from the audio or air condi-
tioner screen 20 seconds after the
end of audio or air conditioner
screen operation.
“OFF”:The audio or air conditioner screen
remains on.
(b) Background color
You can select a background color.
Select the desired background color and
then touch the
“OK” switch.
Screen adjustment
The brightness or contrast of the screen
can be adjusted depending on the bright-
ness of your surroundings. You can also
turn the display off.
To display the “Display” screen push the
“DISPLAY” button.
Contrast and brightness adjustment
“CONTRAST” “+”:
Strengthens the contrast of the screen.
“CONTRAST” “”:
Weakens the contrast of the screen.
“BRIGHTNESS” “+”:
Brightens the screen.
“BRIGHTNESS” “”:
Darkens the screen.
After adjusting the screen, touch the
“OK” switch.
