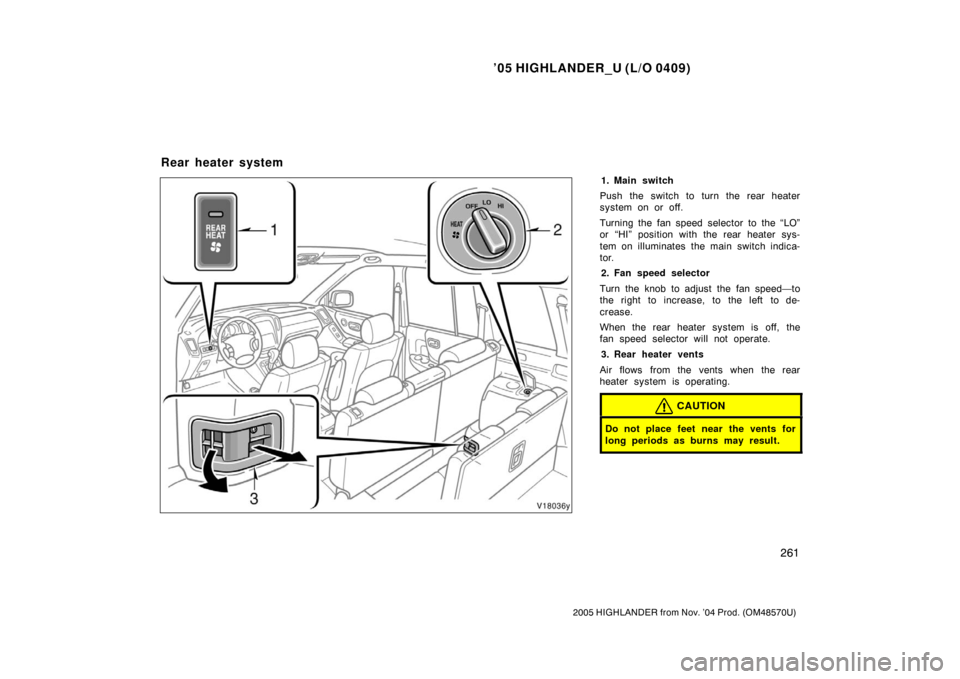

1. Main switch
Push the switch to turn the rear heater
system on or off.
Turning the fan speed selector to the “LO”
or “HI” position with the rear heater sys-
tem on illuminates the main switch indica-
tor. 2. Fan speed selector
Turn the knob to adjust the fan speed—to
the right to increase, to the left to de-
crease.
When the rear heater system is off, the
fan speed selector will not operate. 3. Rear heater vents
Air flows from the vents when the rear
heater system is operating.
CAUTION
Do not place feet near the vents for
long periods as burns may result.
Rear heater system

’05 HIGHLANDER_U (L/O 0409)
262
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
The air conditioning filter information
label is placed in the glove box as
shown and indicates that a filter has
been installed.
The air conditioning filter prevents dust
from entering the vehicle through the air
conditioning vent.The air conditioning filter is behind the
glove box. The air conditioning filter may clog af-
ter long use. The filter may need to be
replaced if the air flow of the air condi-
tioning and heater experiences extreme
reductions in operating efficiency, or if
the windows begin to fog up easily.
To maintain the air conditioning efficiency,
inspect and replace the air conditioning
filter according to the maintenance sched-
ule. In dusty areas or areas with heavy
traffic flow, such as inner city or desert
areas, early replacement may be required.
(For scheduled maintenance information,
please refer to the “Scheduled Mainte-
nance Guide” or “Owner ’s Manual Supple-
ment”.)
Air conditioning filter—
—Checking and replacing the
air conditioning filter

’05 HIGHLANDER_U (L/O 0409)
263
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)

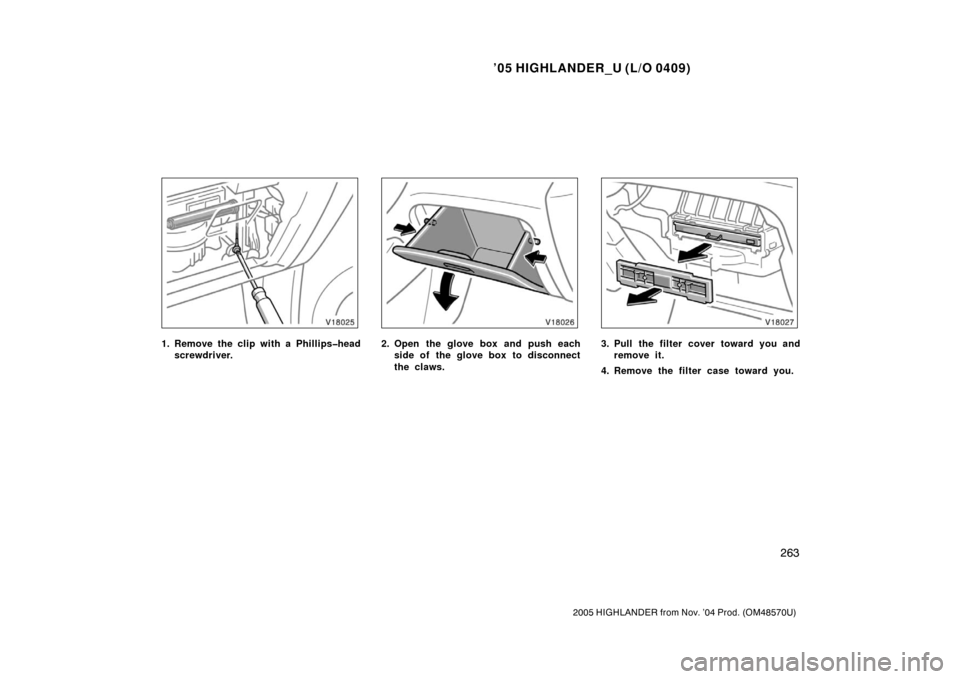

1. Remove the clip with a Phillipshead
screwdriver.2. Open the glove box and push eachside of the glove box to disconnect
the claws.3. Pull the filter cover toward you andremove it.
4. Remove the filter case toward you.

’05 HIGHLANDER_U (L/O 0409)
264
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)

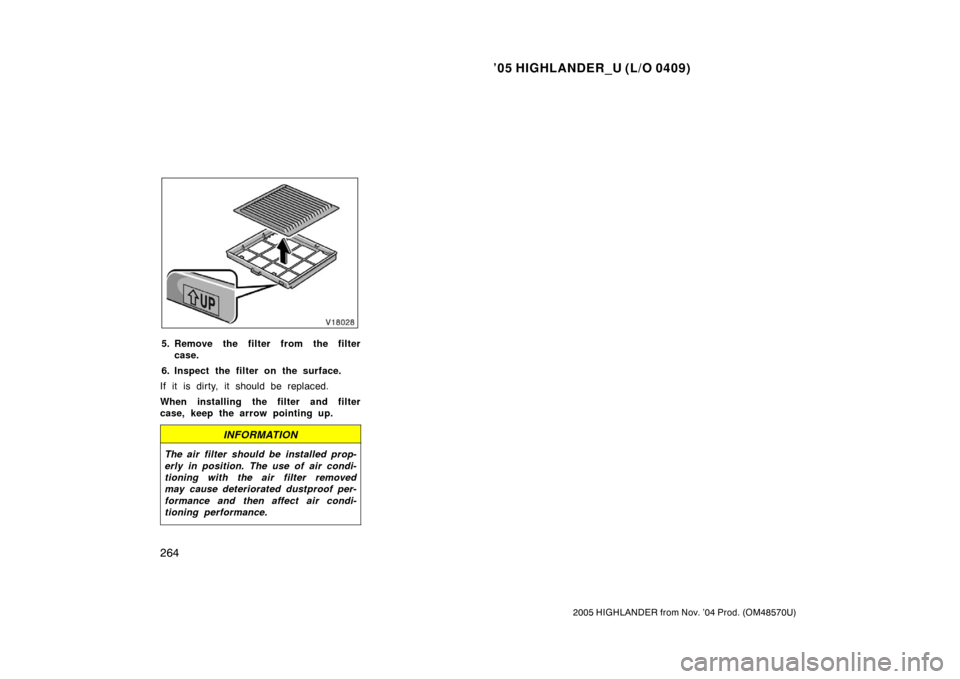

5. Remove the filter from the filter
case.
6. Inspect the filter on the surface.
If it is dirty, it should be replaced.
When installing the filter and filter
case, keep the arrow pointing up.
INFORMATION
The air filter should be installed prop-
erly in position. The use of air condi-
tioning with the air filter removed
may cause deteriorated dustproof per-
formance and then affect air condi-
tioning performance.

’05 HIGHLANDER_U (L/O 0409)
265
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Multi−information display 266
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 267
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Compass 268
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Cigarette lighter and ashtrays 272
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets 273
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Power outlet 274
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove box 275
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Garage door opener 275
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Auxiliary boxes 278
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Container 280
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Cup holders 281
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Bottle holders 283
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Tie −down hooks 283
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Luggage cover 284
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Roof luggage carrier 286
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Floor mat 288
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
For information about the clock of a vehicle equipped with
Navigation system, please refer to the separate “Navigation
System Owner’s Manual”.
SECTION 1 10

’05 HIGHLANDER_U (L/O 0409)
266
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
Air conditioning system on—
Air conditioning system off—

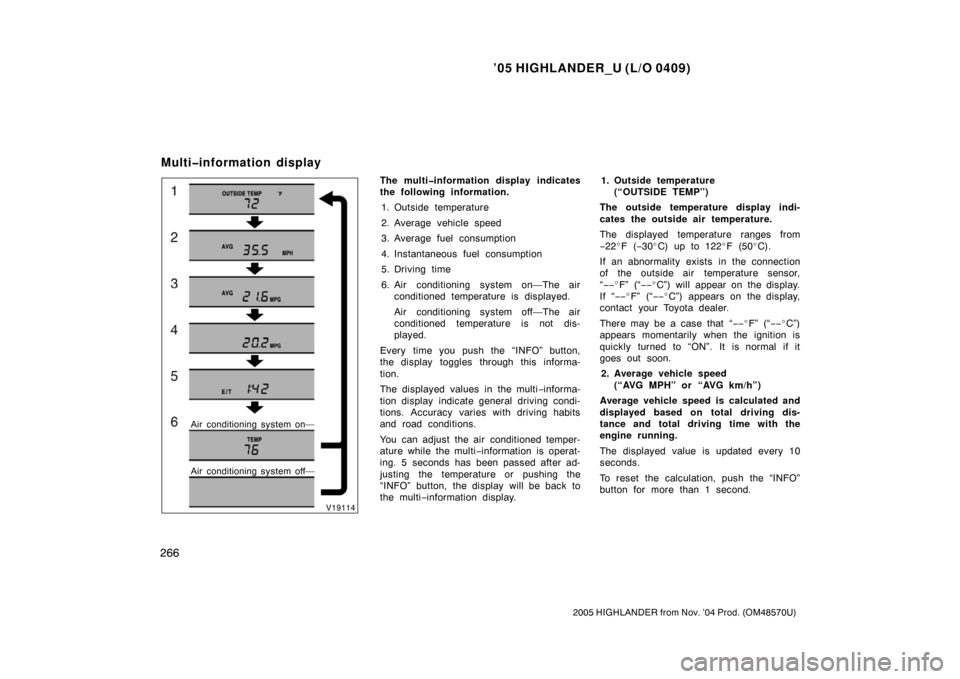

The multiinformation display indicates
the following information.
1. Outside temperature
2. Average vehicle speed
3. Average fuel consumption
4. Instantaneous fuel consumption
5. Driving time
6. Air conditioning system on—The air conditioned temperature is displayed.
Air conditioning system off—The air
conditioned temperature is not dis-
played.
Every time you push the “INFO” button,
the display toggles through this informa-
tion.
The displayed values in the multi −informa-
tion display indicate general driving condi-
tions. Accuracy varies with driving habits
and road conditions.
You can adjust the air conditioned temper-
ature while the multi −information is operat-
ing. 5 seconds has been passed after ad-
justing the temperature or pushing the
“INFO” button, the display will be back to
the multi −information display. 1. Outside temperature
(“OUTSIDE TEMP”)
The outside temperature display indi-
cates the outside air temperature.
The displayed temperature ranges from
− 22 F ( −30 C) up to 122 F (50 C).
If an abnormality exists in the connection
of the outside air temperature sensor,
“ −− F” (“ −−C”) will appear on the display.
If “ −−F” (“ −−C”) appears on the display,
contact your Toyota dealer.
There may be a case that “−− F” (“ −−C”)
appears momentarily when the ignition is
quickly turned to “ON”. It is normal if it
goes out soon.
2. Average vehicle speed (“AVG MPH” or “AVG km/h”)
Average vehicle speed is calculated and
displayed based on total driving dis-
tance and total driving time with the
engine running.
The displayed value is updated every 10
seconds.
To reset the calculation, push the “INFO”
button for more than 1 second.
Multiinformation display

’05 HIGHLANDER_U (L/O 0409)
267
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
3. Average fuel consumption
(“AVG MPG” or “AVG L/100 km”)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption
with the engine running.
The displayed value is updated every 10
seconds.
4. Instantaneous fuel consumption (“MPG” or “L/100 km”)
The instantaneous fuel consumption is
calculated and displayed based on dis-
tance and fuel consumption for 1 sec-
onds with the engine running.
The displayed value is updated every 2
seconds.
Note that an accurate figure may not be
shown in the following cases.
The vehicle is stopped with the engine
running. (The display will indicate the
extremely high fuel consumption.)
The vehicle is driving down a long
slope applying the engine brake. (The
display will indicate the extremely low
fuel consumption.)
The calculation is reset when the ignition
switch is turned off. 5. Driving time (“E/T”)
The elapsed time after the engine starts
is displayed.
When the engine is started, driving time
is counted from 0:00. Up to 11:59 (11
hours, 59 minutes) can be displayed.
When the driving time exceeds 11:59, the
counter returns to 0:00.
The calculation is reset when the ignition
switch is turned off.
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
The key must be in the “ACC” or “ON”
position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
Clock

’05 HIGHLANDER_U (L/O 0409)
268
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
The direction is indicated on the inside
rear view mirror.
If the ignition switch was turned off with
the system on, the system will automati-
cally turn back on when the ignition switch
is turned on.

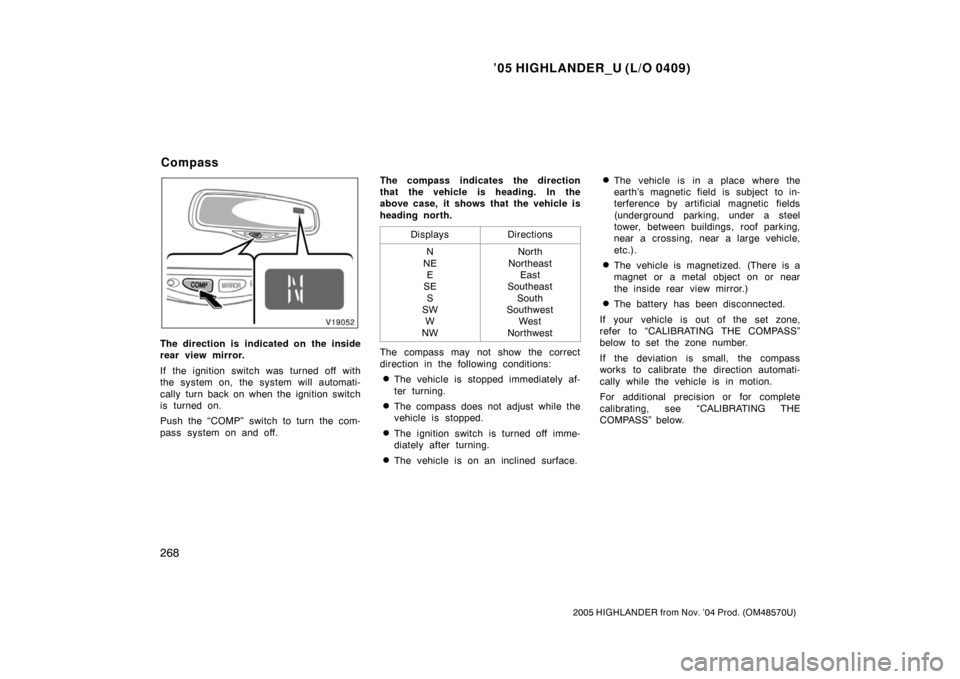

Push the “COMP” switch to turn the com-
pass system on and off. The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading north.
Displays
Directions
N
NE E
SE
S
SW W
NWNorth
Northeast East
Southeast
South
Southwest West
Northwest
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The ignition switch is turned off imme-
diately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the inside rear view mirror.)
The battery has been disconnected.
If your vehicle is out of the set zone,
refer to “CALIBRATING THE COMPASS”
below to set the zone number.
If the deviation is small, the compass
works to calibrate the direction automati-
cally while the vehicle is in motion.
For additional precision or for complete
calibrating, see “CALIBRATING THE
COMPASS” below.
Compass

’05 HIGHLANDER_U (L/O 0409)
269
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)

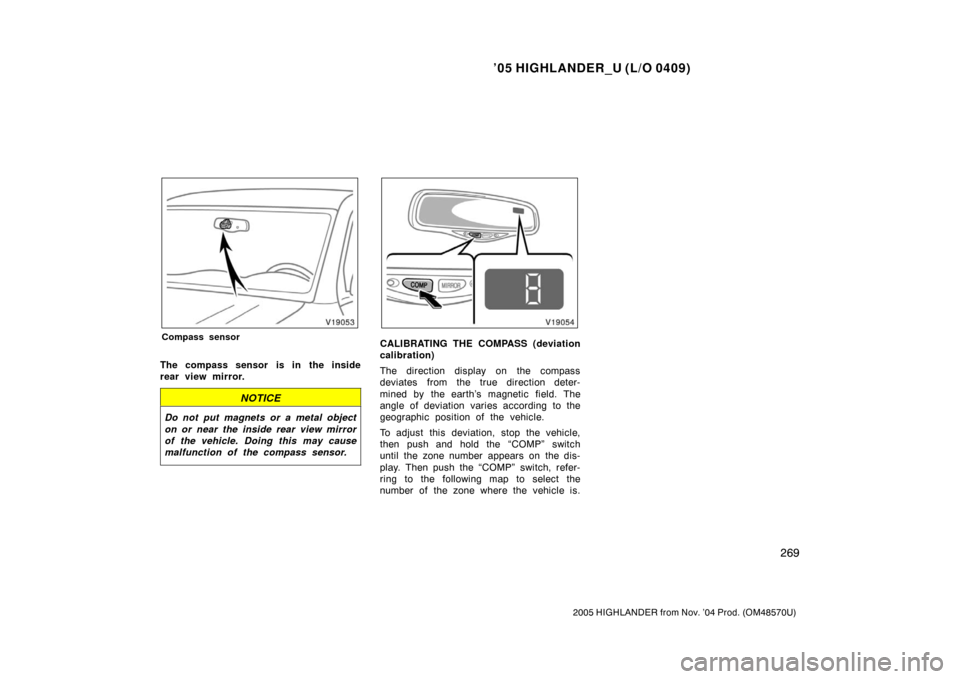

Compass sensor
The compass sensor is in the inside
rear view mirror.
NOTICE
Do not put magnets or a metal object
on or near the inside rear view mirror
of the vehicle. Doing this may cause
malfunction of the compass sensor.

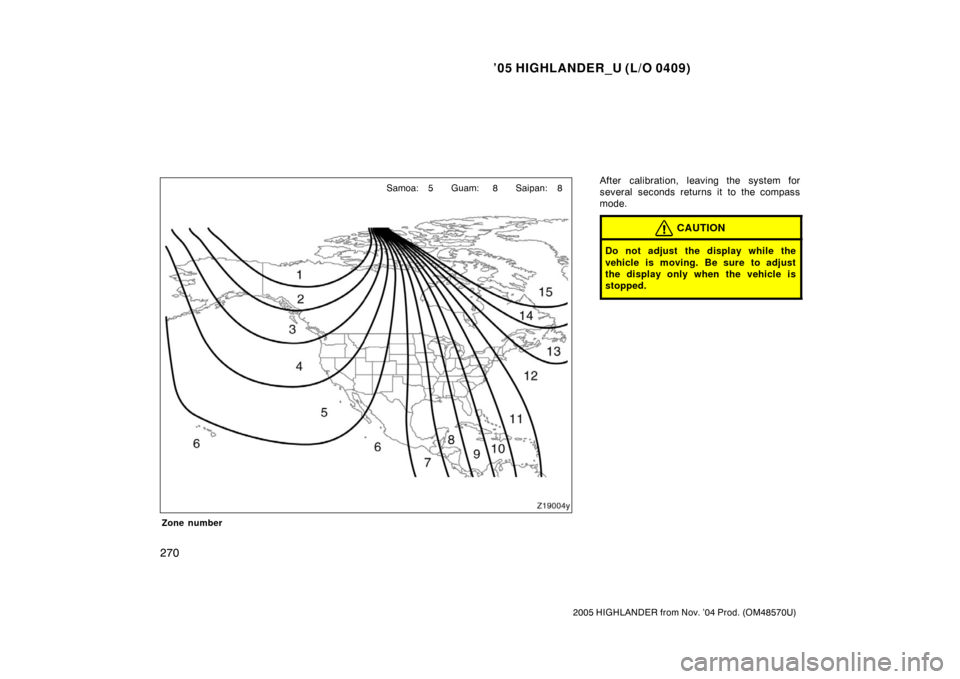

CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth’s magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust this deviation, stop the vehicle,
then push and hold the “COMP” switch
until the zone number appears on the dis-
play. Then push the “COMP” switch, refer-
ring to the following map to select the
number of the zone where the vehicle is.

’05 HIGHLANDER_U (L/O 0409)
270
2005 HIGHLANDER from Nov. ’04 Prod. (OM48570U)
Zone number
After calibration, leaving the system for
several seconds returns it to the compass
mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Samoa: 5 Guam: 8 Saipan: 8
