Quick index
If a service reminder indicator or warning buzzer comes on 133 . . . . . . . .
If your vehicle will not start 330 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
If your engine stalls while driving 333 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle overheats 334 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
If you have a flat tire 335 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
If your vehicle needs to be towed 347 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tips for driving during break −in period 289 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to start the engine 316 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
General maintenance 365 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Gas station information
Fuel type:
UNLEADED gasoline, Octane Rating 87 (Research Octane Number 91) or
higher
See page 289 for detailed information.
Fuel tank capacity:
72.5 L (19.1 gal., 16.0 Imp.gal.)
Engine oil:
ILSAC multigrade engine oil is recommended.
See page 379 for detailed information.
Tire information: See pages 383 through 390.
Tire inflation pressure: See page 406.
U 1
C
Page 12 of 426
’07 HIGHLANDER_U (L/O 0608)
xii
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
You should know as much about the quality and
importance of proper main tenance of your new
vehicle as the people who built it.
The Toyota authorized Repair Manual
tells you how to maint ain your vehicle and
enables you to correct ly perform your own
maintenance.
The best way to keep your new vehicle in top
running order is to maintain it properly from
the moment you drive it off the showroom
floor.
The Toyota authorized Repair Manual is
packed with literally everything you need to
know to perform your own maintenance in
virtually every area of your new vehicle.
Page 13 of 426
’07 HIGHLANDER_U (L/O 0608)
xiii
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
Where to obtain the
Repair Manual
The repair manual for HIGHLANDER may be pur-
chased from any Toyota dealer or the Material Dis-
tribution Center. To purchase the repair manual,
please contact your Toyota dealer or call the Mate-
rial Distribution Center toll free at
1 800 622 2033.
Maintenance procedures for the engine,
chassis, body, electric al system, and more,
are clearly explained and illustrated.
Periodic maintenance and tune up
Periodic maintenance and tune up helps to prevent
small problems from growing into larger ones later on.
The repair manual outlines exactly what maintenance
is required and clearly explains how to do the work
yourself step by step.
Areas covered include such things as spark plug re-
placement, valve clearance adjustment and engine oil
and filter replacement.
Page 14 of 426
’07 HIGHLANDER_U (L/O 0608)
xiv
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
WE REALLY CARE ABOUT YOU PLEASE BUCKLE UP
Toyota has made a special effort to encourage use of seat belts.
Toyota belts are:
Comfortable
Easy to use
Convenient
We encourage you to use your belts every time you drive.
U
Page 15 of 426
’07 HIGHLANDER_U (L/O 0608)
1
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
Instrument cluster overview 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 11
. . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1
Page 16 of 426
’07 HIGHLANDER_U (L/O 0608)
2
2007 HIGHLANDER from July ’06 Prod. (OM48682U)

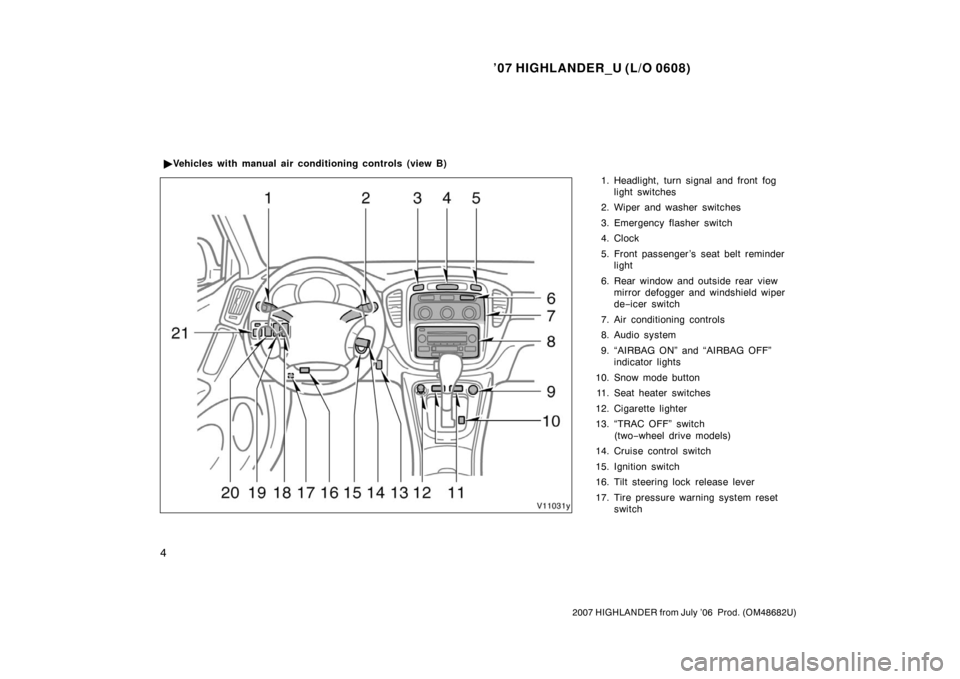

1. Side defroster outlets
2. Instrument cluster
3. Center vents
4. Electric moon roof switch and personal
lights
5. Garage door opener
6. Auxiliary boxes
7. Side vents
8. Power door lock switches
9. Power window switches
10. Glove box
11. Automatic transmission selector lever
12. Rear ashtray
13. Input terminal adapter
14. Power outlets
15. Cup holder
16. Container
17. Front ashtray
18. Audio remote control switches
19. Hood lock release lever
20. Parking brake pedal
21. Window lock switch
Instrument panel overview
Vehicles with rear seat entertainment system (view A)
Page 17 of 426
’07 HIGHLANDER_U (L/O 0608)
3
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
1. Side defroster outlets
2. Instrument cluster
3. Center vents
4. Electric moon roof switch and personal
lights
5. Garage door opener
6. Auxiliary boxes
7. Side vents
8. Power door lock switches
9. Power window switches
10. Glove box
11. Automatic transmission selector lever
12. Rear ashtray
13. Cup holder
14. Container
15. Power outlet
16. Front ashtray
17. Audio remote control switches
18. Hood lock release lever
19. Parking brake pedal
20. Window lock switch
Vehicles without rear seat entertainment system (view A)
Page 18 of 426
’07 HIGHLANDER_U (L/O 0608)
4
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock
5. Front passenger ’s seat belt reminder light
6. Rear window and outside rear view mirror defogger and windshield wiper
de− icer switch
7. Air conditioning controls
8. Audio system
9. “AIRBAG ON” and “AIRBAG OFF” indicator lights
10. Snow mode button 11. Seat heater switches
12. Cigarette lighter
13. “TRAC OFF” switch (two −wheel drive models)
14. Cruise control switch
15. Ignition switch
16. Tilt steering lock release lever
17. Tire pressure warning system reset switch
Vehicles with manual air conditioning controls (view B)
Page 19 of 426
’07 HIGHLANDER_U (L/O 0608)
5
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
18. Power outlet (115 VAC) main switch
19. Rear heater main switch
20. Theft deterrent system/engine
immobilizer system indicator light
21. Power rear view mirror control switches
Page 20 of 426
’07 HIGHLANDER_U (L/O 0608)
6
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock
5. Front passenger ’s seat belt reminder light
6. Air conditioning controls and multi −information display
7. Rear window and outside rear view mirror defogger and windshield wiper
de− icer switch
8. Audio system
9. “AIRBAG ON” and “AIRBAG OFF” indicator lights
10. Snow mode button
11. Seat heater switches
12. Cigarette lighter
13. “TRAC OFF” switch (two −wheel drive models)
14. Cruise control switch
15. Ignition switch
16. Tilt steering lock release lever
17. Tire pressure warning system reset switch
Vehicles with automatic air conditioning controls (view B without navigation system)
