’07 HIGHLANDER_U (L/O 0608)
7
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
18. Power outlet (115 VAC) main switch
19. Rear heater main switch
20. Theft deterrent system/engine
immobilizer system indicator light
21. Power rear view mirror control switches
Page 22 of 426
’07 HIGHLANDER_U (L/O 0608)
8
2007 HIGHLANDER from July ’06 Prod. (OM48682U)

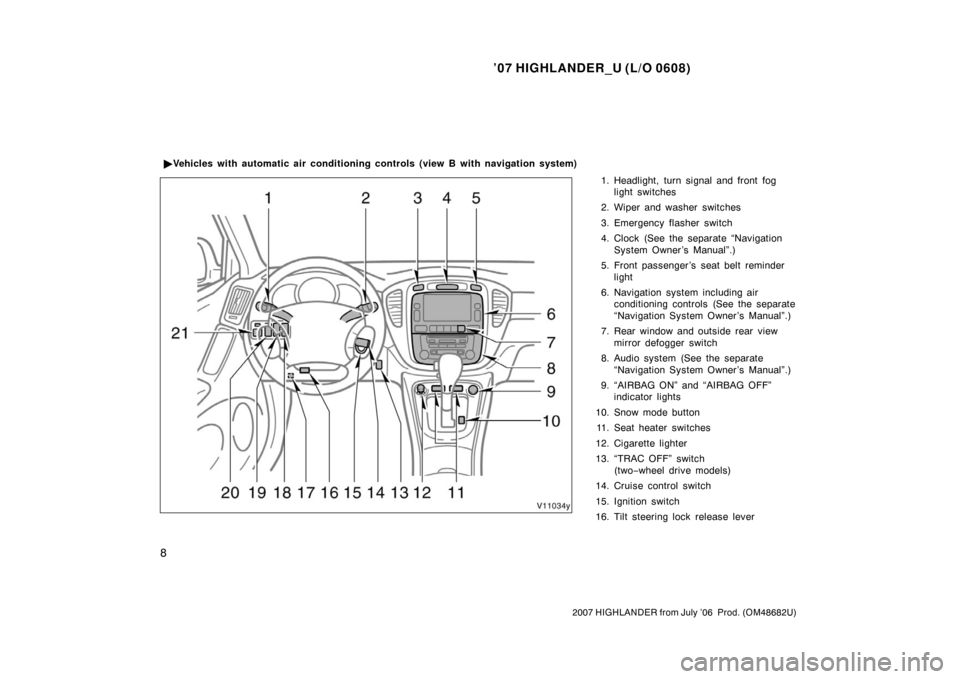

1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock (See the separate “Navigation System Owner ’s Manual”.)
5. Front passenger ’s seat belt reminder light
6. Navigation system including air conditioning controls (See the separate
“Navigation System Owner ’s Manual”.)
7. Rear window and outside rear view mirror defogger switch
8. Audio system (See the separate “Navigation System Owner ’s Manual”.)
9. “AIRBAG ON” and “AIRBAG OFF” indicator lights
10. Snow mode button 11. Seat heater switches
12. Cigarette lighter
13. “TRAC OFF” switch (two −wheel drive models)
14. Cruise control switch
15. Ignition switch
16. Tilt steering lock release lever
Vehicles with automatic air conditioning controls (view B with navigation system)
Page 23 of 426
’07 HIGHLANDER_U (L/O 0608)
9
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
17. Tire pressure warning system reset
switch
18. Power outlet (115 VAC) main switch
19. Rear heater main switch
20. Theft deterrent system/engine immobilizer system indicator light
21. Power rear view mirror control switches
Page 24 of 426
’07 HIGHLANDER_U (L/O 0608)
10
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
1. Tachometer
2. Service reminder indicators and
indicator lights
3. Speedometer 4. Fuel gauge
5. Low fuel level warning light
6. Engine coolant temperature gauge
7. Trip meter reset knob
8. Odometer and two trip meters
9. Instrument panel light control knob
Instrument cluster overview
Page 25 of 426
’07 HIGHLANDER_U (L/O 0608)
11
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
Brake system warning light∗
1
Charging system warning light∗1
Low engine oil pressure warning light∗1
Malfunction indicator lamp∗1
SRS warning light∗1
Driver ’s seat belt reminder light∗1Open door warning light∗1
Automatic transmission fluid temperature
warning light∗1 (four −wheel drive models)
or
Low windshield washer fluid level warning
light∗
1
or
Vehicle stability control system warning light∗1
Anti −lock brake system warning light∗
1or
Front passenger ’s seat belt reminder light∗1
Low tire pressure warning light∗1
Indicator symbols on the instrument panel
Page 26 of 426
’07 HIGHLANDER_U (L/O 0608)
12
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
∗
1: For details, see “Service reminder indicators and warning
buzzers” on page 133 in Section 1 −6.
∗
2: If this light flashes, see “Cruise control” on page 163 in
Section 1 −7.Cruise control indicator light
∗
2
Overdrive −off indicator light
Slip indicator light
Turn signal indicator lights
Automatic transmission indicator lights
Snow mode indicator light
Traction control system off indicator light
Headlight high beam indicator light
or Engine oil replacement reminder light
∗
1
(for vehicles sold in U.S.A.)
“AIRBAG ON” indicator light
“AIRBAG OFF” indicator light
Page 27 of 426
’07 HIGHLANDER_U (L/O 0608)
13
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Side doors 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Back door 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Hood 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2
Page 28 of 426
’07 HIGHLANDER_U (L/O 0608)
14
2007 HIGHLANDER from July ’06 Prod. (OM48682U)

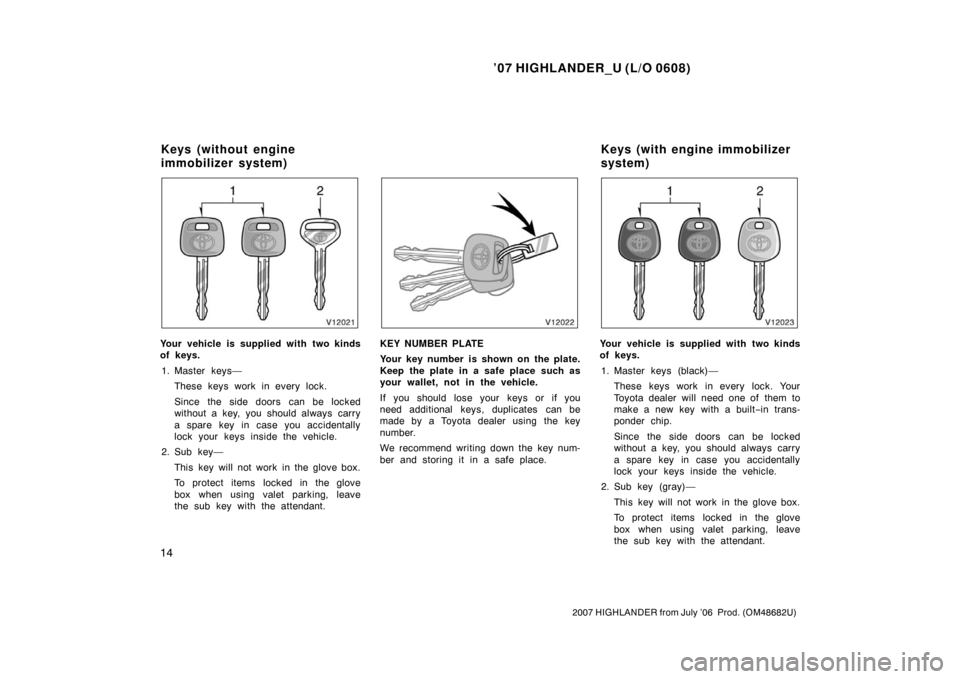

Your vehicle is supplied with two kinds
of keys.
1. Master keys— These keys work in every lock.
Since the side doors can be locked
without a key, you should always carry
a spare key in case you accidentally
lock your keys inside the vehicle.
2. Sub key—
This key will not work in the glove box.
To protect items locked in the glove
box when using valet parking, leave
the sub key with the attendant.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.Your vehicle is supplied with two kinds
of keys.1. Master keys (black)— These keys work in every lock. Your
Toyota dealer will need one of them to
make a new key with a built −in trans-
ponder chip.
Since the side doors can be locked
without a key, you should always carry
a spare key in case you accidentally
lock your keys inside the vehicle.
2. Sub key (gray)—
This key will not work in the glove box.
To protect items locked in the glove
box when using valet parking, leave
the sub key with the attendant.
Keys (without engine
immobilizer system) Keys (with engine immobilizer
system)
Page 29 of 426
’07 HIGHLANDER_U (L/O 0608)
15
2007 HIGHLANDER from July ’06 Prod. (OM48682U)
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
Page 30 of 426
’07 HIGHLANDER_U (L/O 0608)
16
2007 HIGHLANDER from July ’06 Prod. (OM48682U)

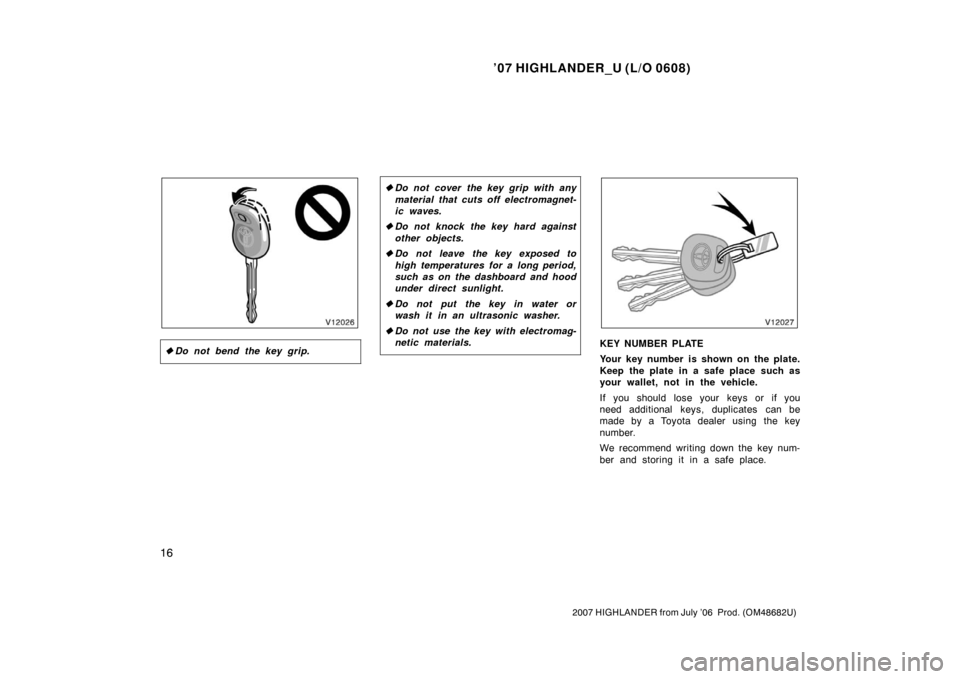

Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
Do not knock the key hard against
other objects.
Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
Do not put the key in water or
wash it in an ultrasonic washer.
Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
