5-2. Steps to take in an emergency

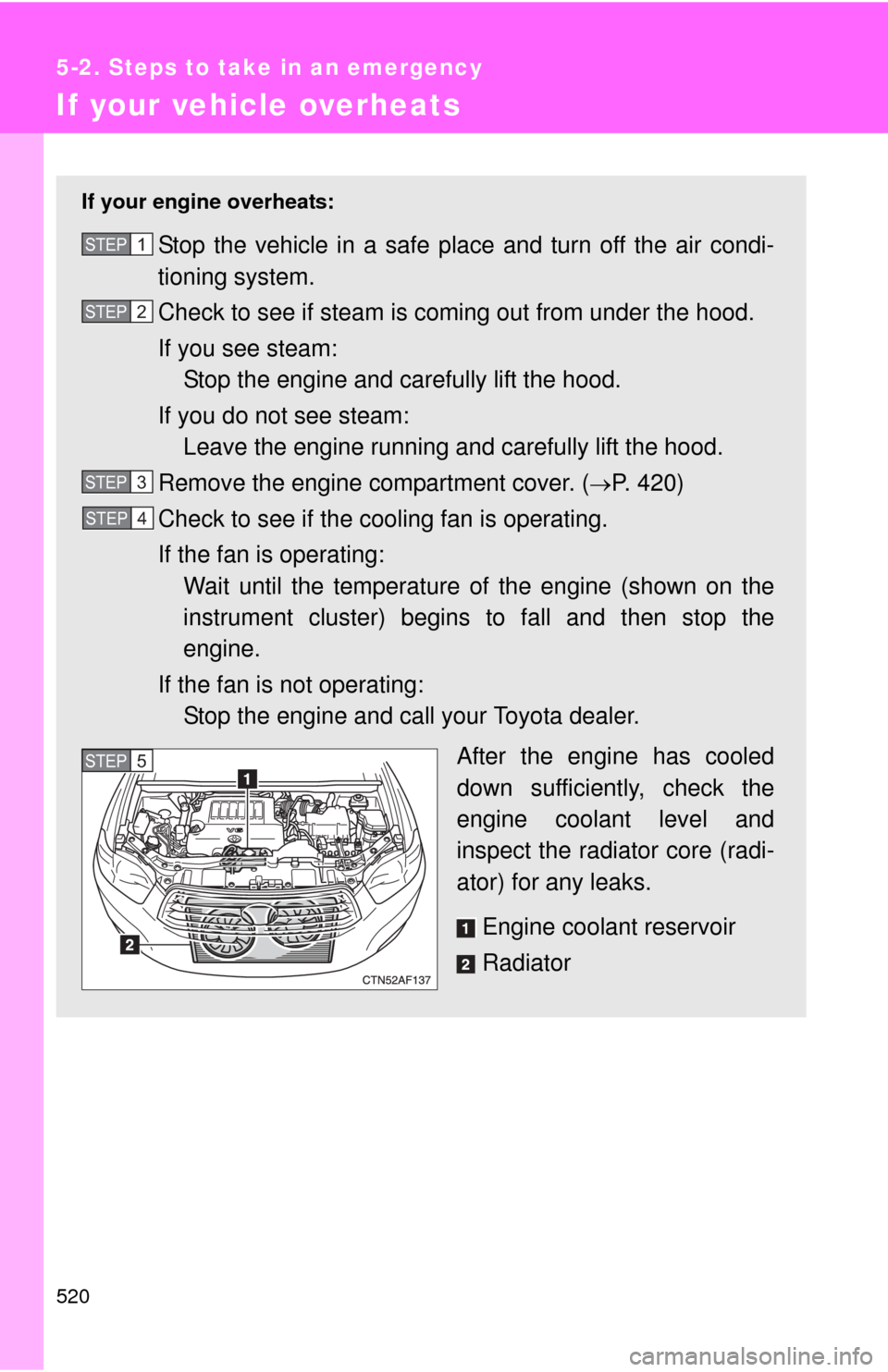

If your vehicle overheats
If your engine overheats:
Stop the vehicle in a safe place and turn off the air condi-
tioning system.
Check to see if steam is coming out from under the hood.
If you see steam: Stop the engine and carefully lift the hood.
If you do not see steam: Leave the engine running and carefully lift the hood.
Remove the engine compartment cover. (
P. 420)
Check to see if the cooling fan is operating.
If the fan is operating: Wait until the temperature of the engine (shown on the
instrument cluster) begins to fall and then stop the
engine.
If the fan is not operating: Stop the engine and call your Toyota dealer.
After the engine has cooled
down sufficiently, check the
engine coolant level and
inspect the radiator core (radi-
ator) for any leaks.
Engine coolant reservoir
Radiator
STEP1
STEP2
STEP3
STEP4
STEP5

5
When trouble arises
521
5-2. Steps to take in an emergency
■
Overheating
If you observe the following, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of
power is experienced.
● Steam is coming from under the hood.
CAUTION
■To prevent an accident or injury when inspecting under the hood of
your vehicle
●Keep hands and clothing away from the fan and other belts while the
engine is running.
● Do not loosen the coolant reservoir cap while the engine and radiator are
hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
Add engine coolant if neces-
sary.
Water can be used in an emer-
gency if engine coolant is
unavailable.
(P. 530)
Have the vehicle chec ked at the nearest Toyota dealer as soon as
possible.
STEP6

522 5-2. Steps to take in an emergency
NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.

5
When trouble arises
523
5-2. Steps to take in an emergency
If the vehicle becomes stuck
■Emergency hooks
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and put the shift
lever in P.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the engine.
Shift the shift lever to the D or R position and carefully apply
the accelerator to free the vehicle.
Turn off TRAC and/or VSC if these functions are hampering your
attempts to free the vehicle. ( P. 210)
STEP1
STEP2
STEP3
STEP4
STEP5
If your vehicle becomes stuck and cannot
move, the emergency hooks are used for
another vehicle to pull your vehicle out in
an emergency.
Your vehicle is not designed to tow
another vehicle.

524 5-2. Steps to take in an emergency
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striki ng other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels and do not rev the engine.
● If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.

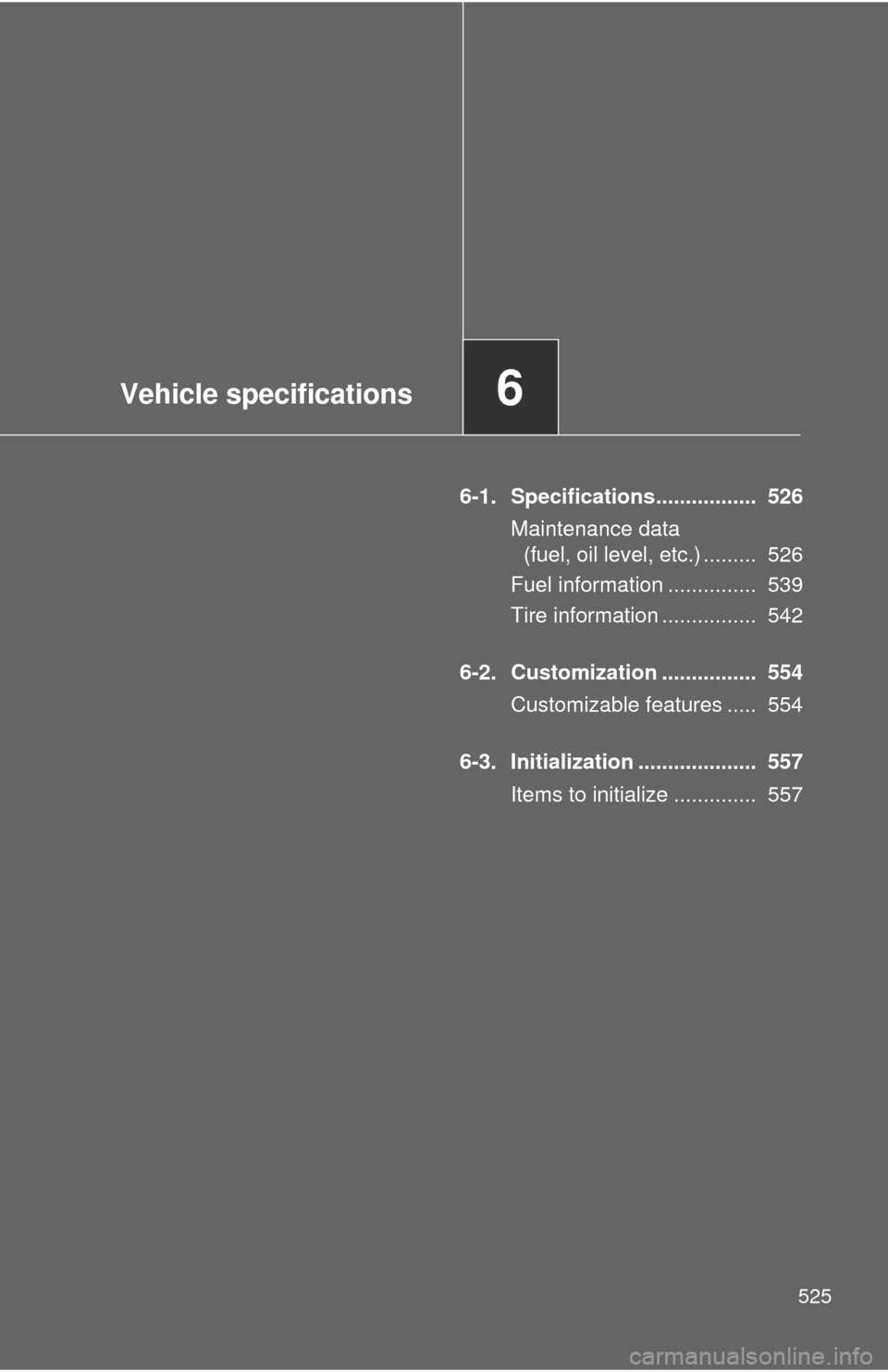

Vehicle specifications6
525
6-1. Specifications................. 526Maintenance data (fuel, oil level, etc.) ......... 526
Fuel information ............... 539
Tire information ................ 542
6-2. Customization ................ 554 Customizable features ..... 554
6-3. Initialization .................... 557 Items to initialize .............. 557

526
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*: GVM condition
Overall length188.4 in. (4785 mm)
Overall width75.2 in. (1910 mm)
Overall height Without roof rails
68.1 in. (1730 mm)
With roof rails
69.3 in. (1760 mm)
Wheelbase
109.8 in. (2790 mm)
Front tread 64.0 in. (1625 mm)
64.2 in. (1630 mm)*
Rear tread
2WD models64.2 in. (1630 mm)
64.8 in. (1645 mm)*
4WD models64.0 in. (1625 mm)
64.6 in. (1640 mm)*
Vehicle capacity weight
(Occupant + luggage) 1200 lb. (544 kg)
Towing
capacity
(Trailer
weight +
cargo)Without tow-
ing package2000 lb. (900 kg)
With towing
package5000 lb. (2000 kg)

527
6-1. Specifications
6
Vehicle specifications
Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped under the right-hand front seat.
This number is also stamped on
the top left of the instrument
panel.
■ Manufacture’s label
This number is also on the man-
ufacturer’s label on the driver’s
side center pillar.

528 6-1. Specifications
■Engine number
The engine number is stamped on the engine bl ock as shown.
Engine
Fuel
Model2GR-FE
Type 6-cylinder V type, 4-cycle, gasoline
Bore and stroke 3.70  3.27 in. (94.0  83.0 mm)
Displacement 210.9 cu.in. (3456 cm3)
Drive belt tension Automatic adjustment
Fuel type Unleaded gasoline only
Octane rating 87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference) 19.2 gal. (72.5 L, 15.9 lmp.gal.)

529
6-1. Specifications
6
Vehicle specifications
Lubrication system
Oil capacity
Drain and refill (Refer-
ence)
Without filter
With filter 6.0 qt. (5.7 L, 5.0 Imp.qt.)
6.4 qt. (6.1 L, 5.4 Imp.qt.)
Oil grade
ILSAC multi-grade engine oil
Recommended oil
viscosity Use Toyota approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the grade and vis-
cosity shown below.
Vehicles without towing package
Vehicles with towing packageOutside temperature
Outside temperature
