CD player TOYOTA HIGHLANDER 2008 XU40 / 2.G Owners Manual

1
2
3
4
5
6
7
3
2-3. Operating the lights and wipers .............................. 192
Headlight switch .................. 192
Fog light switch ................... 196
Windshield wipers and washer .............................. 197
Rear window wiper and washer .............................. 199
2-4. Using other driving systems ........................... 200
Cruise control ...................... 200
Rear view monitor system (vehicles with
multi-information
display) ............................. 203
Downhill Assist Control system
(4WD models only) ........... 207
Driving assist systems ........ 209
2-5. Driving information ........... 214 Off-road precautions ........... 214
Cargo and luggage ............. 219
Vehicle load limits ............... 223
Winter driving tips ............... 224
Trailer towing ...................... 228
Dinghy towing ..................... 238 3-1. Using the air
conditioning system
and defogger .................. 242
Front manual air conditioning system.......... 242
Front automatic air conditioning system.......... 247
Rear manual air conditioning system.......... 255
Rear automatic air conditioning system.......... 258
Rear window and outside rear view mirror
defoggers ......................... 261
Windshield wiper de-icer .............................. 263
Using the steering wheel climate remote control
switches ........................... 264
3-2. Using the audio system ............................. 265
Audio system (without navigation system) ........... 265
Using the radio ................... 268
Using the CD player ........... 274
Playing back MP3 and WMA discs ....................... 281
Optimal use of the audio system .............................. 288
Using the AUX adapter....... 291
Using the steering wheel audio switches.................. 293
3Interior features

TABLE OF CONTENTSIndex
4
3-3. Using the rear audio system ............................. 295
Rear seat entertainment system features ................ 295
Using the DVD player (DVD video)...................... 302
Using the DVD player (video CD) ........................ 310
Using the DVD player (audio CD/CD text) ........... 312
Using the DVD player (MP3 discs) ...................... 313
Using the video mode ........ 315
Changing the initial setting .............................. 317
3-4. Using the hands-free phone system
(for cellular phone)......... 324
Hands-free phone system (for cellular phone)
features ............................ 324
Using the hands-free phone system
(for cellular phone) ........... 328
Making a phone call ........... 336
Setting a cellular phone...... 340
Security and system setup ................................ 345
Using the phone book ........ 348
3-5. Using the interior lights ............................... 355
Interior lights list ................. 355
• Personal/interior light main switch ...................... 356
• Personal/interior lights...... 356
• Interior light ...................... 357 3-6. Using the storage
features ........................... 358
List of storage features ....... 358
• Glove box ......................... 359
• Console box ..................... 359
• Overhead console ............ 360
• Cup holders ...................... 362
• Bottle holders ................... 366
• Auxiliary boxes ................. 367
• Side table ......................... 369
3-7. Other interior features...... 371 Sun visors ........................... 371
Vanity mirror ....................... 372
Clock (vehicles without multi-information
display) ............................. 373
Conversation mirror ............ 374
Power outlet........................ 375
Seat heaters ....................... 378
Armrests ............................. 380
Floor mat ............................ 381
Luggage compartment features ............................ 382
Garage door opener ........... 388
Compass ............................ 393
4-1. Maintenance and care .................................. 398
Cleaning and protecting the vehicle exterior ........... 398
Cleaning and protecting the vehicle interior ............ 401
4Maintenance and care

133
1-7. Safety information
1
Before driving
CAUTION
■
SRS airbag precautions
●Do not touch any of the component parts immediately after the SRS air-
bags have deployed (inflated) as they may be hot.
● If breathing becomes difficult after the SRS airbag has deployed, open a
door or window to allow fresh air in, or leave the vehicle if it is safe to do
so. Wash off any residue as soon as possible to prevent skin irritation.
● If the areas where the SRS airbags are stored, such as the steering wheel
pad and front and rear pillar garnishes, are damaged or cracked, have
them replaced by your Toyota dealer.
■ Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or per form any of the following modifications
without consulting your Toyota dealer.
The SRS airbags may malfunction or deploy (inflate) accidentally, causing
death or serious injury.
● Installation, removal, disassembly and repair of the SRS airbags.
● Repairs, modifications, removal or replacement of the steering wheel,
instrument panel, dashboard, seats or seat upholstery, front, side and rear
pillars or roof side rails.
● Repairs or modifications of the front fender, front bumper, or side of the
occupant compartment.
● Installation of snow plows, winches, etc. to the front grille (bull bars, kan-
garoo bar etc.).
● Modifications to the vehicle's suspension system.
● Installation of electronic devices such as mobile two-way radios or CD
players.
● Modifications to your vehicle for a person with a physical disability.

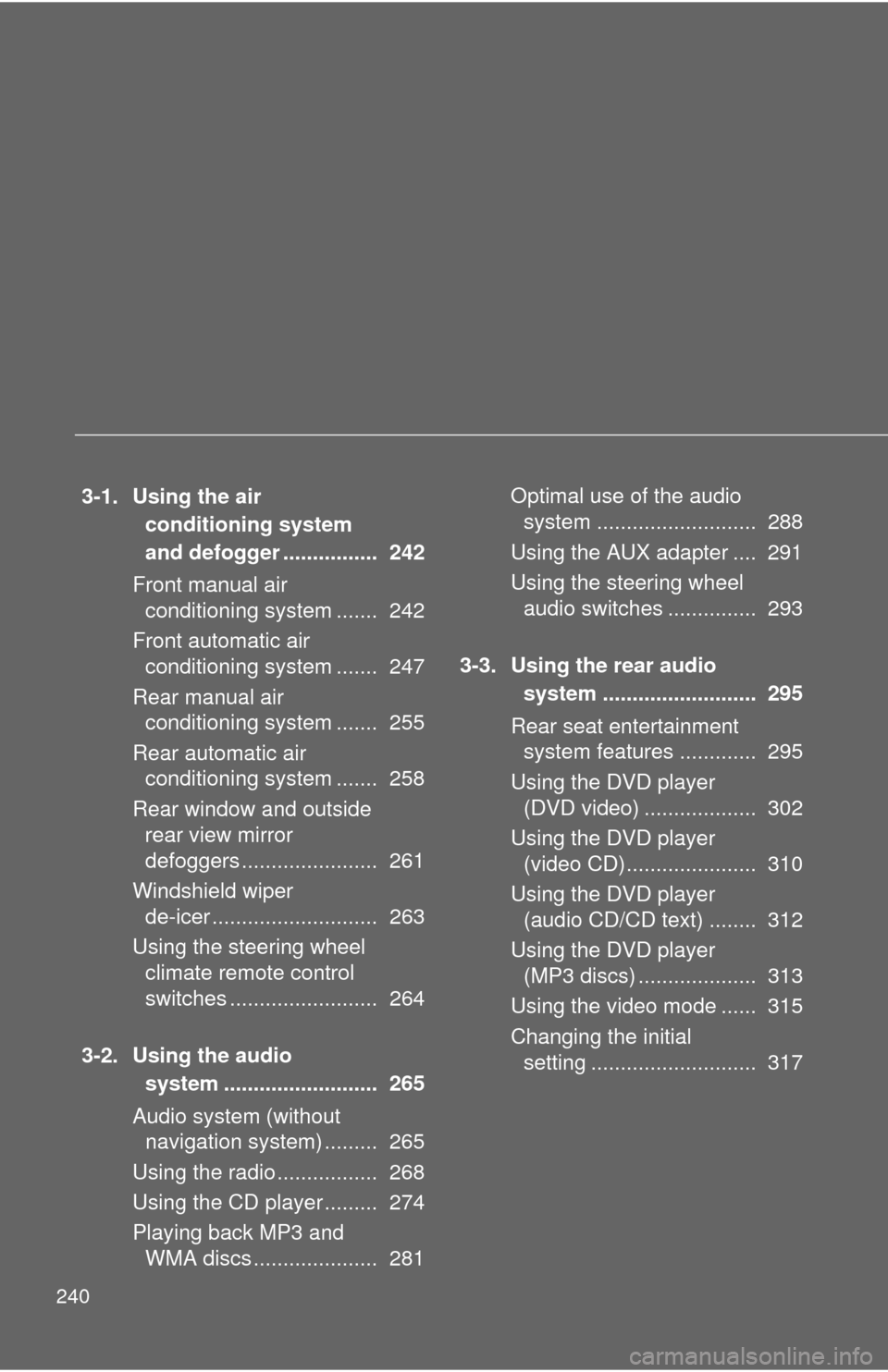

240
3-1. Using the air conditioning system
and defogger ................ 242
Front manual air conditioning system ....... 242
Front automatic air conditioning system ....... 247
Rear manual air conditioning system ....... 255
Rear automatic air conditioning system ....... 258
Rear window and outside rear view mirror
defoggers ....................... 261
Windshield wiper de-icer ............................ 263
Using the steering wheel climate remote control
switches ......................... 264
3-2. Using the audio system .......................... 265
Audio system (without navigation system) ......... 265
Using the radio ................. 268
Using the CD player ......... 274
Playing back MP3 and WMA discs ..................... 281 Optimal use of the audio
system ........................... 288
Using the AUX adapter .... 291
Using the steering wheel audio switches ............... 293
3-3. Using the rear audio system .......................... 295
Rear seat entertainment system features ............. 295
Using the DVD player (DVD video) ................... 302
Using the DVD player (video CD)...................... 310
Using the DVD player (audio CD/CD text) ........ 312
Using the DVD player (MP3 discs) .................... 313
Using the video mode ...... 315
Changing the initial setting ............................ 317

265
3
Interior features
3-2. Using the audio system

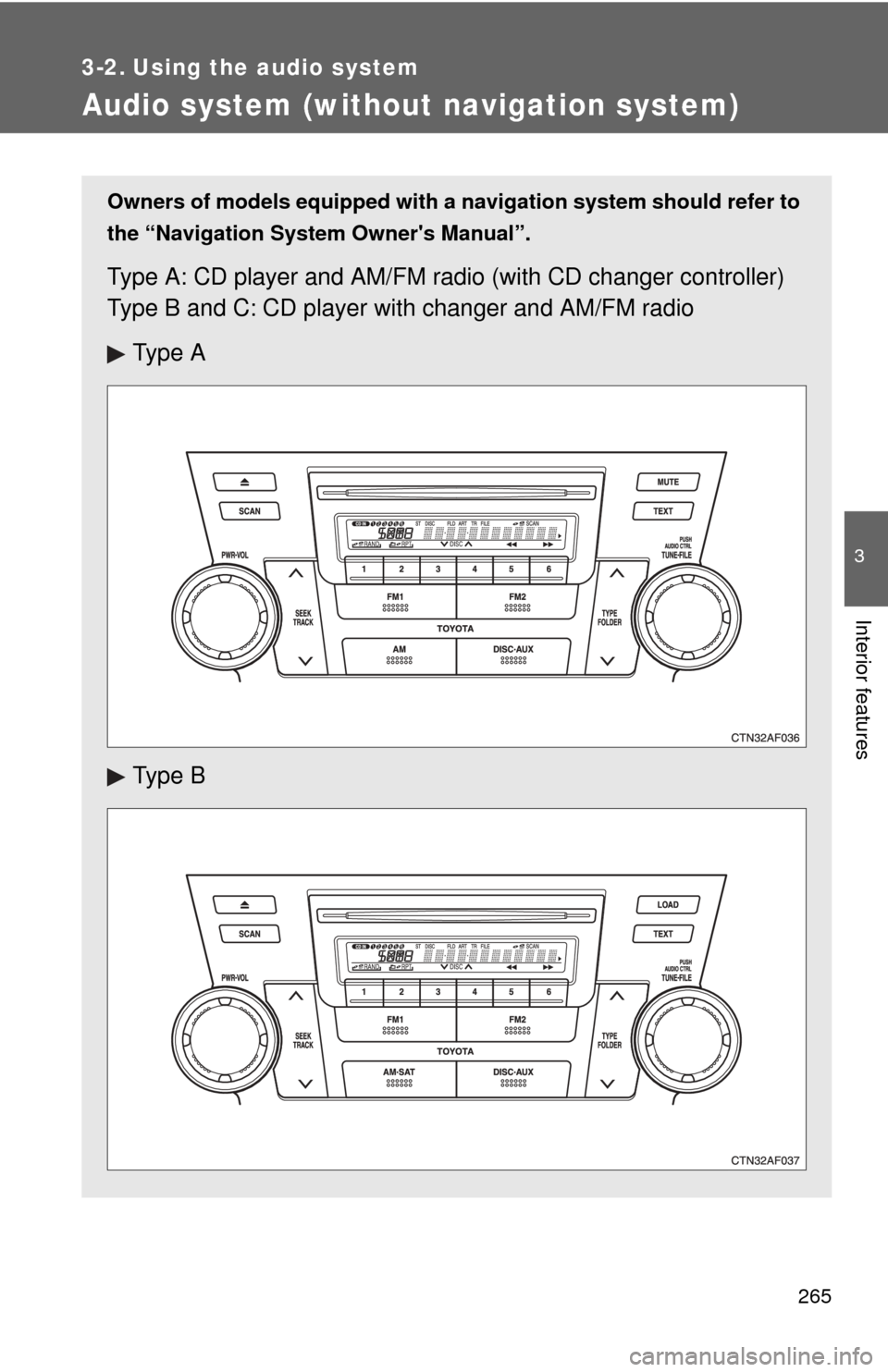

Audio system (without navigation system)
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Type A: CD player and AM/FM radio (with CD changer controller)
Type B and C: CD player with changer and AM/FM radio
Ty p e A
Ty p e B

266 3-2. Using the audio system
■Using cellular phones
Interference may be heard through the audio system's speakers if a cellular
phone is being used inside or close to the vehicle while the audio syste\
m is
operating.

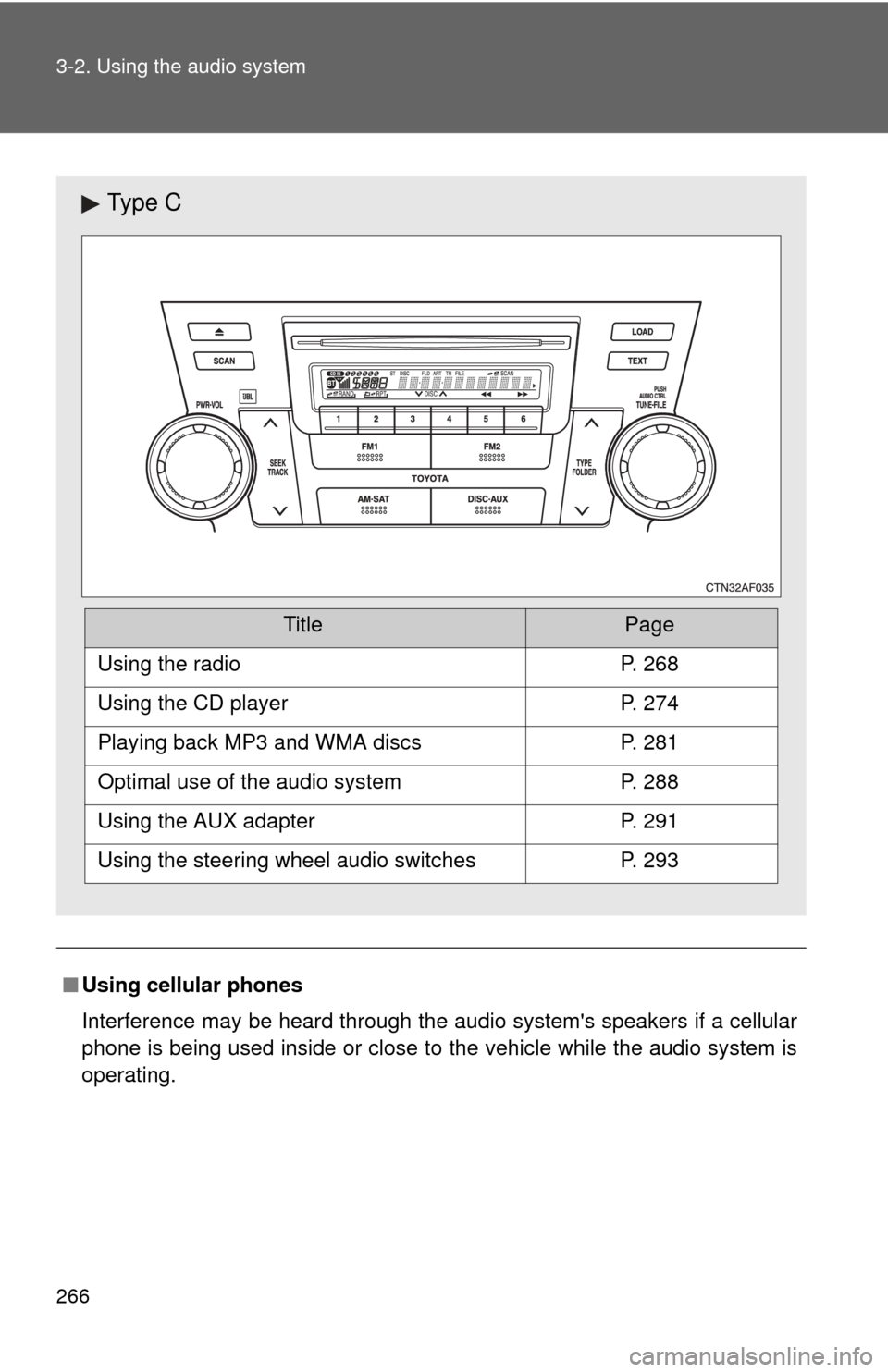

Ty p e C
TitlePage
Using the radioP. 268
Using the CD playerP. 274
Playing back MP3 and WMA discsP. 281
Optimal use of the audio systemP. 288
Using the AUX adapterP. 291
Using the steering wheel audio switchesP. 293

267
3-2. Using the audio system
3
Interior features
CAUTION
■
For vehicles sold in U.S.A. and Canada
●Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the
user’s authority to operate this device.
● Laser products
• Do not take this unit apart or attempt to make any changes yourself.
This is an intricate unit that uses a laser pickup to retrieve information
from the surface of compact discs. The laser is carefully shielded so
that its rays remain inside the cabinet. Therefore, never try to disas-
semble the player or alter any of its parts since you may be exposed to
laser rays and dangerous voltages.
• This product utilizes a laser. Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation expo-
sure.
NOTICE
■ To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine is
off.
■ To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

274
3-2. Using the audio system
Using the CD player
Loading CDs■ Loading a CD
Type A
Insert a CD.
Type B and C
Press .
“WAIT” is shown on the display.
Insert a CD when the indicator on the slot turns from amber to
green.
The display changes from “WAIT” to “LOAD”.
Vol um e
Random playback
Track selection Repeat play
Playback
PowerCD ejectDisplay text message
CD selection (with a CD changer)
CD insert
(type B and C)
Search playback
CD slot
ReverseFast-forward
STEP1
STEP2

276 3-2. Using the audio system
Fast-forwarding and reversing tracksTo fast-forward or reverse, press and hold “
” or “ ” on .
Scanning tracks
Press .
The first ten seconds of each track will be played.
Press the switch again when the desired track is reached.
Selecting a CD (with a CD changer)■ To select a CD to play
To select the desired CD, press
() or ( ).
■ To scan loaded CDs
Press and hold until you hear a beep.
The first ten seconds of the first track on each CD will be played.
Press the switch again when the desired CD is reached.
Repeat play
■ To repeat a track
Press (RPT).
■ To repeat all of the tracks on a CD (CD player with changer
only)
Press and hold (RPT) until you hear a beep.
STEP1
STEP2
STEP1
STEP2

278 3-2. Using the audio system
■Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding for 1 second
or more will display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed for 1 second or more again or has not been pressed for
6 seconds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
■ Canceling random and repeat playback
Press
(RAND), (RPT) or again.
■ Error messages
“ERROR”: This indicates a trouble either in the CD or inside the player.
The CD may be dirty, damaged or inserted up-side down.
■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not be used.
■ CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected while the CD player is being used.
■ If CDs are left inside the CD player or in the ejected position for
extended periods
CDs may be damaged and may not play properly.
■ Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
