TOYOTA HIGHLANDER 2009 XU40 / 2.G Navigation Manual

OTHER FUNCTIONS
151
(iv) Setting the screen
1. Touch “Screen” to display the
“Screen Settings” screen.
2. Do the detail settings of the screen
and touch “OK”.
Receiving Call Display
You can select the method of the receiv-
ing call display.
Touch “Full” or “Icon”.
“Full mode” When a call is received, the
. . . . . .
Hands−free screen is displayed
and you can operate it on the
screen.
“Icon mode” The message is displayed on the
. . . . . .
upper side of the screen. You can
only operate the steering switch.

OTHER FUNCTIONS
152

Auto answer
When a call is received, the display au-
tomatically changes to the talking
screen and you can start to talk on the
phone (without touching any switch) af-
ter the preset time.
Touch “ON” of “Auto Answer” and “”
or “+” to adjust the waiting time of auto
answer within 1 60 seconds.
The Bluetooth connection status at
startup
Vehicles with smart key system —
When the “ENGINE START STOP”
switch is in ACCESSORY or IGNITION
ON mode and the Bluetooth is auto-
matically connected, the connection
check is displayed.
Vehicles without smart key system —
When the engine switch is in “ACC” or
“ON” position and the Bluetooth  is au-
tomatically connected, the connection
check is displayed.
Touch “ON” or “OFF” of “Show
Bluetooth∗ connection status at start
up”.
∗: Bluetooth is a registered trademark of Bluetooth SIG. Inc.

OTHER FUNCTIONS
153

Initializing the settings
You can initialize the settings.
Touch “Default”.
Touch “Yes”. (v) Setting the phone book
You can register phone numbers in the
phone book.
Touch “Phone Book” to display the
“Phone Book Management” screen.
You can do the detail settings of phone
book.

OTHER FUNCTIONS
154

Transferring a telephone number
You can transfer the telephone num-
bers in your Bluetooth phone to the
system. Up to 1000 person’s data (up to
2 numbers a person) can be registered
in the phone book.
Transfer it while the engine is running.
1. Touch “Transfer Data” to display
“Select Group” screen.
2. Select the group you want to trans-
fer to.
3. Touch “Overwrite” or “Add To”.
4. Transfer the phone book data to the
system using the Bluetooth phone.
This screen appears while transferring. To
cancel it, touch “Cancel” . If the transfer-
ring is interrupted on the way, the phone
book data transferred until then can be
memorized in the system.
5. When this screen is displayed, the
transfer is completed.
When this screen is displayed, try the
transfer operation again.

OTHER FUNCTIONS
155

Registering the phone book data
You can register the phone book data.
1. Touch “Register” of “Phone Book”.
2. Touch the desired touchscreen
button to edit the phone book.
3. When you complete the edit, touch
“OK”.
Editing the name
When you don’t input the name, the
number is displayed.
1. Touch “Name”.
2. Use the software keyboard to input
the name.

OTHER FUNCTIONS
156

Editing the phone number
You can register the phone number in
“TEL1” and “TEL2” separately. Up to 2
numbers a person can be registered.
1. Touch “TEL1” or “TEL2”.
2. Input the number and touch “OK”.
3. Select the desired icon.
Selecting the group
You can set a group for a contact (for ex-
ample: “Family”, “Friends”, “Office”...).
It will then be easier for you to find this
contact when needed, by using the
group display.
You can select “No group” or “Group
01” to “Group 19”.
“No group” is displayed if you don’t set
the group.
1. Touch “Group”.
2. Select the desired group.

OTHER FUNCTIONS
157

Setting the voice recognition
You can set the voice recognition. Up to
20 numbers can be registered for the
voice recognition.
1. Touch “Voice Rec.”.
2. Select the phone number and touch
“REC” to record a voicetag.
3. Touch “PLAY” to play the voicetag.
If you want to delete it, touch “Delete” and
“OK” .
Adding the data to the phone book
You can add data to the phone book.
1. Touch “Add to”.
2. Select the data you want to add log
data to.
3. Confirm the added data on the
screen and touch “OK”.

OTHER FUNCTIONS
158

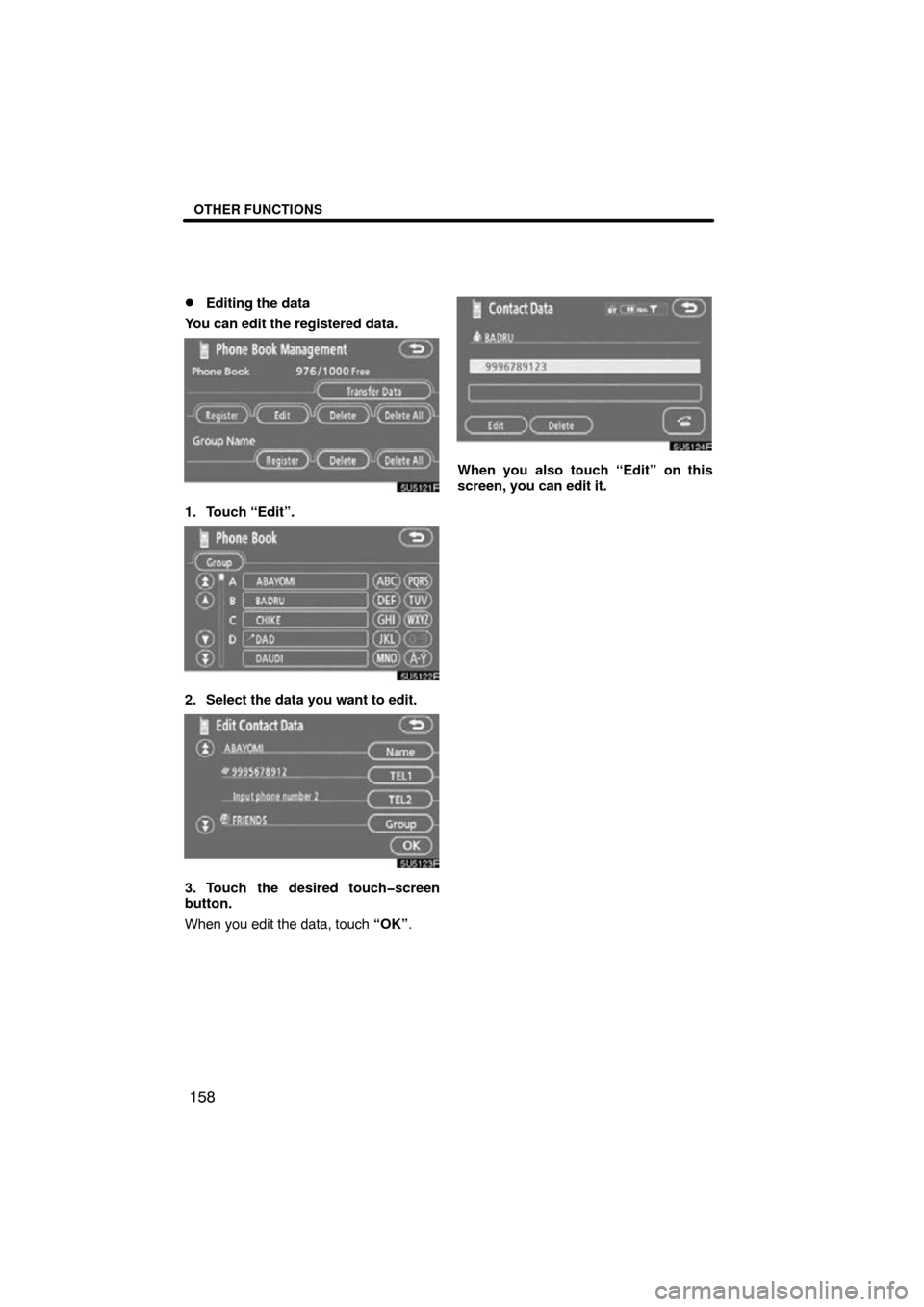

Editing the data
You can edit the registered data.
1. Touch “Edit”.
2. Select the data you want to edit.
3. Touch the desired touchscreen
button.
When you edit the data, touch “OK”.
When you also touch “Edit” on this
screen, you can edit it.

OTHER FUNCTIONS
159

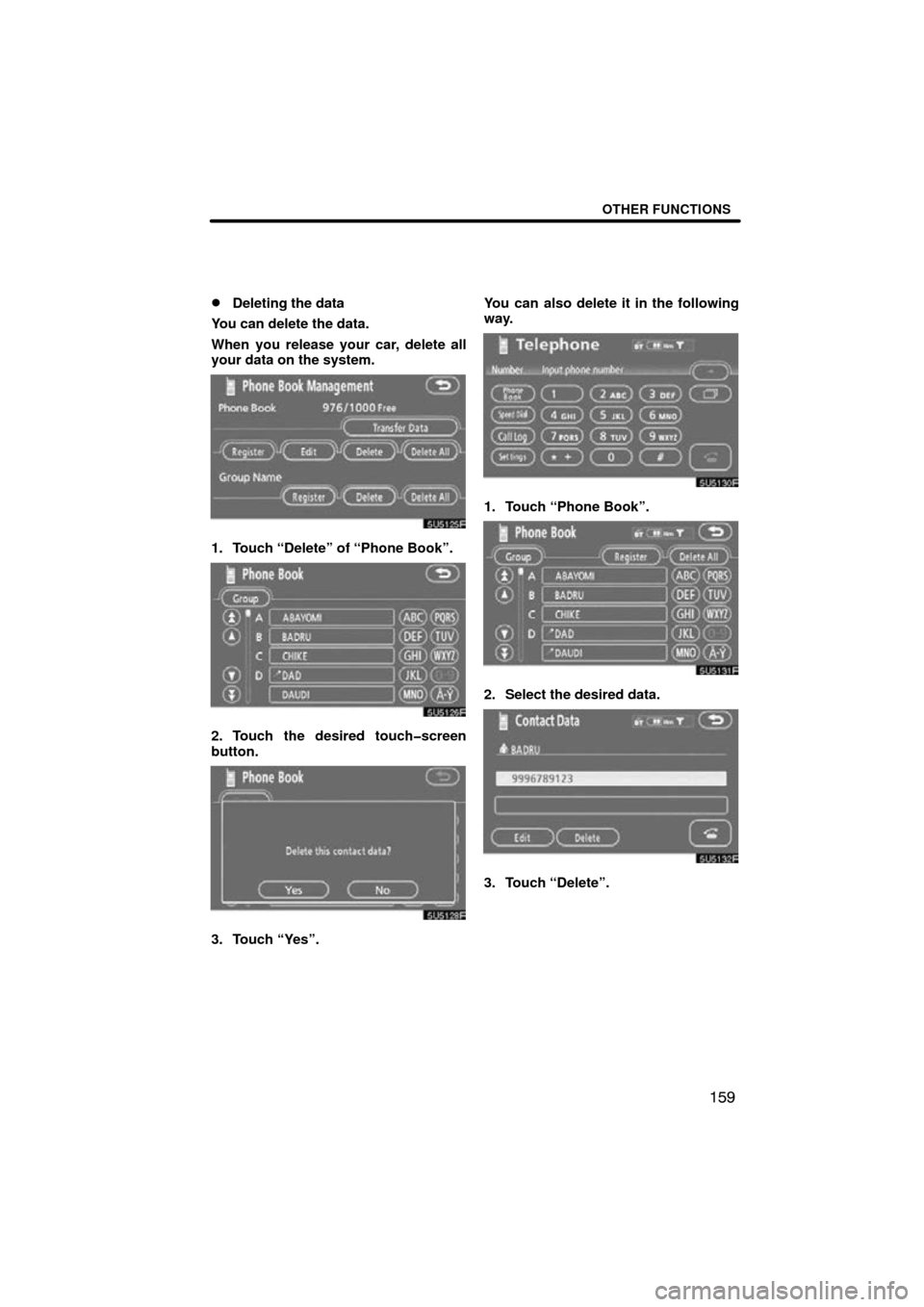

Deleting the data
You can delete the data.
When you release your car, delete all
your data on the system.
1. Touch “Delete” of “Phone Book”.
2. Touch the desired touchscreen
button.
3. Touch “Yes”. You can also delete it in the following
way.
1. Touch “Phone Book”.
2. Select the desired data.
3. Touch “Delete”.

OTHER FUNCTIONS
160

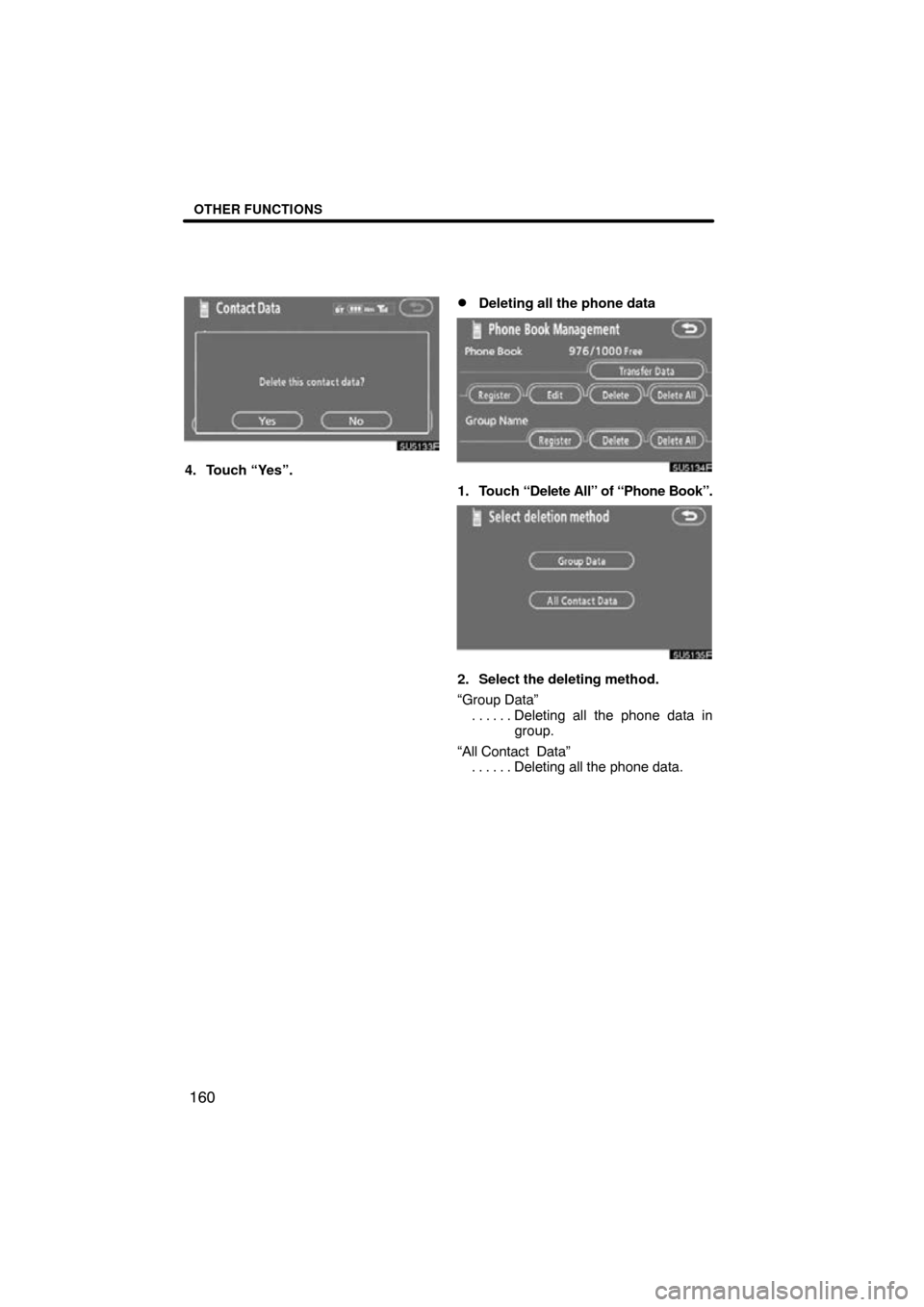

4. Touch “Yes”.
Deleting all the phone data
1. Touch “Delete All” of “Phone Book”.
2. Select the deleting method.
“Group Data”
Deleting all the phone data in
. . . . . .
group.
“All Contact Data” Deleting all the phone data.
. . . . . .
