OTHER FUNCTIONS
171

Changing a Device Name
You can change a Device Name. If you
change a Device Name, the name regis-
tered in your cellular phone is not
changed.
1. Touch “Change”.
2. Use the software keyboard to input
the Device name.
Changing the Bluetooth settings
You can change the display and settings of
Bluetooth  information on the system.
The information displays the following
items.
“Device Name” The name in the Bluetooth
. . . . . .
network. You can change it.
“Passkey” The password when you register
. . . . . .
your cellular phone in the sys-
tem. You can change it into the
figure of 4 −8 digits.
“Bluetooth
∗ Device Address”
The address peculiar to the
. . . . . .
system. You can not change it. If
you have registered two
Bluetooth  phones with the
same Device Name or Passkey
and you cannot distinguish one
from the other , refer to it.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

OTHER FUNCTIONS
172
When you change the Device Name or
Passkey, do the followings.
1. Touch “Bluetooth∗”.
2. Touch “Change” of “Device Name”
or “Passkey”.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
3. Use the software keyboard to input
the Device Name.
You can input up to 20 characters.
4. Input a Passkey with 4 8 digits.
When you touch  , the inputted number is
deleted.
5. When you complete the setting,
touch
.

OTHER FUNCTIONS
173

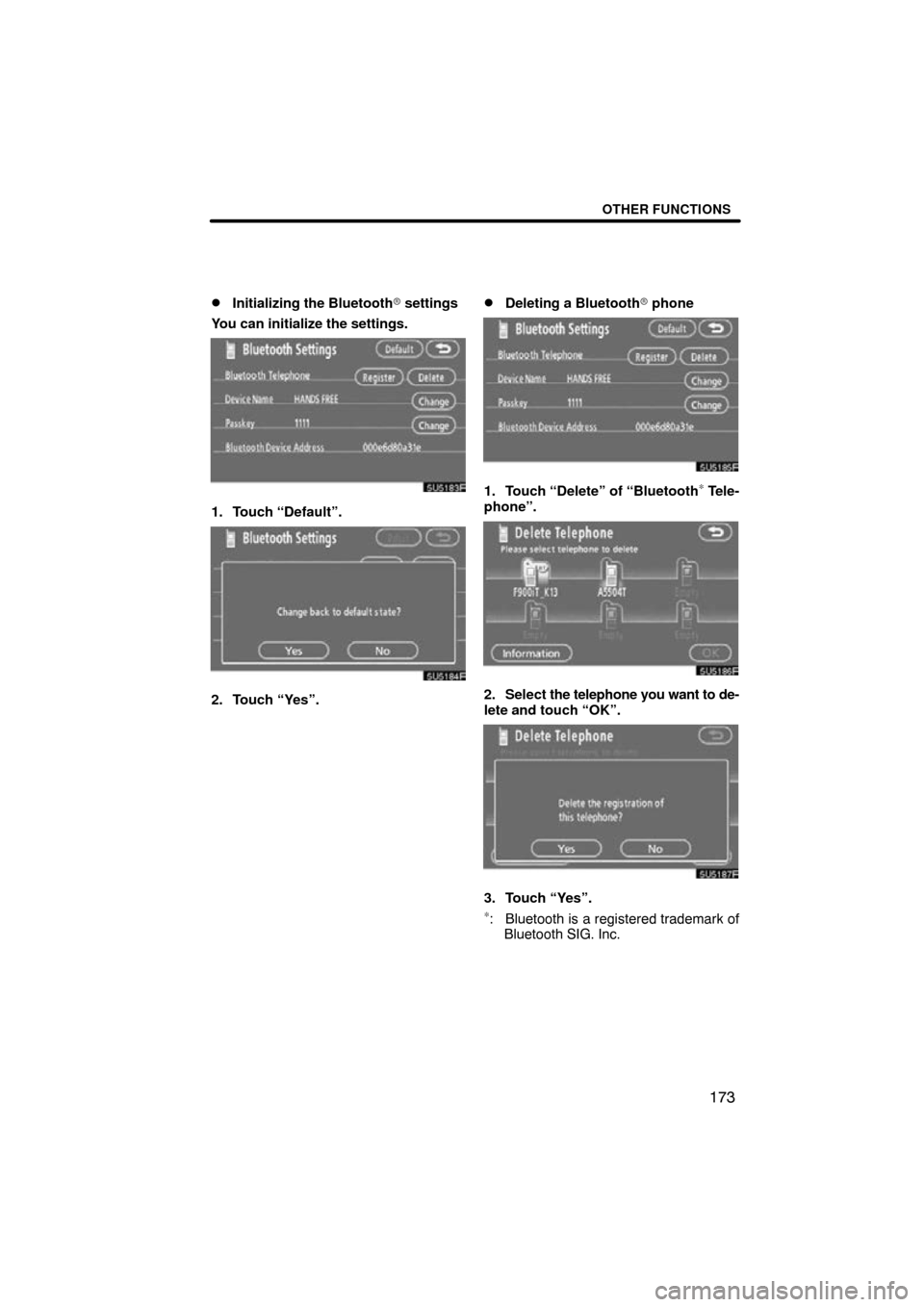

Initializing the Bluetooth
 settings
You can initialize the settings.
1. Touch “Default”.
2. Touch “Yes”.
Deleting a Bluetooth phone
1. Touch “Delete” of “Bluetooth∗ Tele-
phone”.
2. Select the telephone you want to de-
lete and touch “OK”.
3. Touch “Yes”.
∗: Bluetooth is a registered trademark of Bluetooth SIG. Inc.

OTHER FUNCTIONS
174

Displaying the information of the
Bluetooth
 phone you delete
You can display the information of the
Bluetooth  phone before you delete it
and you can make sure whether the
telephone you delete is correct or not.
1. Select the telephone you want to
display the information about.
2. When you complete confirming it,
touch
. The speech command system enables
you to operate the navigation system,
audio/video system and handsfree
system by giving a command.
1. Push the talk switch.
A beep sounds and on screen message is
displayed with
an indicator at the top left.
Speech command system

OTHER FUNCTIONS
175
2. Say a command while the indicator
is shown on the display.
If you want to check the command list,
touch “Help” to display the help screen.
(See “Help screen” on page 177.) When
you touch “Cancel”, the previous
screen returns.
If the navigation system does not respond
or the confirmation screen does not disap-
pear, please push the talk switch and try
again.
If no command is given, a beep sounds
and the indicator disappears 6 seconds
later.
If the system does not recognize your
speech, the system will respond with this
message (“System does not recognize
this command, please rephrase your com-
mand.”). Start the operation from the be-
ginning.
 Microphone
It is unnecessary to speak directly into
the microphone when giving a com-
mand.

OTHER FUNCTIONS
176
Speech command example: Searching
for a route to your home.
1. Push the talk switch.
2. Say “Home” .
You can also say the street name or ad-
dress.
∗ (ex. say “Woodridge Avenue” .)∗: “Hawaii” or Hawaii area is not covered by
the voice recognition.
If your home is not registered, you will hear
“Home is not registered”.
3. If the system recognized the com-
mand, the recognition result “Home” is
displayed on the top of the screen with
the screen message. (Displayed mes-
sage and the switches on the screen
depend on the situation.)
Touch or say “Cancel”, and the system will
be canceled. T ouch or say “Help”, and dis-
plays the “Help” screen.
4. Touch “Enter” or say “Enter des-
tination” , and the system starts search-
ing for a route to your home. (If the des-
tination is already registered, “Add” or
“Replace” is displayed on the screen.)
Touch or say “Cancel”, and the search will
be canceled.
When you search the destination by
“POI Name”, this screen is displayed.
Touch “Enter” or say “Enter destination” .
When you touch “Show List”, you can
search another spot in its category.
INFORMATION
In the following conditions, the sys-
tem may not recognize the command
properly and using speech com-
mands may not be possible.
 The command is not correct or
clear. Note that certain words, ac-
cents, or speech patterns may be
difficult for the system to recog-
nize.
 There are some noises such as
wind noise, etc.

OTHER FUNCTIONS
177
This system has a function which dis-
plays the voice recognition help
screen. You can see the command list
and operating guide on it.
(a) Command List
1. Touch the “Command List” tab on
the upper side of the screen and the
touchscreen buttons on the right side
of the screen to select the desired cate-
gory.
2. You can scroll through the list of the
command list by touching
or .
Touch “OK” after you check it. (b) Operating Guide
1. Touch
the “Operating Guide” tab on
the upper side of the screen and the
touchscreen buttons on the right side
of the screen to select the desired cate-
gory.
2. You can scroll through the list of the
operating guide by touching
or .
Touch “OK” after you check it.
Help screen

OTHER FUNCTIONS
178
You can adjust the brightness, contrast,
color and tone of the screen. You can also
turn the display off, and change the screen
to either day or night mode.
Contrast and brightness adjustment
The brightness and contrast of the screen
can be adjusted depending on the bright-
ness of your surroundings. You can also
turn the display off.
1. Push the “DISP” button.
2. Touch the desired button to adjust
contrast and brightness.
“Contrast” “+”:
Strengthens the contrast of the screen.
“Contrast” “”:
Weakens the contrast of the screen.
“Brightness” “+”:
Brightens the screen.
“Brightness” “”:
Darkens the screen.
3. After adjusting the screen, touch
“OK”. If your vehicle is equipped with the rear
seat entertainment system, the rear
screen turns on or off when
“Rear” is
touched.
The screen goes off when “Screen Off” is
touched. To turn the display screen back
on, push any button such as “INFO”, etc.
The selected screen appears.
INFORMATION
When you do not touch any touch
screen button on the “Display”
screen for 20 seconds, the previous
screen will be displayed.
Screen adjustment

OTHER FUNCTIONS
179

Color and tone adjustment
The color and tone of the screen can be
adjusted while a DVD video or video CD is
being played.
1. Push the “DISP” button.
2. Touch the desired button to adjust
color and tone. (with rear seat enter-
tainment system)
“Color” “R”:
Strengthens the red color of the screen.
“Color” “G”:
Strengthens the green color of the screen.
“Tone” “+”: Strengthens the tone of the
screen.
“Tone” “”: Weakens the tone of the
screen.
3. After adjusting the screen, touch
“OK”.
The rear screen turns on or off when
“Rear” is touched.
The screen turns off when “Screen Off” is
touched. To turn the screen back on, push
any button such as “INFO” , etc. The se-
lected screen appears.
INFORMATION
When you do not touch any touch
screen button on the “Display”
screen for 20 seconds, the previous
screen will be displayed.
Changing between day mode and
night mode
Depending on the position of the headlight
switch, the screen changes to the day
mode or night mode.
To display the screen in the day mode
even with the headlight switch on,
touch “Day Mode” on the adjustment
screen for brightness and contrast con-
trol.
If the screen is set in the day mode with the
headlight switch turned on, this condition is
memorized in the system even with the en-
gine turned off.

OTHER FUNCTIONS
180
1. Push the “INFO” button.
2. Touch “Screen Setting”.(a) Automatic transition
You can select a function that enables
automatic return to the navigation
screen from the audio screen.
Select “ON” or “OFF” and then touch
“OK”.
“ON”:
The navigation screen automati-
cally returns from the audio
screen 20 seconds after the end
of audio operation.
“OFF”: The audio screen remains on.
Screen setting
