21
E
Vehicles without seat heater
Vehicles with seat heater

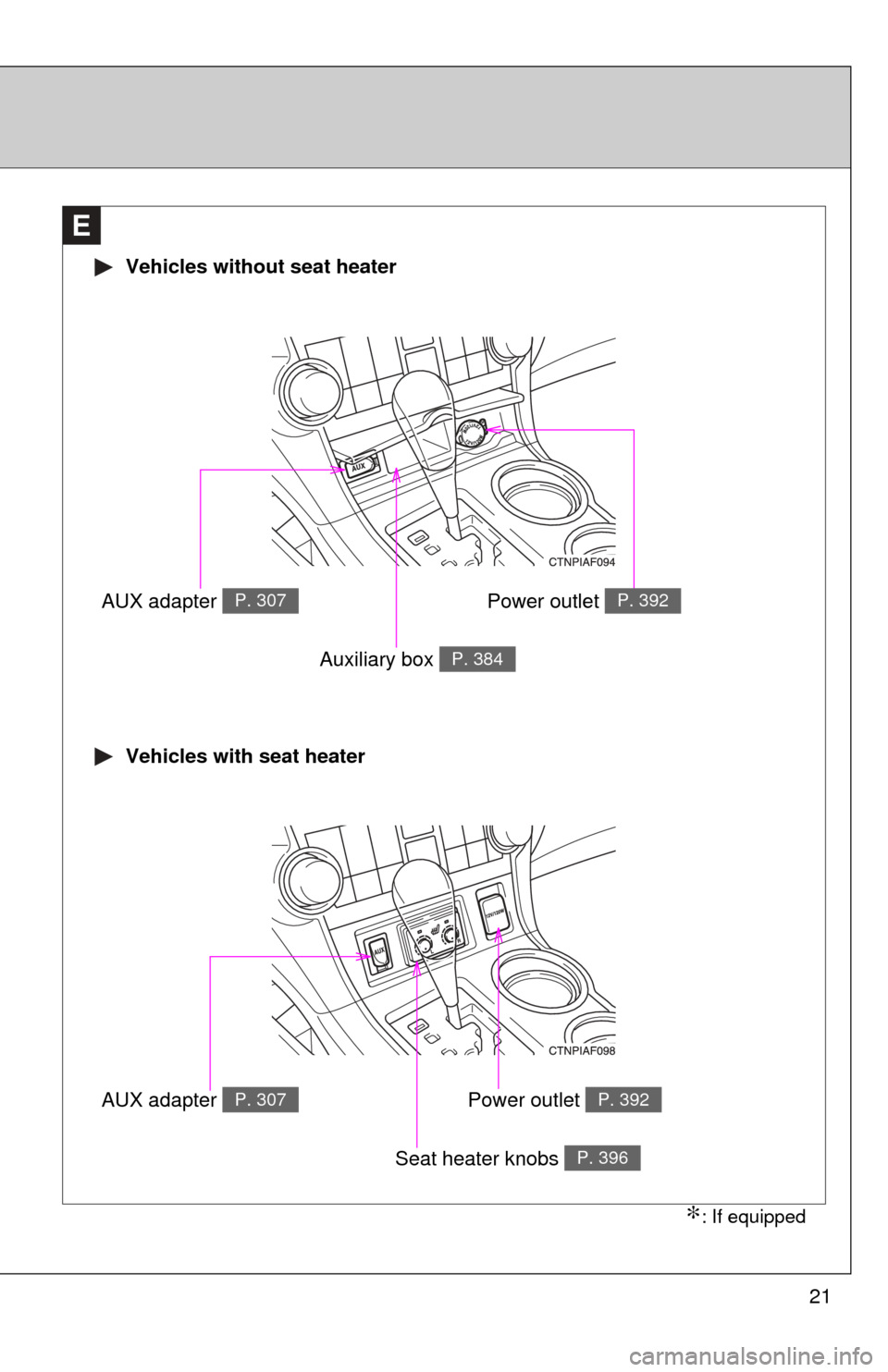

AUX adapter P. 307
Auxiliary box P. 384
AUX adapter P. 307
Seat heater knobs P. 396
Power outlet P. 392
Power outlet P. 392
∗: If equipped
Page 22 of 608
22
A
Pictorial indexLuggage compartment

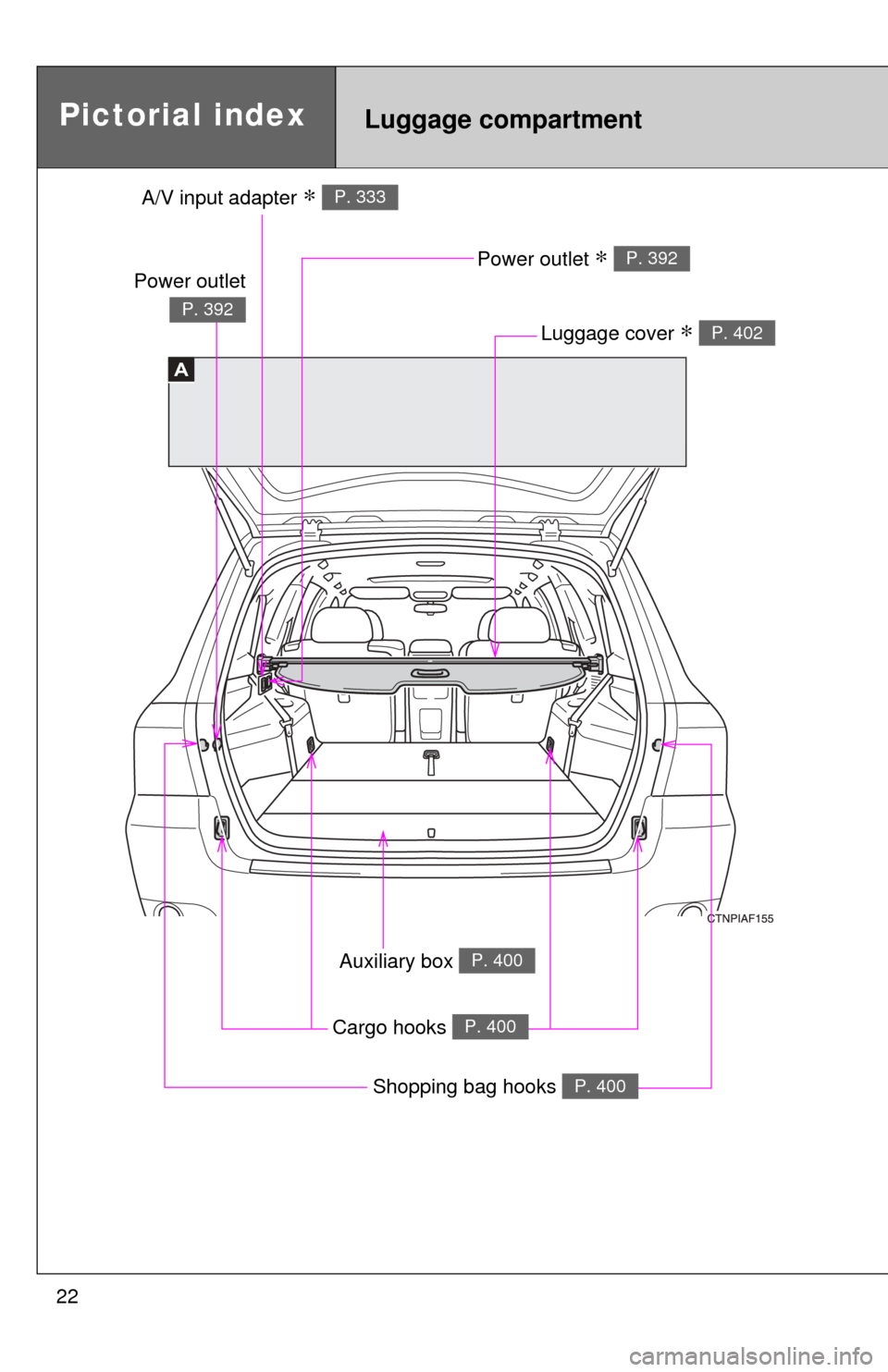

A/V input adapter ∗ P. 333
Power outlet ∗ P. 392
Luggage cover ∗ P. 402
Auxiliary box P. 400
Cargo hooks P. 400
Power outlet
P. 392
Shopping bag hooks P. 400
Page 23 of 608
23

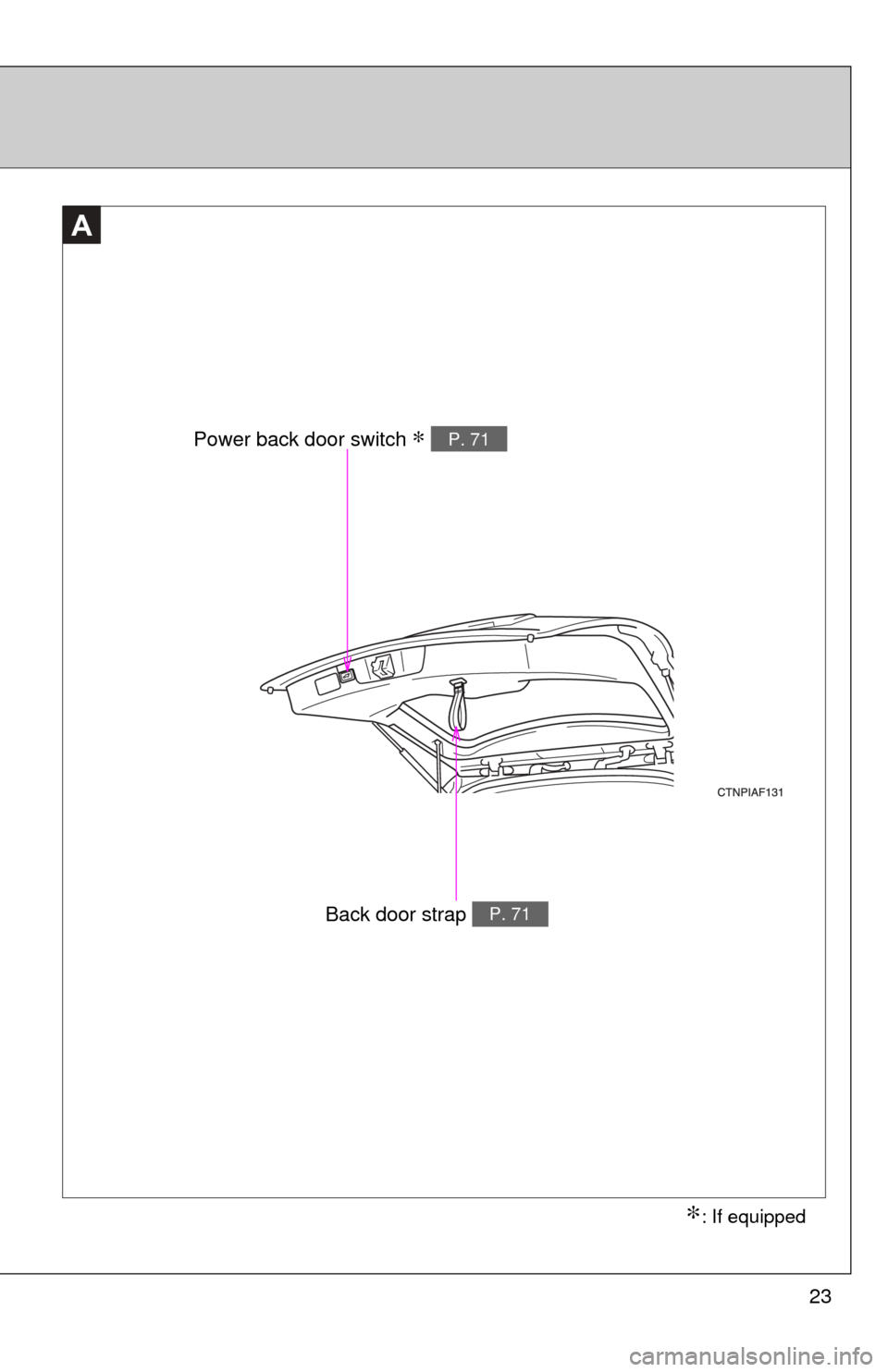

Power back door switch
∗ P. 71
Back door strap P. 71
A
∗: If equipped
Page 24 of 608
24
For your information
Main Owner’s Manual
Please note that this manual covers all models and all equipment, including
options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
A wide variety of non-genuine spare parts and accessories for Toyota
vehicles are currently available on the market. You should know that these
parts are not covered by Toyota warranty and that Toyota is not responsible
for their performance, repair, or replacement, or for any damage they may
cause to, or adverse effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non-genuine Toyota products.
Modification with non-genuine Toyota products may affect performance,
safety or durability, and may even violate governmental regulations. In
addition, damage or performance problems resulting from the modification
may not be covered under warranty.
Installation of a mobile two-way radio system
As the installation of a mobile two-way radio system in your vehicle may
affect electronic systems such as the multi-port fuel injection system/sequen-
tial multi-port fuel injection system, cruise control system, anti-lock brake
system, SRS airbag system or seat belt pretensioner system, be sure to
check with your Toyota dealer for precautionary measures or special instruc-
tions regarding installation.
Page 25 of 608
25
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota
dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote con-
trol batteries.
Page 26 of 608
26
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof, or other features of the vehicle. In addition, heat
build-up or extremely cold temperatures inside the vehicle can be fatal to
children.
Page 27 of 608
27
Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against anything which may cause death or injury to people if
the warning is ignored. You are informed about what you must or must not do
in order to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or
its equipment if the warning is ignored. You are informed about what you must
or must not do in order to avoid or reduce the risk of damage to your Toyota
and its equipment.

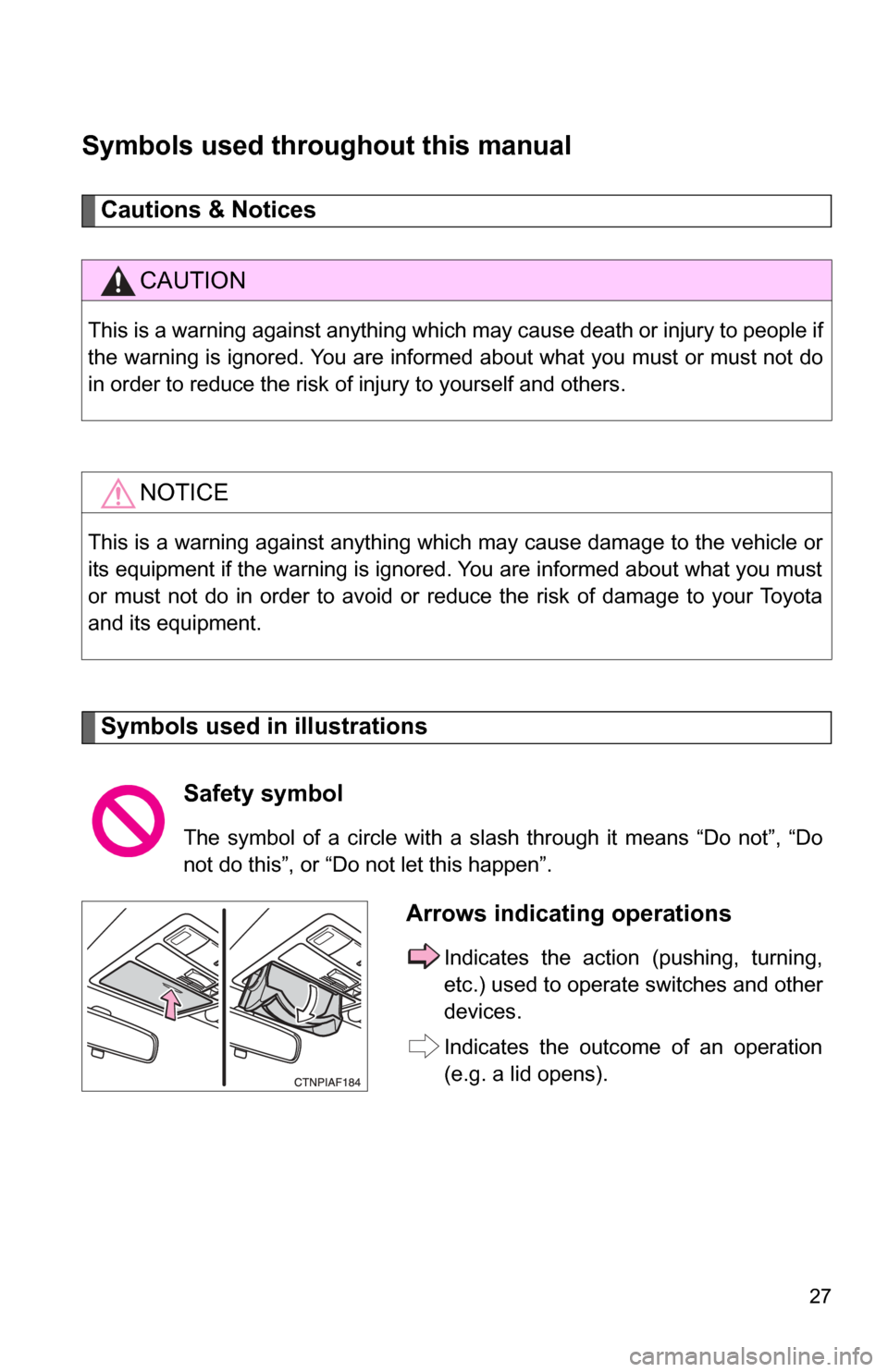

Safety symbol
The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turning,
etc.) used to operate switches and other
devices.
Indicates the outcome of an operation
(e.g. a lid opens).
Page 28 of 608
28
Page 29 of 608
Before driving1
29

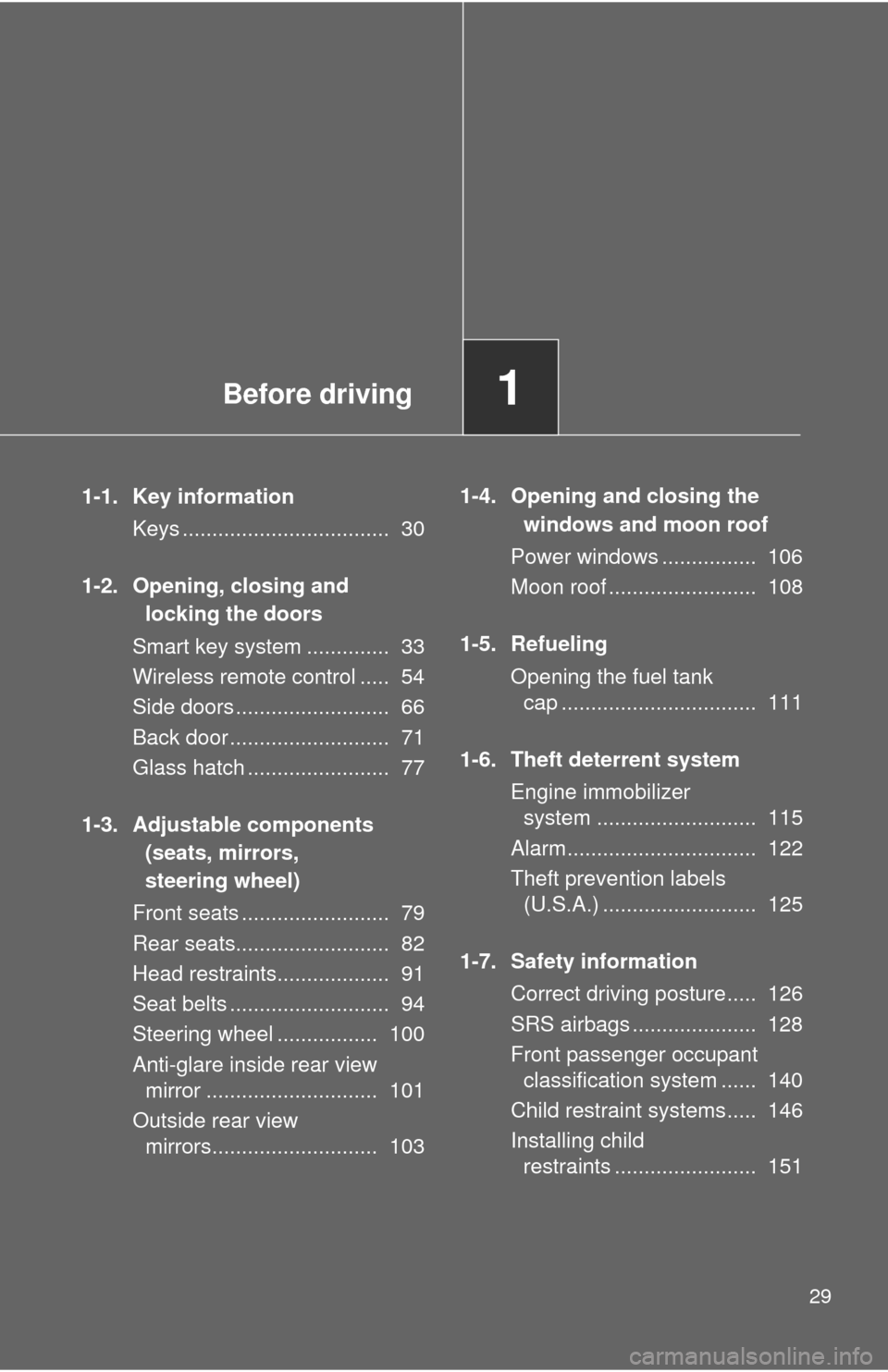

1-1. Key informationKeys ................................... 30
1-2. Opening, closing and locking the doors
Smart key system .............. 33
Wireless remote control ..... 54
Side doors .......................... 66
Back door ........................... 71
Glass hatch ........................ 77
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats ......................... 79
Rear seats.......................... 82
Head restraints................... 91
Seat belts ........................... 94
Steering wheel ................. 100
Anti-glare inside rear view mirror ............................. 101
Outside rear view mirrors............................ 103 1-4. Opening and closing the
windows and moon roof
Power windows ................ 106
Moon roof ......................... 108
1-5. Refueling Opening the fuel tank cap ................................. 111
1-6. Theft deterrent system Engine immobilizer system ........................... 115
Alarm................................ 122
Theft prevention labels (U.S.A.) .......................... 125
1-7. Safety information Correct driving posture..... 126
SRS airbags ..................... 128
Front passenger occupant classification system ...... 140
Child restraint systems..... 146
Installing child restraints ........................ 151
Page 30 of 608
30
1-1. Key information
Keys

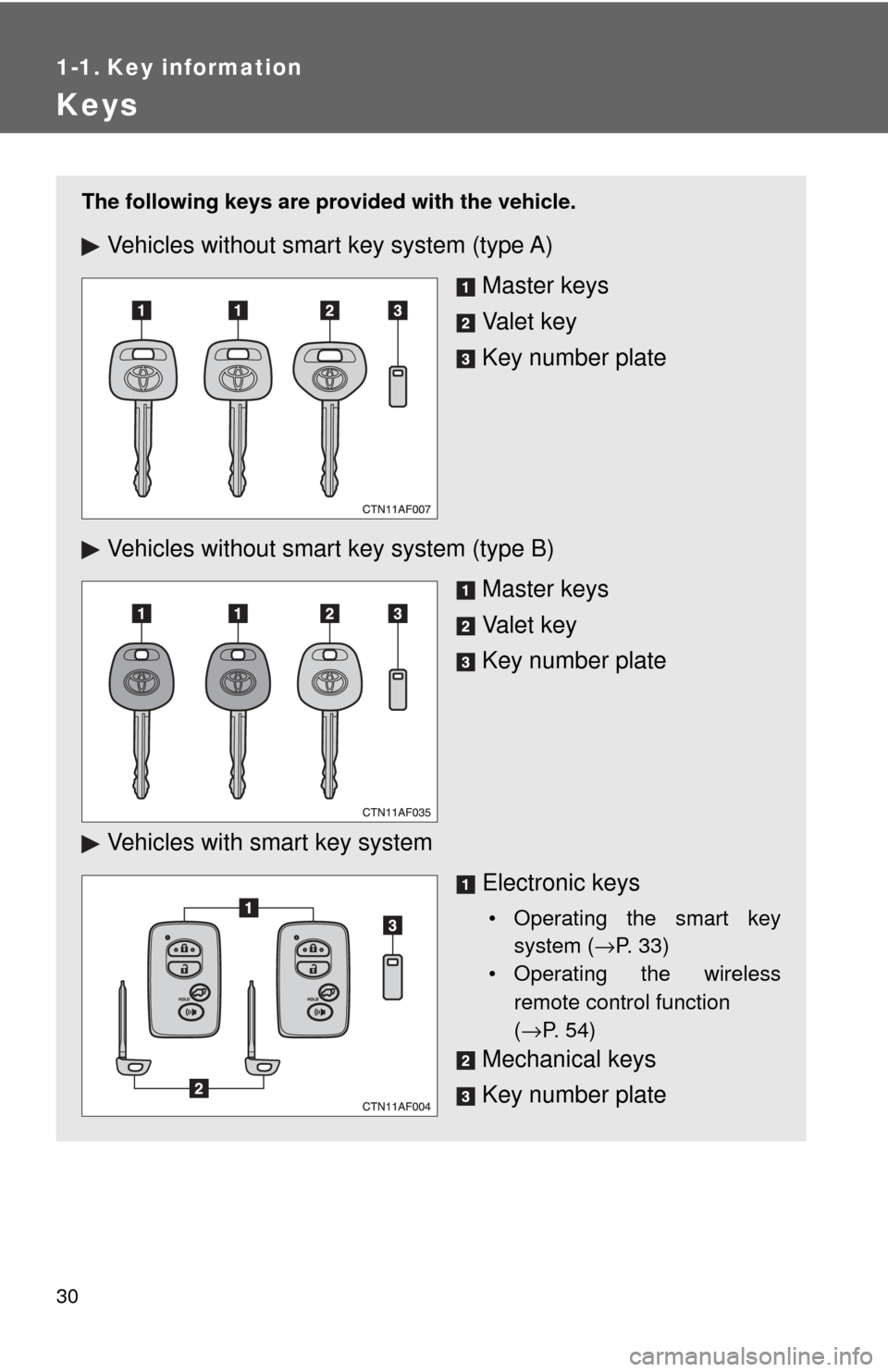

The following keys are provided with the vehicle.
Vehicles without smart key system (type A)
Master keys
Va l e t k e y
Key number plate
Vehicles without smar t key system (type B)
Master keys
Va l e t k e y
Key number plate
Vehicles with smart key system Electronic keys
• Operating the smart keysystem ( →P. 33)
• Operating the wireless
remote control function
(→ P. 5 4 )
Mechanical keys
Key number plate
