TOYOTA HIGHLANDER 2009 XU40 / 2.G Owners Manual

481
4-3. Do-it-yourself maintenance
4
Maintenance and care

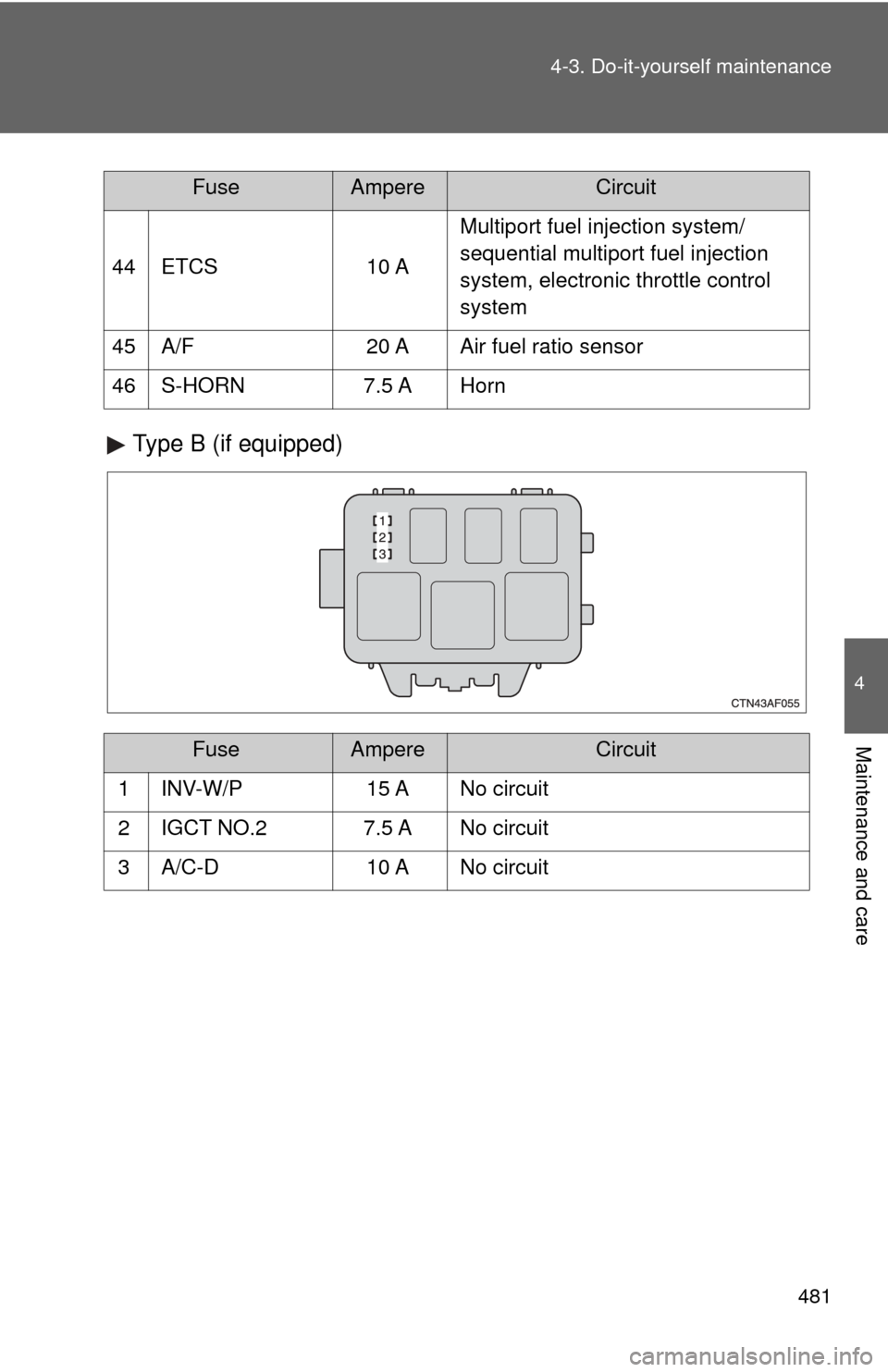

Type B (if equipped)
44 ETCS
10 AMultiport fuel injection system/
sequential multiport fuel injection
system, electronic throttle control
system
45 A/F 20 A Air fuel ratio sensor
46 S-HORN 7.5 A Horn
FuseAmpereCircuit
1 INV-W/P 15 A No circuit
2 IGCT NO.2 7.5 A No circuit
3 A/C-D 10 A No circuit
FuseAmpereCircuit

482 4-3. Do-it-yourself maintenance
■Under the instrument panel
Front side of the fuse block
Fuse block
FuseAmpereCircuit
1 P/SEAT 30 A Power seat
2 POWER 30 A Power windows
3 RR DOOR RH 25 A Power windows
4 RR DOOR LH 25 A Power windows
5 FR FOG 15 A Front fog lights
6 OBD 7.5 A On-board diagnosis system
7 FR DEF 25 A Windshield wiper deicer
8 STOP 10 AStop lights, enhanced vehicle sta-
bility control system
9 DOOR NO.2 25 A Power windows
10 AM1 7.5 A Starting system

483
4-3. Do-it-yourself maintenance
4
Maintenance and care
11 RR FOG
7.5 A No circuit
12 A/C NO.1 10 A Air conditioning system
13 FUEL OPN 7.5 A No circuit
14 S/ROOF 30 A Electric moon roof
15 TAIL 15 AParking lights, tail lights, license
plate lights, front fog lights, trailer
lights
16 PANEL 7.5 AGlove box light, emergency flash-
ers, audio system, outside rear
view mirror defoggers, clock, power
door lock system, seat heaters,
rear seat entertainment system,
enhanced vehicle stability control
system, instrument panel light con-
trol dial, electronic controlled trans-
mission switch, automatic
transmission, downhill assist con-
trol system, steering switches
17 ECU IG NO.1 10 A Multiplex communication system,
electric moon roof, electronically
controlled automatic transmission
system, power back door, seat
heaters, tire pressure warning sys-
tem, electronic power steering,
automatic transmission
18 ECU IG NO.2 7.5 A Enhanced vehicle stability control
system
19 A/C NO.2 10 A Air conditioning system
20 WASH 20 A Windshield wipers and washer
21 S-HTR 20 A Seat heaters
FuseAmpereCircuit

484 4-3. Do-it-yourself maintenance
22 GAUGE NO.1 10 AAudio system, outside rear view
mirror defoggers, back-up lights,
charging system, emergency flash-
ers, traction control system, instru-
ment panel light control dial,
windshield wiper deicer
23 FR WIP 30 A Windshield wipers and washer
24 RR WIP 15 A Rear window wiper and washer
25 IGN 10 A Multiport fuel injection system/
sequential multiport fuel injection
system, steering lock system, anti-
lock brake system, smart key sys-
tem, SRS airbag system
26 GAUGE NO.2 7.5 A Gauges and meters, rear view
monitor
27 ECU-ACC 7.5 A Auto anti-glare rear view mirrors,
shift lock system, smart key system
28 ACC SOCK
NO.1 10 A Power outlet
29 ACC SOCK
NO.2 20 A Power outlet
30 RADIO NO.2 7.5 A Audio system, clock, rear seat
entertainment system, charging
system, interior lights, personal
lights
31 MIR HTR 15 A Outside rear view mirror defoggers
FuseAmpereCircuit

485
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( →P. 486)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.

486
4-3. Do-it-yourself maintenance
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the li ght bulb being replaced. (→P. 566)
■ Remove the engine compartment cover.
→ P. 439
■ Turn the power back door main switch OFF. (vehicles with
power back door)
→ P. 7 3
■ Front bulb locations
Headlights
Parking and front side marker lights
Front fog lights (if equipped)
Front turn signal lights

487
4-3. Do-it-yourself maintenance
4
Maintenance and care
Replacing light bulbs
■ Headlights
Unplug the connector.
Remove the rubber cover.

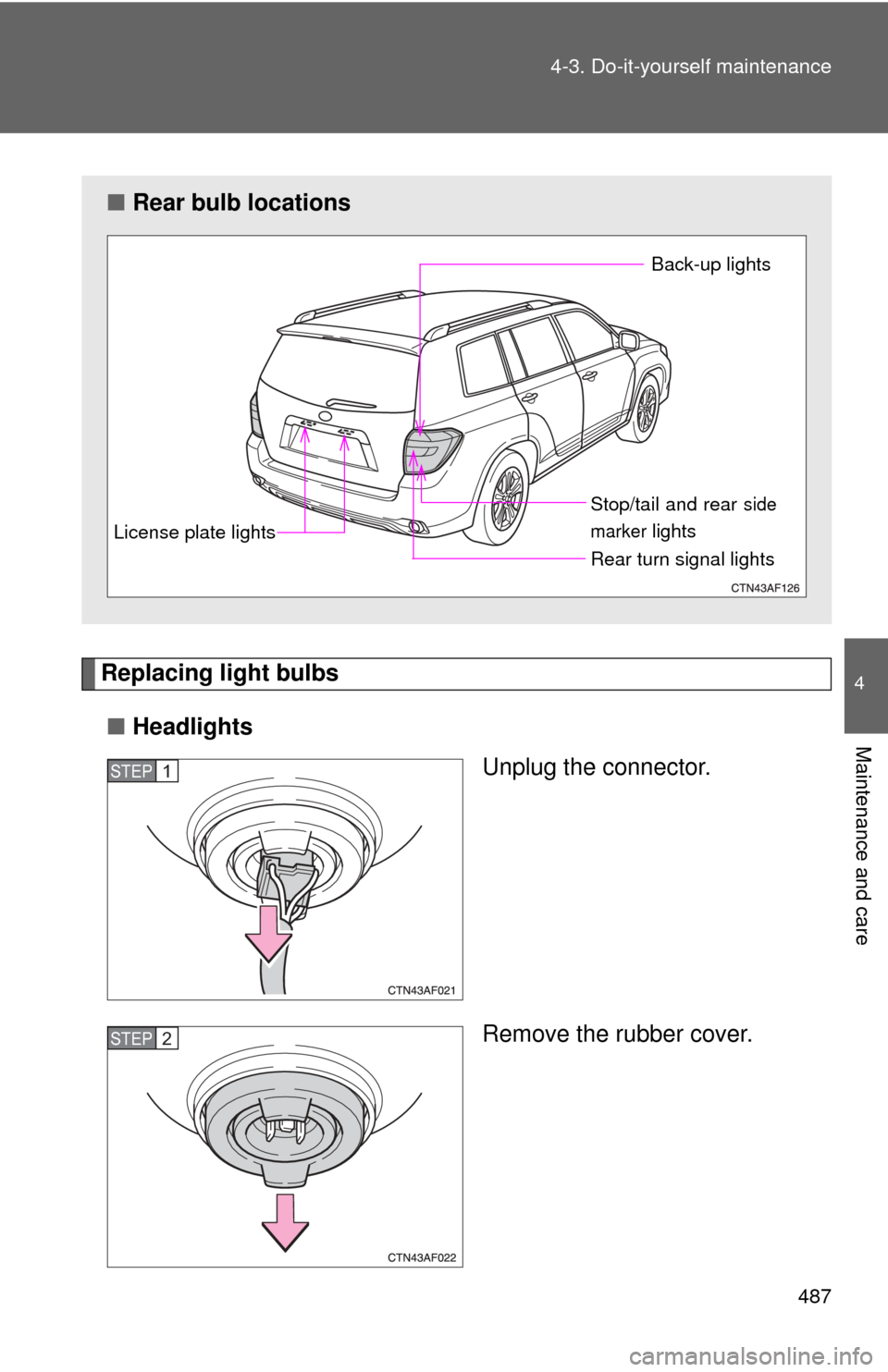

■Rear bulb locations
Back-up lights
Rear turn signal lights Stop/tail and rear
side
marker
lightsLicense plate lights
STEP1
STEP2

488 4-3. Do-it-yourself maintenance

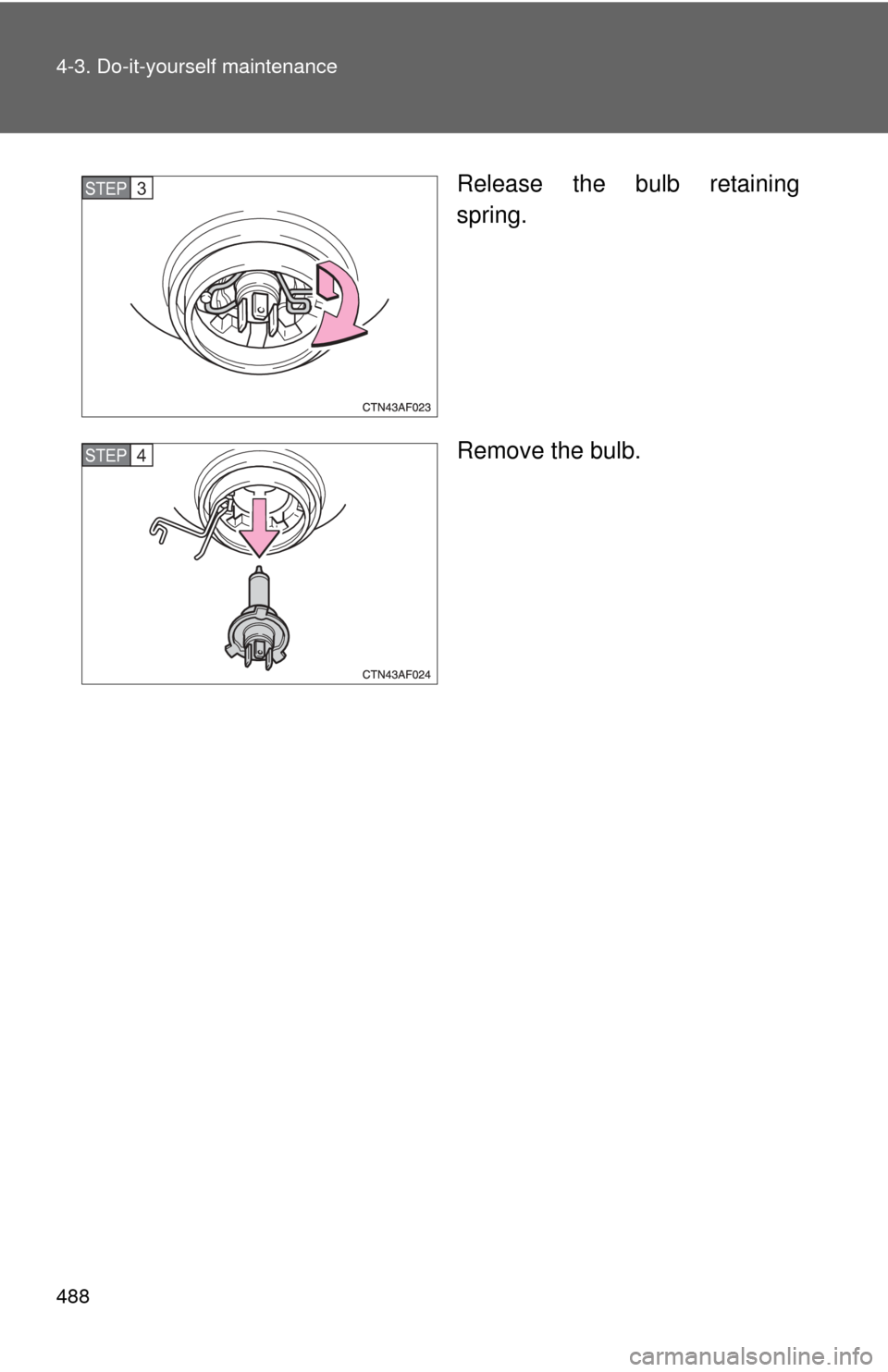

Release the bulb retaining
spring.
Remove the bulb.STEP3
STEP4

489
4-3. Do-it-yourself maintenance
4
Maintenance and care
■

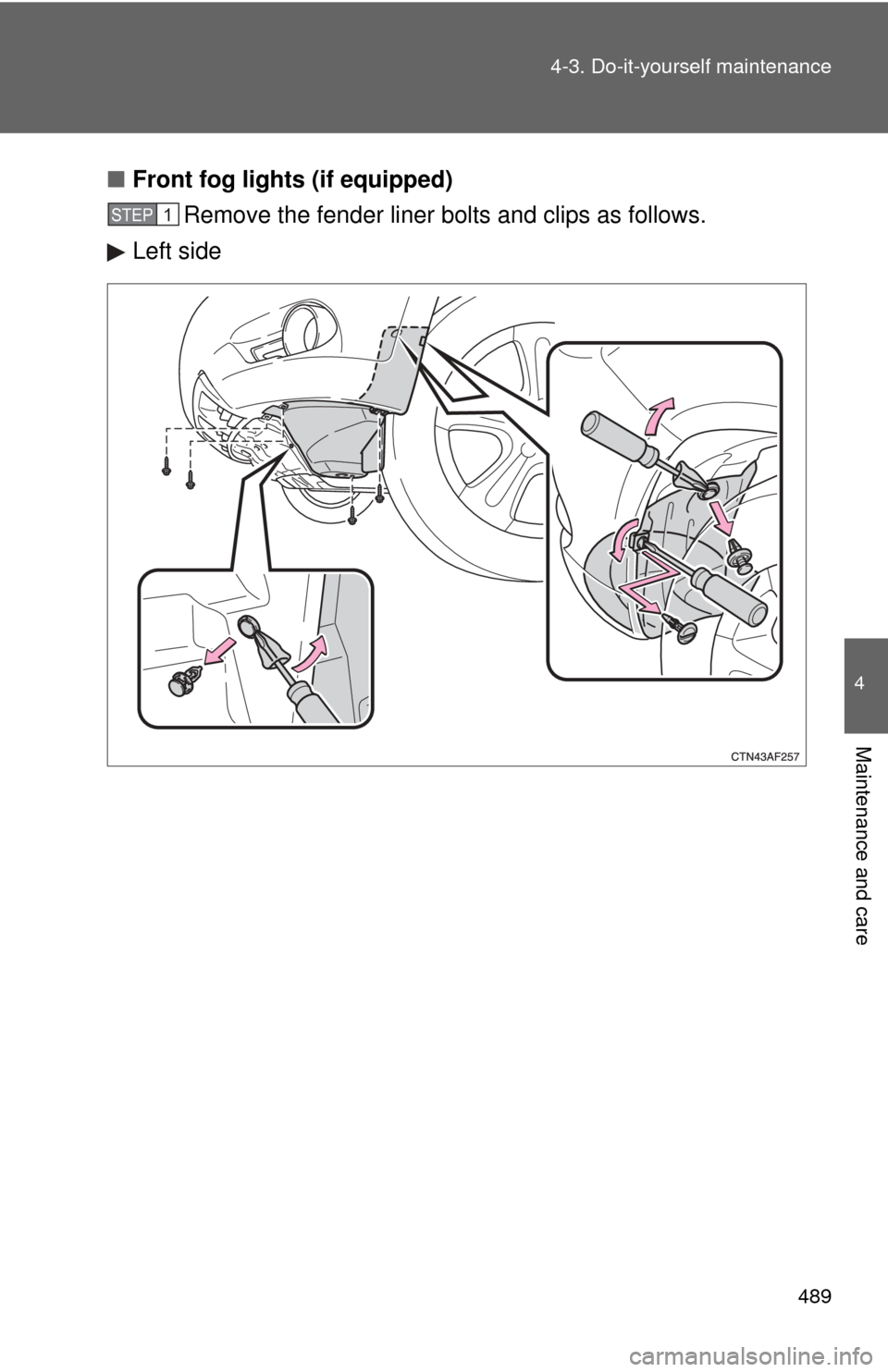

Front fog lights (if equipped)
Remove the fender liner bolts and clips as follows.
Left side
STEP1

490 4-3. Do-it-yourself maintenance

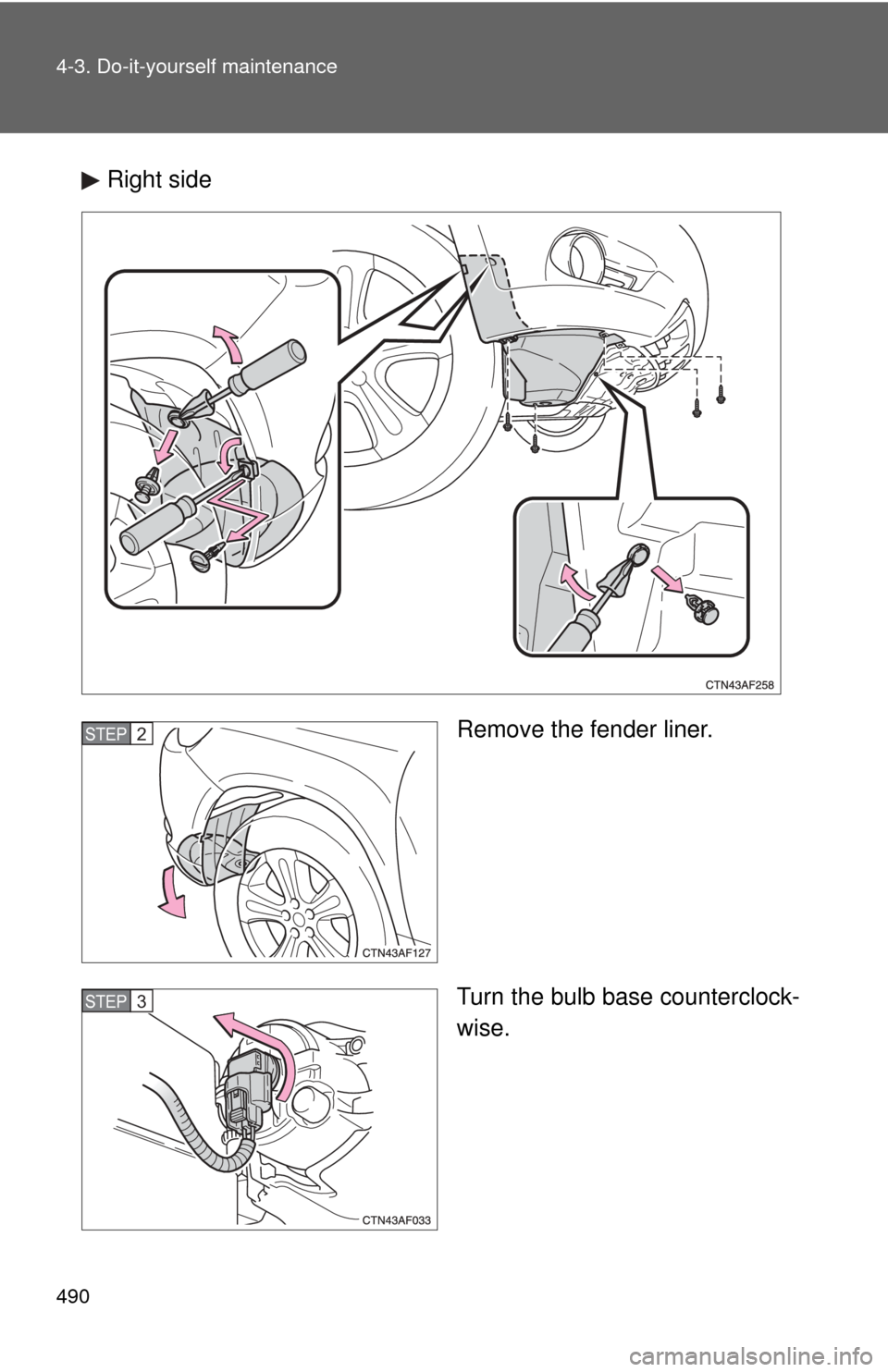

Right sideRemove the fender liner.
Turn the bulb base counterclock-
wise.
STEP2
STEP3
