1-2. Opening, closing and locking the doors
Before driving
Back door
The back door can be locked/unlocked and opened by the following
procedures.
■Locking and unlocking the back door
Door lock switch
→P. 6 7
Entry function (vehicles with smart key system)
→ P. 3 4
Wireless remote control
→ P. 5 4
Key
→ P. 6 6

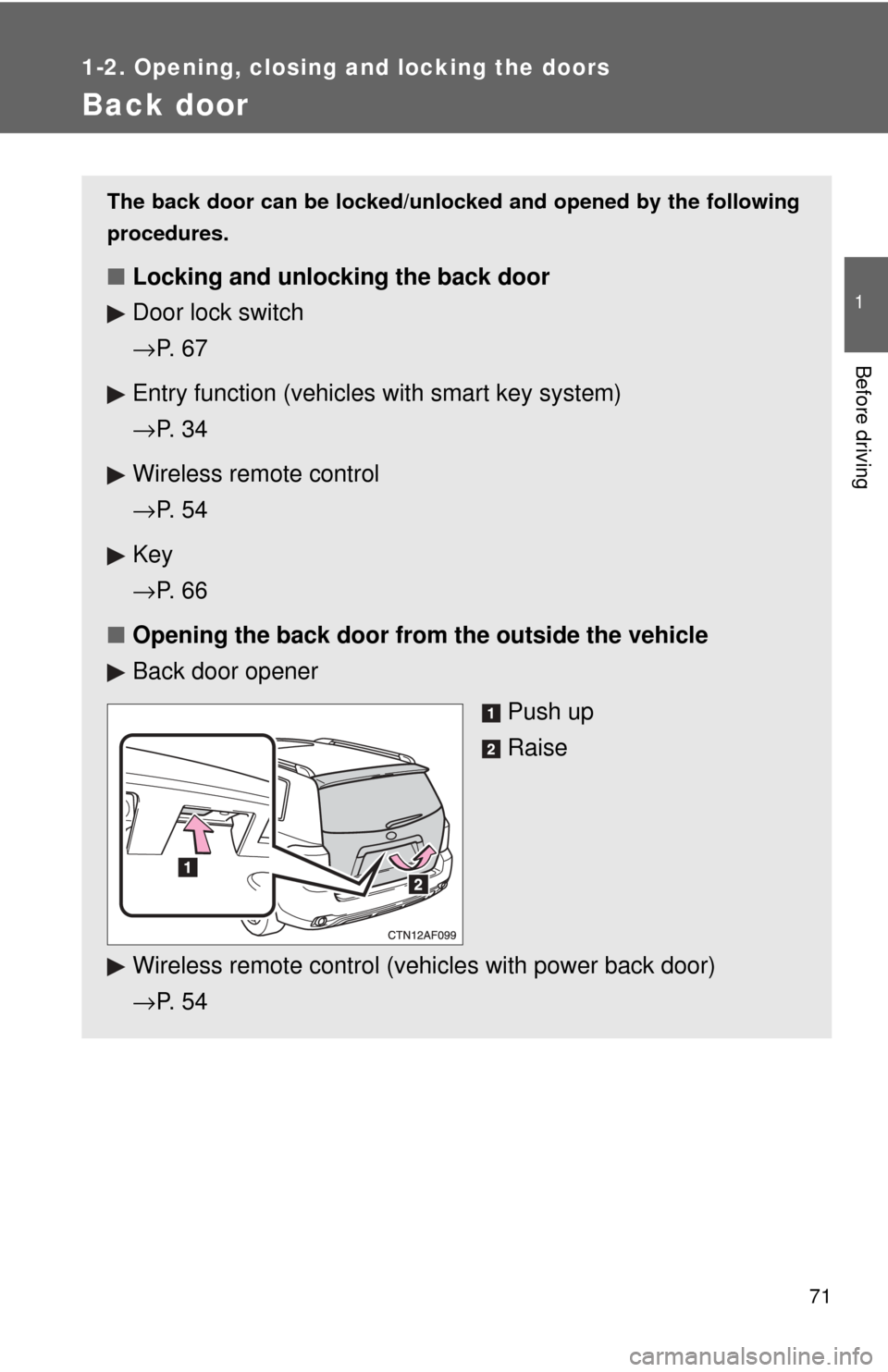

■ Opening the back door from the outside the vehicle
Back door opener
Push up
Raise
Wireless remote control (vehicles with power back door)
→ P. 5 4

72 1-2. Opening, closing and locking the doors
Power back door switch (vehicles with power back door)
Push the switch to close.
Pushing the switch again while
the power back door is closing
will cause it to open again.
However, the reverse operation
cannot be performed for the first
second after pushing the switch
to close the door.
A buzzer sounds and the emergency flashers flash twice to indicate
that the back door has been opened/closed.
The back door can be opened even if it is locked. Lock the back door
again when you leave t he vehicle. The back door will not lock auto-
matically after it has been opened and then closed.
■ Opening the back door from the inside the vehicle (vehicles
with power back door)

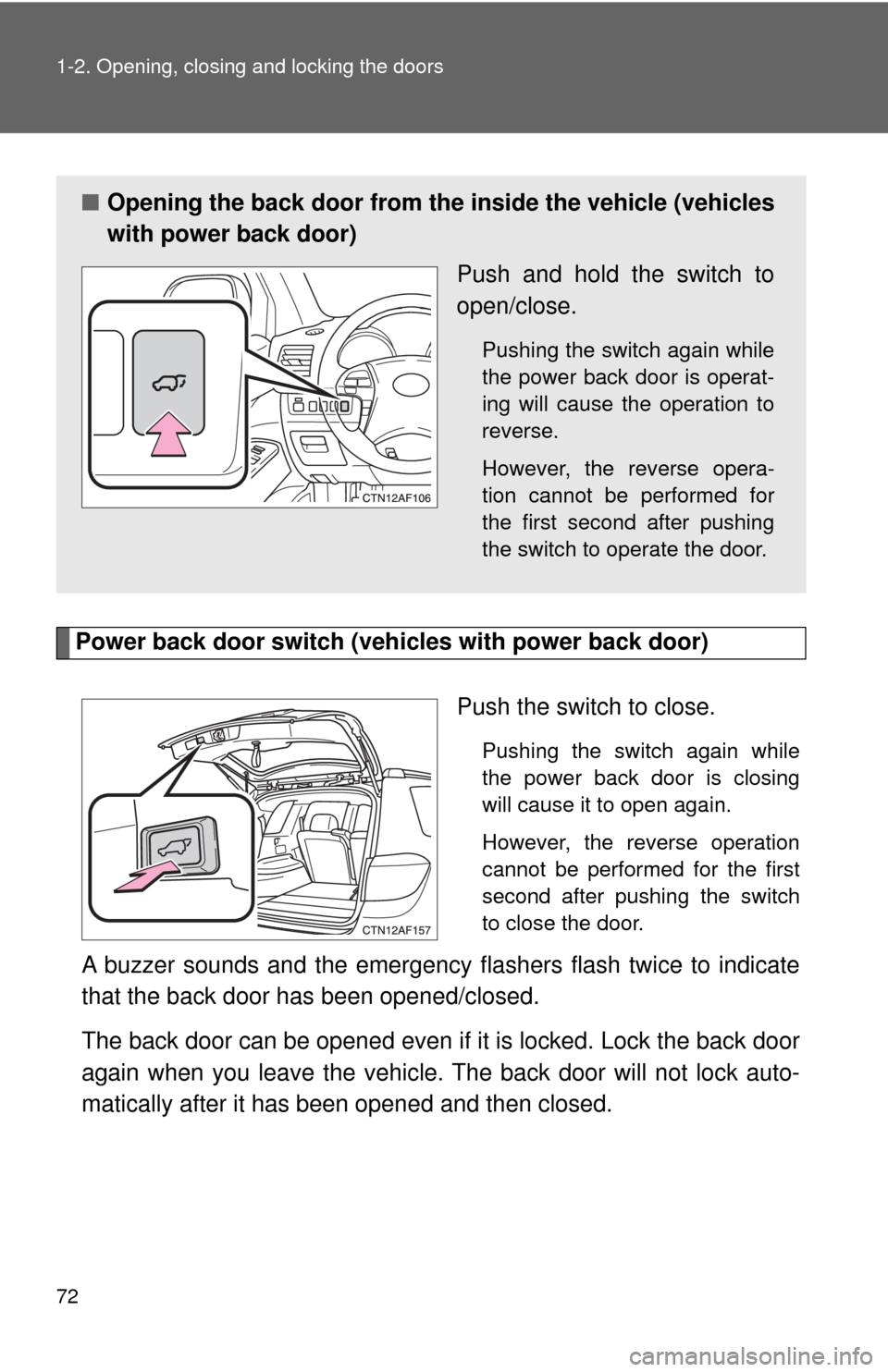

Push and hold the switch to
open/close.
Pushing the switch again while
the power back door is operat-
ing will cause the operation to
reverse.
However, the reverse opera-
tion cannot be performed for
the first second after pushing
the switch to operate the door.

73
1-2. Opening, closing and locking the doors
1
Before driving
Canceling the power back door system
(vehicles with power back door)

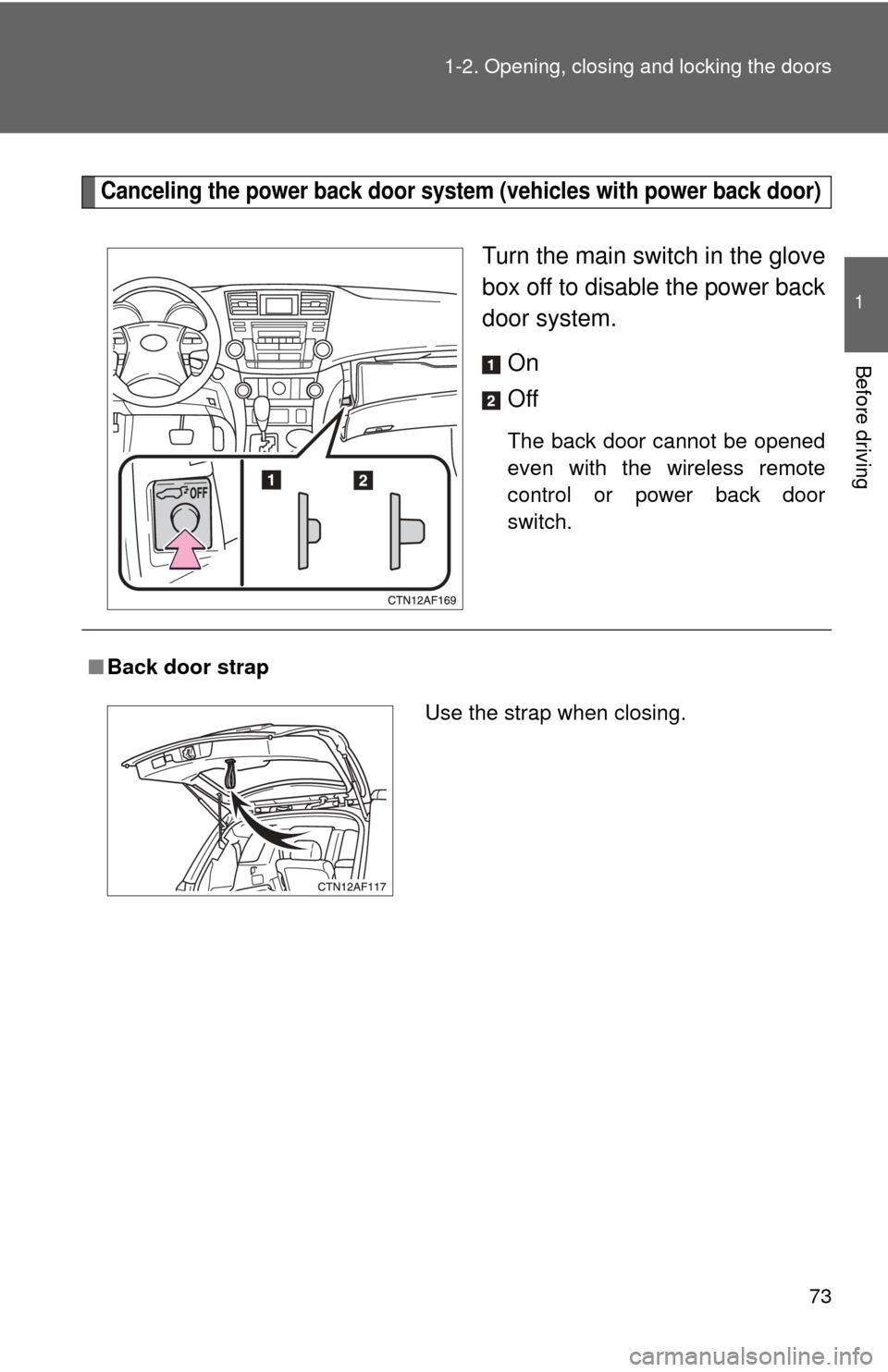

Turn the main switch in the glove
box off to disable the power back
door system.
On
Off
The back door cannot be opened
even with the wireless remote
control or power back door
switch.
■Back door strap
Use the strap when closing.

74 1-2. Opening, closing and locking the doors
■If the back door opener is inoperative
The back door can be operated from the inside.
■ The power back door can be opened when
●The “ENGINE START STOP” switch is in IGNITION ON mode, and the
shift lever is in P.
● The “ENGINE START STOP” switch is in OFF or in ACCESSORY mode.
The power back door can be opened even when the glass hatch is opened.
The glass hatch will not be closed when the power back door is being
closed. Close the glass hatch manually.
■ Jam protection function (vehicles with power back door)
If anything obstructs the power back door while it is closing/opening, the
back door will automatically operate in the opposite direction.
Remove the cover.
Turn the lever.STEP1
STEP2

75
1-2. Opening, closing and locking the doors
1
Before driving
■
If the power back door does not work
The back door must be initialized. To initialize, close the back door com-
pletely by hand.
■ Back door closer (vehicles with power back door)
In the event that the back door is left slightly open, the back door closer will
automatically close it to the fully closed position.
■ Fall-down protection function (vehicles with power back door)
While the power back door is opening automatically, applying excessive
force to it will stop the opening operation to prevent the power back door
from rapidly falling down.
■ Customization that can be configured at Toyota dealer
Settings (e.g. wireless remote control) can be changed.
(Customizable features →P. 582)
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Caution while driving
Keep the back door closed.
If the back door is open, the luggage will be thrown out and exhaust gases
will enter the vehicle.
■ Operating the power back door
●Check to make sure that passengers do not have any part of their body in
a position where it could be caught or hit when the back door is being
operated.
● Careful attention is needed so as not to get your fingers trapped as the
back door automatically closes when it has not been fully closed.
● Do not allow children to operate the back door.
Closing the back door on someone can cause serious injury, and in some
instances, even death.

76 1-2. Opening, closing and locking the doors
CAUTION
■Jam protection function (vehicles with power back door)
●Never try jamming any part of your body to activate the jam protection
function intentionally.
● The jam protection function may not work if something gets caught just
before the back door is fully closed.
NOTICE
■To prevent damage to the back door components

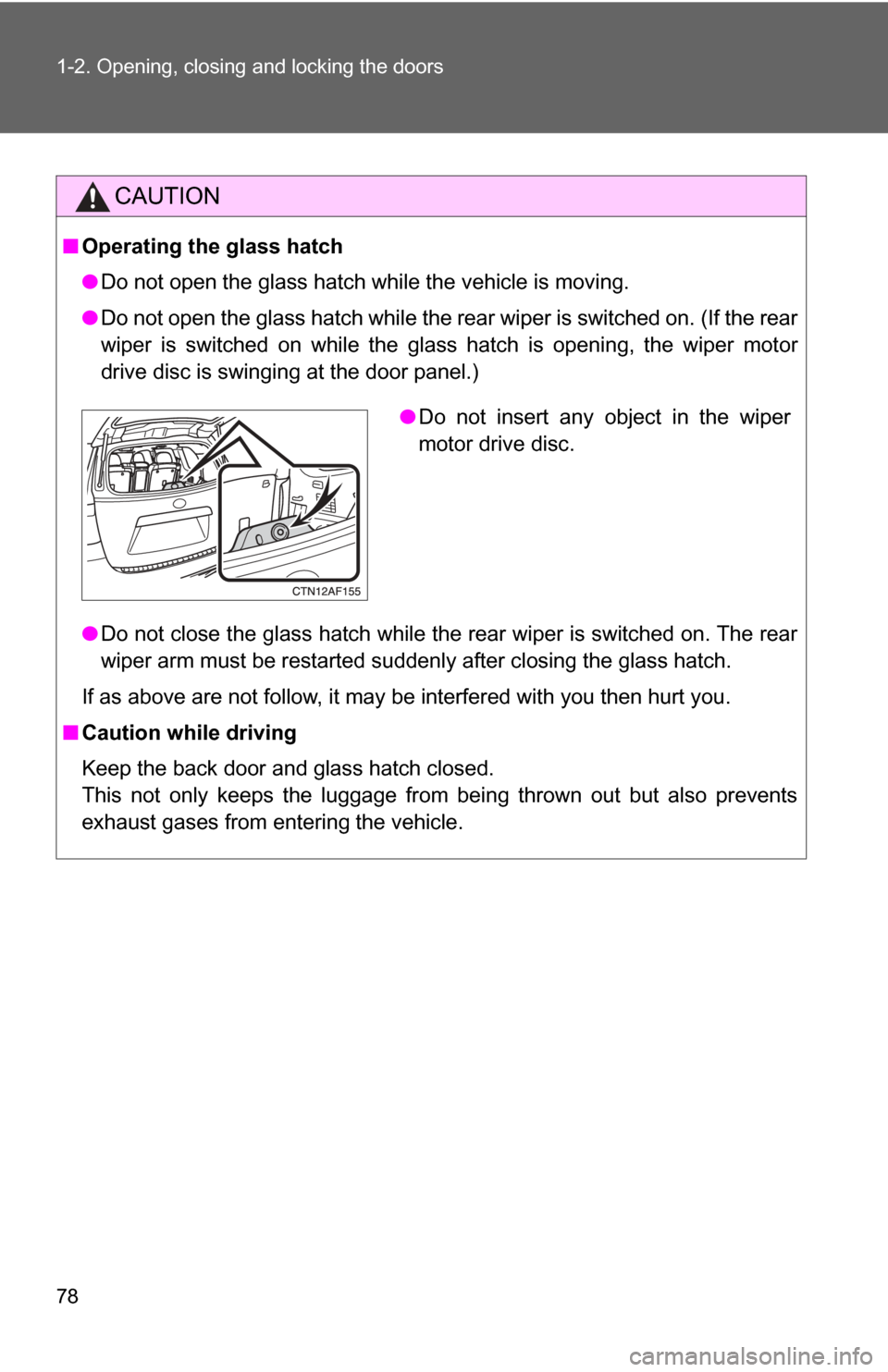

●Do not apply any force, paint or let any other foreign matter on the damper.
● Do not apply excessive force when the back door closer is operating.
● Make sure there is nothing in the doorway before closing.

77
1
1-2. Opening, closing and locking the doors
Before driving
Glass hatch∗
■Opening and closing the glass hatch
●Make sure that the rear wiper is switched off.
● Do not rotate the rear wiper arm while the glass hatch is opening. (If the
rear wiper arm is rotated, close the glass hatch as it is then switch on the
wiper. The rear wiper arm will return to the correct position automatically
after wiping.)
● Make sure that the back door is closed before closing the glass hatch.
The glass hatch can be opened using the glass hatch opener or wire-
less remote control.
■ Wireless remote control (veh icles without smart key sys-
tem)
→ P. 5 4
■ Entry function (vehicles with smart key system)
→P. 3 4

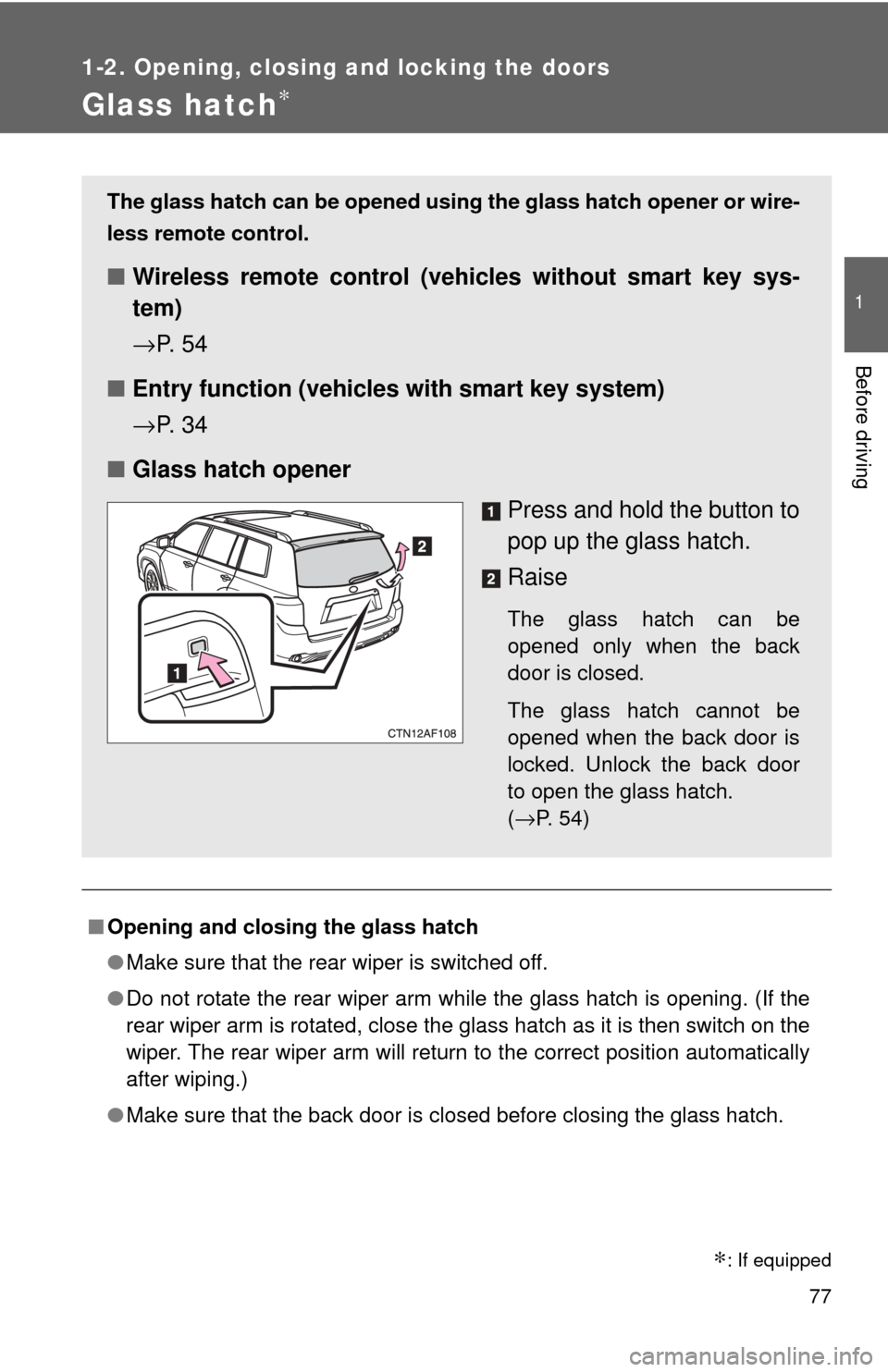

■ Glass hatch opener
Press and hold the button to
pop up the glass hatch.
Raise
The glass hatch can be
opened only when the back
door is closed.
The glass hatch cannot be
opened when the back door is
locked. Unlock the back door
to open the glass hatch.
(→P. 54)
∗: If equipped

78 1-2. Opening, closing and locking the doors
CAUTION
■Operating the glass hatch
●Do not open the glass hatch while the vehicle is moving.
● Do not open the glass hatch while the rear wiper is switched on. (If the rear
wiper is switched on while the glass hatch is opening, the wiper motor
drive disc is swinging at the door panel.)
● Do not close the glass hatch while the rear wiper is switched on. The rear
wiper arm must be restarted suddenly after closing the glass hatch.
If as above are not follow, it may be interfered with you then hurt you.
■ Caution while driving
Keep the back door and glass hatch closed.
This not only keeps the luggage from being thrown out but also prevents
exhaust gases from entering the vehicle.
●Do not insert any object in the wiper
motor drive disc.

79
1
Before driving
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats

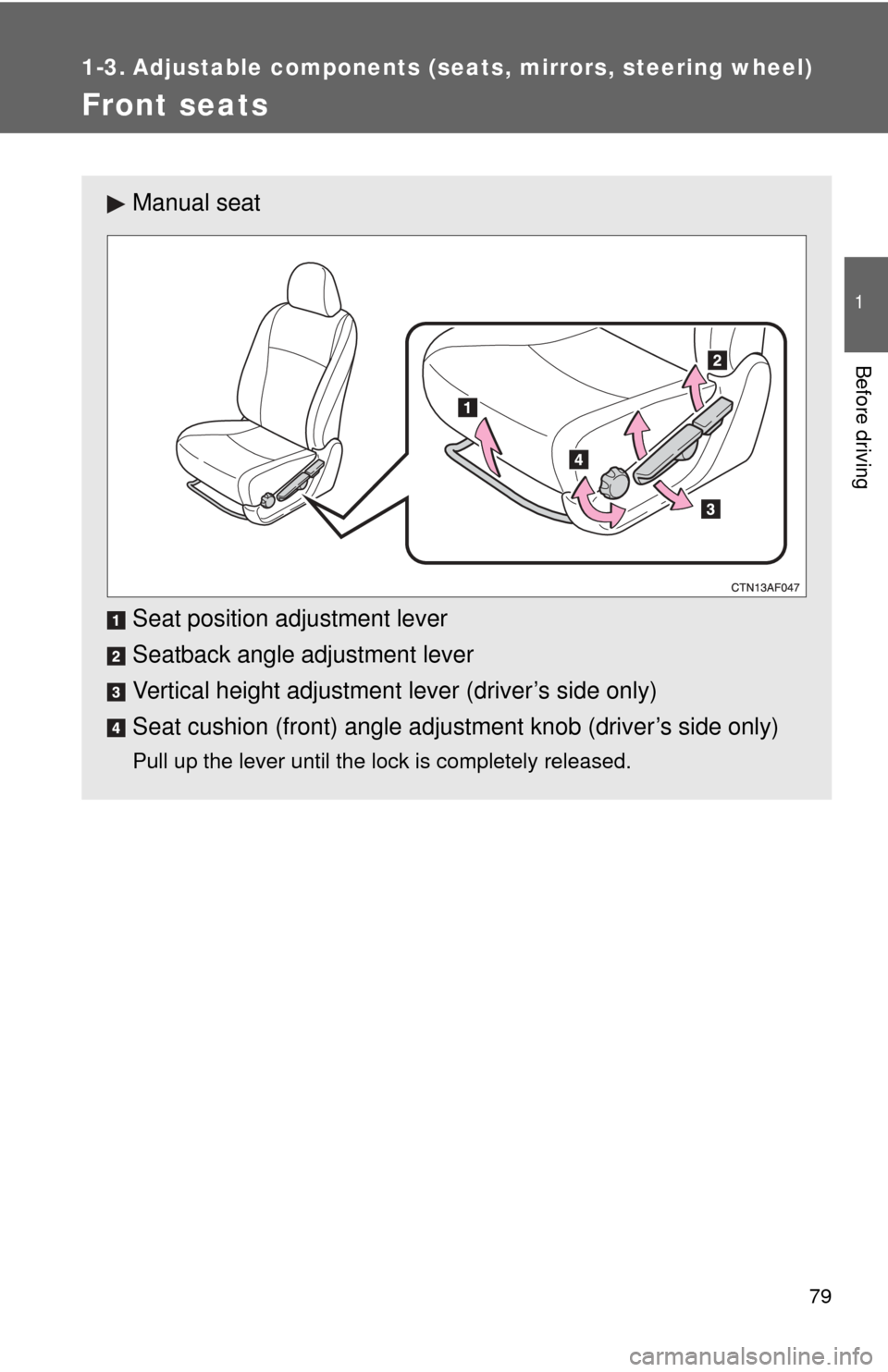

Manual seat
Seat position adjustment lever
Seatback angle adjustment lever
Vertical height adjustment lever (driver’s side only)
Seat cushion (front) angle adjustment knob (driver’s side only)
Pull up the lever until the lock is completely released.

80 1-3. Adjustable components (seats, mirrors, steering wheel)
Active head restraints
When the occupant’s lower back
presses against the seatback
during a rear-end collision, the
head restraint moves slightly for-
ward and upward to help reduce
the risk of whiplash on the seat
occupant.

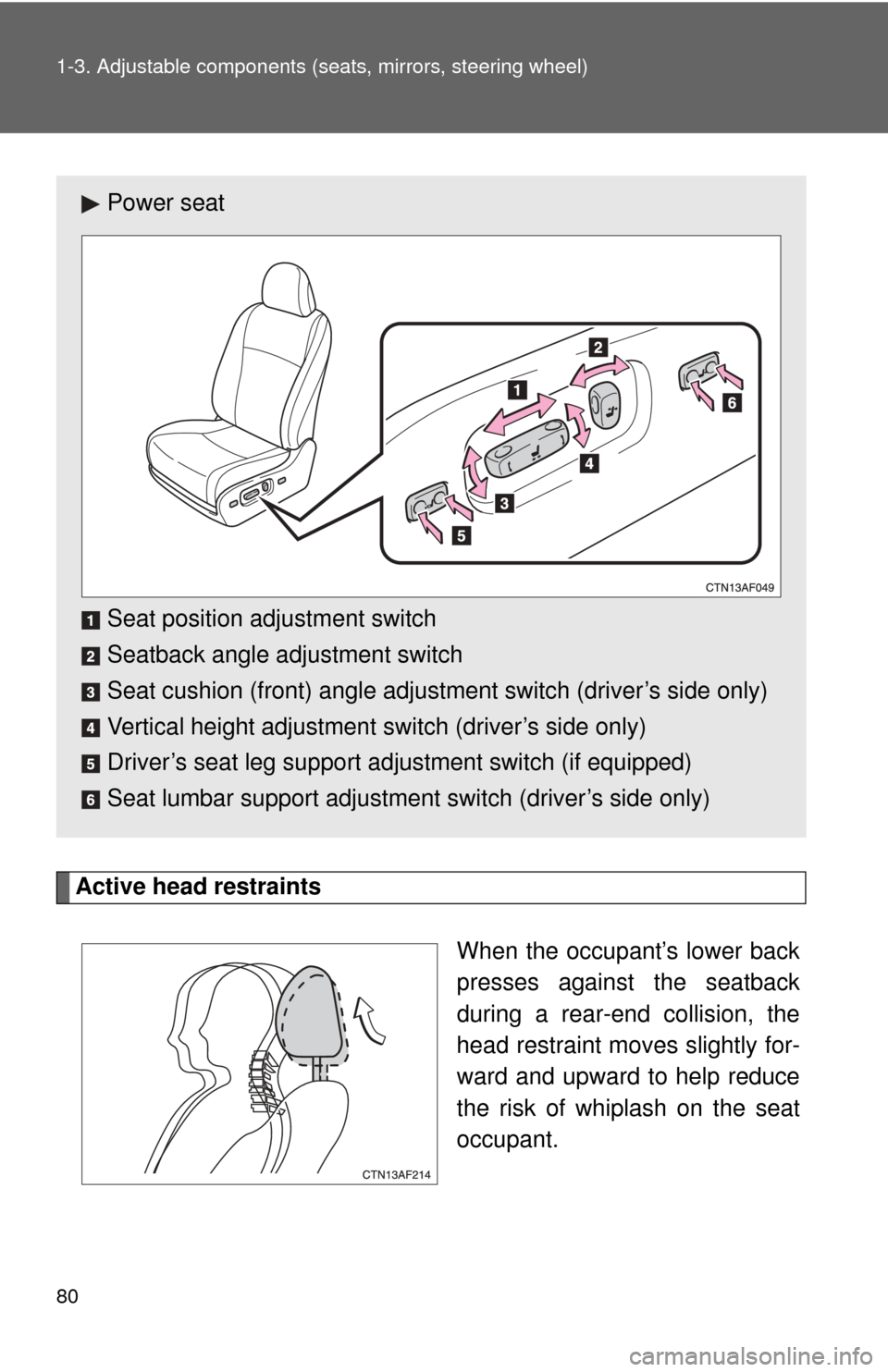

Power seat
Seat position adjustment switch
Seatback angle adjustment switch
Seat cushion (front) angle adjustment switch (driver’s side only)
Vertical height adjustment switch (driver’s side only)
Driver’s seat leg support adjustment switch (if equipped)
Seat lumbar support adjustment switch (driver’s side only)
