TOYOTA HIGHLANDER 2009 XU40 / 2.G Quick Reference Guide

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

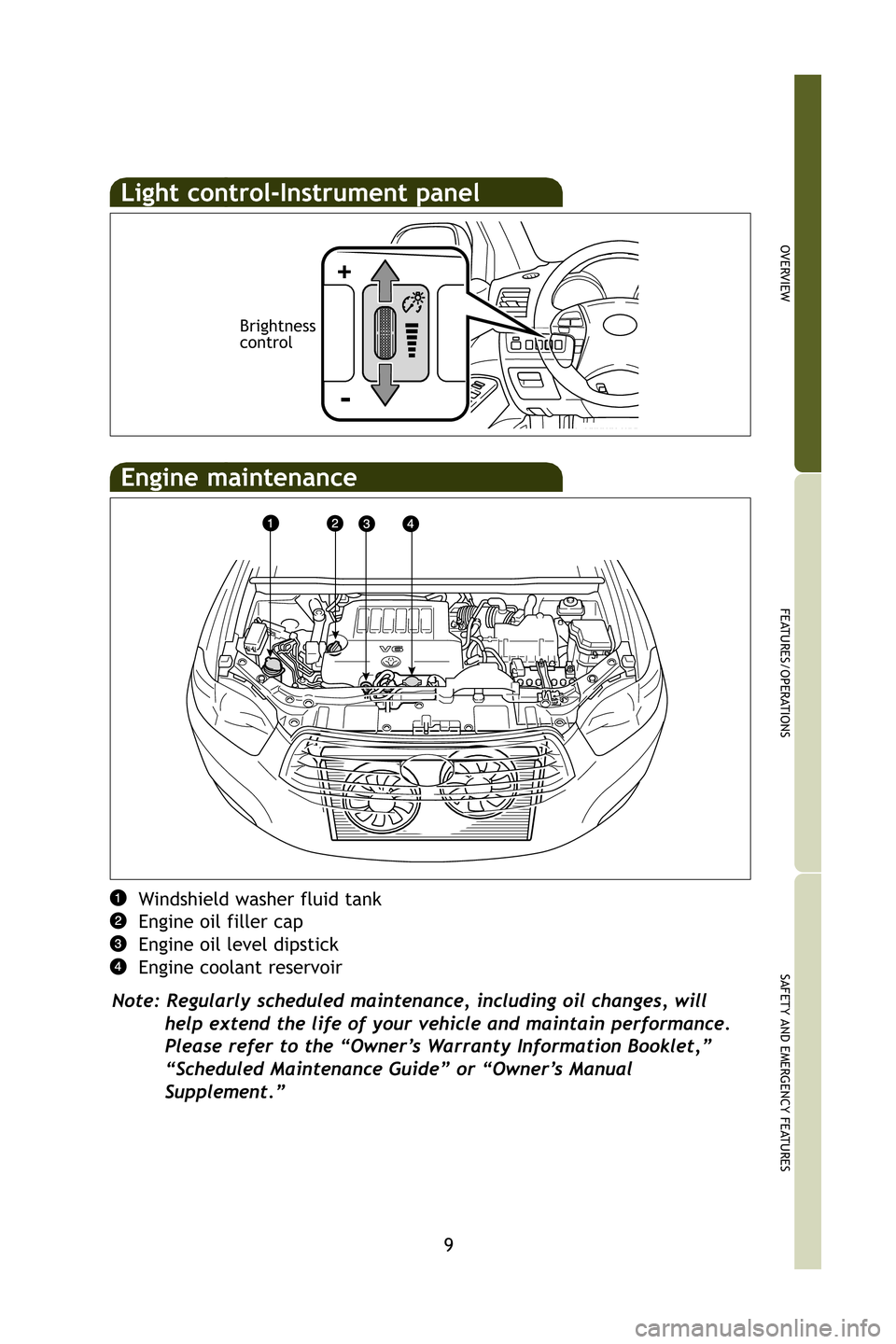

Windshield washer fluid tank
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
Note: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-
+
412783M2.qxd 8/21/08 4:12 PM Page 9

10
FEATURES/OPERATIONS

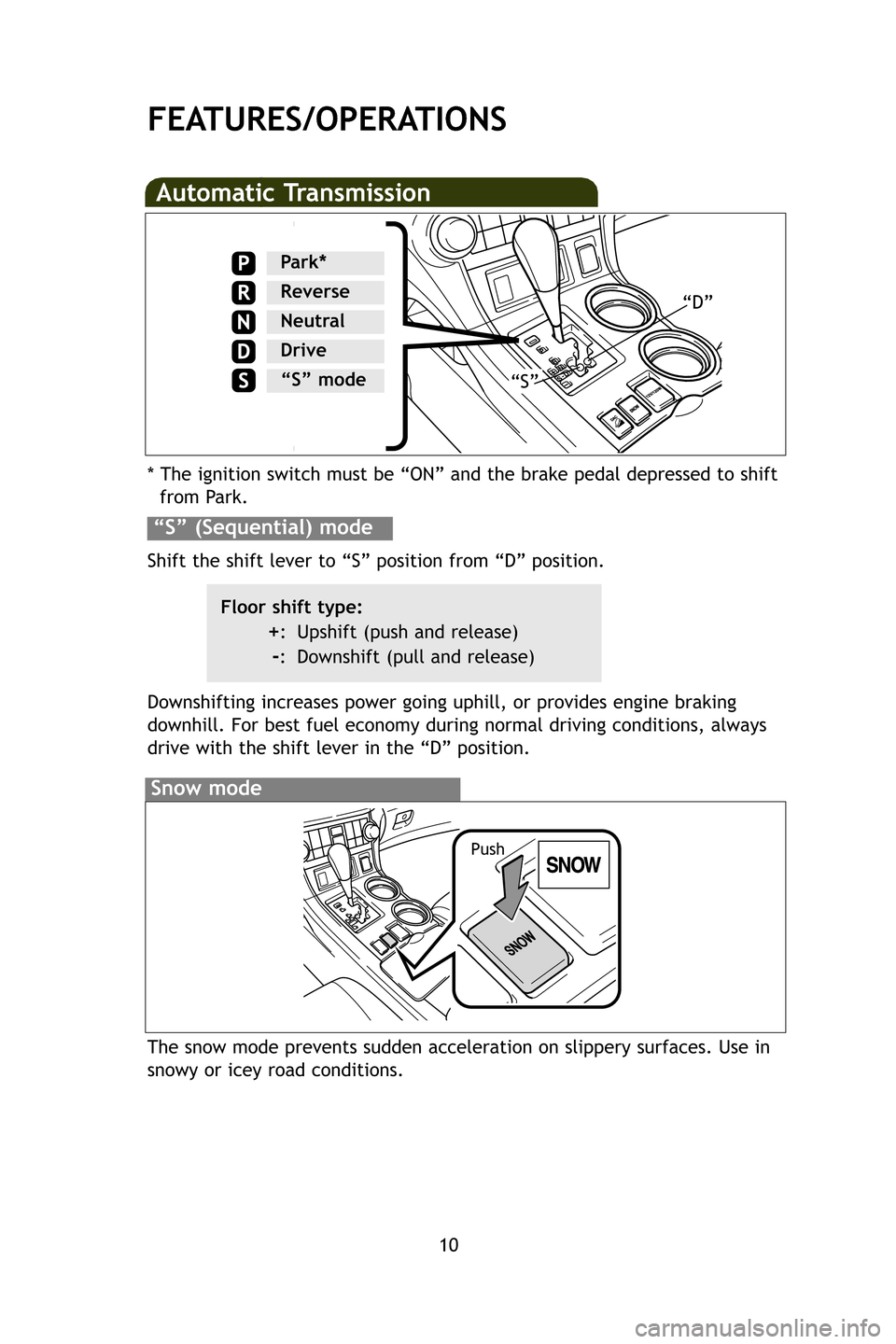

Automatic Transmission
* The ignition switch must be “ON” and the brake pedal depressed t\
o shiftfrom Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always\
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
Park*
Reverse
Neutral
Drive
“S” mode “D”
Snow mode
Push
The snow mode prevents sudden acceleration on slippery surfaces. Use in
snowy or icey road conditions.
“S”
412783M2.qxd 8/21/08 4:12 PM Page 10

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

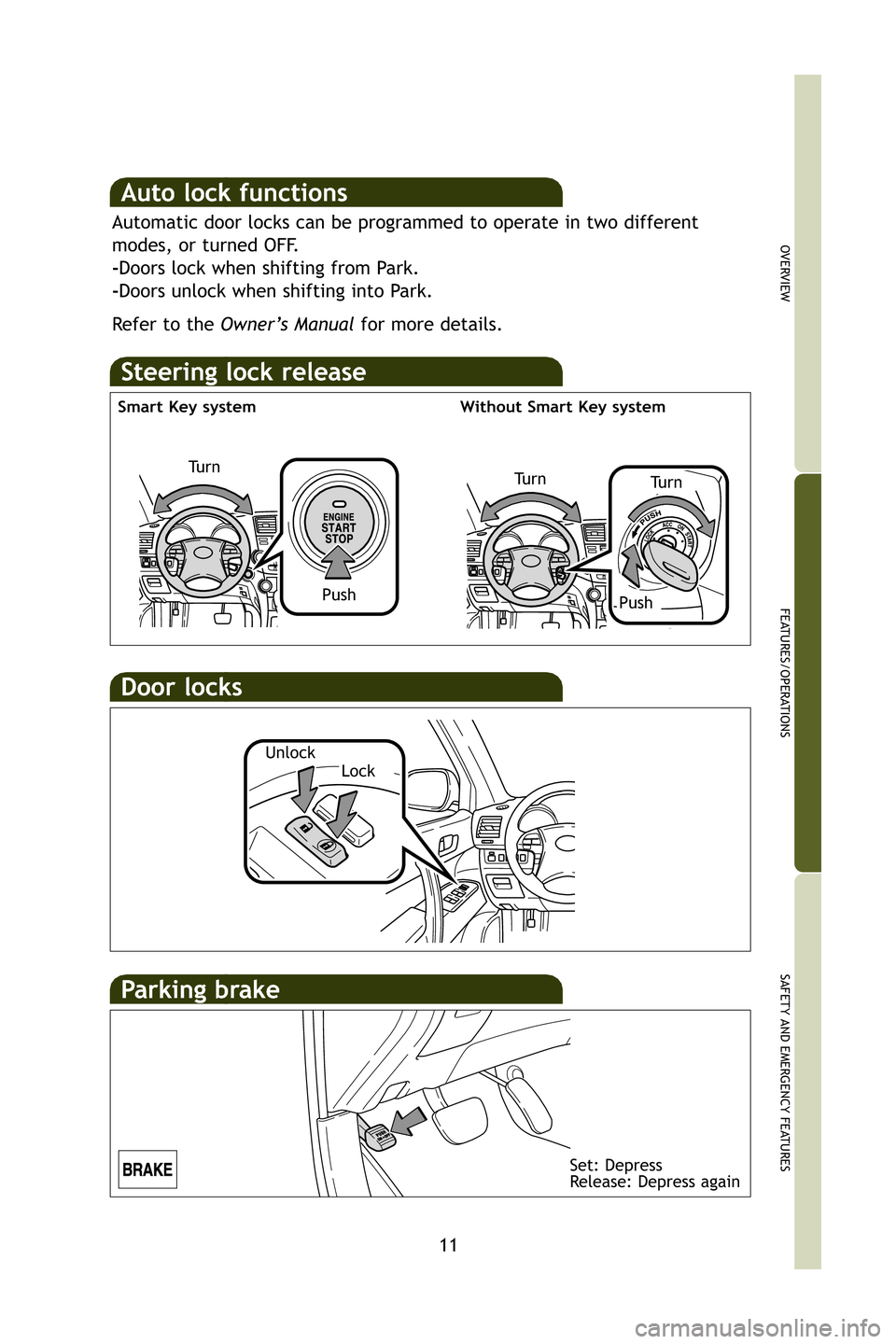

Steering lock release
Tu r n
Tu r n
Door locks
LockUnlock
Smart Key system
Without Smart Key system
PushPush
Tu r n
Auto lock functions
Automatic door locks can be programmed to operate in two different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Refer to the Owner’s Manual for more details.
Parking brake
Set: Depress
Release: Depress again
412783M2.qxd 8/21/08 4:12 PM Page 11

12
FEATURES/OPERATIONS

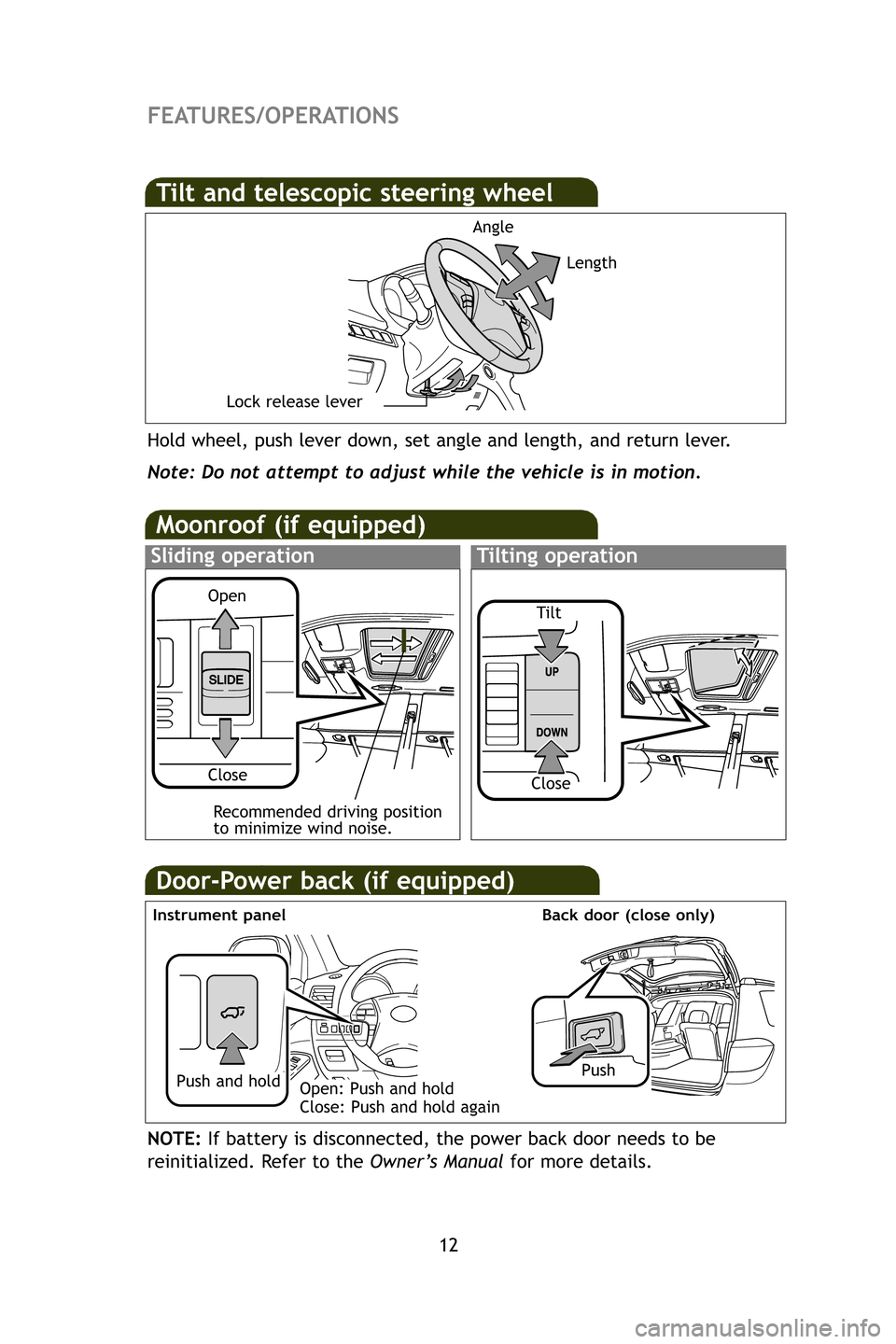

Hold wheel, push lever down, set angle and length, and return lever.
AngleLength
Lock release lever
Note: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Moonroof (if equipped)
Sliding operationTilting operation
Open Tilt
Close Close
Door-Power back (if equipped)
PushPush and hold
Instrument panel Back door (close only)
Open: Push and hold
Close: Push and hold again
NOTE:If battery is disconnected, the power back door needs to be
reinitialized. Refer to the Owner’s Manualfor more details.
Recommended driving position
to minimize wind noise.
412783M2.qxd 8/21/08 4:12 PM Page 12

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

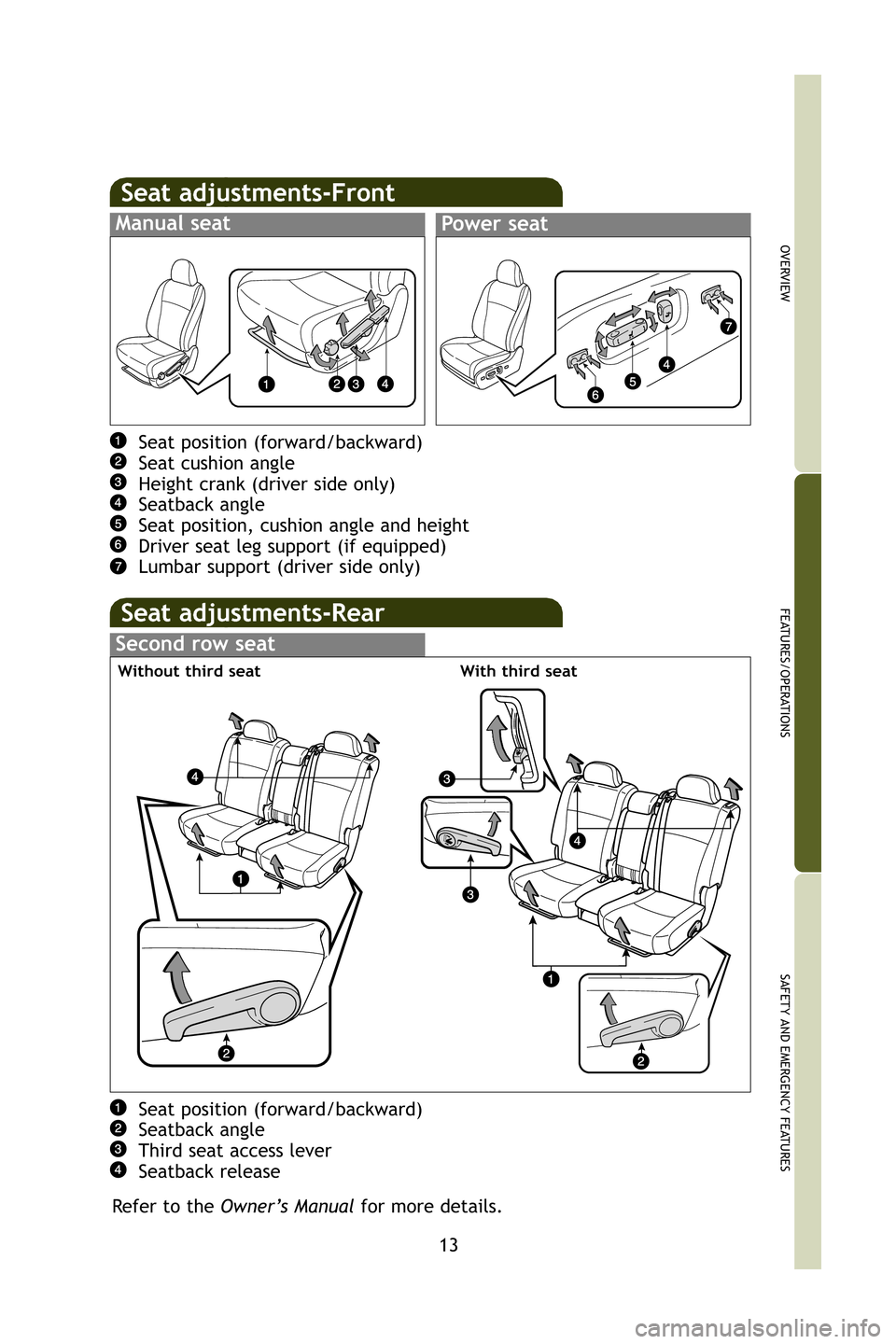

Seat adjustments-Rear
Second row seat
Seat position (forward/backward)
Seatback angle
Third seat access lever
Seatback release
Refer to the Owner’s Manual for more details.
Seat adjustments-Front
Seat position (forward/backward)
Seat cushion angle
Height crank (driver side only)
Seatback angle
Seat position, cushion angle and height
Driver seat leg support (if equipped)
Lumbar support (driver side only)
Manual seatPower seat
Without third seat With third seat
412783M2.qxd 8/21/08 4:12 PM Page 13

14
FEATURES/OPERATIONS

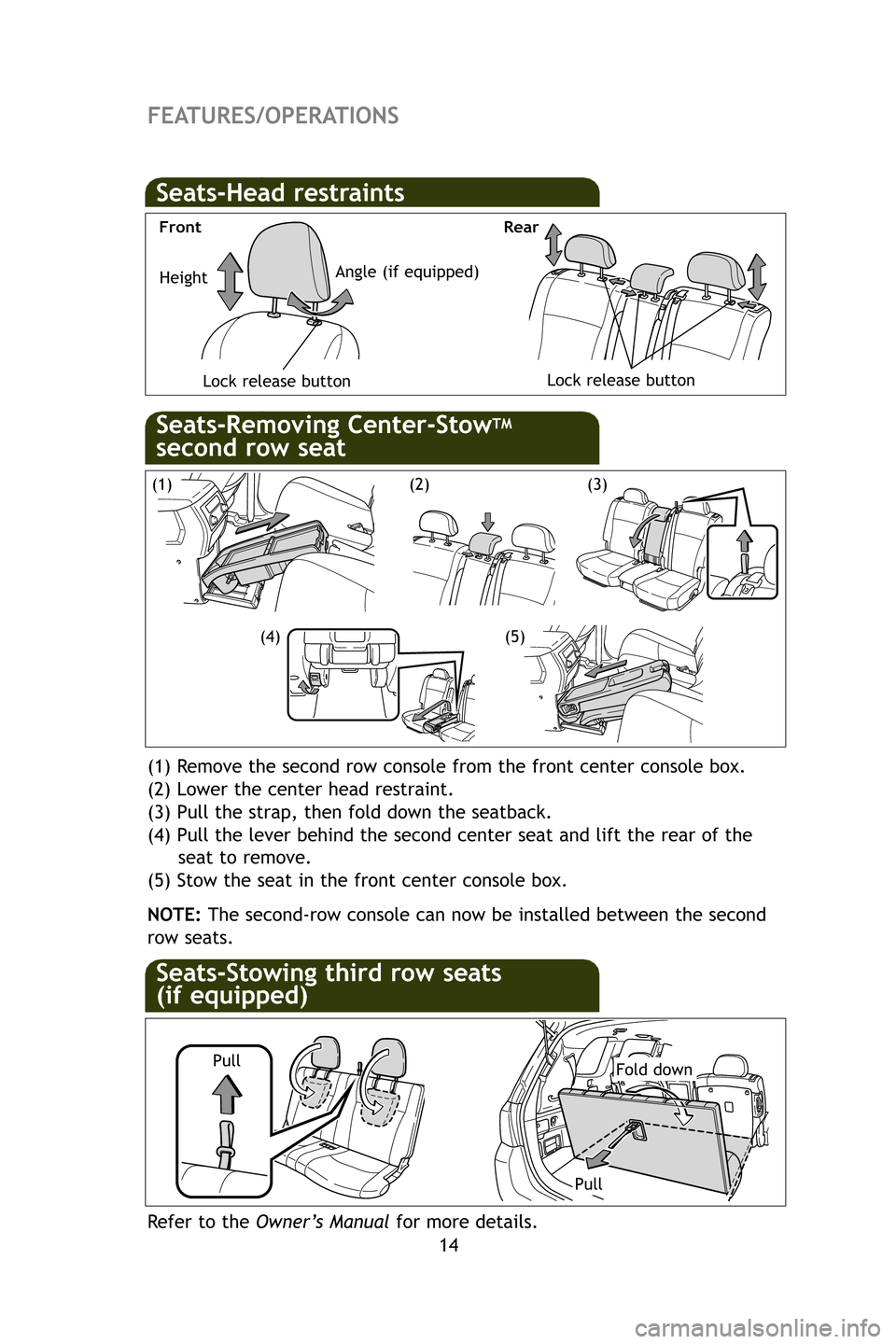

Seats-Head restraints
FrontRear
Lock release buttonLock release button
(1) Remove the second row console from the front center console box.
(2) Lower the center head restraint.
(3) Pull the strap, then fold down the seatback.
(4) Pull the lever behind the second center seat and lift the rear of \
the
seat to remove.
(5) Stow the seat in the front center console box.
Refer to the Owner’s Manual for more details.
Pull
Pull
Fold down
Seats-Stowing third row seats
(if equipped)
(1)
(5)(4)
(3)(2)
NOTE:The second-row console can now be installed between the second
row seats.
Seats-Removing Center-StowTM
second row seat
Height Angle (if equipped)
412783M2.qxd 8/21/08 4:12 PM Page 14

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
From outside
Left side/center remote seat release
Right side remote seat release
(2) Fold down
From inside

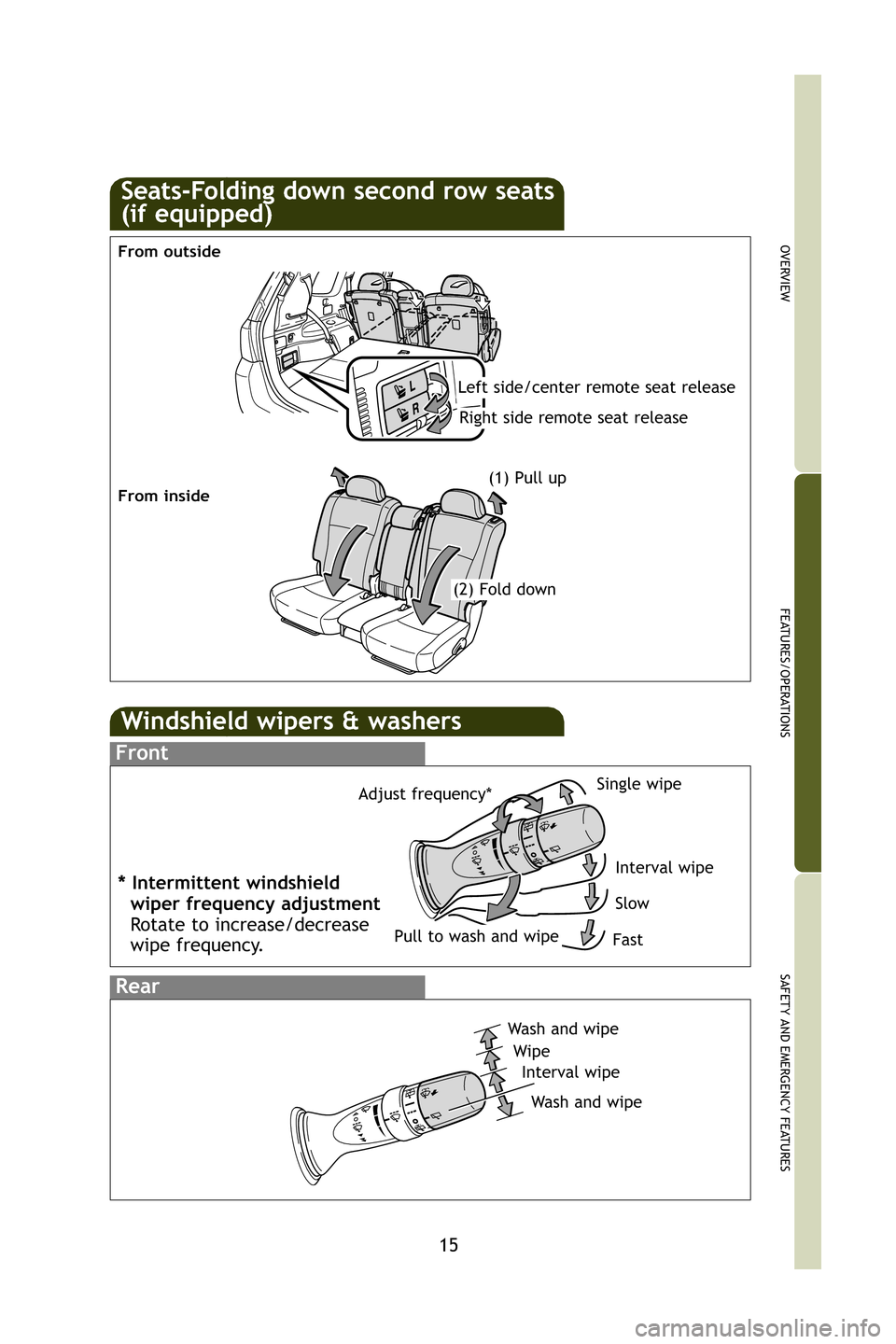

Windshield wipers & washers
Interval wipe
Single wipe
Slow
FastPull to wash and wipe
Front
Rear
Wash and wipe
Wipe
Interval wipe
Wash and wipe
(1) Pull up
Seats-Folding down second row seats
(if equipped)
Adjust frequency*
* Intermittent windshield
wiper frequency adjustment
Rotate to increase/decrease
wipe frequency.
412783M2.qxd 8/21/08 4:12 PM Page 15

16

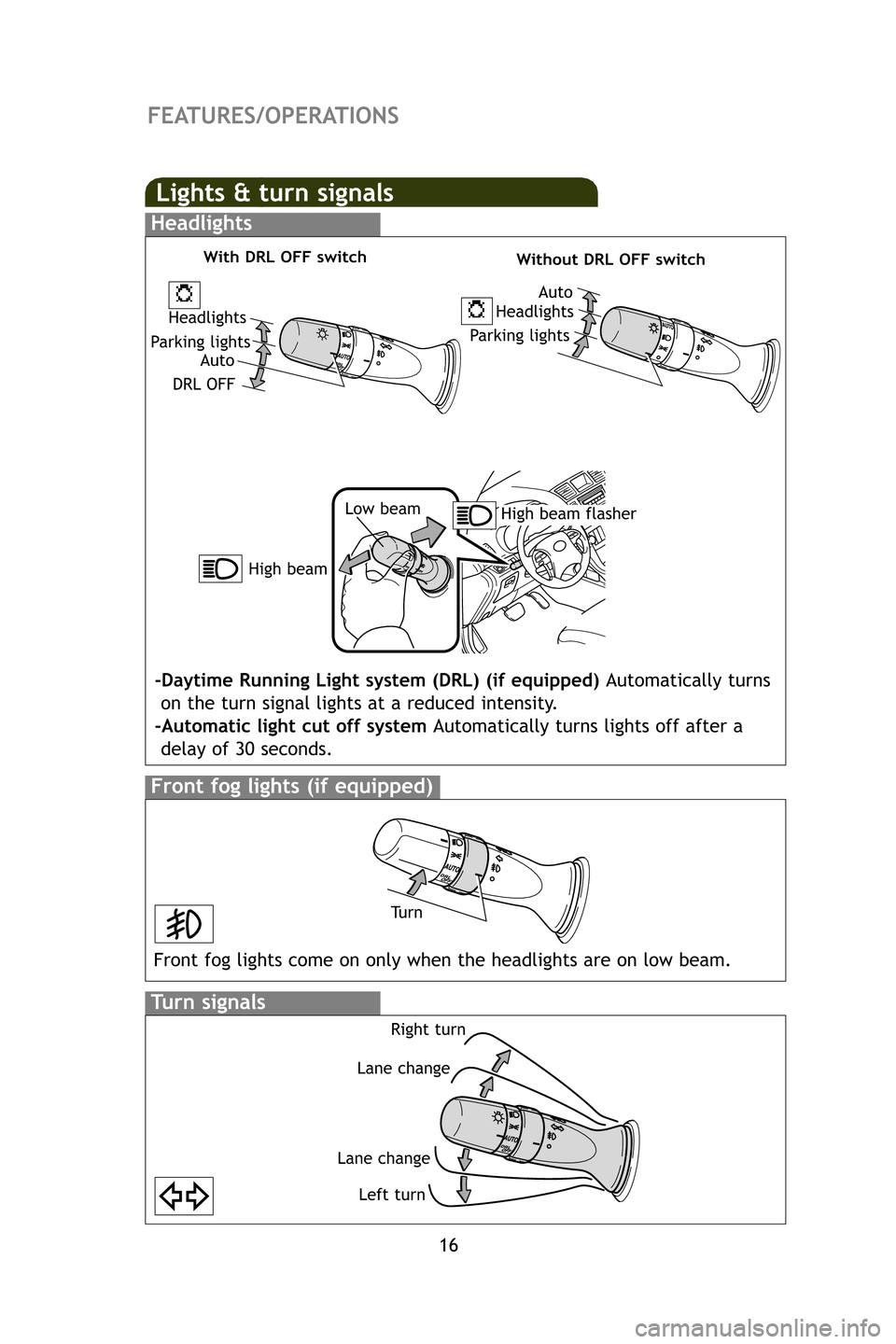

Lights & turn signals
Turn signals
Headlights
High beam flasher
Low beam
Front fog lights (if equipped)
Headlights
-Daytime Running Light system (DRL) (if equipped)
Automatically turns
on the turn signal lights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds.
Front fog lights come on only when the headlights are on low beam.
Parking lights
Right turn
Lane change
Lane change Left turn
High beam
Auto
Headlights
Parking lights
Auto
DRL OFF
Tu r n
With DRL OFF switchWithout DRL OFF switch
FEATURES/OPERATIONS
412783M2.qxd 8/21/08 4:12 PM Page 16

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

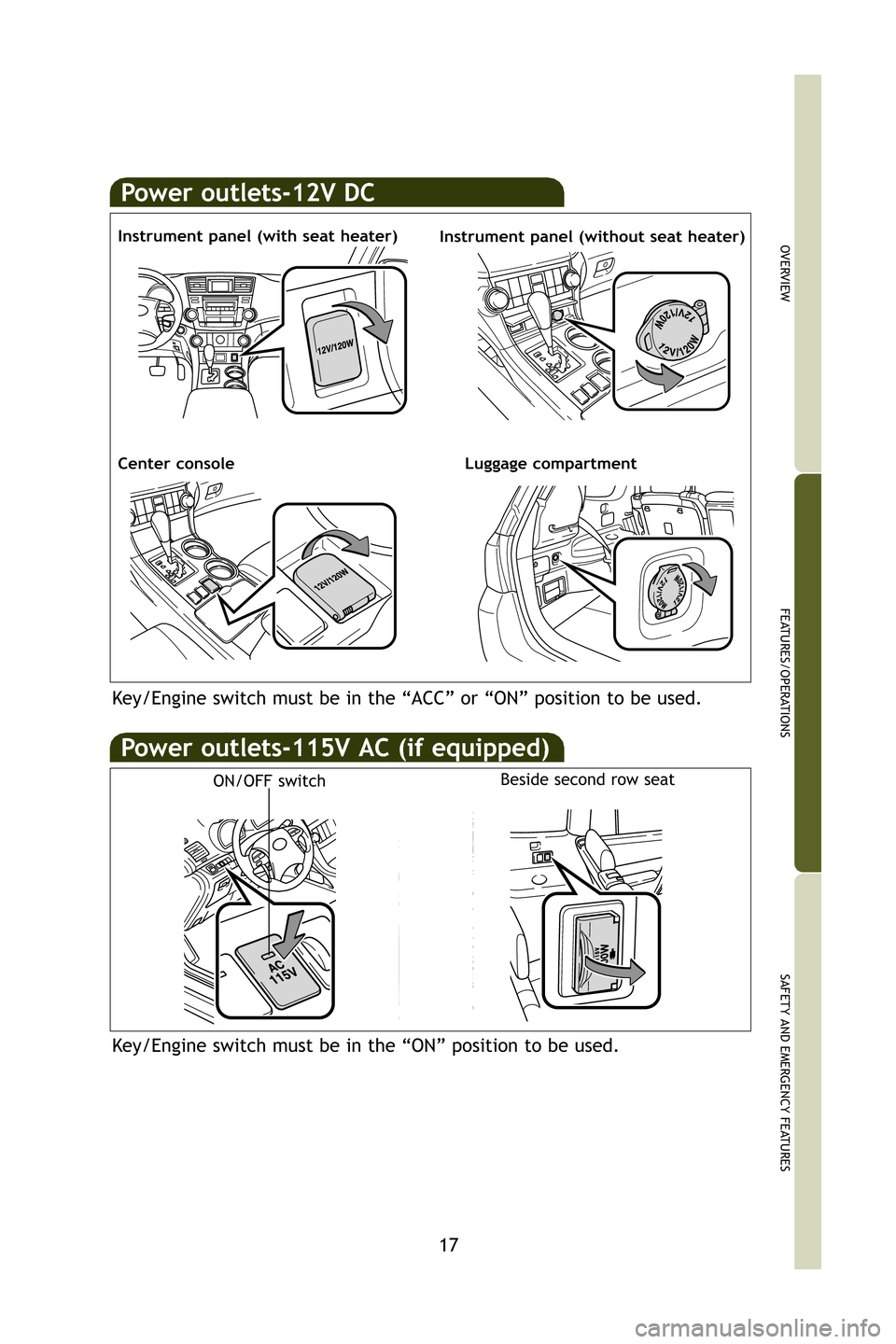

Power outlets-12V DC
Luggage compartment
Instrument panel (with seat heater)Instrument panel (without seat heater)
Key/Engine switch must be in the “ACC” or “ON” position to be\
used.
Power outlets-115V AC (if equipped)
ON/OFF switchBeside second row seat
Center console
Key/Engine switch must be in the “ON” position to be used.
412783M2.qxd 8/21/08 4:12 PM Page 17

18
FEATURES/OPERATIONS

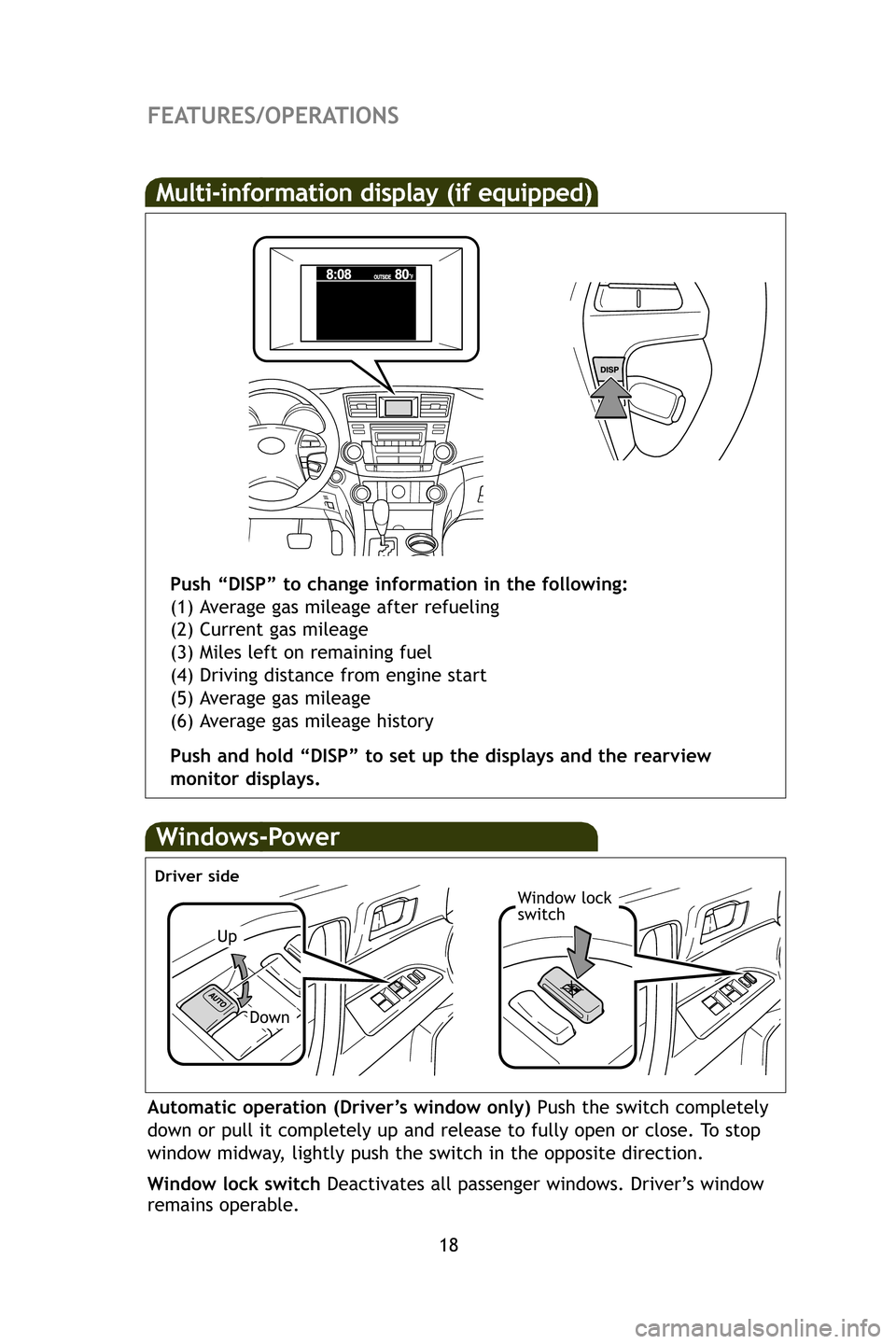

Multi-information display (if equipped)
Push “DISP” to change information in the following:
(1) Average gas mileage after refueling
(2) Current gas mileage
(3) Miles left on remaining fuel
(4) Driving distance from engine start
(5) Average gas mileage
(6) Average gas mileage history
Push and hold “DISP” to set up the displays and the rearview
monitor displays.
Windows-Power
Up
Down
Driver side
Window lock
switch
Automatic operation (Driver’s window only) Push the switch completely
down or pull it completely up and release to fully open or close. To stop
window midway, lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
412783M2.qxd 8/21/08 4:12 PM Page 18
