TOYOTA HIGHLANDER 2010 XU40 / 2.G Owners Manual

491
4-3. Do-it-yourself maintenance
4
Maintenance and care

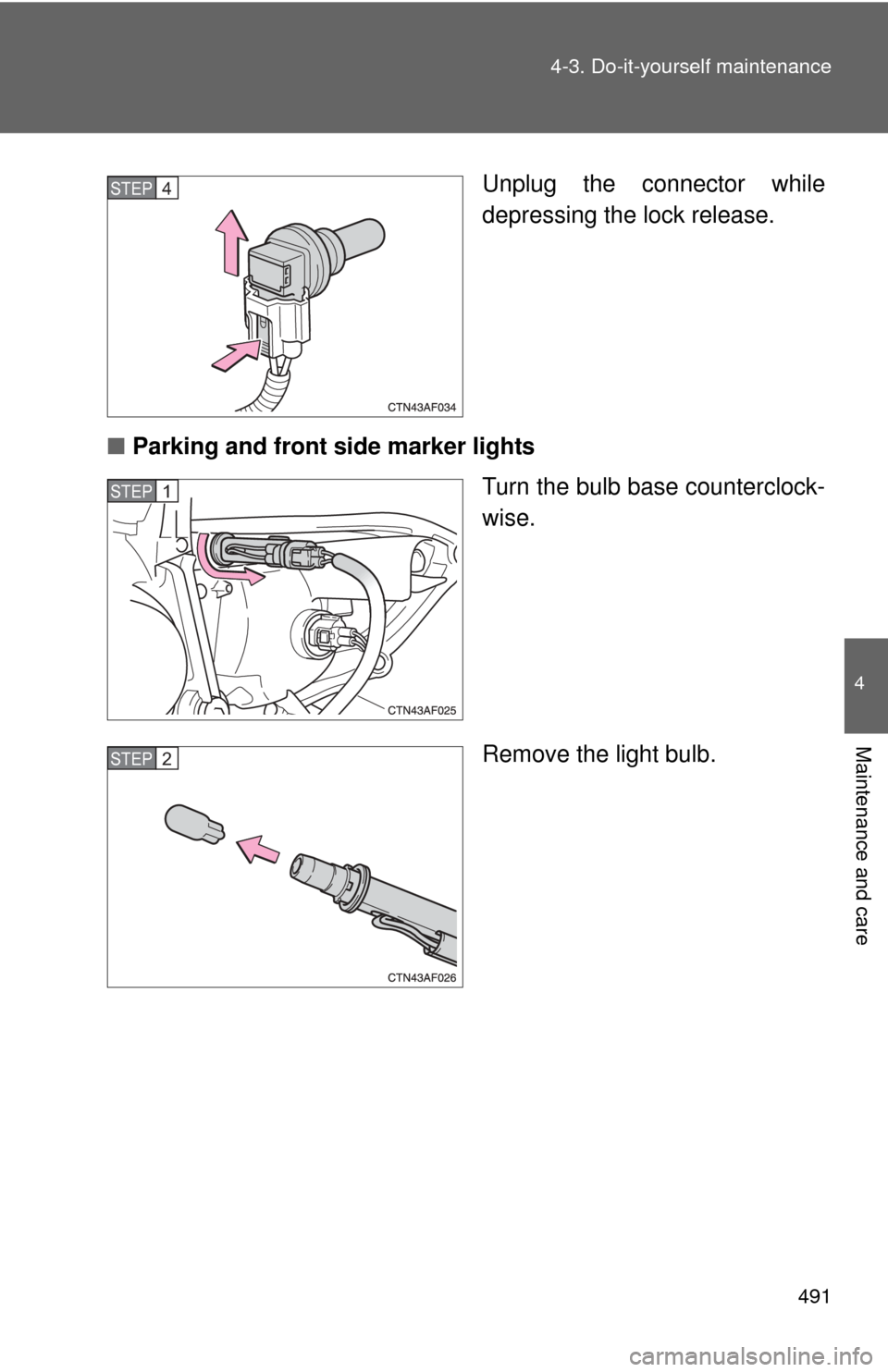

Unplug the connector while
depressing the lock release.
■ Parking and front side marker lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.STEP4
STEP1
STEP2

492 4-3. Do-it-yourself maintenance

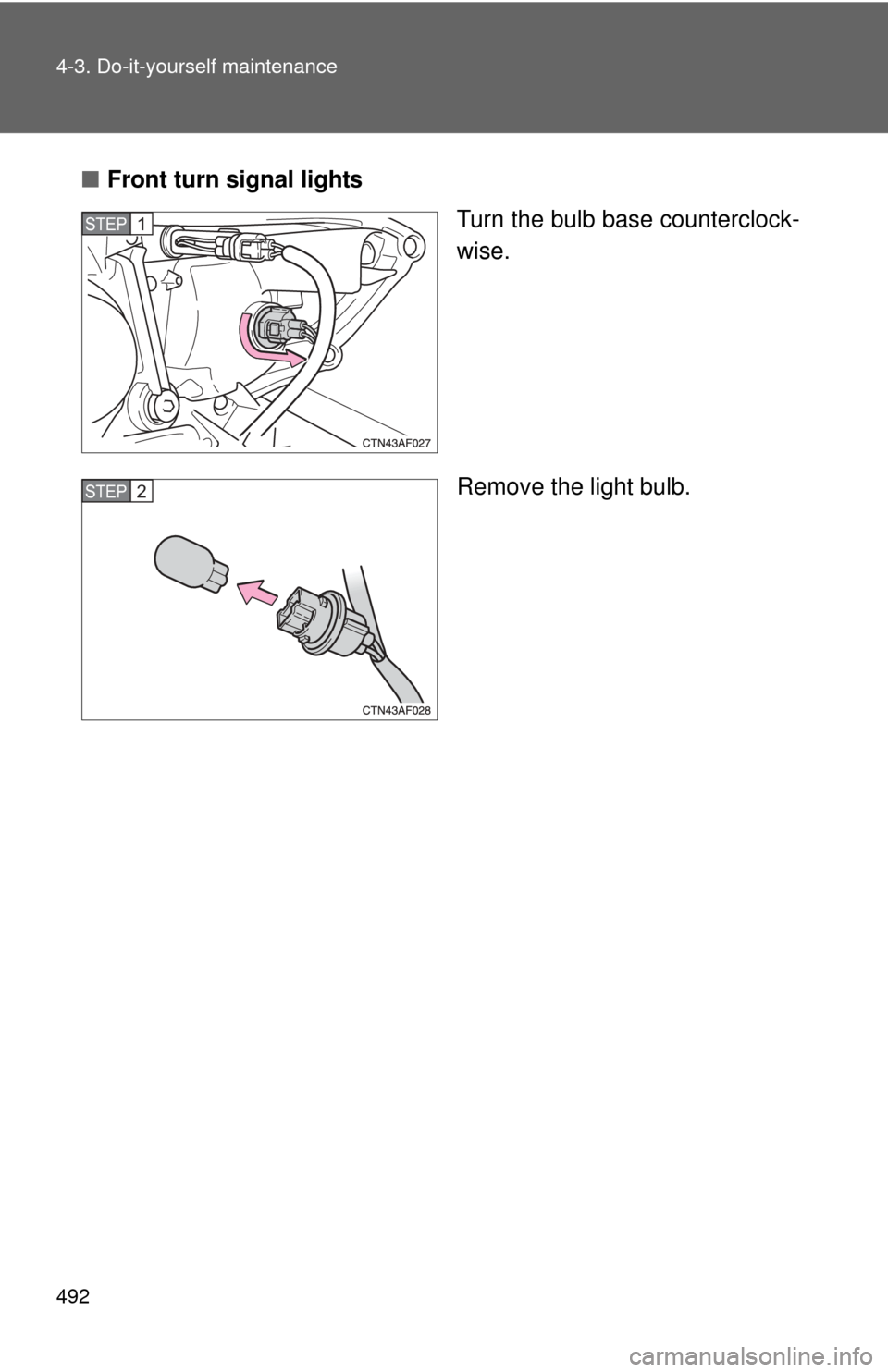

■Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2

493
4-3. Do-it-yourself maintenance
4
Maintenance and care
■

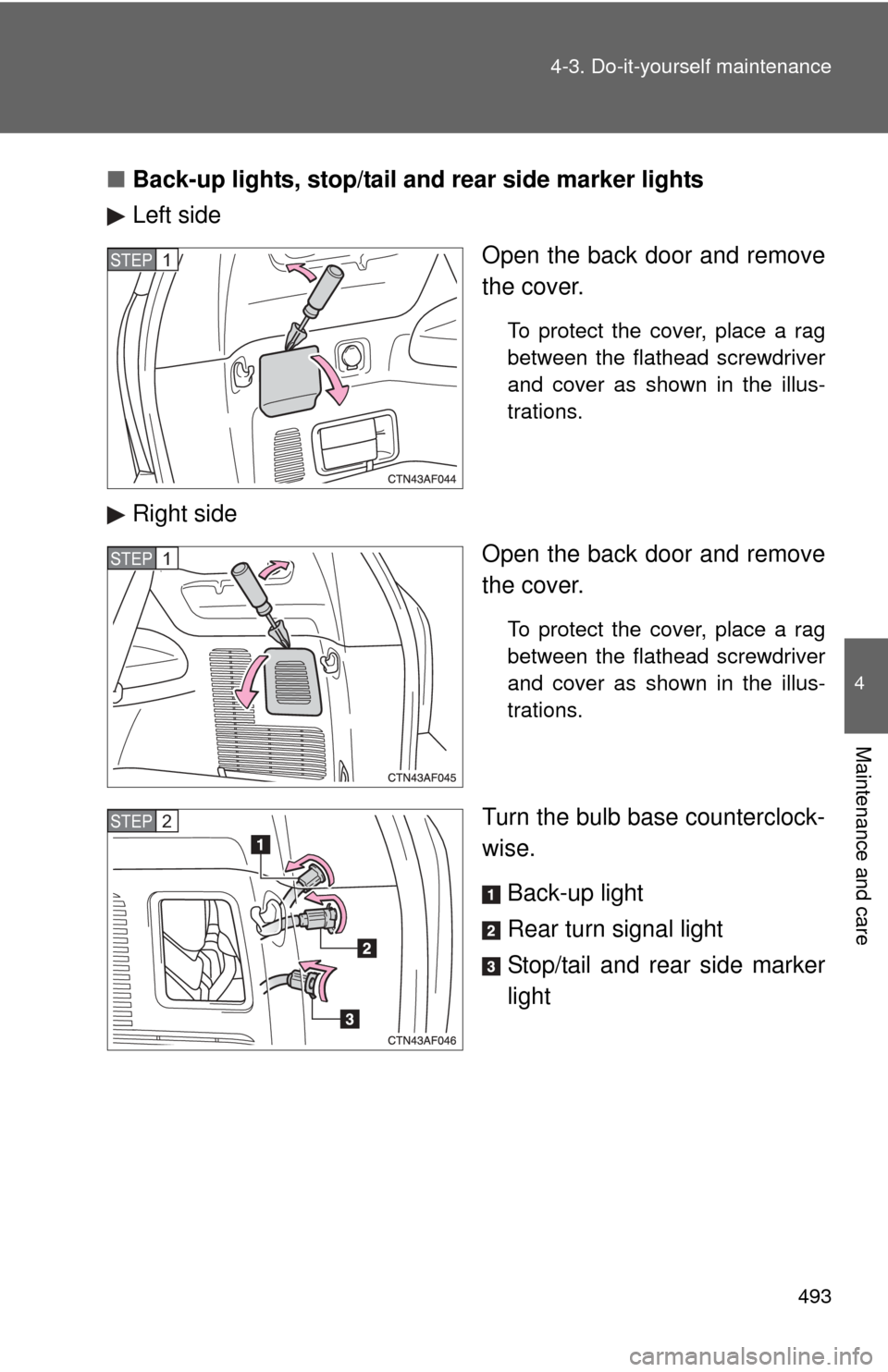

Back-up lights, stop/tail and rear side marker lights
Left side
Open the back door and remove
the cover.
To protect the cover, place a rag
between the flathead screwdriver
and cover as shown in the illus-
trations.
Right sideOpen the back door and remove
the cover.
To protect the cover, place a rag
between the flathead screwdriver
and cover as shown in the illus-
trations.
Turn the bulb base counterclock-
wise.
Back-up light
Rear turn signal light
Stop/tail and rear side marker
light
STEP1
STEP1
STEP2

494 4-3. Do-it-yourself maintenance
Remove the light bulb.Back-up light
Rear turn signal light
Stop/tail and rear side marker
light

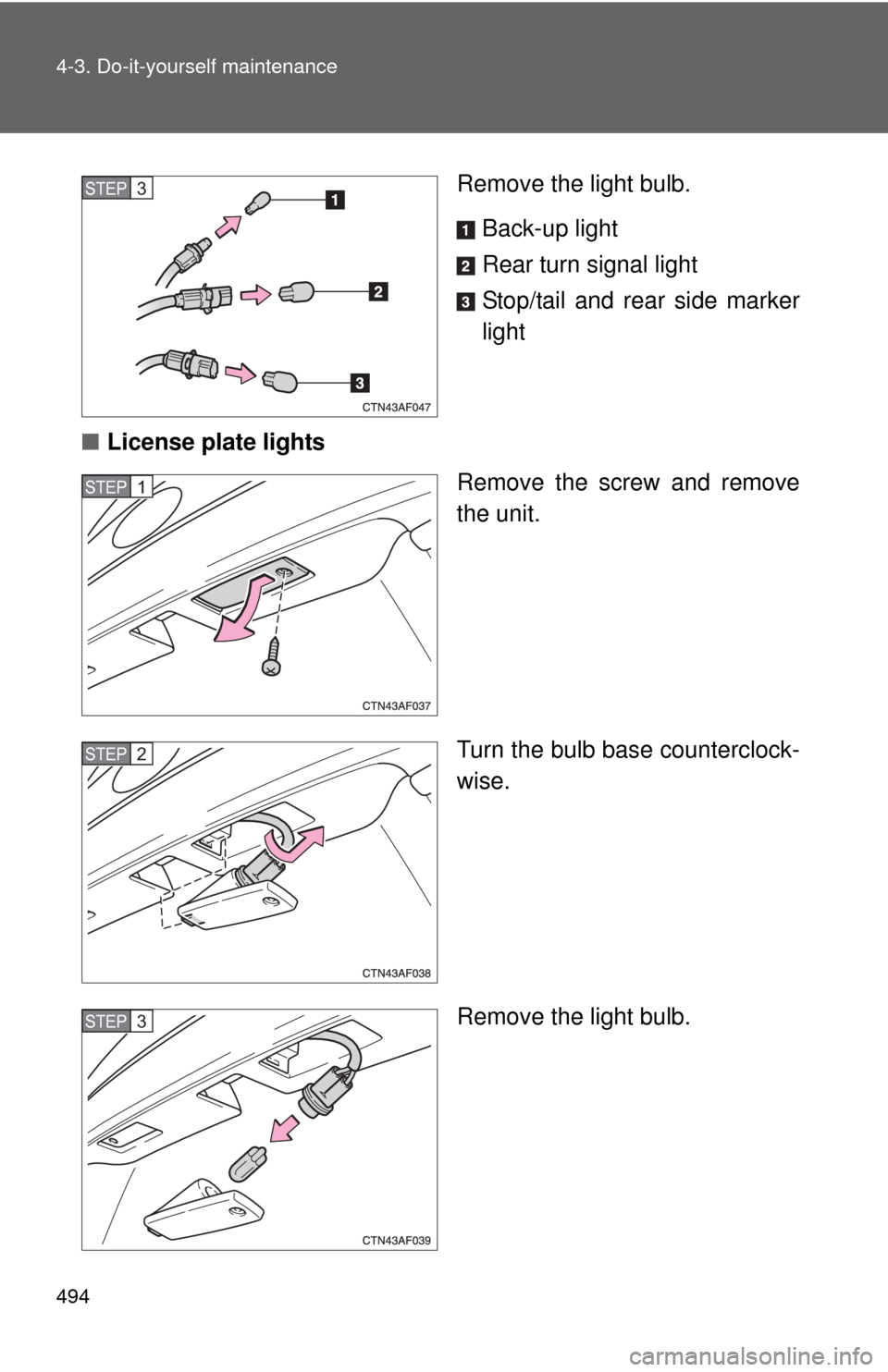

■ License plate lights
Remove the screw and remove
the unit.
Turn the bulb base counterclock-
wise.
Remove the light bulb.STEP3
STEP1
STEP2
STEP3

495
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
High mounted stoplight and outer foot lights
If the high mounted stoplight or outer foot lights has burnt out, have
it replaced by your Toyota dealer.
■Condensation build-up on th e inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED high mounted stoplight
The high mounted stoplight consists of a number of LEDs. If any of the LEDs
burn out, take your vehicle to your Toyota dealer to have the light replaced.

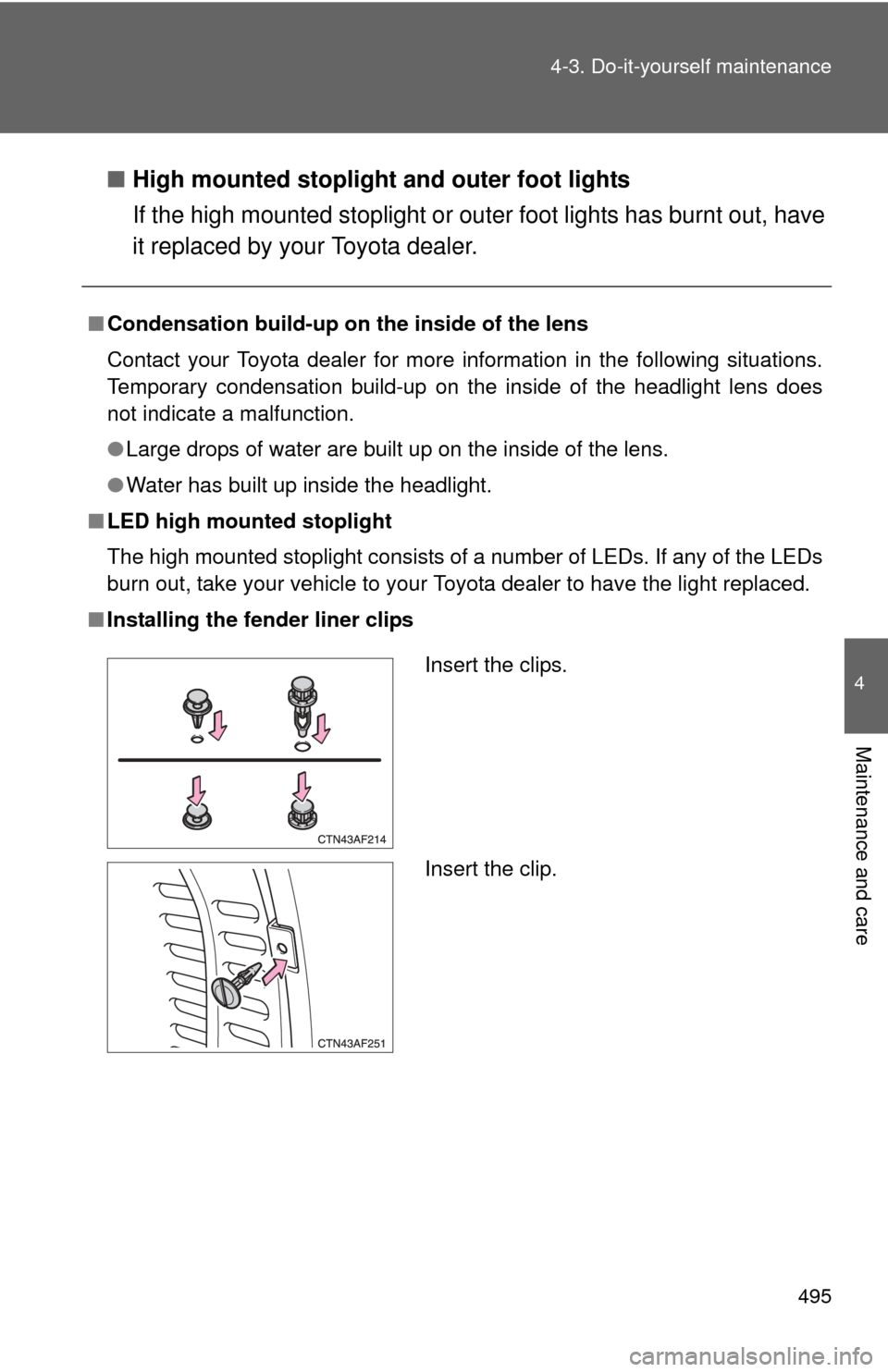

■ Installing the fender liner clips
Insert the clips.
Insert the clip.

496 4-3. Do-it-yourself maintenance
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

When trouble arises5

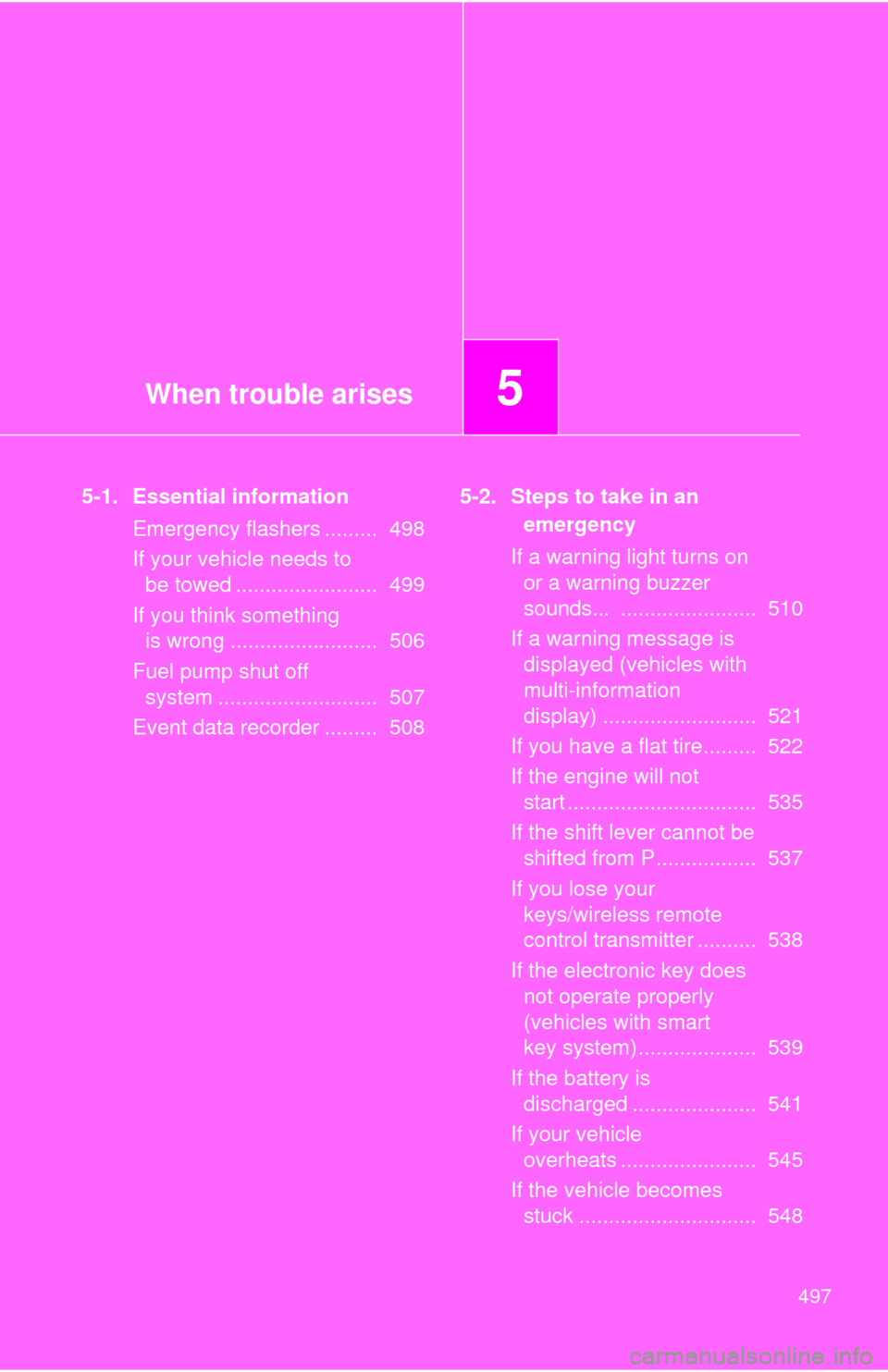

497
5-1. Essential informationEmergency flashers ......... 498
If your vehicle needs to be towed ........................ 499
If you think something is wrong ......................... 506
Fuel pump shut off system ........................... 507
Event data recorder ......... 508 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds... ....................... 510
If a warning message is displayed (vehicles with
multi-information
display) .......................... 521
If you have a flat tire......... 522
If the engine will not start ................................ 535
If the shift lever cannot be shifted from P................. 537
If you lose your keys/wireless remote
control transmitter .......... 538
If the electronic key does not operate properly
(vehicles with smart
key system).................... 539
If the battery is discharged ..................... 541
If your vehicle overheats ....................... 545
If the vehicle becomes stuck .............................. 548

498
5-1. Essential information

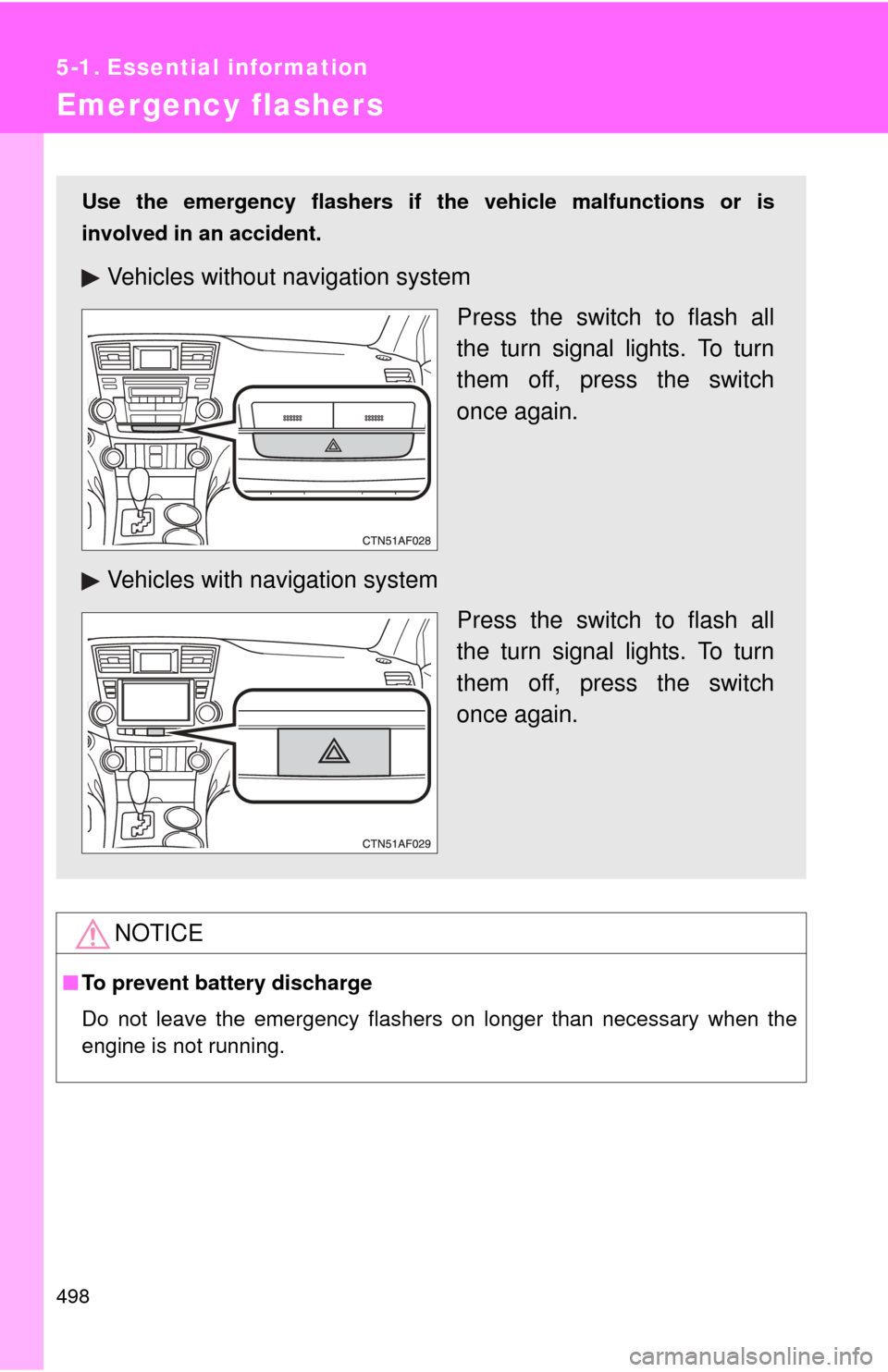

Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if th e vehicle malfunctions or is
involved in an accident.
Vehicles without navigation system
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.
Vehicles with navigation system Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.

5
When trouble arises
499
5-1. Essential information

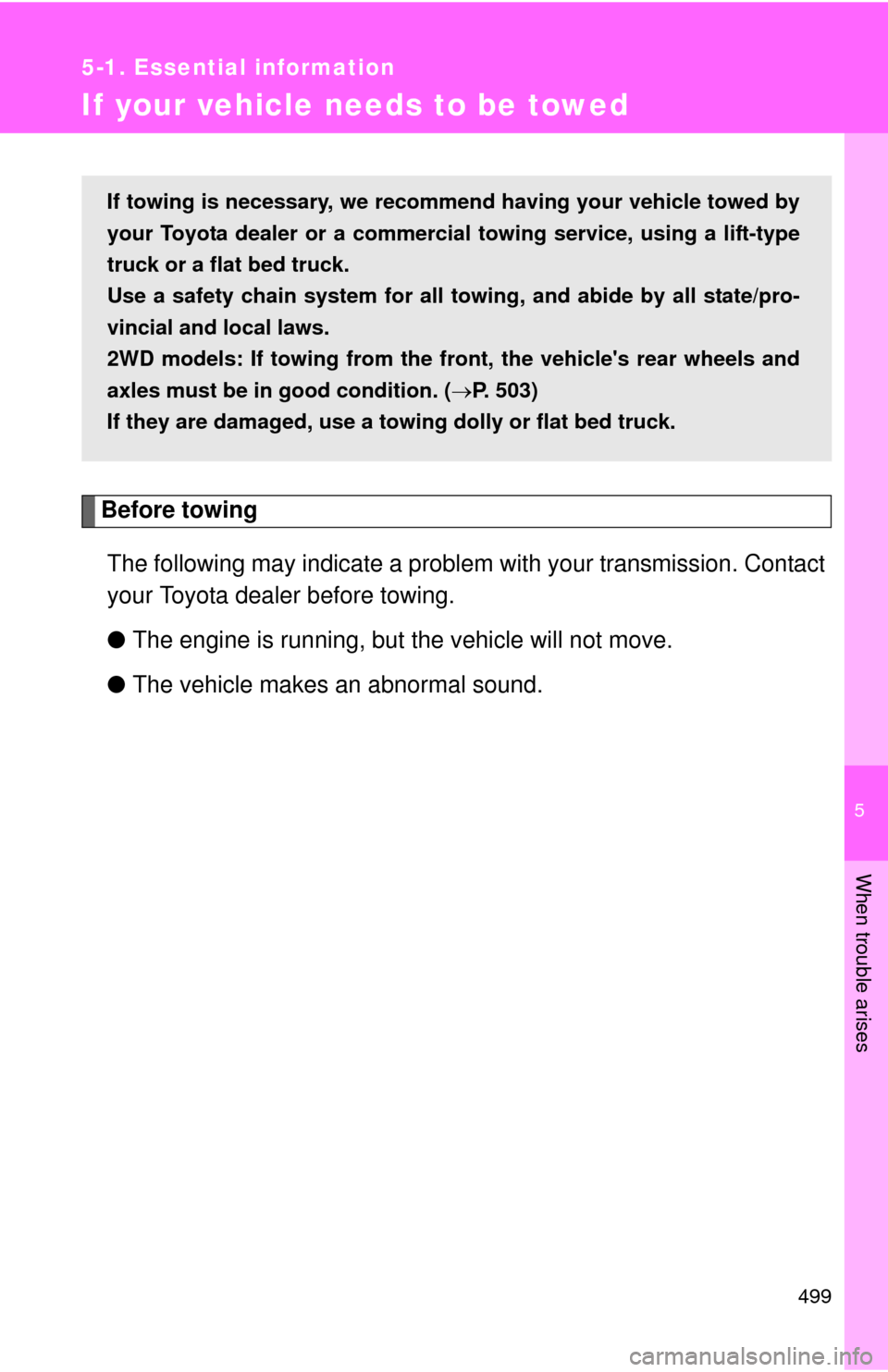

If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Toyota dealer before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle towed by
your Toyota dealer or a commerci al towing service, using a lift-type
truck or a flat bed truck.
Use a safety chain system for all to wing, and abide by all state/pro-
vincial and local laws.
2WD models: If towing from the fr ont, the vehicle's rear wheels and
axles must be in good condition. (P. 503)
If they are damaged, use a towing dolly or flat bed truck.

500 5-1. Essential information
Emergency towingIf a tow truck is not available, in an emergency your vehicle may be
temporarily towed using a cable or chain secured to the emergency
towing eyelet(s). This should only be attempted on hard surfaced
roads for short distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.

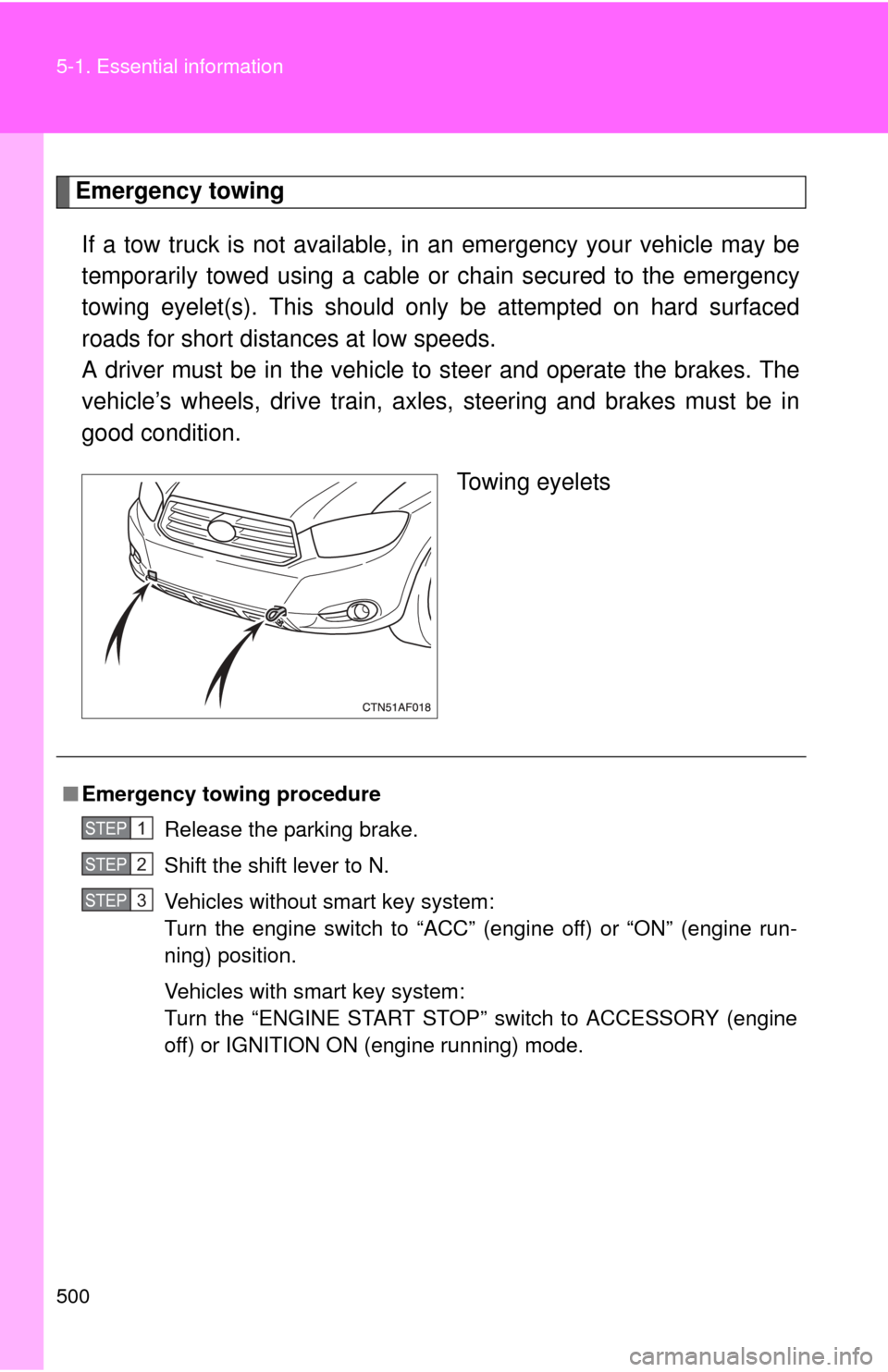

Towing eyelets
■Emergency towin g procedure
Release the parking brake.
Shift the shift lever to N.
Vehicles without smart key system:
Turn the engine switch to “ACC” (engine off) or “ON” (engine run-
ning) position.
Vehicles with smart key system:
Turn the “ENGINE START STOP” switch to ACCESSORY (engine
off) or IGNITION ON (engine running) mode.
STEP1
STEP2
STEP3
