TOYOTA HIGHLANDER 2013 XU50 / 3.G Owners Manual

271
2-5. Driving information
2
When driving

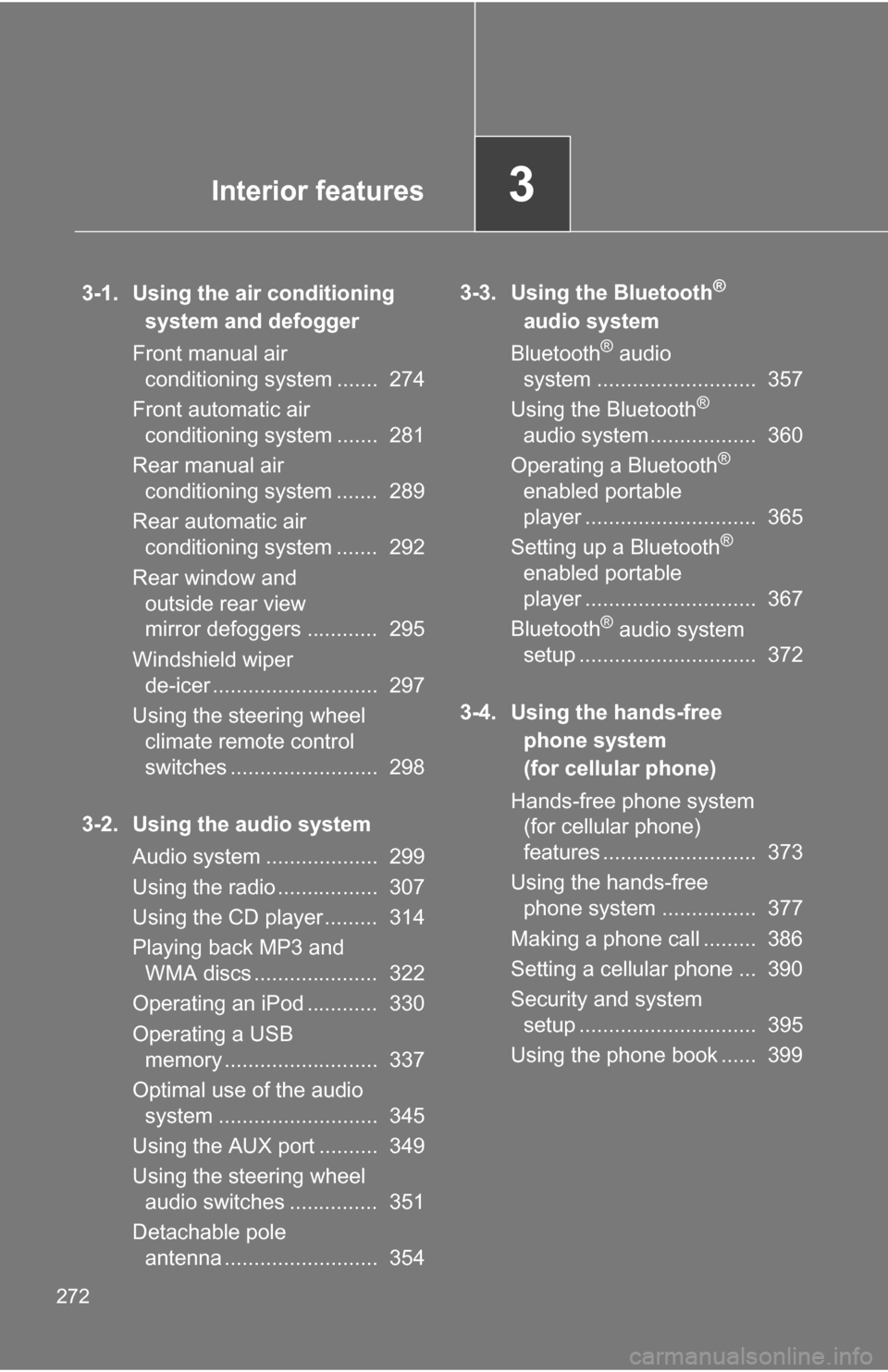

272
3-1. Using the air conditioning system and defogger
Front manual air conditioning system ....... 274
Front automatic air conditioning system ....... 281
Rear manual air conditioning system ....... 289
Rear automatic air conditioning system ....... 292
Rear window and outside rear view
mirror defoggers ............ 295
Windshield wiper de-icer ............................ 297
Using the steering wheel climate remote control
switches ......................... 298
3-2. Using the audio system Audio system ................... 299
Using the radio ................. 307
Using the CD player ......... 314
Playing back MP3 and WMA discs ..................... 322
Operating an iPod ............ 330
Operating a USB memory .......................... 337
Optimal use of the audio system ........................... 345
Using the AUX port .......... 349
Using the steering wheel audio switches ............... 351
Detachable pole antenna .......................... 354 3-3. Using the Bluetooth®
audio system
Bluetooth
® audio
system ........................... 357
Using the Bluetooth
®
audio system.................. 360
Operating a Bluetooth
®
enabled portable
player ............................. 365
Setting up a Bluetooth
®
enabled portable
player ............................. 367
Bluetooth
® audio system
setup .............................. 372
3-4. Using the hands-free phone system
(for cellular phone)
Hands-free phone system (for cellular phone)
features .......................... 373
Using the hands-free phone system ................ 377
Making a phone call ......... 386
Setting a cellular phone ... 390
Security and system setup .............................. 395
Using the phone book ...... 399
Interior features3

Interior features3

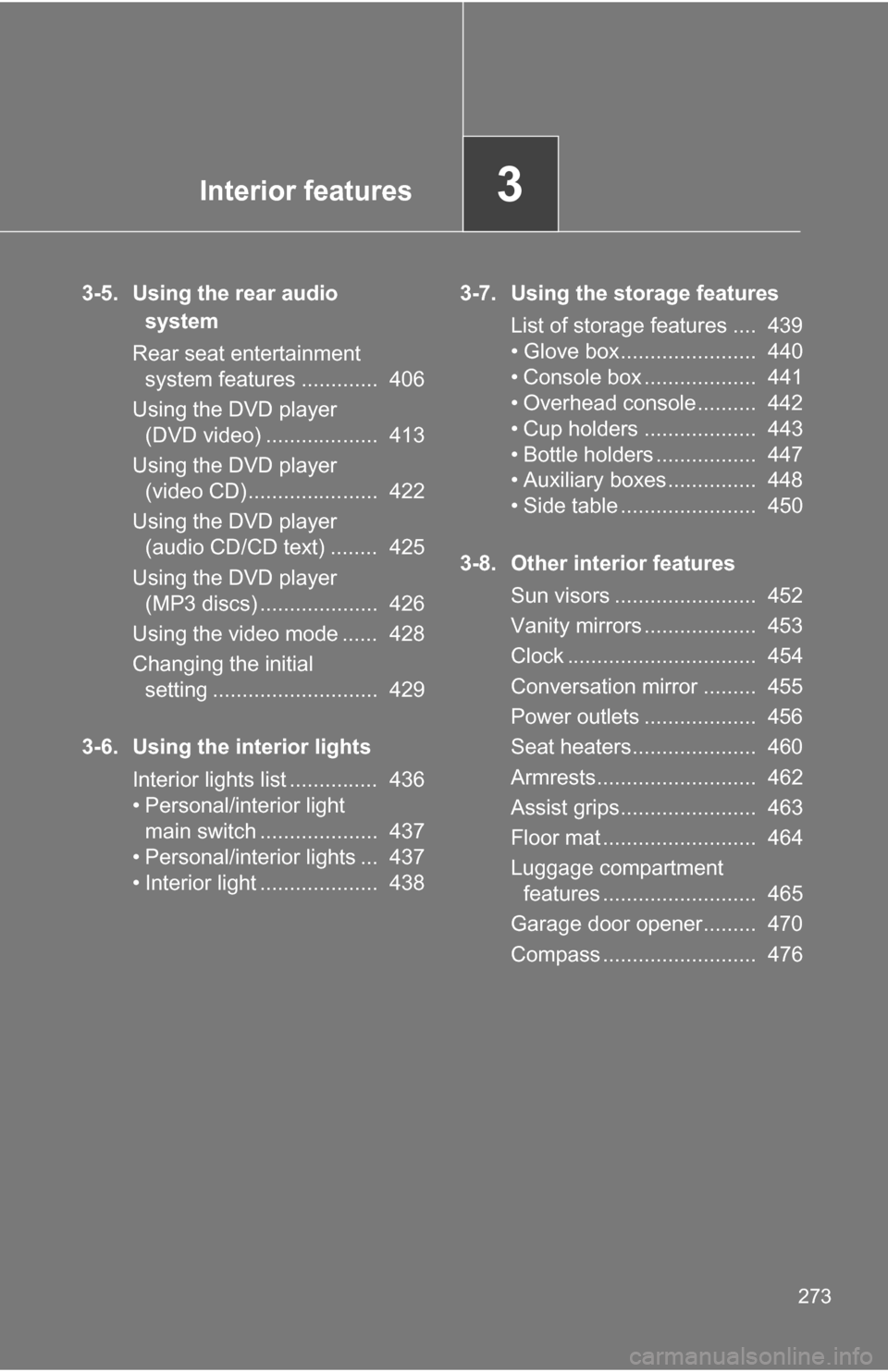

273
3-5. Using the rear audio system
Rear seat entertainment system features ............. 406
Using the DVD player (DVD video) ................... 413
Using the DVD player (video CD)...................... 422
Using the DVD player (audio CD/CD text) ........ 425
Using the DVD player (MP3 discs) .................... 426
Using the video mode ...... 428
Changing the initial setting ............................ 429
3-6. Using the interior lights Interior lights list ............... 436
• Personal/interior light
main switch .................... 437
• Personal/interior lights ... 437
• Interior light .................... 438 3-7. Using the storage features
List of storage features .... 439
• Glove box....................... 440
• Console box ................... 441
• Overhead console .......... 442
• Cup holders ................... 443
• Bottle holders ................. 447
• Auxiliary boxes ............... 448
• Side table ....................... 450
3-8. Other interior features Sun visors ........................ 452
Vanity mirrors ................... 453
Clock ................................ 454
Conversation mirror ......... 455
Power outlets ................... 456
Seat heaters..................... 460
Armrests........................... 462
Assist grips....................... 463
Floor mat .......................... 464
Luggage compartment features .......................... 465
Garage door opener......... 470
Compass .......................... 476

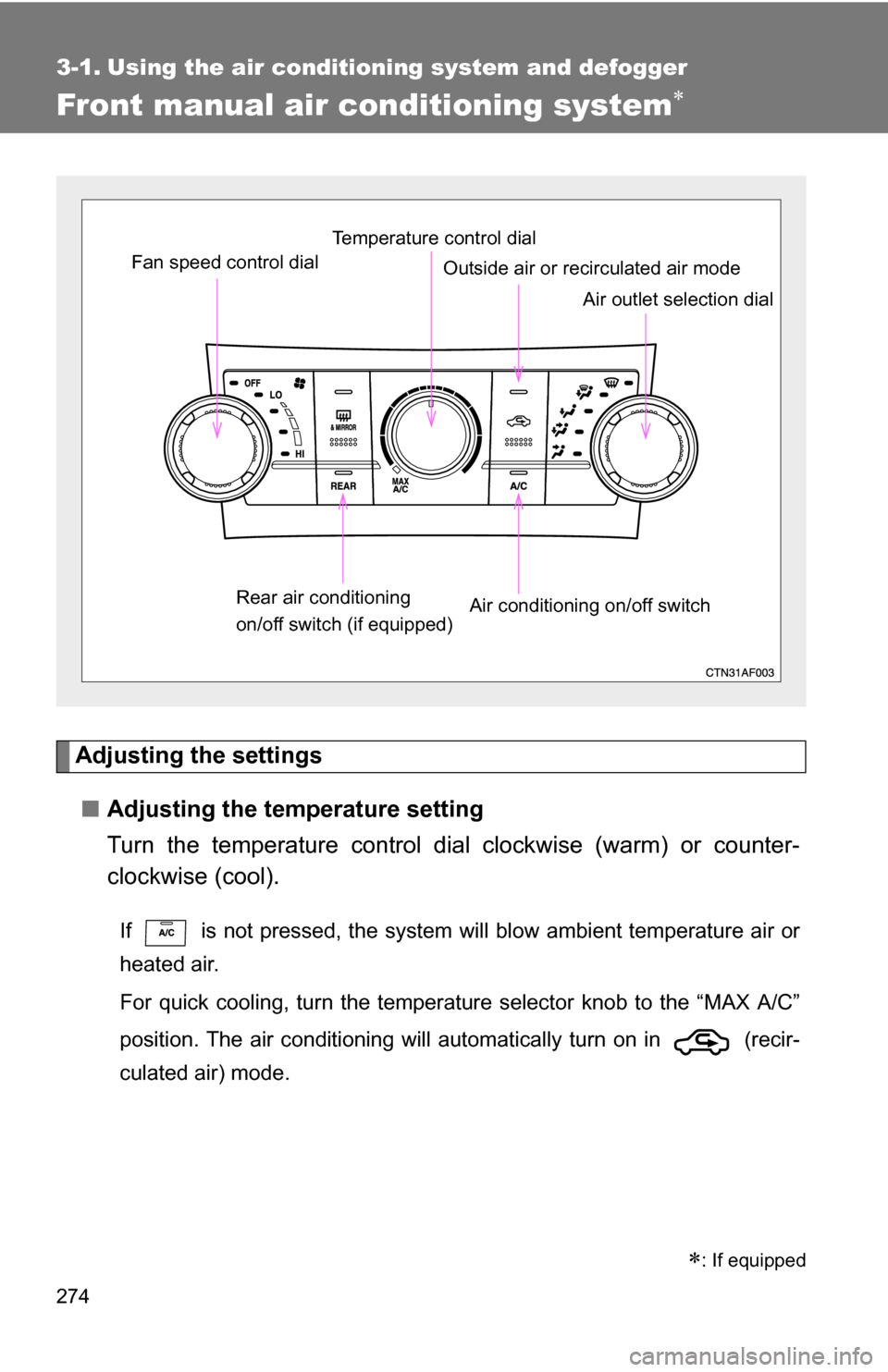

274
3-1. Using the air conditioning system and defogger
Front manual air conditioning system
Adjusting the settings■ Adjusting the temperature setting
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).
If is not pressed, the system will blow ambient temperature air or
heated air.
For quick cooling, turn the temperature selector knob to the “MAX A/C”
position. The air conditioning will automatically turn on in (recir-
culated air) mode.
Fan speed control dial
Air outlet selection dial
Air conditioning on/off switch
Temperature control dial
Outside air or recirculated air mode
Rear air conditioning
on/off switch (if equipped)
: If equipped

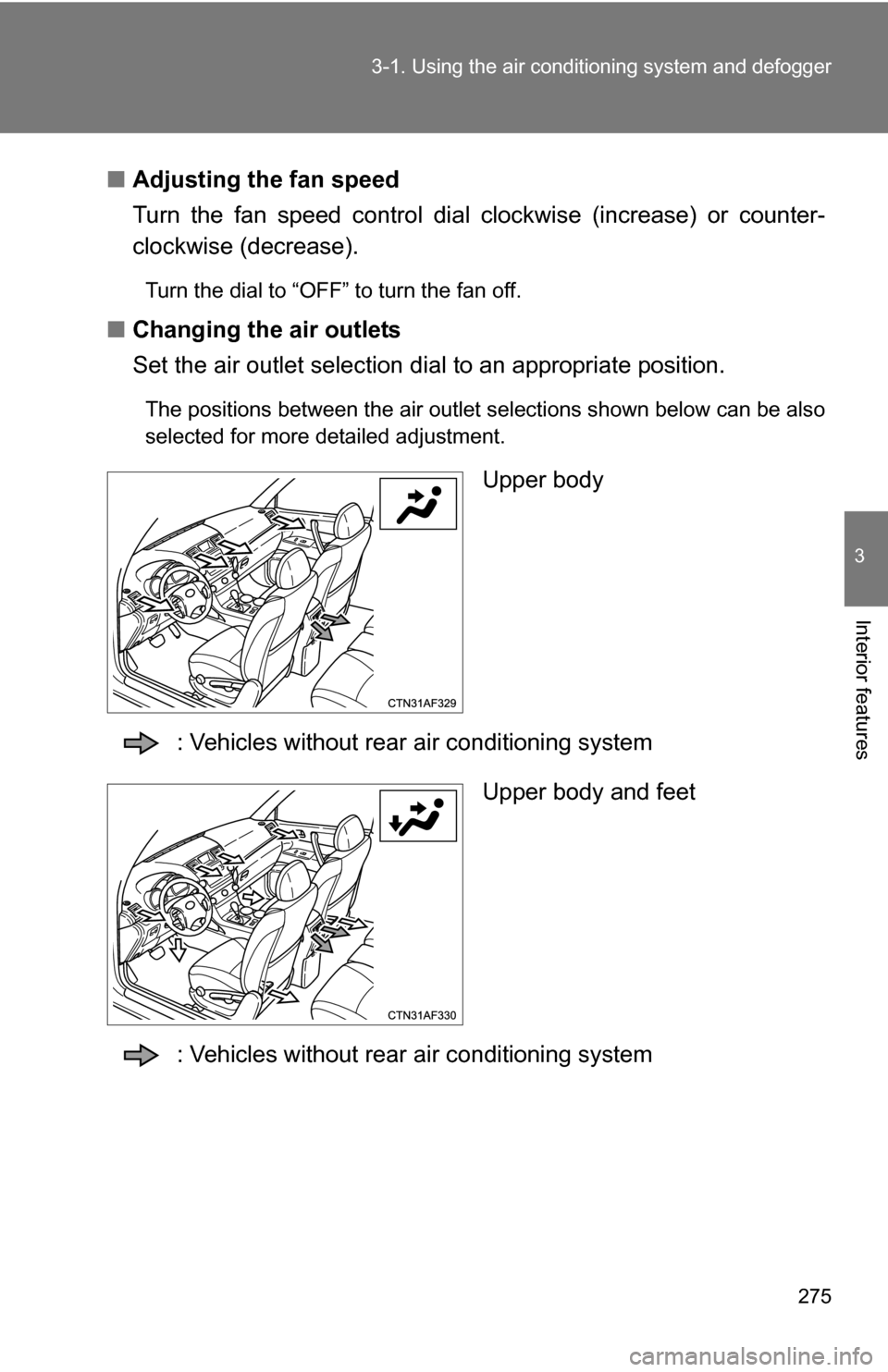

275
3-1. Using the air conditioning system
and defogger
3
Interior features
■Adjusting the fan speed
Turn the fan speed control dial clockwise (increase) or counter-
clockwise (decrease).
Turn the dial to “OFF” to turn the fan off.
■ Changing the air outlets
Set the air outlet selection di al to an appropriate position.
The positions between the air outlet selections shown below can be also
selected for more detailed adjustment.
Upper body
: Vehicles without rear air conditioning system Upper body and feet
: Vehicles without rear air conditioning system

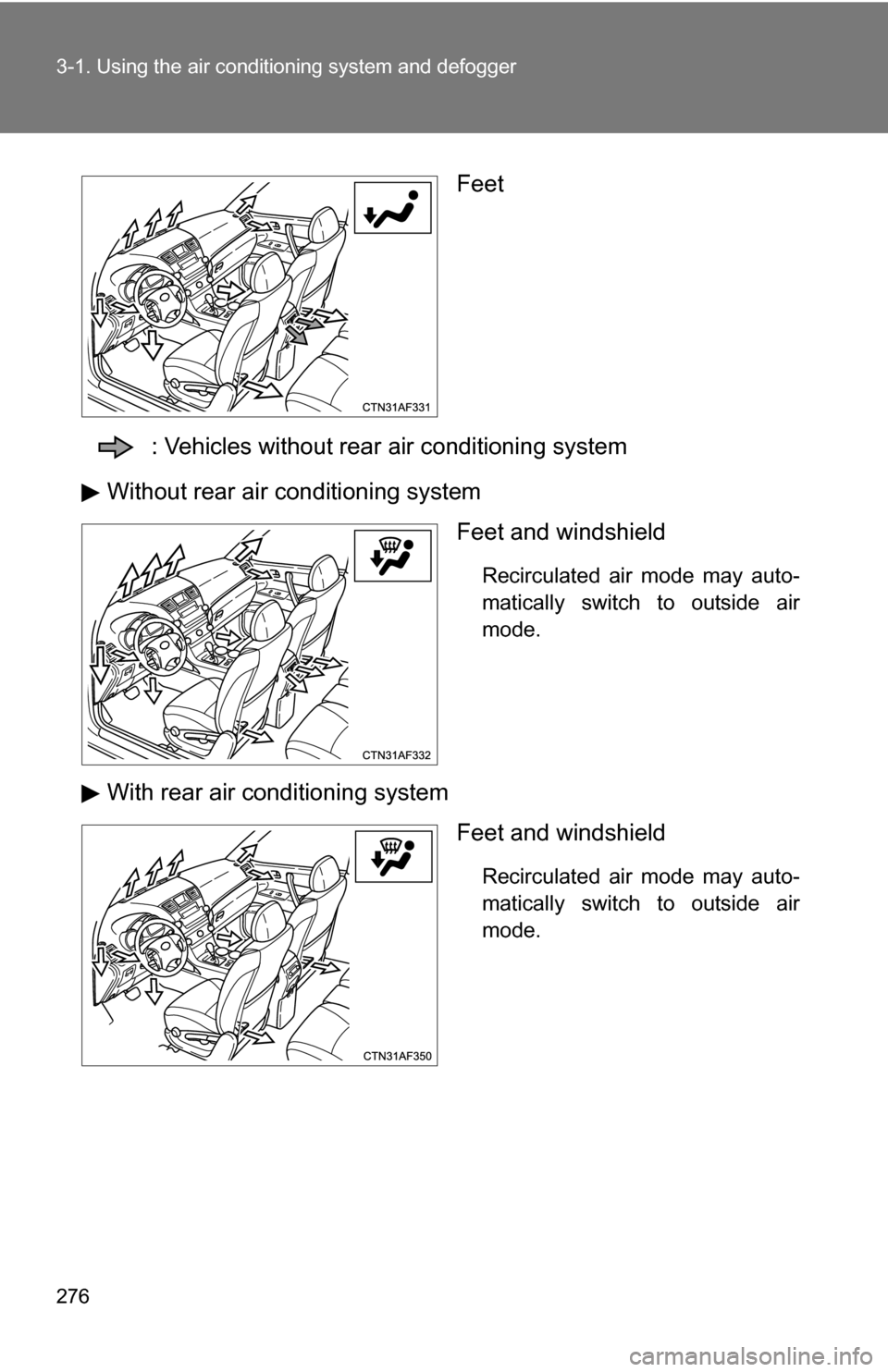

276 3-1. Using the air conditioning system and defogger
Feet
: Vehicles without rear air conditioning system
Without rear air conditioning system Feet and windshield
Recirculated air mode may auto-
matically switch to outside air
mode.
With rear air conditioning systemFeet and windshield
Recirculated air mode may auto-
matically switch to outside air
mode.

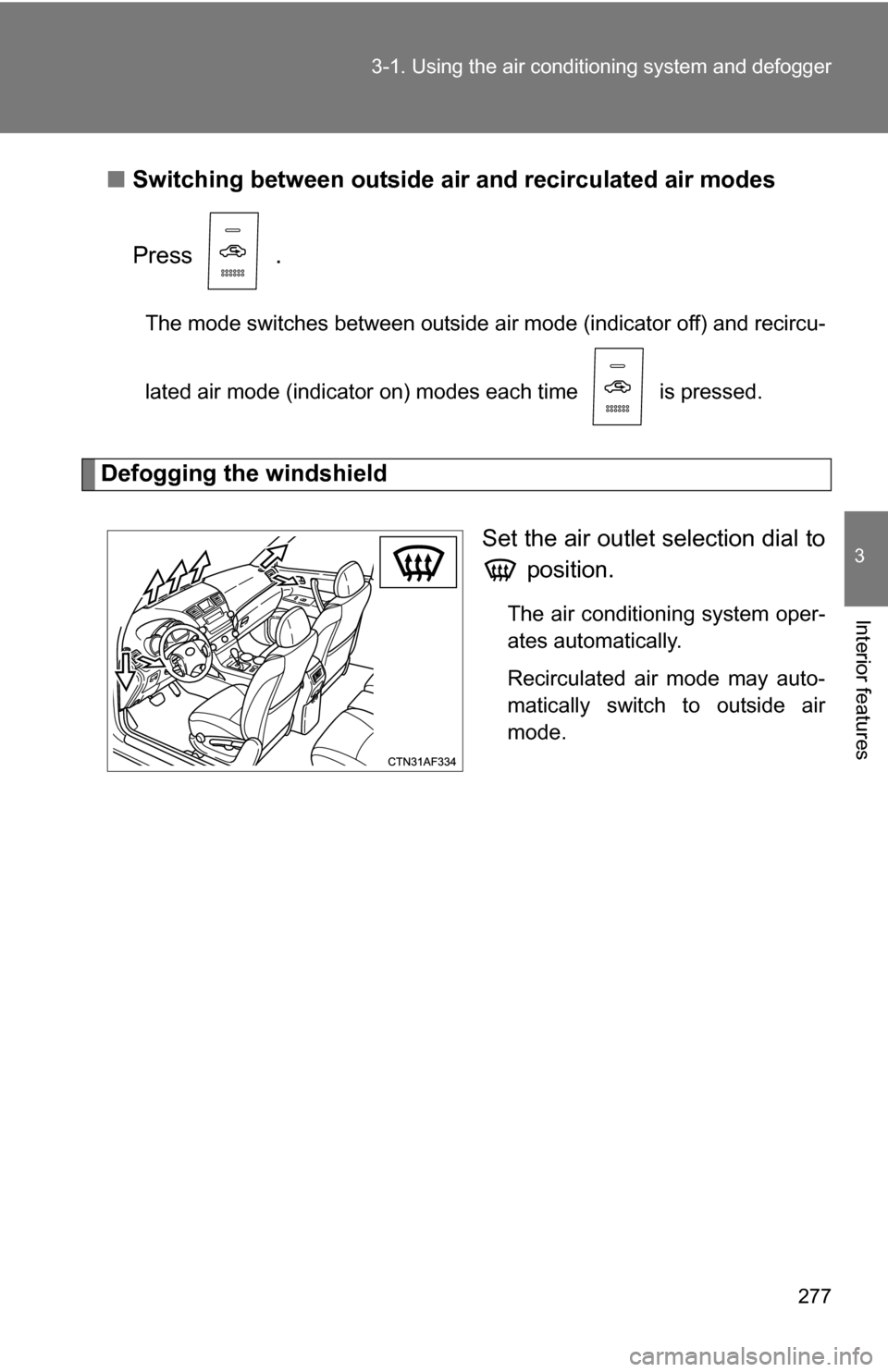

277
3-1. Using the air conditioning system
and defogger
3
Interior features
■Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) modes each time is pressed.
Defogging the windshield
Set the air outlet selection dial to position.
The air conditioning system oper-
ates automatically.
Recirculated air mode may auto-
matically switch to outside air
mode.

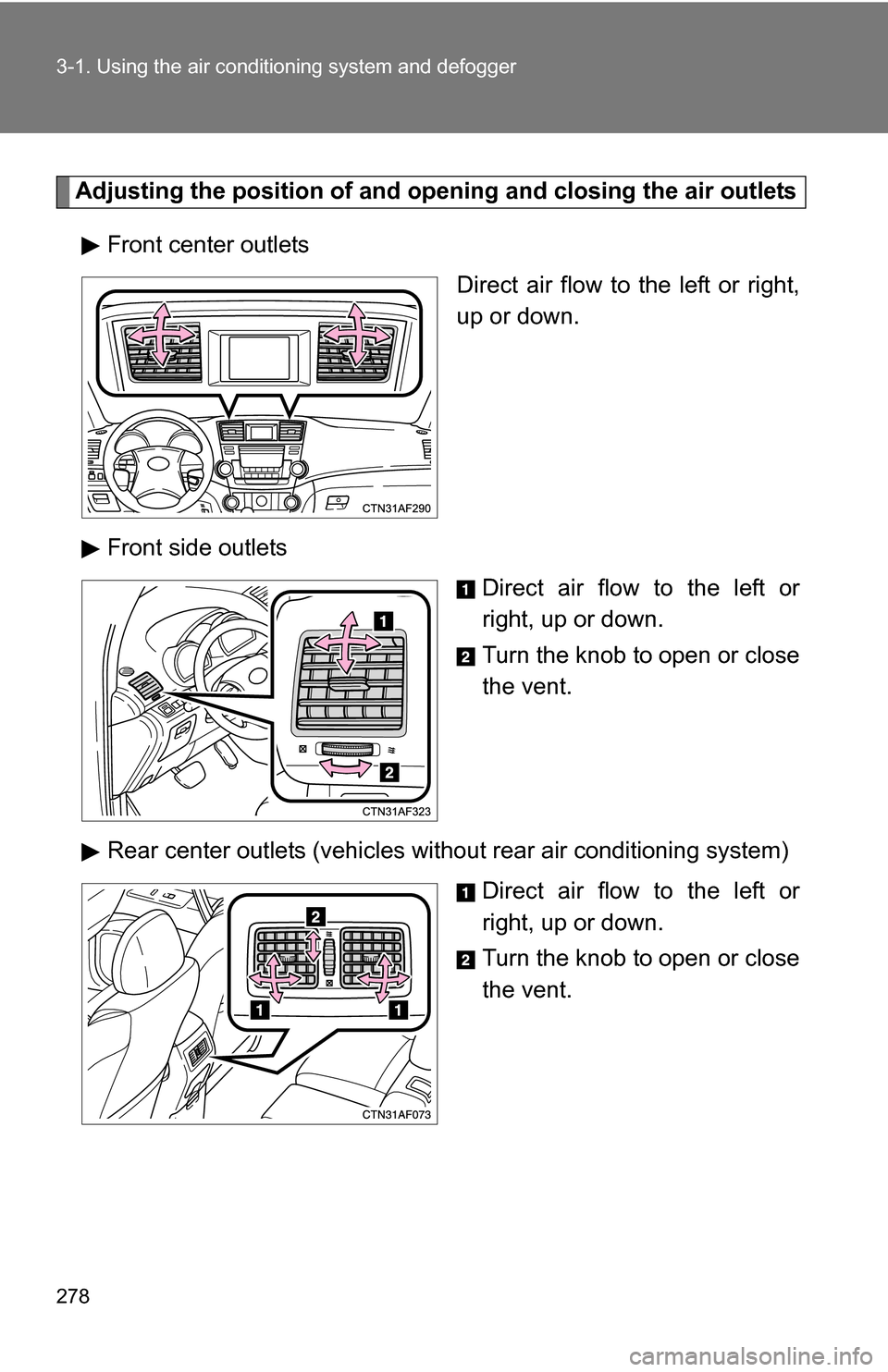

278 3-1. Using the air conditioning system and defogger
Adjusting the position of and opening and closing the air outlets
Front center outlets Direct air flow to the left or right,
up or down.
Front side outlets Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
Rear center outlets (vehicles without rear air conditioning system) Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.

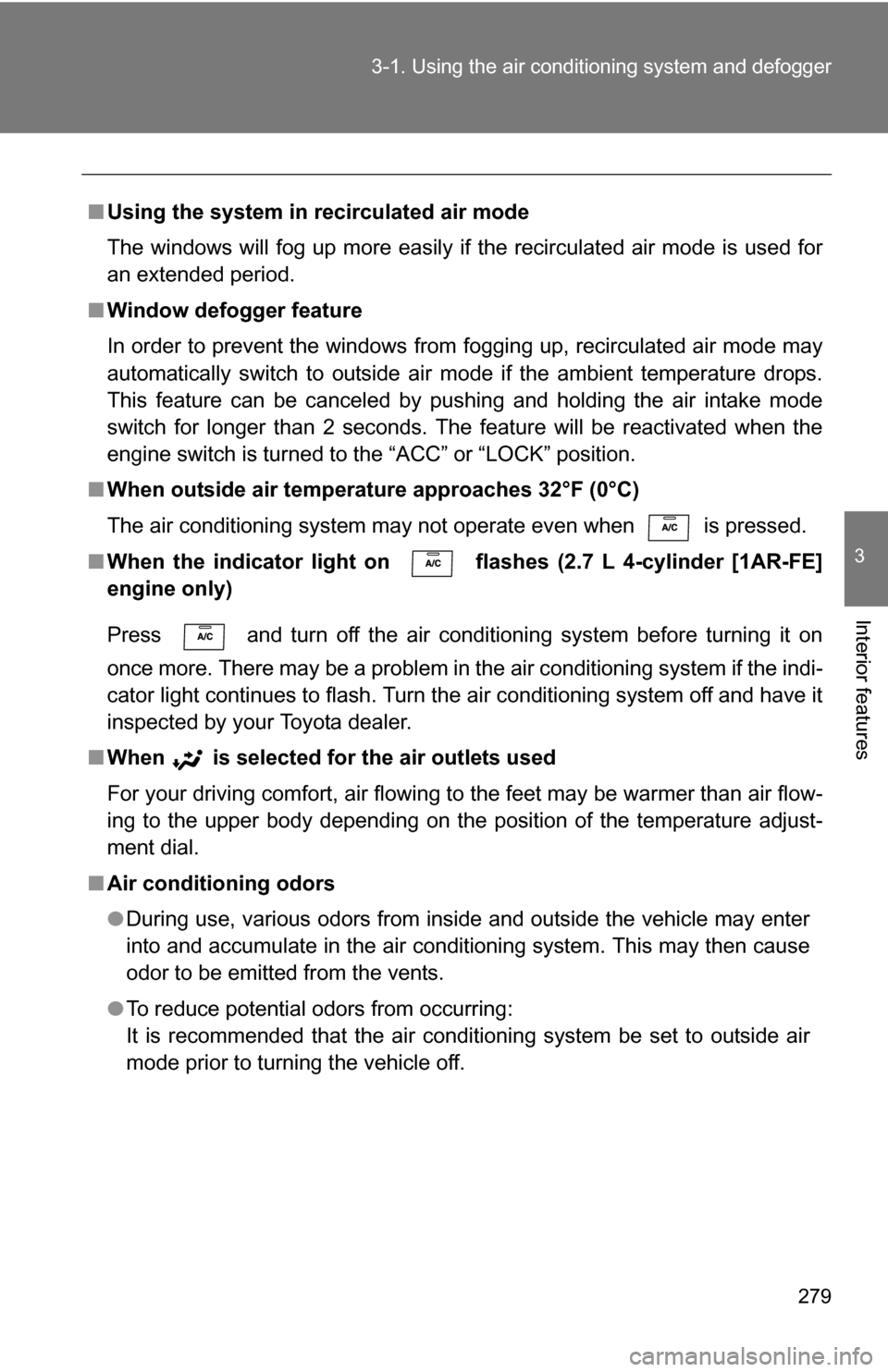

279
3-1. Using the air conditioning system
and defogger
3
Interior features
■Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■ Window defogger feature
In order to prevent the windows from fogging up, recirculated air mode may
automatically switch to outside air mode if the ambient temperature drops.
This feature can be canceled by pushing and holding the air intake mode
switch for longer than 2 seconds. The feature will be reactivated when the
engine switch is turned to the “ACC” or “LOCK” position.
■ When outside air temperature approaches 32°F (0°C)
The air conditioning system may not operate even when is pressed.
■ When the indicator light on flashes (2.7 L 4-cylinder [1AR-FE]
engine only)
Press
and turn off the air conditioning system before turning it on
once more. There may be a problem in the air conditioning system if the indi-
cator light continues to flash. Turn the air conditioning system off and have it
inspected by your Toyota dealer.
■ When
is selected for the air outlets used
For your driving comfort, air flowing to the feet may be warmer than air flow-
ing to the upper body depending on the position of the temperature adjust-
ment dial.
■ Air conditioning odors
●During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
● To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.

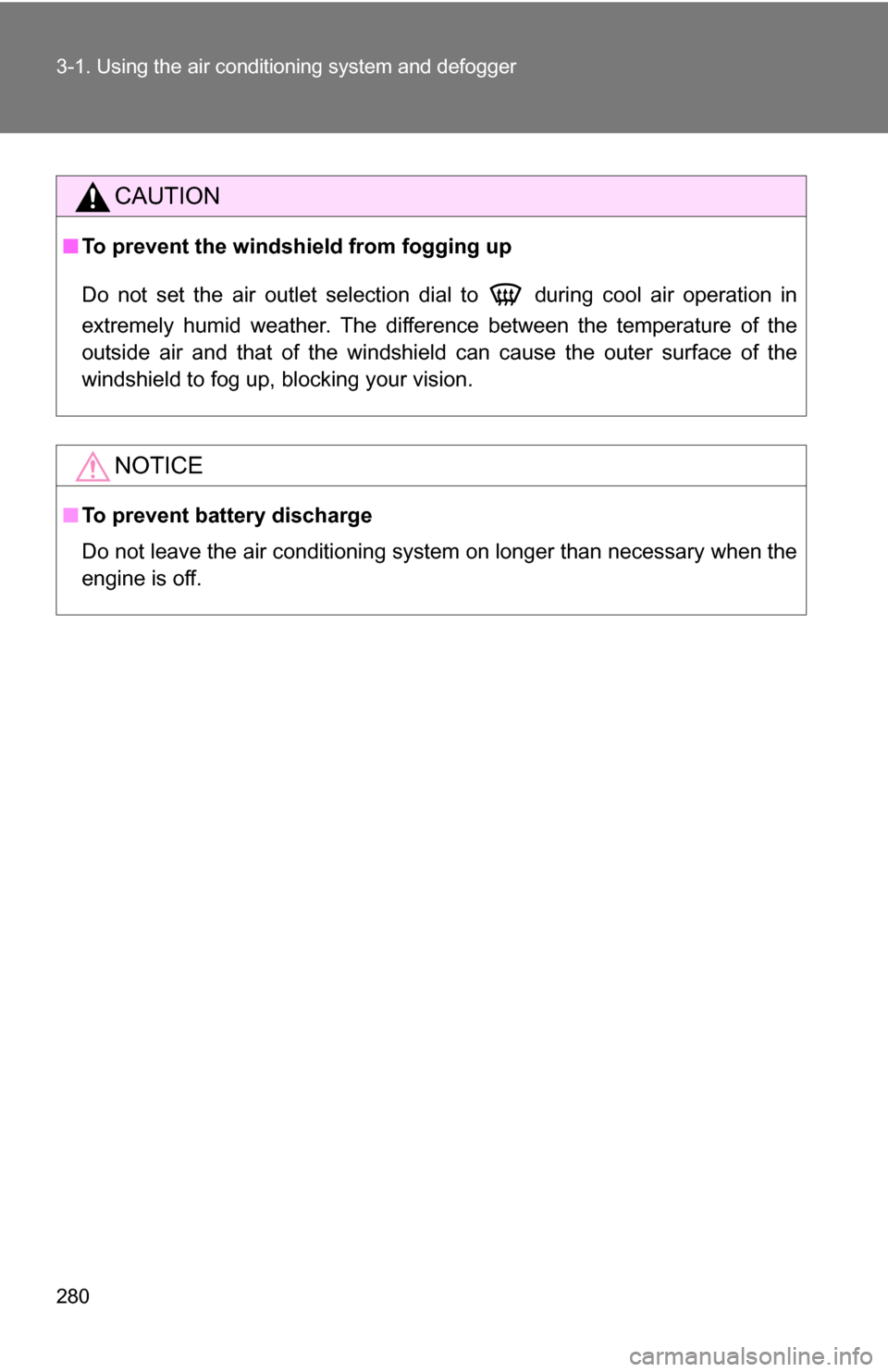

280 3-1. Using the air conditioning system and defogger
CAUTION
■To prevent the windshield from fogging up
Do not set the air outlet selection dial to during cool air operation in
extremely humid weather. The difference between the temperature of the
outside air and that of the windshield can cause the outer surface of the
windshield to fog up, blocking your vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is off.
