TOYOTA HIGHLANDER 2013 XU50 / 3.G Owners Manual

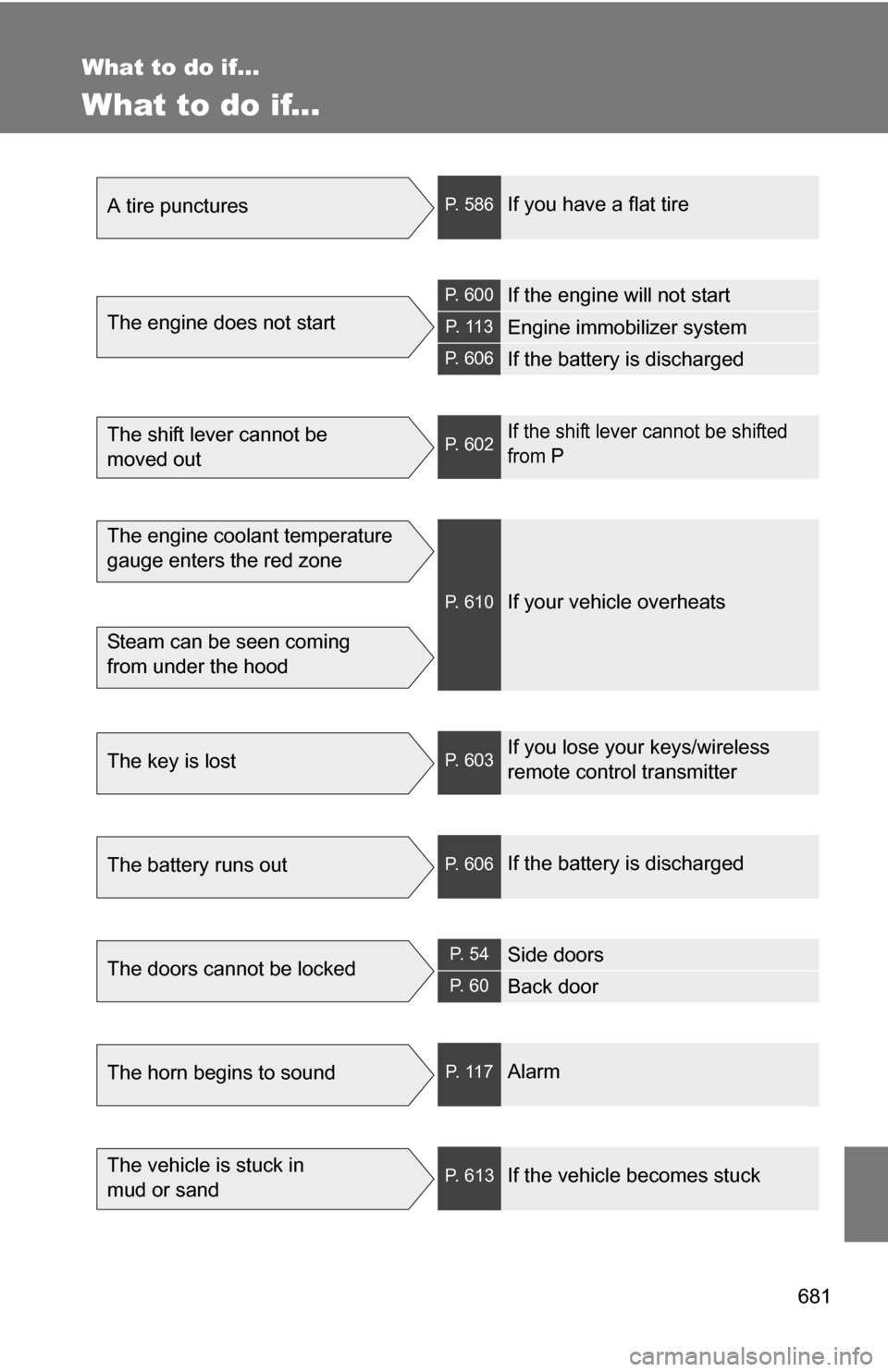

681
What to do if...
What to do if...
A tire puncturesP. 586If you have a flat tire
The engine does not start
P. 600If the engine will not start
P. 1 1 3Engine immobilizer system
P. 606If the battery is discharged
The shift lever cannot be
moved outP. 602If the shift lever cannot be shifted
from P
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 610If your vehicle overheats
The key is lostP. 603If you lose your keys/wireless
remote control transmitter
The battery runs outP. 606If the battery is discharged
The doors cannot be lockedP. 5 4Side doors
P. 6 0Back door
The horn begins to soundP. 1 1 7Alarm
The vehicle is stuck in
mud or sandP. 613If the vehicle becomes stuck

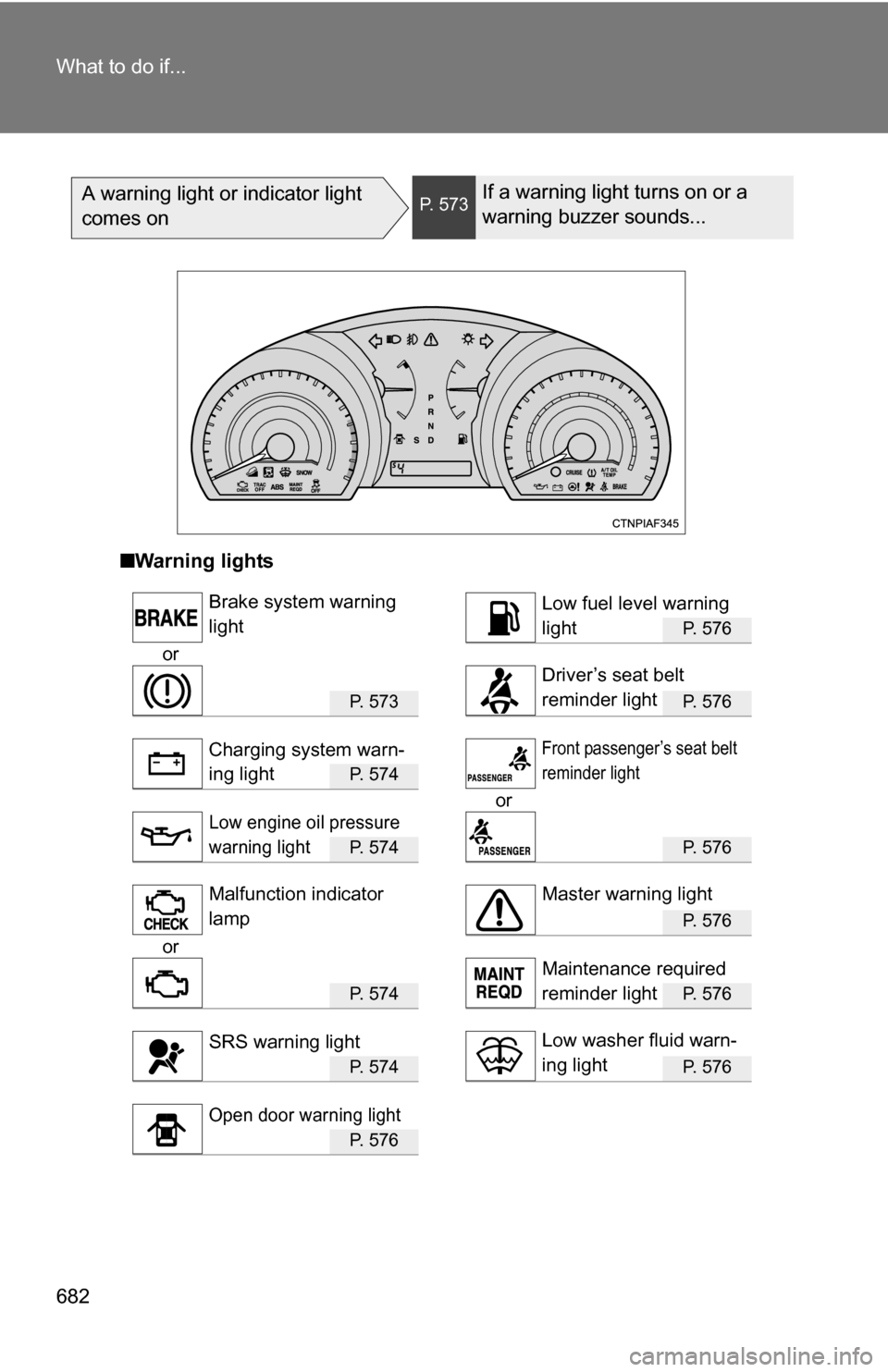

682 What to do if...
A warning light or indicator light
comes onP. 573If a warning light turns on or a
warning buzzer sounds...
■Warning lights
P. 576
or
P. 5 7 3P. 576
P. 5 7 4
or
P. 5 7 4P. 576
P. 576
or
P. 5 7 4P. 576
P. 5 7 4P. 576
P. 5 7 6
Brake system warning
lightLow fuel level warning
light
Driver’s seat belt
reminder light
Charging system warn-
ing lightFront passenger’s seat belt
reminder light
Low engine oil pressure
warning light
Malfunction indicator
lampMaster warning light
Maintenance required
reminder light
SRS warning lightLow washer fluid warn-
ing light
Open door warning light

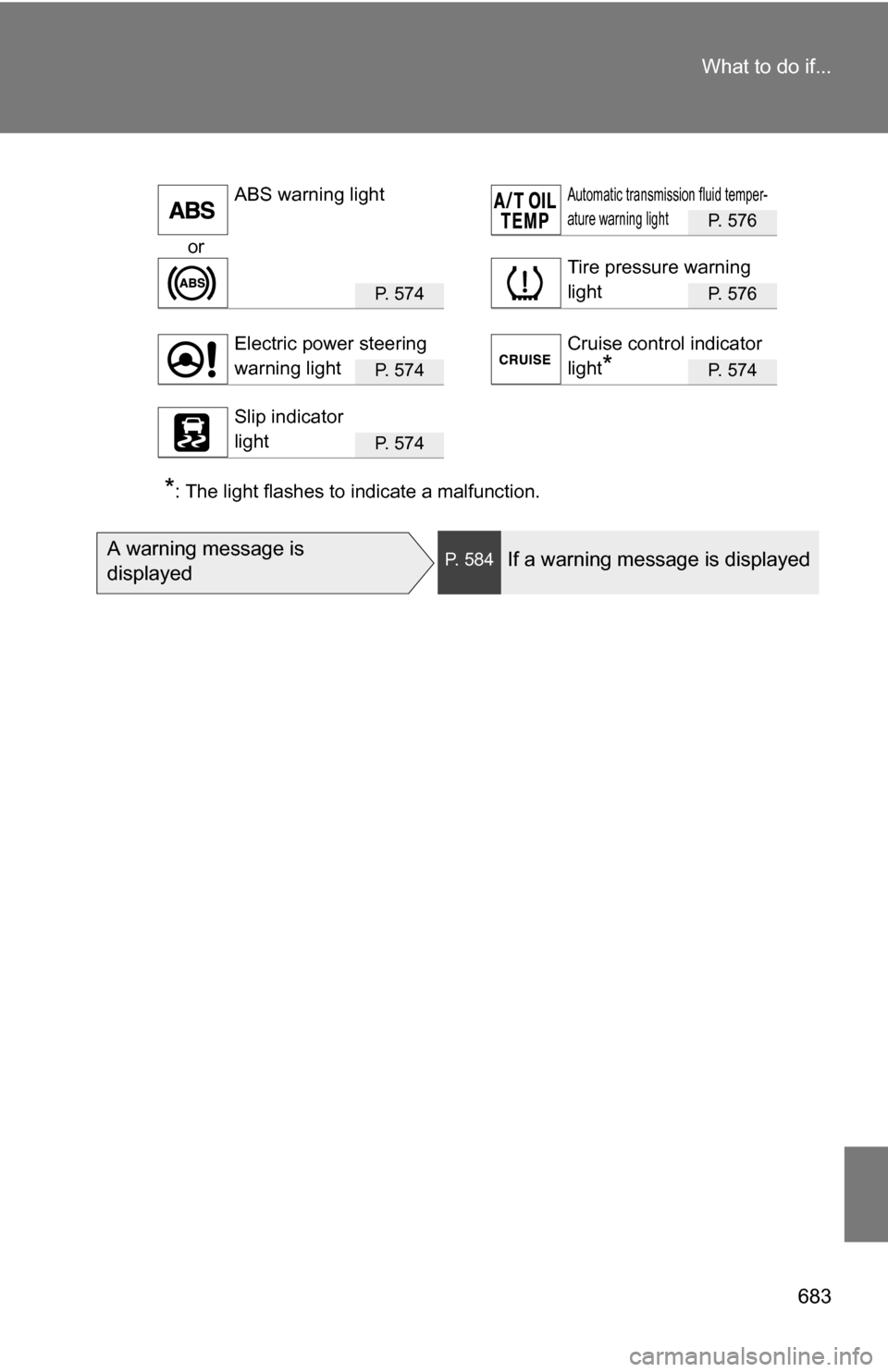

683
What to do if...
P. 576
or
P. 5 7 4P. 576
P. 5 7 4P. 574
P. 5 7 4
*: The light flashes to indicate a malfunction.
ABS warning lightAutomatic transmission fluid temper-
ature warning light
Tire pressure warning
light
Electric power steering
warning lightCruise control indicator
light
*
Slip indicator
light
A warning message is
displayedP. 584If a warning message is displayed

684

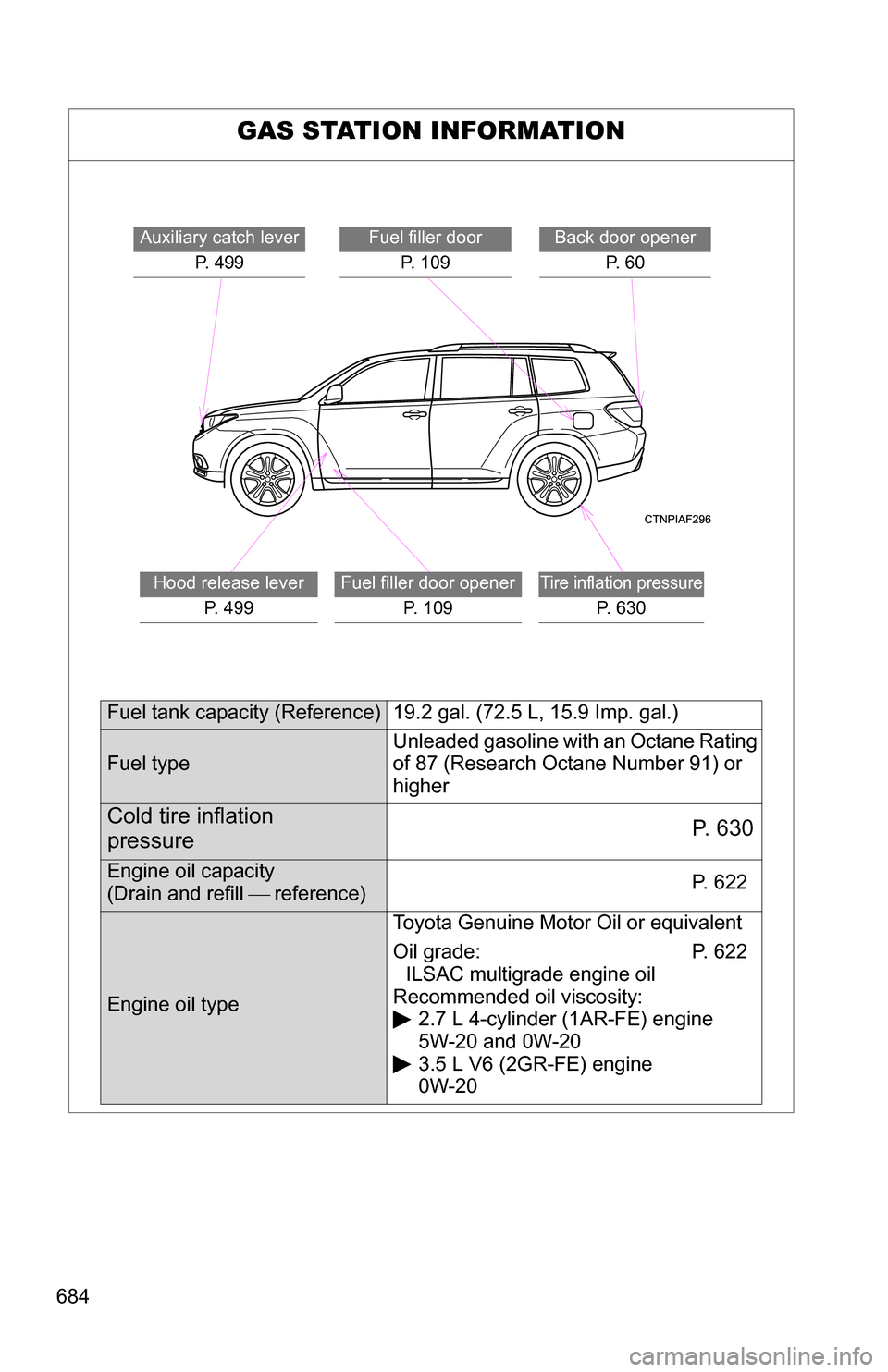

GAS STATION INFORMATION
Auxiliary catch leverP. 499Fuel filler doorP. 109Back door opener P. 6 0
Hood release leverP. 4 9 9Fuel filler door opener P. 1 0 9Tire inflation pressure
P. 630
Fuel tank capacity (Reference) 19. 2 gal. (72.5 L, 15.9 Imp. gal.)
Fuel typeUnleaded gasoline with an Octane Rating
of 87 (Research Octane Number 91) or
higher
Cold tire inflation
pressure
P. 6 3 0
Engine oil capacity
(Drain and refill
reference) P. 622
Engine oil typeToyota Genuine Motor Oil or equivalent
Oil grade: P. 622
ILSAC multigrade engine oil
Recommended oil viscosity: 2.7 L 4-cylinder (1AR-FE) engine
5W-20 and 0W-20
3.5 L V6 (2GR-FE) engine
0W-20
