Page 501 of 684

TOYOTA HIGHLANDER 2013 XU50 / 3.G Owners Manual 501
4-3. Do-it-yourself maintenance
4
Maintenance and care

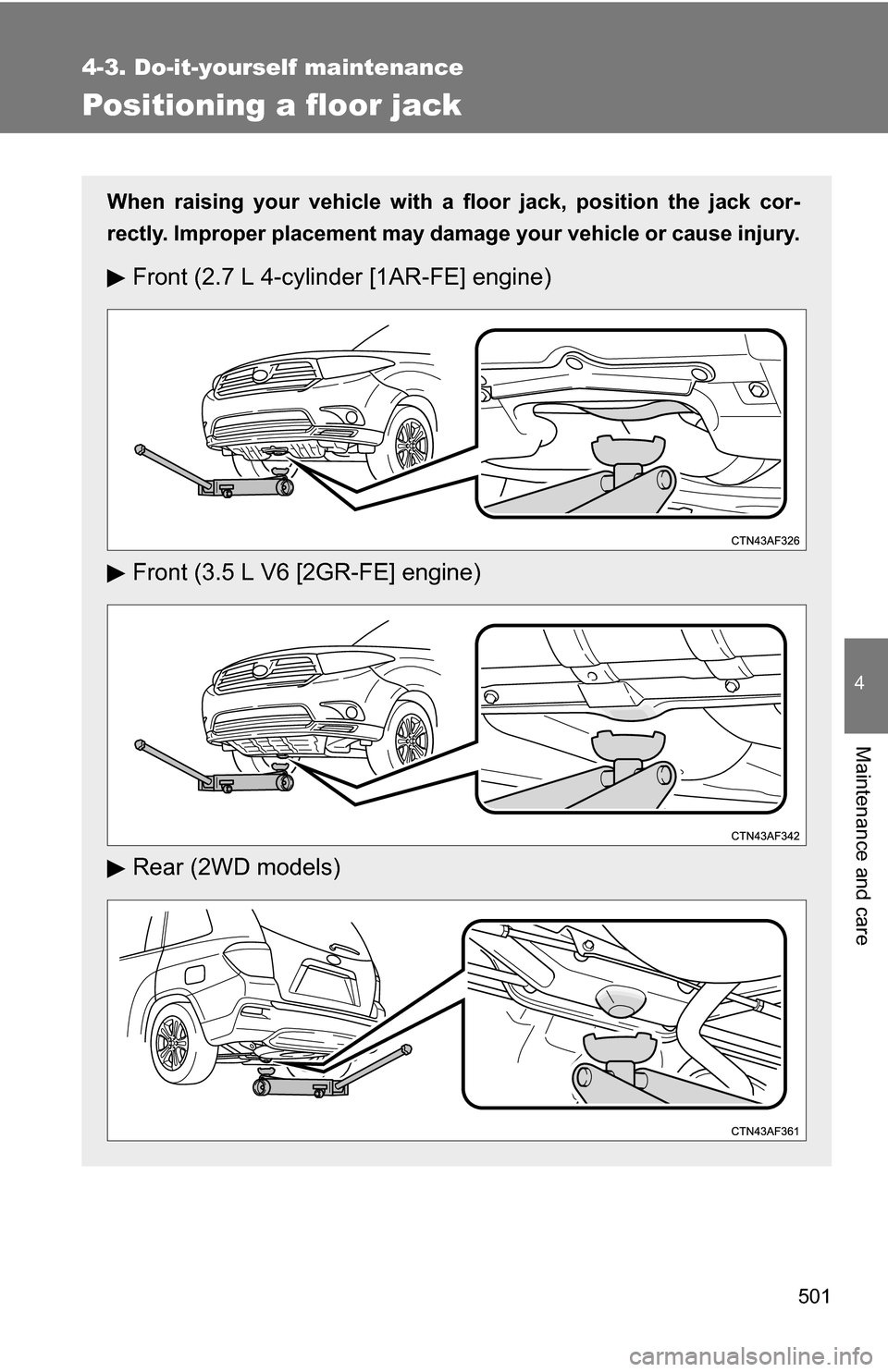

Positioning a floor jack
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehic

Page 502 of 684

TOYOTA HIGHLANDER 2013 XU50 / 3.G Owners Manual 502 4-3. Do-it-yourself maintenance

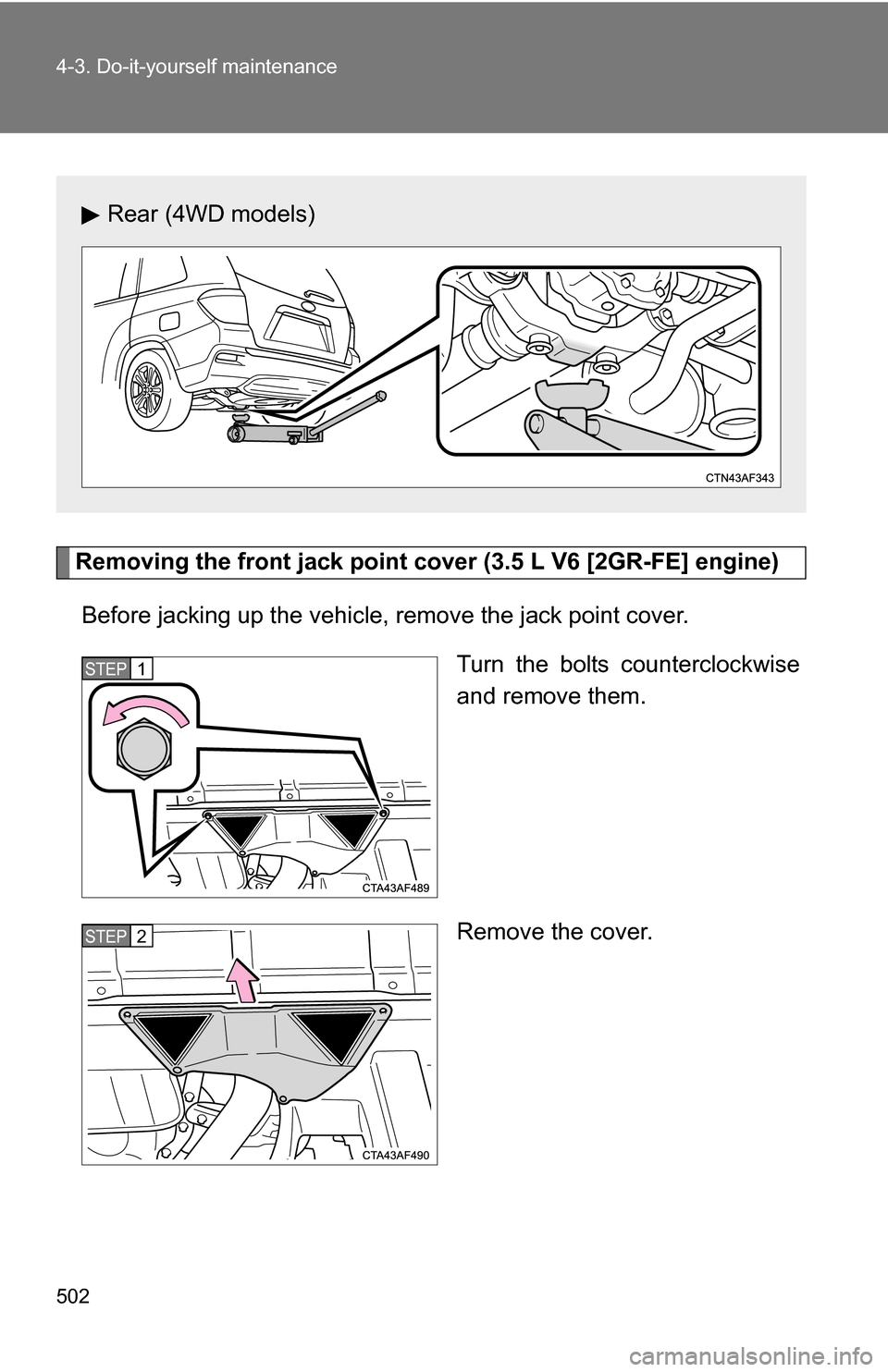

Removing the front jack point cover (3.5 L V6 [2GR-FE] engine)Before jacking up the vehicle,  remove the jack point cover.
Turn the bolts counterclockwise
and remov

Page 503 of 684

TOYOTA HIGHLANDER 2013 XU50 / 3.G Owners Manual 503
4-3. Do-it-yourself maintenance
4
Maintenance and care

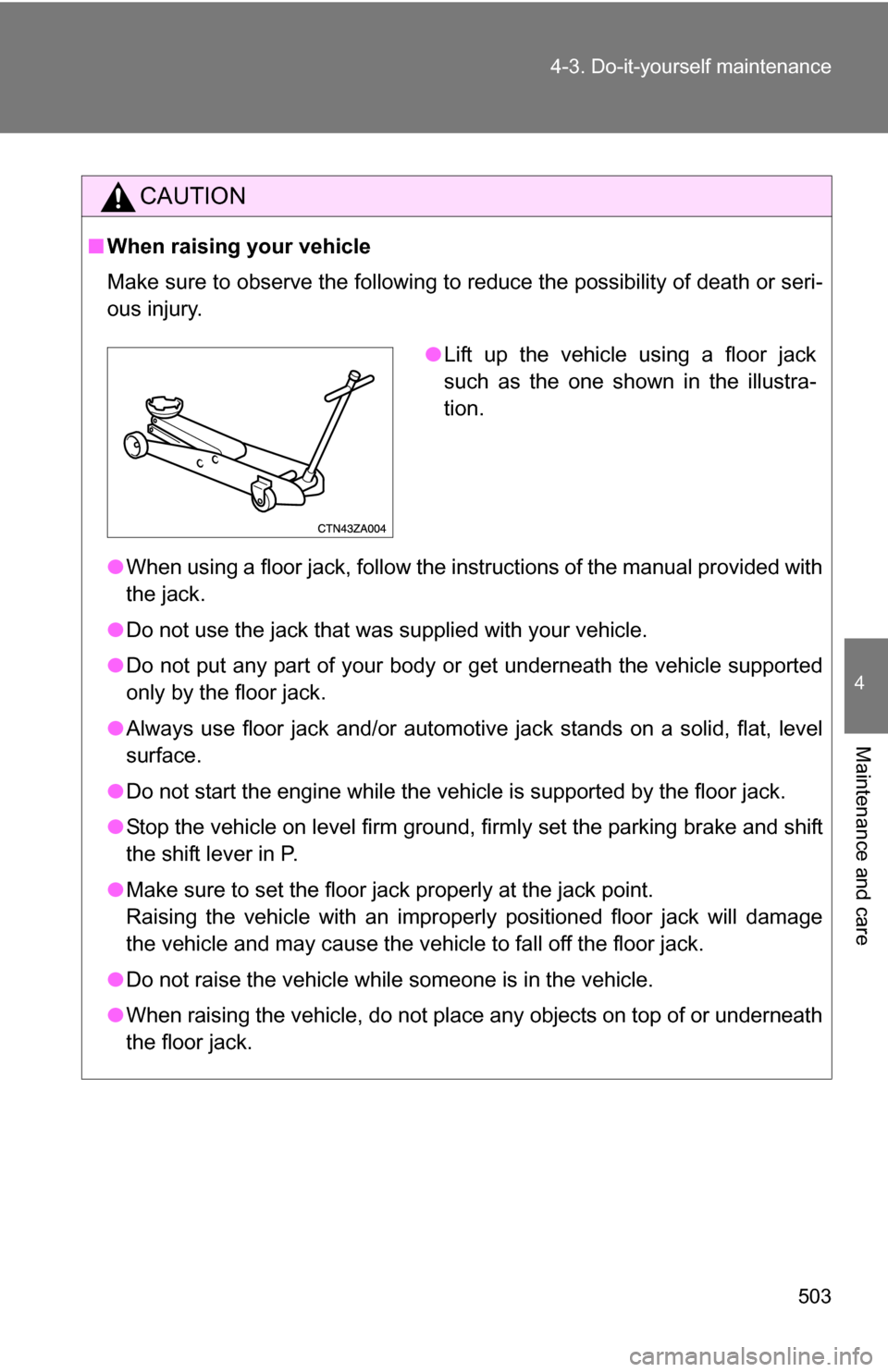

CAUTION
■
When raising your vehicle
Make sure to observe the following to reduce the possibility of death or\
 seri-
ous injury.
●When us

Page 504 of 684

TOYOTA HIGHLANDER 2013 XU50 / 3.G Owners Manual 504 4-3. Do-it-yourself maintenance

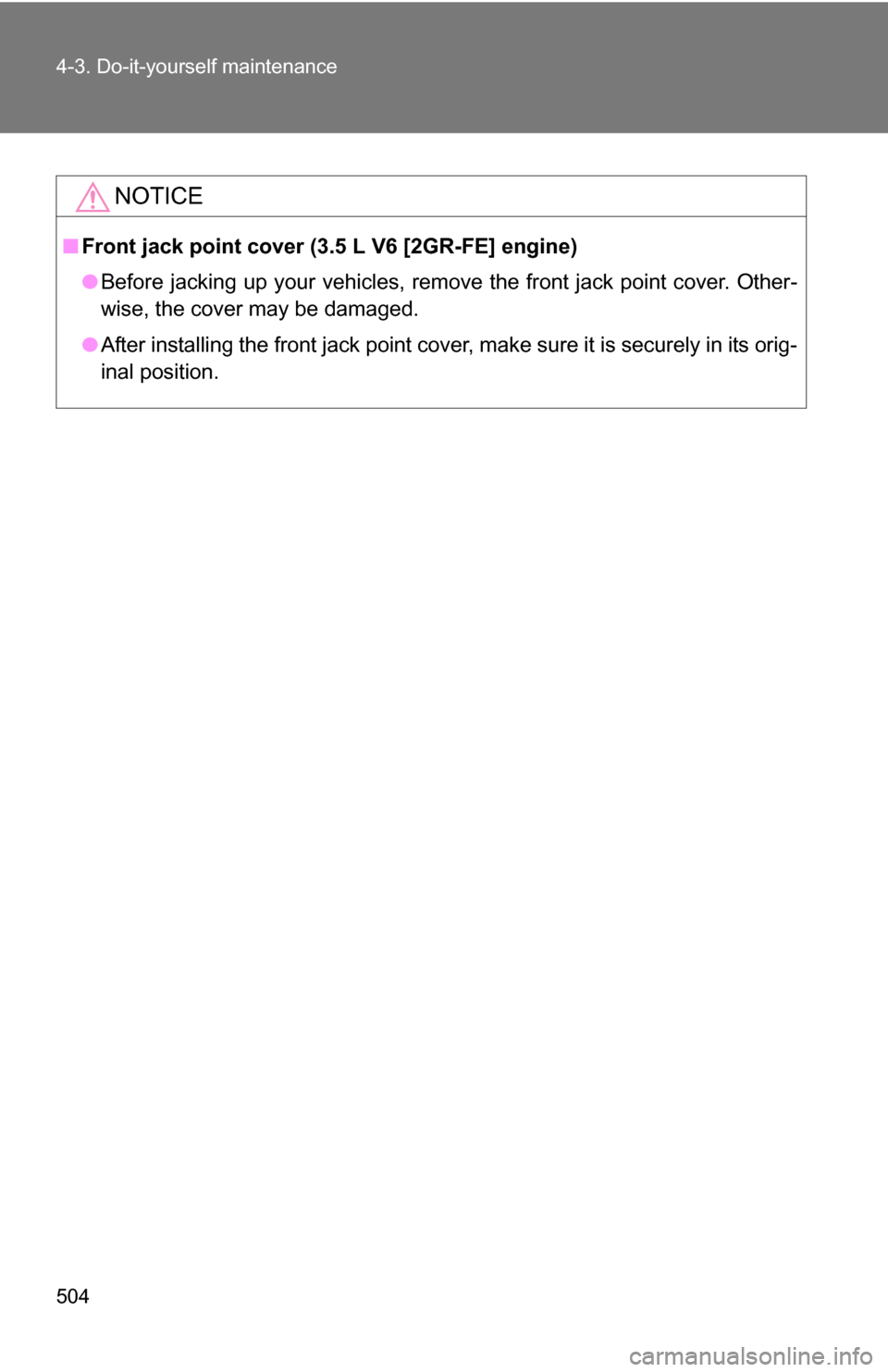

NOTICE
■Front jack point cover (3.5 L V6 [2GR-FE] engine)
●Before jacking up your vehicles, remove the front jack point cover. Other-
wise, the cover may be dam

Page 505 of 684

TOYOTA HIGHLANDER 2013 XU50 / 3.G Owners Manual 505
4-3. Do-it-yourself maintenance
4
Maintenance and care

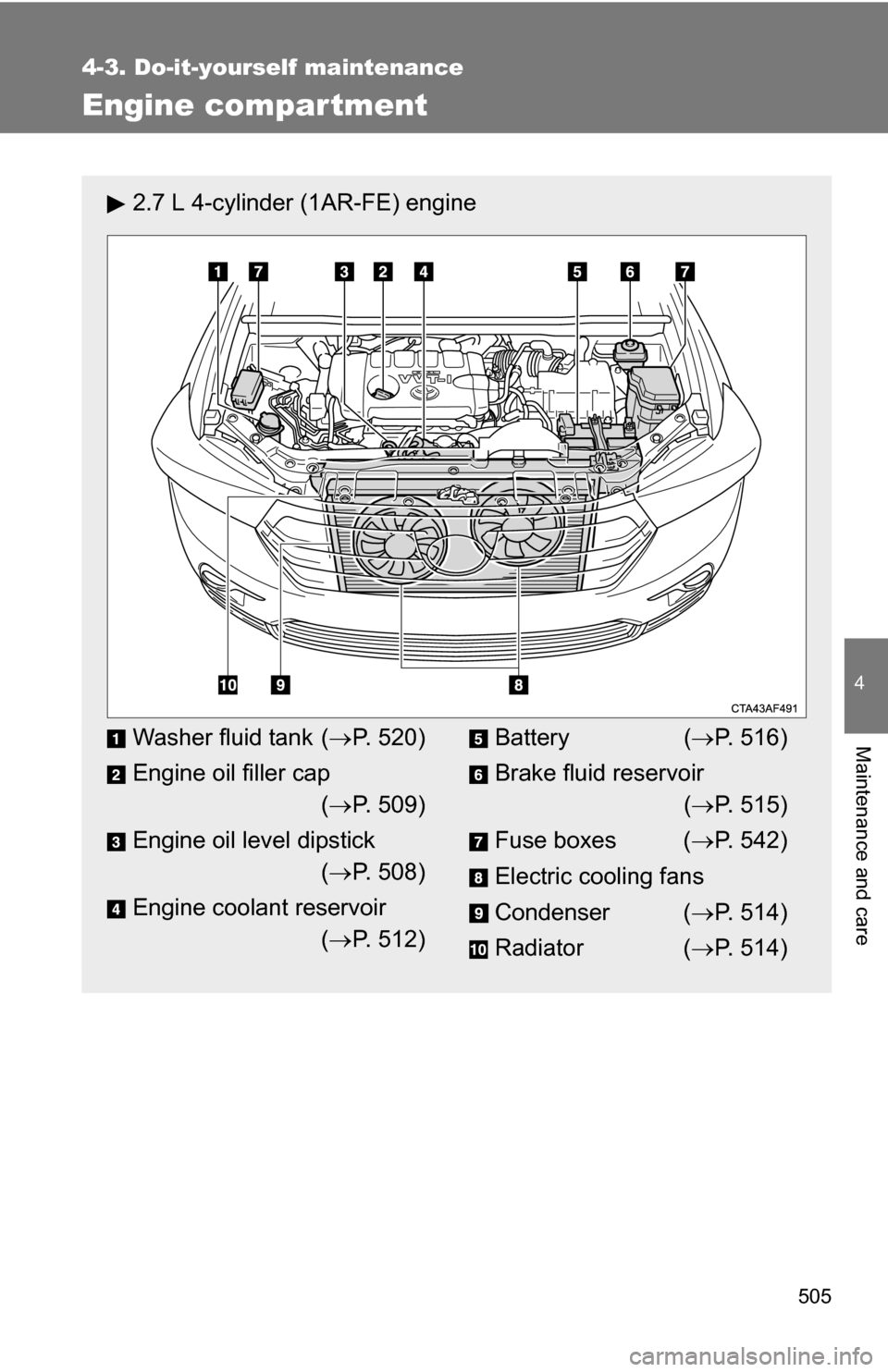

Engine compar tment
2.7 L 4-cylinder (1AR-FE) engine
Washer fluid tank (P. 520)
Engine oil filler cap ( P. 509)
Engine oil level dipsti

Page 506 of 684

TOYOTA HIGHLANDER 2013 XU50 / 3.G Owners Manual 506 4-3. Do-it-yourself maintenance

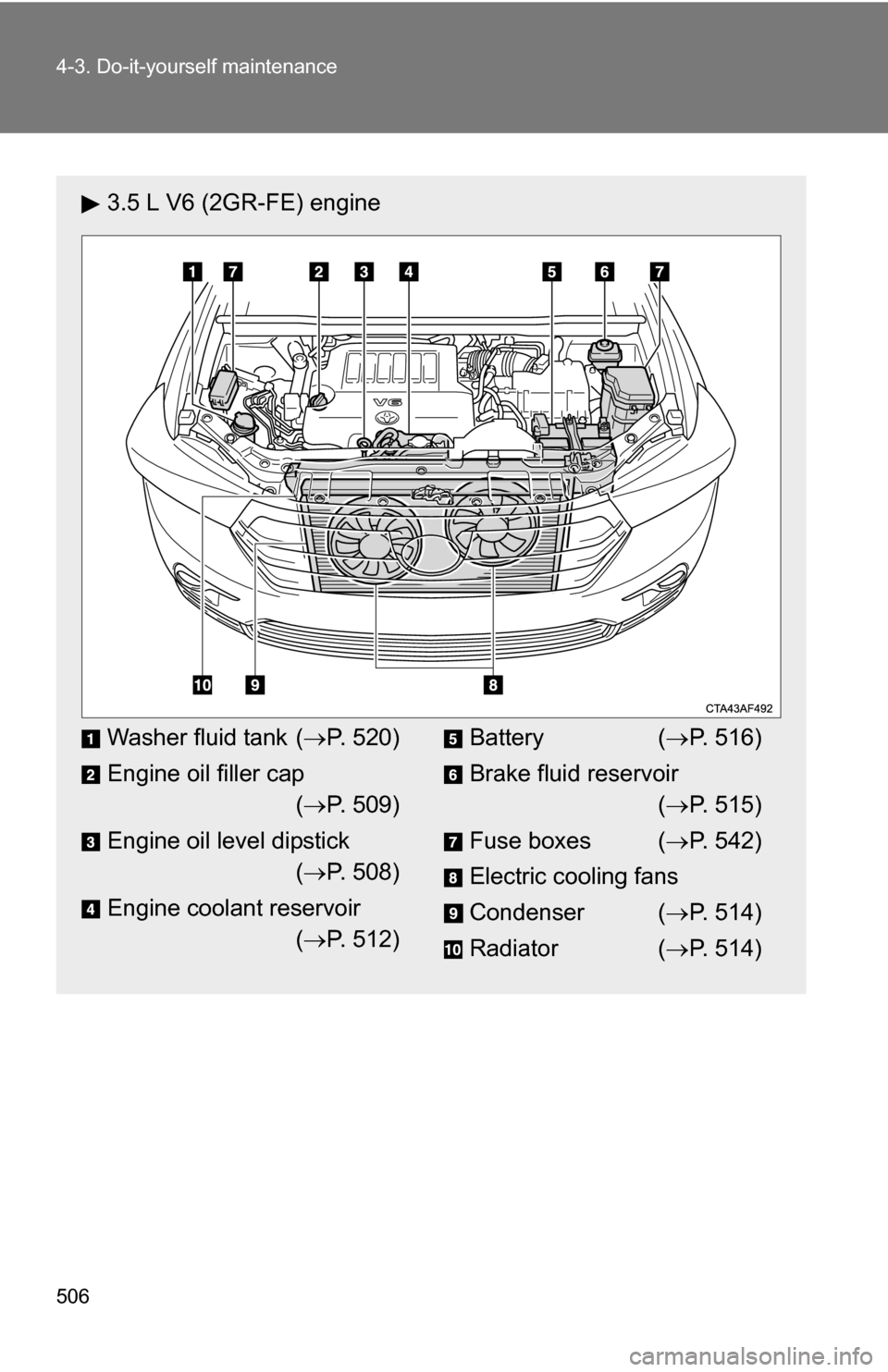

3.5 L V6 (2GR-FE) engine
Washer fluid tank (P. 520)
Engine oil filler cap ( P. 509)
Engine oil level dipstick ( P. 508)
Engine coolant reservoir ( P. 51

Page 507 of 684

TOYOTA HIGHLANDER 2013 XU50 / 3.G Owners Manual 507
4-3. Do-it-yourself maintenance
4
Maintenance and care

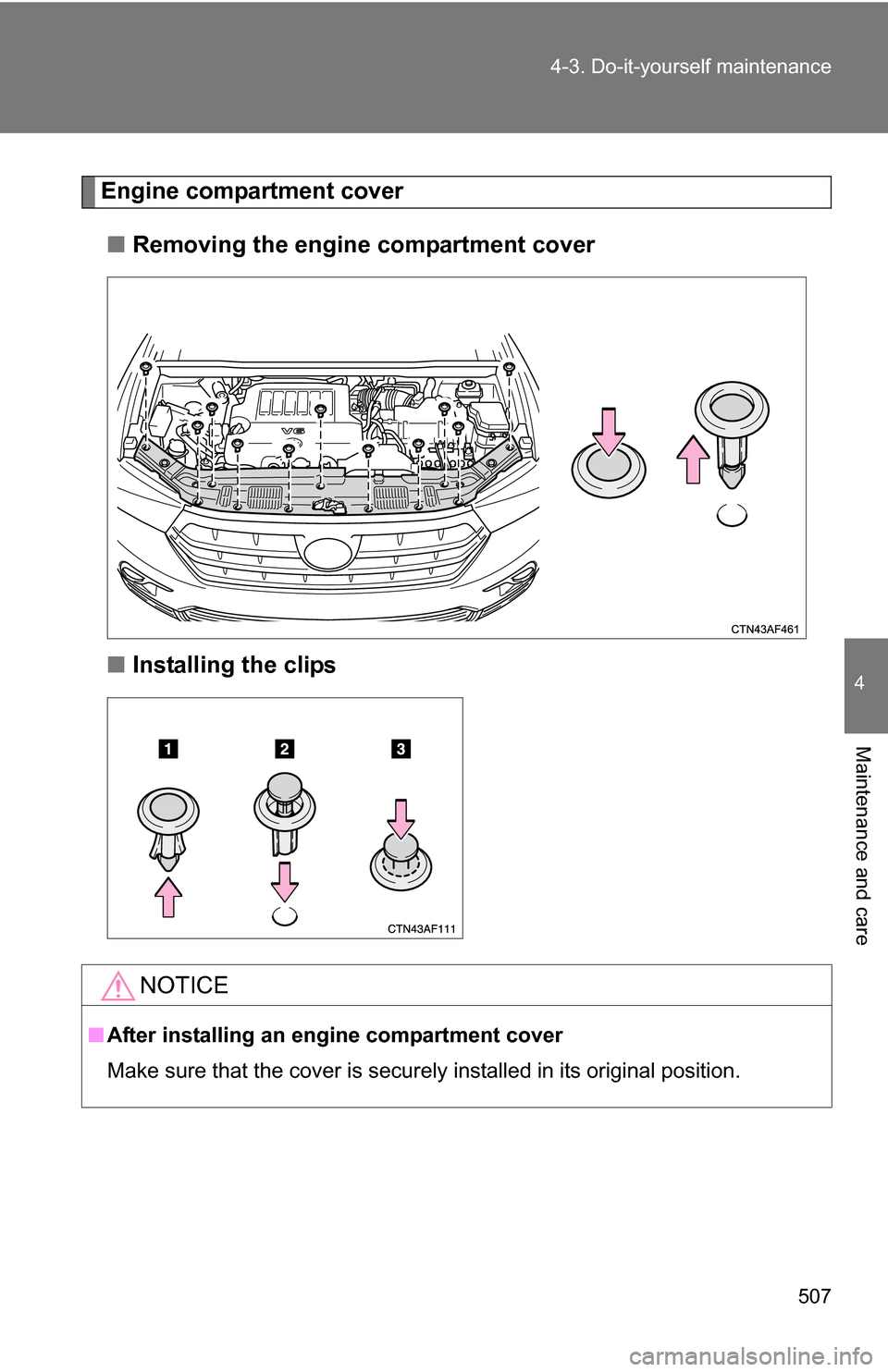

Engine compartment cover
■ Removing the engine compartment cover
■ Installing the clips
NOTICE
■After installing an engine compartment

Page 508 of 684

TOYOTA HIGHLANDER 2013 XU50 / 3.G Owners Manual 508 4-3. Do-it-yourself maintenance

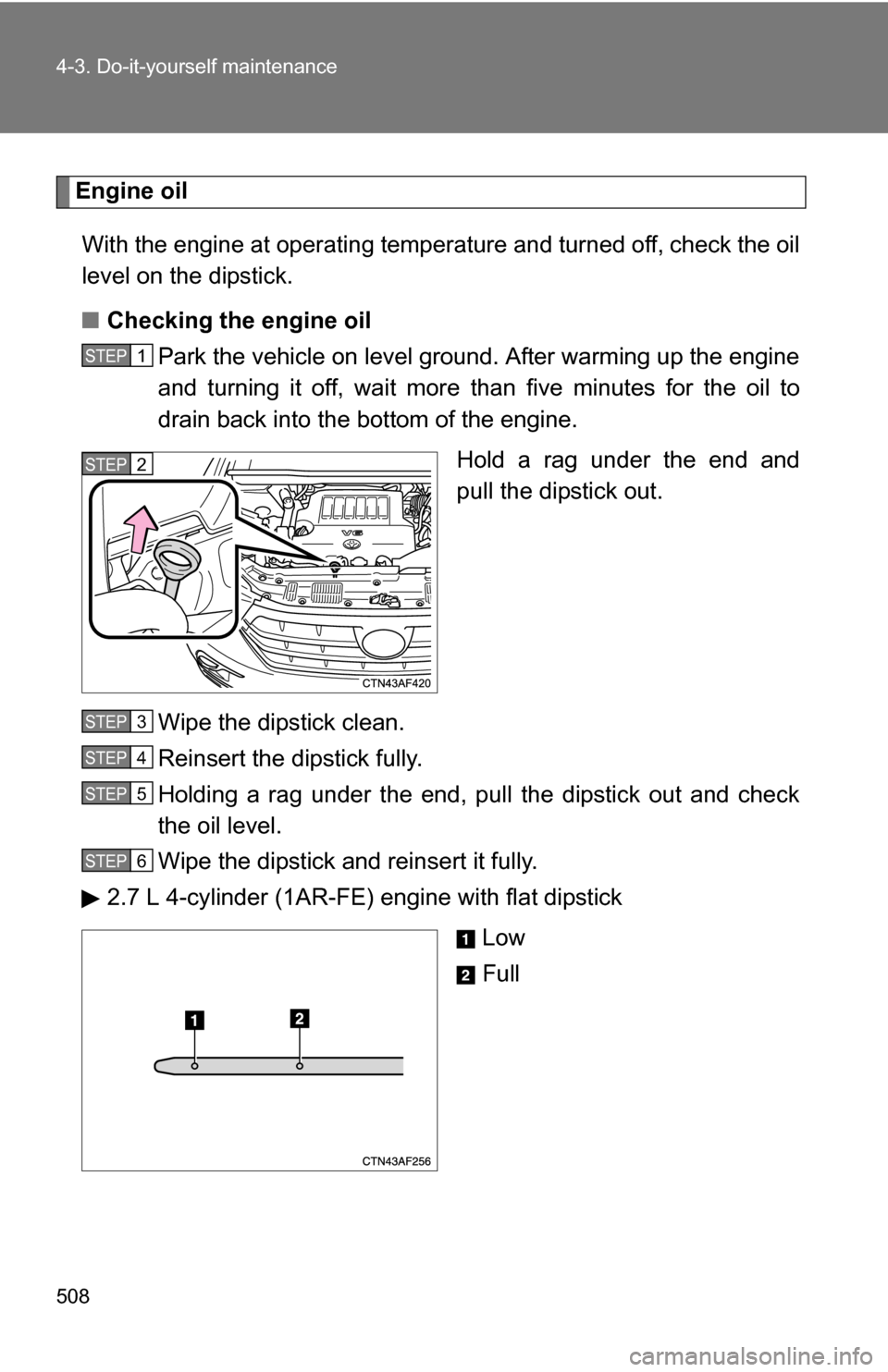

Engine oilWith the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground

Page 509 of 684

TOYOTA HIGHLANDER 2013 XU50 / 3.G Owners Manual 509
4-3. Do-it-yourself maintenance
4
Maintenance and care

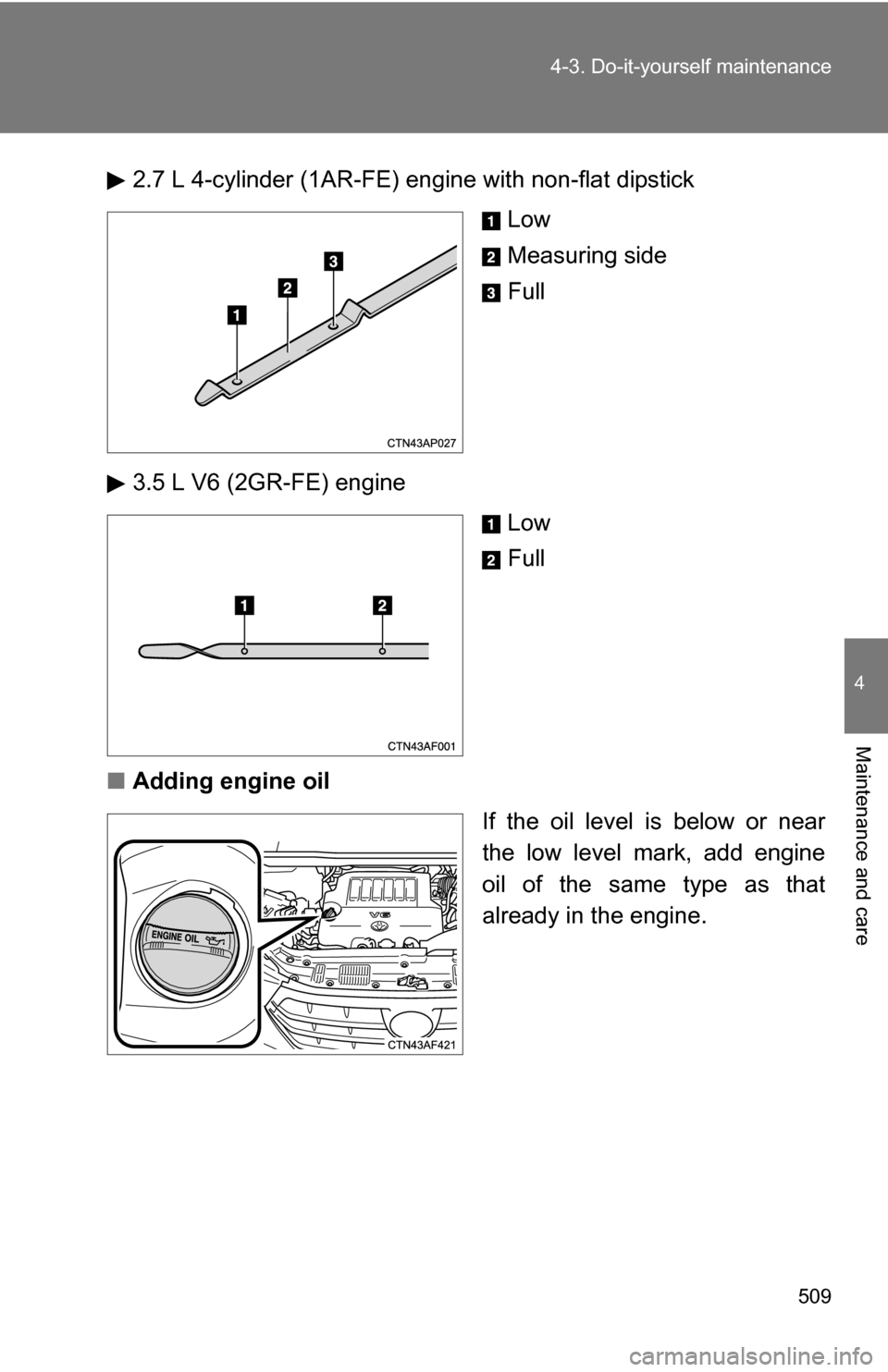

2.7 L 4-cylinder (1AR-FE) engine with non-flat dipstick
Low
Measuring side
Full
3.5 L V6 (2GR-FE) engine Low
Full
■ Adding engine oil
If th

Page 510 of 684

TOYOTA HIGHLANDER 2013 XU50 / 3.G Owners Manual 510 4-3. Do-it-yourself maintenance

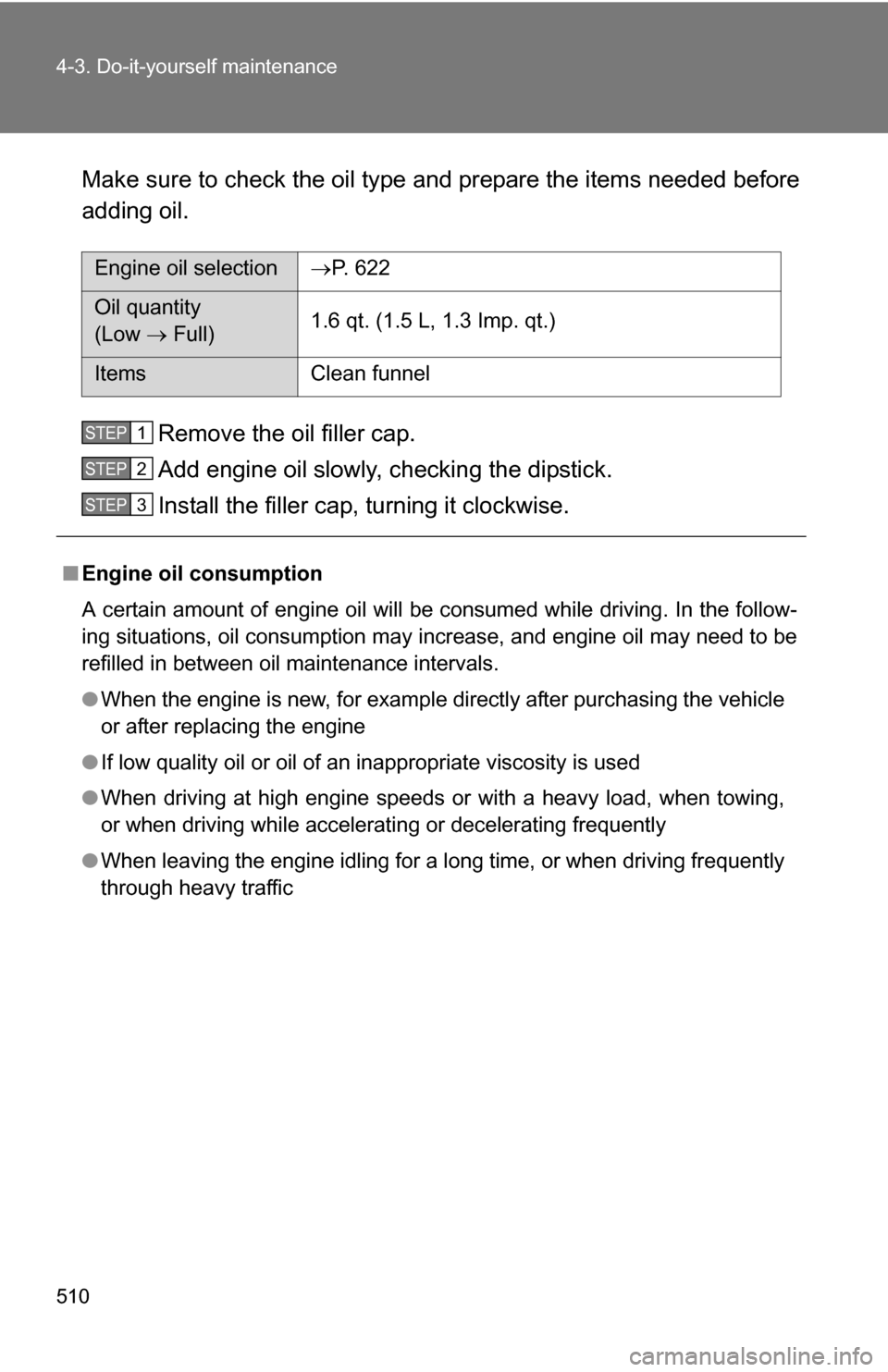

Make sure to check the oil type and prepare the items needed before
adding oil.Remove the oil filler cap.
Add engine oil slowly,  checking the dipstick.
Install the
