5718-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM48E98U)
NOTICE
■To ensure the tire pressure warning system operates properly
(vehicles with a tire pressure warning system)
Do not install tires with different sp ecifications or makers, as the tire
pressure warning system may not operate properly.

5728-2. Steps to take in an emergency
HIGHLANDER_U (OM48E98U)
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
If any of the warning message or indicator comes on again after the
following actions have been performed, contact your Toyota dealer.
If a war ning mess age is displayed
If a warning message is shown on the multi-information display,
stay calm and perform the following actions:
1
2

5738-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM48E98U)
Warning message and warning buzzer list
Warning messageDetails/Actions
Color display only
(If equipped)
Indicates that:
• There is a high possibility of a frontal collision;or
• The pre-collision braking function is operating
A buzzer also sounds.
 Slow the vehicle by applying the brakes.
Indicates that the engine was stopped with the
shift lever not in P
A buzzer also sounds.
 Shift the shift lever to P.
Indicates that the engine was stopped while driv-
ing
A buzzer also sounds.
 Stop the vehicle in a safe place such as the
shoulder of a road.
Color display only
(If equipped)
Indicates that your vehicle is nearing the vehicle
ahead (in vehicle-to-vehicle distance mode)
A buzzer also sounds.
 Slow the vehicle by applying the brakes.
(Flashes)
(Flashes)
(Flashes)

5748-2. Steps to take in an emergency
HIGHLANDER_U (OM48E98U)
Monochrome display
Color display
(If equipped)
Alerts the driver that the vehicle has deviated
from the lane (while the LDA [Lane Departure
Alert] system is operating)The lane line on the side the vehicle has devi-
ated from flashes.
The warning buzzer sounds continuously.
 Check around the vehicle and back to
inside of the lane lines.
Monochrome display
Color display
Indicates that one or more of the doors is not fully
closed
The system also indicates which doors are not
fully closed.
If the vehicle reaches a speed of 3 mph (5 km/
h), flashes and a buzzer sounds to indi-
cate that the door(s) are not yet fully closed.
 Make sure that all the doors are closed.
Warning messageDetails/Actions

5758-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM48E98U)
Monochrome display
Color display
Indicates that the hood is not fully closedIf the vehicle reaches a speed of 3 mph (5 km/
h), flashes and a buzzer sounds to indi-
cate that the hood is not yet fully closed.
 Close the hood.
Monochrome display
Color display
Indicates that the back door is not fully closed
If the vehicle reaches a speed of 3 mph (5 km/
h), flashes and a buzzer sounds to indi-
cate that the back door is not yet fully closed.
 Close the back door.
Warning messageDetails/Actions

5768-2. Steps to take in an emergency
HIGHLANDER_U (OM48E98U)
Monochrome display
Color display
(If equipped)
Indicates that the glass hatch is not fully closedIf the vehicle reaches a speed of 3 mph (5 km/
h), flashes and a buzzer sounds to indi-
cate that the glass hatch is not yet fully closed.
 Close the glass hatch.
Monochrome display
Color display
(If equipped)
Indicates a malfunction in the intuitive parking
assist-sensor
The assist-sensors flash.
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Warning messageDetails/Actions

5778-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM48E98U)

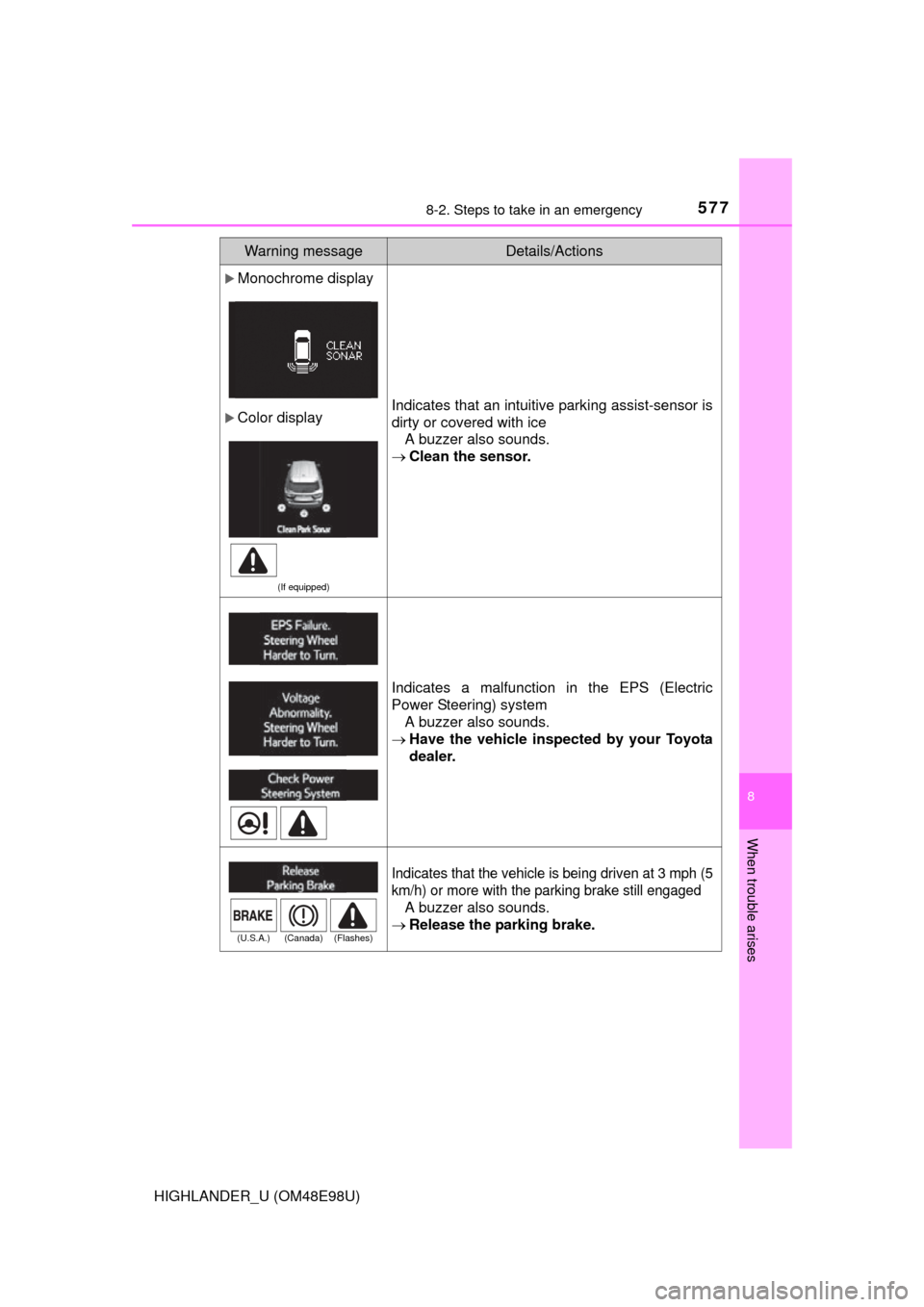

Monochrome display
Color display
(If equipped)
Indicates that an intuitive parking assist-sensor is
dirty or covered with iceA buzzer also sounds.
 Clean the sensor.
Indicates a malfunction in the EPS (Electric
Power Steering) system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Indicates that the vehicle is being driven at 3 mph (5
km/h) or more with the parking brake still engaged
A buzzer also sounds.
 Release the parking brake.
Warning messageDetails/Actions
(U.S.A.) (Canada) (Flashes)

5788-2. Steps to take in an emergency
HIGHLANDER_U (OM48E98U)
Color display only
Indicates that the engine coolant temperature is
too highA buzzer also sounds.
 P. 626
Color display onlyIndicates a malfunction in the vehicle’s charging
system.
Immediately stop the vehicle in a safe place
and contact your Toyota dealer. Continuing
to drive the vehicle may be dangerous.
Color display only
(If equipped)
Indicates that the radar sensor is dirty or covered
with ice A buzzer also sounds.
 Clean the sensor.
Color display only
(If equipped)
Indicates that the dynamic radar cruise control
system is unable to judge vehicle-to-vehicle dis-
tance
A buzzer also sounds.
 Turn off snow mode.
If the windshield wipers are on, turn them
off or set them to a mode other than high
speed wiper operation.
(If equipped)
Indicates that the LDA (Lane Departure Alert)
system is suspended (The camera sensor tem-
perature is higher than the operation temperature
range)
A buzzer also sounds.
 Restart the LDA after driving for a while.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the
surrounding area on the bumper is dirty or cov-
ered with ice
A buzzer also sounds.
 Clean the sensor and its surrounding area
on the bumper.
Warning messageDetails/Actions

5798-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM48E98U)

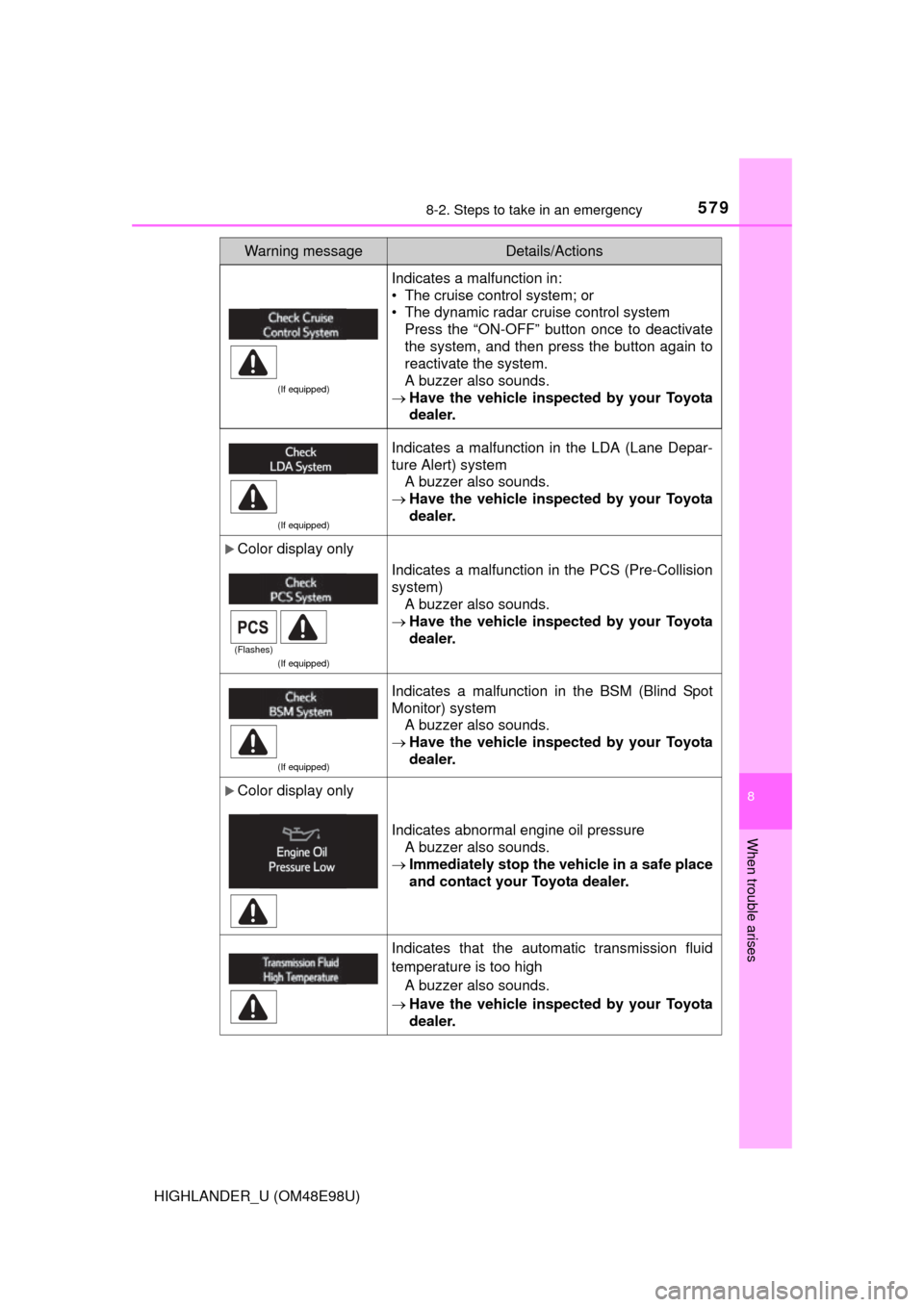

(If equipped)
Indicates a malfunction in:
• The cruise control system; or
• The dynamic radar cruise control systemPress the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the LDA (Lane Depar-
ture Alert) system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Color display only
(If equipped)
Indicates a malfunction in the PCS (Pre-Collision
system)
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot
Monitor) system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Color display only
Indicates abnormal engine oil pressure
A buzzer also sounds.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
Indicates that the automatic transmission fluid
temperature is too high
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Warning messageDetails/Actions
(Flashes)

5808-2. Steps to take in an emergency
HIGHLANDER_U (OM48E98U)

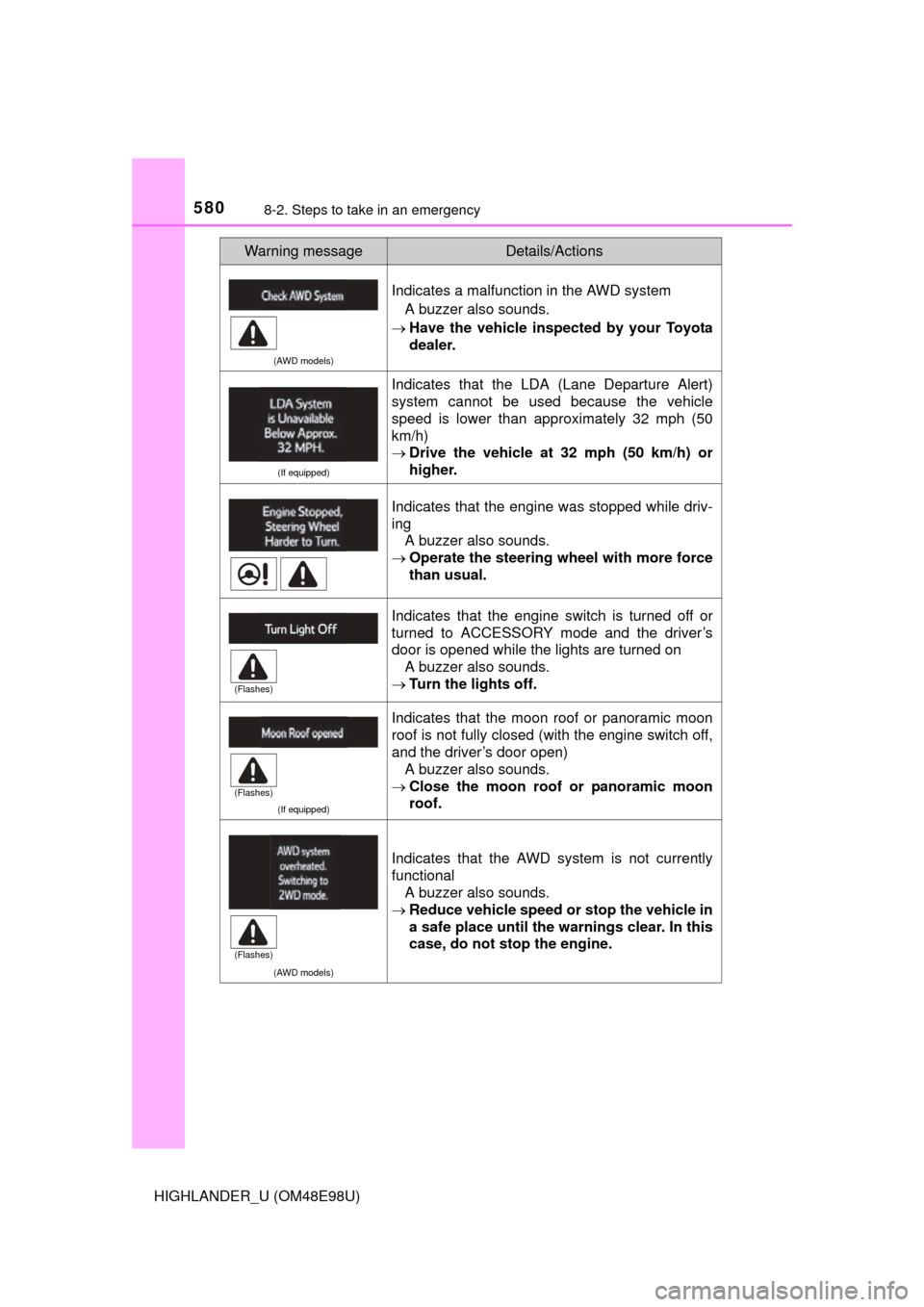

(AWD models)
Indicates a malfunction in the AWD systemA buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates that the LDA (Lane Departure Alert)
system cannot be used because the vehicle
speed is lower than approximately 32 mph (50
km/h)
Drive the vehicle at 32 mph (50 km/h) or
higher.
Indicates that the engine was stopped while driv-
ing
A buzzer also sounds.
 Operate the steering wheel with more force
than usual.
Indicates that the engine switch is turned off or
turned to ACCESSORY mode and the driver’s
door is opened while the lights are turned on
A buzzer also sounds.
 Turn the lights off.
(If equipped)
Indicates that the moon roof or panoramic moon
roof is not fully closed (with the engine switch off,
and the driver’s door open)
A buzzer also sounds.
 Close the moon roof or panoramic moon
roof.
(AWD models)
Indicates that the AWD system is not currently
functional
A buzzer also sounds.
 Reduce vehicle speed or stop the vehicle in
a safe place until the warnings clear. In this
case, do not stop the engine.
Warning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)
