TOYOTA HIGHLANDER 2016 XU50 / 3.G Owners Manual

4215-11. Using the voice command system
5
Audio system
HIGHLANDER_U (OM48F09U)
Some recognizable voice commands and their actions are shown
below as examples.
Basic
Phone

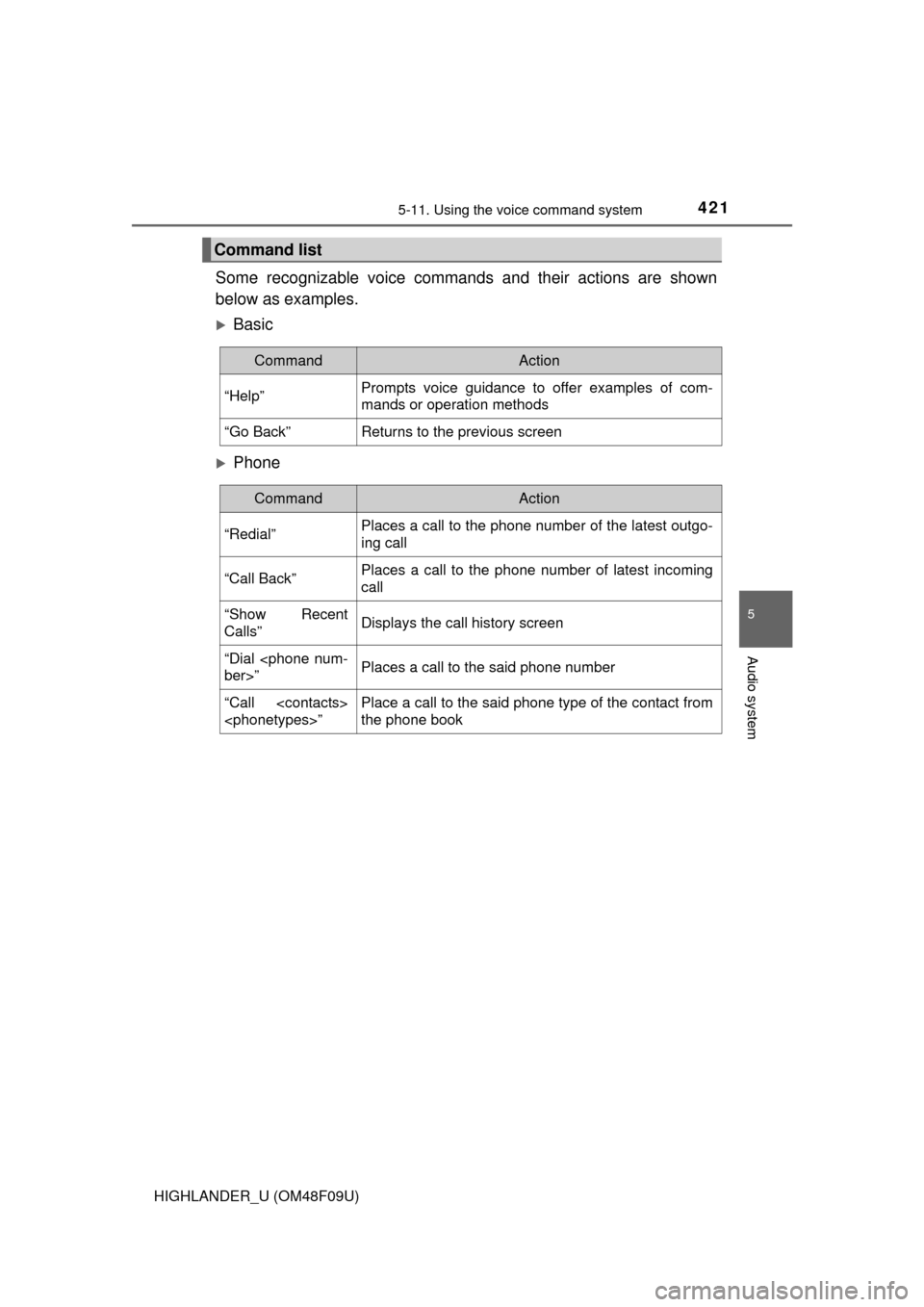

Command list
CommandAction
“Help”Prompts voice guidance to offer examples of com-
mands or operation methods
“Go Back”Returns to the previous screen
CommandAction
“Redial”Places a call to the phone number of the latest outgo-
ing call
“Call Back”Places a call to the phone number of latest incoming
call
“Show Recent
Calls”Displays the call history screen
“Dial ber>”Places a call to the said phone number
“Call
”Place a call to the said phone type of the contact from
the phone book

4225-11. Using the voice command system
HIGHLANDER_U (OM48F09U)
The Mobile Assistant feature will activate Apple’s Siri® Eyes Free
mode via the steering wheel switches. To operate the Mobile Assis-
tant, a compatible cellular phone must be registered and connected to
this system via Bluetooth
®. (  P. 379)
Press and hold the until
you hear the beeps.
The Mobile Assistant can be
used only when the following
screen is displayed.
To cancel the Mobile Assistant,
select “Cancel”, or press and hold
the on the steering wheel.
To restart the Mobile Assistant for
additional commands, press the on the steering wheel.
• Mobile Assistant can only be restarted after the system responds to a voice command.
• After some phone and music commands, the Mobile Assistant feature will automatically end to complete the requested action.
■
Adjusting the Mobile Assistant volume
The volume of the Mobile Assistant can be adjusted using the
“PWR·VOL” knob or steering wheel volume switches. The Mobile
Assistant and phone call volumes are synchronized.
Mobile Assistant
1
2

4235-11. Using the voice command system
5
Audio system
HIGHLANDER_U (OM48F09U)
■ Notes about Mobile Assistant
●The available features and functions may vary based on the iOS version
installed on the connected device.
● Some Siri features are limited in Eyes Free mode. If you attempt to use an
unavailable function, Siri will inform you that the function is not avai\
lable.
● If Siri is not enabled on the cellular phone connected via Bluetooth
®, an
error message will be displayed on the screen.
● While a phone call is active, the Mobile Assistant cannot be used.
● If using the navigation feature of the cellular phone, ensure the active audio
source is Bluetooth
® audio or iPod in order to hear turn by turn direction
prompts.

4245-11. Using the voice command system
HIGHLANDER_U (OM48F09U)

425
6Interior features
HIGHLANDER_U (OM48F09U)6-1. Using the air conditioning
system and defogger
Front manual air conditioning system ........ 426
Front automatic air conditioning system ........ 432
Rear manual air conditioning system ........ 439
Rear automatic air conditioning system ........ 442
Heated steering wheel/ seat heaters/
seat ventilators ................ 445
6-2. Using the interior lights Interior lights list ................ 448
• Interior lights ................. 448
• Personal lights .............. 449
6-3. Using the storage features
List of storage features ..... 450
• Glove box...................... 451
• Console box .................. 451
• Bottle holders ................ 452
• Cup holders .................. 453
• Auxiliary boxes.............. 455
• Open tray ...................... 456
Luggage compartment features ........................... 457 6-4. Using the other interior
features
Other interior features ....... 459
• Sun visors ..................... 459
• Vanity mirrors................ 459
• Conversation mirror ...... 460
• Clock ............................. 461
• Outside temperature display........................... 462
• Power outlets ................ 463
• Rear sunshades............ 466
• Armrest ......................... 467
• Coat hooks.................... 468
• Assist grips ................... 468
• Side table ...................... 469
Garage door opener.......... 470
Safety Connect ................. 477
Compass ........................... 483

426
HIGHLANDER_U (OM48F09U)
6-1. Using the air conditioning system and defogger
■Adjusting the temperature setting
To adjust the temperature setti ng, turn clockwise (warm) or
counterclockwise (cool).
If is not pressed, the system will blow ambient temperature air
or heated air.
For quick cooling, turn to the “M AX A/C” position. The air condi-
tioning will automatically turn on in recirculated air mode.
■
Fan speed setting
To adjust the fan speed, turn clockwise (increase) or coun-
terclockwise (decrease).
Turning the dial to “OFF” turns off the fan.
Front manual air co nditioning system
: If equipped
Air conditioning controls

4276-1. Using the air conditioning system and defogger
6
Interior features
HIGHLANDER_U (OM48F09U)■
Changing airflow modes
To change the airflow mode,
press , , or
.
Air flows to the upper body.
Air flows to the upper body
and feet.
Air flows to the feet.
Air flows to the feet and the windshield defogger operates.
■Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recir-
culated air mode (indicator on) each time is pressed.
■
Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press .
If the recirculated air mode is used, it will automatically switch to the out-
side air mode.
Perform the following operations accordingly:
●To adjust the fan speed, turn .
● To adjust the temperature setting, turn .
● If the dehumidification function is not operating, press to
operate the dehumidif ication function.
To defog the windshield and the side windows early, turn the air
flow and temperature up.
1
2
3
Other functions
4
1
2

4286-1. Using the air conditioning system and defogger
HIGHLANDER_U (OM48F09U)■
Defogging the rear window and outside rear view mirrors
Vehicles without outside rear view mirror defoggers
A defogger is used to defog the rear window.
Press .
The defogger will automatically turn off after a period of time.
Vehicles with outside rear view mirror defoggers
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of time.
■
Windshield wiper de-icer (if equipped)
This feature is used to prevent ice from building up on the wind-
shield and wiper blades.
Press the switch to turn the sys-
tem on/off.
The indicator comes on when
the windshield wiper de-icer is
on.
The windshield de-icer will auto-
matically turn off after a period
of time.
■
Location of air outlets
The air outlets and air volume
change according to the
selected airflow mode.
Air outlets

4296-1. Using the air conditioning system and defogger
6
Interior features
HIGHLANDER_U (OM48F09U)■
Adjusting the position of and opening and closing the air out-
lets
Front center outlets
Direct air flow to the left or right,
up or down.
Front side outlets
Direct air flow to the left or right,
up or down.
Closes the vent
Slide the knob to the most out-
ward position.
Opens the vent
1
2

4306-1. Using the air conditioning system and defogger
HIGHLANDER_U (OM48F09U)
■Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the wind-
shield effectively.
● If you turn off, the windows may fog up more easily.
● The windows may fog up if the recirculated air mode is used.
■ Outside/recirculated air mode
●When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode button to the recirculated air mode. This is effec-
tive in preventing outside air from entering the vehicle interior. During
cooling operation, setting the recirculated air mode will also cool the vehicle
interior effectively.
● Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.
■ When the outside temperature exceeds 75°F (24°C) and the air condition-
ing system is on
●In order to reduce the air conditioning power consumption, the air condition-
ing system may switch to recirculated air mode automatically. This may also
reduce fuel consumption.
● Recirculated air mode is selected as a default mode when the engine switch
is turned to “ON” position.
● It is possible to switch to outside air mode at any time by pressing .
■ Ventilation and air conditioning odors
●To let fresh air in, set the air conditioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
● To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
■ Air conditioning filter
P. 536
