display TOYOTA HIGHLANDER 2021 Accessories, Audio & Navigation (in English)

3147-3. Panoramic view monitor
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
1Turn the intuitive parking
assist on.
2 Select the area on the pan-
oramic view display you wish
to magnify.
 Selecting one of the 2 areas
within the dotted lines will
magnify that area. (Dotted
lines are not displayed on the
actual display.)
 To return to the normal view,
select the panoramic view dis-
play again.
●The magnifying function is
enabled when all of the following
conditions are met:
• The wide front view & panoramic view/Side Clearance View & pan-
oramic view/rear view & pan-
oramic view/wid e rear view &
panoramic view is displayed. • The vehicle speed is below
approximately 7 mph (12 km/h).
• The intuitive parking assist is
available.
●In the following situations, the
magnified disp lay will be can-
celed automatically:
• The vehicle speed is approxi-
mately 7 mph (12 km/h) or higher.
• The intuitive parking assist is unavailable.
●When the display is magnified, the
guide lines will no t be displayed.

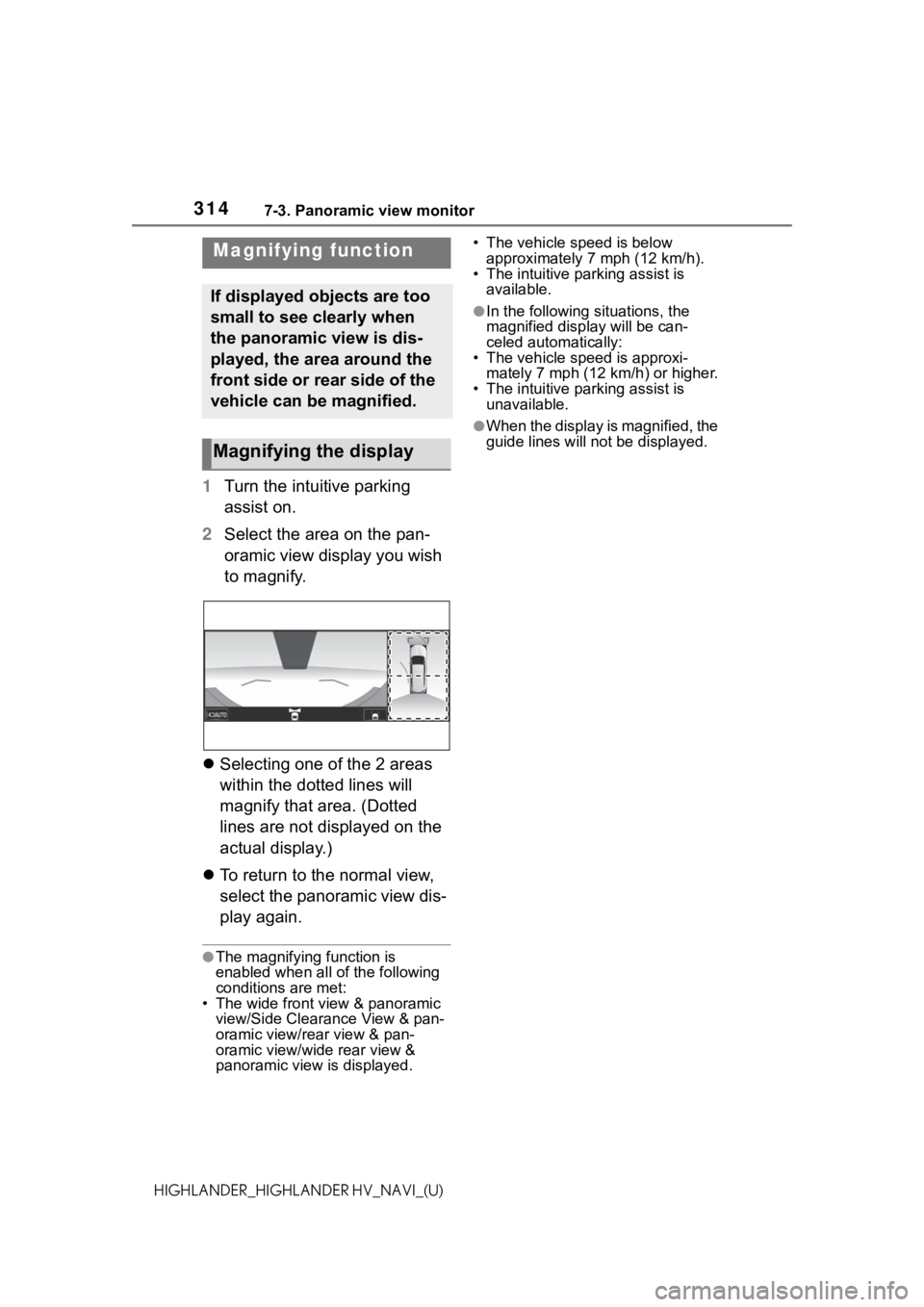

Magnifying function
If displayed objects are too
small to see clearly when
the panoramic view is dis-
played, the area around the
front side or rear side of the
vehicle can be magnified.
Magnifying the display

3157-3. Panoramic view monitor
7
Peripheral monitoring system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
1Display the moving
view/see-through view
screen. ( P.296)
2 Select .
3 Select the desired color.
Displays the next page

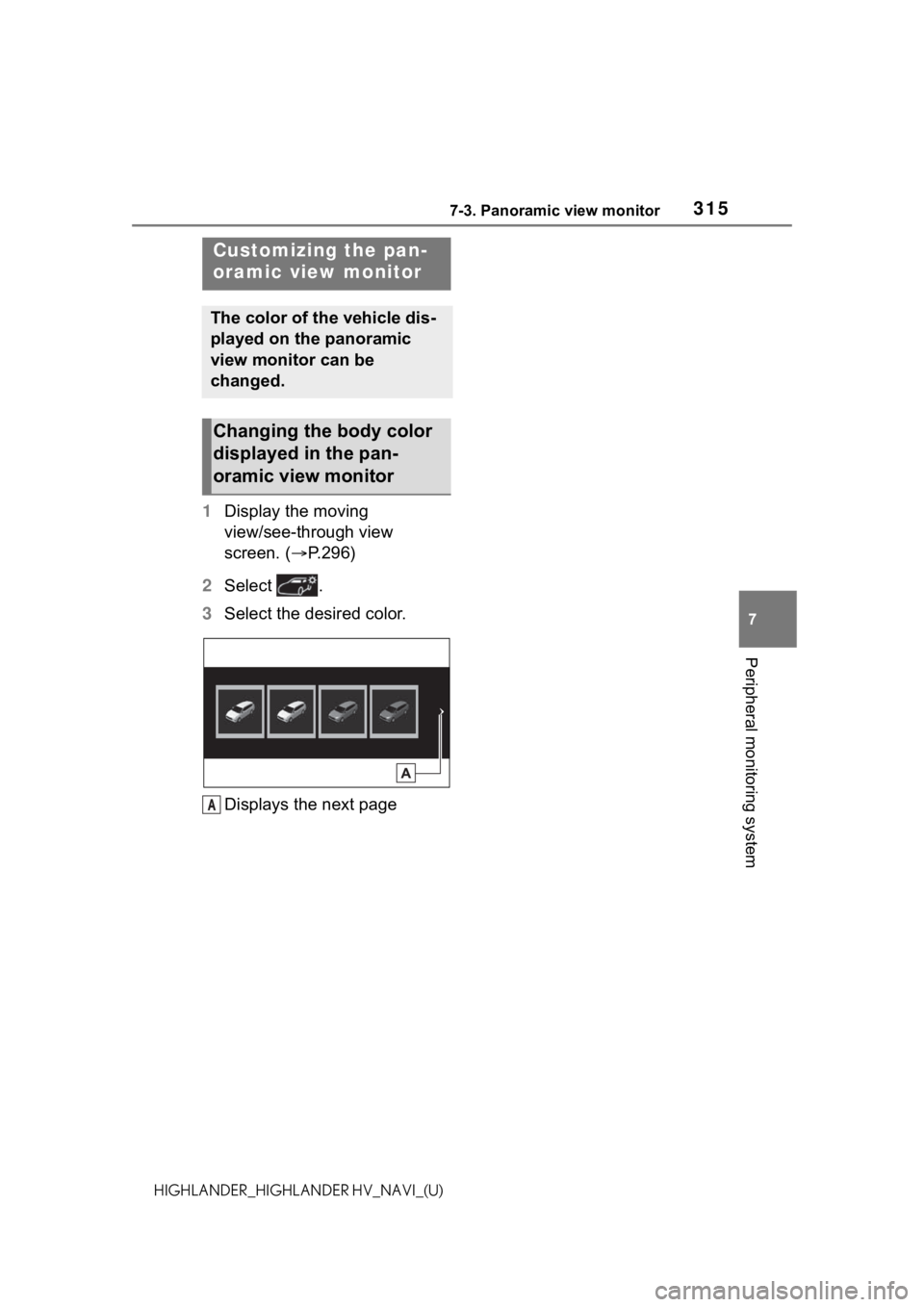

Customizing the pan-
oramic view monitor
The color of the vehicle dis-
played on the panoramic
view monitor can be
changed.
Changing the body color
displayed in the pan-
oramic view monitor
A

3167-3. Panoramic view monitor
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
The panoramic view monitor disp lays an image of the surrounding
view of the vehicle.
Since the panoramic view processes and displays images based on
flat road surfaces, it cannot depict the position of three-dime nsion
objects (such as vehicle bumpers , etc.) that are in positions higher
than the surface of the road. Even if there is room between the bum-
pers of the vehicles and it seems not likely to collide in the image, in
reality, the both vehicles are on a collision course.
Check the safety of the surroundings directly.
Objects located in the shaded areas will not be displayed on th e
screen.

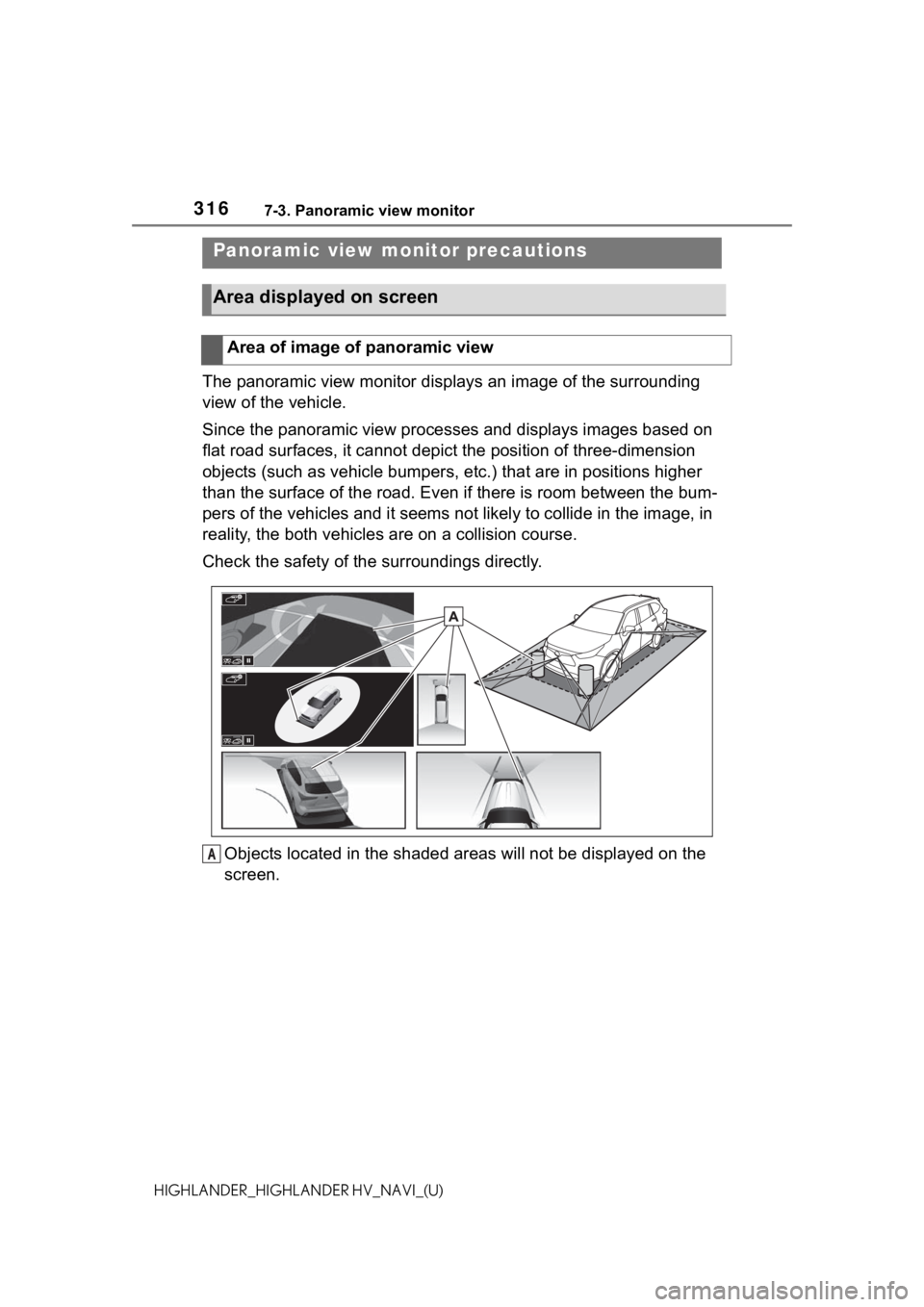

Panoramic view mo nitor precautions
Area displayed on screen
Area of image of panoramic view
A

3177-3. Panoramic view monitor
7
Peripheral monitoring system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)

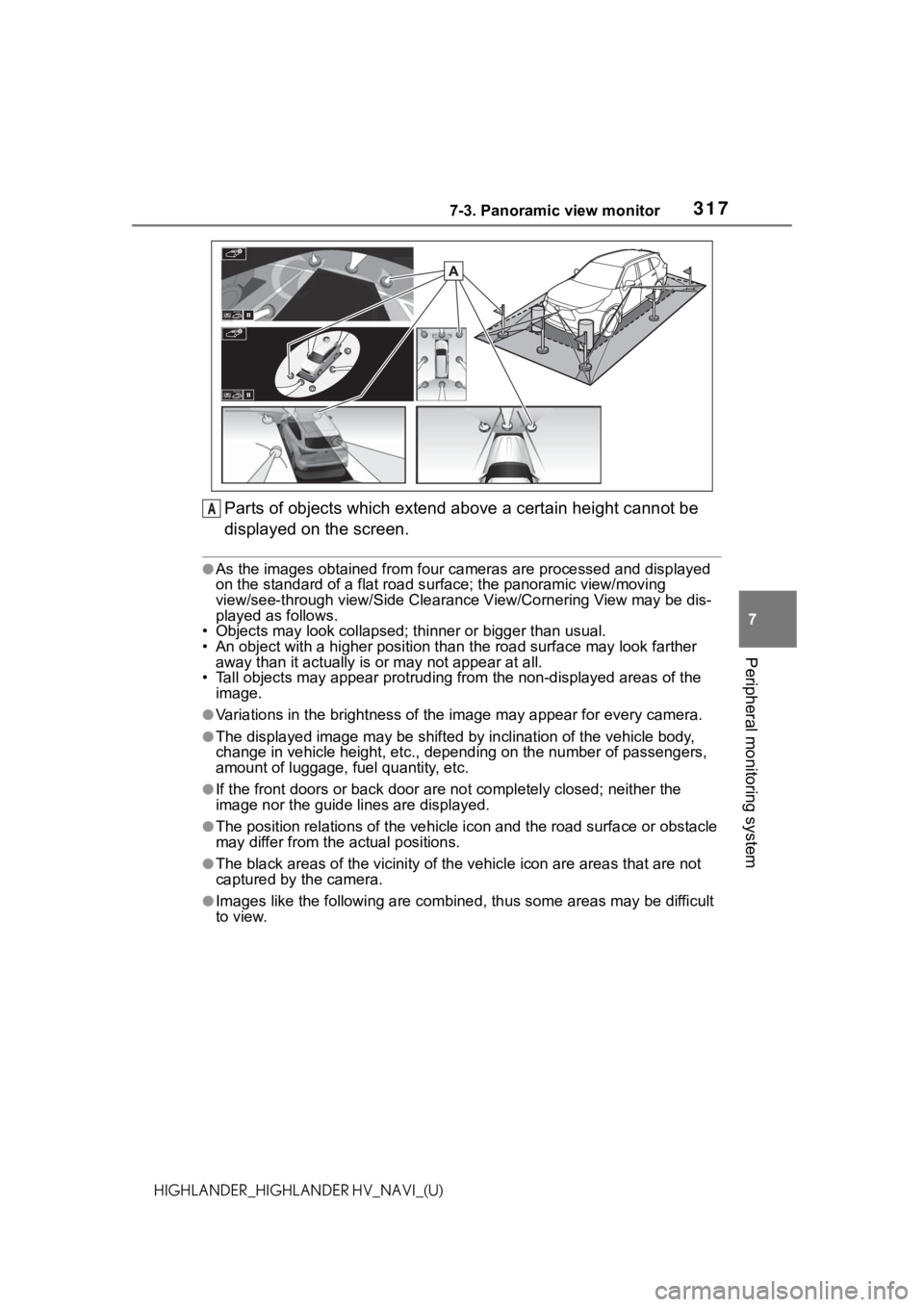

Parts of objects which extend above a certain height cannot be
displayed on the screen.
●As the images obtained from four cameras are processed and displayed
on the standard of a flat road s urface; the panoramic view/moving
view/see-through view/Side Clearan ce View/Cornering View may be dis-
played as follows.
• Objects may look collapsed; t hinner or bigger than usual.
• An object with a higher positi on than the road surface may look farther
away than it actually is or may not appear at all.
• Tall objects may appear protrudi ng from the non-displayed areas of the
image.
●Variations in the brightness of the image may appear for every camera.
●The displayed image may be shift ed by inclination of the vehicle body,
change in vehicle height, etc., d epending on the number of pass engers,
amount of luggage, fuel quantity, etc.
●If the front door s or back door are not c ompletely closed; neither the
image nor the guide lines are displayed.
●The position relations of the ve hicle icon and the road surface or obstacle
may differ from the actual positions.
●The black areas of the vicinity of the vehicle icon are areas t hat are not
captured by the camera.
●Images like the following are combined, thus some areas may be difficult
to view.
A

3187-3. Panoramic view monitor
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
WA R N I N G
●When a sensor indicator on the intuitive parking assist display illumi-
nates in red or a buzzer sounds continuously, be sure to check the area
around the vehicle immediately a nd do not proceed any further until
safety has been ensured, otherwise an unexpected accident may o ccur.

3197-3. Panoramic view monitor
7
Peripheral monitoring system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)

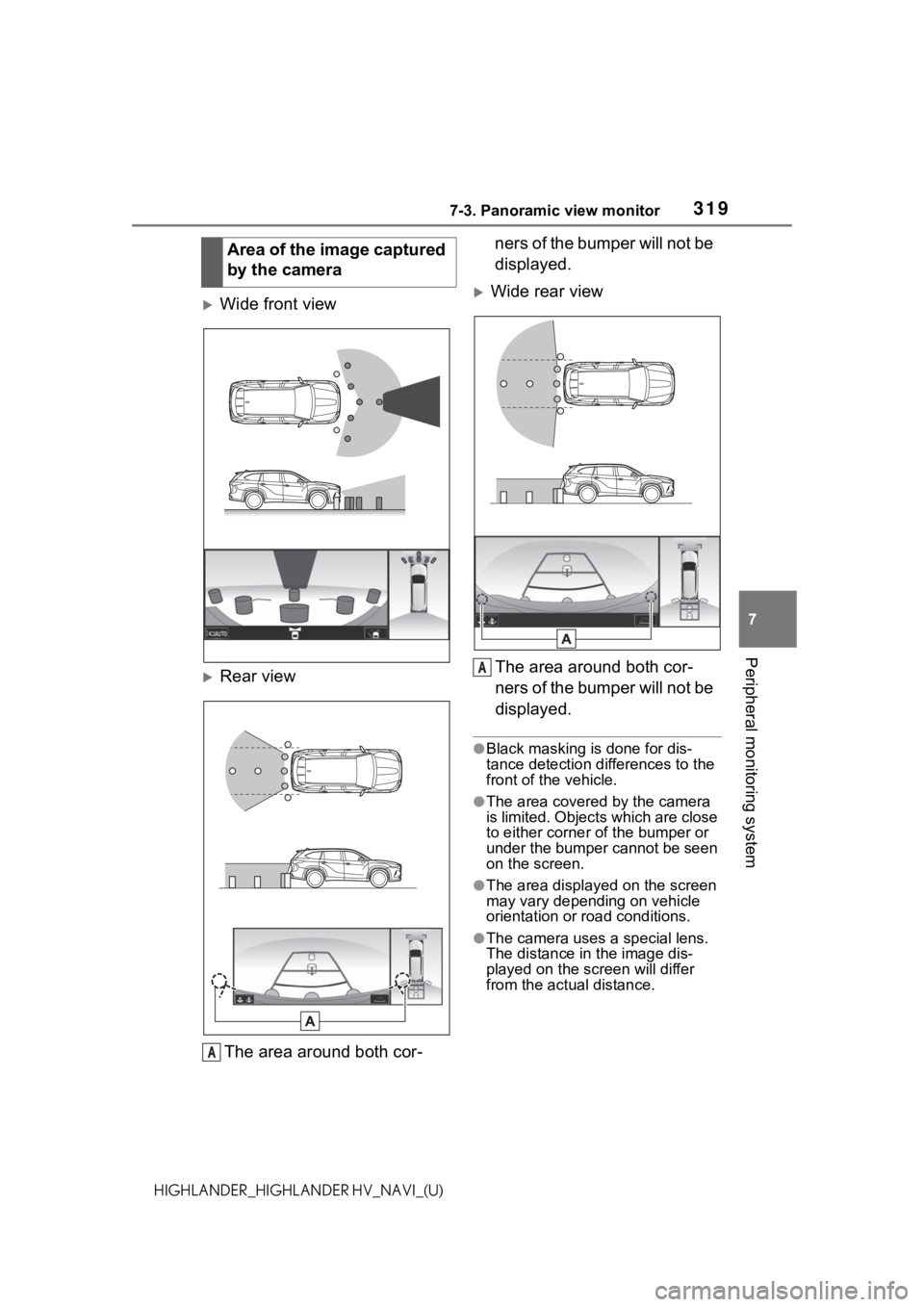

Wide front view
Rear viewThe area around both cor- ners of the bumper will not be
displayed.
Wide rear view
The area around both cor-
ners of the bumper will not be
displayed.
●Black masking is done for dis-
tance detection differences to the
front of the vehicle.
●The area covered by the camera
is limited. Objects which are close
to either corner of the bumper or
under the bumper cannot be seen
on the screen.
●The area displayed on the screen
may vary depending on vehicle
orientation or road conditions.
●The camera uses a special lens.
The distance in the image dis-
played on the screen will differ
from the actual distance.
Area of the image captured
by the camera
A
A

3247-3. Panoramic view monitor
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
When there are three-dimensional objects (such as vehicle bum-
pers, etc.) nearby in positions higher than the surface of the road,
take extra care when using the following.
Since the panoramic view, Side Clearance View and Cornering Vie w
process and display images based on flat road surfaces, it cann ot
depict the position of three-dimens ion objects (such as vehicle bum-
pers, etc.) that are in positions higher than the surface of th e road.
For example, even though it appears that there is space between the
bumpers of the two vehicles in the illustration below and they are not
likely to collide, in reality, a collision is about to occur.
Distortion of three-dimensi onal objects on the screen
Panoramic view display (including magnified display), Side
Clearance View and Cornering View display
WA R N I N G
●When a sensor indicator on the intuitive parking assist display illumi-
nates in red or a buzzer sounds continuously, be sure to check the area
around the vehicle immediately a nd do not proceed any further until
safety has been ensured, otherwise an unexpected accident may o ccur.

3257-3. Panoramic view monitor
7
Peripheral monitoring system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
The estimated course lines target flat surfaced objects (such as the
road). It is not possible to determine the position of three-dimen-
sional objects (such as vehicles ) using the estimated course lines
and distance guide lines. When app roaching a three-dimensional
object that extends outward (such as the flatbed of a truck), b e care-
ful of the following.
When approaching three-dimensional objects
WA R N I N G
●When a sensor indicator on the intuitive parking assist display illumi-
nates in red or a buzzer sounds continuously, be sure to check the area
around the vehicle immediately a nd do not proceed any further until
safety has been ensured, otherwise an unexpected accident may o ccur.

3267-3. Panoramic view monitor
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
Since the estimated course line
is displayed for a flat road sur-
face, it cannot depict the posi-
tion of three-dimensional objects
(such as vehicle bumpers, etc.)
that are in positions higher than
the surface of the road. Even if
the bumpers of the vehicle is on
the outside of the estimated
course line in the image, in real-
ity, the vehicles are on a colli-
sion course.
Estimated course line
Three-dimensional objects
(such as the overhang of a wall
or loading platform of a truck) in
high positions may not be pro-
jected on the screen. Check the
safety of the surroundings
directly. Visually check the surroundings
and the area behind the vehicle.
In the case shown below, the
truck appears to be outside of
the estimated course lines and
the vehicle does not look as if it
hits the truck. However, the rear
body of the truck may actually
cross over the estimated course
lines. In reality if you back up as
guided by the estimated course
lines, the vehicle may hit the
truck.
Estimated course lines
A

3307-3. Panoramic view monitor
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
is displayed
12-volt battery has
been reinstalled.
 The steering wheel
has been moved while
the 12-volt battery
was being reinstalled.
 12-volt battery power
is low.
 The steering sensor
has been reinstalled.
 There is a malfunction
in the signals being
output by the steering
sensor.
Have the vehicle
inspected by your Toy-
ota dealer.
The panoramic view dis-
play cannot be magni-
fied
The intuitive parking
assist may be malfunc-
tioning or dirty.
Follow the correction
procedures for malfunc-
tions of the intuitive
parking assist. (Refer to
“OWNER’S MANUAL”)
The See-through
view/Moving view/Side
Clearance View/Corner-
ing View cannot be dis-
played
SymptomLikely causeSolution
