TPMS TOYOTA HIGHLANDER 2021 Owners Manual (in English)

1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
INDEX
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
Engine maintenance 11
Fuel tank door release & cap 10
Hood release 10
Indicator symbols 6-7
Instrument cluster 5
Instrument panel 2-4
Instrument panel light control 11
Keyless entry1,2 8-9
Smart Key system1,2 9
OVERVIEW
FEATURES & OPERATIONS
FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
TOYOTA SAFETY SENSE™ 2.5+ (TSS 2.5+)
Air conditioning/heating 29-31
Audio 25
Auto lock/unlock1 12
Automatic transmission 12
Bird’s Eye View Camera
with Perimeter Scan 38
Blind Spot Monitor (BSM) and
Rear Cross Traffic Alert (RCTA) 35
Clock 23
Door locks1,2 17
Downhill Assist Control system (DAC) 4 1
Driver Easy Speak 33
Driving mode select switch 41
Electric parking brake 13
Front and Rear Parking Assist with
Automated Braking (PA w/AB) 36
Garage door opener (HomeLink®)3 34
Head-Up Display (HUD) 23
Heated/ventilated seats 32
Heated steering wheel 33
Height Adjustable, Hands-Free
Power Liftgate1,2 14-15
Intuitive parking assist 37
Lights1,2 & turn signals1 19
Moonroof1 15
Multi-Information Display (MID)2 22
Multi-terrain select (AWD) 40
Panoramic moonroof 16
Power outlets-12V DC 27
Power outlets-120V AC 27
Power windows1 18
Qi wireless charger 26
Rear view monitor system 39
Seat adjustments-Front 20
Seat adjustments-Rear 21
Seats-Head restraints 20
Seats-Stowing & returning
3rd row seats 21
Snow mode button 40
Steering lock release 17
Steering wheel switches &
telephone controls (Bluetooth®) 24
Stop & Start Engine System 39
Tilt & telescopic steering wheel 17
Toyota multi-operation touch 28
USB charge ports 27
USB media port 26
Vehicle Stability Control (VSC)/TRAC/
Trailer Sway Control OFF switch 34
Windshield wipers & washers1 18
Automatic High Beams (AHB) 55
Full-Range Dynamic Radar
Cruise Control (DRCC) 52-54
Lane Departure Alert with
Steering Assist 47-49
Lane Tracing Assist (LTA) System 46
Lane Tracing Assist (LTA) with
Lane Centering 50-51
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 43-45
Quick overview-Toyota Safety
Sense™ 2.5+ (TSS 2.5+) 42
Road Sign Assist (RSA) 56
Sensors 43
BLUETOOTH® DEVICE PAIRING SECTION 64-66
Floor mat installation 62
Rear door child safety locks 58
Safety Connect® 60
Seat belts 57
Seat belts-3rd row center 57
Seat belts-Shoulder belt anchor 57
Spare tire & tools 59
Star Safety SystemTM 61-62
Tire Pressure Monitoring
(warning) System (TPMS) 58
130494_MY21_Highlander_QRG_V7_ML_070821_PRINT_R1.indd 17/9/21 7:31 AM

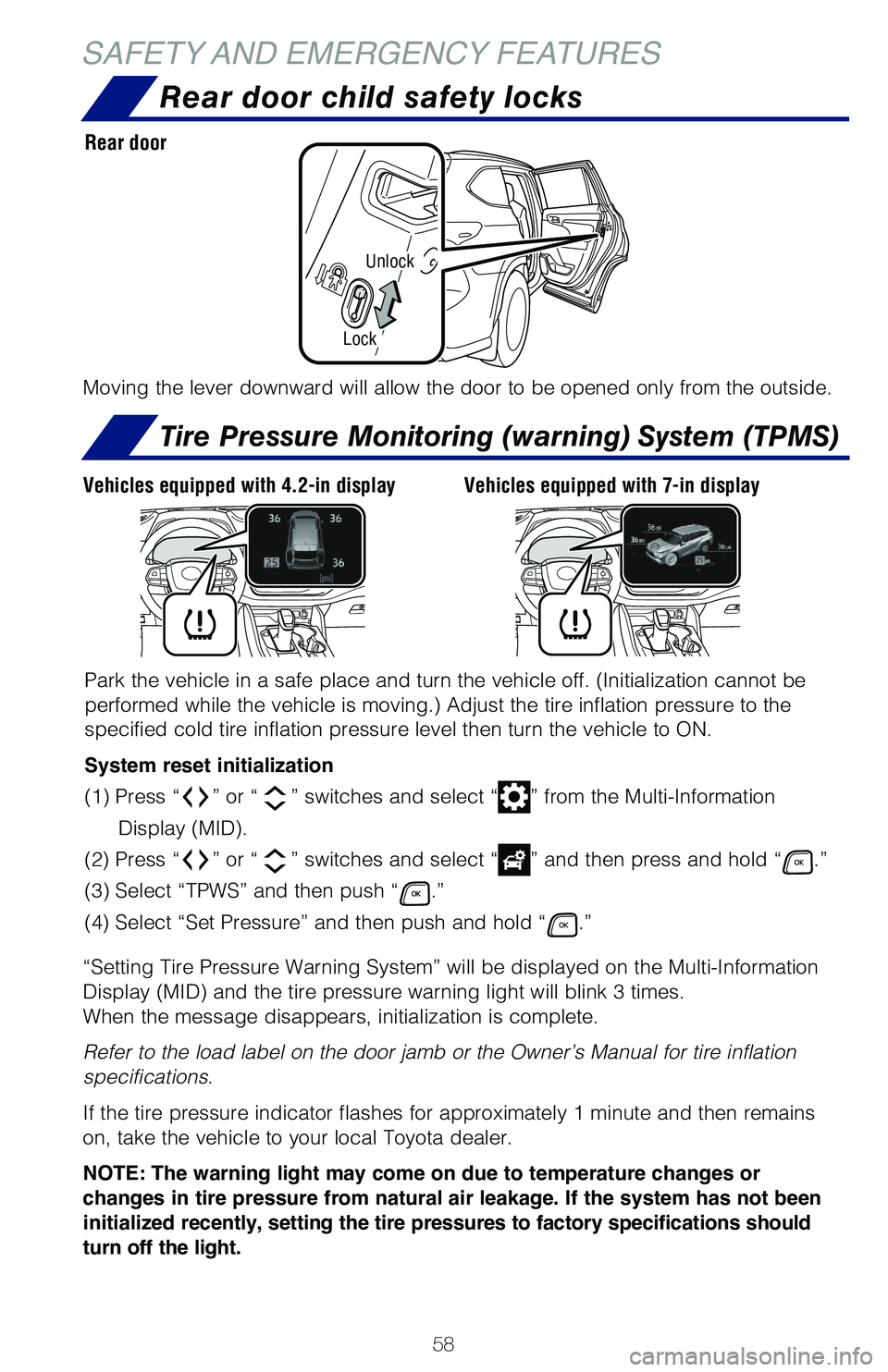

58
SAFETY AND EMERGENCY FEATURES
Unlock
Lock
Rear door child safety locks
Tire Pressure Monitoring (warning) System (TPMS)
Moving the lever downward will allow the door to be opened only from the outside.
Rear door
“Setting Tire Pressure Warning System” will be displayed on the Multi-Information
Display (MID) and the tire pressure warning light will blink 3 times.
When the message disappears, initialization is complete.
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for approximately 1 minute and then remains
on, take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not been
initialized recently, setting the tire pressures to factory specifications should
turn off the light.
Park the vehicle in a safe place and turn the vehicle off. (Initialization cannot be
performed while the vehicle is moving.) Adjust the tire inflation pressure to the
specified cold tire inflation pressure level then turn the vehicle to ON.
System reset initialization
(1) Press “” or “” switches and select “” from the Multi-Information
Display (MID).
(2) Press “” or “” switches and select “” and then press and hold “.”
(3) Select “TPWS” and then push “.”
(4) Select “Set Pressure” and then push and hold “.”
Vehicles equipped with 4.2-in displayVehicles equipped with 7-in display
130494_MY21_Highlander_QRG_V7_ML_070821_PRINT_R1.indd 587/9/21 6:47 AM
