QUICK
REFERENCE
GUIDE
2021
Quick Reference Guide 2021
toyota.com
Printed in U.S.A. 7/2121- M KG -15 9 0 4
00505QRG21HIGR1
130494_21-MKG-15904 MY21 Toyota HIghlander QRG_R1.indd 1130494_21-MKG-15904 MY21 Toyota HIghlander QRG_R1.indd 17/9/21 9:58 AM7/9/21 9:58 AM
Page 2 of 72
HIGHLANDER
2021

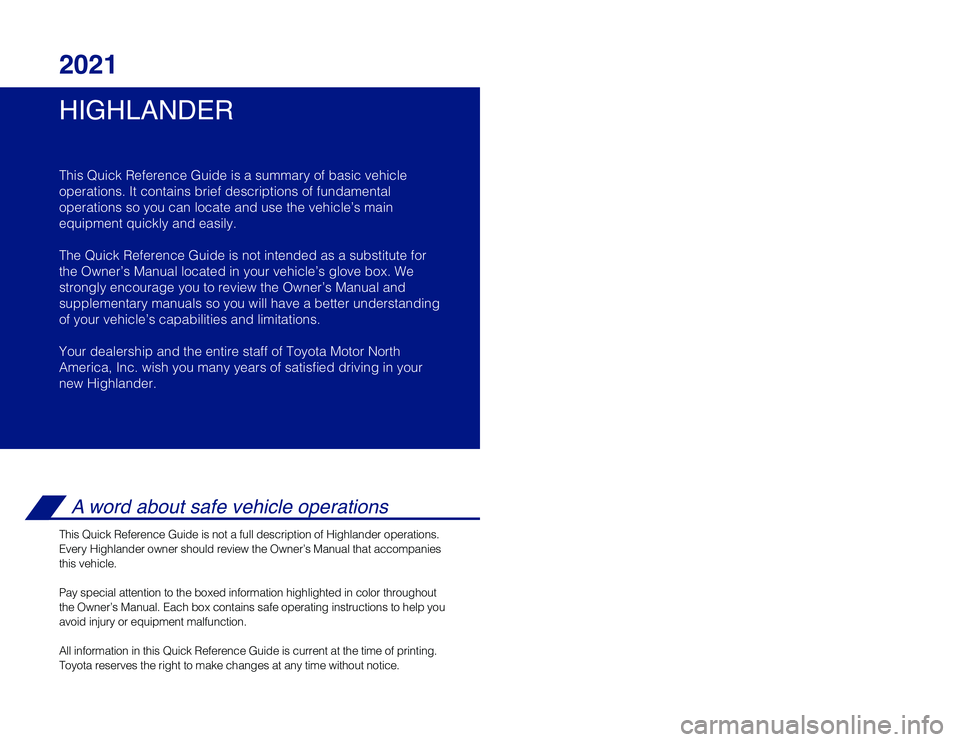

This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Highlander.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Highlander operations.
Every Highlander owner should review the Owner’s Manual that accompanies
this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.
130494_MY21_Highlander_QRG_V7_ML_070821_PRINT_R1.indd 1-17/9/21 7:32 AM
Page 3 of 72
1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
INDEX
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
Engine maintenance 11
Fuel tank door release & cap 10
Hood release 10
Indicator symbols 6-7
Instrument cluster 5
Instrument panel 2-4
Instrument panel light control 11
Keyless entry1,2 8-9
Smart Key system1,2 9
OVERVIEW
FEATURES & OPERATIONS
FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
TOYOTA SAFETY SENSE™ 2.5+ (TSS 2.5+)
Air conditioning/heating 29-31
Audio 25
Auto lock/unlock1 12
Automatic transmission 12
Bird’s Eye View Camera
with Perimeter Scan 38
Blind Spot Monitor (BSM) and
Rear Cross Traffic Alert (RCTA) 35
Clock 23
Door locks1,2 17
Downhill Assist Control system (DAC) 4 1
Driver Easy Speak 33
Driving mode select switch 41
Electric parking brake 13
Front and Rear Parking Assist with
Automated Braking (PA w/AB) 36
Garage door opener (HomeLink®)3 34
Head-Up Display (HUD) 23
Heated/ventilated seats 32
Heated steering wheel 33
Height Adjustable, Hands-Free
Power Liftgate1,2 14-15
Intuitive parking assist 37
Lights1,2 & turn signals1 19
Moonroof1 15
Multi-Information Display (MID)2 22
Multi-terrain select (AWD) 40
Panoramic moonroof 16
Power outlets-12V DC 27
Power outlets-120V AC 27
Power windows1 18
Qi wireless charger 26
Rear view monitor system 39
Seat adjustments-Front 20
Seat adjustments-Rear 21
Seats-Head restraints 20
Seats-Stowing & returning
3rd row seats 21
Snow mode button 40
Steering lock release 17
Steering wheel switches &
telephone controls (Bluetooth®) 24
Stop & Start Engine System 39
Tilt & telescopic steering wheel 17
Toyota multi-operation touch 28
USB charge ports 27
USB media port 26
Vehicle Stability Control (VSC)/TRAC/
Trailer Sway Control OFF switch 34
Windshield wipers & washers1 18
Automatic High Beams (AHB) 55
Full-Range Dynamic Radar
Cruise Control (DRCC) 52-54
Lane Departure Alert with
Steering Assist 47-49
Lane Tracing Assist (LTA) System 46
Lane Tracing Assist (LTA) with
Lane Centering 50-51
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 43-45
Quick overview-Toyota Safety
Sense™ 2.5+ (TSS 2.5+) 42
Road Sign Assist (RSA) 56
Sensors 43
BLUETOOTH® DEVICE PAIRING SECTION 64-66
Floor mat installation 62
Rear door child safety locks 58
Safety Connect® 60
Seat belts 57
Seat belts-3rd row center 57
Seat belts-Shoulder belt anchor 57
Spare tire & tools 59
Star Safety SystemTM 61-62
Tire Pressure Monitoring
(warning) System (TPMS) 58
130494_MY21_Highlander_QRG_V7_ML_070821_PRINT_R1.indd 17/9/21 7:31 AM
Page 4 of 72
2

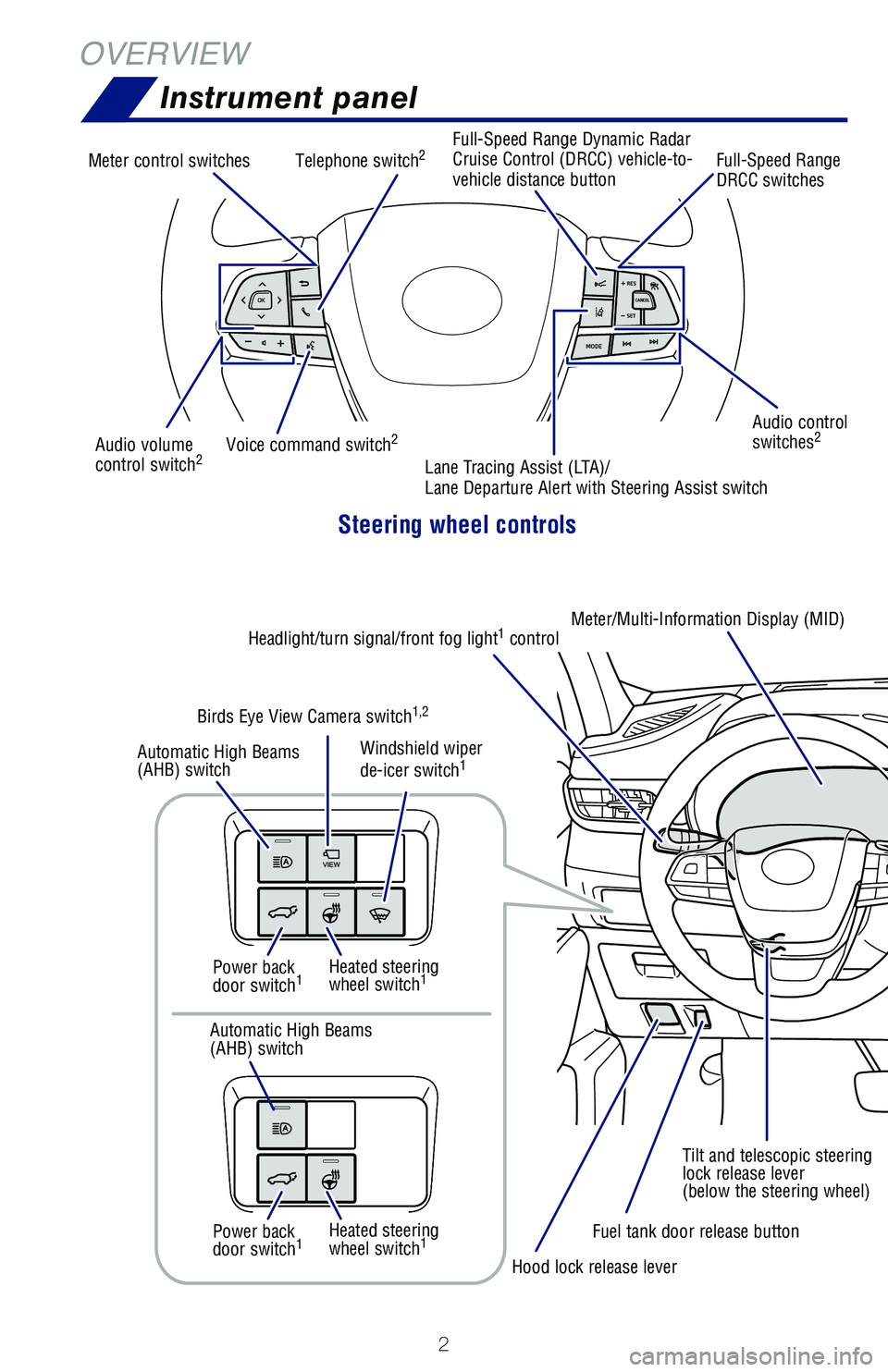

Steering wheel controls
Automatic High Beam (AHB) switch
Audio control switches2Audio volume control switch2
Meter control switchesFull-Speed Range Dynamic Radar Cruise Control (DRCC) vehicle-to-vehicle distance buttonFull-Speed Range DRCC switches
Tilt and telescopic steering lock release lever (below the steering wheel)
Headlight/turn signal/front fog light1 controlMeter/Multi-Information Display (MID)
Hood lock release lever
Fuel tank door release button
Windshield wiper de-icer switch1
Heated steering wheel switch1
Heated steering wheel switch1
Automatic High Beams (AHB) switch
Automatic High Beams (AHB) switch
Birds Eye View Camera switch1,2
Power back door switch1
Power back door switch1
Voice command switch2
Telephone switch2
Lane Tracing Assist (LTA)/ Lane Departure Alert with Steering Assist switch
OVERVIEW
Instrument panel
130494_MY21_Highlander_QRG_V7_ML_070821_PRINT_R1.indd 27/9/21 6:46 AM
Page 5 of 72
3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

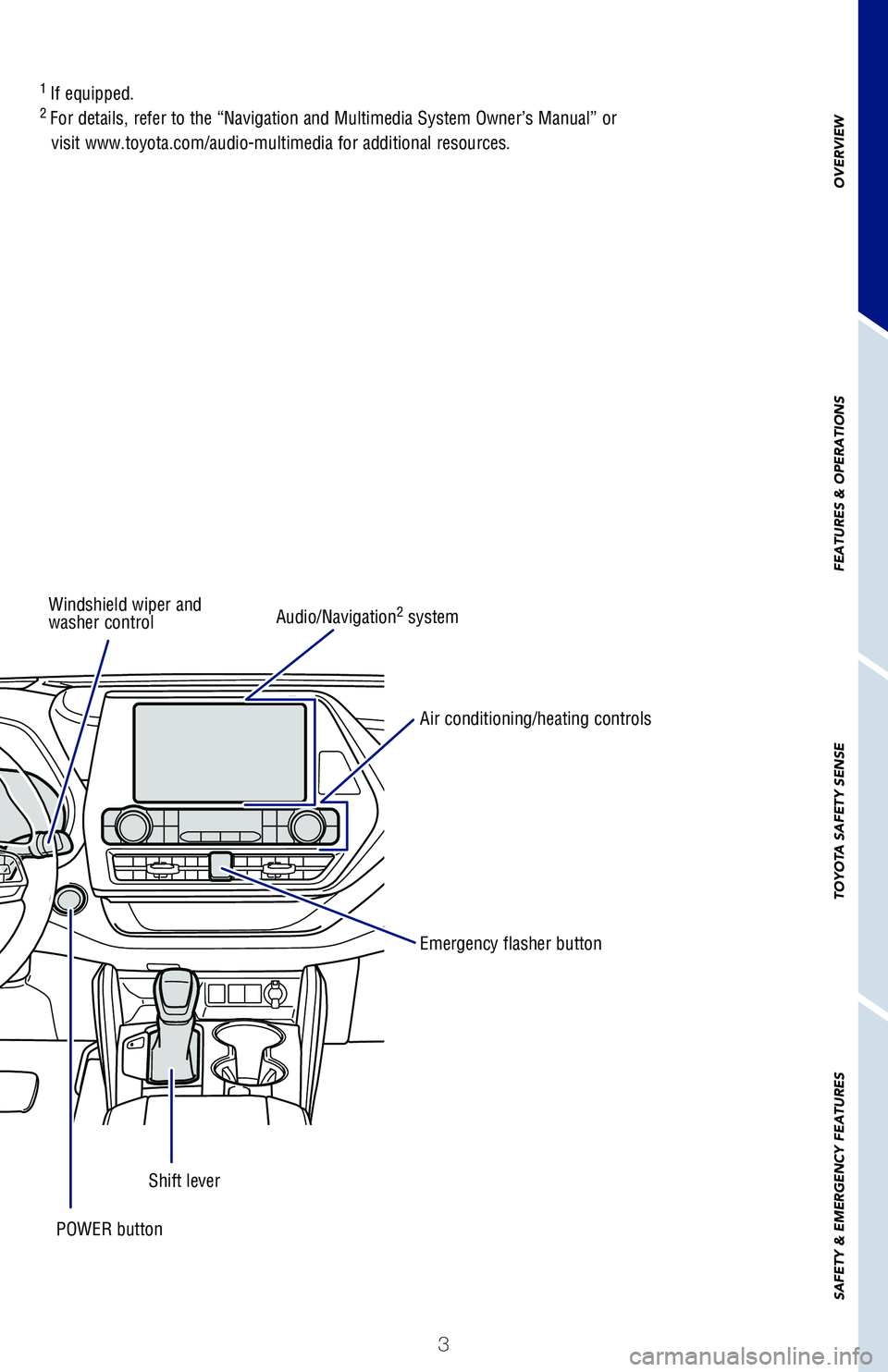

Tilt and telescopic steering lock release lever (below the steering wheel)
Windshield wiper and washer control
POWER button
Shift lever
Audio/Navigation2 system
Air conditioning/heating controls
Emergency flasher button
1 If equipped.2 For details, refer to the “Navigation and Multimedia System Owner’s Manual” or
visit www.toyota.com/audio-multimedia for additional resources.
130494_MY21_Highlander_QRG_V7_ML_070821_PRINT_R1.indd 37/9/21 6:46 AM
Page 6 of 72
4
1 If equipped.2 For details, refer to the “Navigation and Multimedia System Owner’s Manual” or
visit www.toyota.com/audio-multimedia for additional resources.
VSC OFF switch
SNOW mode switch
Driving mode select switch
Multi-terrain Select switches/dial1
Parking brake switch
Brake hold switch
“DAC” switch1
USB media port2
USB charging ports
Power outlet-12V DC
Stop & Start cancel switch1

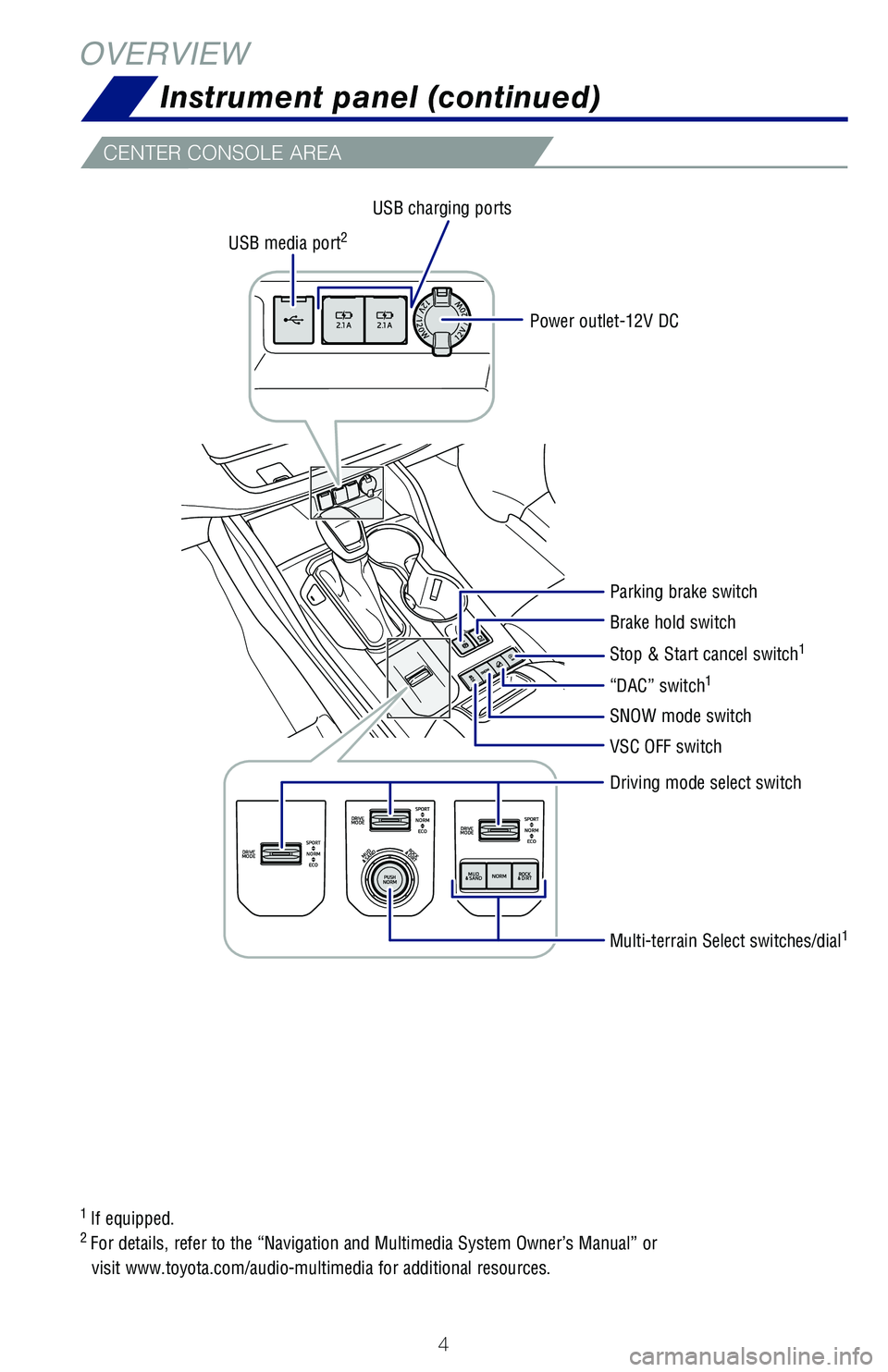

CENTER CONSOLE AREA
OVERVIEW
Instrument panel (continued)
130494_MY21_Highlander_QRG_V7_ML_070821_PRINT_R1.indd 47/9/21 6:46 AM
Page 7 of 72
5
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

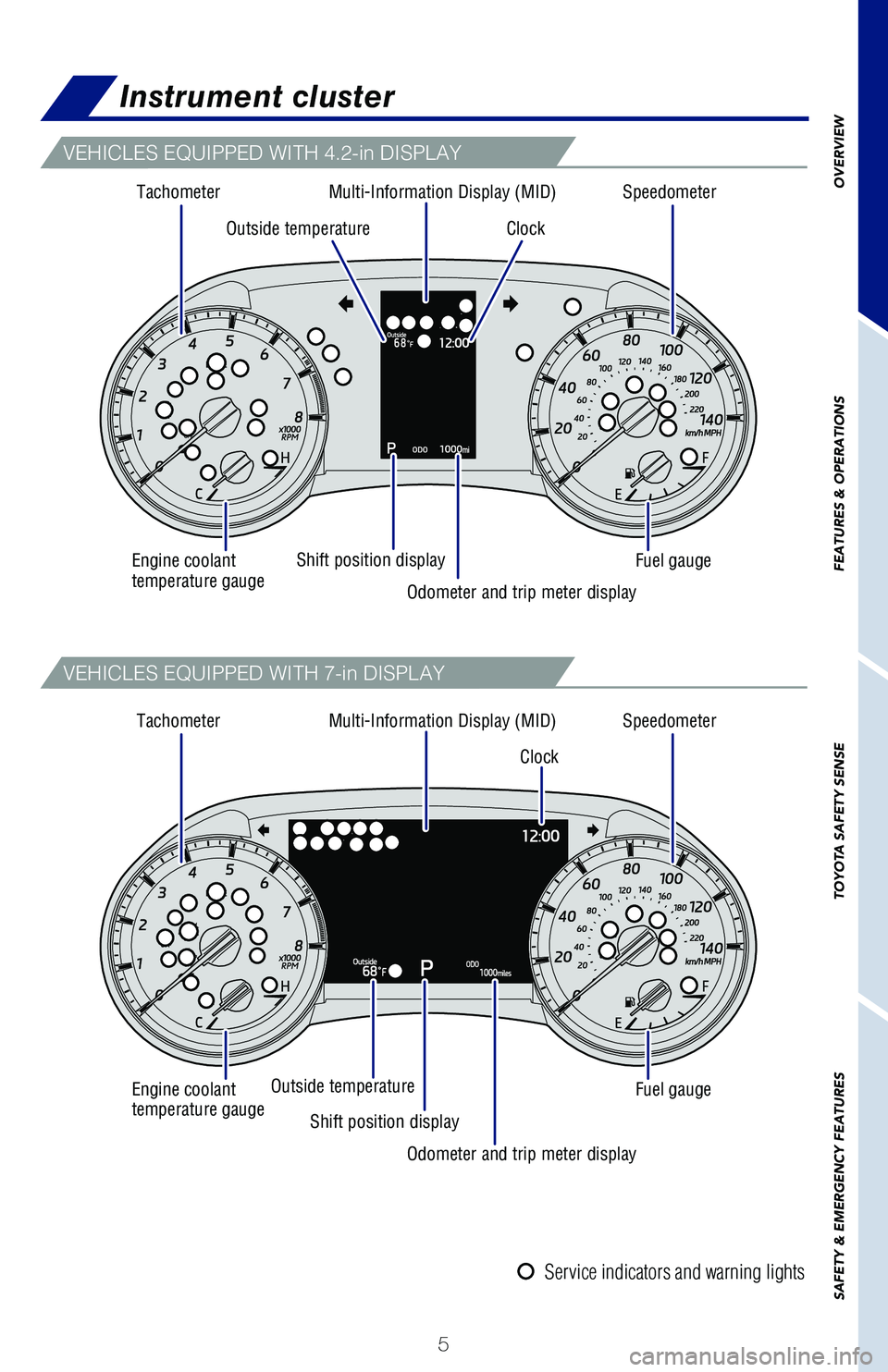

VEHICLES EQUIPPED WITH 4.2-in DISPLAY
