1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
INDEX
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
Engine maintenance 11
Fuel tank door release & cap 10
Hood release 10
Indicator symbols 6-7
Instrument cluster 5
Instrument panel 2-4
Instrument panel light control 11
Keyless entry1,2 8-9
Smart Key system1,2 9
OVERVIEW
FEATURES & OPERATIONS
FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
TOYOTA SAFETY SENSE™ 2.5+ (TSS 2.5+)
Air conditioning/heating 29-31
Audio 25
Auto lock/unlock1 12
Automatic transmission 12
Bird’s Eye View Camera
with Perimeter Scan 38
Blind Spot Monitor (BSM) and
Rear Cross Traffic Alert (RCTA) 35
Clock 23
Door locks1,2 17
Downhill Assist Control system (DAC) 4 1
Driver Easy Speak 33
Driving mode select switch 41
Electric parking brake 13
Front and Rear Parking Assist with
Automated Braking (PA w/AB) 36
Garage door opener (HomeLink®)3 34
Head-Up Display (HUD) 23
Heated/ventilated seats 32
Heated steering wheel 33
Height Adjustable, Hands-Free
Power Liftgate1,2 14-15
Intuitive parking assist 37
Lights1,2 & turn signals1 19
Moonroof1 15
Multi-Information Display (MID)2 22
Multi-terrain select (AWD) 40
Panoramic moonroof 16
Power outlets-12V DC 27
Power outlets-120V AC 27
Power windows1 18
Qi wireless charger 26
Rear view monitor system 39
Seat adjustments-Front 20
Seat adjustments-Rear 21
Seats-Head restraints 20
Seats-Stowing & returning
3rd row seats 21
Snow mode button 40
Steering lock release 17
Steering wheel switches &
telephone controls (Bluetooth®) 24
Stop & Start Engine System 39
Tilt & telescopic steering wheel 17
Toyota multi-operation touch 28
USB charge ports 27
USB media port 26
Vehicle Stability Control (VSC)/TRAC/
Trailer Sway Control OFF switch 34
Windshield wipers & washers1 18
Automatic High Beams (AHB) 55
Full-Range Dynamic Radar
Cruise Control (DRCC) 52-54
Lane Departure Alert with
Steering Assist 47-49
Lane Tracing Assist (LTA) System 46
Lane Tracing Assist (LTA) with
Lane Centering 50-51
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 43-45
Quick overview-Toyota Safety
Sense™ 2.5+ (TSS 2.5+) 42
Road Sign Assist (RSA) 56
Sensors 43
BLUETOOTH® DEVICE PAIRING SECTION 64-66
Floor mat installation 62
Rear door child safety locks 58
Safety Connect® 60
Seat belts 57
Seat belts-3rd row center 57
Seat belts-Shoulder belt anchor 57
Spare tire & tools 59
Star Safety SystemTM 61-62
Tire Pressure Monitoring
(warning) System (TPMS) 58
130494_MY21_Highlander_QRG_V7_ML_070821_PRINT_R1.indd 17/9/21 7:31 AM

5
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
VEHICLES EQUIPPED WITH 4.2-in DISPLAY
VEHICLES EQUIPPED WITH 7-in DISPLAY
Engine coolant temperature gauge
Engine coolant temperature gauge
Fuel gauge
Fuel gauge
Shift position display
Shift position display
Tachometer
Tachometer
Multi-Information Display (MID)
Multi-Information Display (MID)
Speedometer
Speedometer
Outside temperature
Outside temperature
Clock
Clock
Odometer and trip meter display
Odometer and trip meter display
Service indicators and warning lights
Instrument cluster
130494_MY21_Highlander_QRG_V7_ML_070821_PRINT_R1.indd 57/9/21 6:46 AM

6
Automatic High Beams (AHB)
indicator5
For details, refer to “Warning lights and indicators,” Section 2-1, 2021 Owner’s
Manual.
Front Fog light indicator4, 5
Constant speed cruise control indicator/Constant speed cruise control SET indicator
Electric power steering system
warning [red/yellow]
Downhill Assist Control indicator4
Fuel tank door positionAnti-lock Brake (ABS) System
warning1
Airbag SRS warning1
Air Bag ON/OFF indicator1
Brake system warning1 [yellow]
High coolant temperature warning
Eco drive mode indicator
Mud & sand mode indicator4
Low engine oil pressure warning
Brake Override System/Drive-Start
Control warning
Charging system warning1
Brake hold operating indicator1,2
Brake hold standby indicator1
Front and Rear Parking Assist
with Automated Braking OFF
indicator1,2,4,5,6
Brake system warning1
BSM outside rear view mirror
indicator4
Blind Spot Monitor (BSM) OFF
indicator4
Eco Driving indicator1
Driver’s and front passenger’s seat belt reminder (alarm will sound when the vehicle is on)
Full-Speed Range Dynamic Radar Cruise Control indicator/DRCC SET indicator
Malfunction/Check Engine indicator1
Low tire pressure warning1
Intuitive parking assist OFF
indicator1,2,4,5
Headlight low/high beam indicator
Low fuel level warning1
Low outside temperature indicator
Parking brake indicator1,2
Lane Tracing Assist (LTA)/Lane Departure Alert with Steering Assist
indicator [white/green/orange3]
Pre-Collison System (PCS) warning1,2
OVERVIEW
Indicator symbols
130494_MY21_Highlander_QRG_V7_ML_070821_PRINT_R1.indd 67/9/21 6:46 AM

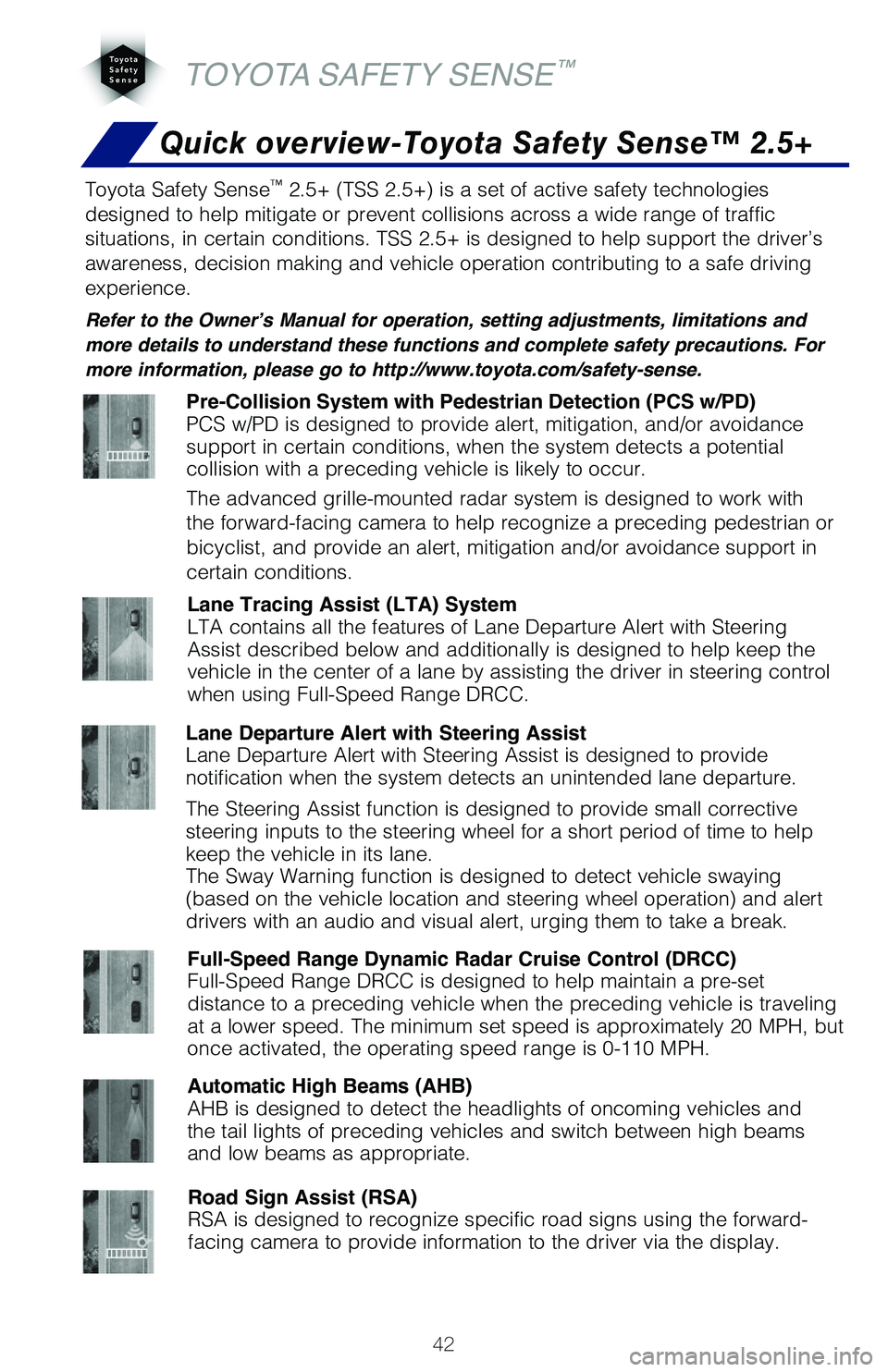

42
TOYOTA SAFETY SENSE™
Toyota Safety Sense™ 2.5+ (TSS 2.5+) is a set of active safety technologies
designed to help mitigate or prevent collisions across a wide range of traffic
situations, in certain conditions. TSS 2.5+ is designed to help support the driver’s
awareness, decision making and vehicle operation contributing to a safe driving
experience.
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to http://www.toyota.com/safety-sense.
Quick overview-Toyota Safety Sense™ 2.5+
Pre-Collision System with Pedestrian Detection (PCS w/PD)PCS w/PD is designed to provide alert, mitigation, and/or avoidance support in certain conditions, when the system detects a potential collision with a preceding vehicle is likely to occur.
The advanced grille-mounted radar system is designed to work with
the forward-facing camera to help recognize a preceding pedestrian or
bicyclist, and provide an alert, mitigation and/or avoidance support in
certain conditions.
Lane Departure Alert with Steering AssistLane Departure Alert with Steering Assist is designed to provide notification when the system detects an unintended lane departure.
The Steering Assist function is designed to provide small corrective steering inputs to the steering wheel for a short period of time to help keep the vehicle in its lane. The Sway Warning function is designed to detect vehicle swaying (based on the vehicle location and steering wheel operation) and alert drivers with an audio and visual alert, urging them to take a break.
Automatic High Beams (AHB)AHB is designed to detect the headlights of oncoming vehicles and the tail lights of preceding vehicles and switch between high beams and low beams as appropriate.
Road Sign Assist (RSA)RSA is designed to recognize specific road signs using the forward- facing camera to provide information to the driver via the display.
Full-Speed Range Dynamic Radar Cruise Control (DRCC)Full-Speed Range DRCC is designed to help maintain a pre-set distance to a preceding vehicle when the preceding vehicle is traveling at a lower speed. The minimum set speed is approximately 20 MPH, but once activated, the operating speed range is 0-110 MPH.
Lane Tracing Assist (LTA) SystemLTA contains all the features of Lane Departure Alert with Steering Assist described below and additionally is designed to help keep the vehicle in the center of a lane by assisting the driver in steering control when using Full-Speed Range DRCC.
130494_MY21_Highlander_QRG_V7_ML_070821_PRINT_R1.indd 427/9/21 6:47 AM

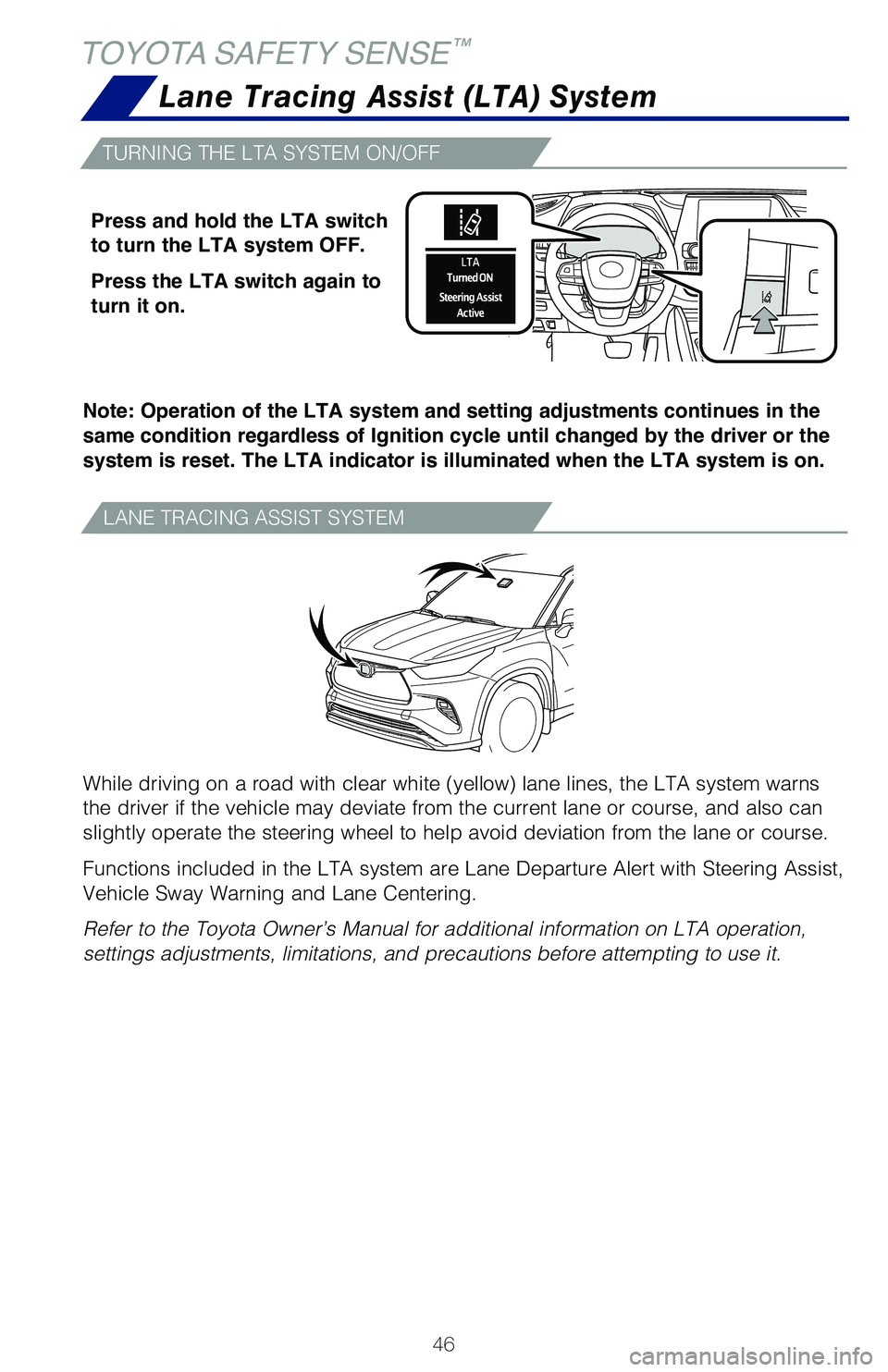

46
TOYOTA SAFETY SENSE™
While driving on a road with clear white (yellow) lane lines, the LTA system warns
the driver if the vehicle may deviate from the current lane or course, and also can
slightly operate the steering wheel to help avoid deviation from the lane or course.
Functions included in the LTA system are Lane Departure Alert with Steering Assist,
Vehicle Sway Warning and Lane Centering.
Refer to the Toyota Owner’s Manual for additional information on LTA operation,
settings adjustments, limitations, and precautions before attempting to use it.
TURNING THE LTA SYSTEM ON/OFF
LANE TRACING ASSIST SYSTEM
Note: Operation of the LTA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset. The LTA indicator is illuminated when the LTA system is on.
Press and hold the LTA switch
to turn the LTA system OFF.
Press the LTA switch again to
turn it on.
Lane Tracing Assist (LTA) System
130494_MY21_Highlander_QRG_V7_ML_070821_PRINT_R1.indd 467/9/21 6:47 AM

53
ADJUSTING DISTANCE
To change the vehicle-to-vehicle distance
Push the “” button to cycle
through the settings, which will
change progressively.
This mode employs a radar sensor to detect the presence of a preceding vehicle
up to approximately 328 ft (100 m) ahead, determines the current vehicle-to-vehicle
following distance and operates to maintain a preset following distance from the
vehicle ahead. These distances vary based on vehicle speed.
LONG(default setting)MIDDLESHORT
Note: Vehicle-to-vehicle distance will close in when traveling on long downhill
slopes.
Preceding vehicle mark
(1) (2) (3)
(1) Constant speed cruising when there are no vehicles ahead
The vehicle travels at the speed set by the driver. The desired vehicle-to-
vehicle distance can also be set by operating the vehicle-to-vehicle distance
control.
(2) Deceleration cruising and follow-up cruising when a preceding vehicle
driving slower than the set speed appears
When a vehicle is detected running ahead of you, the system automatically
decelerates your vehicle. When a greater reduction in vehicle speed is
necessary, the system applies the brakes (the brake lights will come on at this
time). The system will respond to changes in the speed of the vehicle ahead
in order to maintain the vehicle-to-vehicle distance set by the driver. A warning
tone warns you when the system cannot decelerate sufficiently to prevent your
vehicle from closing in on the vehicle ahead.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
130494_MY21_Highlander_QRG_V7_ML_070821_PRINT_R1.indd 537/9/21 6:47 AM

58
SAFETY AND EMERGENCY FEATURES
Unlock
Lock
Rear door child safety locks
Tire Pressure Monitoring (warning) System (TPMS)
Moving the lever downward will allow the door to be opened only from the outside.
Rear door
“Setting Tire Pressure Warning System” will be displayed on the Multi-Information
Display (MID) and the tire pressure warning light will blink 3 times.
When the message disappears, initialization is complete.
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for approximately 1 minute and then remains
on, take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not been
initialized recently, setting the tire pressures to factory specifications should
turn off the light.
Park the vehicle in a safe place and turn the vehicle off. (Initialization cannot be
performed while the vehicle is moving.) Adjust the tire inflation pressure to the
specified cold tire inflation pressure level then turn the vehicle to ON.
System reset initialization
(1) Press “” or “” switches and select “” from the Multi-Information
Display (MID).
(2) Press “” or “” switches and select “” and then press and hold “.”
(3) Select “TPWS” and then push “.”
(4) Select “Set Pressure” and then push and hold “.”
Vehicles equipped with 4.2-in displayVehicles equipped with 7-in display
