TOYOTA HIGHLANDER 2021 Warranties & Maintenance Guides (in English)

40Maintenance Log
MAINTENANCE LOG
MAINTENANCE
20,000 miles or 24 months
■ Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
■Check installation of driver’s floor mat
■Inspect and adjust all fluid levels1
■Inspect wiper blades
■Replace engine oil and oil filter2
■Rotate tires
■ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads: ■Inspect ball joints and dust covers
■Inspect drive shaft boots
■Inspect engine air filter
■Inspect steering linkage and boots
■Re-torque propeller shaft bolt (4WD)4
■ Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
7
■Re-torque propeller shaft bolt (4WD)4
■ Tighten nuts and bolts on chassis
and body



25,000 miles or 30 months
■ Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
■Check installation of driver’s floor mat
■Inspect and adjust all fluid levels1
■Inspect wiper blades
■Rotate tires
■ Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads: ■Inspect ball joints and dust covers
■Inspect drive shaft boots
■Inspect engine air filter
■Inspect steering linkage and boots
■Replace engine oil and oil filter2
■Re-torque propeller shaft bolt (4WD)4
■ Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
7
■Replace engine oil and oil filter2
■Re-torque propeller shaft bolt (4WD)4
■ Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
■Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
■Replace engine oil and oil filter2
Dealer Service verification:
D
ate:
Mileage: D
ealer Service verification:
D
ate:
Mileage:
19-TCS-14200 TMY21 WMG Highlander.indd 4019-TCS-14200 TMY21 WMG Highlander.indd 408/6/20 1:50 AM8/6/20 1:50 AM

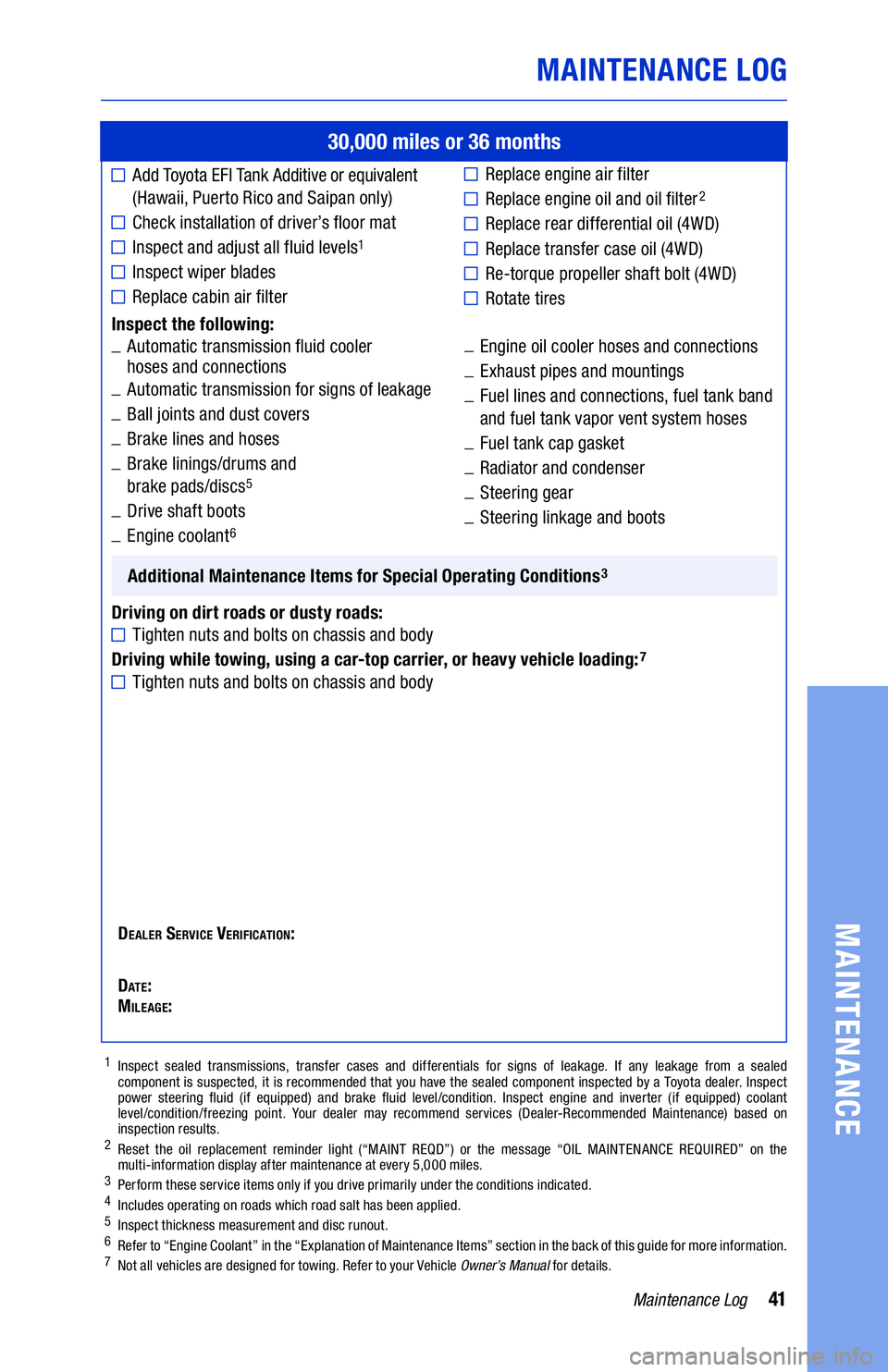

41Maintenance Log

■

■Replace engine air filter

■Replace engine oil and oil filter2

■Replace rear differential oil (4WD)

■Replace transfer case oil (4WD)

■Rotate tires
MAINTENANCE LOG
MAINTENANCE
30,000 miles or 36 months

■ Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)

■Check installation of driver’s floor mat

■Inspect and adjust all fluid levels1

■Inspect wiper blades

■Replace cabin air filter
Inspect the following:
_
A

utomatic transmission fl
u
id cooler
h

oses and connections
_ A

utomatic transmission for signs of leakage
_ B

all joints and dust covers
_ B

rake lines and hoses
_ B

rake linings/drums and
brake pads/discs
5
_ Dr ive shaft boots
_
E

ngine coolant
6
_
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:
■Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:7

■Tighten nuts and bolts on chassis and body


_ Engine oil cooler hoses and connections
_ E

xhaust pipes and mountings
_ F

uel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_ F

uel tank cap gasket
_ R

adiator and condenser
_
S

teering gear
_
S

teering linkage and boots
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 R
eset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 P erform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied.5 Inspect thickness measurement and disc runout.6 R
efer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.7 N ot all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.

■Replace engine air filter

■Replace engine oil and oil filter2

■Replace rear differential oil (4WD)

■Replace transfer case oil (4WD)

■Re-torque propeller shaft bolt (4WD)

■Rotate tires
Dealer Service verification:
D
ate:
Mileage:
19-TCS-14200 TMY21 WMG Highlander.indd 4119-TCS-14200 TMY21 WMG Highlander.indd 418/6/20 1:50 AM8/6/20 1:50 AM

42Maintenance Log
MAINTENANCE LOG
MAINTENANCE
35,000 miles or 42 months
■ Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
■Check installation of driver’s floor mat
■Inspect and adjust all fluid levels1
■Inspect wiper blades
■Rotate tires
■ Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads: ■Inspect ball joints and dust covers
■Inspect drive shaft boots
■Inspect engine air filter
■Inspect steering linkage and boots
■Replace engine oil and oil filter2
■Re-torque propeller shaft bolt (4WD)4
■ Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
■Replace engine oil and oil filter2
■Re-torque propeller shaft bolt (4WD)4
■ Tighten nuts and bolts on chassis
and body
R

epeated trips of less than five miles in
temperatures below 32°F / 0°C:
■Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
■Replace engine oil and oil filter2
40,000 miles or 48 months
■ Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
■Check installation of driver’s floor mat
■Inspect and adjust all fluid levels1
■Inspect wiper blades
■Replace engine oil and oil filter2
■Rotate tires
■ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads: ■Inspect ball joints and dust covers
■Inspect drive shaft boots
■Inspect engine air filter
■Inspect steering linkage and boots
■Re-torque propeller shaft bolt (4WD)4
■ Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
■Re-torque propeller shaft bolt (4WD)4
■ Tighten nuts and bolts on chassis
and body
Dealer Service verification:
D
ate:
Mileage: D
ealer Service verification:
D
ate:
Mileage:
19-TCS-14200 TMY21 WMG Highlander.indd 4219-TCS-14200 TMY21 WMG Highlander.indd 428/6/20 1:50 AM8/6/20 1:50 AM

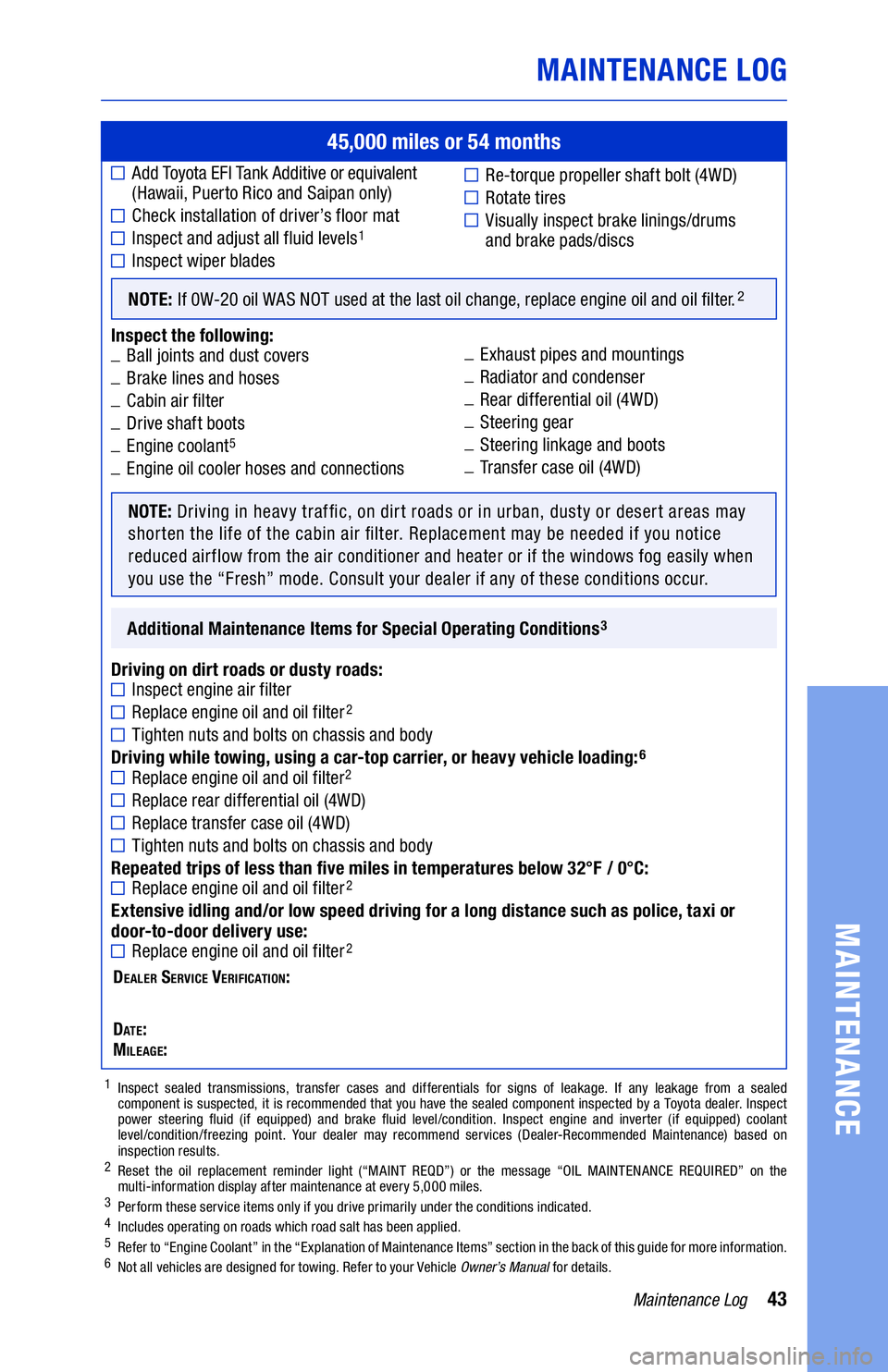

43Maintenance Log
MAINTENANCE LOG
MAINTENANCE
■Re-torque propeller shaft bolt (4WD)
■Rotate tires
■ Visually inspect brake linings/drums
and brake pads/discs
45,000 miles or 54 months
■ Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
■Check installation of driver’s floor mat
■Inspect and adjust all fluid levels1
■Inspect wiper blades
NOTE: If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following: _
B
all joints and dust covers

_ B

rake lines and hoses

_ C

abin air filter
_D

rive shaft boots

_ E

ngine coolant
5
_Engine oil cooler hoses and connections



NOTE: Driving in heavy traffic , on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air fil ter. Replacement may be needed if you notice
reduced airflow from the air conditioner and heater or if the windows fog easily when
you use the “Fresh” mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions3

Driving on dirt roads or dusty roads:
■Inspect engine air filter
■Replace engine oil and oil filter2
■Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
■Replace engine oil and oil filter2
■Replace rear differential oil (4WD)
■Replace transfer case oil (4WD)
■Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
■Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
■Replace engine oil and oil filter2
1
Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 R eset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 P erform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied.5 R efer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.6 N ot all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Dealer Service verification:
D
ate:
Mileage:
_ E xhaust pipes and mountings
_R

adiator and condenser
_R

ear differential oil (4WD)
_S

teering gear
_S

teering linkage and boots
_T

ransfer case oil (4WD)
19-TCS-14200 TMY21 WMG Highlander.indd 4319-TCS-14200 TMY21 WMG Highlander.indd 438/6/20 1:50 AM8/6/20 1:50 AM

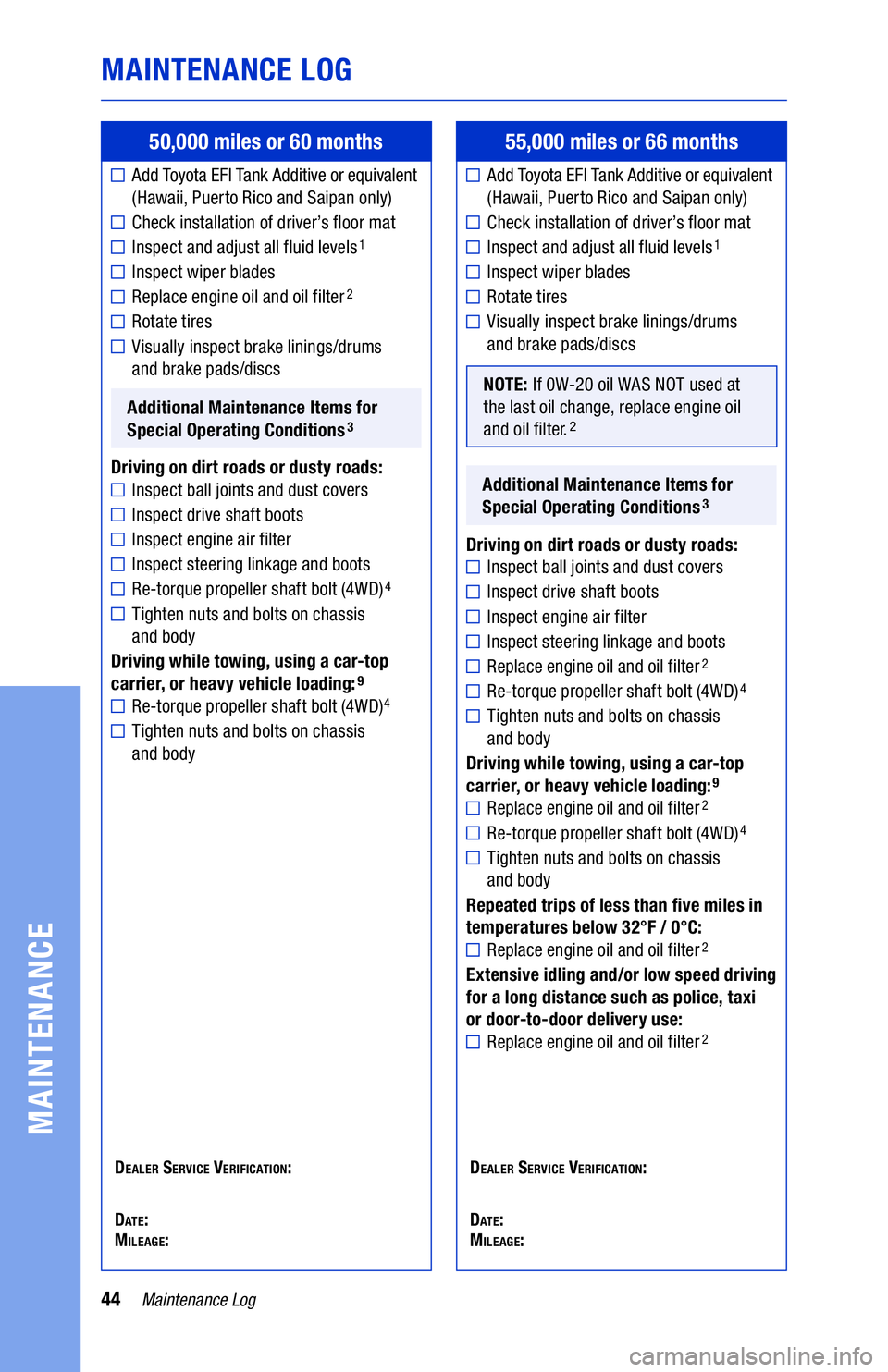

44Maintenance Log
MAINTENANCE LOG
MAINTENANCE
50,000 miles or 60 months
■ Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
■Check installation of driver’s floor mat
■Inspect and adjust all fluid levels1
■Inspect wiper blades
■Replace engine oil and oil filter2
■Rotate tires
■ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads: ■Inspect ball joints and dust covers
■Inspect drive shaft boots
■Inspect engine air filter
■Inspect steering linkage and boots
■Re-torque propeller shaft bolt (4WD)4
■ Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
9
■Re-torque propeller shaft bolt (4WD)4
■ Tighten nuts and bolts on chassis
and body
55,000 miles or 66 months
■ Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
■Check installation of driver’s floor mat
■Inspect and adjust all fluid levels1
■Inspect wiper blades
■Rotate tires
■ Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads: ■Inspect ball joints and dust covers
■Inspect drive shaft boots
■Inspect engine air filter
■Inspect steering linkage and boots
■Replace engine oil and oil filter2
■Re-torque propeller shaft bolt (4WD)4
■ Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
9
■Replace engine oil and oil filter2
■Re-torque propeller shaft bolt (4WD)4
■ Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
■Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
■Replace engine oil and oil filter2
Dealer Service verification:
D
ate:
Mileage: D
ealer Service verification:
D
ate:
Mileage:
19-TCS-14200 TMY21 WMG Highlander.indd 4419-TCS-14200 TMY21 WMG Highlander.indd 448/6/20 1:50 AM8/6/20 1:50 AM

45Maintenance Log
MAINTENANCE LOG
MAINTENANCE

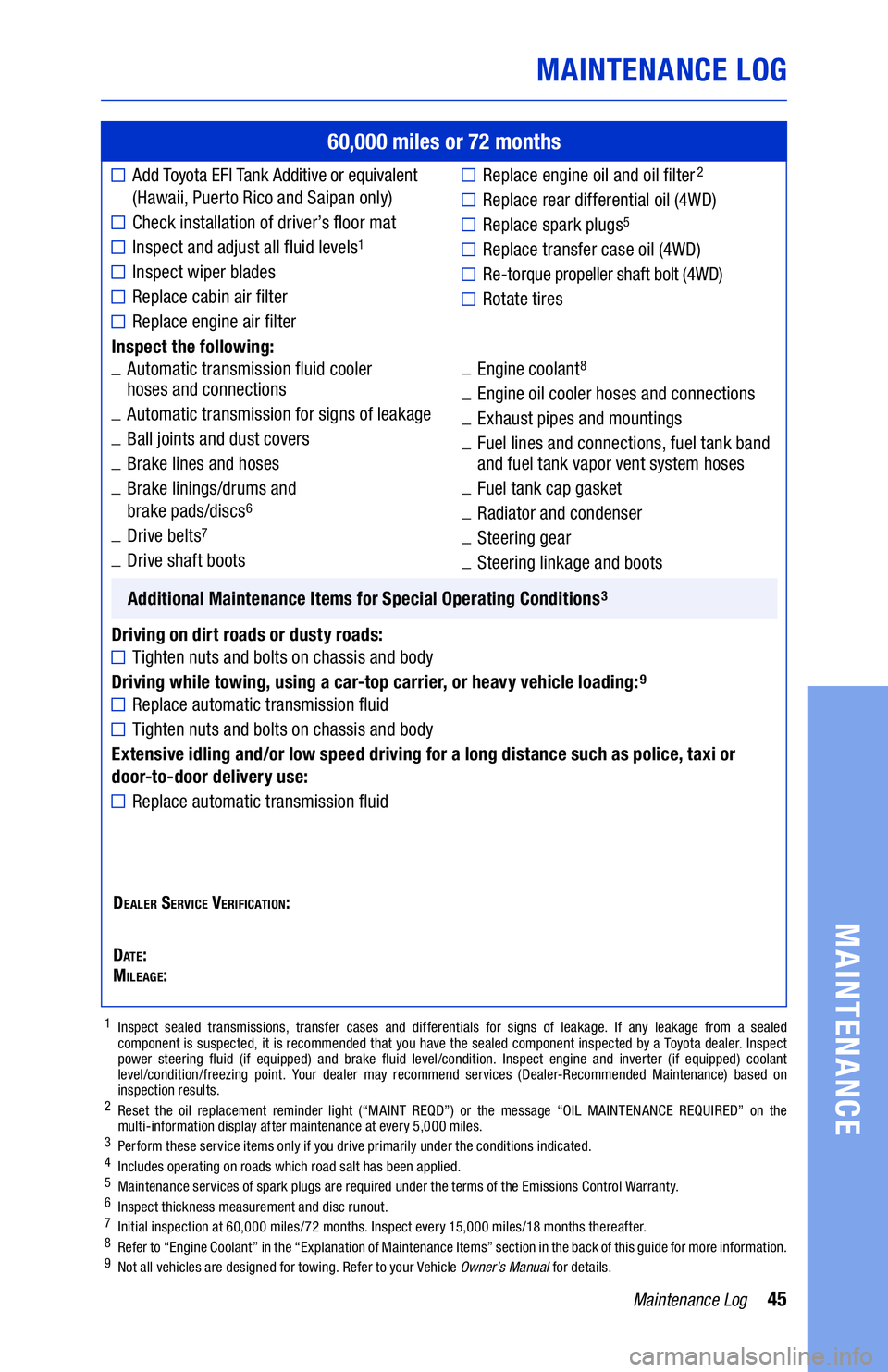

60,000 miles or 72 months
■ Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
■Check installation of driver’s floor mat
■Inspect and adjust all fluid levels1
■Inspect wiper blades
■Replace cabin air filter
■Replace engine air filter
Inspect the following:
_ A

utomatic transmission fl
u
id cooler
h

oses and connections
_ A

utomatic transmission for signs of leakage
_ B

all joints and dust covers
_ B

rake lines and hoses
_ B

rake linings/drums and
brake pads/discs
6
_ Dr ive belts7
_Dr ive shaft boots
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads: ■Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:9
■Replace automatic transmission fluid
■Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
■Replace automatic transmission fluid

1
Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 R eset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 P erform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied.5 Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty. 6 Inspect thickness measurement and disc runout.7 Initial inspection at 60,000 miles/ 72 months. Inspect every 15,000 miles/18 months thereafter. 8 R efer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.9 N ot all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
_
Engine coolant8
_ Engine oil cooler hoses and connections
_ E

xhaust pipes and mountings
_ F

uel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_ F

uel tank cap gasket
_ R

adiator and condenser
_S

teering gear
_S

teering linkage and boots
Dealer Service verification:
D
ate:
Mileage: ■
Replace engine oil and oil filter2
■Replace rear differential oil (4WD)
■Replace spark plugs5
■Replace transfer case oil (4WD)
■Re-torque propeller shaft bolt (4WD)
■Rotate tires _Engine oil cooler hoses and connections
_Exhaust pipes and mountings
_ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_Fuel tank cap gasket
_Radiator and condenser
_Steering gear
_Steering linkage and boots
19-TCS-14200 TMY21 WMG Highlander.indd 4519-TCS-14200 TMY21 WMG Highlander.indd 458/6/20 1:50 AM8/6/20 1:50 AM

46Maintenance Log
MAINTENANCE LOG
MAINTENANCE

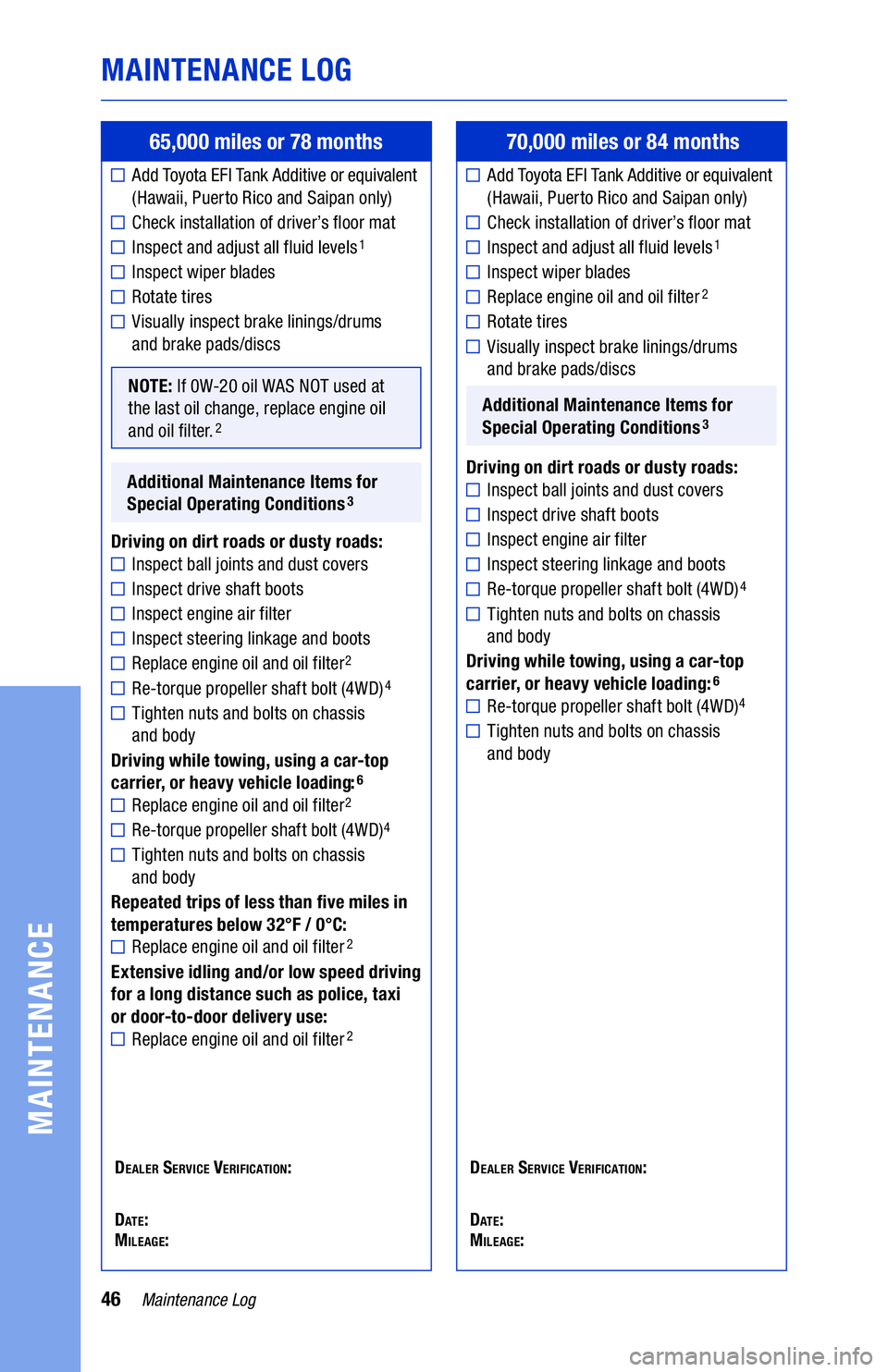

65,000 miles or 78 months
■ Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
■Check installation of driver’s floor mat
■Inspect and adjust all fluid levels1
■Inspect wiper blades
■Rotate tires
■ Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads: ■Inspect ball joints and dust covers
■Inspect drive shaft boots
■Inspect engine air filter
■Inspect steering linkage and boots
■Replace engine oil and oil filter2
■Re-torque propeller shaft bolt (4WD)4
■ Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
■ Replace engine oil and oil filter2
■Re-torque propeller shaft bolt (4WD)4
■ Tighten nuts and bolts on chassis
and body
R

epeated trips of less than five miles in
temperatures below 32°F / 0°C:
■Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
■Replace engine oil and oil filter2
70,000 miles or 84 months
■ Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
■Check installation of driver’s floor mat
■Inspect and adjust all fluid levels1
■Inspect wiper blades
■Replace engine oil and oil filter2
■Rotate tires
■ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads: ■Inspect ball joints and dust covers
■Inspect drive shaft boots
■Inspect engine air filter
■Inspect steering linkage and boots
■Re-torque propeller shaft bolt (4WD)4
■ Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
■Re-torque propeller shaft bolt (4WD)4
■ Tighten nuts and bolts on chassis
and body
Dealer Service verification:
D
ate:
Mileage: D
ealer Service verification:
D
ate:
Mileage:
19-TCS-14200 TMY21 WMG Highlander.indd 4619-TCS-14200 TMY21 WMG Highlander.indd 468/6/20 1:50 AM8/6/20 1:50 AM

47Maintenance Log
■Re-torque propeller shaft bolt (4WD) ■Rotate tires ■ Visually inspect brake linings/drums
and brake pads/discs

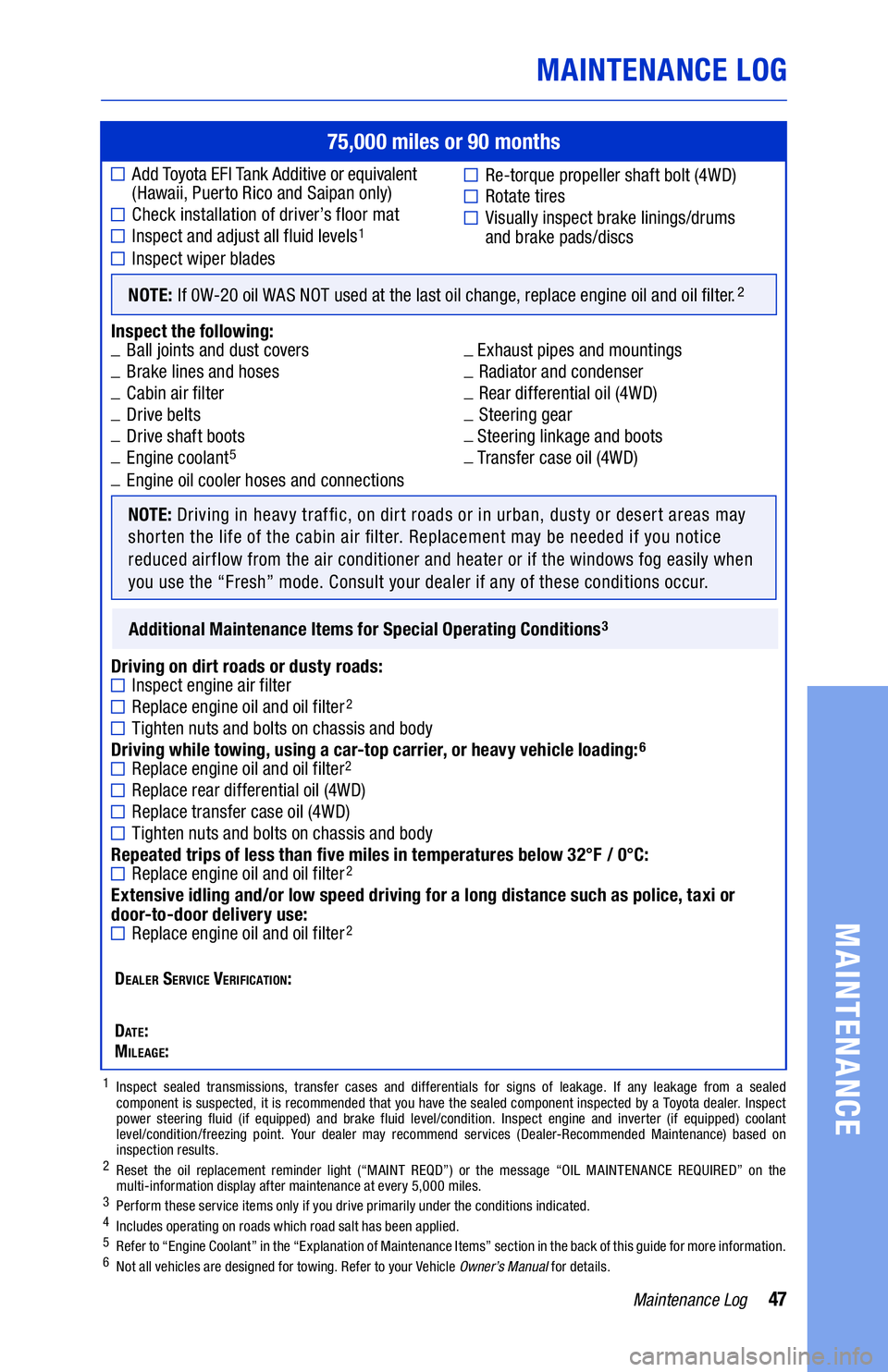

75,000 miles or 90 months
■ Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
■Check installation of driver’s floor mat ■Inspect and adjust all fluid levels1
■Inspect wiper blades
NOTE: If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following: _
B
all joints and dust covers _ E
xhaust pipes and mountings
_B

rake lines and hoses
_ R
adiator and condenser
_C

abin air filter
_ R
ear differential oil (4WD)
_D

rive belts
_ S
teering gear
_D

rive shaft boots
_ S

teering linkage and boots
_E

ngine coolant
5 _ Transfer case oil (4WD)
_ E

ngine oil cooler hoses and connections
NOTE: Driving in heavy traffic , on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air fil ter. Replacement may be needed if you notice
reduced airflow from the air conditioner and heater or if the windows fog easily when
you use the “Fresh” mode. Consult your dealer if any of these conditions occur.
Driving on dirt roads or dusty roads: ■Inspect engine air filter ■Replace engine oil and oil filter2
■Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
■Replace engine oil and oil filter2
■Replace rear differential oil (4WD) ■Replace transfer case oil (4WD) ■Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
■Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
■Replace engine oil and oil filter2
MAINTENANCE LOG
MAINTENANCE
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 R eset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 P erform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied.5 R efer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.6 N ot all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Dealer Service verification:
D
ate:
Mileage:
Additional Maintenance Items for Special Operating Conditions3
19-TCS-14200 TMY21 WMG Highlander.indd 4719-TCS-14200 TMY21 WMG Highlander.indd 478/6/20 1:50 AM8/6/20 1:50 AM

48Maintenance Log
MAINTENANCE LOG
MAINTENANCE

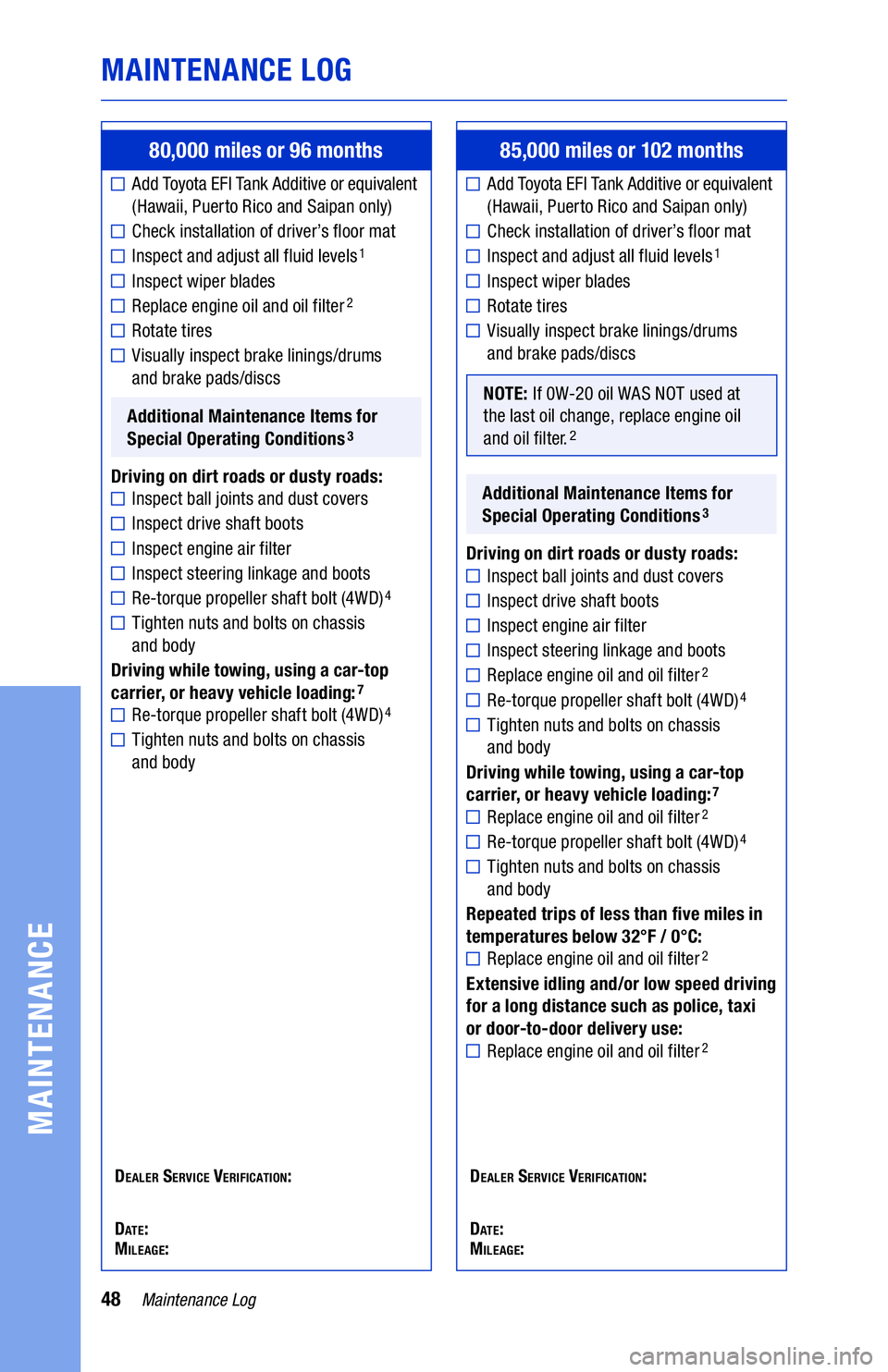

80,000 miles or 96 months
■ Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
■Check installation of driver’s floor mat
■Inspect and adjust all fluid levels1
■Inspect wiper blades
■Replace engine oil and oil filter2
■Rotate tires
■ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads: ■Inspect ball joints and dust covers
■Inspect drive shaft boots
■Inspect engine air filter
■Inspect steering linkage and boots
■Re-torque propeller shaft bolt (4WD)4
■ Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
7
■Re-torque propeller shaft bolt (4WD)4
■ Tighten nuts and bolts on chassis
and body
85,000 miles or 102 months
■ Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
■Check installation of driver’s floor mat
■Inspect and adjust all fluid levels1
■Inspect wiper blades
■Rotate tires
■ Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads: ■Inspect ball joints and dust covers
■Inspect drive shaft boots
■Inspect engine air filter
■Inspect steering linkage and boots
■Replace engine oil and oil filter2
■Re-torque propeller shaft bolt (4WD)4
■ Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
7
■Replace engine oil and oil filter2
■Re-torque propeller shaft bolt (4WD)4
■ Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
■Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
■Replace engine oil and oil filter2
Dealer Service verification:
D
ate:
Mileage: D
ealer Service verification:
D
ate:
Mileage:
19-TCS-14200 TMY21 WMG Highlander.indd 4819-TCS-14200 TMY21 WMG Highlander.indd 488/6/20 1:50 AM8/6/20 1:50 AM

49Maintenance Log
MAINTENANCE LOG
MAINTENANCE

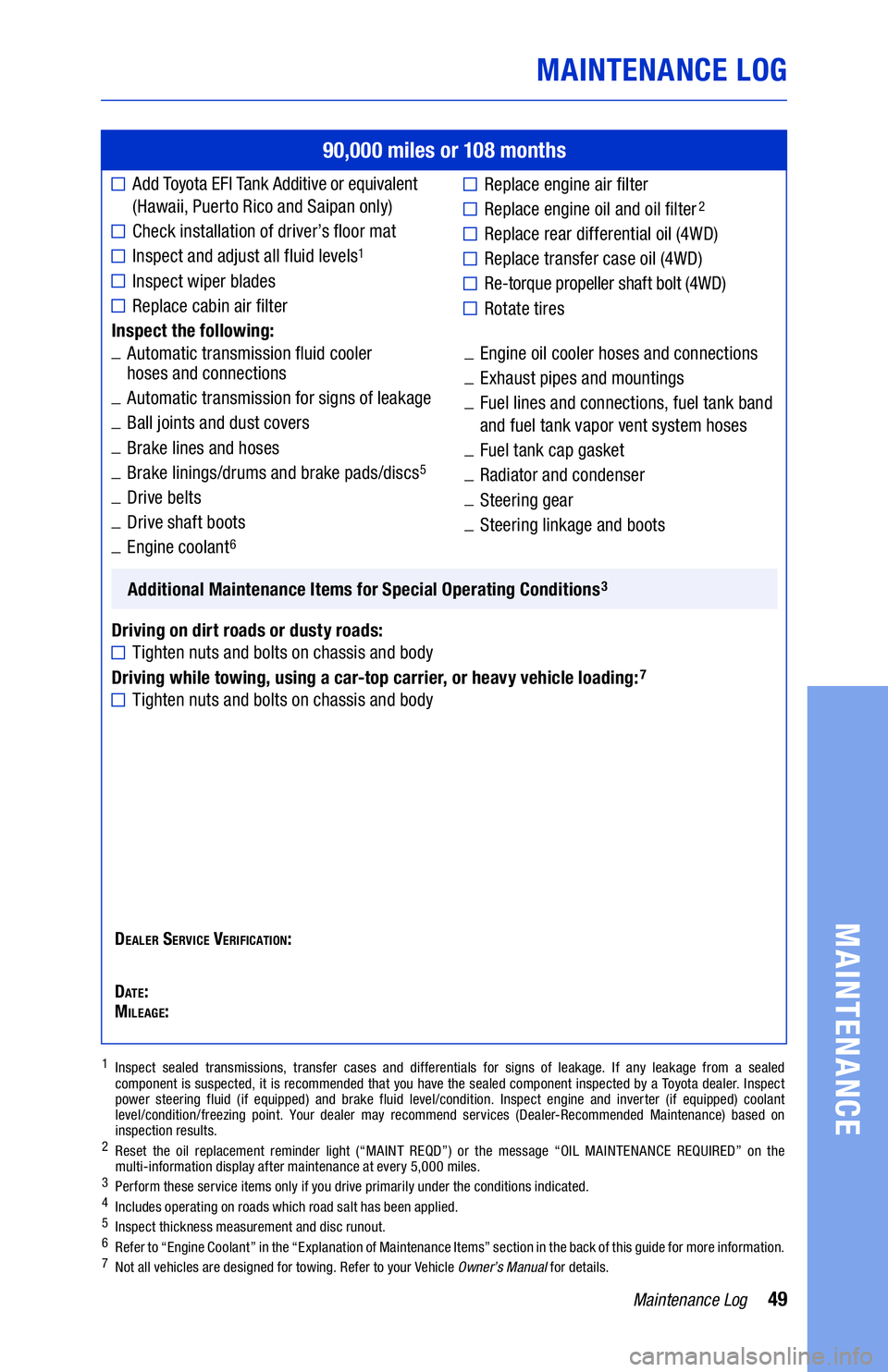

90,000 miles or 108 months
■ Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
■Check installation of driver’s floor mat
■Inspect and adjust all fluid levels1
■Inspect wiper blades
■Replace cabin air filter
Inspect the following:
_ A

utomatic transmission fl
u
id cooler
h

oses and connections
_ A

utomatic transmission for signs of leakage
_ B

all joints and dust covers
_ B

rake lines and hoses
_ B

rake linings/drums and brake pads/discs
5
_ Dr ive belts
_D

rive shaft boots
_E

ngine coolant
6
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads: ■Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:7
■Tighten nuts and bolts on chassis and body


_ Engine oil cooler hoses and connections
_
E

xhaust pipes and mountings
_ F

uel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_ F

uel tank cap gasket
_ R

adiator and condenser
_S

teering gear
_S

teering linkage and boots
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 R eset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 P erform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied.5 Inspect thickness measurement and disc runout.6 R efer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.7 N ot all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Dealer Service verification:
D
ate:
Mileage: ■
Replace engine air filter
■Replace engine oil and oil filter2
■Replace rear differential oil (4WD)
■Replace transfer case oil (4WD)
■Re-torque propeller shaft bolt (4WD)
■Rotate tires
19-TCS-14200 TMY21 WMG Highlander.indd 4919-TCS-14200 TMY21 WMG Highlander.indd 498/6/20 1:50 AM8/6/20 1:50 AM
