NOTICE
Do not use special shaped, transpar-
ent/translucent, low quality or labeled
discs such as those shown in the il-
lustrations. The use of such discs
may damage the player or changer, or
it may be impossible to eject the
disc.
CorrectWrong
Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
Dirt, scratches, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track. (To see a pin hole, hold the
disc up to the light.)
Remove discs from the compact disc
player when you are not listening to
them. Store them in their plastic cases
away from moisture, heat, and direct
sunlight.
To clean a compact disc: Wipe it with a
soft, lint−free cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc
(not in circles). Dry it with another soft,
lint −free cloth. Do not use a conventional
record cleaner or anti −static device.

’06 HIGHLANDER HB_U (L/O 0503)
250
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

’06 HIGHLANDER HB_U (L/O 0503)
251
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
Front manual air conditioning system
Controls 252
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Air flow selector settings 255
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating tips 255
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Front automatic air conditioning system Controls 258
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Air flow selector settings 262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating tips 262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Side vents 265
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Rear heater system 266
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Air conditioning filter 267
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
For information about the front air conditioning system of a vehicle
equipped with Navigation system, please refer to the separate
“Navigation System Owner’s Manual”.
SECTION 1 9

’06 HIGHLANDER HB_U (L/O 0503)
252
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

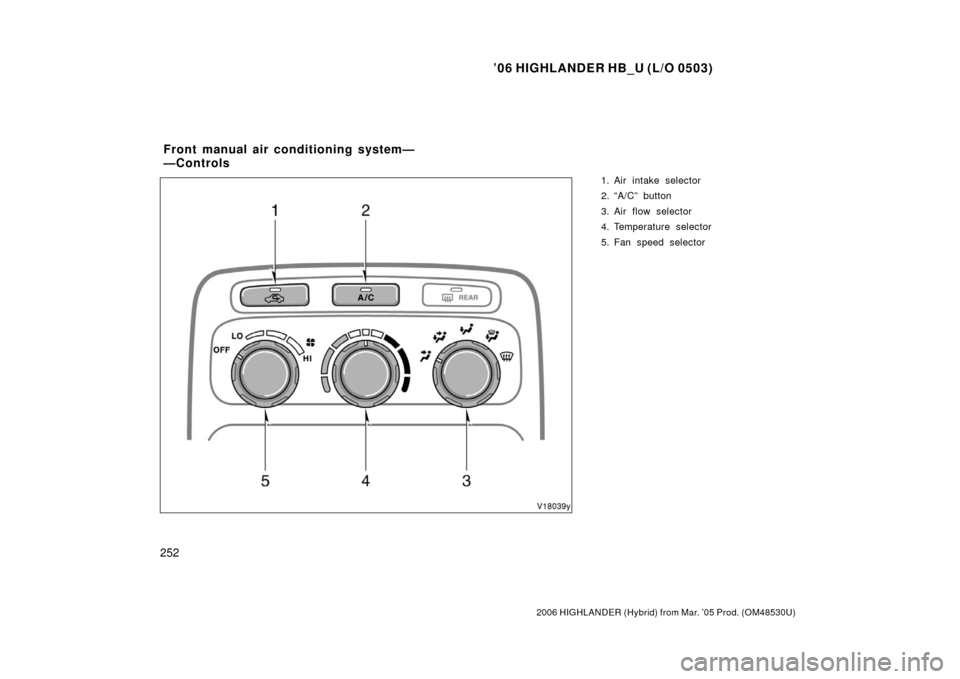

1. Air intake selector
2. “A/C” button
3. Air flow selector
4. Temperature selector
5. Fan speed selector
Front manual air conditioning system—
—Controls

’06 HIGHLANDER HB_U (L/O 0503)
253
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Fan speed selector
Turn the knob to adjust the fan speed—to
the right to increase, to the left to de-
crease.
Temperature selector
Turn the knob to adjust the temperature—
to the right to warm, to the left to cool.
Turning the knob fully counterclockwise
sets the air intake selector to the
RECIRCULATE mode automatically for
quick cooling. To set to the FRESH mode,
press the air intake selector button.

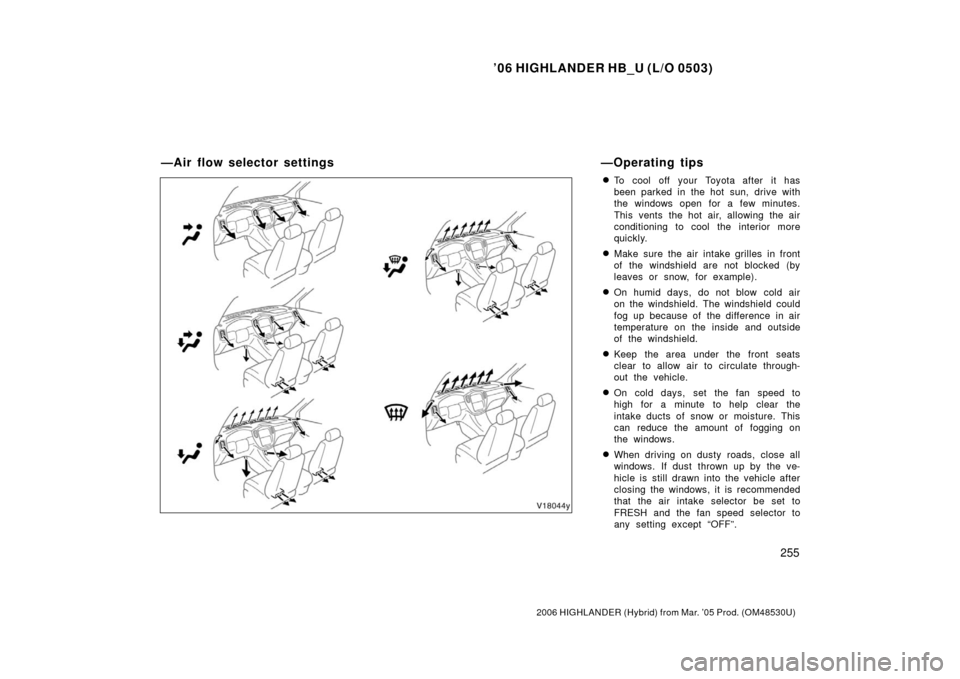

Air flow selector
Turn the knob to select the vents used for
air flow.
1. Panel— Air flows from the instrument
panel vents.
2. Bilevel— Air flows from both the floor
vents and the instrument panel vents.
3. Floor— Air flows mainly from the floor
vents.
4. Floor/Windshield— Air flows mainly
from the floor vents and windshield
vents.
Turning the air flow selector to the
floor/windshield position turns on the
defogging function with the purpose of
clearing the front view. This position allows the air intake to
select FRESH automatically. This is to
clean up the front view more quickly.
If you want to return the setting to
RECIRCULATE mode, press the air in-
take selector button once again.
5. Windshield— Air flows mainly from the
windshield vents.
Turning the air flow selector to the
windshield position turns on the defog-
ging function with the purpose of clear-
ing the front view.
This position allows the air intake to
select FRESH automatically. This is to
clean up the front view more quickly.
It is not possible to select the
RECIRCULATE mode in the windshield
mode if you press the air intake control
button.
For details about air flow selector settings,
see “—Air flow selector settings” de-
scribed blow.

’06 HIGHLANDER HB_U (L/O 0503)
254
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Air intake selector
Press the button to select the air source.
1. Recirculate— Recirculates the air inside
the vehicle.
2. Fresh— Draws outside air into the sys-
tem. When the engine coolant temperature or
electric compressor inverter temperature is
extremely high, the RECIRCULATE mode
will automatically be selected. In this
case, it is not possible to select the
FRESH mode if you press the air intake
control button. It is not a malfunction.
When the temperature becomes low, the
air intake mode returns to the mode pre-
viously used.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system.
“A/C” button
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.
If the “A/C” button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to a Toyota dealer for service.

’06 HIGHLANDER HB_U (L/O 0503)
255
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.
—Air flow selector settings—Operating tips

’06 HIGHLANDER HB_U (L/O 0503)
256
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior. Heating
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s WARM
(red zone)
Air intake—FRESH (outside air)
Air flow—FLOOR
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield. Air conditioning
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s COLD
(blue zone)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
For quick cooling, select recirculated
air for a few minutes.
Ventilation
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s COLD
(blue zone)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF

’06 HIGHLANDER HB_U (L/O 0503)
257
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
Defogging
The inside of the windshield
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s WARM
(red zone) to heat;
COLD (blue zone) to
cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defogging function with the purpose of
clearing the front view.
When turning the air flow selector to wind-
shield or floor/windshield position, the air
intake selects FRESH automatically. This
is to clean up the front view more quickly.
When the windshield position is selected,
it is not possible to select the
RECIRCULATE mode if you press the air
intake control button.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse. Defrosting
The outside of the windshield
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s WARM
(red zone)
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defrosting function with the purpose of
clearing the front view.
When turning the air flow selector to wind-
shield or floor/windshield position, the air
intake selects FRESH automatically. This
is to clean up the front view more quickly.
When the windshield position is selected,
it is not possible to select the
RECIRCULATE mode if you press the air
intake control button.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.

’06 HIGHLANDER HB_U (L/O 0503)
258
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

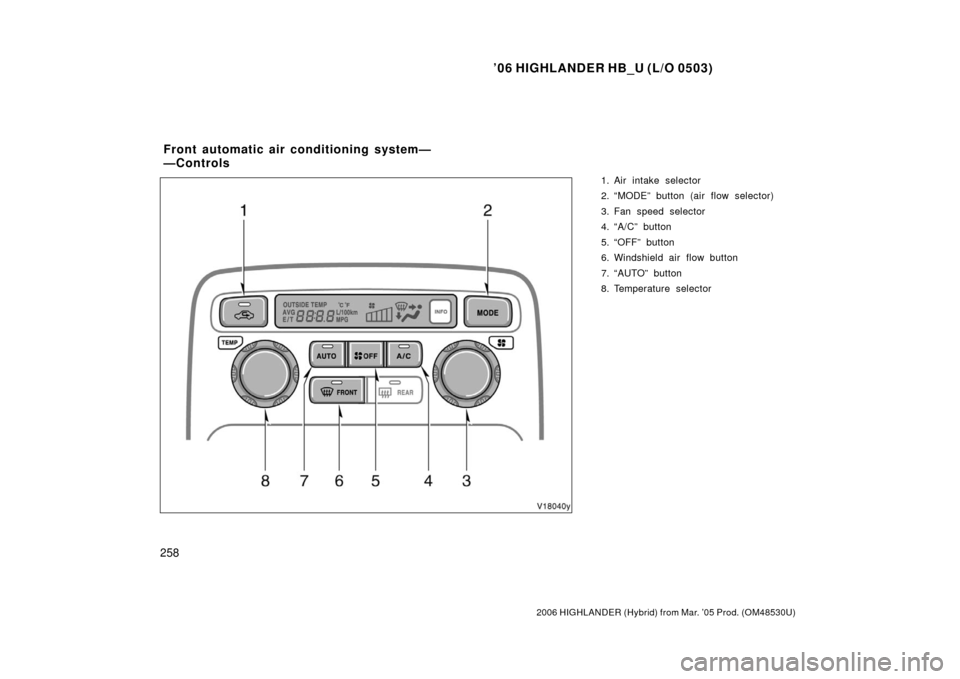

1. Air intake selector
2. “MODE” button (air flow selector)
3. Fan speed selector
4. “A/C” button
5. “OFF” button
6. Windshield air flow button
7. “AUTO” button
8. Temperature selector
Front automatic air conditioning system—
—Controls
