5. Remove the filter from the filter
case.
6. Inspect the filter on the surface.
If it is dirty, it should be replaced.
When installing the filter and filter
case, keep the arrow pointing up.
INFORMATION
The air filter should be installed prop-
erly in position. The use of air condi-
tioning with the air filter removed
may cause deteriorated dustproof per-
formance and then affect air condi-
tioning performance.

’06 HIGHLANDER HB_U (L/O 0503)
270
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

’06 HIGHLANDER HB_U (L/O 0503)
271
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Trip information 272
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Clock 276
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Compass 276
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Cigarette lighter and ashtrays 281
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets 282
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Power outlet 283
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove box 284
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Garage door opener 285
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Auxiliary boxes 288
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Container 289
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Cup holders 290
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Bottle holders 292
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Tie −down hooks 293
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Luggage cover 293
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Roof luggage carrier 295
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Floor mat 297
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
For information about the clock of a vehicle equipped with Naviga-
tion system, please refer to the separate “Navigation System Own-
er’s Manual”.
SECTION 1 10

’06 HIGHLANDER HB_U (L/O 0503)
272
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

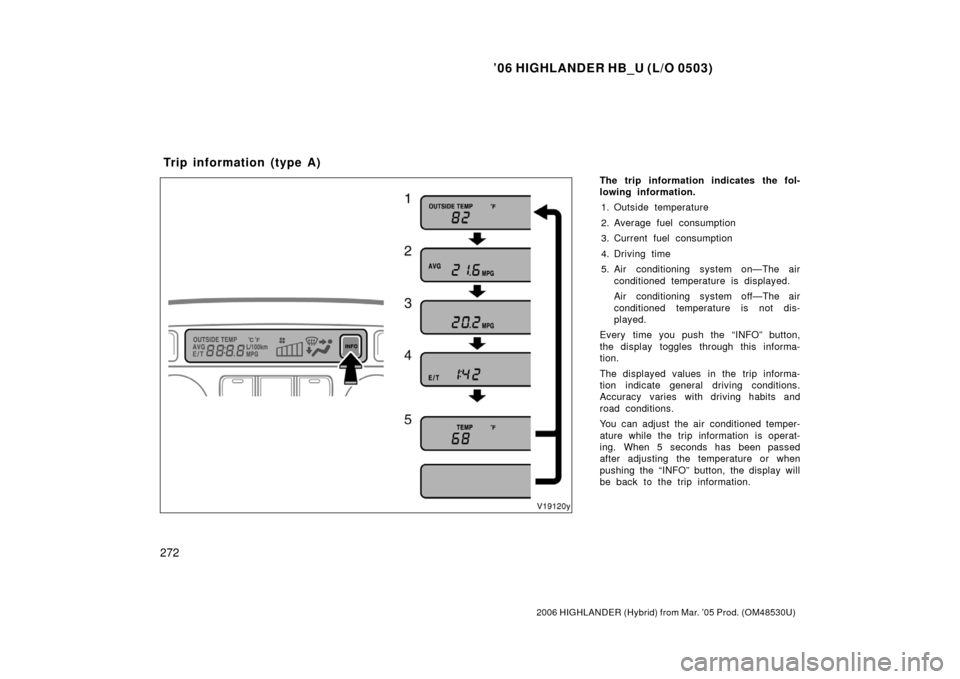

The trip information indicates the fol-
lowing information.
1. Outside temperature
2. Average fuel consumption
3. Current fuel consumption
4. Driving time
5. Air conditioning system on—The air conditioned temperature is displayed.
Air conditioning system off—The air
conditioned temperature is not dis-
played.
Every time you push the “INFO” button,
the display toggles through this informa-
tion.
The displayed values in the trip informa-
tion indicate general driving conditions.
Accuracy varies with driving habits and
road conditions.
You can adjust the air conditioned temper-
ature while the trip information is operat-
ing. When 5 seconds has been passed
after adjusting the temperature or when
pushing the “INFO” button, the display will
be back to the trip information.
Tr ip in f o rmat io n (t yp e A)

’06 HIGHLANDER HB_U (L/O 0503)
273
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
1. Outside temperature
(“OUTSIDE TEMP”)
The outside temperature display indi-
cates the outside air temperature.
The displayed temperature ranges from
− 30 C ( −22 F) up to 50 C (122 F). If the
temperature does not appear or it shows
“ −−”, take your vehicle to your Toyota
dealer.
2. Average fuel consumption (“AVG”)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption
with the hybrid system turned on.
The calculation is reset by pushing and
holding the “INFO” button for about 1 sec-
ond when the average fuel consumption is
displayed. 3. Current fuel consumption
The current fuel consumption is calcu-
lated and displayed based on distance
and fuel consumption for 2 seconds
with the hybrid system turned on. 4. Driving time (“E/T”)
The elapsed time is displayed.
When the hybrid system is turned on,
driving time is counted from 0:00. Up to
11:59 (11 hours, 59 minutes) can be dis-
played. When the driving time exceeds
11:59, the counter returns to 0:00.
The calculation is reset when the ignition
switch is turned off.

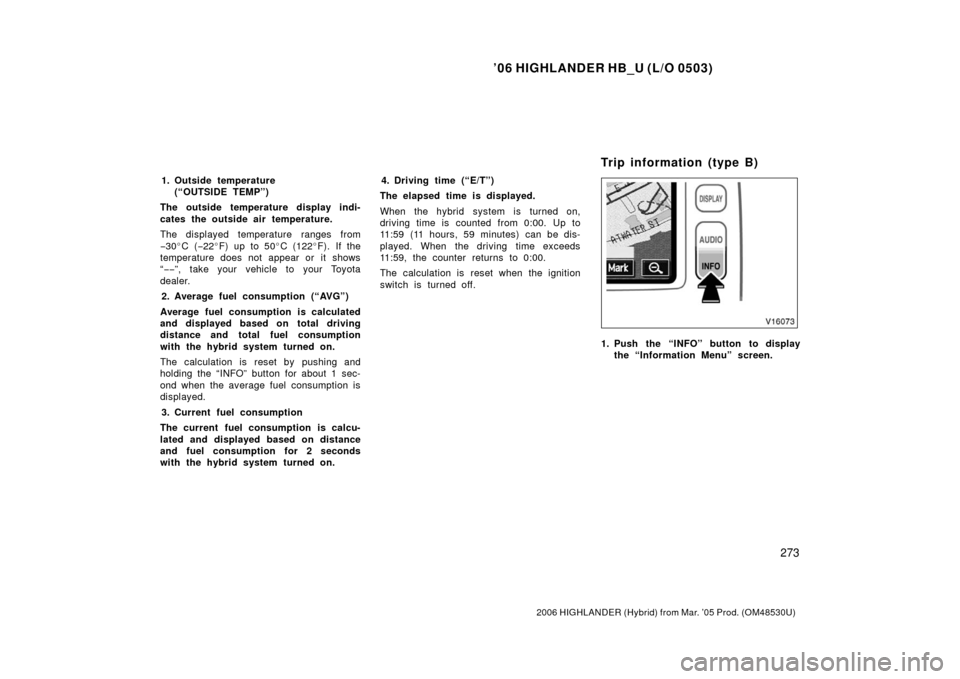

1. Push the “INFO” button to display the “Information Menu” screen.
Tr ip in f o rmat io n (t yp e B)

’06 HIGHLANDER HB_U (L/O 0503)
274
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
2. Touch the “Trip Info” switch on the
screen.
Trip information appears on the screen.
When the instrument panel lights are
turned on, the brightness of the screen
will be reduced.
You can adjust the brightness of the
screen. To adjust the brightness, see the
“Navigation System Owner ’s Manual” for
the procedure.
CAUTION
Do not operate the screen while the
vehicle is moving. Be sure to operate
the screen only when the vehicle is
stopped.

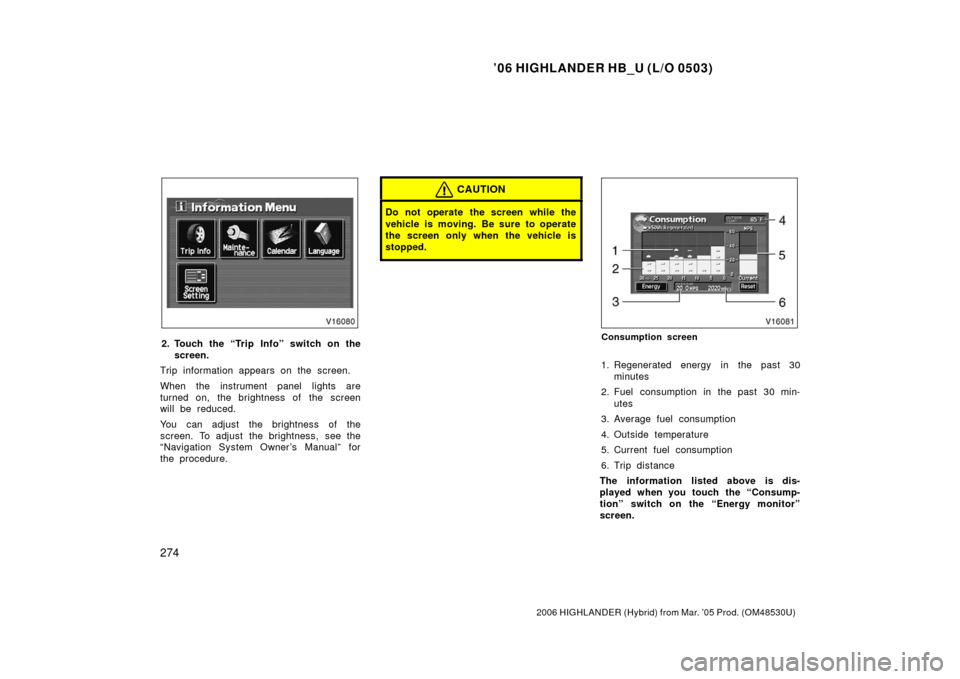

Consumption screen
1. Regenerated energy in the past 30 minutes
2. Fuel consumption in the past 30 min- utes
3. Average fuel consumption
4. Outside temperature
5. Current fuel consumption
6. Trip distance
The information listed above is dis-
played when you touch the “Consump-
tion” switch on the “Energy monitor”
screen.

’06 HIGHLANDER HB_U (L/O 0503)
275
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
The displayed values on the screen indi-
cate general driving conditions. Accuracy
varies with driving habits and road condi-
tions.
When the ignition switch is on, the last
previously used mode displayed just be-
fore the ignition switch is off will appear.
If the electrical power source is discon-
nected from the navigation system screen,
the screen will automatically be set to the
initial mode.
1. Regenerated energy in the past 30 minutes
The regenerated energy in the past 30
minutes is indicated with symbols.
One symbol indicates 50 Wh. Up to 4
symbols will be shown. The energy of 50
Wh illuminates a 50 W bulb for an hour. 2. Fuel consumption in the past 30 minutes
Fuel consumption in the past 30 min-
utes is displayed. 3. Average fuel consumption
(“AVERAGE”)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption.
The calculation is reset by touching the
“Reset” switch. The trip distance is also
reset. 4. Outside temperature (“OUTSIDE TEMP”)
Outside temperature is displayed.
The displayed temperature ranges from
− 30 C ( −22 F) up to 50 C (122 F). If the
temperature does not appear or it shows
“ −−”, take your vehicle to your Toyota
dealer.
The outside temperature is also displayed
on the “Energy Monitor” screen.
5. Current fuel consumption (“Current”)
The current fuel consumption is calcu-
lated and displayed based on distance
and fuel consumption. 6. Trip distance
The trip distance is displayed.
The calculation is reset by touching the
“Reset” switch. The average fuel con-
sumption is also reset.
Up to 6499 km or 6499 miles can be
displayed. When the trip distance exceeds
6499 km or 6499 miles, the distance re-
turns to 0 km or 0 mile.

’06 HIGHLANDER HB_U (L/O 0503)
276
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)

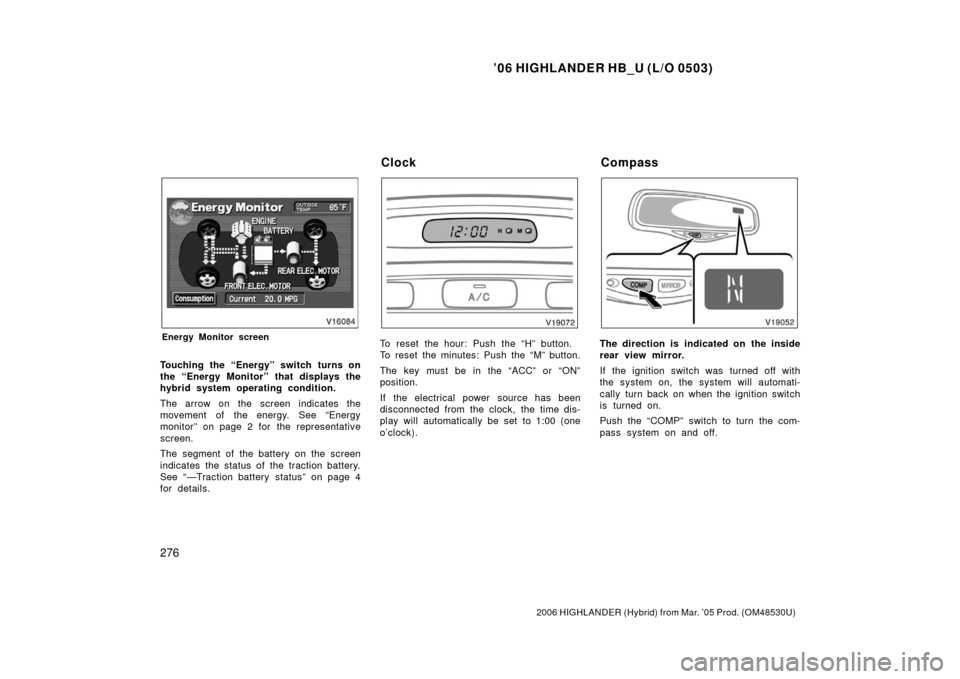

Energy Monitor screen
Touching the “Energy” switch turns on
the “Energy Monitor” that displays the
hybrid system operating condition.
The arrow on the screen indicates the
movement of the energy. See “Energy
monitor” on page 2 for the representative
screen.
The segment of the battery on the screen
indicates the status of the traction battery.
See “—Traction battery status” on page 4
for details.
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
The key must be in the “ACC” or “ON”
position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).The direction is indicated on the inside
rear view mirror.
If the ignition switch was turned off with
the system on, the system will automati-
cally turn back on when the ignition switch
is turned on.
Push the “COMP” switch to turn the com-
pass system on and off.
Clock Compass

’06 HIGHLANDER HB_U (L/O 0503)
277
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading north.
Displays
Directions
N
NE E
SE
S
SW W
NWNorth
Northeast East
Southeast
South
Southwest West
Northwest
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The ignition switch is turned off imme-
diately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the inside rear view mirror.)
The auxiliary battery has been discon-
nected.
If your vehicle is out of the set zone,
refer to “CALIBRATING THE COMPASS”
below to set the zone number.
If the deviation is small, the compass
works to calibrate the direction automati-
cally while the vehicle is in motion.
For additional precision or for complete
calibrating, see “CALIBRATING THE
COMPASS” below.
The compass sensor is on the inside
rear view mirror.
NOTICE
Do not put magnets or a metal object
on or near the inside rear view mirror
of the vehicle. Doing this may cause
malfunction of the compass sensor.

’06 HIGHLANDER HB_U (L/O 0503)
278
2006 HIGHLANDER (Hybrid) from Mar. ’05 Prod. (OM48530U)
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth’s magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.

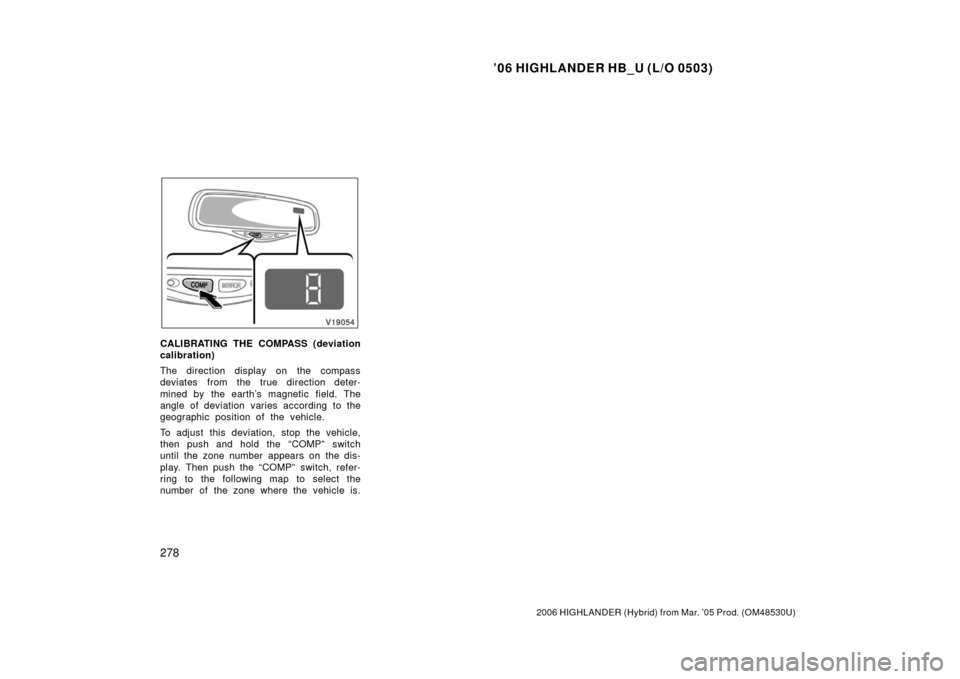

To adjust this deviation, stop the vehicle,
then push and hold the “COMP” switch
until the zone number appears on the dis-
play. Then push the “COMP” switch, refer-
ring to the following map to select the
number of the zone where the vehicle is.
