2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

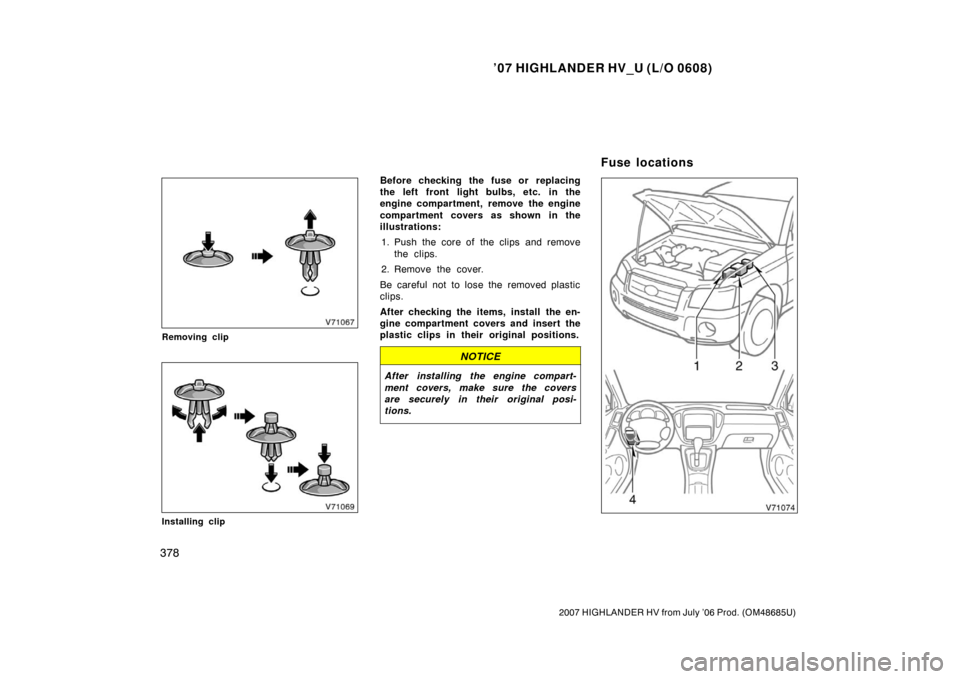

Removing clip
Installing clip
Before checking the fuse or replacing
the left front light bulbs, etc. in the
engine compartment, remove the engine
compartment covers as shown in the
illustrations:1. Push the core of the clips and remove the clips.
2. Remove the cover.
Be careful not to lose the removed plastic
clips.
After checking the items, install the en-
gine compartment covers and insert the
plastic clips in their original positions.
NOTICE
After installing the engine compart-
ment covers, make sure the covers
are securely in their original posi-
tions.
Fuse locations
’07 HIGHLANDER HV_U (L/O 0608)
386
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Low level Full level
Add oil O.K. Too full
With the hybrid system at operating
temperature and turned off, check the
oil level on the dipstick. 1. To get a correct reading, the vehicle should be on level ground. After turning
off the hybrid system, wait a few min-
utes for the oil to drain back into the
bottom of the engine.
2. Pull the dipstick out, hold a rag under the end and wipe it clean.
3. Reinsert the dipstick—push it in as far as it will go, or the reading will not be
correct.
4. Pull the dipstick out and look at the oil level while holding a rag under the
end.
CAUTION
Be careful not to touch the hot ex-
haust manifold.
NOTICE
Be careful not to drop engine oil on
the vehicle components.
To avoid drops of the engine oil
falling when you pull out the engine
oil dipstick, make sure to hold a
rag under the dipstick.
If the oil level is below or only slightly
above the low level, add engine oil of
the same type as already in the engine.
Remove the oil filler cap and add engine
oil in small quantities at a time, checking
the dipstick. We recommend that you use
a funnel when adding oil.
The approximate quantity of oil needed to
raise the level between low and full on the
dipstick is indicated as follows:
1.5 L (1.6 qt., 1.3 lmp. qt.)
For the engine oil capacity, see “Service
specifications” on page 412 in Section 8. When the level reaches within the correct
range, install the filler cap hand−
tight.
NOTICE
Be careful not to spill engine oil on
the vehicle components.
Avoid overfilling, or the engine
could be damaged.
Check the oil level on the dipstick
once again after adding the oil.
