If you should accidentally get acid
on yourself or in your eyes, remove
any contaminated clothing and flush
the affected area with water im-
mediately. Then get immediate medi-
cal attention. If possible, continue
to apply water with a sponge or
cloth while en route to the medical
office.
The gas normally produced by a
battery will explode if a flame or
spark is brought near. Use only
standardized jumper cables and do
not smoke or light a match while
jump starting.
NOTICE
The battery used for boosting must
be 12 V. Do not jump start unless you
are sure that the booster battery is
correct.
JUMP STARTING PROCEDURE1. If the booster battery is installed in another vehicle, make sure the vehicles
are not touching. Turn off all unneces-
sary lights and accessories.
When boosting, use the battery of
matching or higher quality. Any other
battery may be difficult to jump start
with.
If jump starting is difficult, charge the
battery for several minutes.
2. If required, remove all the vent plugs from the booster and discharged batter-
ies. Lay a cloth over the open vents
on the batteries. (This helps reduce the
explosion hazard, personal injuries and
burns.)
3. If the engine in the vehicle with the booster battery is not running, start it
and let it run for a few minutes. During
jump starting, run the engine at about
2000 rpm with the accelerator pedal
lightly depressed.
Discharged
battery
Booster
battery
Positive
terminal
(“+” mark) Jumper cable Positive terminal
(“+”mark)

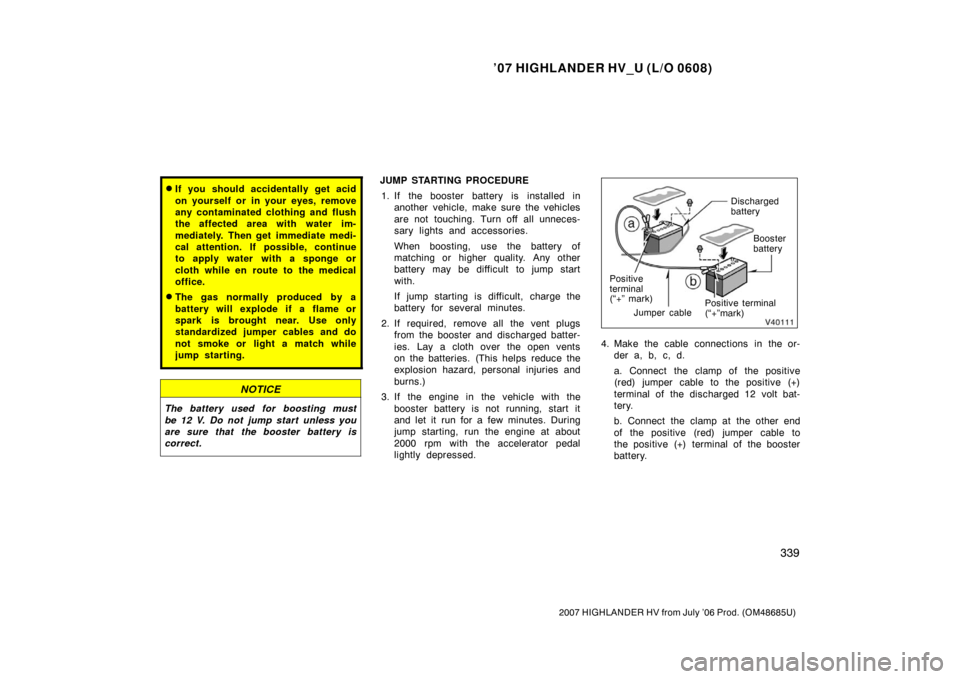

4. Make the cable connections in the or-
der a, b, c, d.
a. Connect the clamp of the positive
(red) jumper cable to the positive (+)
terminal of the discharged 12 volt bat-
tery.
b. Connect the clamp at the other end
of the positive (red) jumper cable to
the positive (+) terminal of the booster
battery.

’07 HIGHLANDER HV_U (L/O 0608)
340
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Jumper cableBooster
battery
Discharged
battery
Negative terminal
(“− ”mark)

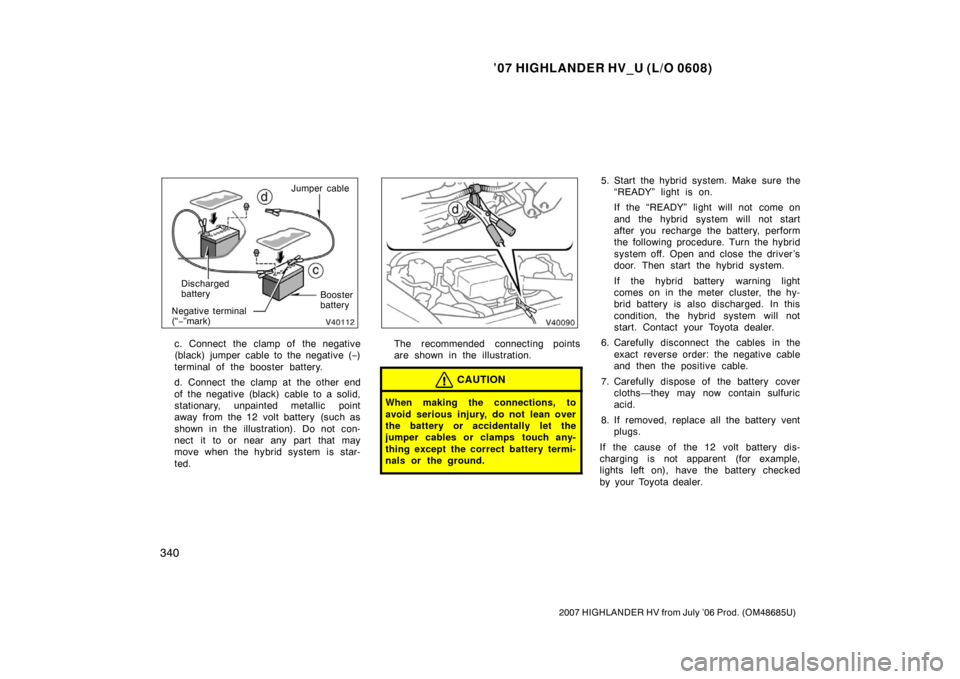

c. Connect the clamp of the negative
(black) jumper cable to the negative ( −)
terminal of the booster battery.
d. Connect the clamp at the other end
of the negative (black) cable to a solid,
stationary, unpainted metallic point
away from the 12 volt battery (such as
shown in the illustration). Do not con-
nect it to or near any part that may
move when the hybrid system is star-
ted.The recommended connecting points
are shown in the illustration.
CAUTION
When making the connections, to
avoid serious injury, do not lean over
the battery or accidentally let the
jumper cables or clamps touch any-
thing except the correct battery termi-
nals or the ground.
5. Start the hybrid system. Make sure the “READY” light is on.
If the “READY” light will not come on
and the hybrid system will not start
after you recharge the battery, perform
the following procedure. Turn the hybrid
system off. Open and close the driver’s
door. Then start the hybrid system.
If the hybrid battery warning light
comes on in the meter cluster, the hy-
brid battery is also discharged. In this
condition, the hybrid system will not
start. Contact your Toyota dealer.
6. Carefully disconnect the cables in the exact reverse order: the negative cable
and then the positive cable.
7. Carefully dispose of the battery cover cloths—they may now contain sulfuric
acid.
8. If removed, replace all the battery vent plugs.
If the cause of the 12 volt battery dis-
charging is not apparent (for example,
lights left on), have the battery checked
by your Toyota dealer.

’07 HIGHLANDER HV_U (L/O 0608)
341
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
If the first start attempt is not success-
ful...
Check that the clamp on the jumper
cables are tight. Recharge the discharged
battery with the jumper cables connected
for several minutes and restart the hybrid
system in the normal way.
If the another attempt is not successful,
the battery may be depleted. Have it ch-
ecked at your Toyota dealer.If your hybrid system stalls while driv-
ing...
1. Reduce your speed gradually, keeping a straight line. Move cautiously off the
road to a safe place.
2. Turn on your emergency flashers.
3. Turn the ignition key to “ACC” or “LOCK”, and try starting the hybrid
system again.
If the hybrid system will not start, see “If
your vehicle will not start”.
CAUTION
When the hybrid system is not oper-
ating, the power assist for the brakes
and steering will not work, so steer-
ing and braking will be much more
difficult than usual.
Any of the following may indicate that
the hybrid system has overheated:
The engine coolant temperature
gauge indicates overheating.
A “WATER TEMP” warning message
appears on the multiinformation
display.
A loss of power is experienced.
A loud knocking or pinging noise is
heard.
If the hybrid system overheats, follow
the procedures below: 1. Pull safely off the road, stop the ve- hicle and turn on your emergency
flashers. Put the hybrid transmission in
“P” and apply the parking brake. Turn
off the air conditioning if it is being
used.
2. If coolant or steam is boiling out of the radiator or reservoir, stop the hybrid
system. Wait until the steam subsides
before opening the hood. If there is no
coolant boiling over or steam, leave the
ignition turned on and make sure the
electric cooling fan is operating. If it is
not, turn the ignition off.
If your hybrid system stalls
while driving If your vehicle overheats

’07 HIGHLANDER HV_U (L/O 0608)
342
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
CAUTION
To help avoid personal injury, keep
the hood closed until there is no
steam. Escaping steam or coolant is
a sign of very high pressure.
3. Look for obvious coolant leaks from theradiator, hoses, and under the vehicle.
However, note that water draining from
the air conditioning is normal if it has
been used.
CAUTION
When the hybrid system is on, keep
hands and clothing away from the
moving fan.
4. If the coolant is leaking, stop the hy-
brid system immediately. Call a Toyota
dealer for assistance.
5. If there are no obvious leaks, check the coolant reservoir. If it is dry, add
coolant to the reservoir while the hy-
brid system is on. Fill it about half full.
For the coolant type, see “Coolant type
selection” on page 389 in Section 7 −2.
CAUTION
Do not attempt to remove the radiator
cap when the hybrid system and ra-
diator are hot. Serious injury could
result from scalding hot fluid and
steam blown out under pressure.
6. After the coolant temperature has
cooled to normal, again check the cool-
ant level in the reservoir. If necessary,
bring it up to half full again. Serious
coolant loss indicates a leak in the
system. You should have it checked as
soon as possible at your Toyota dealer.
1. Reduce your speed gradually, keeping a straight line. Move cau-
tiously off the road to a safe place
well away from the traffic. Avoid
stopping on the center divider of
a highway. Park on a level spot
with firm ground.
2. Stop the hybrid system and turn on your emergency flashers.
3. Firmly set the parking brake and put the transmission in “P”.
4. Have everyone get out of the ve- hicle on the side away from traffic.
5. Read the following instructions thoroughly.
If you have a flat tire—

’07 HIGHLANDER HV_U (L/O 0608)
343
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
CAUTION
When jacking, be sure to observe
the following to reduce the possi-
bility of death or serious injury:
Follow jacking instructions.
 Do not put any part of your
body under the vehicle sup-
ported by the jack. Otherwise,
personal injury may occur.
 Do not start the hybrid system
while your vehicle is supported
by the jack.
 Stop the vehicle on a level firm
ground, firmly set the parking
brake and put the transmission
in “P”. Block the wheel diago-
nally opposite to the one being
changed if necessary.
Make sure to set the jack prop-
erly in the jack point. Raising
the vehicle with jack improper-
ly positioned will damage the
vehicle or may allow the ve-
hicle to fall off the jack and
cause personal injury.
 Never get under the vehicle
when the vehicle is supported
by the jack alone.
 Use the jack only for lifting
your vehicle during wheel
changing.
 Do not raise the vehicle with
someone in the vehicle.
 When raising the vehicle, do
not place any objects on top
of or underneath the jack.
 Raise the vehicle only high
enough to remove and change
the tire.NOTICE
Do not continue driving with a
deflated tire. Driving even a
short distance can damage a
tire and wheel beyond repair.

’07 HIGHLANDER HV_U (L/O 0608)
344
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Vehicles with third seat
Vehicles without third seat

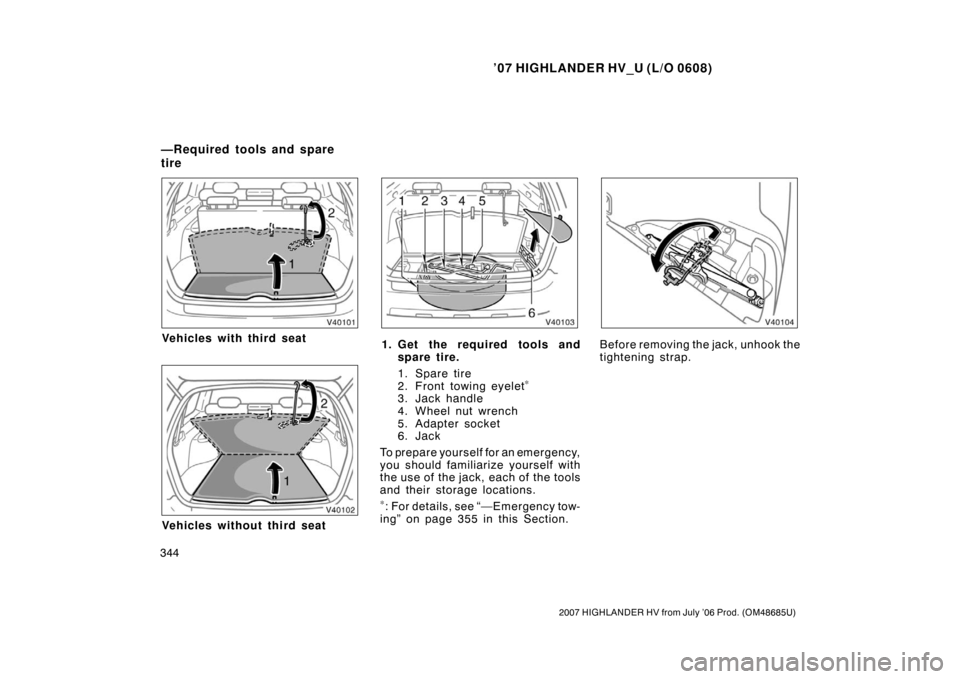

1. Get the required tools andspare tire.
1. Spare tire
2. Front towing eyelet
∗
3. Jack handle
4. Wheel nut wrench
5. Adapter socket
6. Jack
To prepare yourself for an emergency,
you should familiarize yourself with
the use of the jack, each of the tools
and their storage locations.
∗: For details, see “—Emergency tow-
ing” on page 355 in this Section.
Before removing the jack, unhook the
tightening strap.
— R eq u ired to o ls an d sp are
tire

’07 HIGHLANDER HV_U (L/O 0608)
345
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

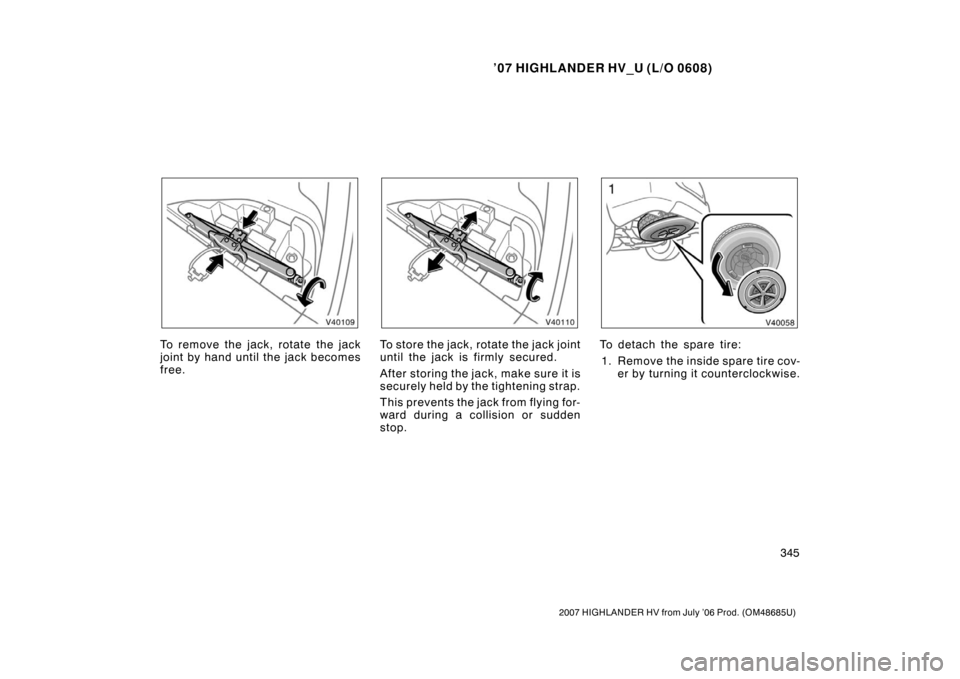

To remove the jack, rotate the jack
joint by hand until the jack becomes
free.To store the jack, ro tate the jack joint
until the jack is firmly secured.
After storing the jack, make sure it is
securely held by the tightening strap.
This prevents the jack from flying for-
ward during a collision or sudden
stop.To detach the spare tire:
1. Remove the inside spare tire cov- er by turning it counterclockwise.

’07 HIGHLANDER HV_U (L/O 0608)
346
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

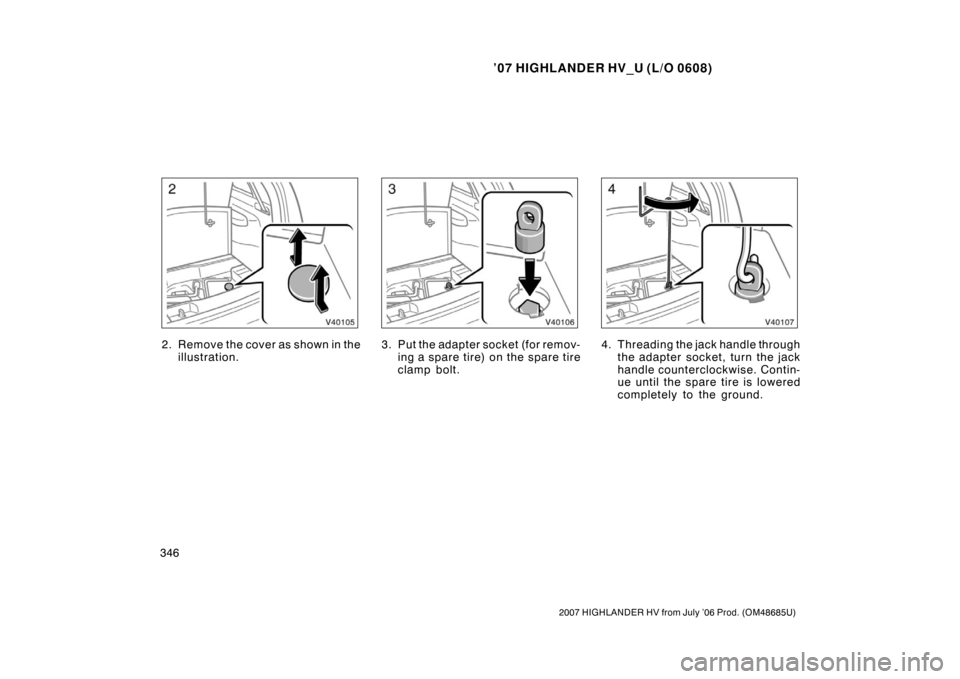

2. Remove the cover as shown in theillustration.3. Put the adapter socket (for remov-ing a spar e tir e) on the spar e tir e
clamp bolt.4. Threading the jack handle throughthe adapter socket, turn the jack
handle counterclockwise. Contin-
ue until the spare tire is lowered
completely to the ground.

’07 HIGHLANDER HV_U (L/O 0608)
347
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

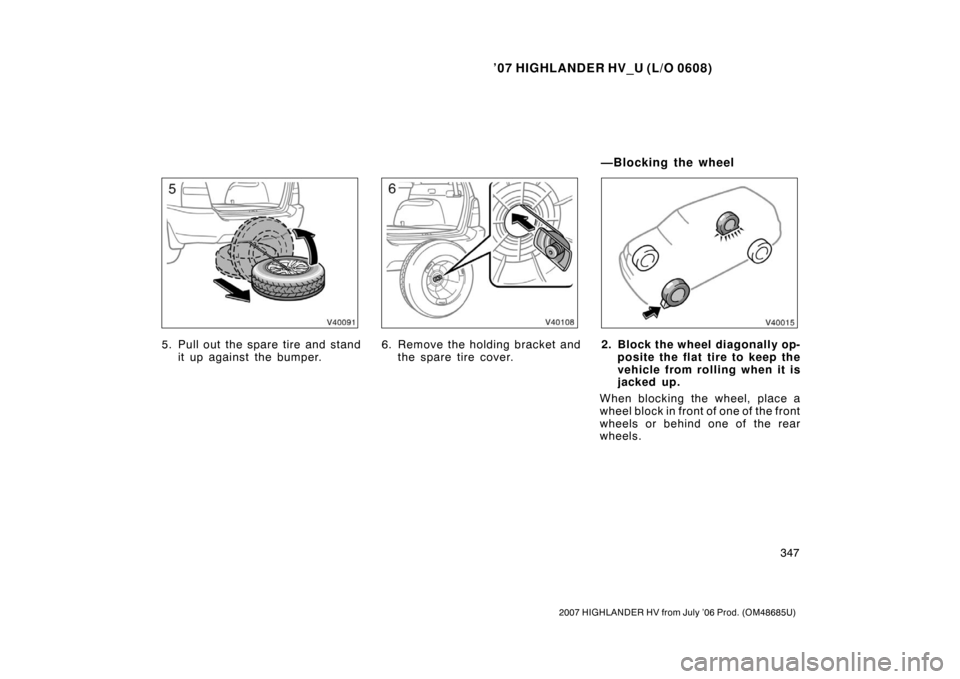

5. Pull out the spare tire and standit up against the bumper.6. Remove the hold ing br ac k et and
the spare tire cover.2. Block the wheel diagonally op- posite the flat tire to keep the
vehicle from rolling when it is
jacked up.
When blocking the wheel, place a
wheel block in front of one of the front
wheels or behind one of the rear
wheels.
—Blocking the wheel

’07 HIGHLANDER HV_U (L/O 0608)
348
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

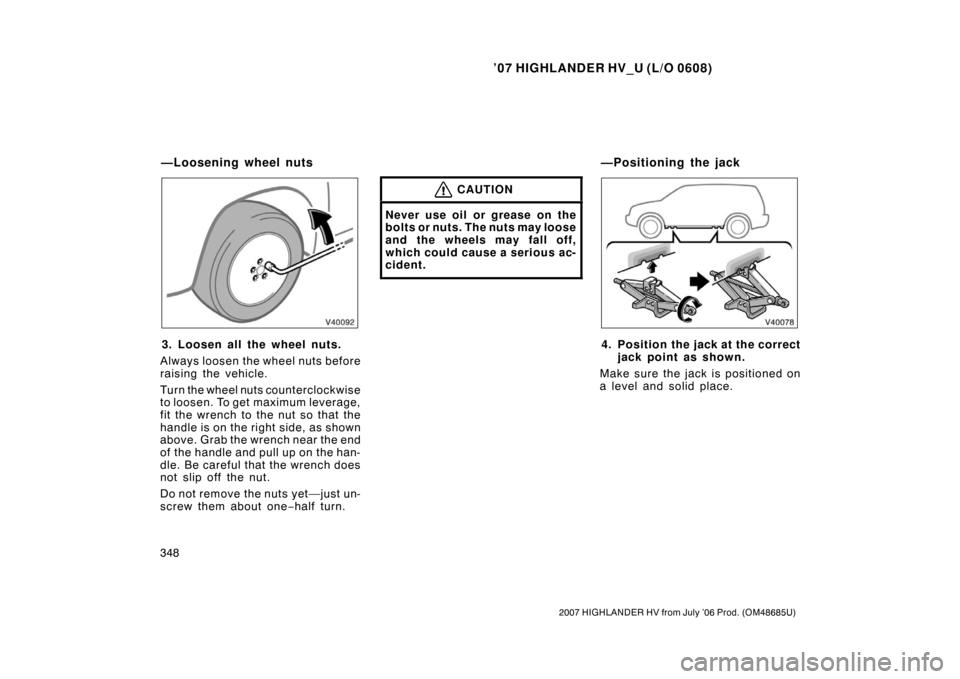

3. Loosen all the wheel nuts.
Always loosen the wheel nuts before
raising the vehicle.
Turn the wheel nuts counterclockwise
to loosen. To get maximum leverage,
fit the wrench to the nut so that the
handle is on the right side, as shown
above. Grab the wrench near the end
of the handle and pull up on the han-
dle. Be careful that the wrench does
not slip off the nut.
Do not remove the nuts yet—just un-
screw them about one −half turn.
CAUTION
Never use oil or grease on the
bolts or nuts. The nuts may loose
and the wheels may fall off,
which could cause a serious ac-
cident.
4. Position the jack at the correct
jack point as shown.
Make sure the jack is positioned on
a level and solid place.
—Loosening wheel nuts —Positioning the jack
