OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Windshield washer fluid tank
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-
+
Page 12 of 30

10
FEATURES/OPERATIONS
(1) Put the selector lever in “P.”
(2) Depress the brake pedal, and press the “POWER” switch briefly
and firmly.
(3) The “READY” light will blink. After a few seconds, when the light
remains steady and a beep sounds, you may begin driving.
Starting the Hybrid System
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline
engine and electric motor to provide the most efficient combination of
power for the vehicle. To conserve energy, when the brakes are applied
the braking force generates electricity which is then sent to the traction
battery. In addition, the engine shuts off when the vehicle is stopped. The
benefits are better fuel economy, reduced vehicle emissions and improved
performance.
NOTE: Fuel consumption and energy information of the Hybrid System
is shown on the multi-information display and/or navigation
system screen (if equipped).
Tips for improved fuel economy
-Ensure tire pressures are maintained at levels specified in theOwner’s
Manual.
-When possible, link trips to reduce engine cold starts.
-Avoid driving at speeds that are higher than necessary, especially on the
highway.
-When possible, avoid sudden stops to maximize regenerative braking
energy.
-Minimize use of the Air Conditioning.
Hybrid Synergy Drive System
Page 13 of 30
11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Transmission
1The “POWER” switch must be “ON” and the brake pedal depressed to
shiftfromPark.
2The engine brake is the equivalent of downshifting. Shift to “B” when
engine braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Park1
Reverse
Neutral
Drive
BEngine braking2
Eco Driving Mode
Push
Auto lock functions
Automatic door locks can be programmed to operate in two different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Refer to theOwner’s Manualfor more details.
Eco Driving Mode helps achieve low fuel consumption during trips that
involve frequent accelerating and braking.
Refer to theOwner’s Manualfor more details.
Page 14 of 30
12
FEATURES/OPERATIONS
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Angle
Length
Lock release lever
Tilt and telescopic steering wheel
EV-Drive Mode
EV-Drive Mode allows the electric motor (traction motor), powered by the
hybrid battery (traction battery), to be used to drive the vehicle.
Refer to theOwner’s Manualfor more details.
Push
Steering lock release
Tu r n
Push
Parking brake
Set: Depress
Release: Depress again
Page 15 of 30
13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Seat adjustments-Rear
Second row seat
Seat position (forward/backward)
Seatback angle
Third seat access lever
Seatback release
Refer to theOwner’s Manualfor more details.

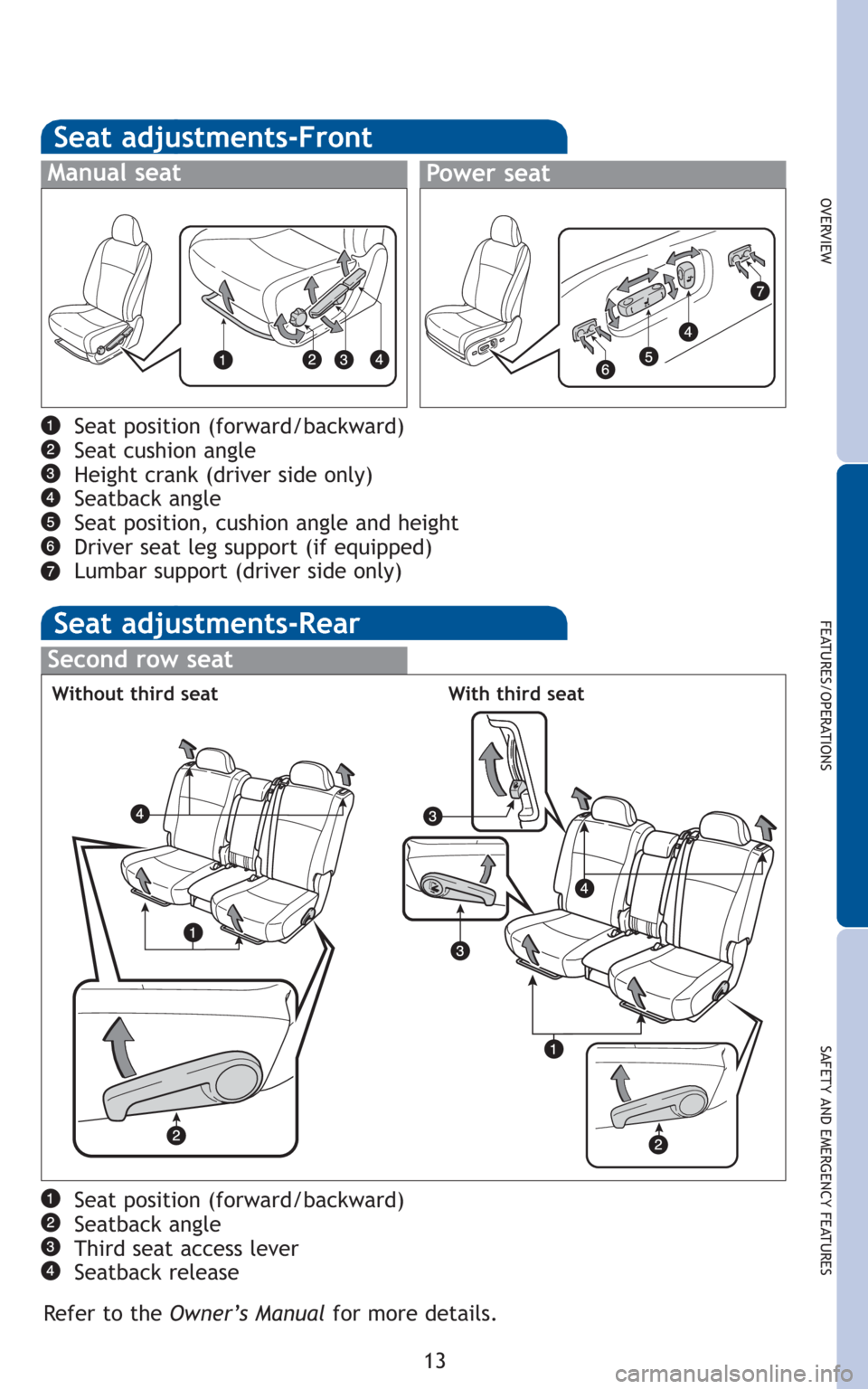

Seat adjustments-Front
Seat position (forward/backward)
Seat cushion angle
Height crank (driver side only)
Seatback angle
Seat position, cushion angle and height
Driver seat leg support (if equipped)
Lumbar support (driver side only)
Manual seatPower seat
Without third seat With third seat
Page 16 of 30
14
FEATURES/OPERATIONS
Seats-Head restraints
Front Rear
Lock release button
Lock release button
(1) Remove the second row console from the front center console box.
(2) Lower the center head restraint.
(3) Pull the strap, then fold down the seatback.
(4) Pull the lever behind the second center seat and lift the rear of the
seat to remove.
(5) Stow the seat in the front center console box.
Refer to theOwner’s Manualfor more details.
Pull
Pull
Fold down
Seat-Stowing third row seats
(if equipped)
(1)
(5)(4)
(3)(2)
NOTE:The second-row console can now be installed between the second
row seats.
Seats-Removing Center-StowTM
second row seat
Page 17 of 30
15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
From outside
Left side remote seat
Right side remote seat release
(2) Fold down From inside
Windshield wipers & washers
Interval wipe
Single wipe
Slow
FastPull to wash and wipe
Front
Rear
Wash and wipe
Wipe
Interval wipe
Wash and wipe (1) Pull up

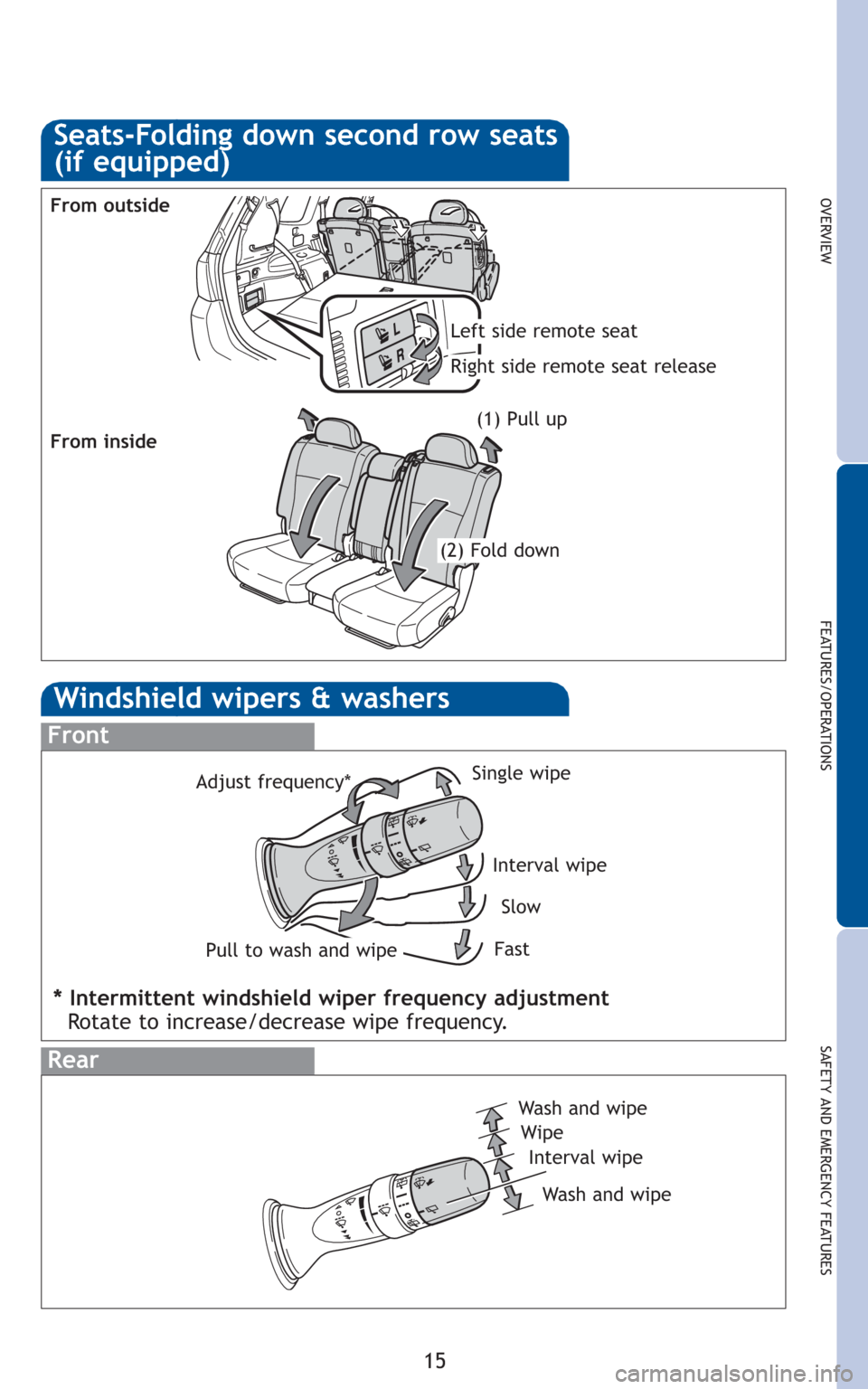

Seats-Folding down second row seats
(if equipped)
Adjust frequency*
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Page 18 of 30
16
Lights & turn signals
Turn signals
Headlights
High beam flasher Low beam
Front fog lights (if equipped)
Headlights
-Daytime Running Light system (DRL) (if equipped)Automatically turns
on the turn signal lights at a reduced intensity.
-Automatic light cutoff systemAutomatically turns lights off after a
delay of 30 seconds.
Front fog lights come on only when the headlights are on low beam.
Parking lights
Right turn
Lane change
Lane change
Left turn High beam
Auto
Headlights
Parking lights
Auto
DRL OFF
Tu r n
With DRL OFF switchWithout DRL OFF switch
FEATURES/OPERATIONS
Page 19 of 30
17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

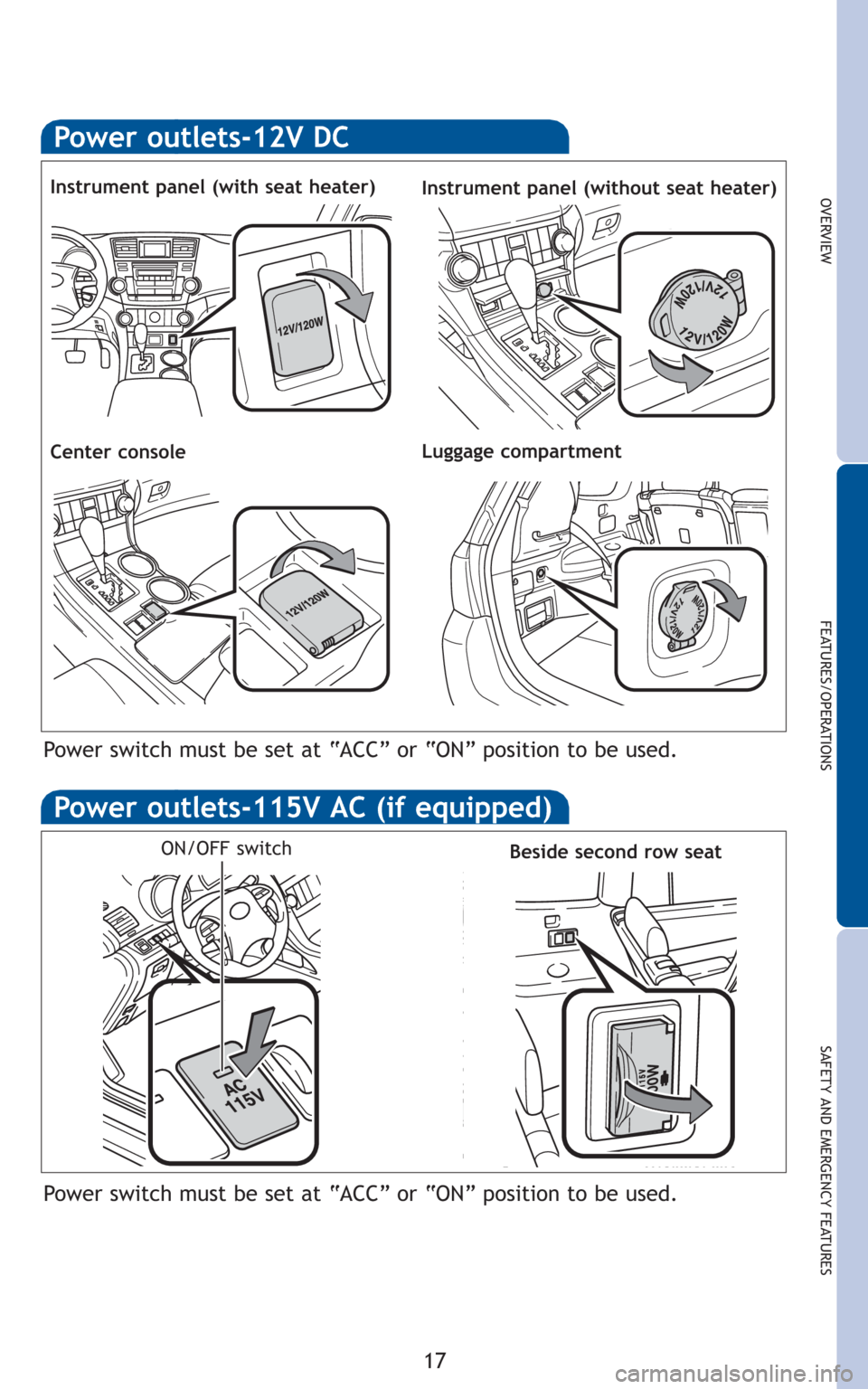

Power outlets-12V DC
Luggage compartment
Instrument panel (with seat heater)
Instrument panel (without seat heater)
Power switch must be set at “ACC” or “ON” position to be used.
Power outlets-115V AC (if equipped)
ON/OFF switchBeside second row seat
Center console
Power switch must be set at “ACC” or “ON” position to be used.
Page 20 of 30
18
FEATURES/OPERATIONS
Multi-information display
Push “DISP” to change information in the following:
(1) Average gas mileage after refueling
(2) Current gas mileage
(3) Miles left on remaining fuel
(4) Driving distance from engine start
(5) Average gas mileage
(6) Average gas mileage history
(7) Current tire pressure
(8) Energy monitor
Push and hold “DISP” to set up the displays (including the
rearview monitor display).
Windows-Power
Up
Down
Driver side
Window lock
switch
Automatic operation (driver’s window only)Push the switch completely
down or pull it completely up and release to fully open or close. To stop
window midway, lightly push the switch in the opposite direction.
Window lock switchDeactivates all passenger windows. Driver’s window
remains operable.
