TOYOTA HIGHLANDER HYBRID 2010 XU40 / 2.G Quick Reference Guide

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

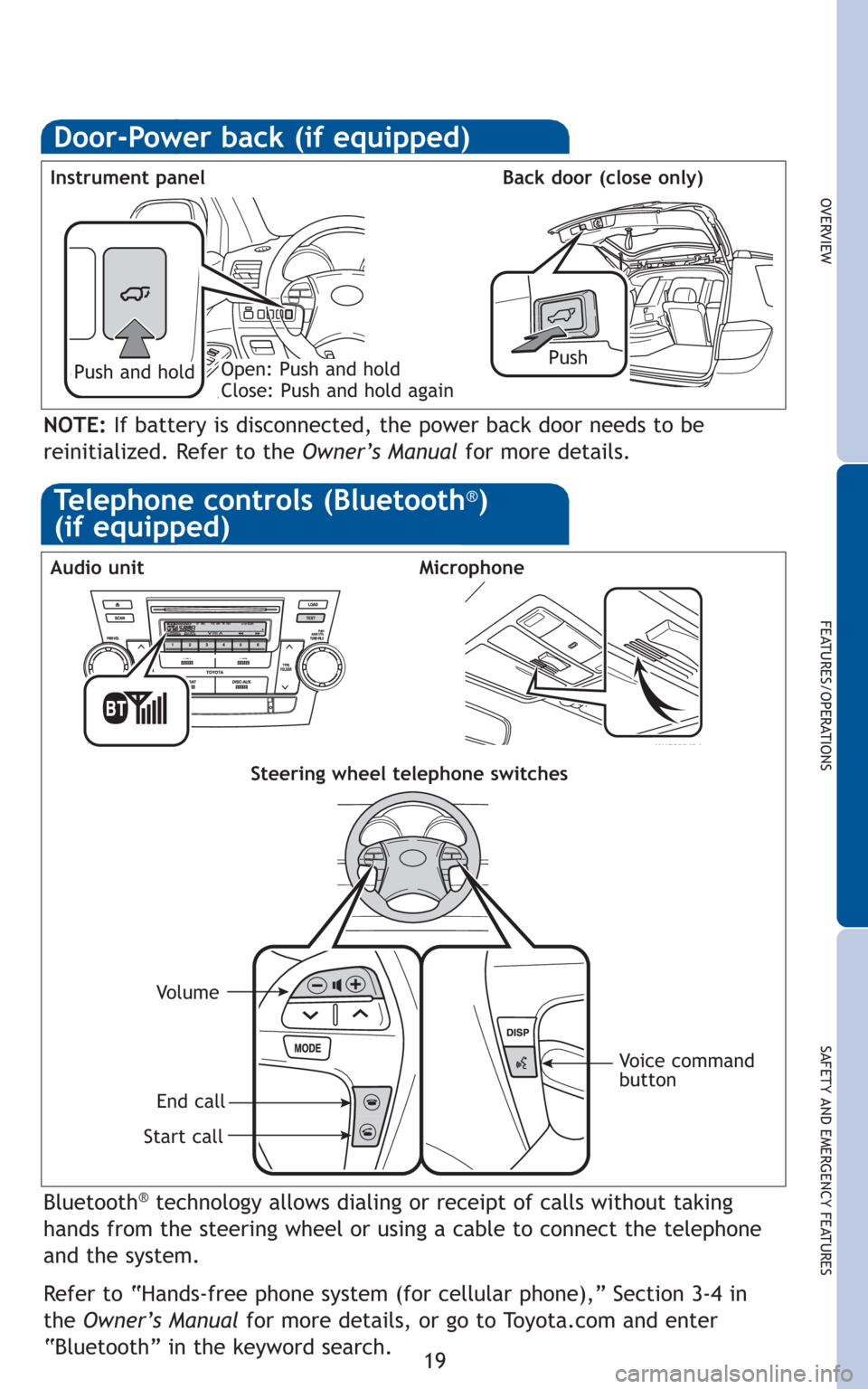

Door-Power back (if equipped)
PushPush and hold Instrument panel Back door (close only)Open: Push and hold
Close: Push and hold again
NOTE:If battery is disconnected, the power back door needs to be
reinitialized. Refer to theOwner’s Manualfor more details.
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the telephone
and the system.
Refer to “Hands-free phone system (for cellular phone),” Section 3-4 in
theOwner’s Manualfor more details, or go to Toyota.com and enter
“Bluetooth” in the keyword search.
Telephone controls (Bluetooth®)
(if equipped)
MicrophoneAudio unit
Steering wheel telephone switches
Vo l u m e
Start call
End callVoice command
button

20
FEATURES/OPERATIONS

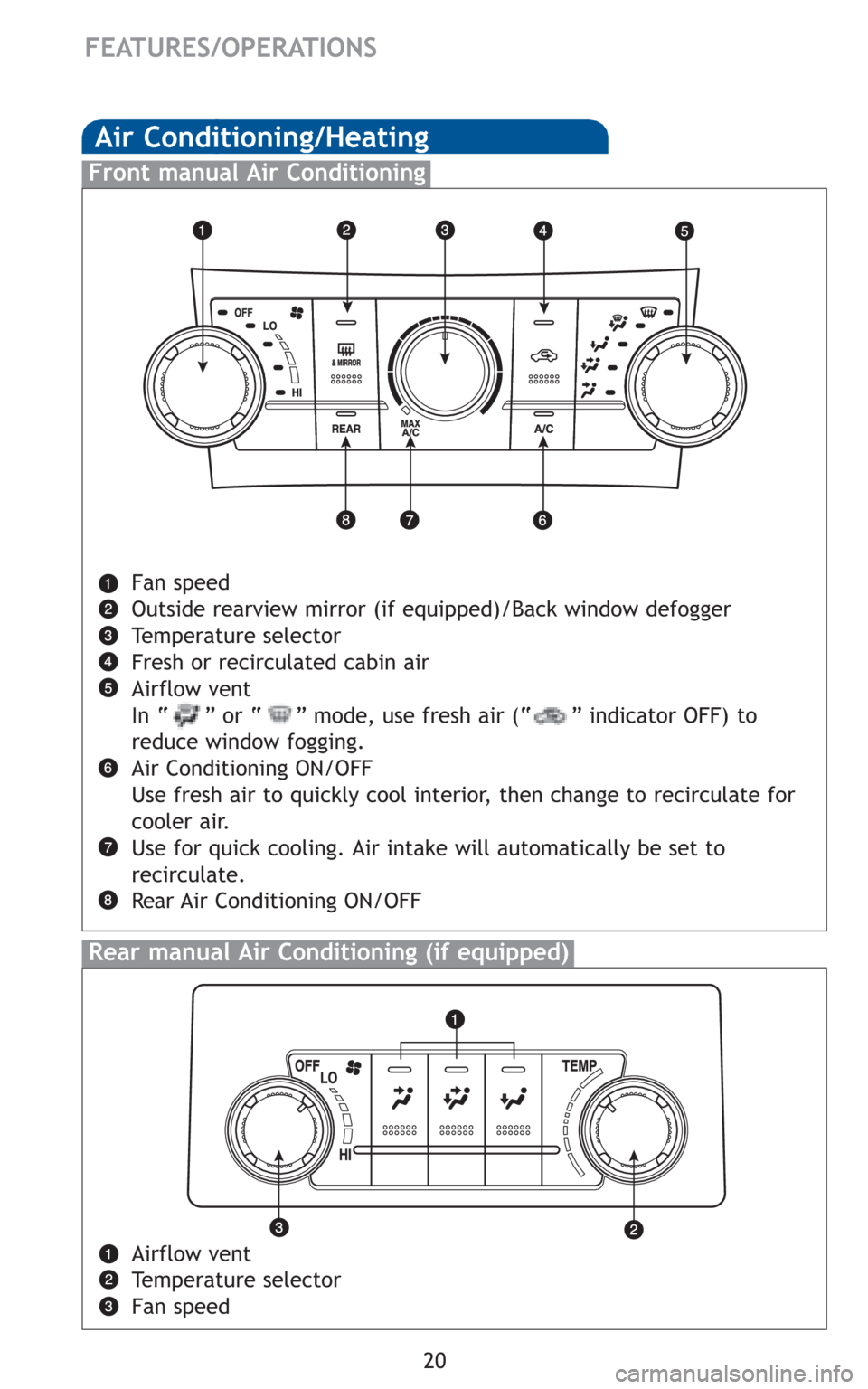

Air Conditioning/Heating
Rear manualAir Conditioning (if equipped)
Frontmanual Air Conditioning
Airflow vent
Temperature selector
Fan speed
Fan speed
Outside rearview mirror (if equipped)/Back window defogger
Temperature selector
Fresh or recirculated cabin air
Airflow vent
In “ ” or “ ” mode, use fresh air (“ ” indicator OFF) to
reduce window fogging.
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for
cooler air.
Use for quick cooling. Air intake will automatically be set to
recirculate.
Rear Air Conditioning ON/OFF

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

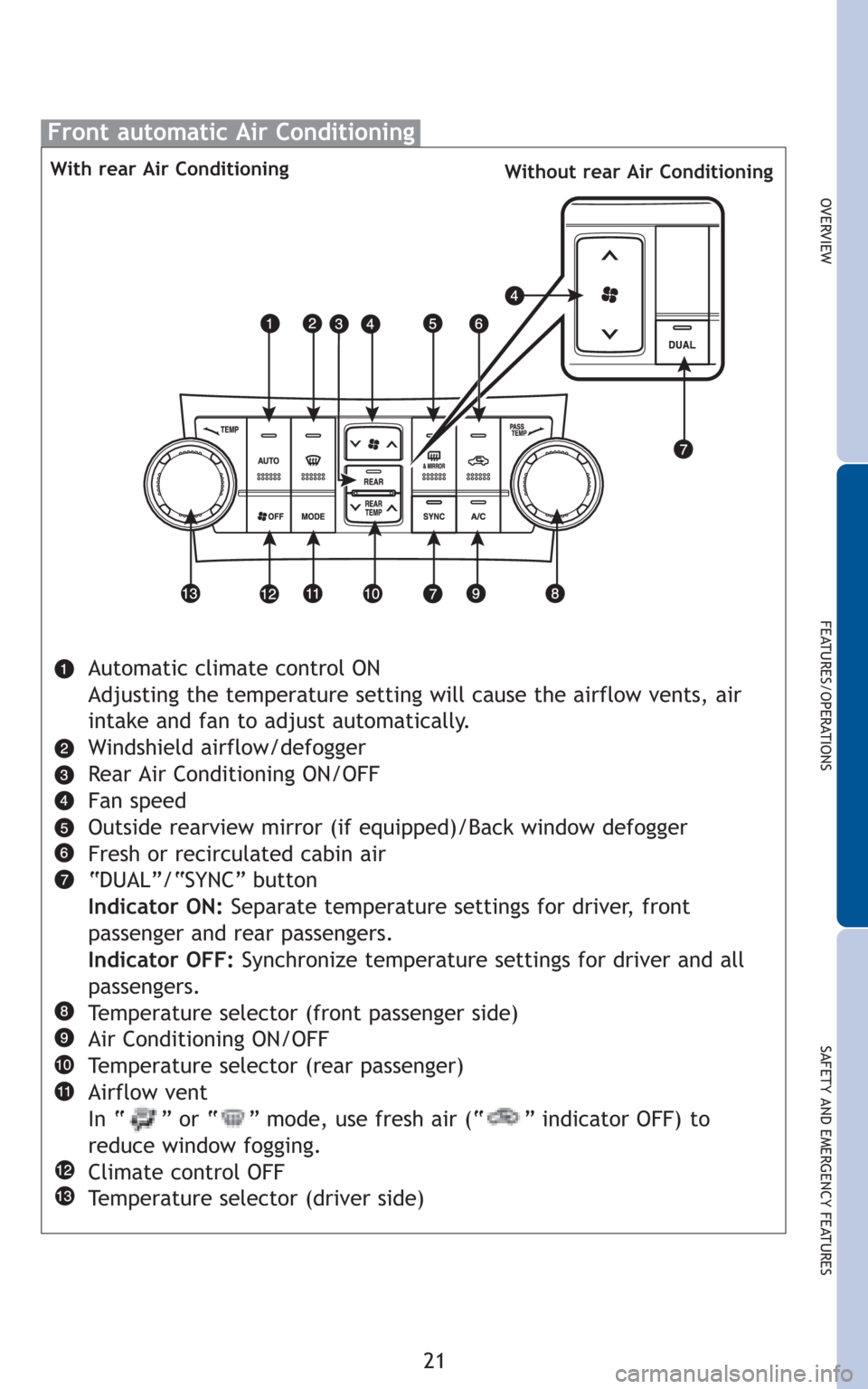

Frontautomatic Air Conditioning
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Windshield airflow/defogger
Rear Air Conditioning ON/OFF
Fan speed
Outside rearview mirror (if equipped)/Back window defogger
Fresh or recirculated cabin air
“DUAL”/“SYNC” button
Indicator ON:Separate temperature settings for driver, front
passenger and rear passengers.
Indicator OFF:Synchronize temperature settings for driver and all
passengers.
Temperature selector (front passenger side)
Air Conditioning ON/OFF
Temperature selector (rear passenger)
Airflow vent
In “ ” or “ ” mode, use fresh air (“ ” indicator OFF) to
reduce window fogging.
Climate control OFF
Temperature selector (driver side)
With rear Air Conditioning
Without rear Air Conditioning

22
FEATURES/OPERATIONS
Rear automatic Air Conditioning(if equipped)
Fan speed
Temperature selector
Airflow vent
Automatic climate control ON
Climate control OFF
Seat heaters (if equipped)
PushTu r n
Push knob to pop the controller out. Turn clockwise for heater.
Push
Moonroof (if equipped)
Sliding operationTilting operation
Open
Tilt
Close
CloseRecommended driving
position to minimize
wind noise.
Push once to open partway;
again to open completely.
Driver seat
Front passenger seat

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

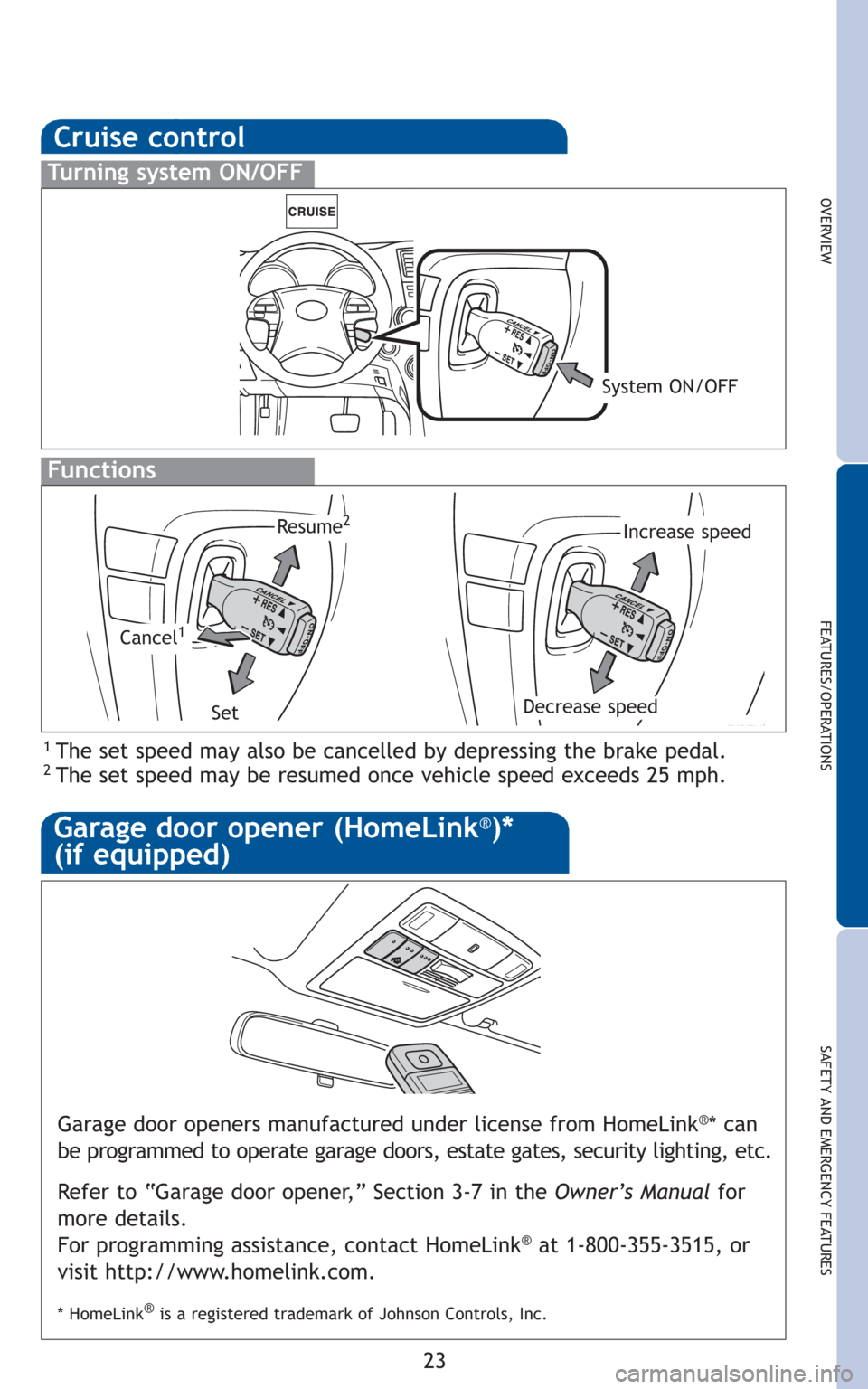

Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®*can
be programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 3-7 in theOwner’s Manualfor
more details.
For programming assistance, contact HomeLink
®at 1-800-355-3515, or
visit http://www.homelink.com.
*HomeLink®is a registered trademark of Johnson Controls, Inc.
Cruise control
1The set speed may also be cancelled by depressing the brake pedal.2The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set

24
FEATURES/OPERATIONS

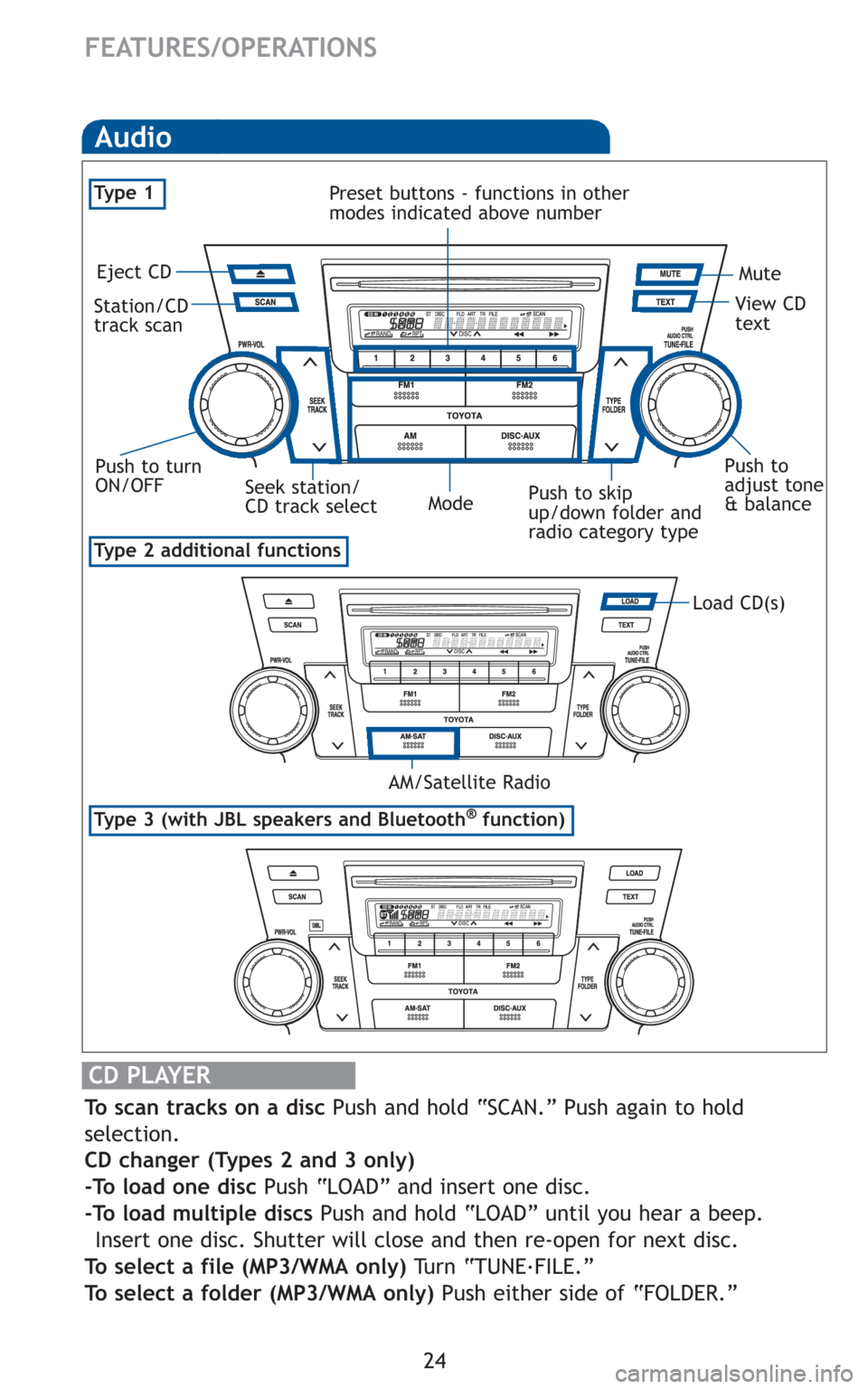

Type 2 additional functions
Type 3 (with JBL speakers and Bluetooth®function)
Audio
Eject CD
Push to turn
ON/OFFView CD
text
Seek station/
CD track select Station/CD
track scan
Mode
AM/Satellite Radio Preset buttons - functions in other
modes indicated above number
Load CD(s)
Ty p e 1
Push to skip
up/down folder and
radio category type
CD PLAYER
To scan tracks on a discPush and hold “SCAN.” Push again to hold
selection.
CD changer (Types 2 and 3 only)
-To load one discPush “LOAD” and insert one disc.
-To load multiple discsPush and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
Toselectafile(MP3/WMAonly)Tu r n “ T U N E.
FILE.”
To select a folder (MP3/WMA only)Push either side of “FOLDER.”
Push to
adjust tone
& balance
Mute

25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

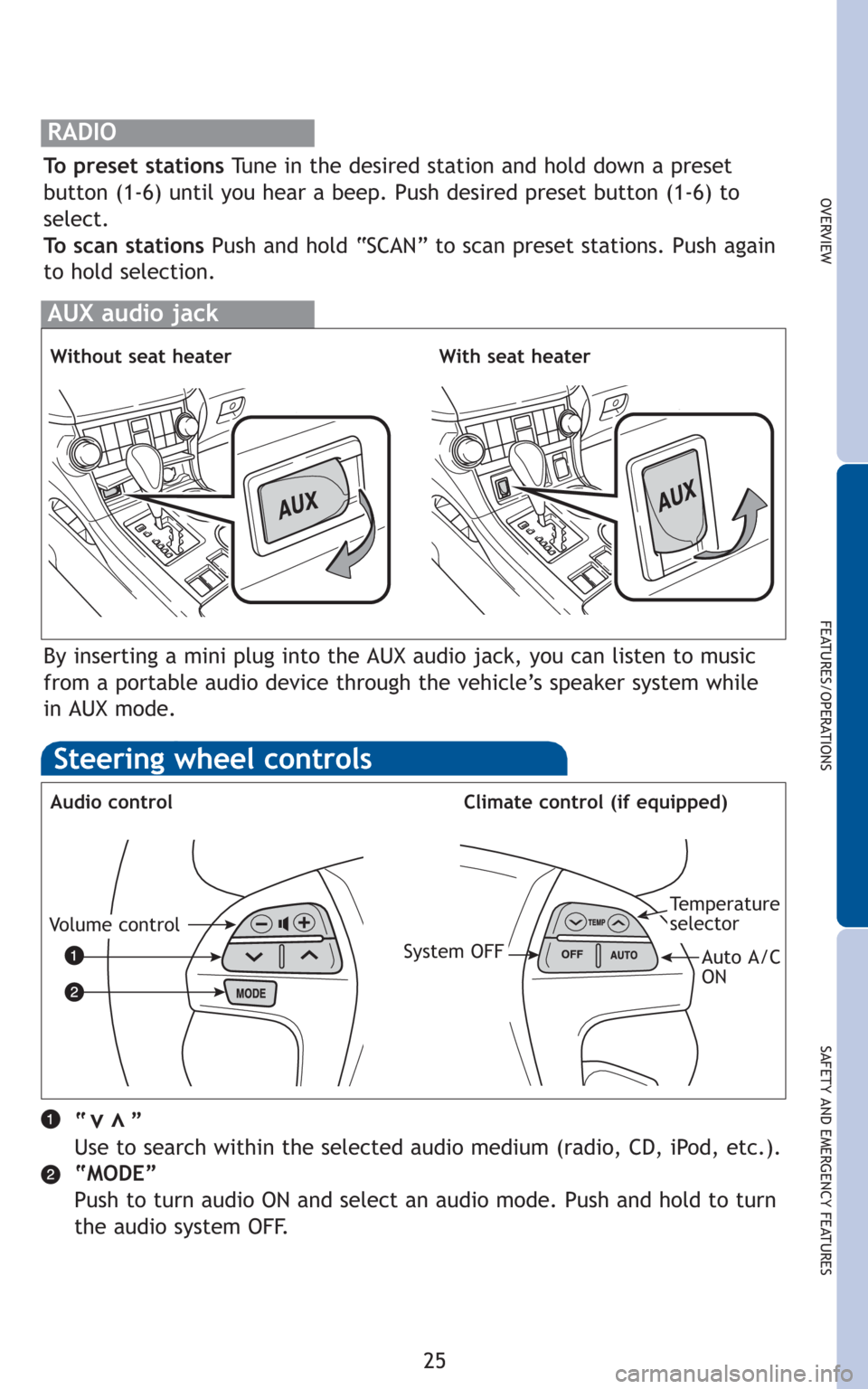

RADIO
To preset stationsTune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stationsPush and hold “SCAN” to scan preset stations. Push again
to hold selection.
Steering wheel controls
Audio controlClimate control (if equipped)
“”
Use to search within the selected audio medium (radio, CD, iPod, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system OFF.vv
Volume controlTemperature
selector
Auto A/C
ONSystem OFF
By inserting a mini plug into the AUX audio jack, you can listen to music
from a portable audio device through the vehicle’s speaker system while
in AUX mode.
AUX audio jack
Without seat heaterWith seat heater

26
FEATURES/OPERATIONS

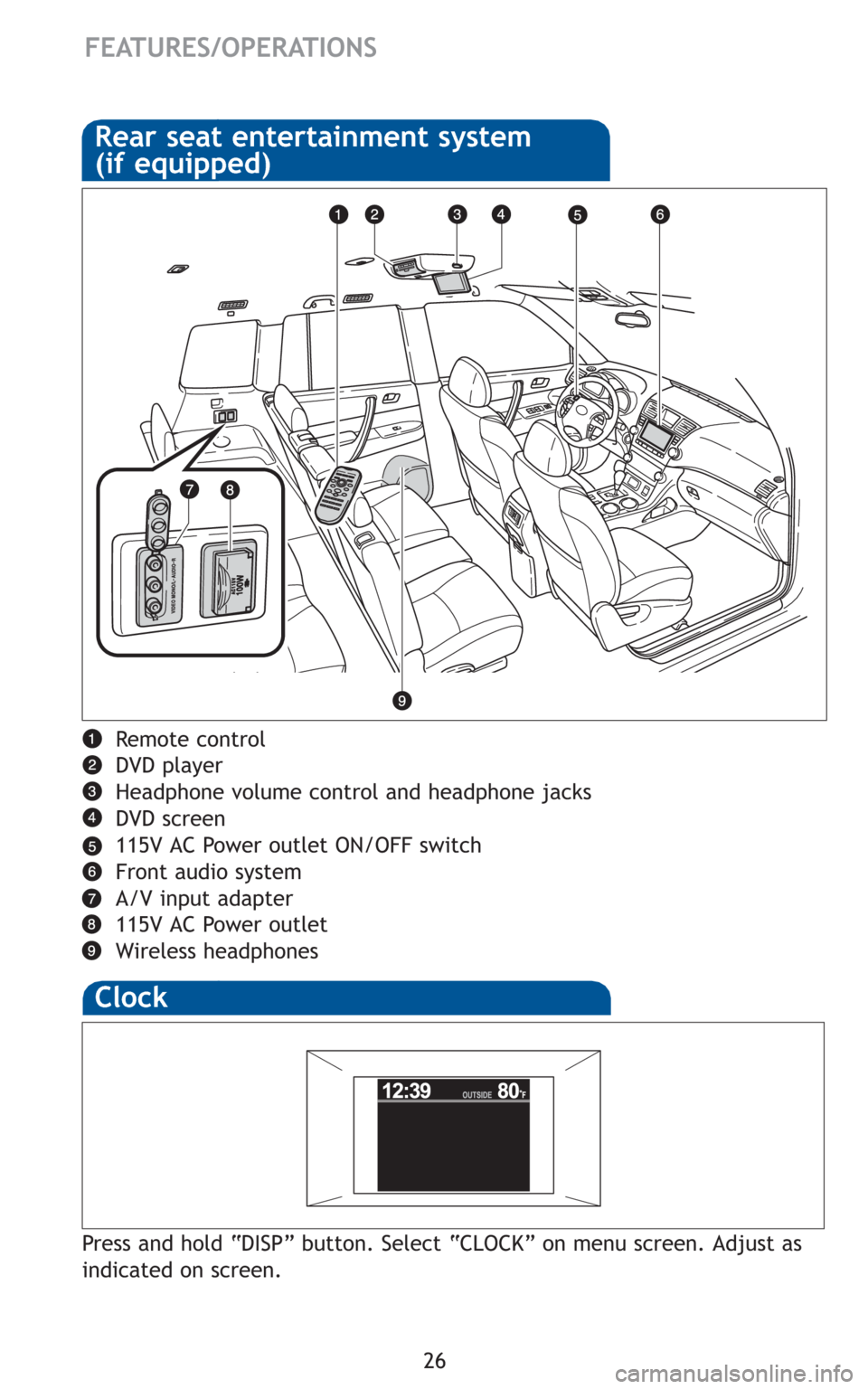

Rear seat entertainment system
(if equipped)
Remote control
DVD player
Headphone volume control and headphone jacks
DVD screen
115V AC Power outlet ON/OFF switch
Front audio system
A/V input adapter
115V AC Power outlet
Wireless headphones
Clock
Press and hold “DISP” button. Select “CLOCK” on menu screen. Adjust as
indicated on screen.

27
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

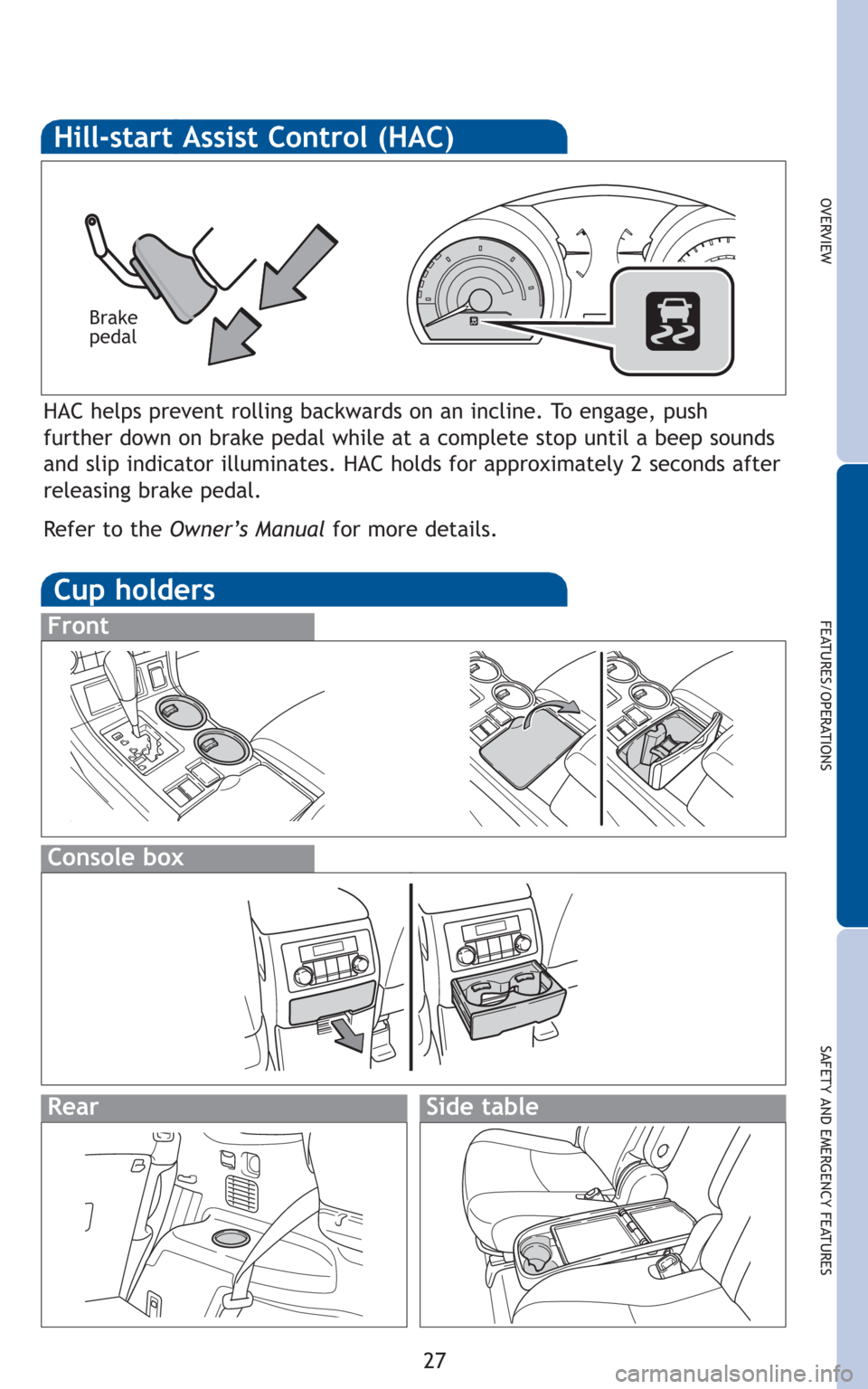

Cup holders
Front
Console box
RearSide table
HAC helps prevent rolling backwards on an incline. To engage, push
further down on brake pedal while at a complete stop until a beep sounds
and slip indicator illuminates. HAC holds for approximately 2 seconds after
releasing brake pedal.
Refer to theOwner’s Manualfor more details.
Brake
pedal
Hill-start Assist Control (HAC)

28
SAFETY AND EMERGENCY FEATURES

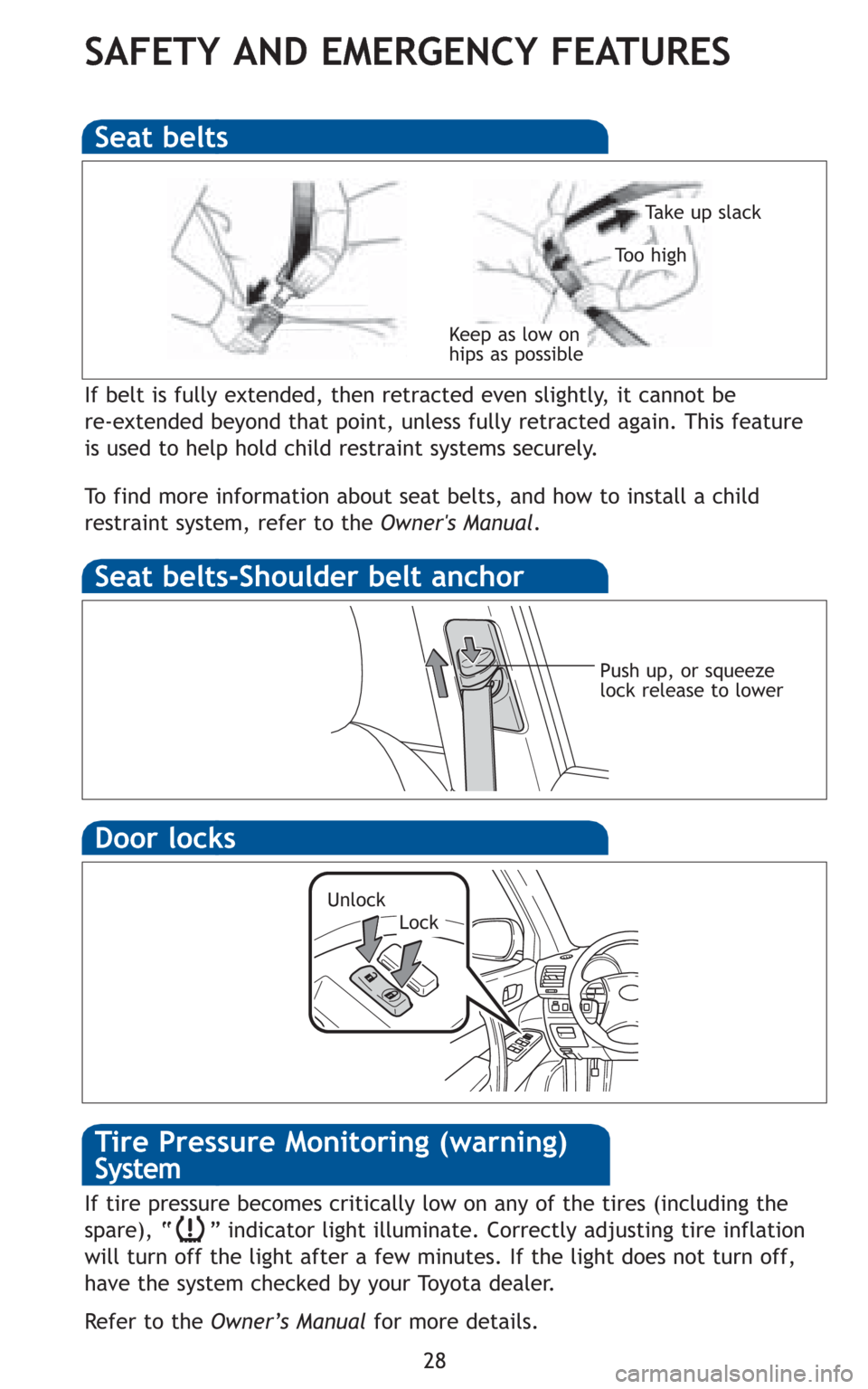

If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to theOwner's Manual.
Keep as low on
hips as possible
Take up slack
To o h i g h
Seat belts
Push up, or squeeze
lock release to lower
Seat belts-Shoulder belt anchor
Door locks
LockUnlock
If tire pressure becomes critically low on any of the tires (including the
spare), “ ” indicator light illuminate. Correctly adjusting tire inflation
will turn off the light after a few minutes. If the light does not turn off,
have the system checked by your Toyota dealer.
Refer to theOwner’s Manualfor more details.
Tire Pressure Monitoring (warning)
System
