TOYOTA HIGHLANDER HYBRID 2012 XU40 / 2.G Owners Manual

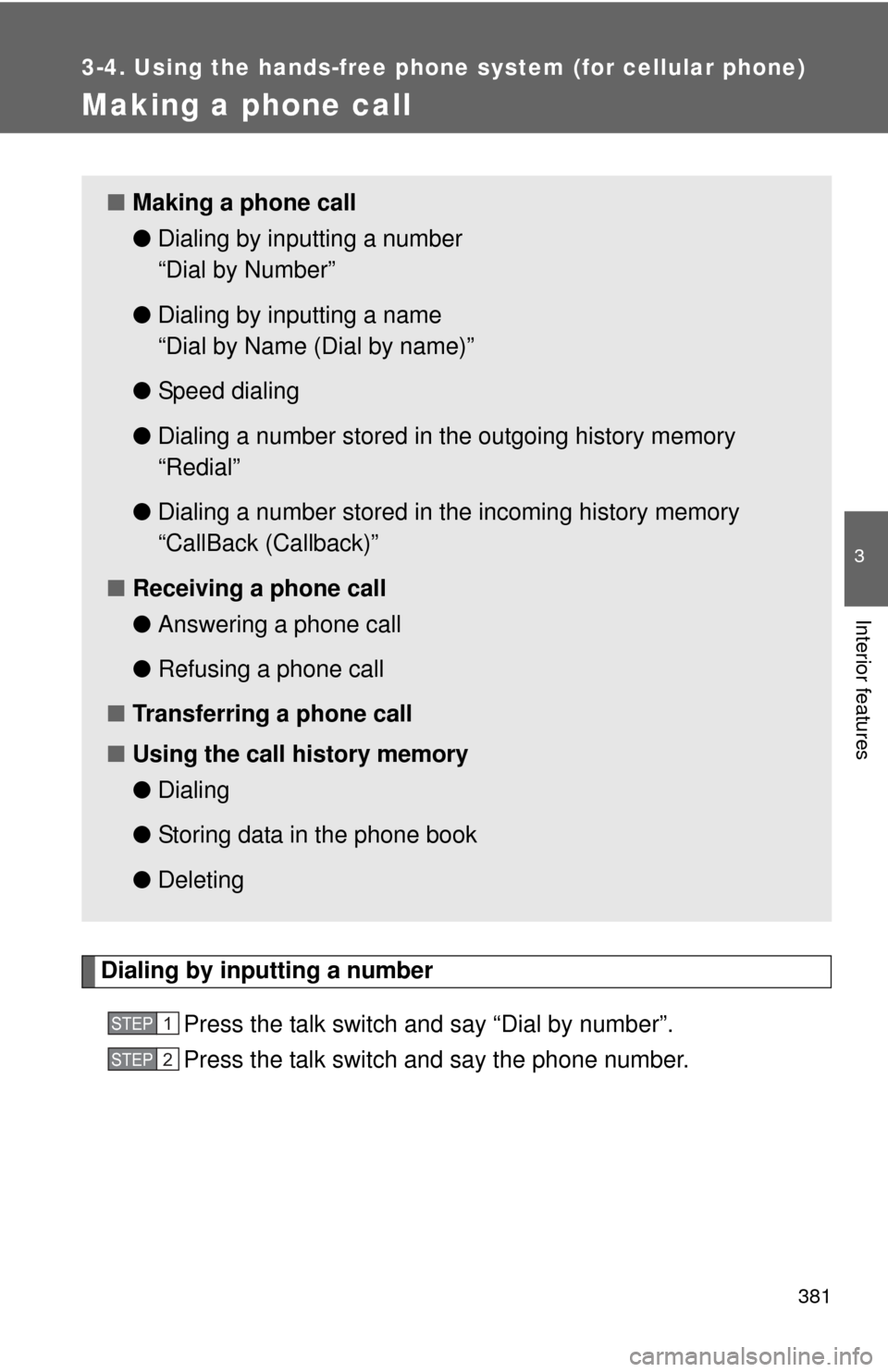

381
3-4. Using the hands-free phone system (for cellular phone)
3
Interior features
Making a phone call
Dialing by inputting a numberPress the talk switch and say “Dial by number”.
Press the talk switch and say the phone number.
■Making a phone call
●Dialing by inputting a number
“Dial by Number”
● Dialing by inputting a name
“Dial by Name (Dial by name)”
● Speed dialing
● Dialing a number stored in the outgoing history memory
“Redial”
● Dialing a number stored in the incoming history memory
“CallBack (Callback)”
■ Receiving a phone call
●Answering a phone call
● Refusing a phone call
■ Transferring a phone call
■ Using the call history memory
●Dialing
● Storing data in the phone book
● Deleting
STEP1
STEP2

382 3-4. Using the hands-free phone system (for cellular phone)
Dial by one of the following methods:
a. Press the off-hook switch.
b. Press the talk switch and say “Dial”.
c. Select “Dial” using .
Dialing by inputting a name
Press the talk switch and say “Dial by name”.
Select a registered name to be input by either of the following
methods:
a. Press the talk switch and say a registered name.
b. Press the talk switch and sa y “List names”. Press the talk
switch while the desired name is being read aloud.
Dial by one of the following methods:
a. Press the off-hook switch.
b. Press the talk switch and say “Dial”.
c. Select “Dial” using .
Speed dialing
Press the off-hook switch.
Press the preset button to which the desired number is regis-
tered.
Press the off-hook switch.
STEP3
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3

383
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior features
When receiving a phone call
■ Answering a phone call
Press the off-hook switch.
■ Refusing a phone call
Press the on-hook switch.
Transferring a phone call
A call can be transferred between the cellular phone and system
while dialing, receiving a call, or during a call. Use one of the follow-
ing methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
b. Press the off-hook switch*1.
c. Press the talk switch and say “Call transfer”
*2.
*1: This operation can be performed only when transferring a call from the cellular phone to the system during a call.
*2: While the vehicle is in motion , a call cannot be transferred from
the system to the cellular phone. Also, this operation is invalid
while dialing or receiving a call.
Using the call history memory
Follow the procedure below to use a number stored in the call history
memory: Press the talk switch and say “Redial” (when using a number
stored in the outgoing call history memory) or “Callback”
(when using a number stored in the incoming call history
memory).
STEP1

384 3-4. Using the hands-free phone system (for cellular phone)
Select the number by either of the following methods:
a. Say “Previous” or “Go back” until the desired number is dis-
played.
b. Select the desired number using .
The following operations can be performed: Dialing: Press the off-hook switch or select “Dial” using a voice
command or .
Storing the number in the phone book: Select “Store” using a voice
command or .
Deleting: Select “Delete” using a voice command or .
■Call history
Up to 5 numbers can be stored in each of the outgoing and incoming call his-
tory memories.
■ When talking on the phone
●Do not talk at the same time as the other party.
● Keep the volume of the incoming voice down. Otherwise, voice echo will
increase.
STEP2

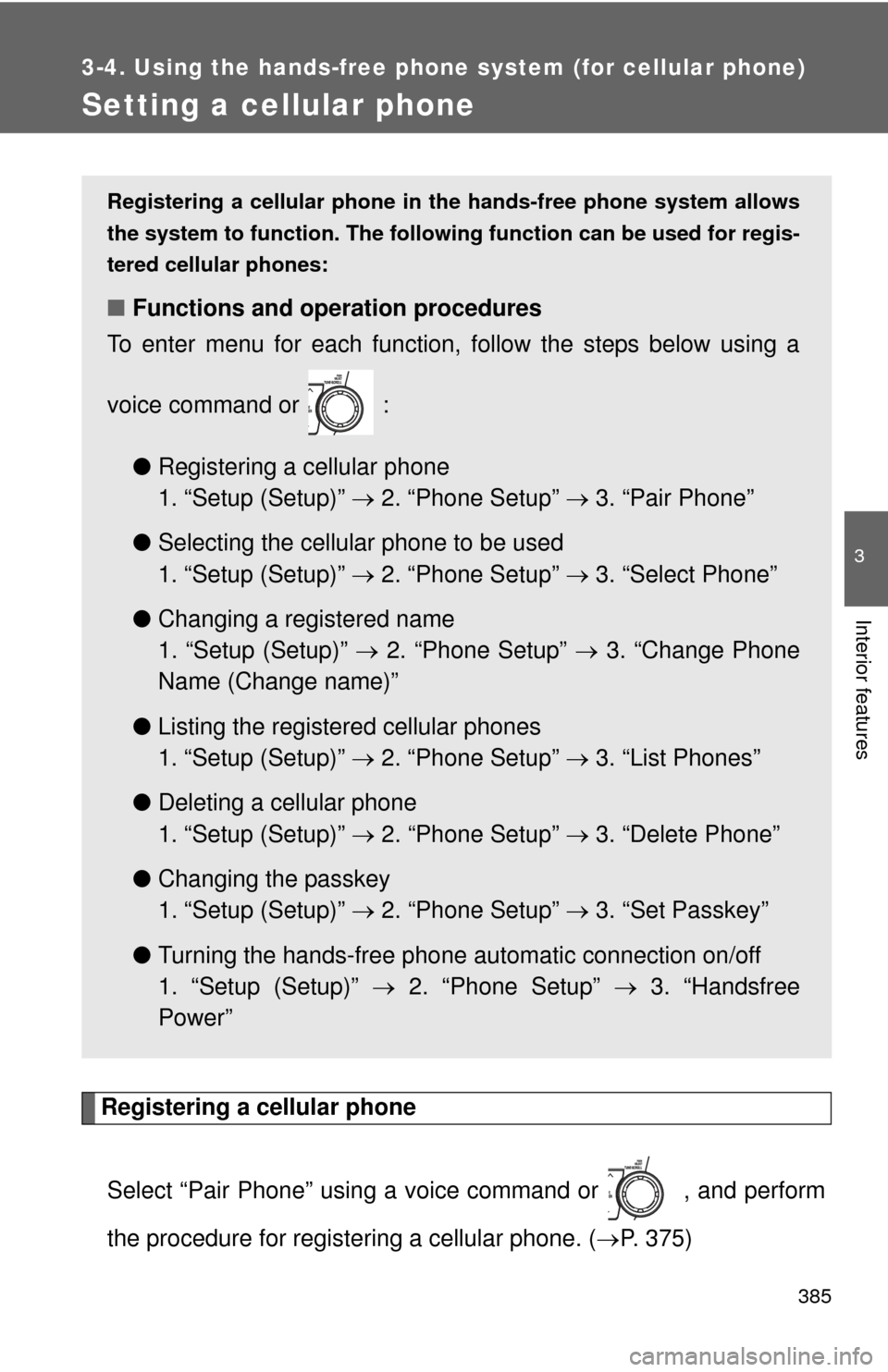

385
3-4. Using the hands-free phone system (for cellular phone)
3
Interior features
Setting a cellular phone
Registering a cellular phoneSelect “Pair Phone” using a voice command or , and perform
the procedure for registering a cellular phone. ( P. 375)
Registering a cellular phone in the hands-free phone system allows
the system to function. The following function can be used for regis-
tered cellular phones:
■ Functions and operation procedures
To enter menu for each function, follow the steps below using a
voice command or :
●Registering a cellular phone
1. “Setup (Setup)”  2. “Phone Setup”  3. “Pair Phone”
● Selecting the cellular phone to be used
1. “Setup (Setup)”  2. “Phone Setup”  3. “Select Phone”
● Changing a registered name
1. “Setup (Setup)”  2. “Phone Setup”  3. “Change Phone
Name (Change name)”
● Listing the registered cellular phones
1. “Setup (Setup)”  2. “Phone Setup”  3. “List Phones”
● Deleting a cellular phone
1. “Setup (Setup)”  2. “Phone Setup”  3. “Delete Phone”
● Changing the passkey
1. “Setup (Setup)”  2. “Phone Setup”  3. “Set Passkey”
● Turning the hands-free phone automatic connection on/off
1. “Setup (Setup)”  2. “Phone Setup”  3. “Handsfree
Power”

386 3-4. Using the hands-free phone system (for cellular phone)
Selecting a cellular phone to be used
Select “Select Phone” using a voice command or .
Pattern A Select a cellular phone to be used by either of the following
methods, and select “Confirm” using a voice command or
:
a. Press the talk switch and say the desired phone name.
b. Press the talk switch and say “List phones”. While the name of the desired cellular phone is being read aloud, press the
talk switch.
Pattern B Select a cellular phone to be used using .
Changing a registered name
Select “Change Phone Name (Change name)” using a voice
command or .
Select the name of the cellular phone to be changed by either
of the following methods:
a. Press the talk switch and say the desired phone name, and
select “Confirm” using a voice command or .
b. Press the talk switch and say “List phones”. While the desired phone name is being read aloud, press the talk
switch.
c. Select the desired phone name using .
STEP1
STEP2
STEP2
STEP1
STEP2

387
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior features
Press the talk switch or select “Record Name” using ,
and say a new name.
Select “Confirm” using a voice command or .
Listing the registered cellular phones
Selecting “List Phones” using a voice command or causes the
list of registered cellular phones to be read aloud.
When listing is complete, the system returns to “Phone Setup”.
Pressing the talk switch while the name of a cellular phone is being
read selects the cellular phone, and the following functions will be
available:
• Selecting a cellular phone: “Select Phone”
• Changing a registered name: “Change Name”
• Deleting a cellular phone: “Delete Phone”
STEP3
STEP4

388 3-4. Using the hands-free phone system (for cellular phone)
Deleting a cellular phone
Select “Delete Phone” using a voice command or .
Select a cellular phone to be deleted by either of the following
methods and select “Confirm” using a voice command or :
a. Press the talk switch and sa y the name of the desired cellu-
lar phone.
b. Press the talk switch and say “List phones”. While the name of the desired cellular phone is being read aloud, press the
talk switch.
Changing the passkey
Select “Set Passkey” us ing a voice command or .
Press the talk switch, say a 4 to 8-digit number, and select
“Confirm” using a voice command or .
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has
been input, press again.
STEP1
STEP2
STEP1
STEP2
STEP3

389
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior features
Turning the hands-free phone automatic connection on/off
■ Turning off the automatic connection
Select “Handsfree Power” using a voice command or .
Select “Turn off” using a voice command or .
■ Turning on the automatic connection
Select “Handsfree Power” using a voice command or .
Select “Turn on” using a voice command or .
■The number of cellular phones that can be registered
Up to 6 cellular phones can be registered in the system.
STEP1
STEP2
STEP1
STEP2

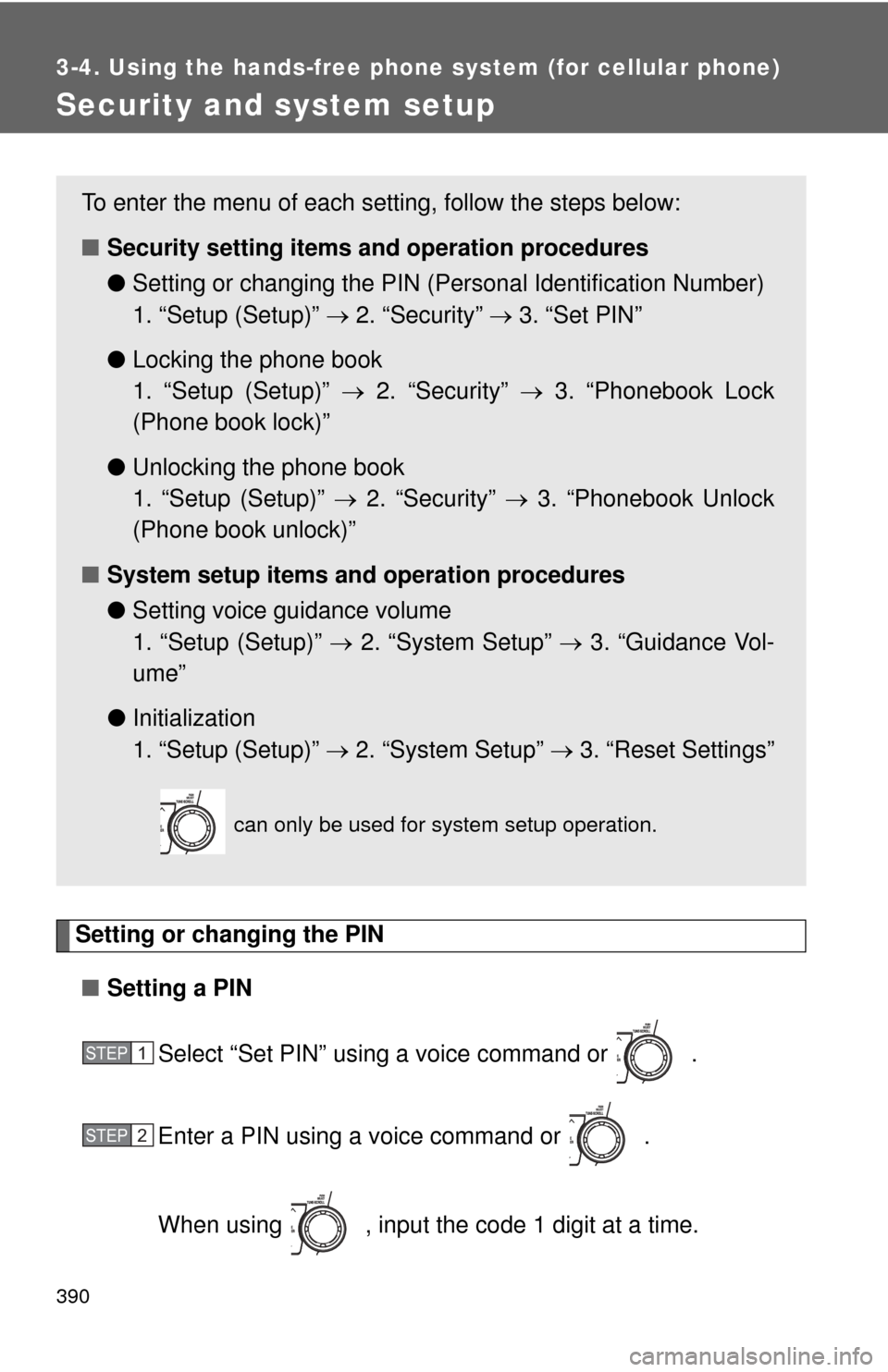

390
3-4. Using the hands-free phone system (for cellular phone)
Security and system setup
Setting or changing the PIN■ Setting a PIN
Select “Set PIN” using a voice command or .
Enter a PIN using a voice command or .
When using , input the code 1 digit at a time.
To enter the menu of each setting, follow the steps below:
■Security setting items and operation procedures
● Setting or changing t he PIN (Personal Identification Number)
1. “Setup (Setup)”  2. “Security”  3. “Set PIN”
● Locking the phone book
1. “Setup (Setup)”  2. “Security”  3. “Phonebook Lock
(Phone book lock)”
● Unlocking the phone book
1. “Setup (Setup)”  2. “Security”  3. “Phonebook Unlock
(Phone book unlock)”
■ System setup items and operation procedures
●Setting voice guidance volume
1. “Setup (Setup)”  2. “System Setup”  3. “Guidance Vol-
ume”
● Initialization
1. “Setup (Setup)”  2. “System Setup”  3. “Reset Settings”
can only be used for system setup operation.
STEP1
STEP2
