4-3. Do-it-yourself maintenance
Wireless remote control/electronic key batter y
Replace the battery with a new one if it is discharged.
■You will need the following items:
●Flathead screwdriver (To prevent damage to the key, cover
the tip of the screwdriver with a rag.)
● Small Phillips-hea d screwdriver
● Lithium battery CR2032 (vehicles without smart key system),
CR1632 (vehicles with smart key system)
■ Replacing the battery (vehicles without smart key system)

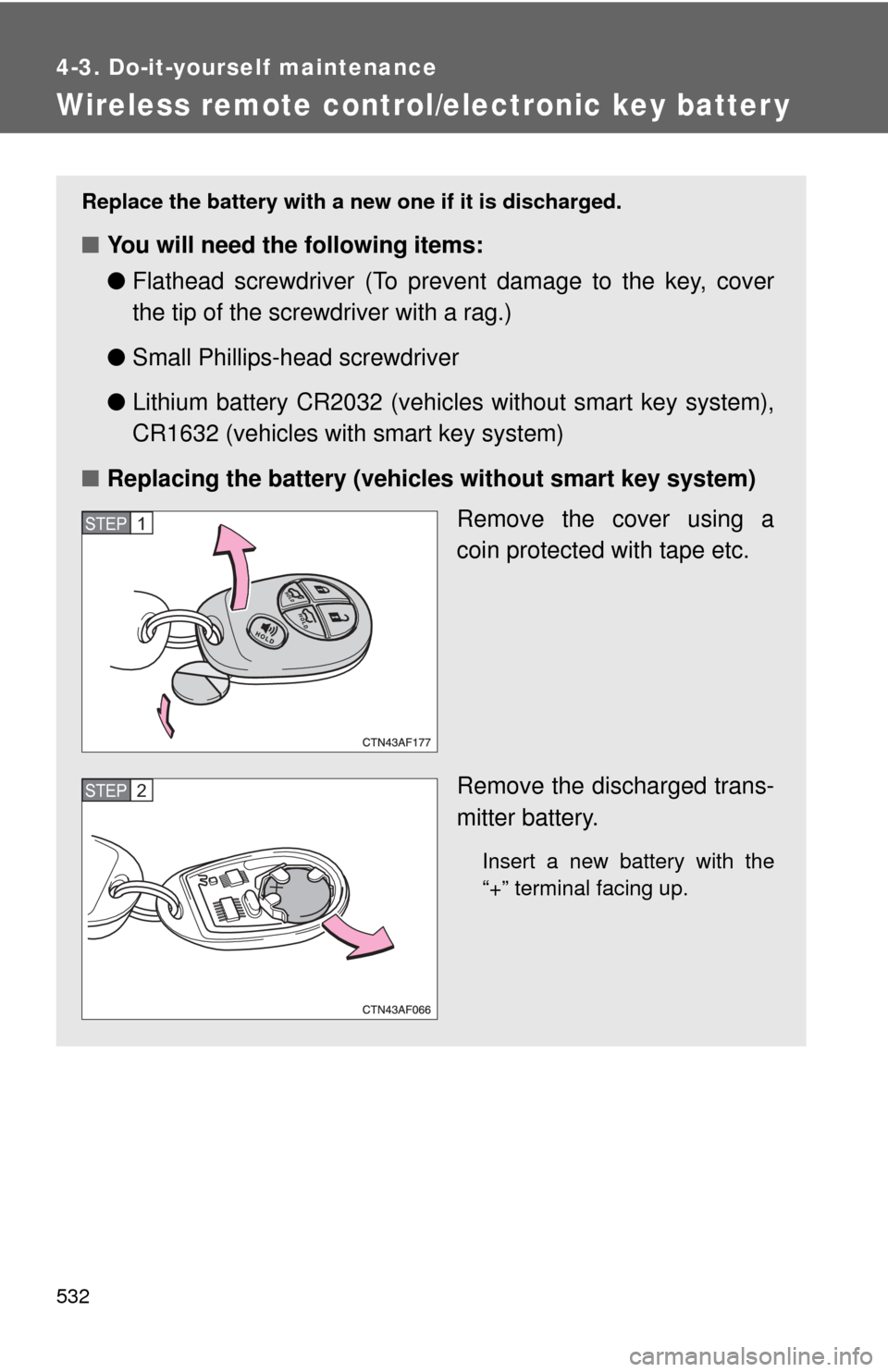

Remove the cover using a
coin protected with tape etc.
Remove the discharged trans-
mitter battery.
Insert a new battery with the
“+” terminal facing up.
STEP1
STEP2
534 4-3. Do-it-yourself maintenance
■If the electronic key battery is discharged
The following symptoms may occur.
●The smart key system and wireless remote control will not function prop-
erly.
● The operational range is reduced.
■ Use a CR2032 (vehicles without sm art key system) or CR1632 (vehicles
with smart key system) lithium battery
● Batteries can be purchased at your Toyota dealer, jewelers, or camera
stores.
● Replace only with the same or equivalent type recommended by your
Toyota dealer.
● Dispose of used batteries according to the local laws.
CAUTION
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the remote control.
● Do not bend either of the battery terminals.
535
4-3. Do-it-yourself maintenance
4
Maintenance and care
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without smart key system: Turn the engine switch
OFF.
Vehicles with smart key system: Turn the “POWER” switch
OFF.

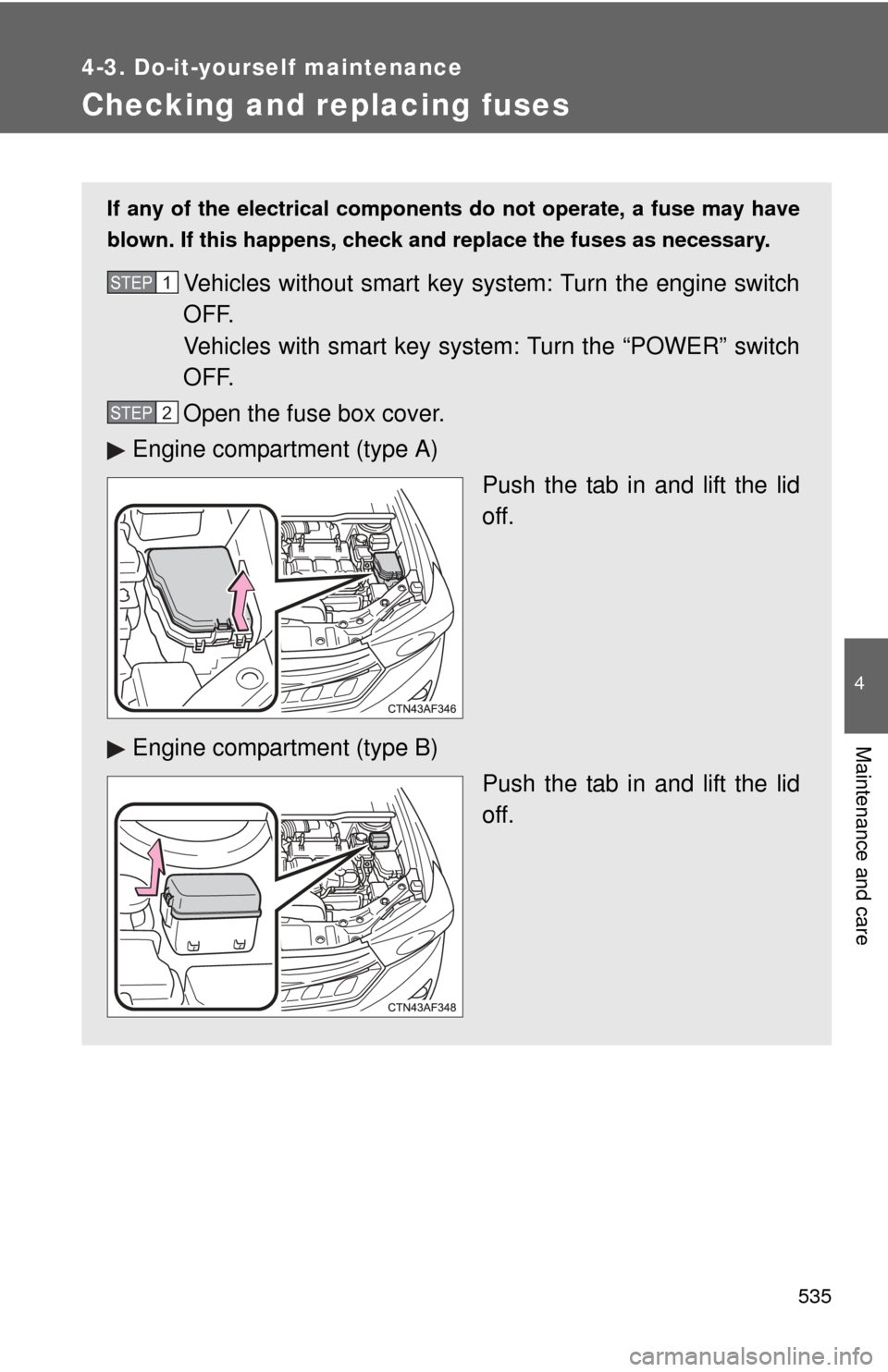

Open the fuse box cover.
Engine compartment (type A) Push the tab in and lift the lid
off.
Engine compartment (type B) Push the tab in and lift the lid
off.STEP1
STEP2
536 4-3. Do-it-yourself maintenance

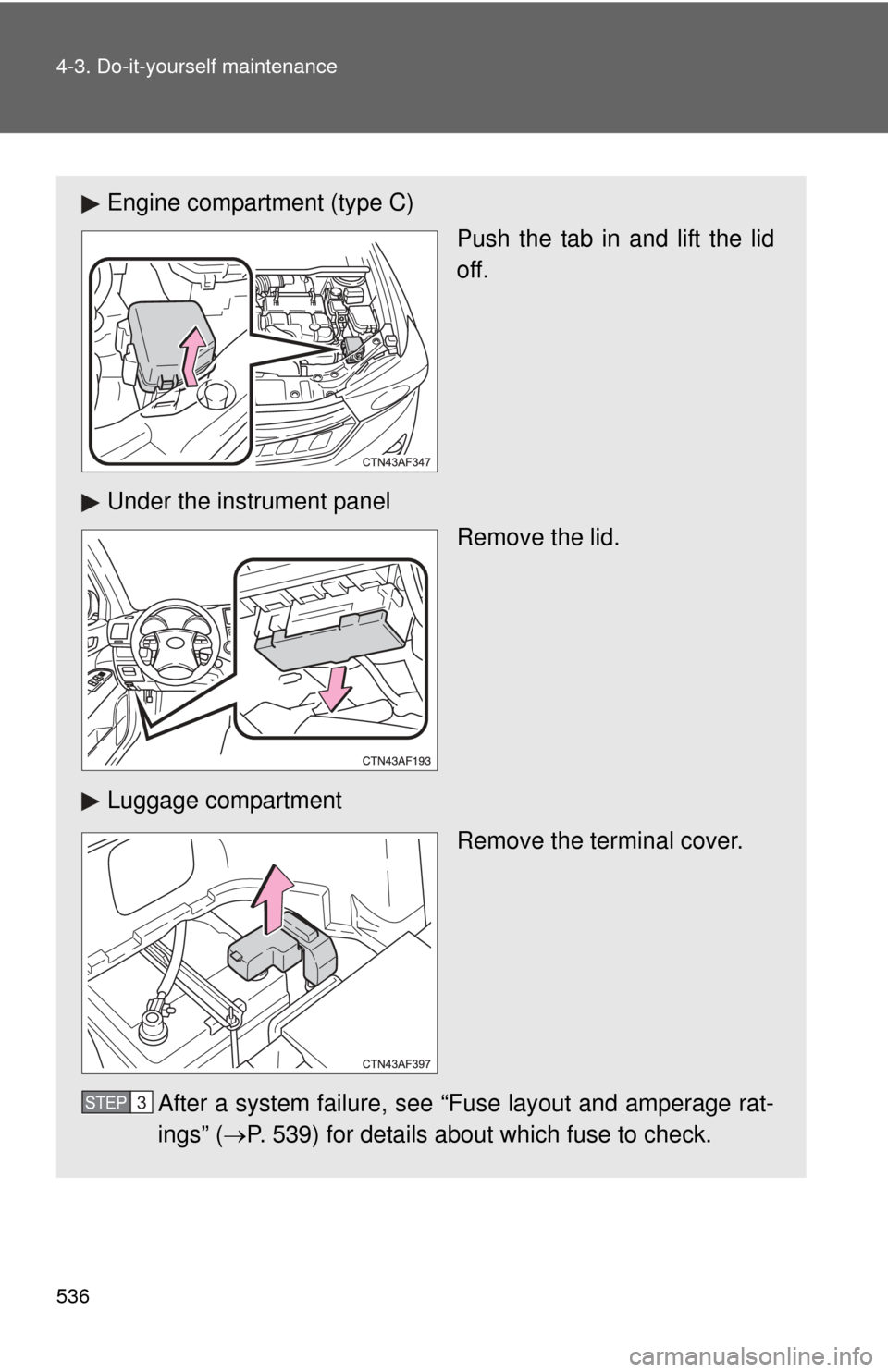

Engine compartment (type C)Push the tab in and lift the lid
off.
Under the instrument panel Remove the lid.
Luggage compartment Remove the terminal cover.
After a system failure, see “Fuse layout and amperage rat-
ings” ( P. 539) for details about which fuse to check.
STEP3

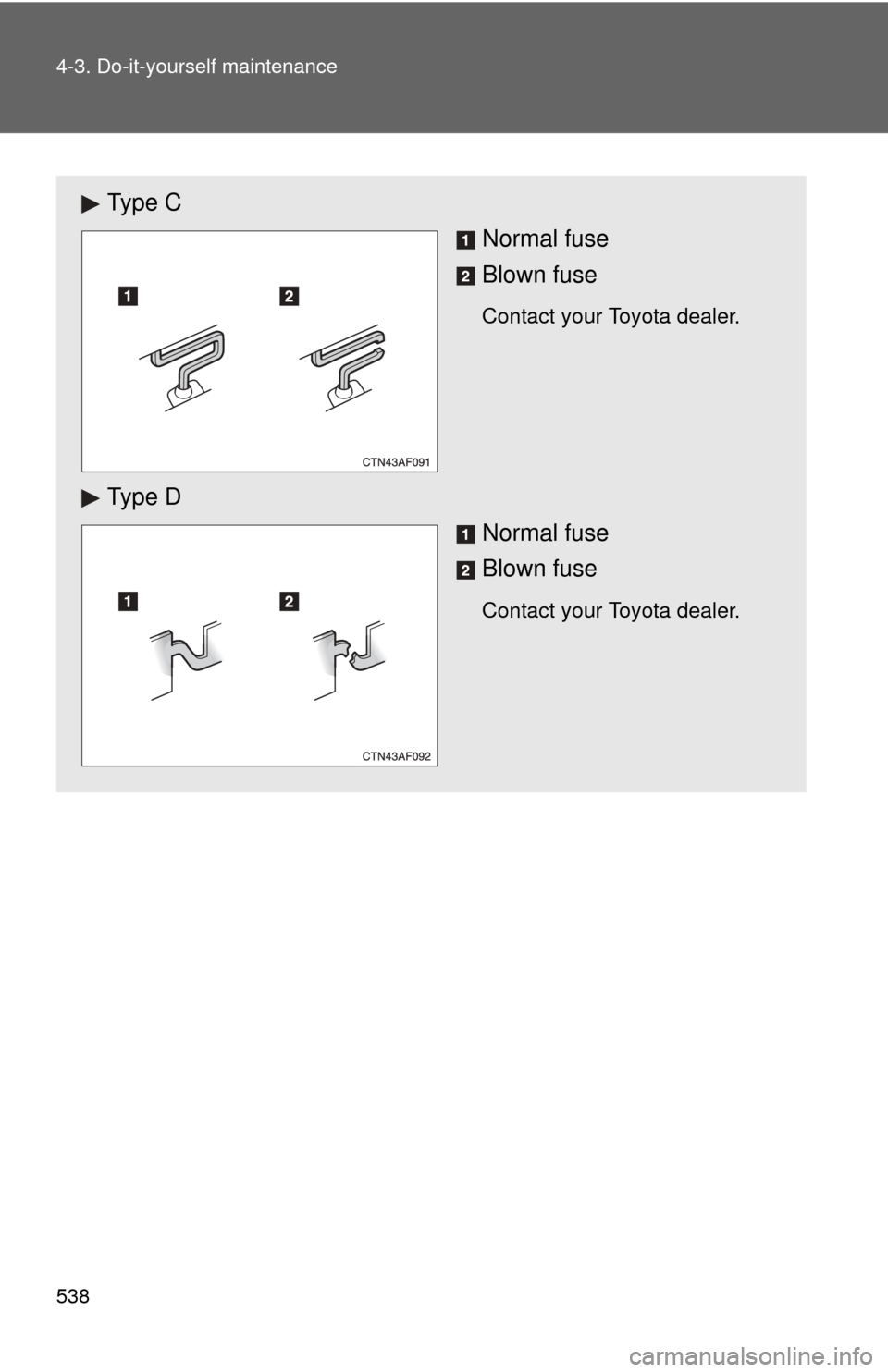

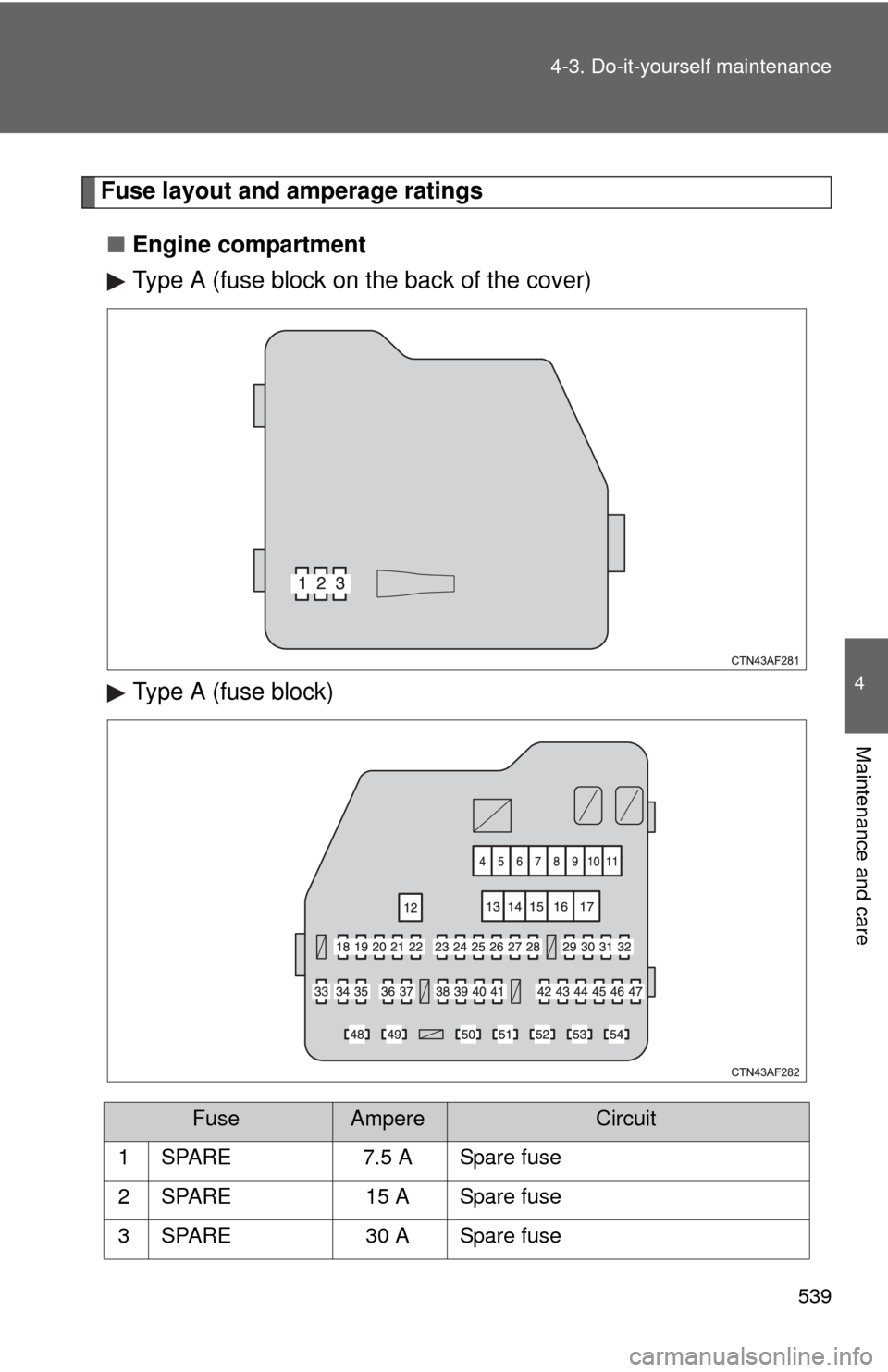

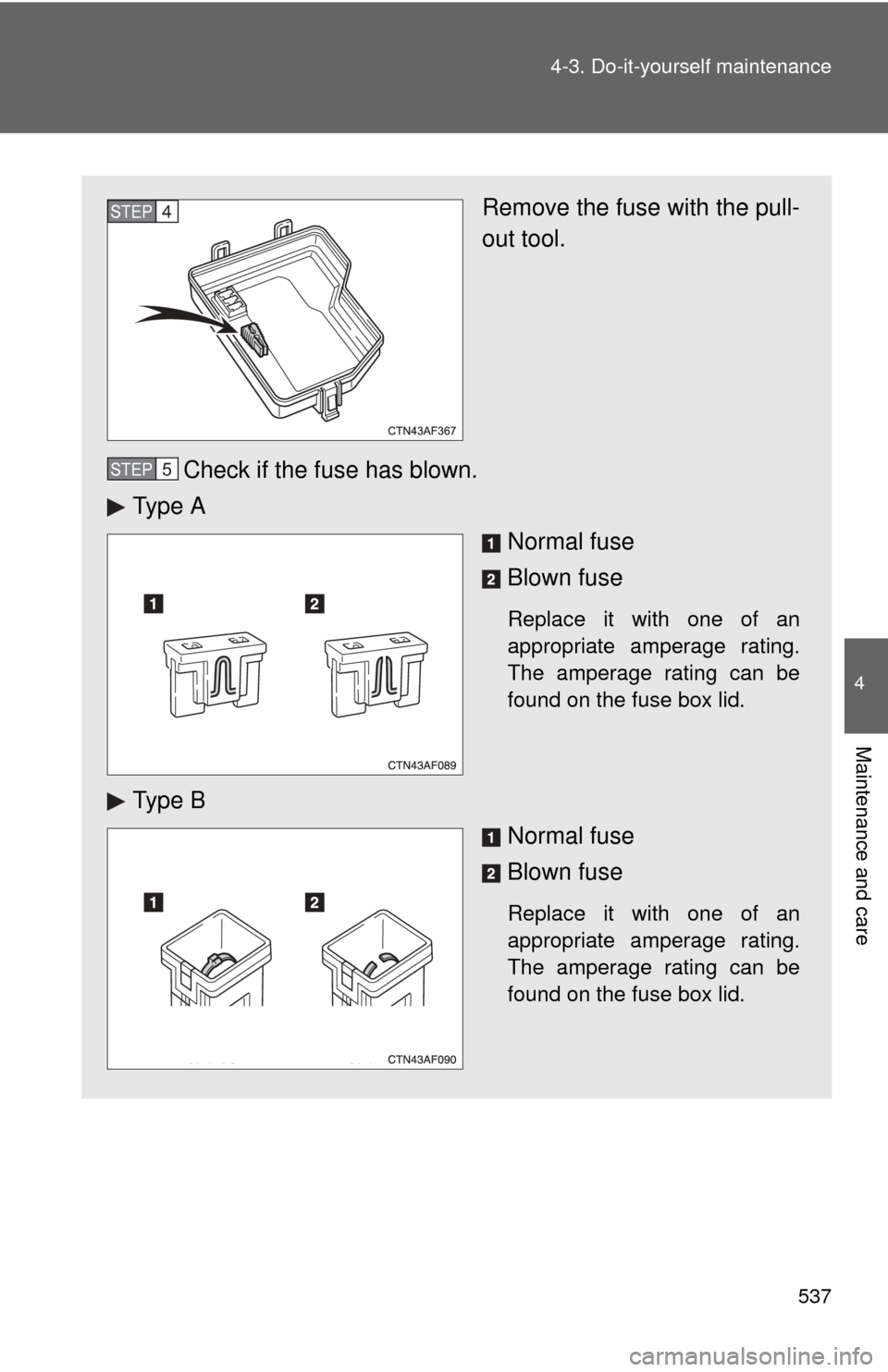

540 4-3. Do-it-yourself maintenance
4 HTR50 A Air conditioning system
5 FAN NO.1 50 A Electric cooling fan
6 FAN NO.2 50 A Electric cooling fan
7 ABS NO.1 50 A Brake system
8 RR CLR 40 A Air conditioning system
9 SPARE 40 A Spare fuse
10 RR DEF 30 A Rear window defogger
11 PBD 30 A Power back door
12 HV R/B NO.2 50 A ABS MAIN NO.1, ABS MAIN NO.2,
BATT FAN, OIL PMP
13 HV R/B NO.1 30 A Hybrid system, PCU, IGCT NO.2
IGCT NO.3, INV W/P
14 PD 50 AA/F, HORN, H-LP RH HI, H-LP LH
HI, H-LP RH LO, H-LP LH LO,
S-HORN
15 ABS NO.2 50 A Brake system
16 EPS 80 A Electric power steering
17 DC/DC 150 ARR DOOR RH, RR DOOR LH, FR
FOG, OBD, A/C W/PMP, STOP,
DOOR NO.2, AM1, P/SEAT(PS),
A/C NO.1, FUEL OPN, S/ROOF,
TAIL, PANEL, ECU IG NO.1, ECU
IG NO.2, A/C NO.2, WASH,
S-HTR, GAUGE NO.1, FR WIP,
RR WIP, ECU-ACC, ACC SOCK
NO.1, ACC SOCK NO.2, RADIO
NO.2, P/SEAT, POWER
18 EFI MAIN 30 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.1, EFI NO.2, EFI
NO.3, F/PMP
19 TOWING 30 A Trailer lights
FuseAmpereCircuit
